Basic Info.
Model NO.
can be customized
Type
Temperature Monitoring
Usage
Monitoring Temperature in Grain Steel Silos
Material
Plastic + Electronic Components
Function
Temperature Monitor
Useage
Grain Silo or Warehouse
Temperature Range
-30~ 70 ℃
Application
Grain Temperature Measuring
Transport Package
Plastic Film Packaging, Rolls, Can Be Customized
Specification
can be customized
Production Capacity
100000m/Year
Product Description
Wheat corn grain steel silos safety digital temperature sensor cables system for soybeans corn wheat long time storage

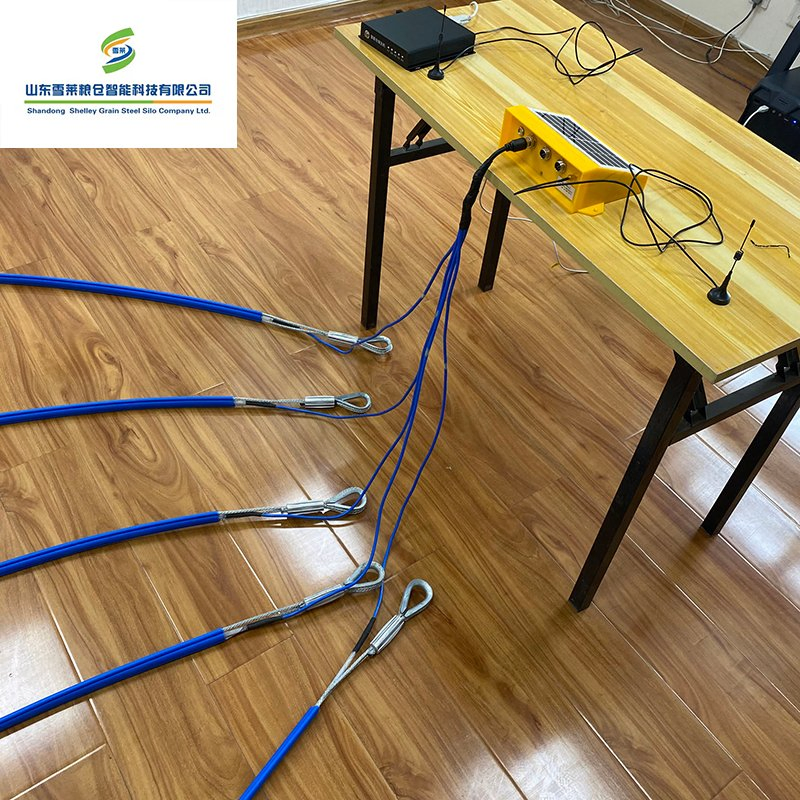

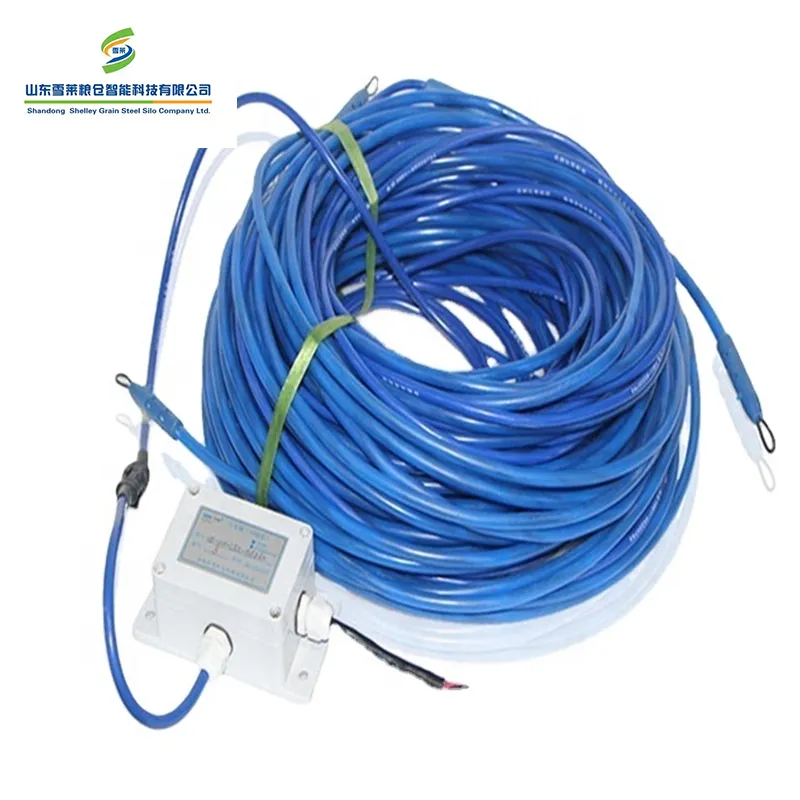

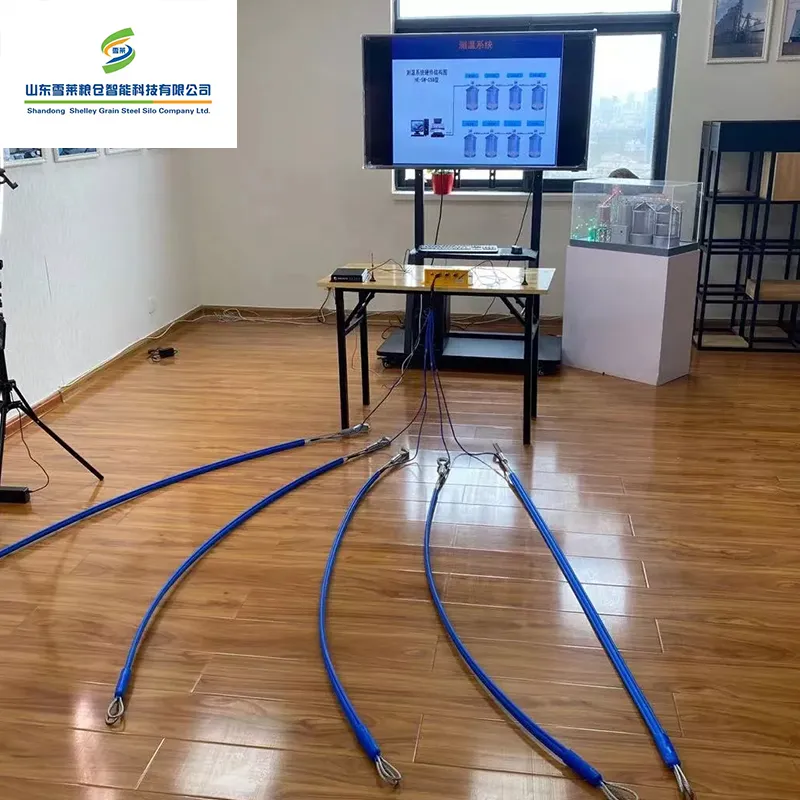

Temperature Monitoring System
Temperature Monitoring System is the key component of temperature sensor digital cable for grain temperature monitoring grain storage control system, customized cable line for temperature monitoring in silo. It is very important to keep the stored grains at the right temperature and prevent spoilage and loss of value. Temperature is the important factor to affect the grain quality. The temperature changes of stored products will indicate that there are problems inside the grain storage silos. Whenever grain rots or when there is a pest problem, the temperature in the silos will rise to indicate there is a problem. The temperature monitoring system is capable of measuring temperature changes inside the silos to enhance real time temperature monitoring.

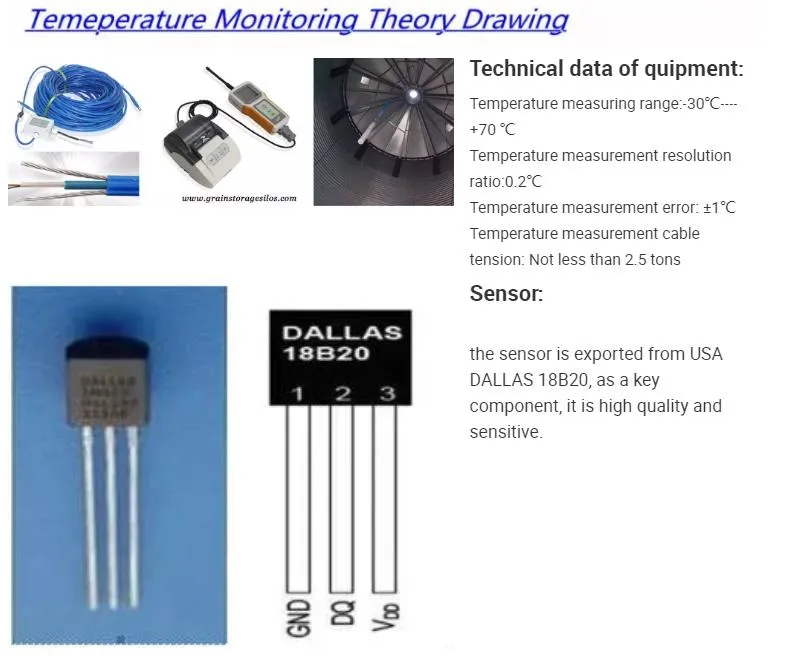

Technical Data of Equipment
◆
Temperature measuring range: -30ºC----+70 ºC
◆
Temperature measurement resolution ratio: 0.2ºC
◆
Temperature measurement error: ±1ºC
◆

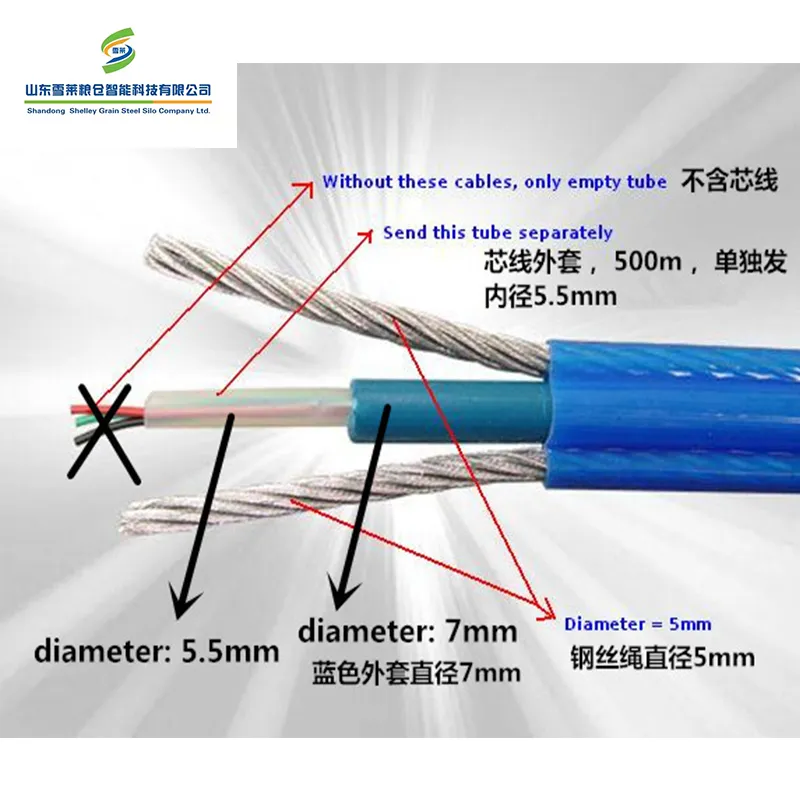

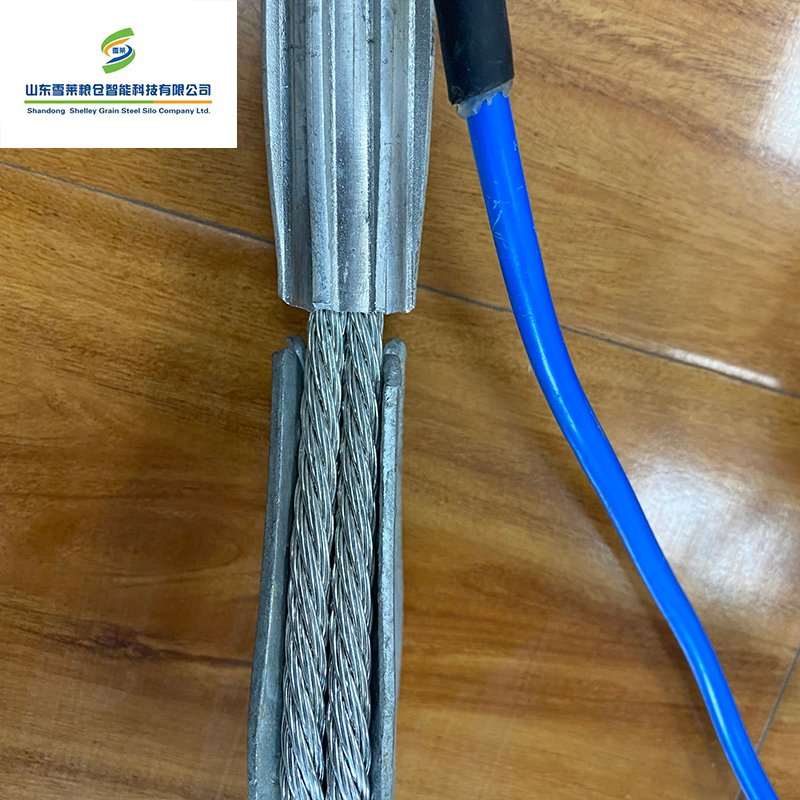

Temperature measurement cable tension: Not less than 2.5 tons
Sensor
The sensor is imported from USA DALLAS 18B20, as a key component, it is high quality and sensitive.

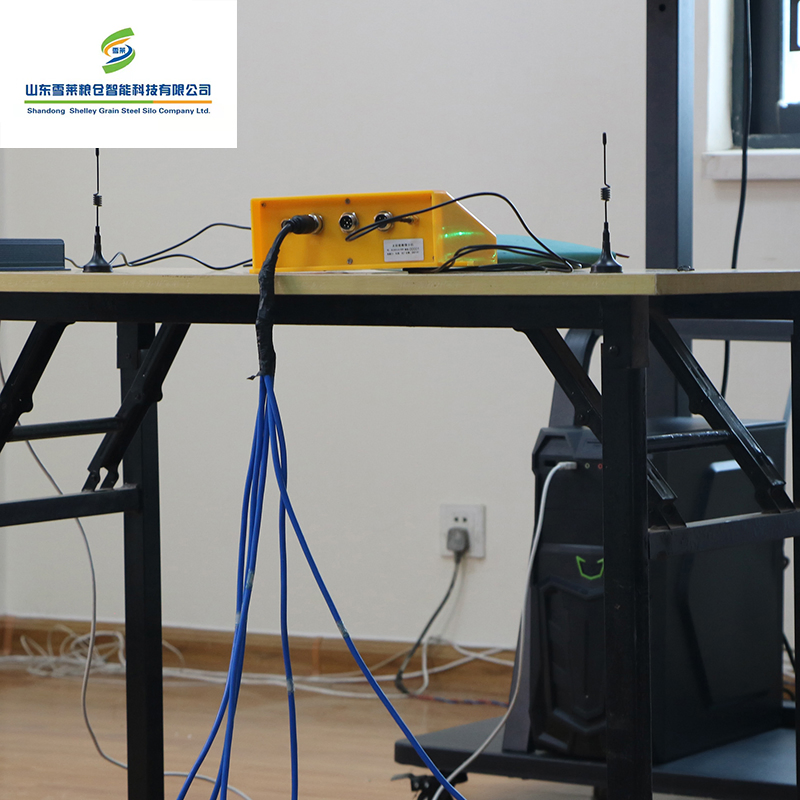

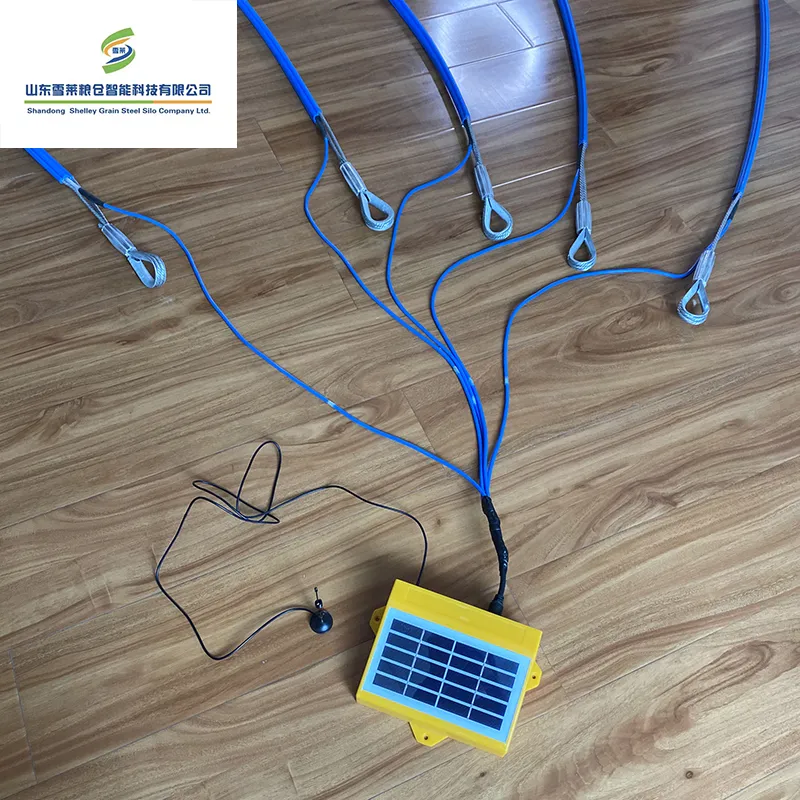

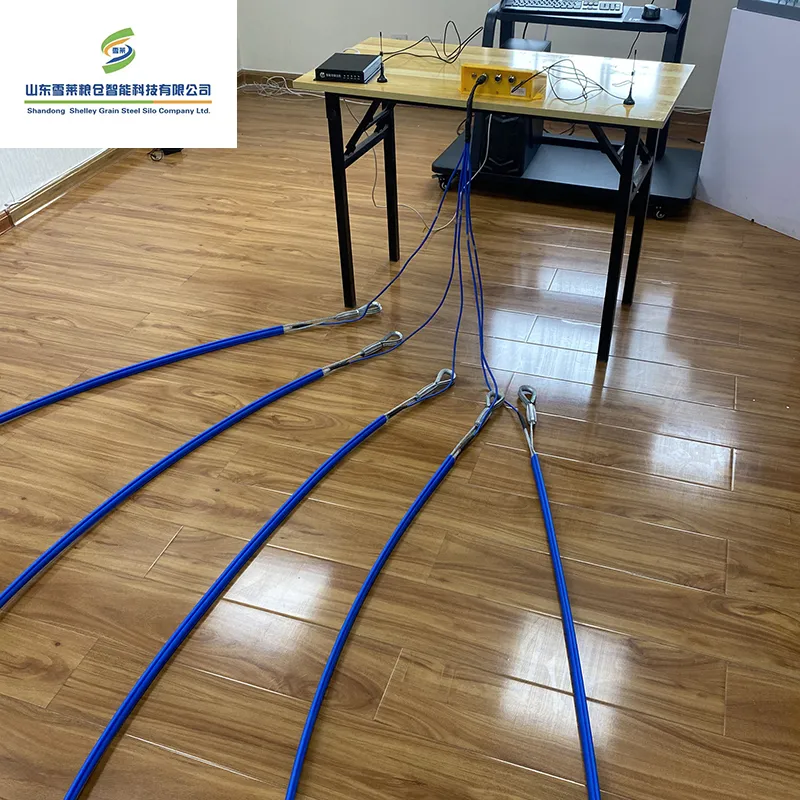

Temperature Monitoring Boxes
Specification Table
| ITEM |
MODEL |
QTY |
Remark |
| Computer |
- |
1 set |
- |
| Printer |
- |
1 set |
- |
| Temperature measuring software |
BL-11 |
1 set |
- |
| Host |
BL-11 |
1 set |
- |
| Extension |
BL-11 |
4 sets |
- |
| Extension of humidity measuring |
BL-11 |
2 sets |
- |

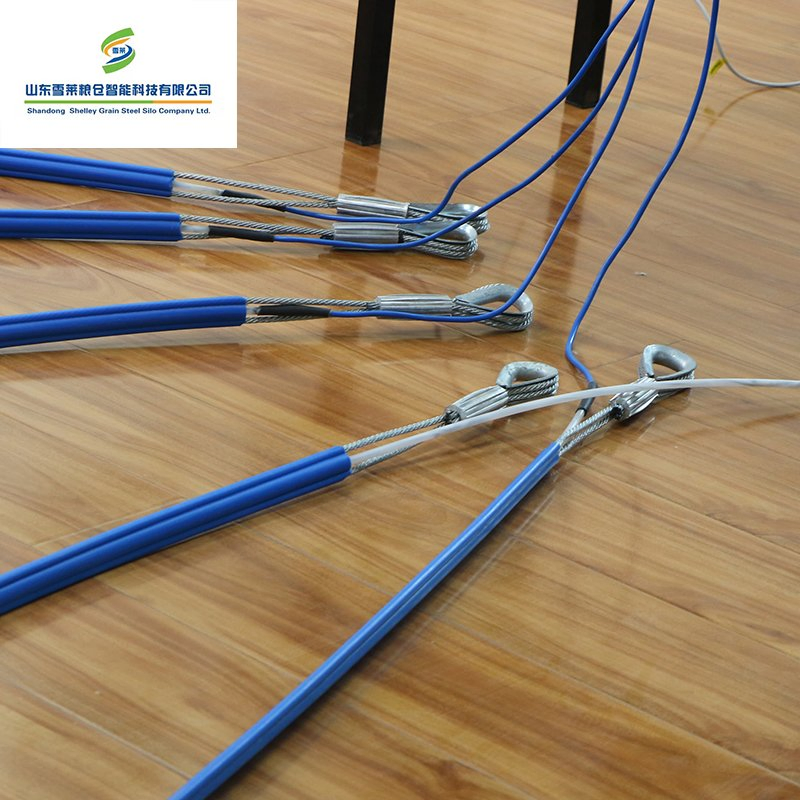

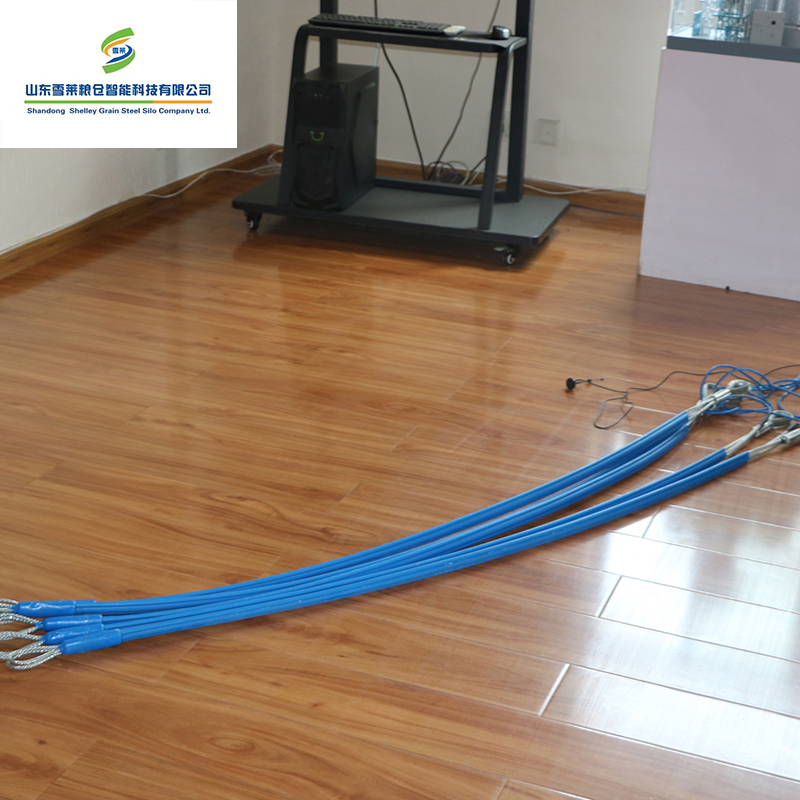

| Temperature monitoring cables |
8points/14m |
60pcs |
Each silos have 6 temperature measuring lines, each line have 8 temperature measuring points. |
| Humidity sensor |
1500 |
11 pcs |
- |

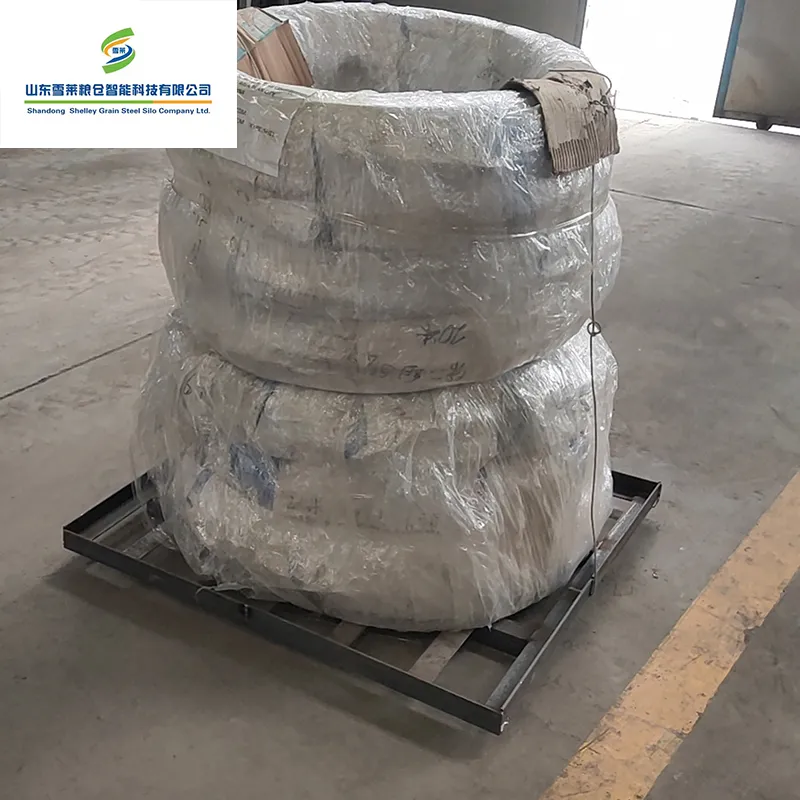

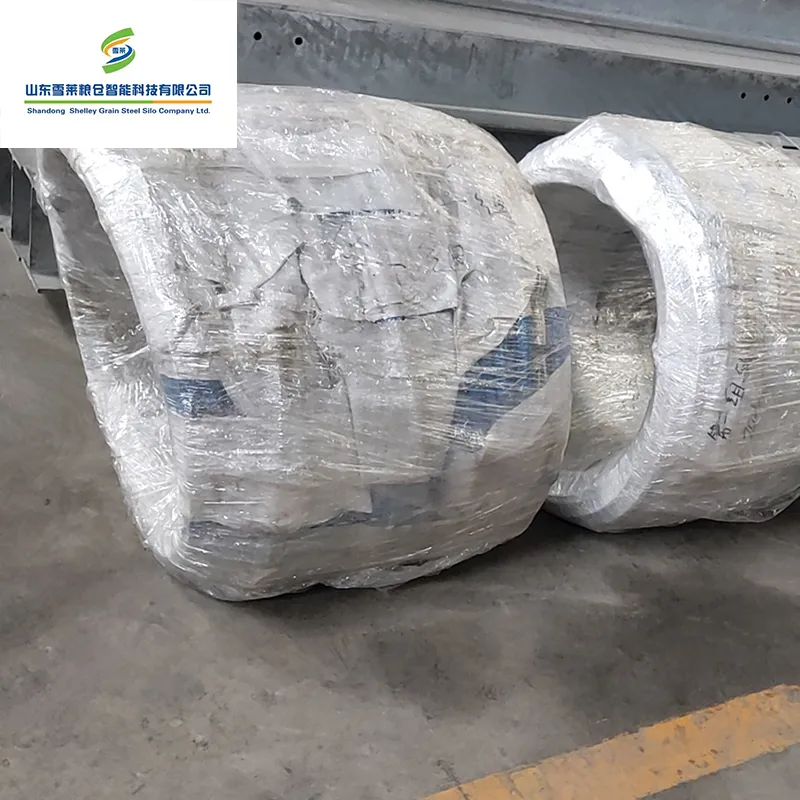

Packing & Delivery
Plastic + Electronic Components, can be customized. PE Film in roll and then in pallet or package according to customers' special request.
Certificates
With good quality and service, our silos are famous globally, and hold many certificates. Some certificates below are for reference:
Customer Visits
Many customers are interested in our silos and they visited our factory to discuss more grain silos projects. Warmly welcome you all to visit the factory and have a deep discussion.
Frequently Asked Questions
❓ What certifications do you have for the silos?
ISO certification, BV certification and CE certification.
❓ What is the export customs code of your product?
The export HS code is 7309000000.
❓ What is your standard payment method?
30% advance payment for foreign projects, with full balance settled before delivery.
❓ Can you do custom design and production?
The selection of prefabricated steel silos is fixed, and the diameter cannot be changed. If other silos such as flour silos, cement silos, and square silos are required, they can be customized for production.
❓ How does the installation process work?
For overseas installation, we generally dispatch 1-2 technicians to guide the local installation team on-site.
❓ What materials are used for your steel silos?
At the top of the warehouse, the barrel is a galvanized steel sheet. The cone bottom with a diameter of 4.5m is galvanized sheet, and the cone bottom with a diameter of 4.5 to 11m is a carbon steel sheet.
