Suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.
Product Advantages: With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
Detailed Description

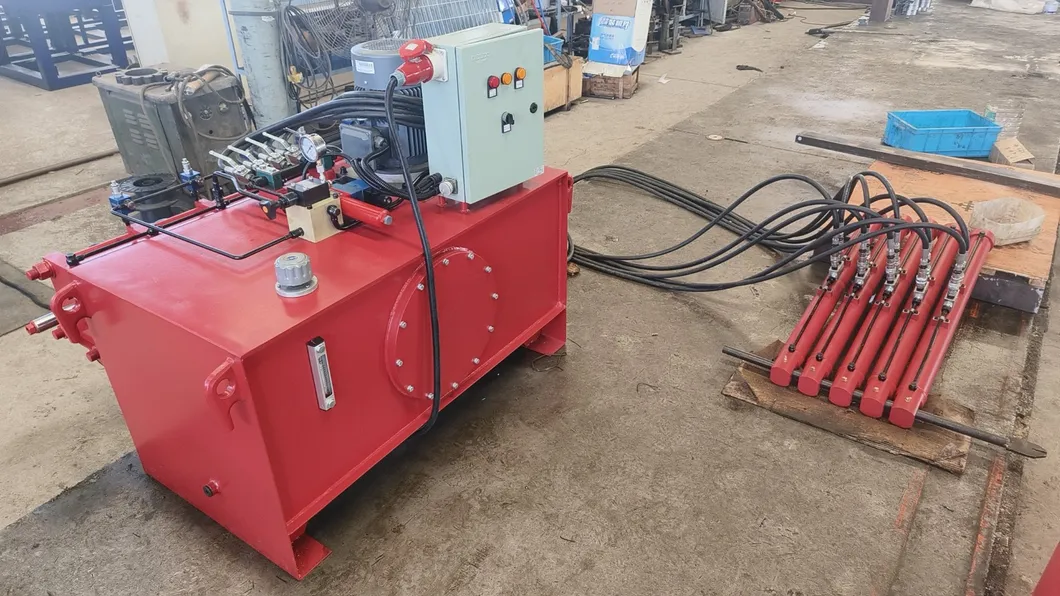

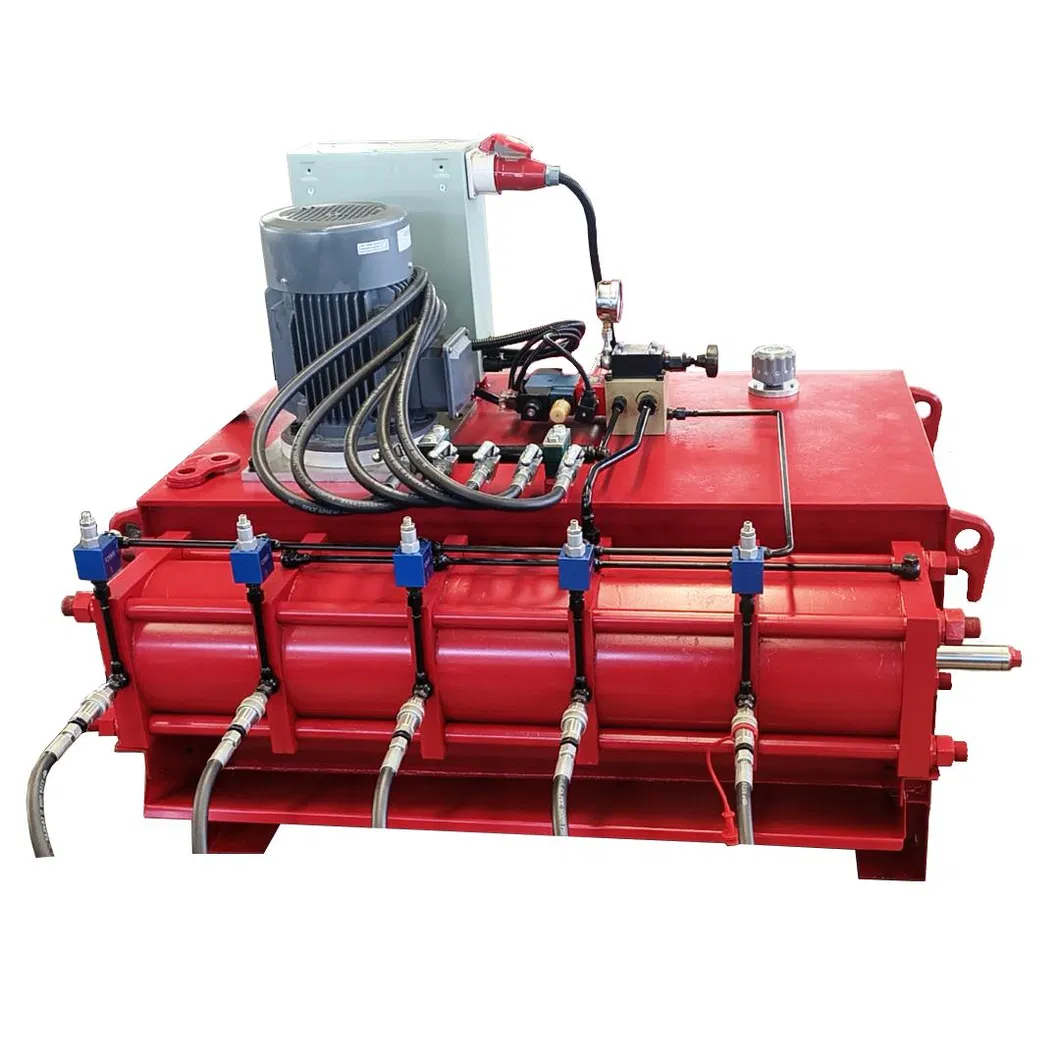

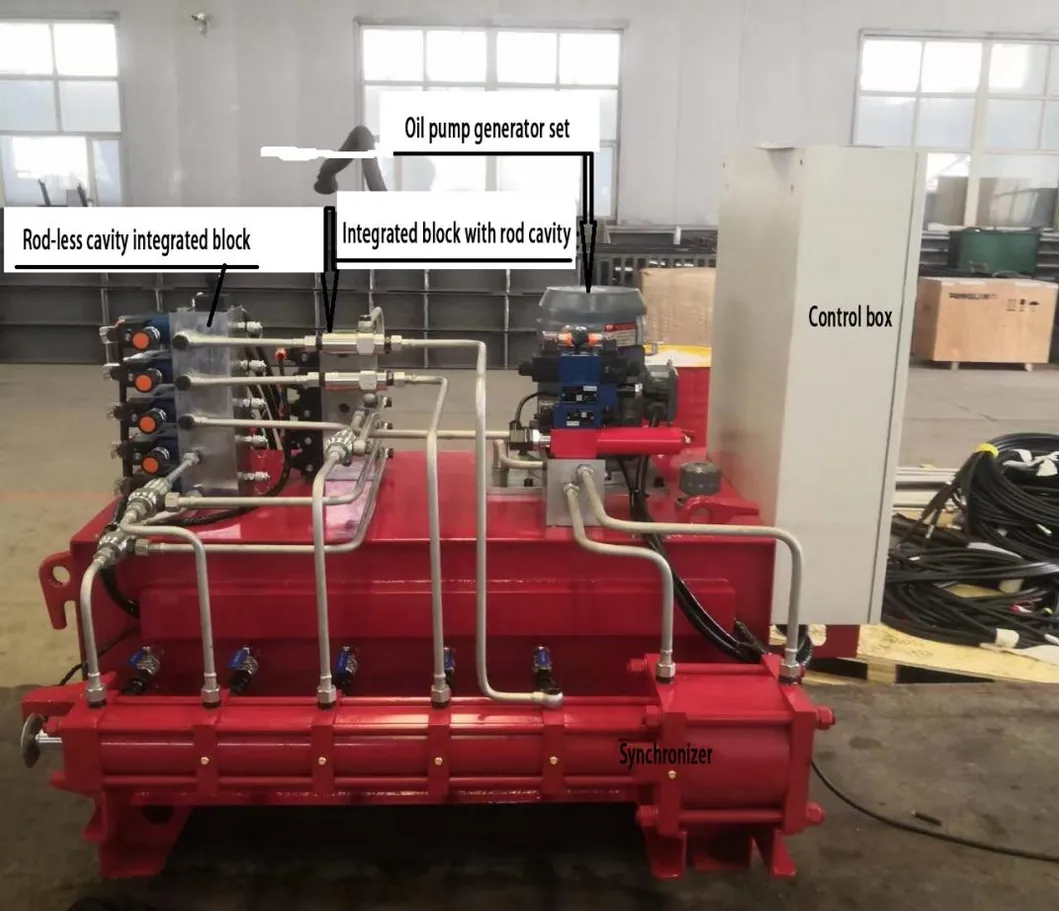

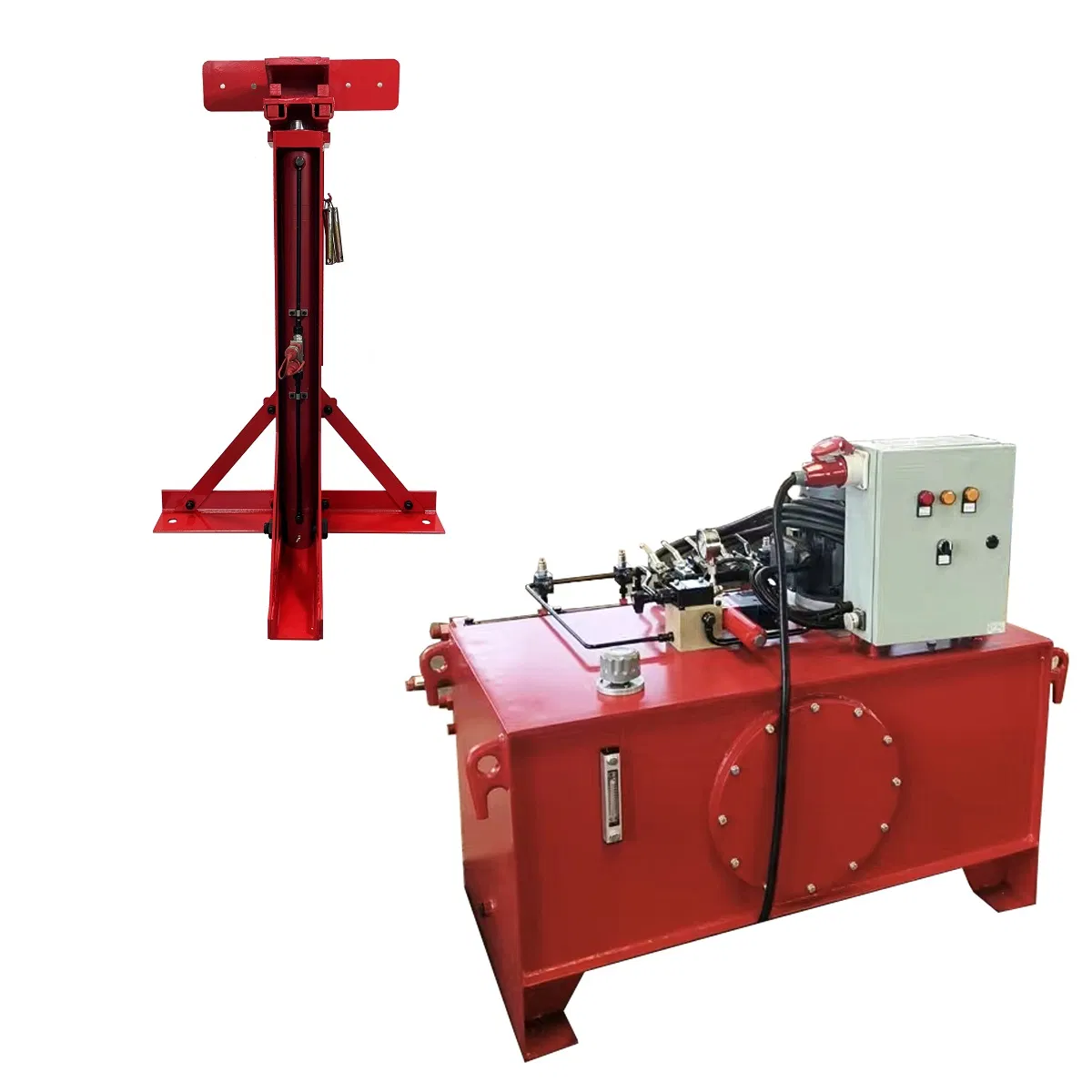

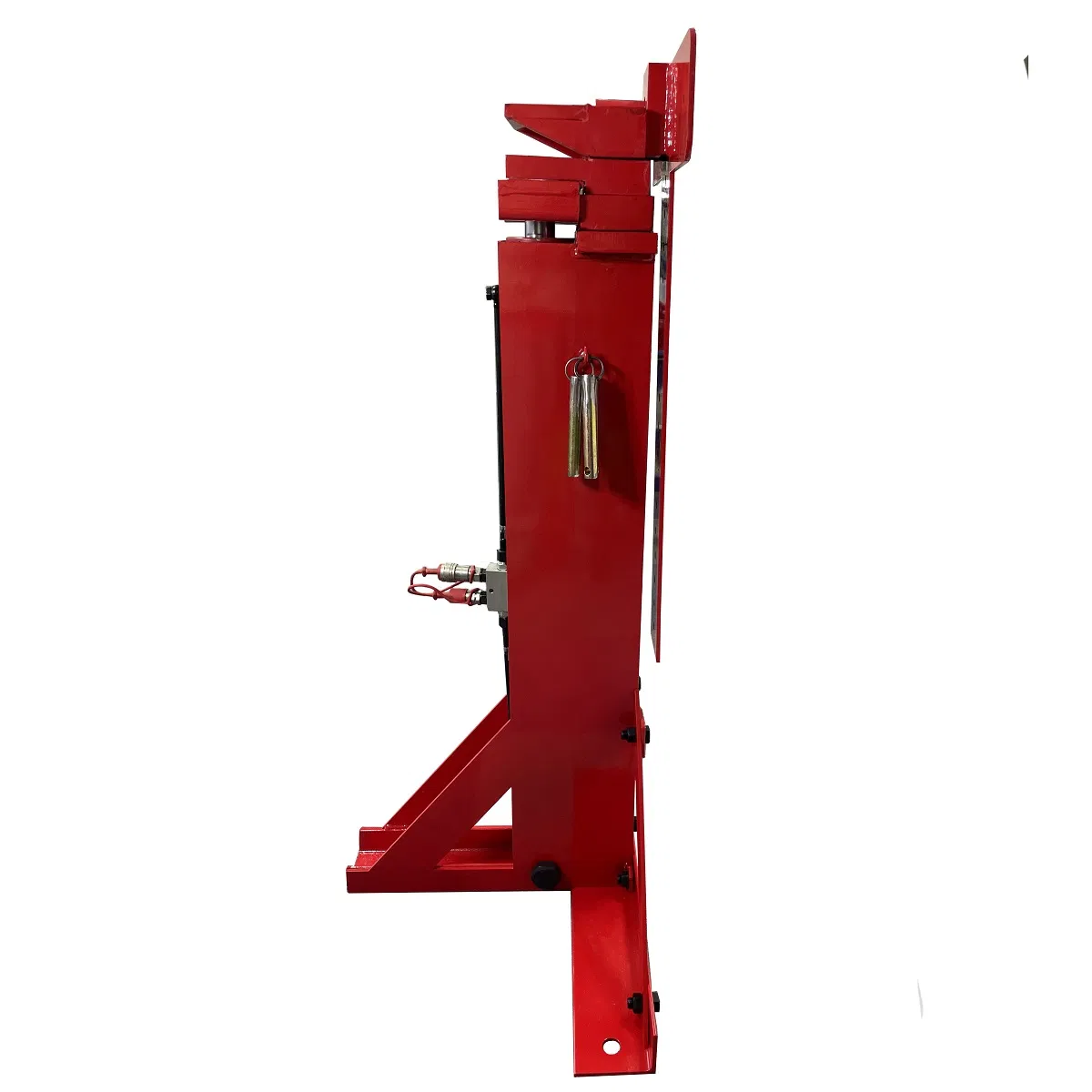

This set of equipment is mainly composed of hydraulic jacking pump station, hydraulic cylinder, rectangular steel frame, etc., easy to install.
The equipment adopts PLC program to control jacking, which has the advantages of simple operation, high jacking synchronization precision and stable jacking process.

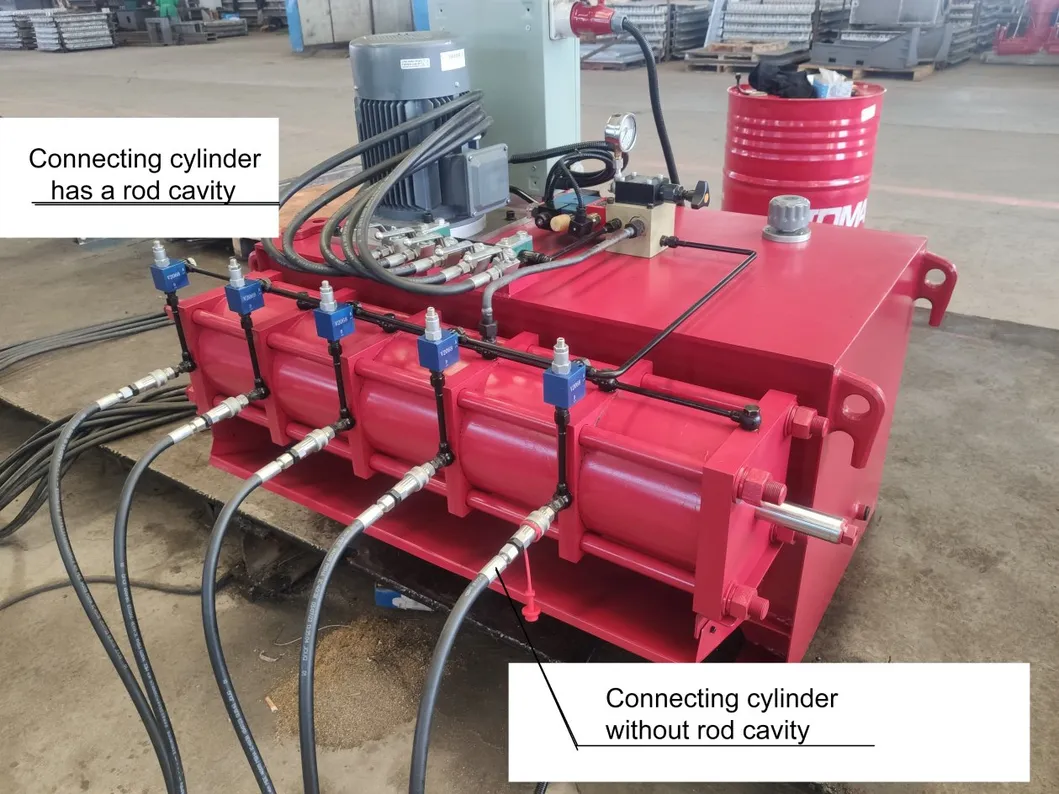

Hydraulic jacking pump station has two modes of manual and centralized control, hydraulic cylinder can be single or local (several) to adjust (fine tune) lift and fall; Multiple groups can be centrally controlled up and down; The jacking height can precisely control the butt adjustment of the tank wall welds.
Each hydraulic cylinder has a safety valve self-locking, equipment operation will not cause the tank or heavy objects to slide or fall due to power failure, the blasting of a high-pressure hose or the failure of a hydraulic cylinder, hydraulic jacking process is safe and reliable.
The plunger type hydraulic jacking system has no side force in the jacking process and has no influence on the tank wall.
The stroke of the hydraulic cylinder is 800 mm, which can meet the one-time jacking completion of the width of the wall panel below 2300 mm, reducing the jacking time, Save labor and other auxiliary costs.
The overall base length of the equipment is only 1180 mm, which can fully meet the inverted construction and installation process of large storage tanks, granaries and enamel tanks.
Technical Parameter

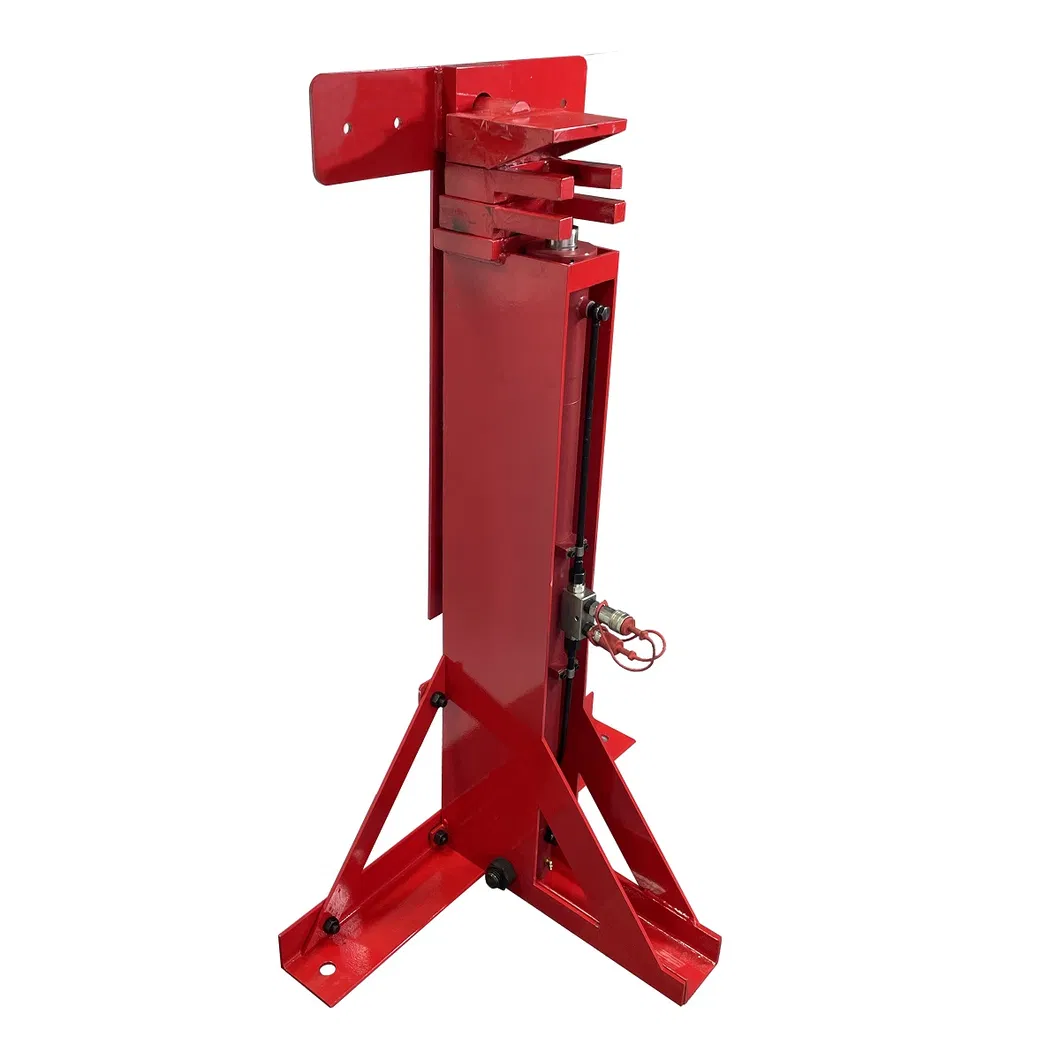

Hydraulic Jacks Specifications
Parameter
Specification Value
Rated lifting weight
50KN
System pressure
16MPa
Hydraulic travel stroke
0.8m
Size of oil inlet and outlet
M18*1.5
Lifting height
2.3m
Hydraulic operating mode
Double-acting
Lifting mode

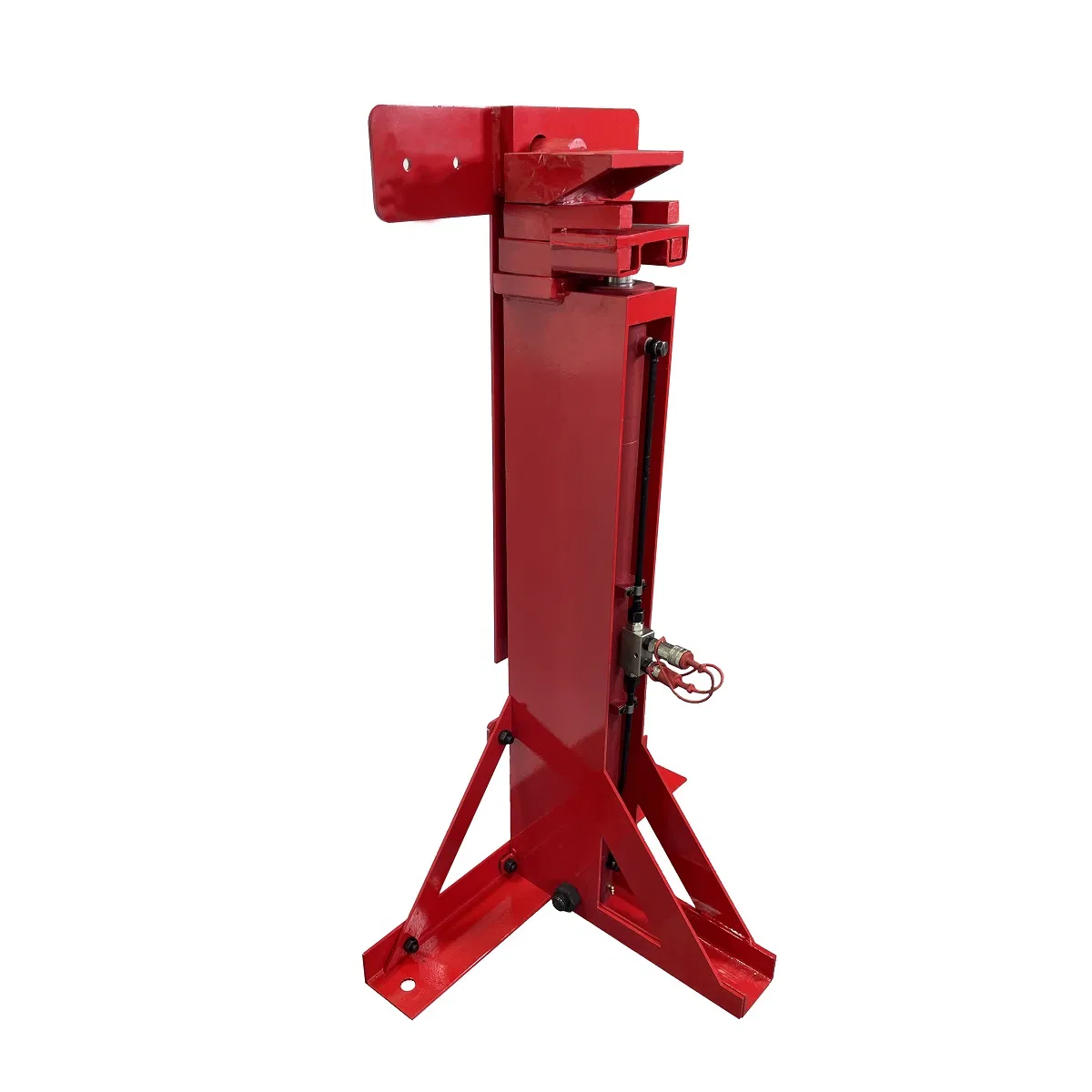

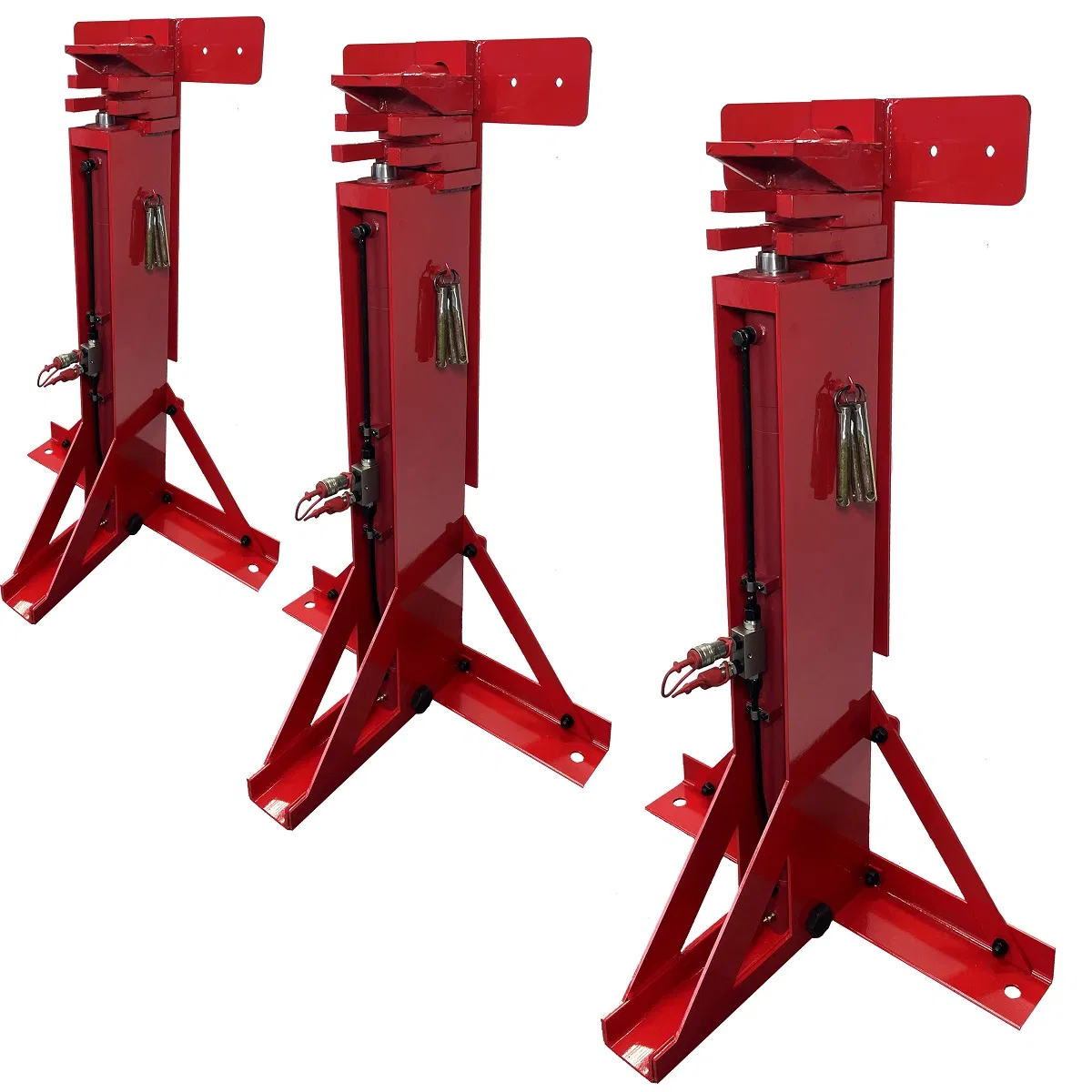

Rectangular steel frame
Lock mode
Hydraulic lock and Pin lock
Fixture type
Triangular bracket base, self-tapping fixed
Size
800*620*1180 mm
Weight
60 kg
Basic height of hydraulic jacks
1180 mm

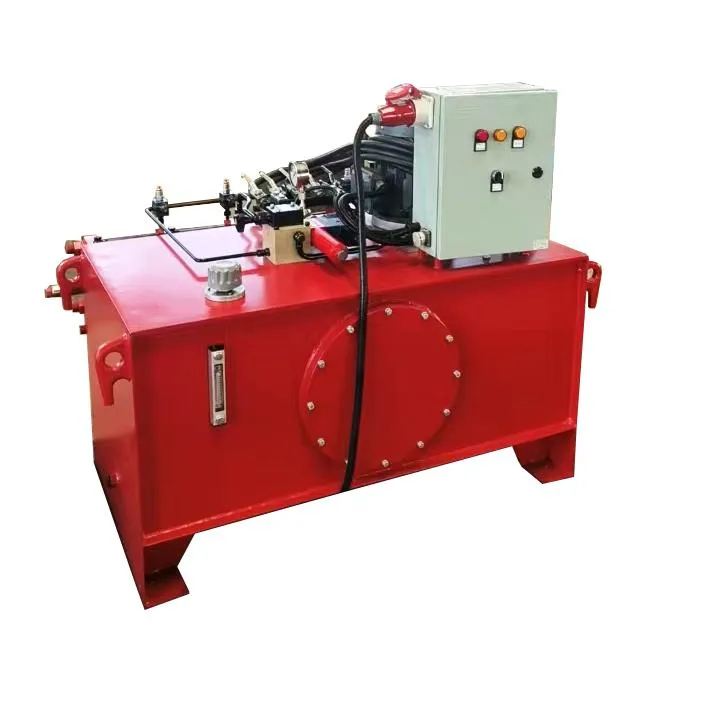

Hydraulic Cylinder Specifications
Parameter
Specification Value
Max working pressure
16 MPa
System pressure
380 V
System flow
38 L/min
Individual maximum displacement
5 L/min
Tank capacity
300 L
Motor speed
1470 r/min
Control voltage
DC 220 V
System temperature
20-60ºC
Size
2500*2000*1500 mm

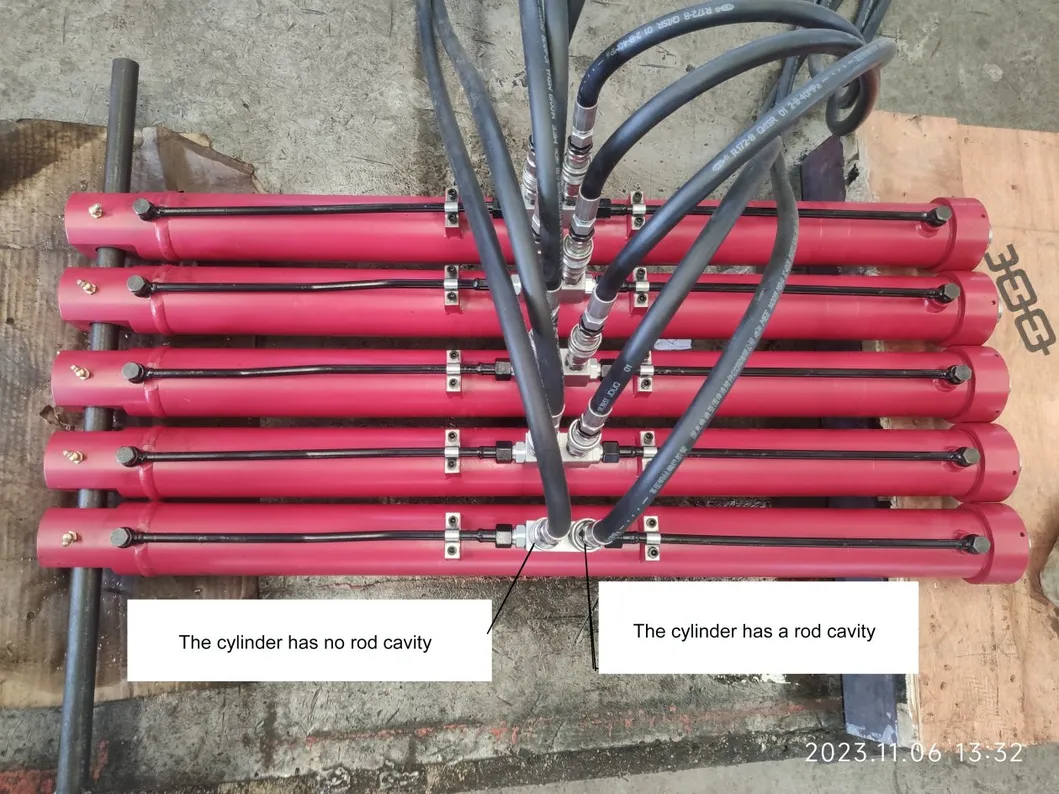

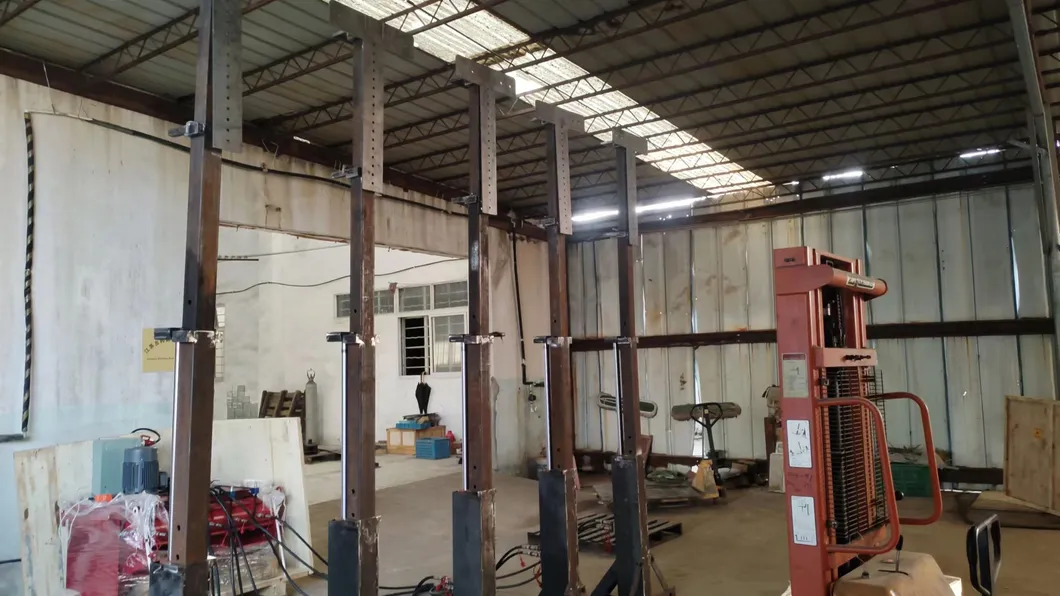

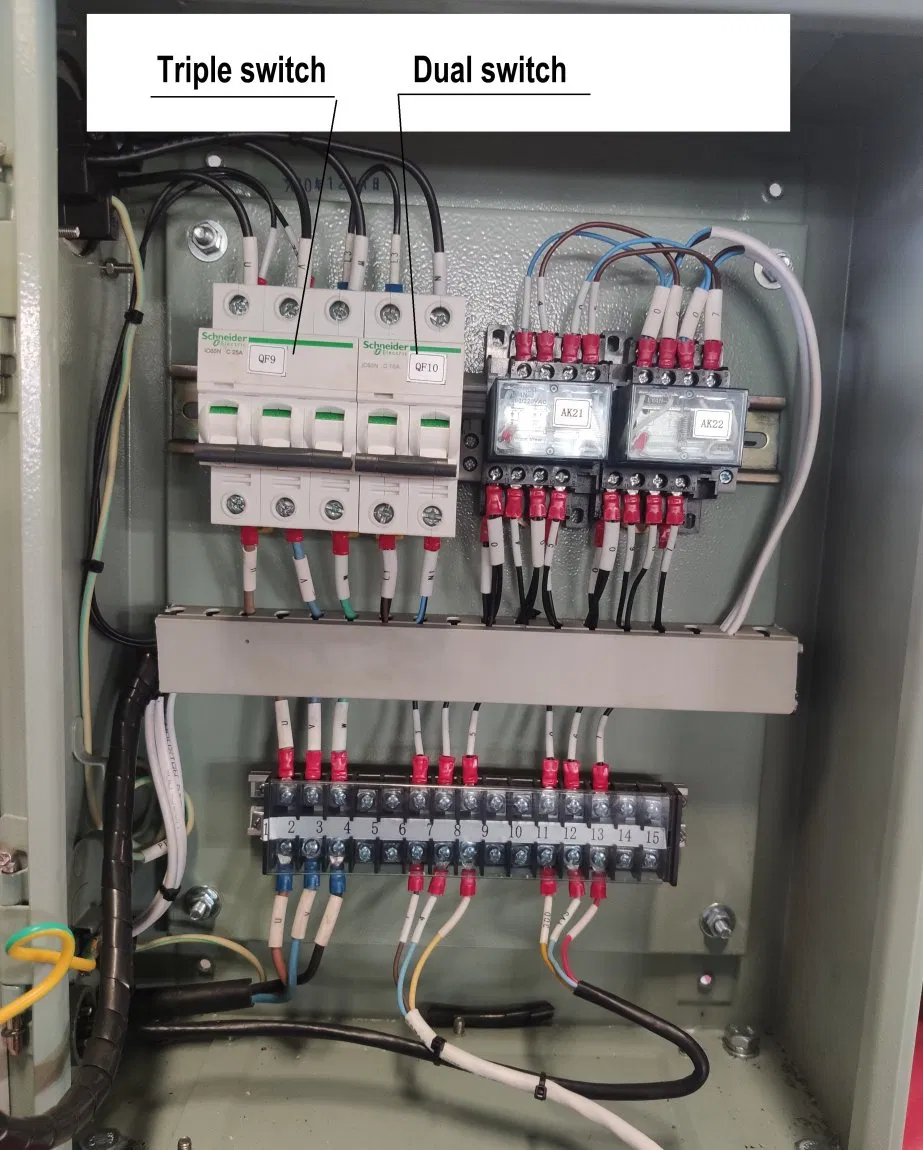

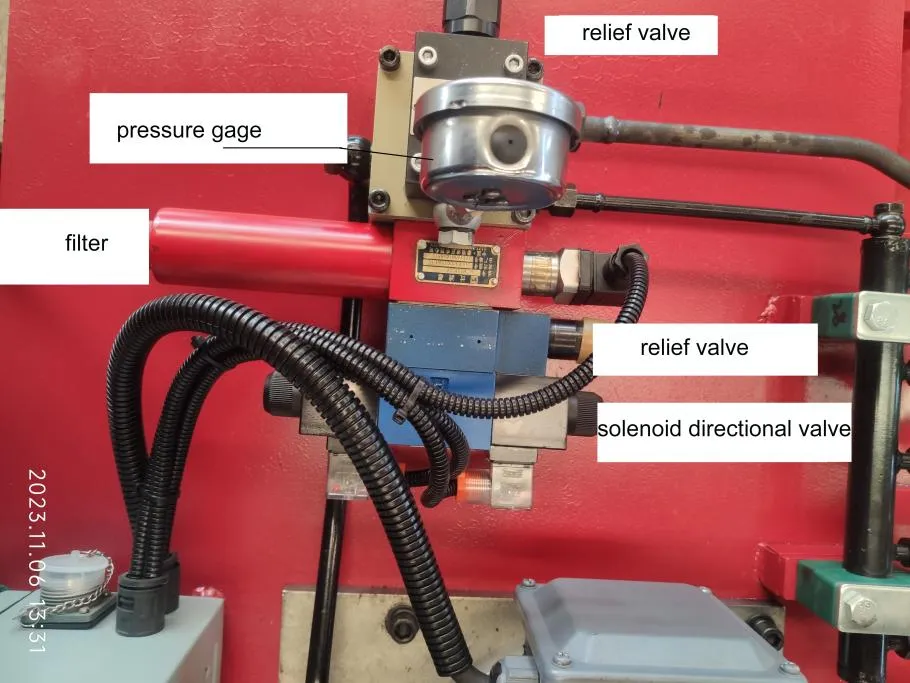

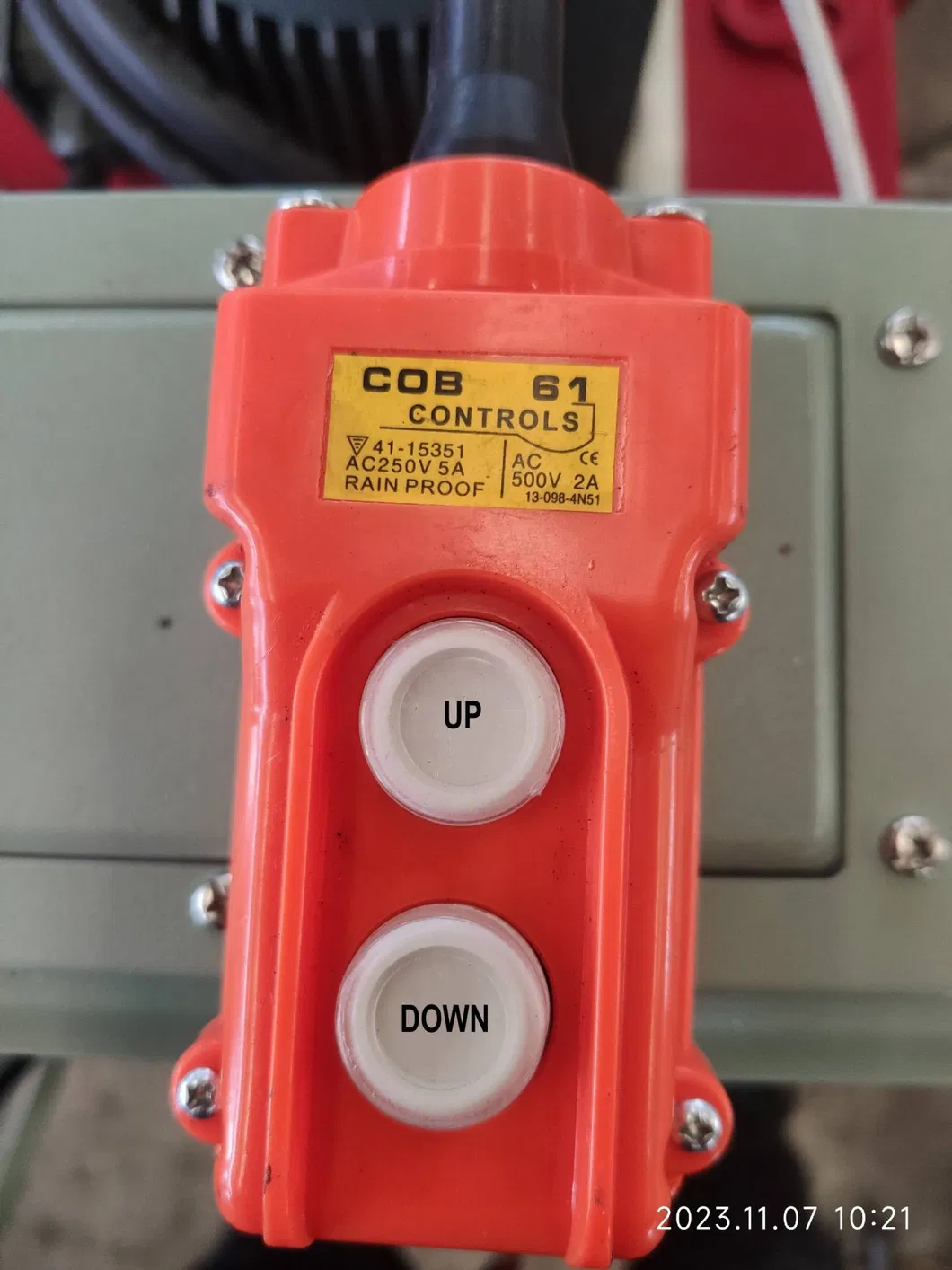

Detailed Photos
Frequently Asked Questions (FAQ)
What applications are these hydraulic jacks suitable for?
They are suitable for the inverted installation and construction of all kinds of large steel storage tanks, flat-bottom corrugated board granaries, and enamel tanks.
How is the synchronization of the jacking process controlled?
The system utilizes PLC program control to manage the jacking process, ensuring simple operation, high synchronization precision, and a stable jacking path.
What safety mechanisms prevent the tank or heavy objects from sliding?
Each hydraulic cylinder is equipped with a self-locking safety valve. In the event of a power failure, a burst high-pressure hose, or a cylinder malfunction, the safety lock automatically prevents the load from sliding or falling.
What is the advantage of the 800 mm cylinder stroke?
The 800 mm stroke allows the system to complete the jacking of wall panels with widths up to 2300 mm in a single step. This reduces jacking time, saves labor, and cuts down on auxiliary costs.
Can the hydraulic cylinders be adjusted individually?
Yes, the hydraulic pump station features both manual and centralized control modes. Single or multiple cylinders can be adjusted independently to fine-tune the alignment of tank wall welds.
Does this jacking system apply side forces to the tank walls?
No, the plunger-type design ensures that no side force is applied during the jacking process, preventing structural distortion or damage to the tank wall.
