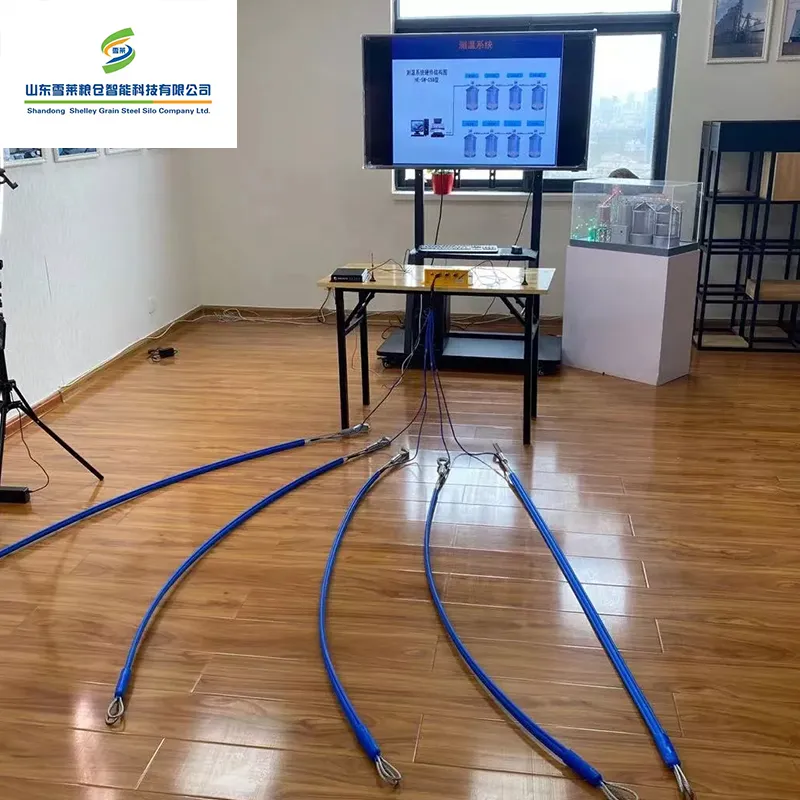

Grain Storage Steel Silos & Grain Warehouse Used Temperature Monitoring Sensors Cables System

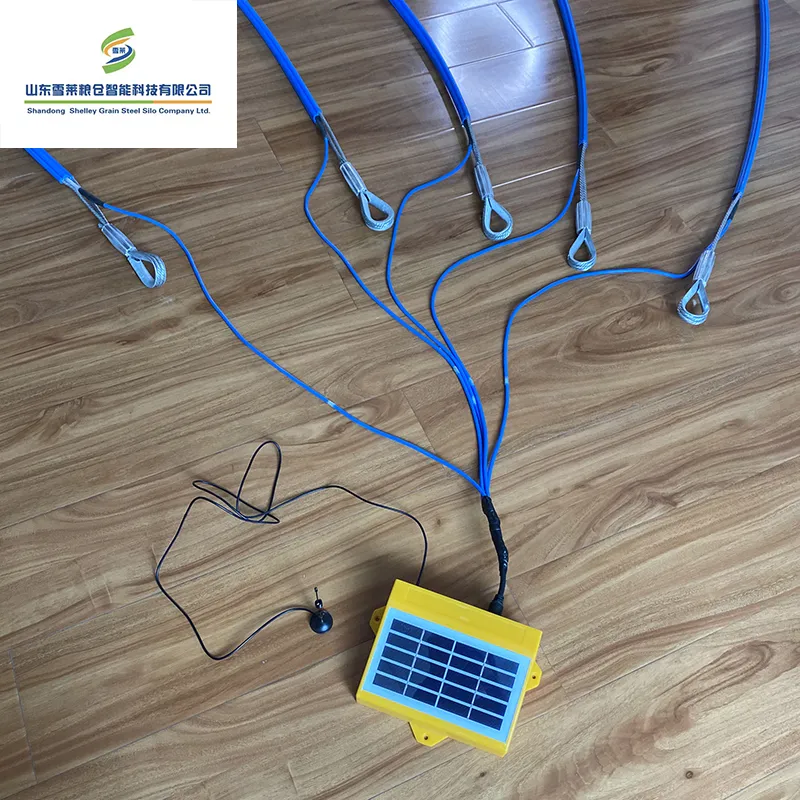

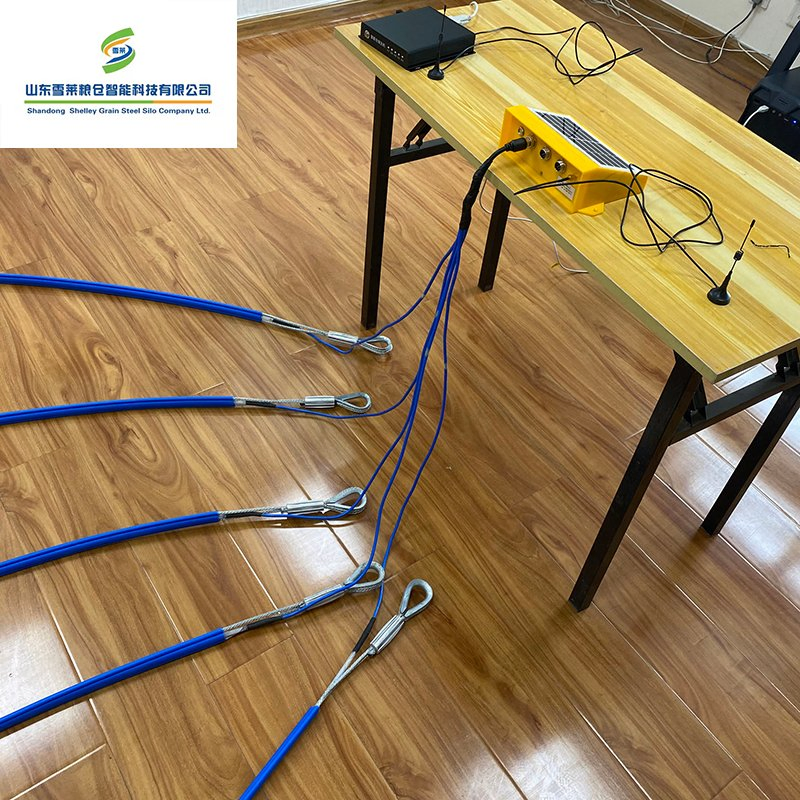

The Temperature Monitoring System is the key component of grain storage control systems. Customized cable lines for temperature monitoring in silos are very important to keep the stored grains at the right temperature and prevent spoilage and loss of value. Temperature is a critical factor affecting grain quality. Temperature changes in stored products indicate potential problems inside the grain storage silos. Whenever grain begins to rot or when there is a pest problem, the temperature in the silos rises. This system measures temperature changes inside the silos to achieve real-time temperature monitoring.

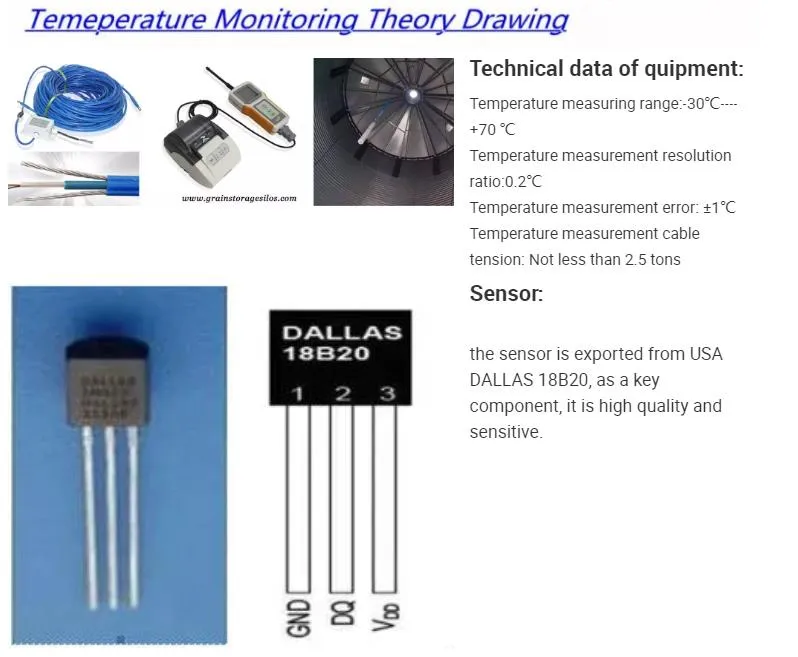

• Temperature measuring range: -30ºC to +70 ºC
• Temperature measurement resolution ratio: 0.2ºC
• Temperature measurement error: ±1ºC

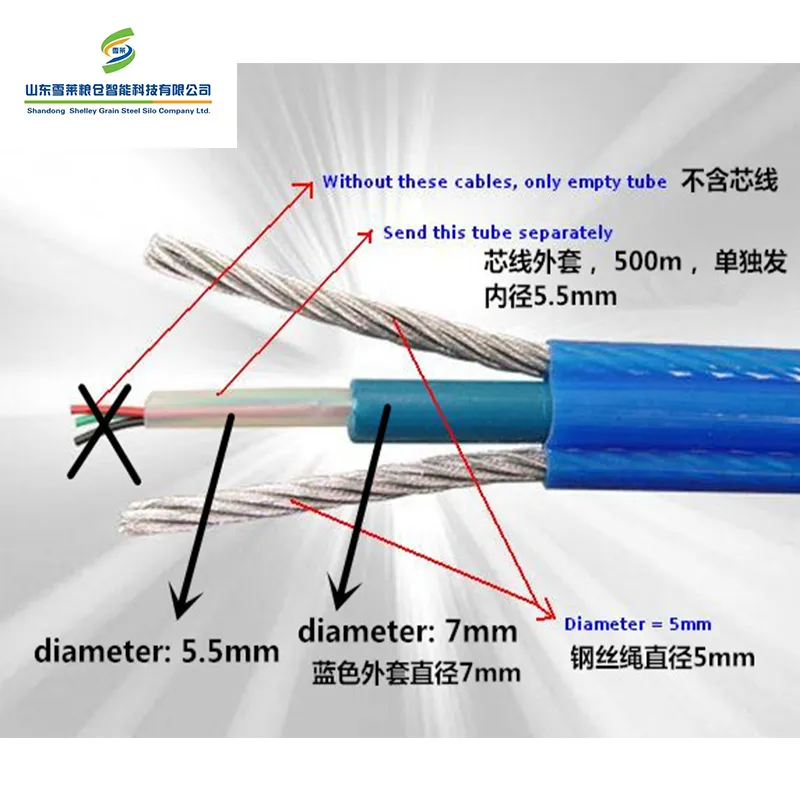

• Temperature measurement cable tension: Not less than 2.5 tons
The sensor is imported as a key component, providing high quality and sensitivity to ensure reliable data reading.
| ITEM | MODEL | QTY | Remark |
|---|---|---|---|
| Computer | - | 1 set | - |
| Printer | - | 1 set | - |
| Temperature measuring software | BL-11 | 1 set | - |

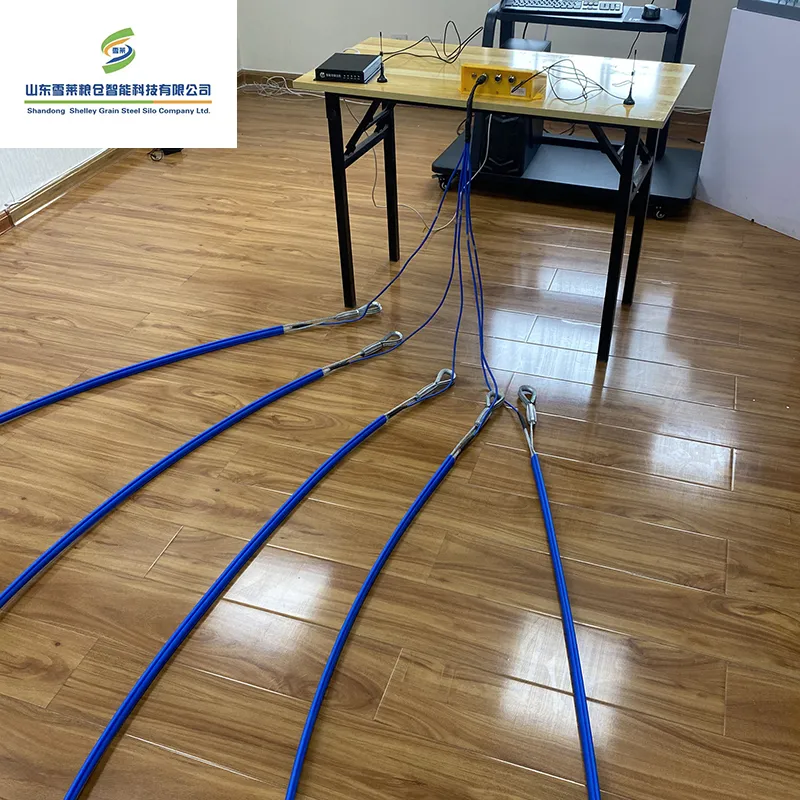

| Host | BL-11 | 1 set | - |
| Extension | BL-11 | 4 sets | - |
| Extension of humidity measuring | BL-11 | 2 sets | - |

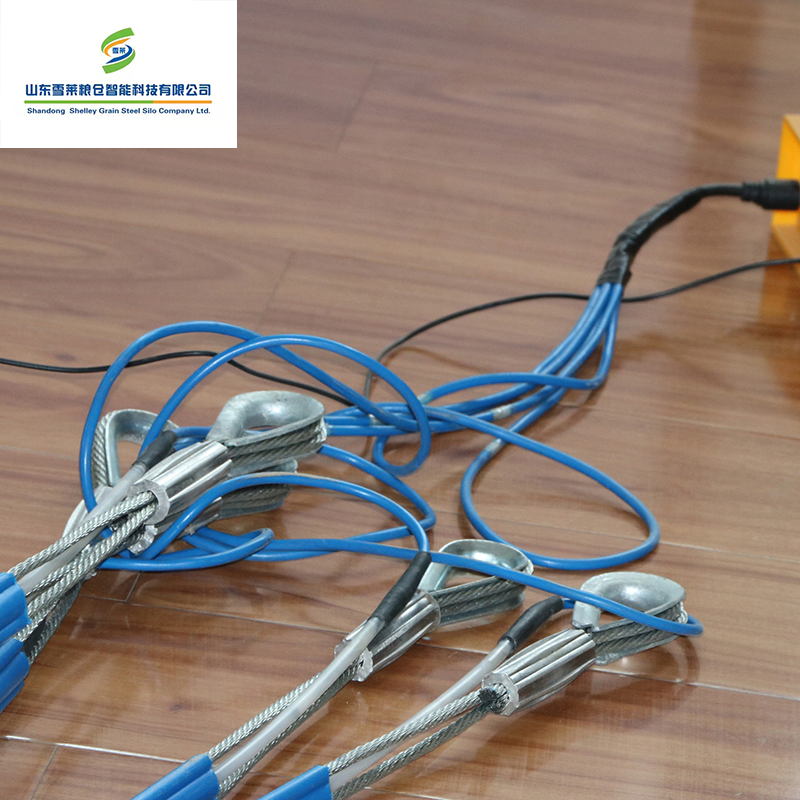

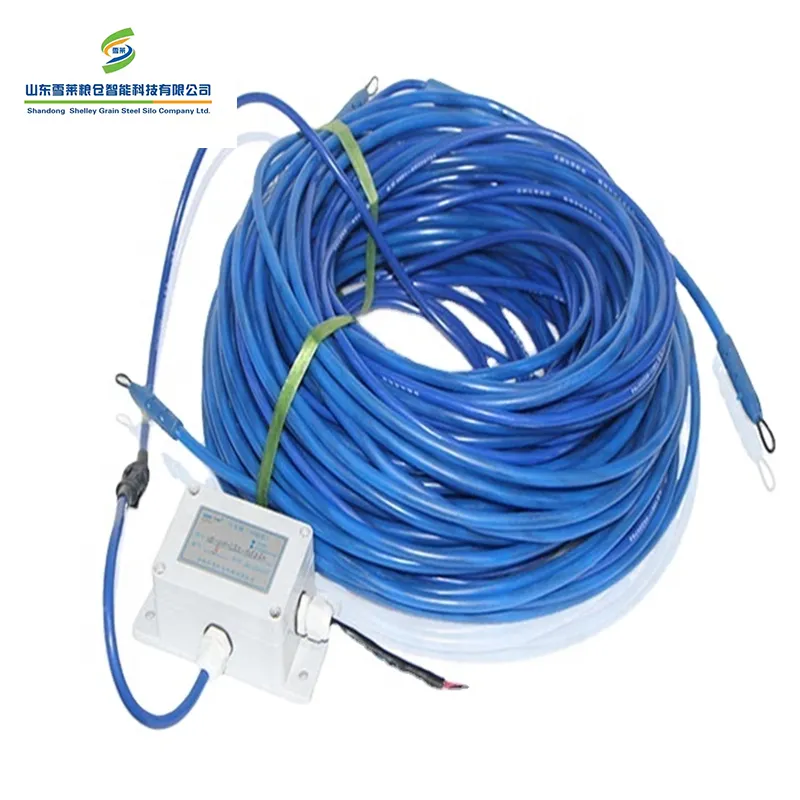

| Temperature monitoring cables | 8points/14m | 60pcs | Each silo has 6 temperature measuring lines; each line has 8 temperature measuring points. |
| Humidity sensor | 1500 | 11 pcs | - |

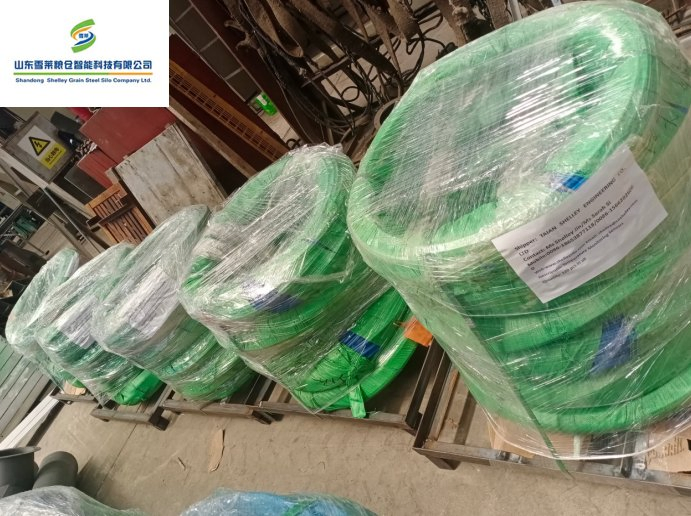

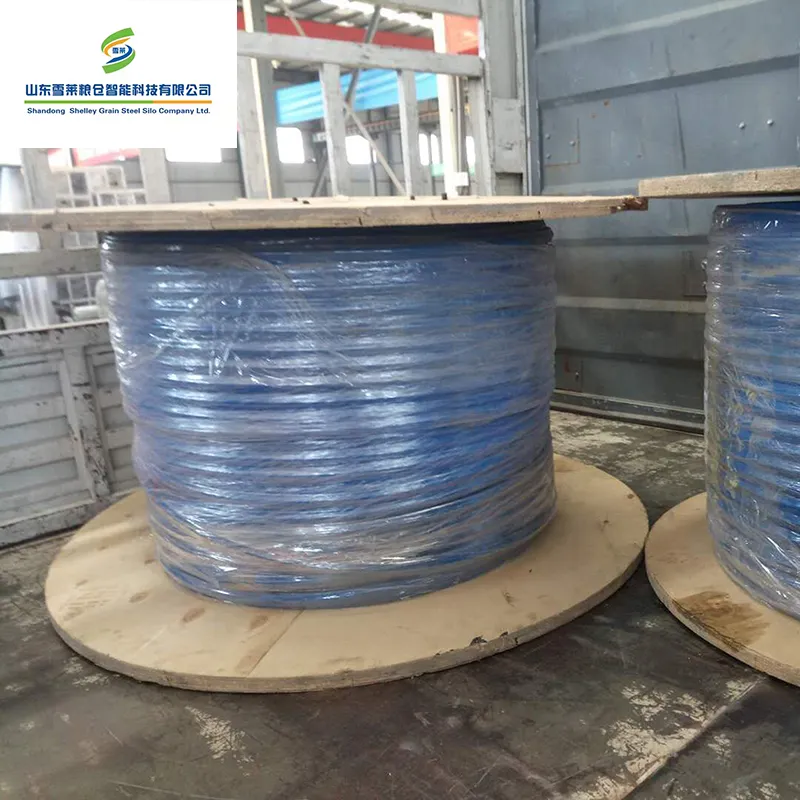

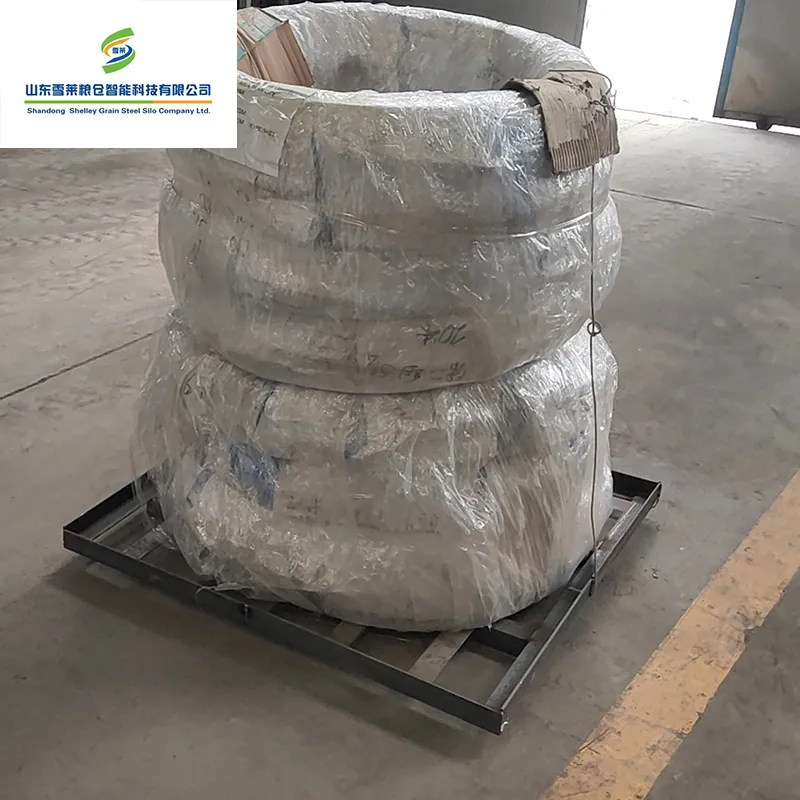

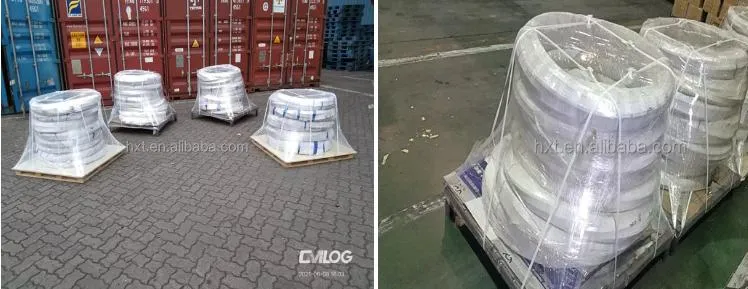

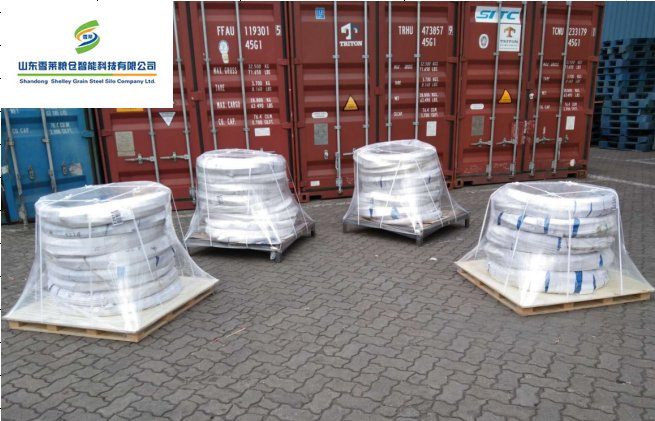

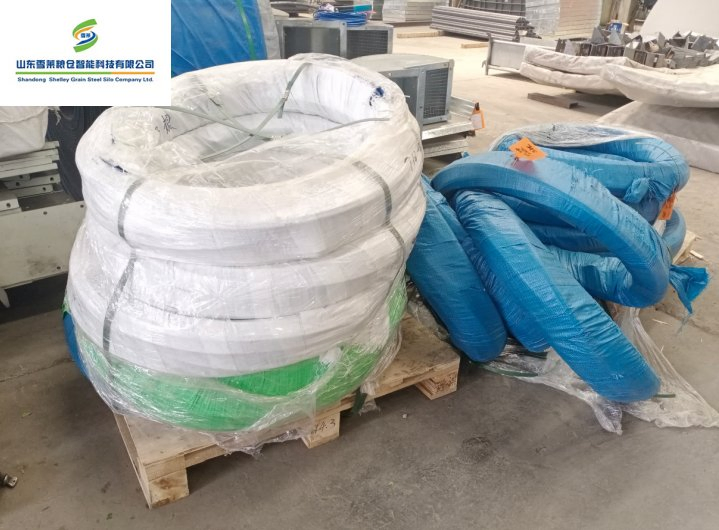

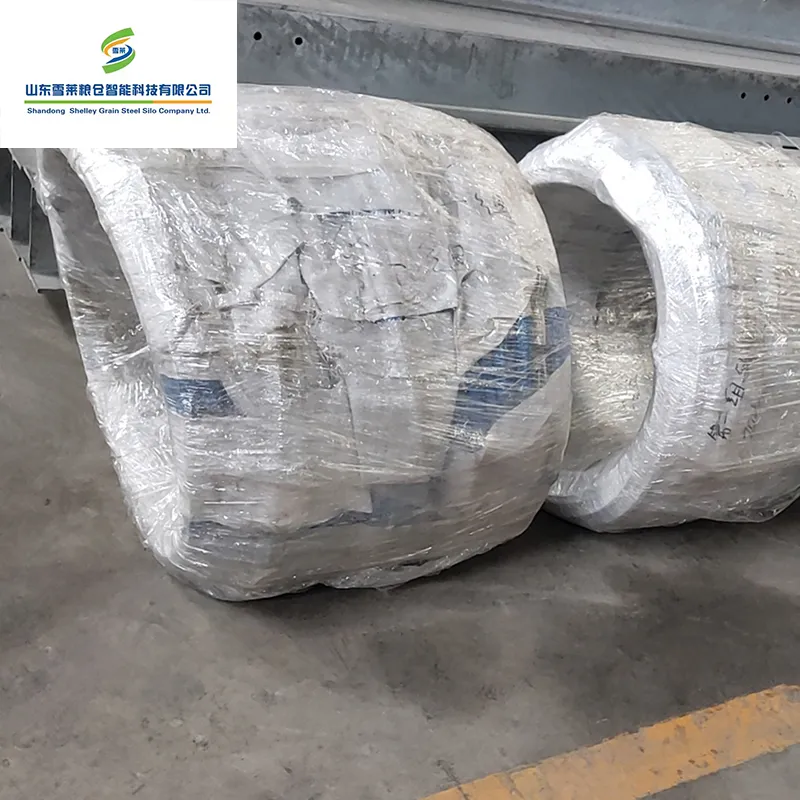

Plastic + Electronic Components, can be customized. PE Film in rolls and then on pallets, or packaged according to customers' specific request.
With good quality and service, our silos are recognized globally and hold multiple industry certifications.
Numerous customers visit our facilities to discuss their grain silo projects. We welcome you to visit the factory for in-depth discussions.
