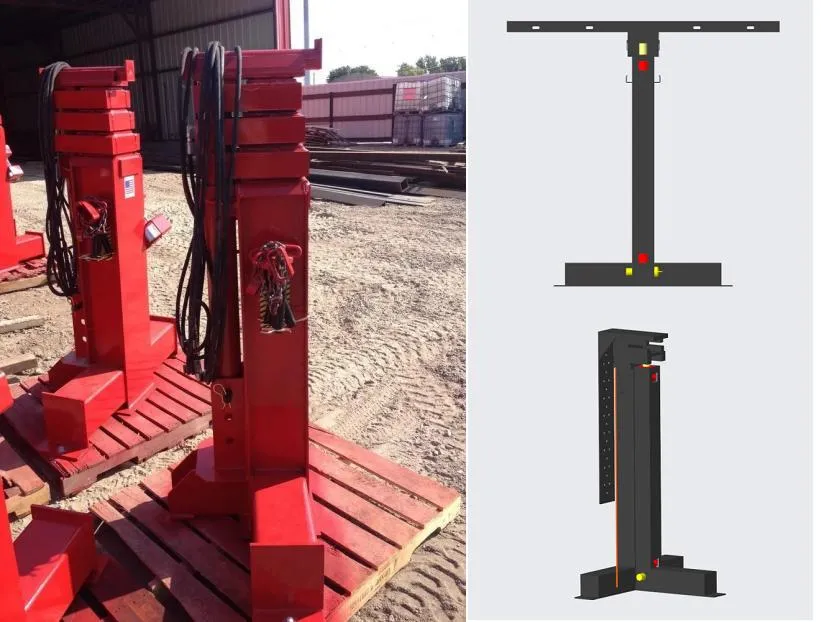

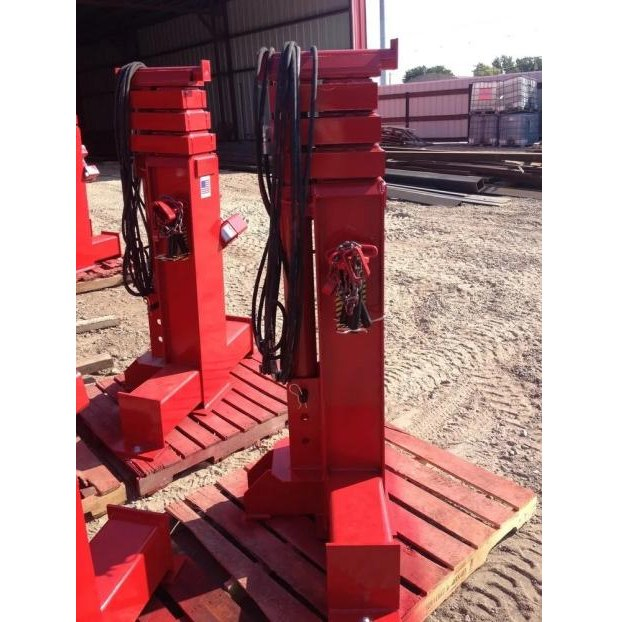

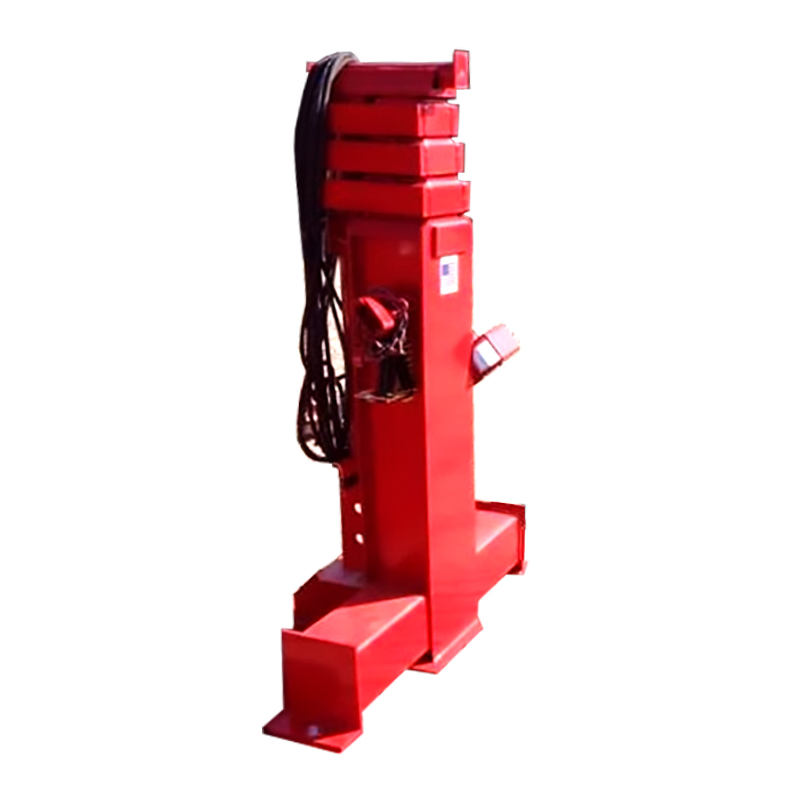

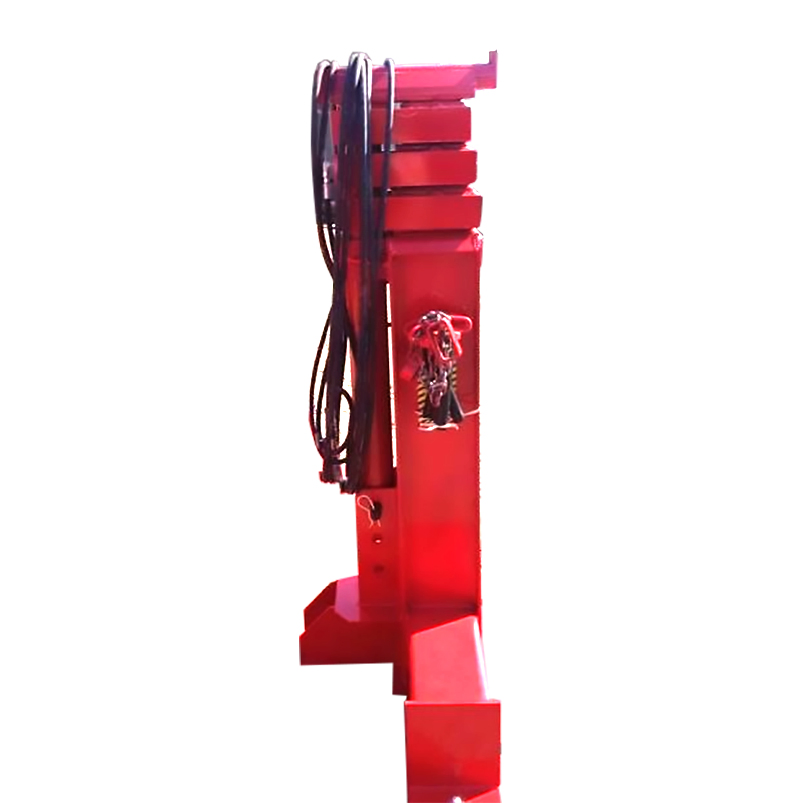

Suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.
With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
| Parameter Specifications | |
|---|---|
| Rated lifting weight | 50KN |
| System pressure | 16MPa |
| Hydraulic travel stroke | 0.8m |
| Size of oil inlet and outlet | M18*1.5 |
| Lifting height | 2.3m |
| Hydraulic operating mode | Double-acting |
| Lifting mode | Rectangular steel frame |
| Lock mode | Hydraulic lock and Pin lock |
| Fixture type | Triangular bracket base, self-tapping fixed |
| Size | 800*620*1180 mm |
| Weight | 60 kg |
| Basic height of hydraulic jacks | 1180 mm |
| System Specifications | |
|---|---|
| Max working pressure | 16 MPa |
| System pressure | 380 V |
| System flow | 38 L/min |
| Individual maximum displacement | 5 L/min |
| Tank capacity | 300 L |
| Motor speed | 1470 r/min |
| Control voltage | DC 220 V |
| System temperature | 20-60ºC |
| Size | 2500*2000*1500 mm |

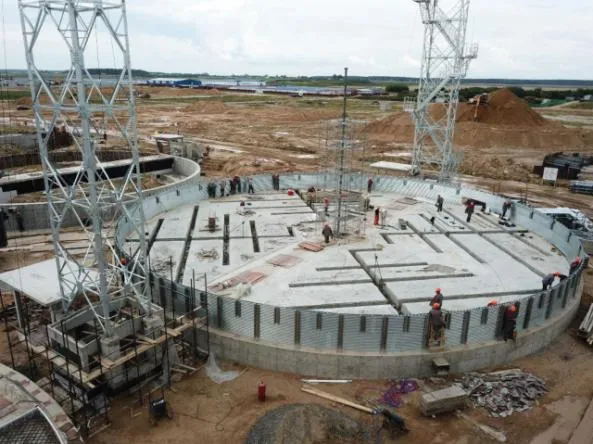

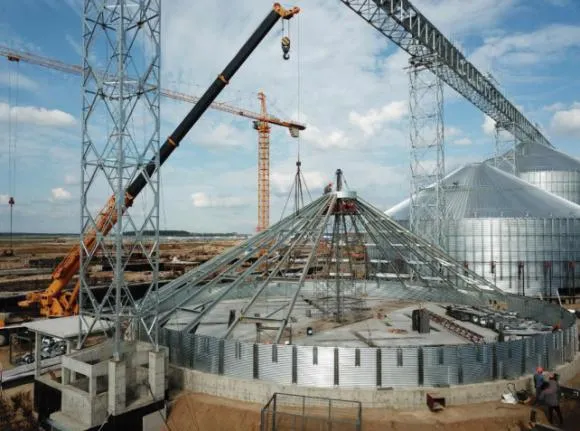

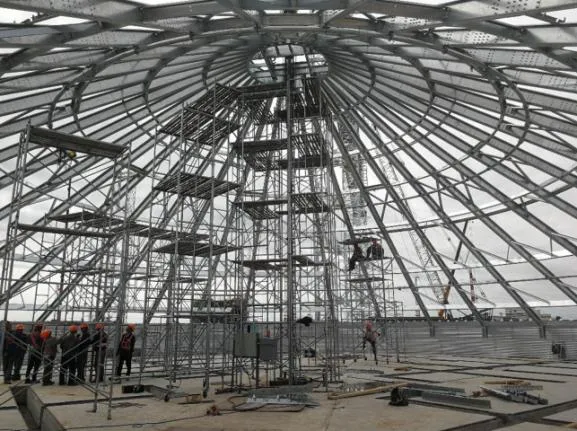

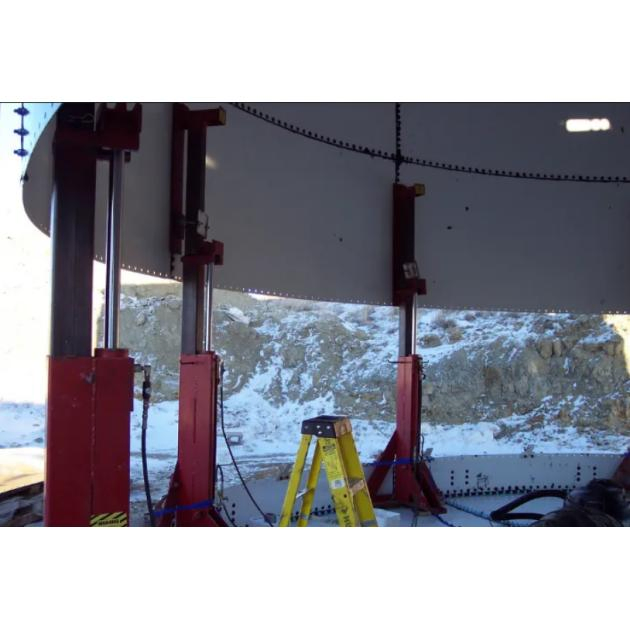

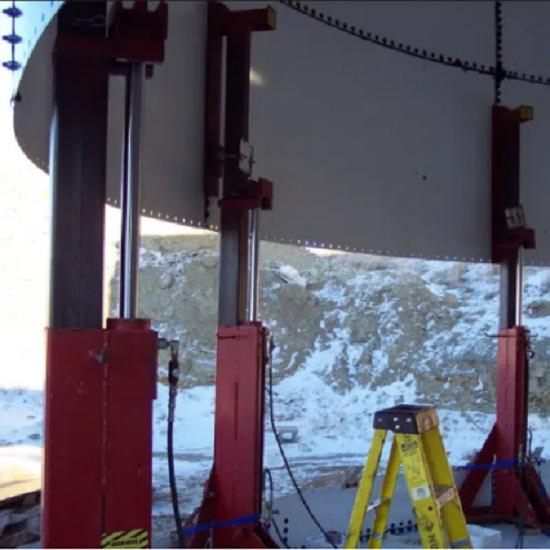

A. Install the central independent vault support fixture to ensure effective connection between vault and tank wall.

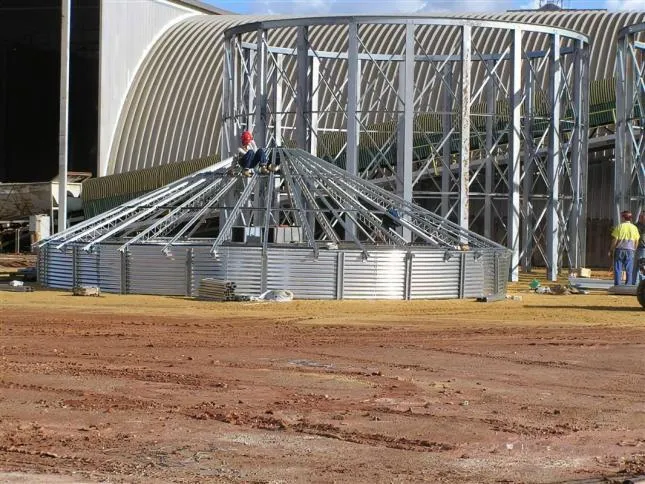

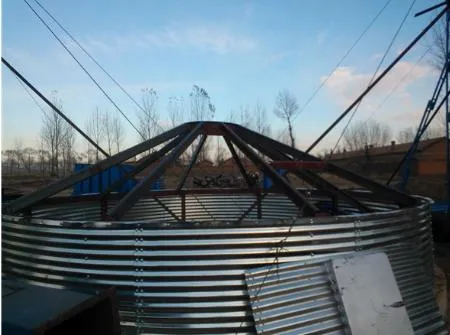

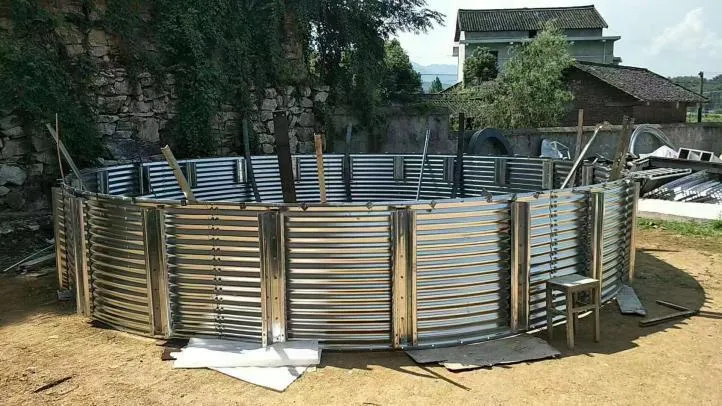

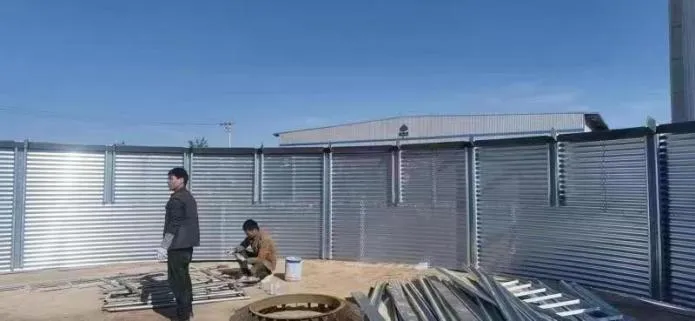

B. The top installation of the granary is divided into two parts: the first and second layer corrugated plate installation and the top installation of the granary.
Q: What types of storage structures are suitable for this hydraulic jacking system?
A: The system is designed for inverted installation and construction of all types of large steel storage tanks, flat bottom corrugated board granaries, and enamel tanks.
Q: How does the system ensure safety during power outages or hose damage?
A: Each hydraulic cylinder is equipped with a self-locking safety valve. In the event of a power failure, cylinder failure, or hose rupture, the valve locks to prevent the tank or heavy loads from sliding or falling.
Q: What are the control options for managing the lifting process?
A: The hydraulic pump station supports both manual and centralized PLC program control. The cylinders can be adjusted individually for fine-tuning or lifted simultaneously for synchronized operation.
Q: Does the jacking process affect the integrity of the tank walls?
A: No, the plunger-type design ensures that no side force is exerted on the tank walls during operation, protecting the structural integrity of the panels.
Q: What is the benefit of the 800 mm hydraulic stroke?
A: It allows the system to complete the jacking of wall panels up to 2300 mm wide in a single operation, which reduces lifting time and saves on labor costs.
Q: Can you help determine the exact configuration needed for our construction project?
A: Yes, we provide full support during the bidding and execution phases. We can calculate the exact number of jacks required based on your tank weight and suggest suitable system configurations.
