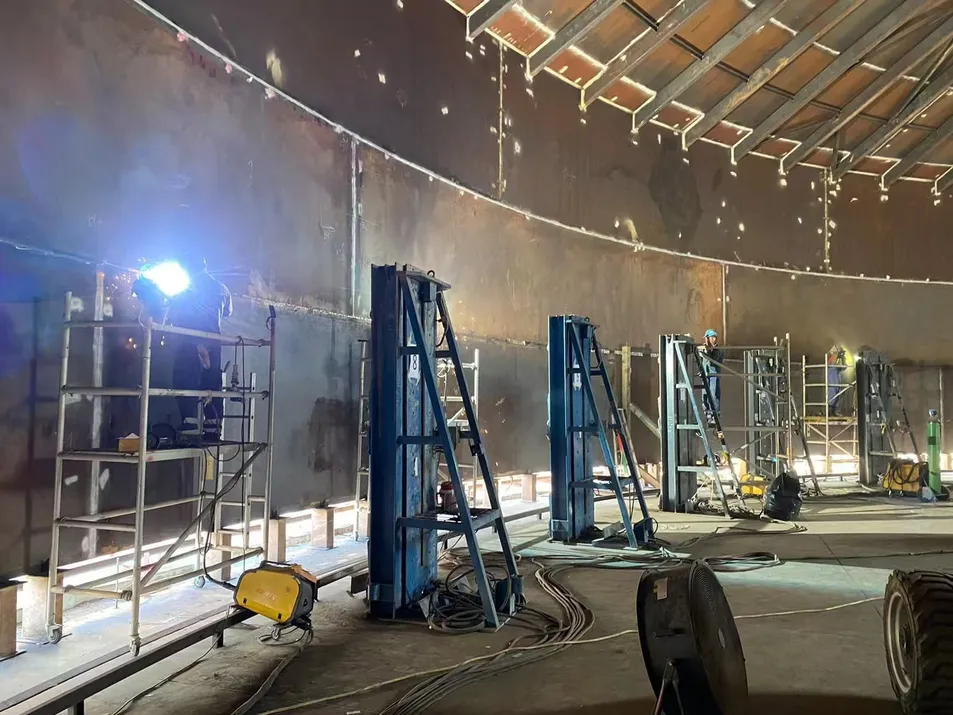

Design Overview

The design goal of the lead screw jack is to achieve efficient, stable and safe jacking operations. The design takes into account the convenience of user operation, the reliability of the equipment and the ease of maintenance.

Applications

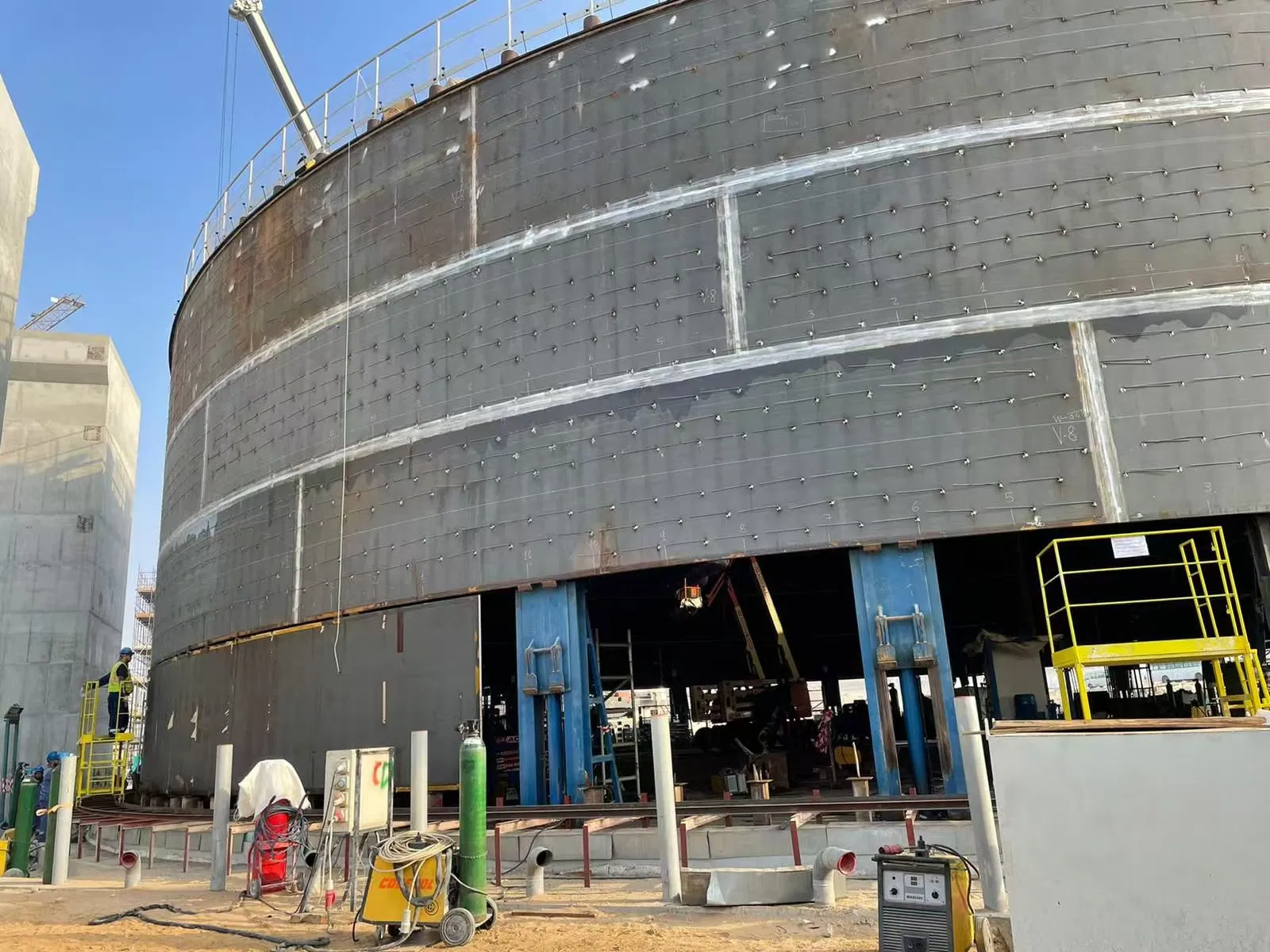

As an advanced mechanical tool, the lead screw jacking machine has been widely used in the construction of petroleum storage tanks because of its advantages of simple structure, convenient operation, strong bearing capacity and stable jacking.

• Main structure: High-strength steel is used to ensure the bearing capacity and fatigue resistance of the jacking machine.
• Bracket structure: Mainly made of Q235B material to ensure the overall stability of performance.
• Modular design: Modular components for quick assembly, disassembly and transportation.
• Bottom support: Set up the bottom support with adjustable height to ensure the stability of the jacking machine on different grounds.

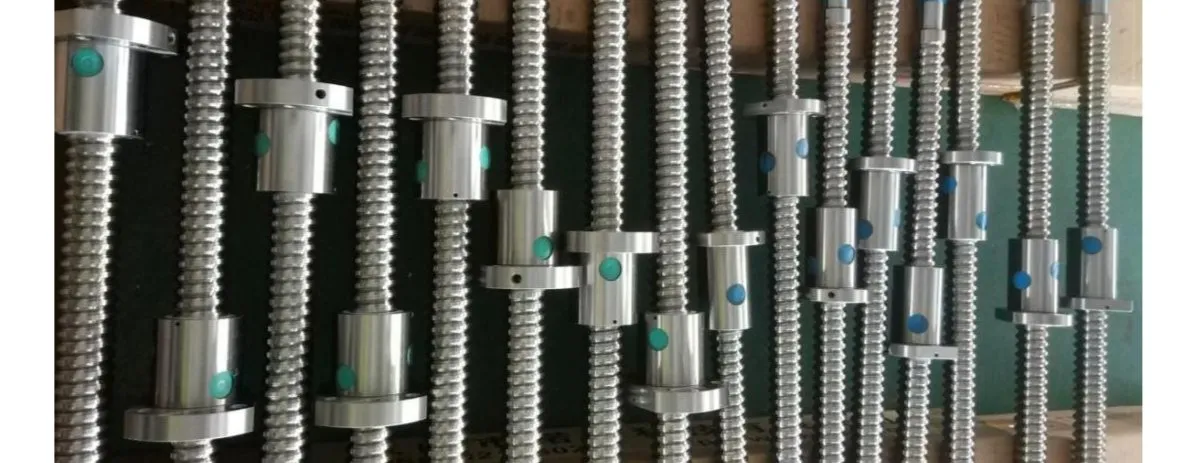

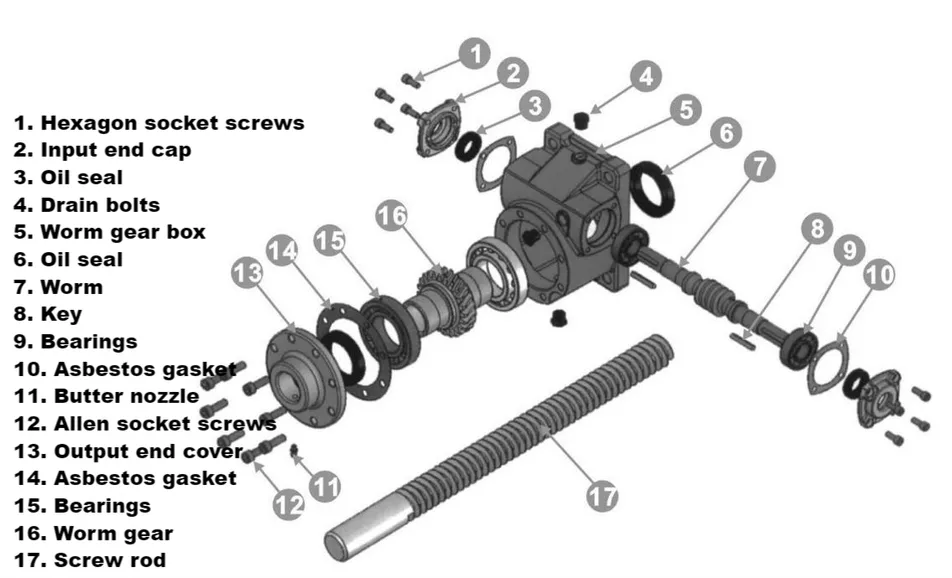

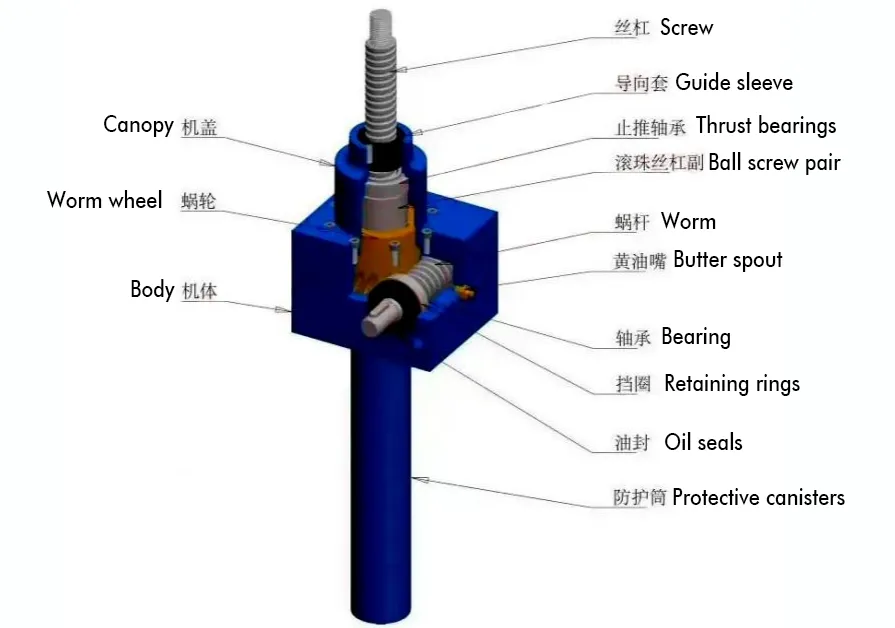

• Lead screw system: Select high-precision, high-wear-resistant ball screws to ensure smooth and accurate jacking process.
• Drive mechanism: Servo motor or stepper motor is used to control the lead screw to achieve precise fine-tuning ability.

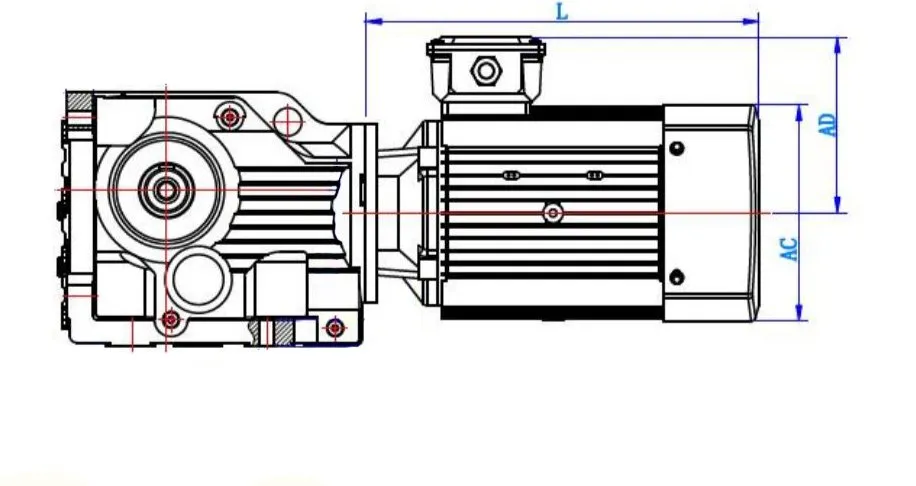

• Reducer: Cooperate with a suitable reducer to reduce the motor load and provide sufficient torque.

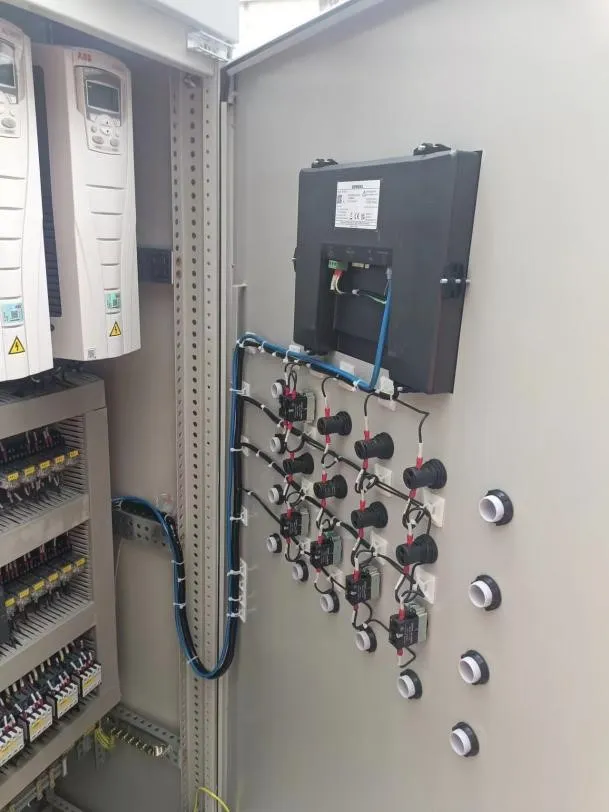

• Automatic control: Integrate advanced PLC control system to achieve automatic lifting and position control.
• Human-machine interface: Friendly design to detect the running status of each motor.
• Features: Servo motor is used with the planetary reducer to ensure the synchronous operation of the screw jacking with error within 2mm.

• High precision: Ball screws ensure high precision and stability in the jacking process.
• Easy maintenance: Engineered for easy maintenance, preserving performance over the long term.
• Precise control: Achieves micron-level control through the fine screw transmission system.
• Easy to operate: Modular design and user-friendly interface make operation intuitive.
• Strong bearing capacity: Multi-stage combined design meets different tank weights and heights.
• Safe and reliable: Self-locking function keeps the position stable even in case of power failure.

(Custom configurations available upon request.)

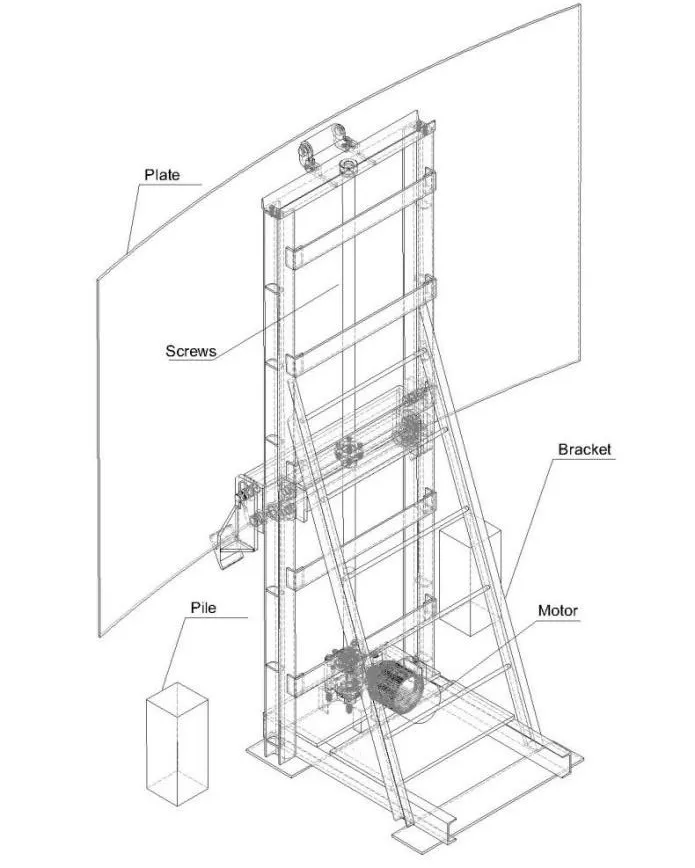

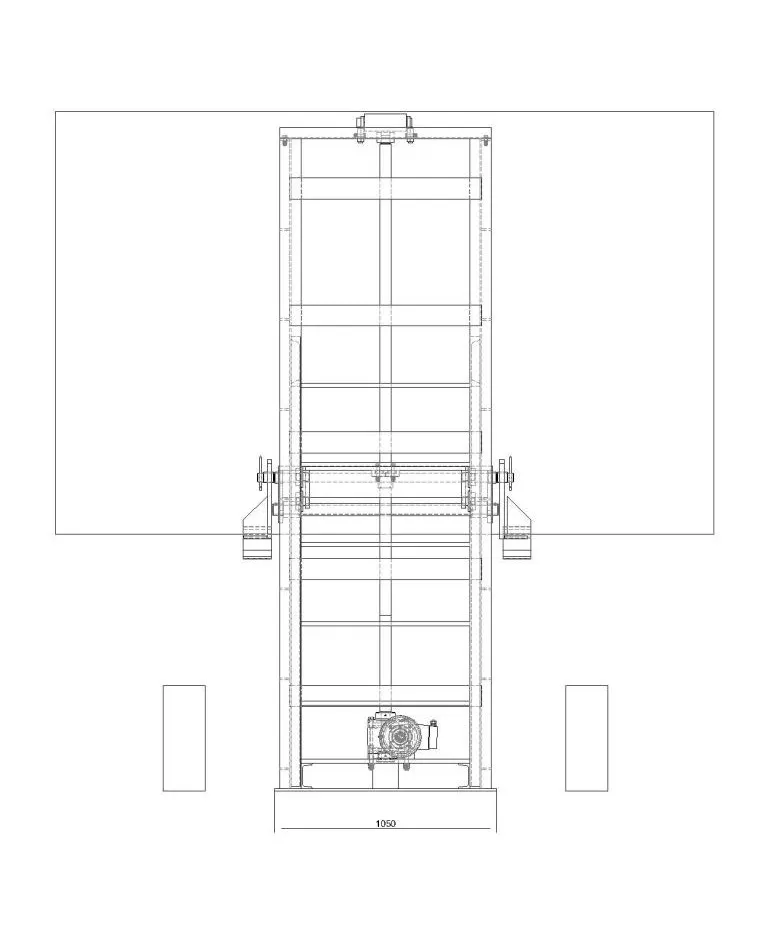

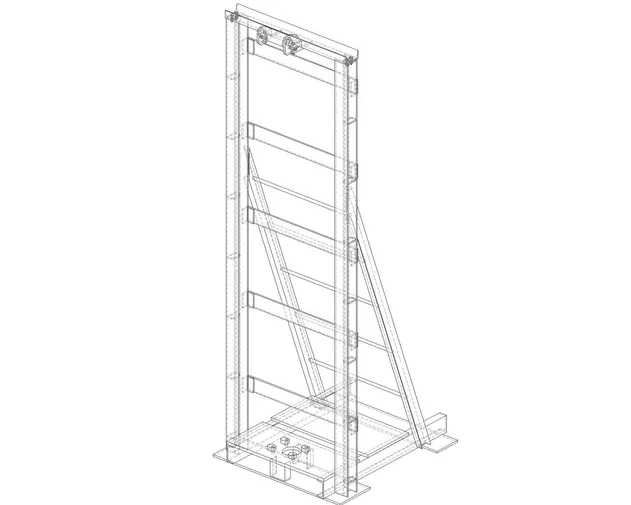

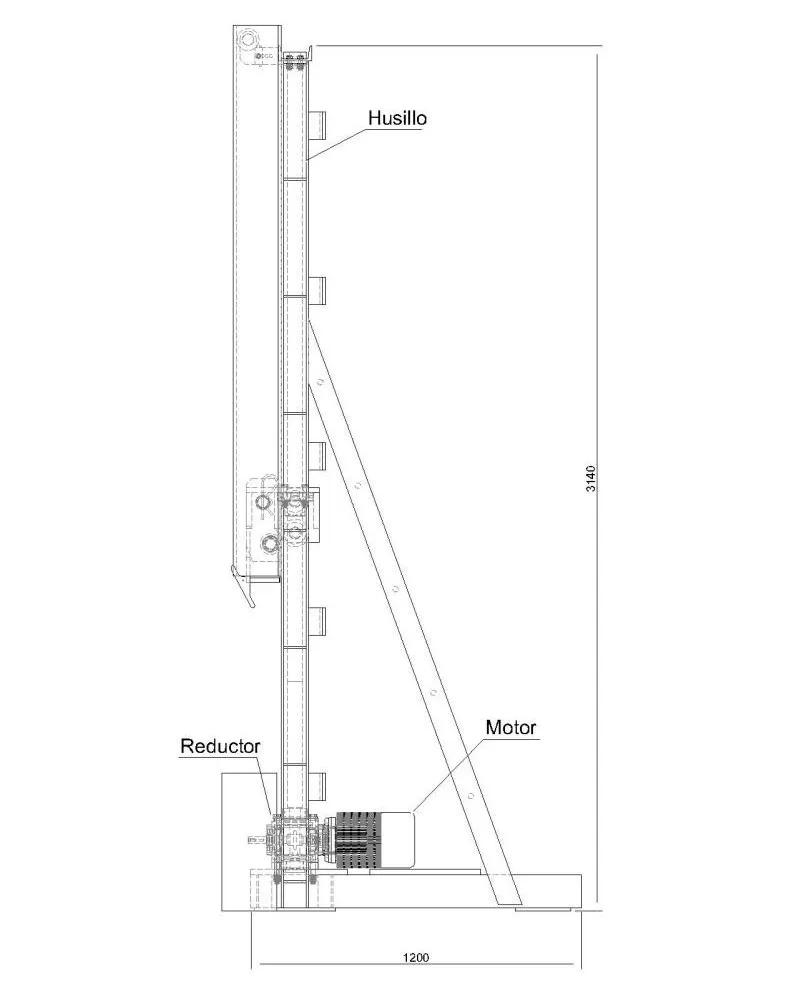

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
