The purpose of this scheme is to illustrate the application and advantages of lead screw jacking in the construction of oil storage tanks.

Specification

Design Overview

The design goal of the lead screw jack is to achieve efficient, stable and safe jacking operations. The design takes into account the convenience of user operation, the reliability of the equipment and the ease of maintenance.

Applications

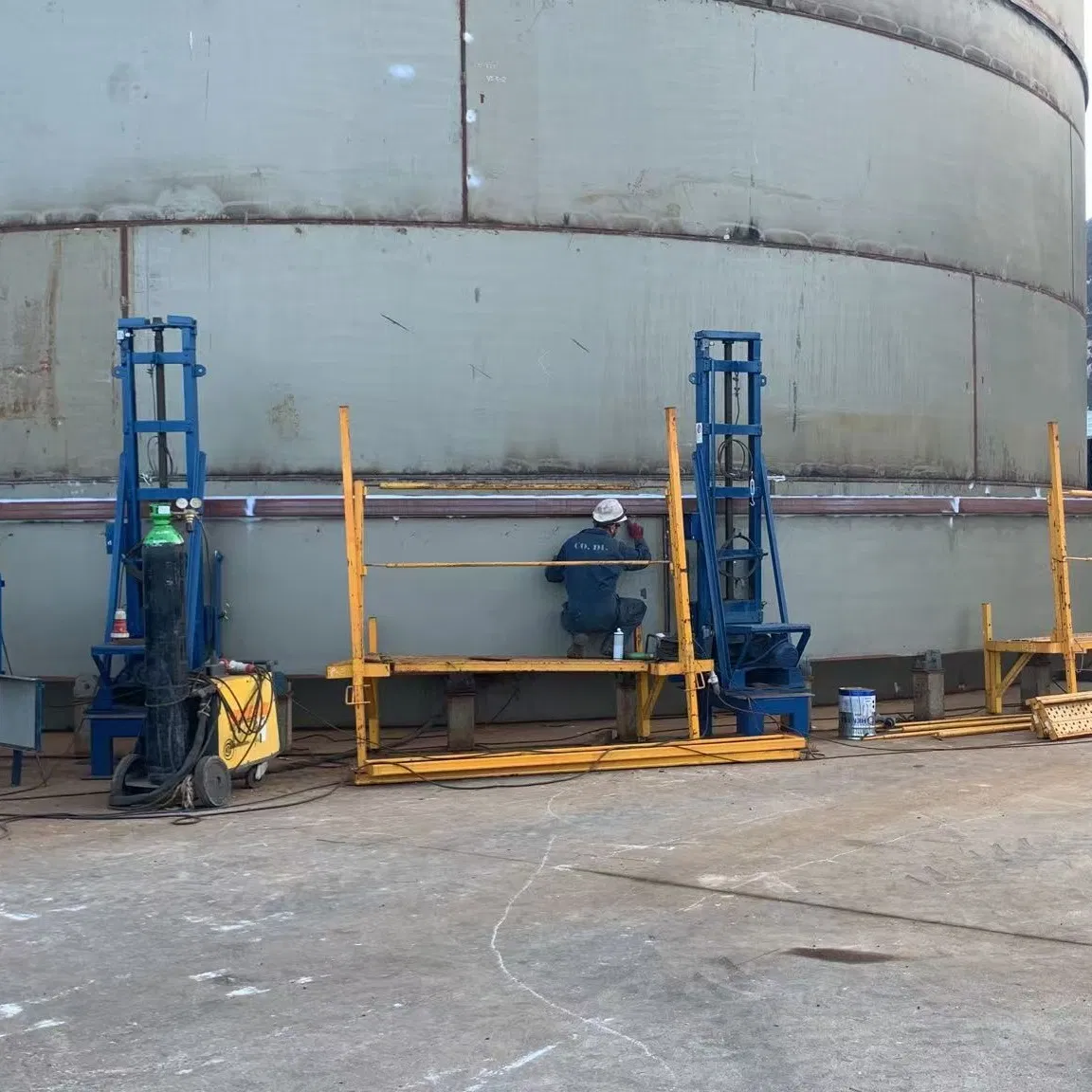

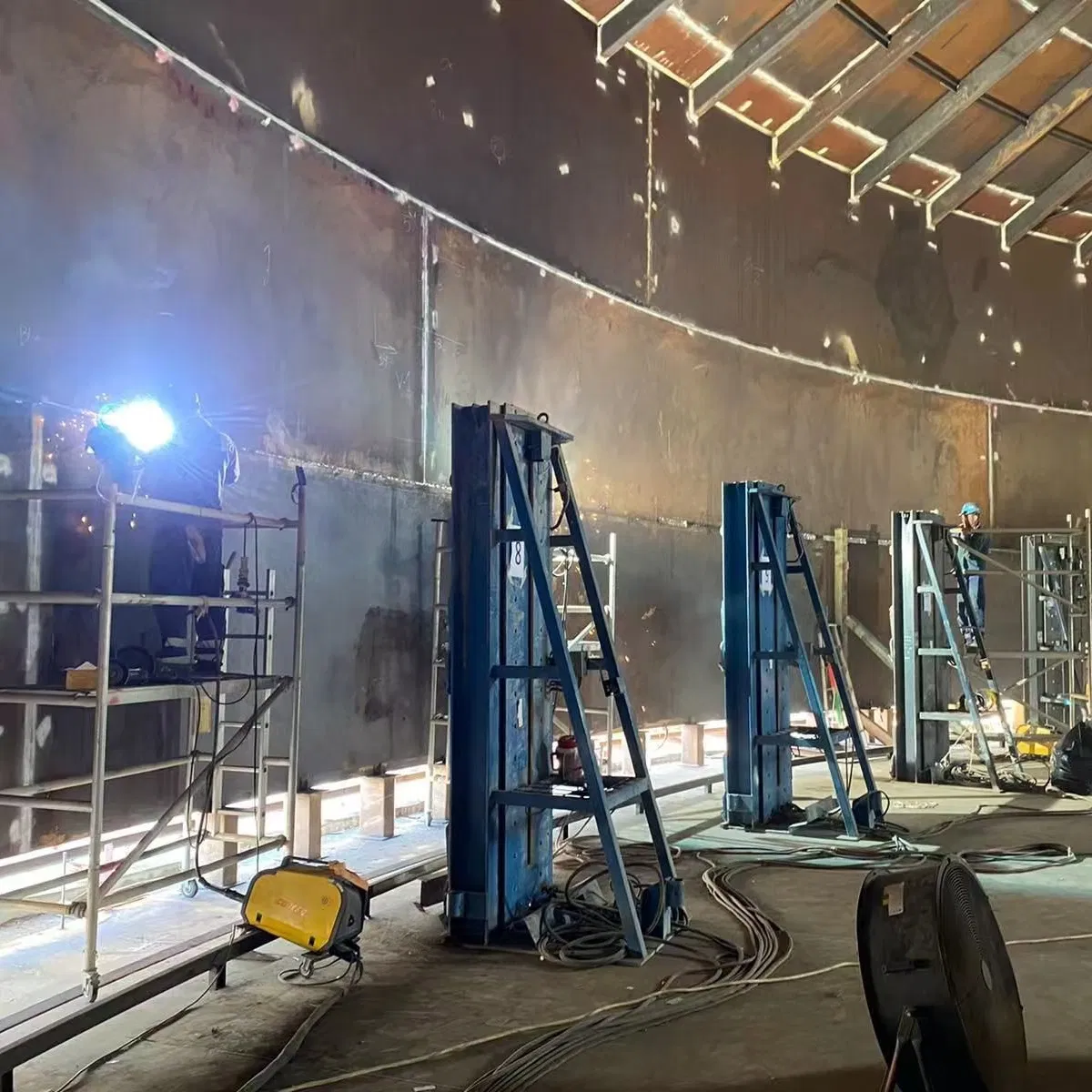

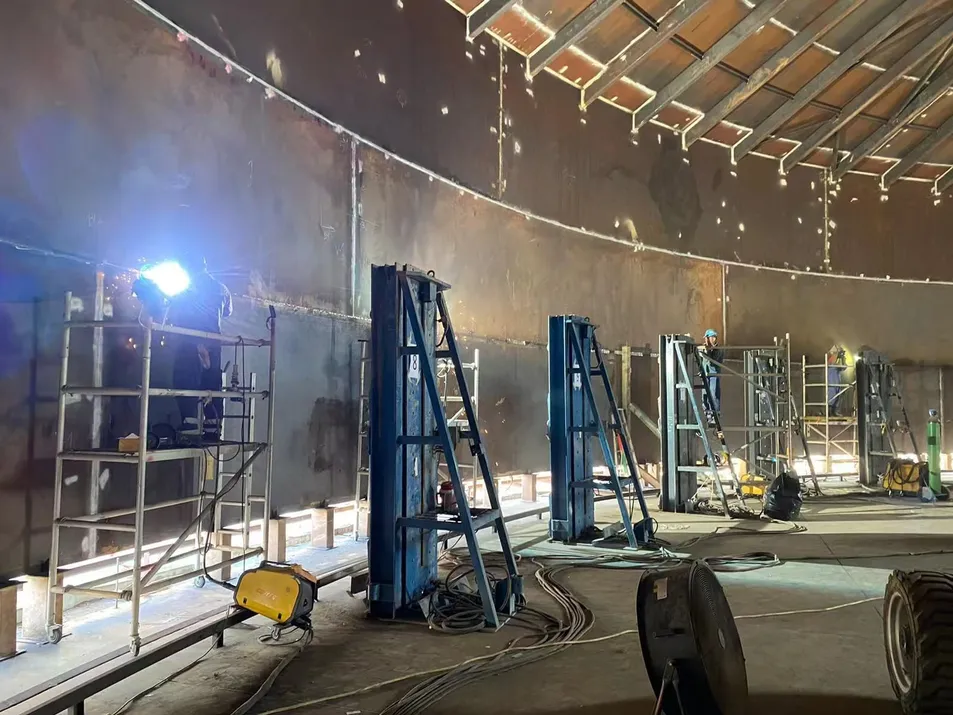

As an advanced mechanical tool, the lead screw jacking machine has been widely used in the construction of petroleum storage tanks because of its advantages of simple structure, convenient operation, strong bearing capacity and stable jacking.

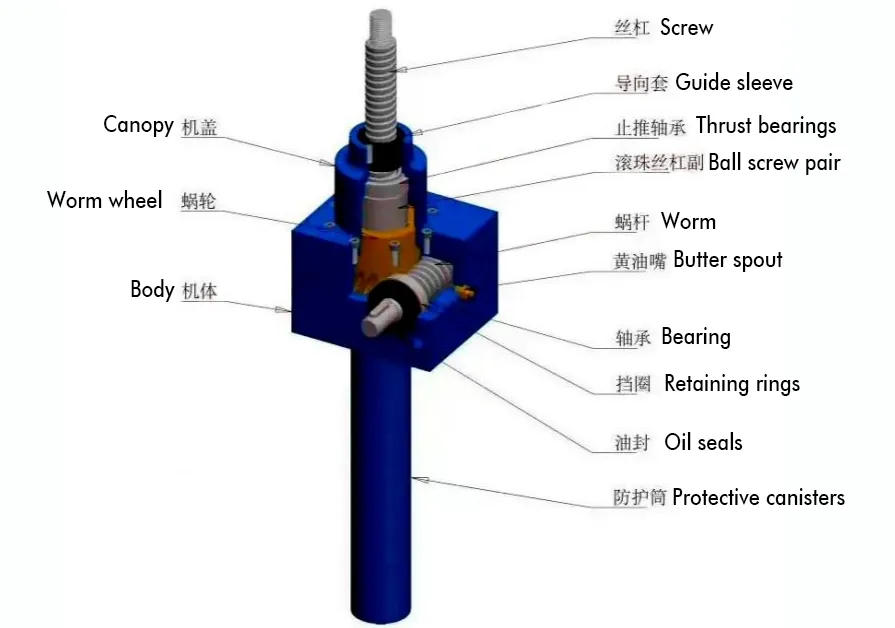

Major Components

1. Key Configurations

• Main structure: high-strength steel is used to ensure the bearing capacity and fatigue resistance of the jacking machine.

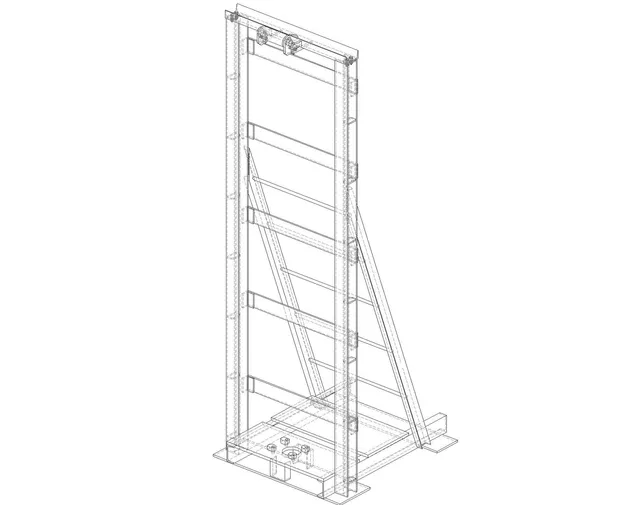

• Bracket structure: mainly made of Q235B material to ensure the overall stability of performance.
• Modular design: Modular components for quick assembly, disassembly and transportation.
• Bottom support: Set up the bottom support with adjustable height to ensure the stability of the jacking machine on different grounds.

2. Transmission System

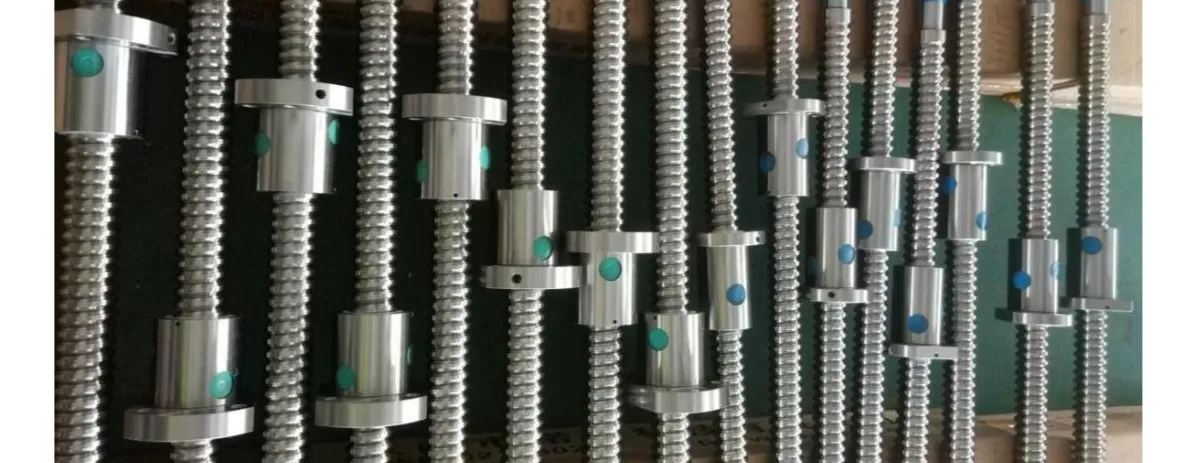

• Lead screw system: select high-precision, high-wear-resistant ball screws to ensure smooth and accurate jacking process.

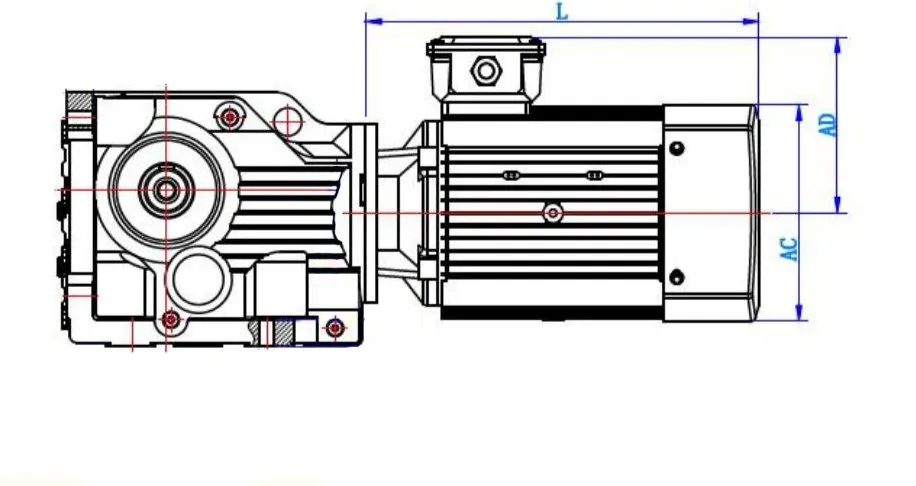

• Drive mechanism: Servo motor or stepper motor is used to control the lead screw to achieve precise fine-tuning ability.
• Reducer: Cooperate with a suitable reducer to reduce the motor load and provide sufficient torque.

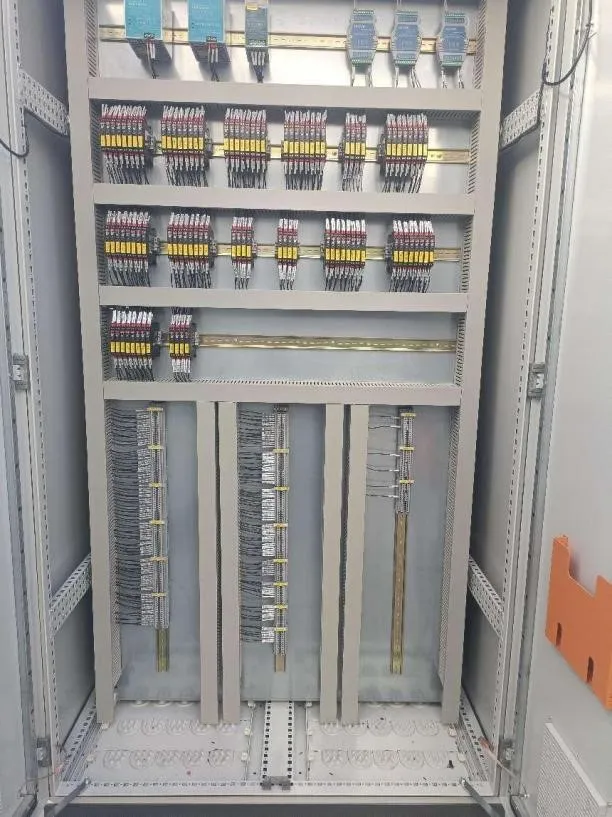

3. Control Systems

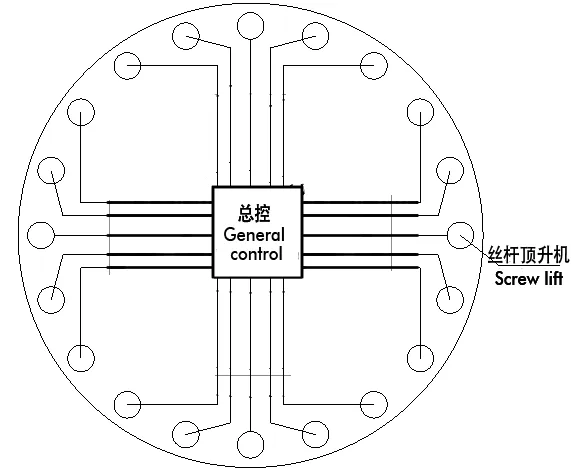

• Automatic control: Integrate advanced PLC control system to achieve automatic lifting and position control.

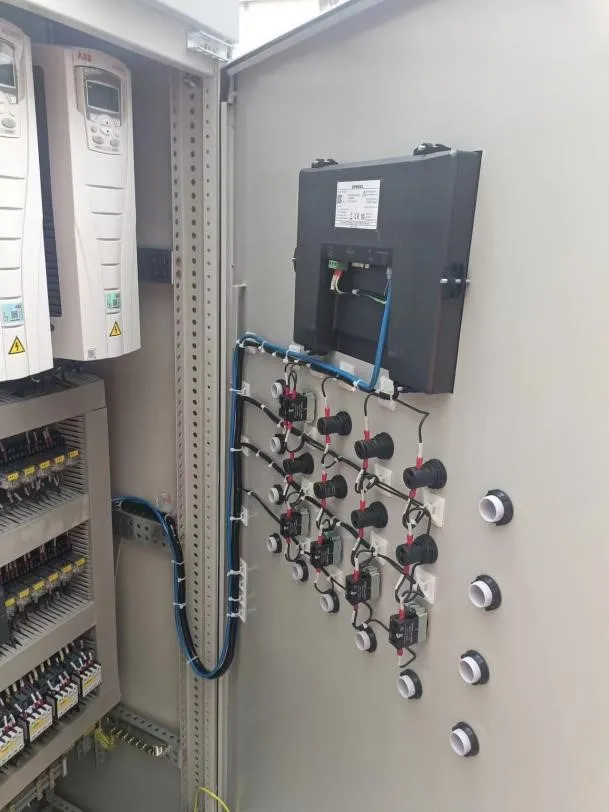

• Human-machine interface: The design is friendly to the human-machine interface, which can detect the running status of each motor.
• Features: The servo motor is used with the planetary reducer to ensure the synchronous operation of the screw jacking and the error is within 2mm.

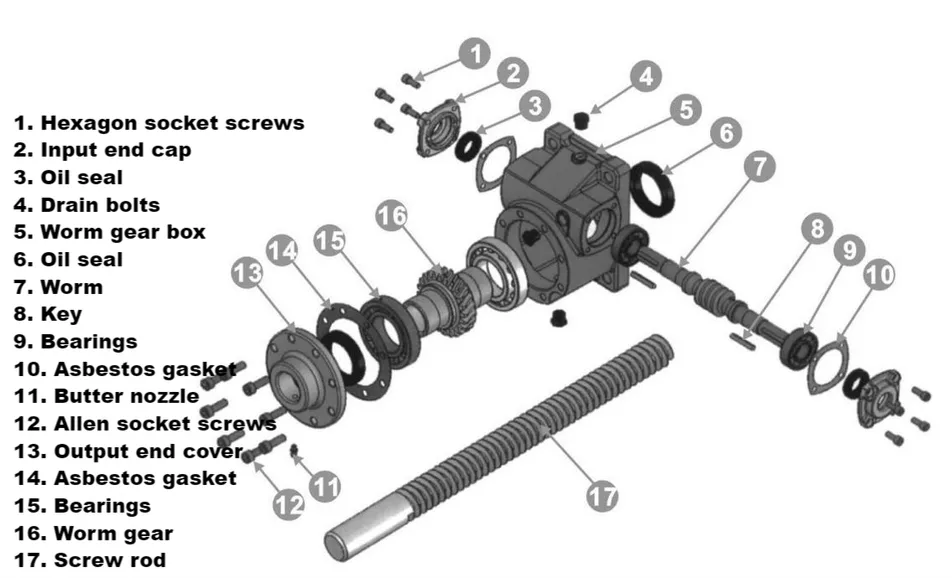

4. Advantages of Screw Design

• High precision: The use of ball screws ensures high precision and stability in the jacking process.
• Easy maintenance: Considering the convenience of maintenance, the jacking machine can maintain good performance for a long time.
• Precise control: The screw jacking machine can achieve precise control at the micron level through the fine screw transmission system to ensure the stability and accuracy of the storage tank in the jacking process.
• Easy to operate: Modular design and user-friendly interface make operation more simple and intuitive.
• Strong bearing capacity: The lead screw jacking machine can be designed as a multi-stage combined type to meet the needs of tank jacking of different weights and heights.
• Safe and reliable: with self-locking function, it can keep the jacking position stable even in the case of power failure and other emergencies, avoid accidents, and ensure the safety of jacking operations.

Technical Specifications

(Custom configurations available upon request.)

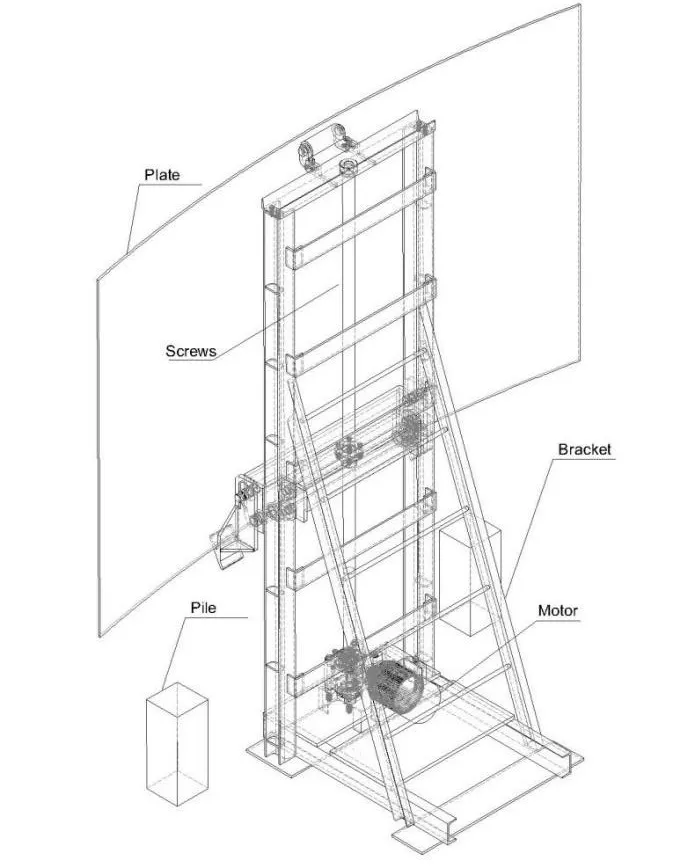

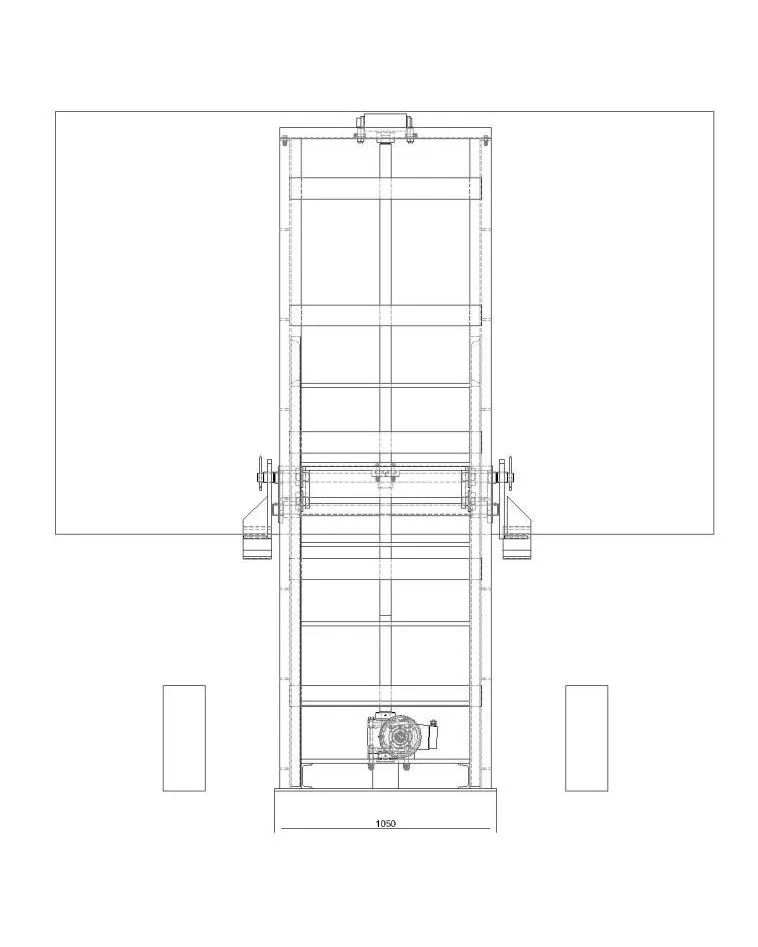

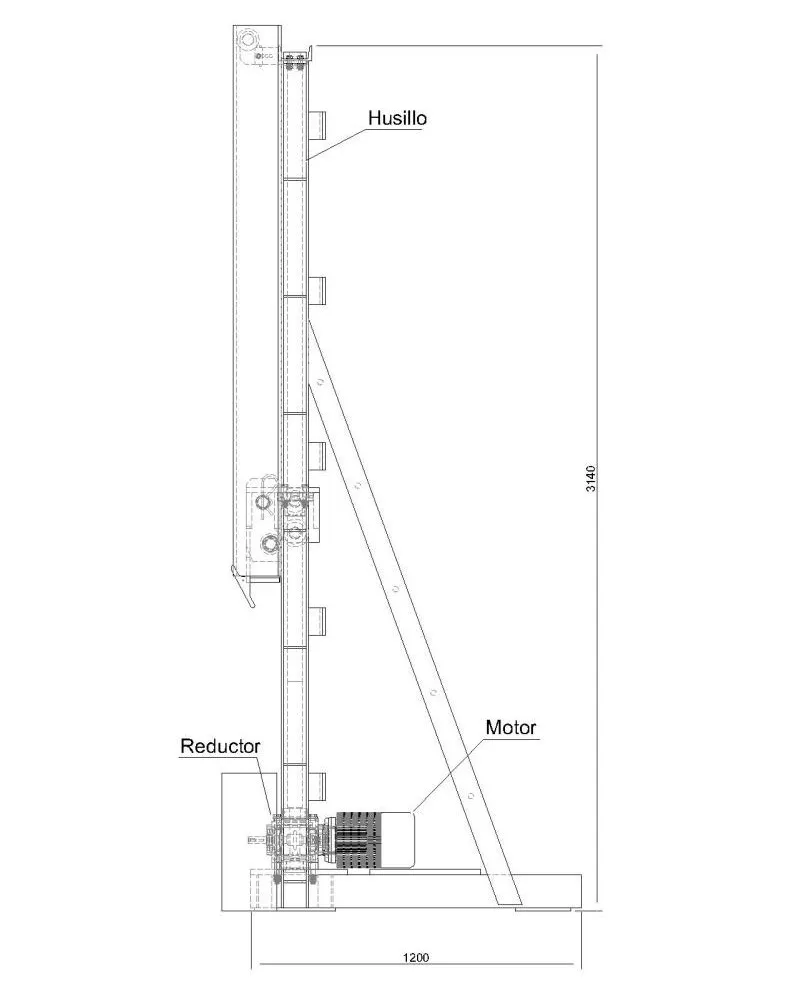

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

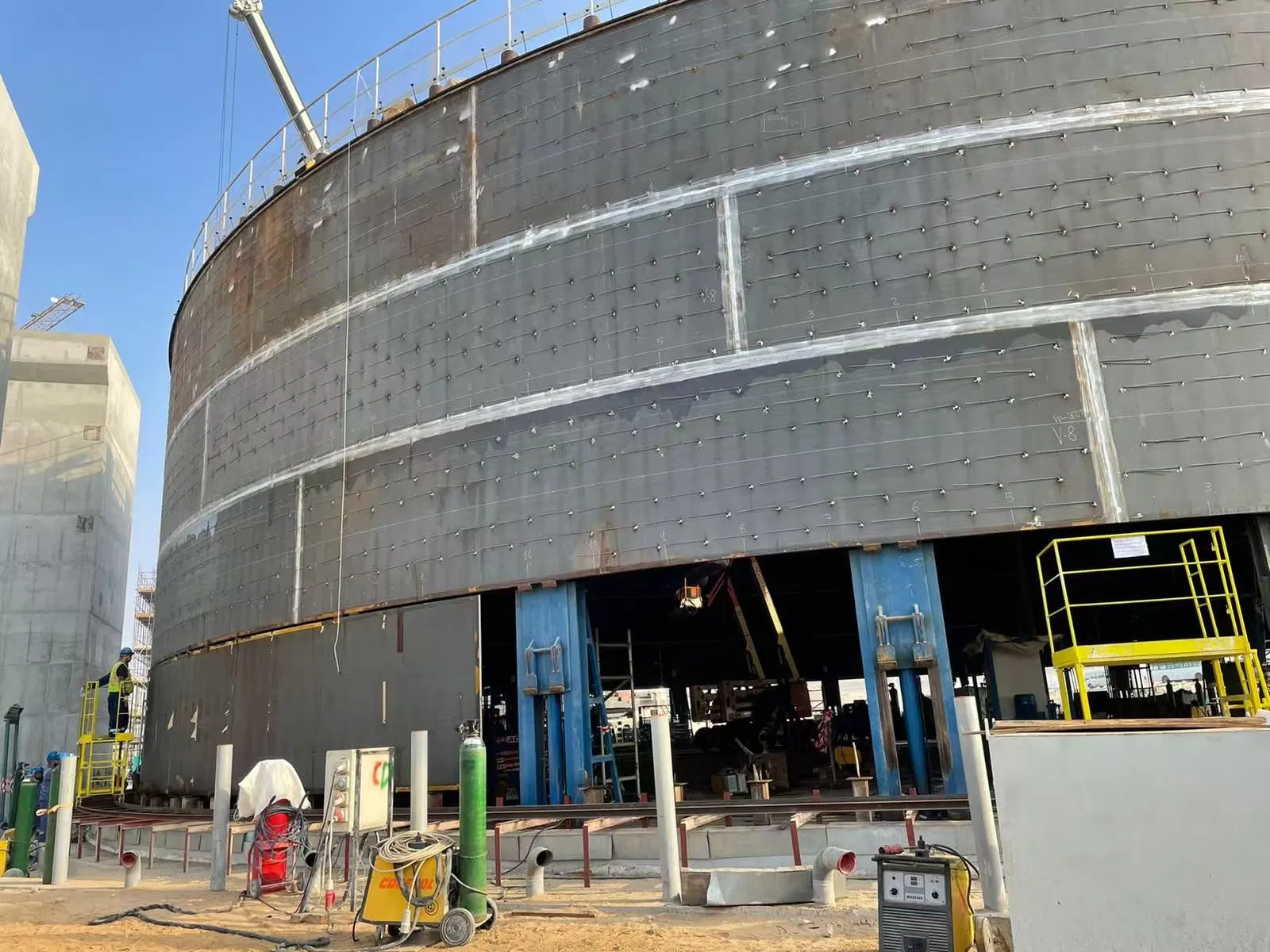

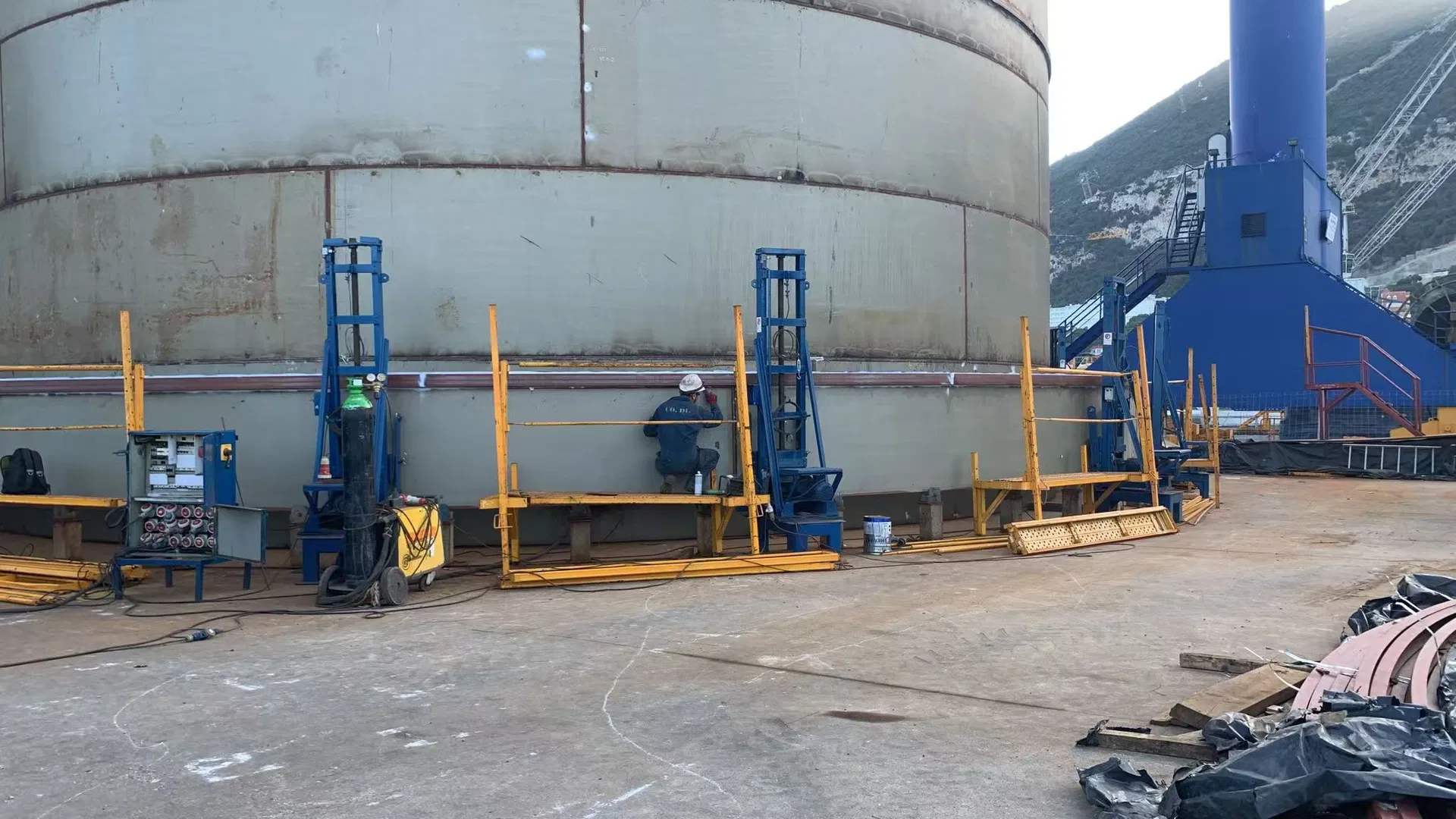

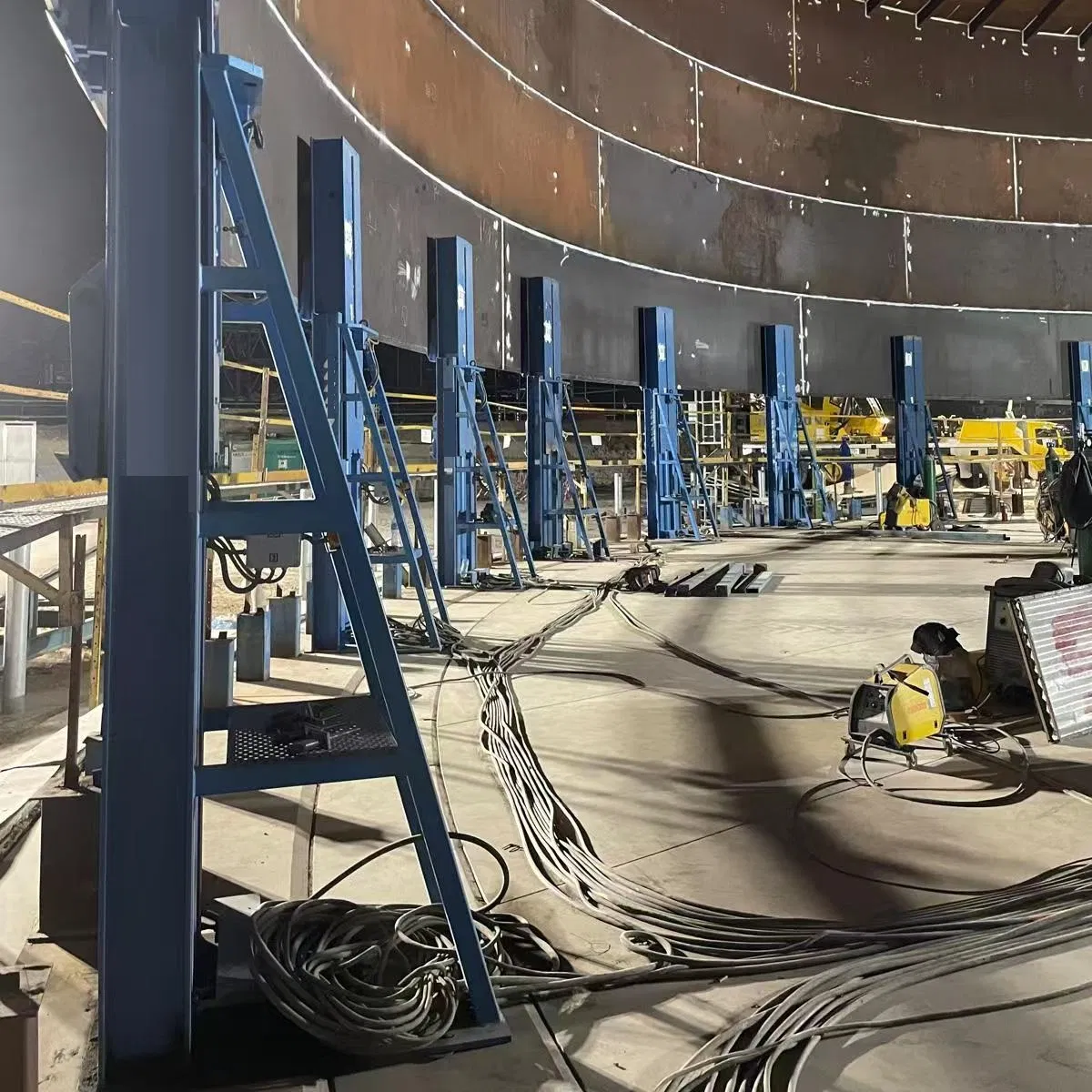

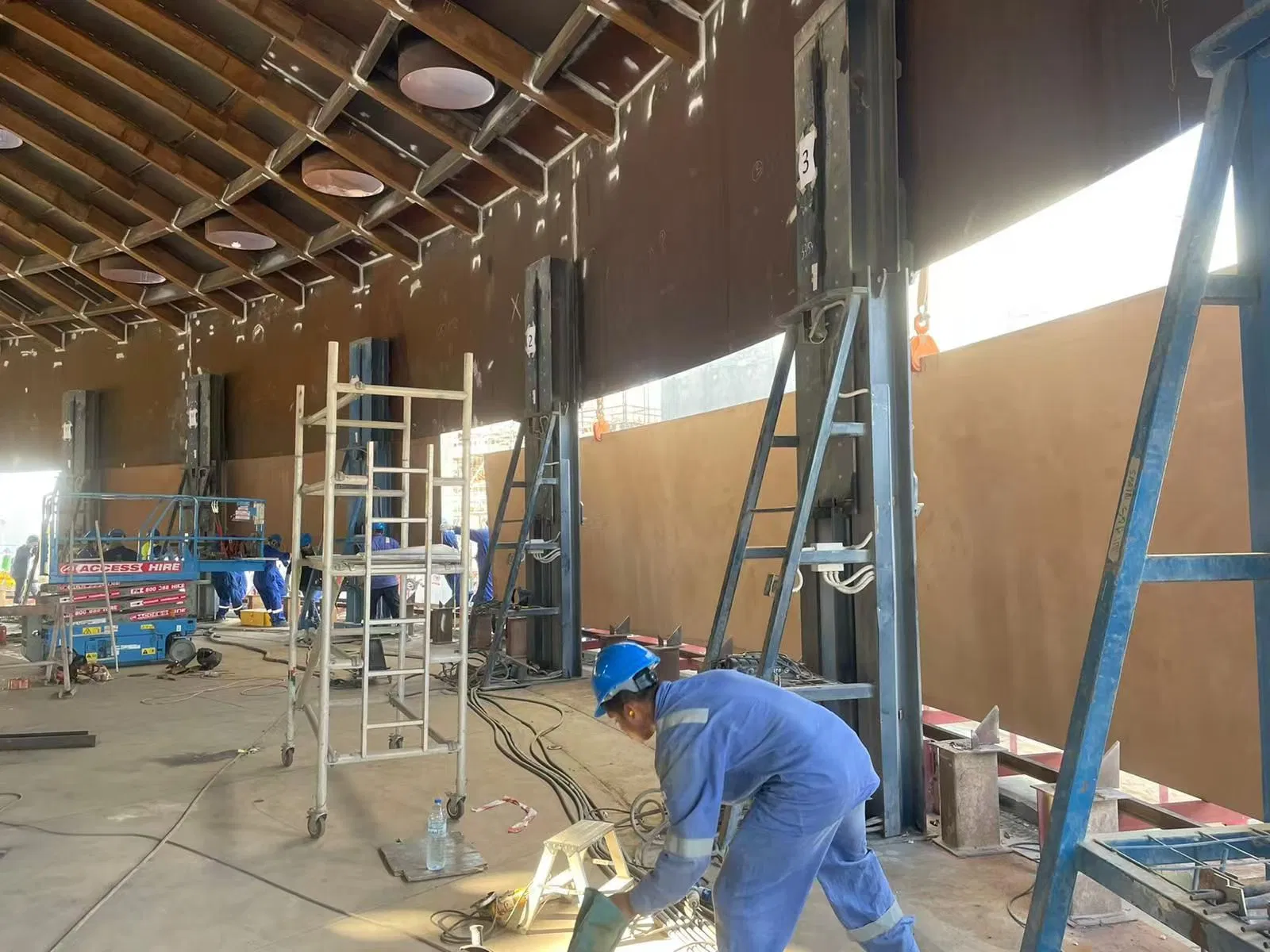

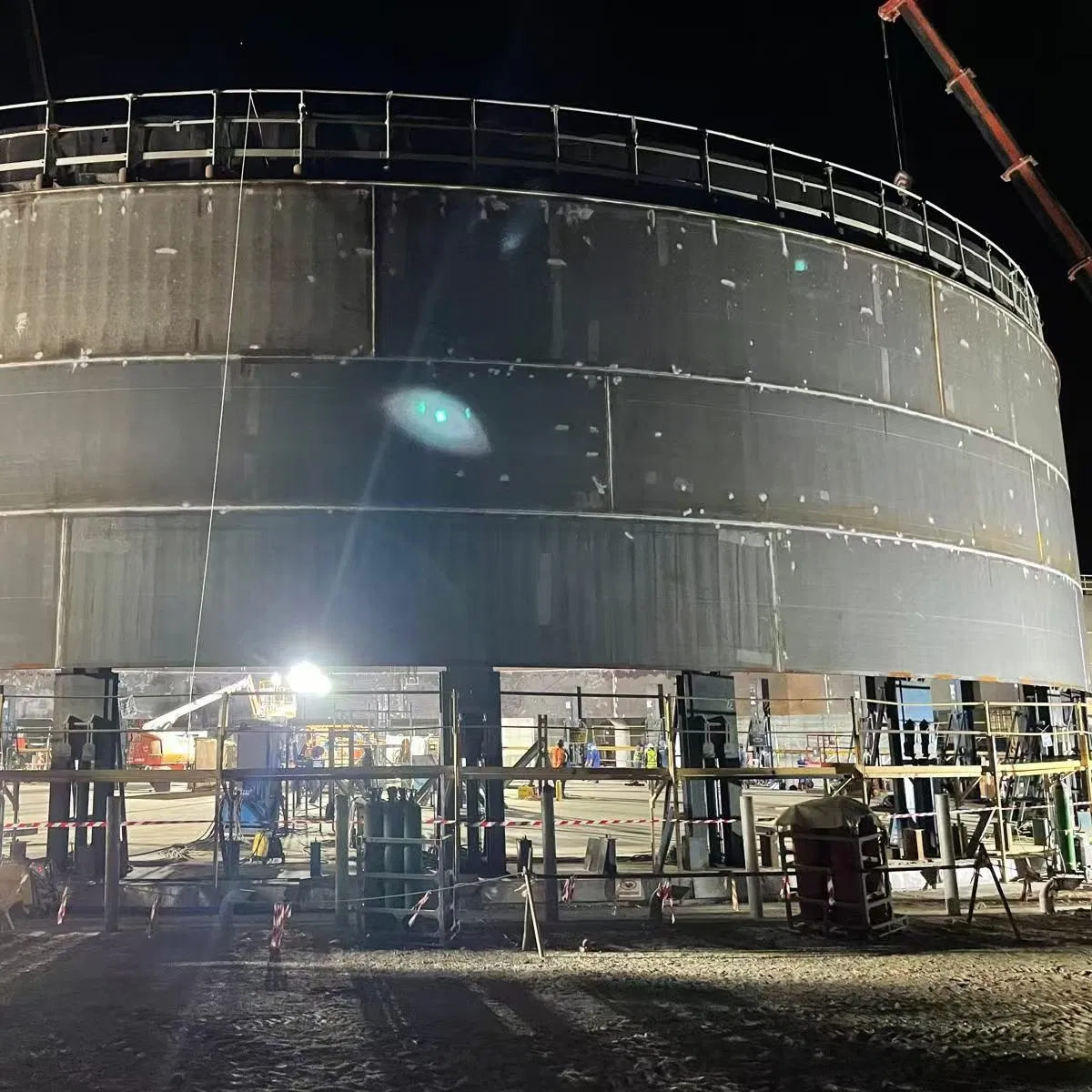

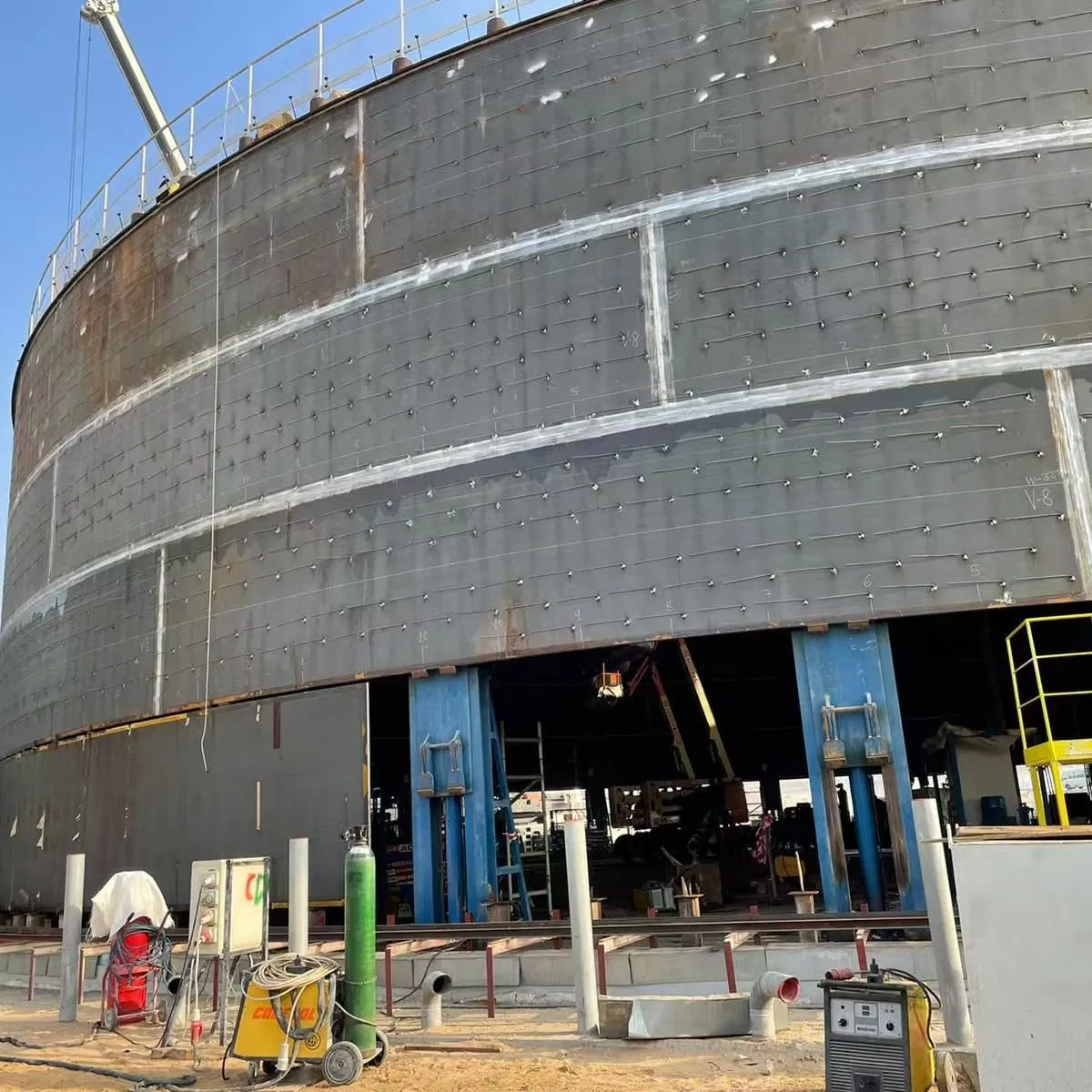

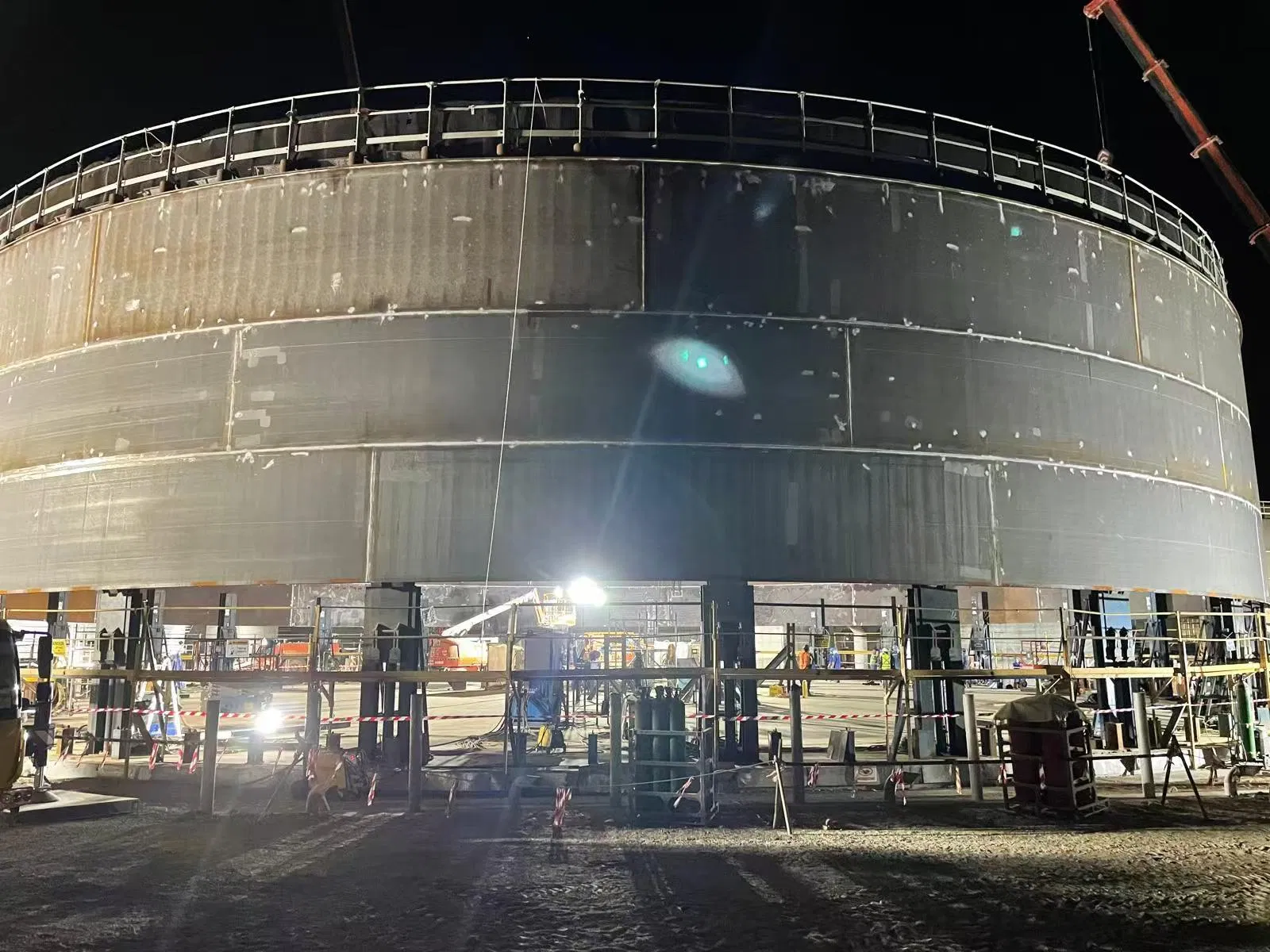

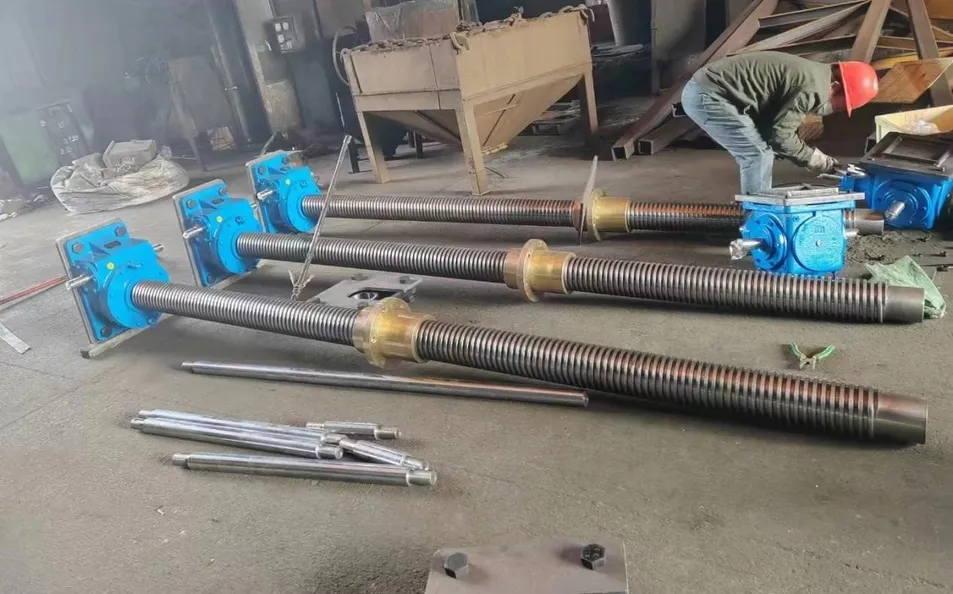

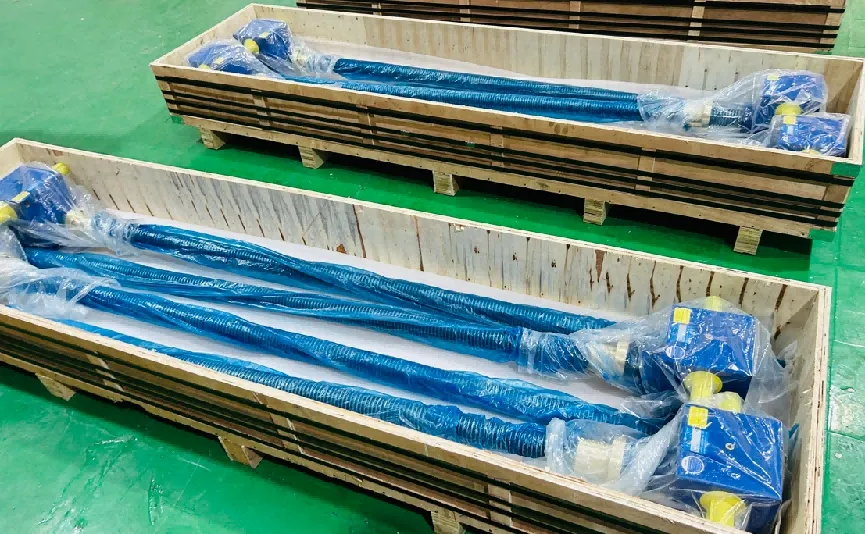

Product Photos

After Sales Service

• Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
• Extended Warranty: Optional coverage up to 36 months.
• Global Support: 24/7 technical assistance and spare parts supply.
• Training: On-site or remote operation/maintenance training.
