PLC Electrically Controlled Lead Screw Jacking Mechanical System for Grain Storage Silos

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Basic Info.

Model NO.

SDT-1500

Type

Mechanical Jack

Structure

Screw Jack

Capacity (Load)

11-20T

Power Source

Electric

Max Height

3220mm

Certification

CE, ISO 9001:2000

Condition

New

Max. Static Load

25t

Actual Operating Load

15t

Lifting Speed

40-60mm/Min Adjustable

Motor Type

Servo Motor

Transport Package

Export Package

Specification

Customized

Origin

China

HS Code

8428909090

Production Capacity

200 Sets/Month

Product Description

Screw Jack System - Tank Lifting Construction Equipment

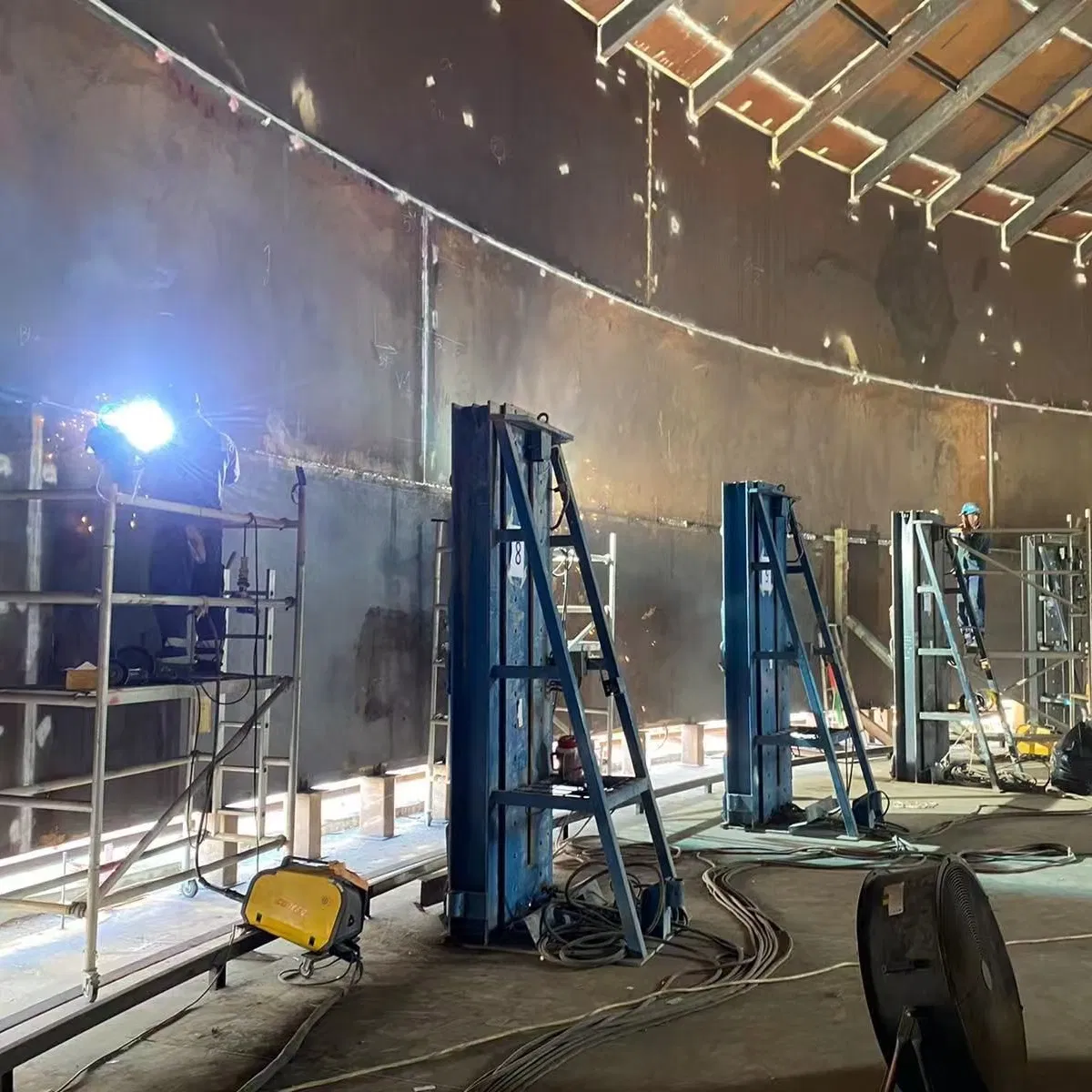

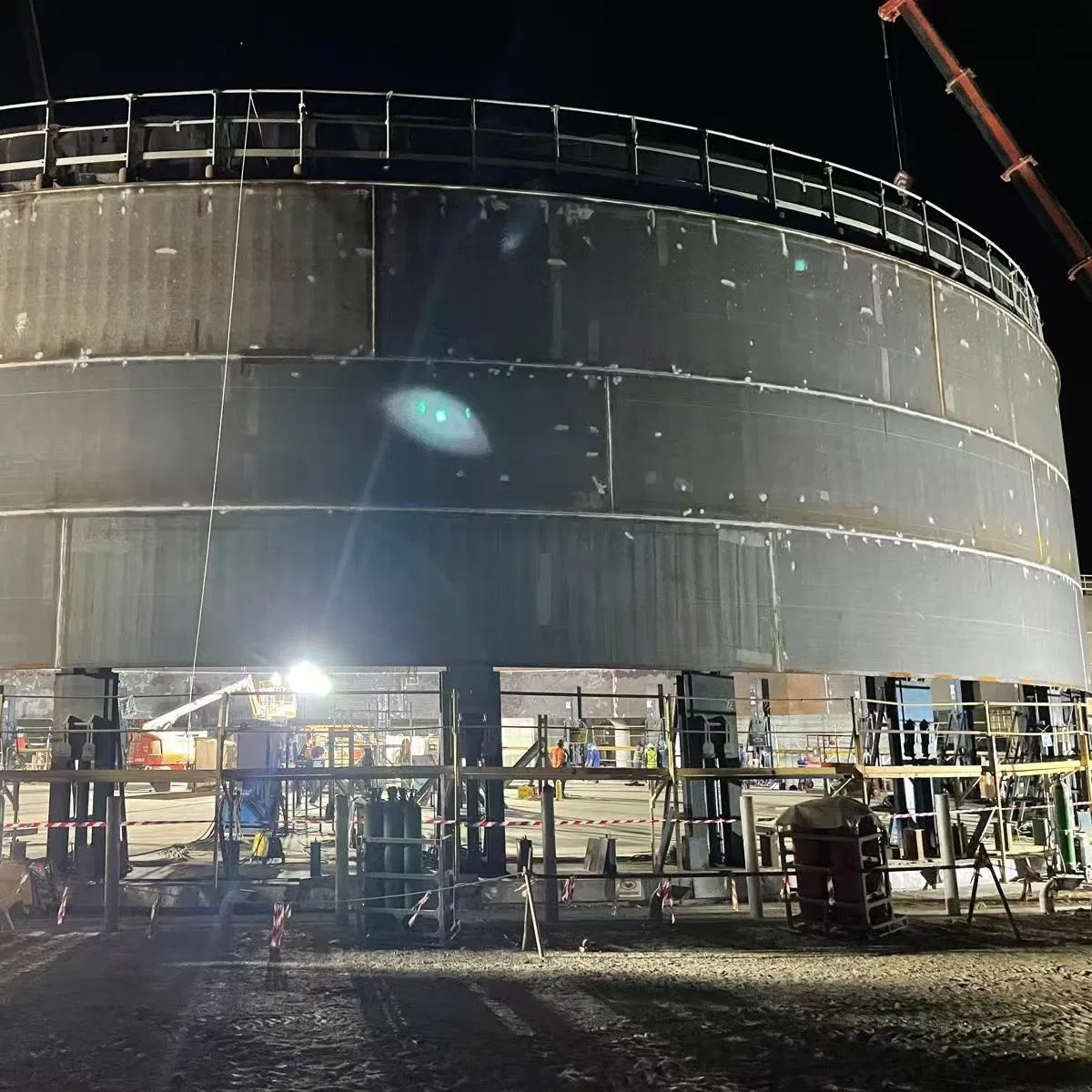

Petroleum storage tank is an important storage facility in the petroleum industry, and its construction quality directly affects the safe operation and service life of the storage tank. In the installation and maintenance of petroleum storage tanks, jacking operations are particularly critical, requiring precise control and a high degree of safety.

With the continuous advancement of industrial technology, the demand for precise control of heavy equipment is also increasing. As a widely used and superior jacking solution, the design of the lead screw jacking machine not only requires strong bearing capacity and high stability, but also takes into account the convenience and safety of operation.

The purpose of this scheme is to illustrate the application and advantages of lead screw jacking in the construction of oil storage tanks.

PLC Electrically Controlled Lead Screw Jacking Mechanical System for Grain Storage Silos

Specification

Design Overview

The design goal of the lead screw jack is to achieve efficient, stable and safe jacking operations. The design takes into account the convenience of user operation, the reliability of the equipment and the ease of maintenance.

Applications

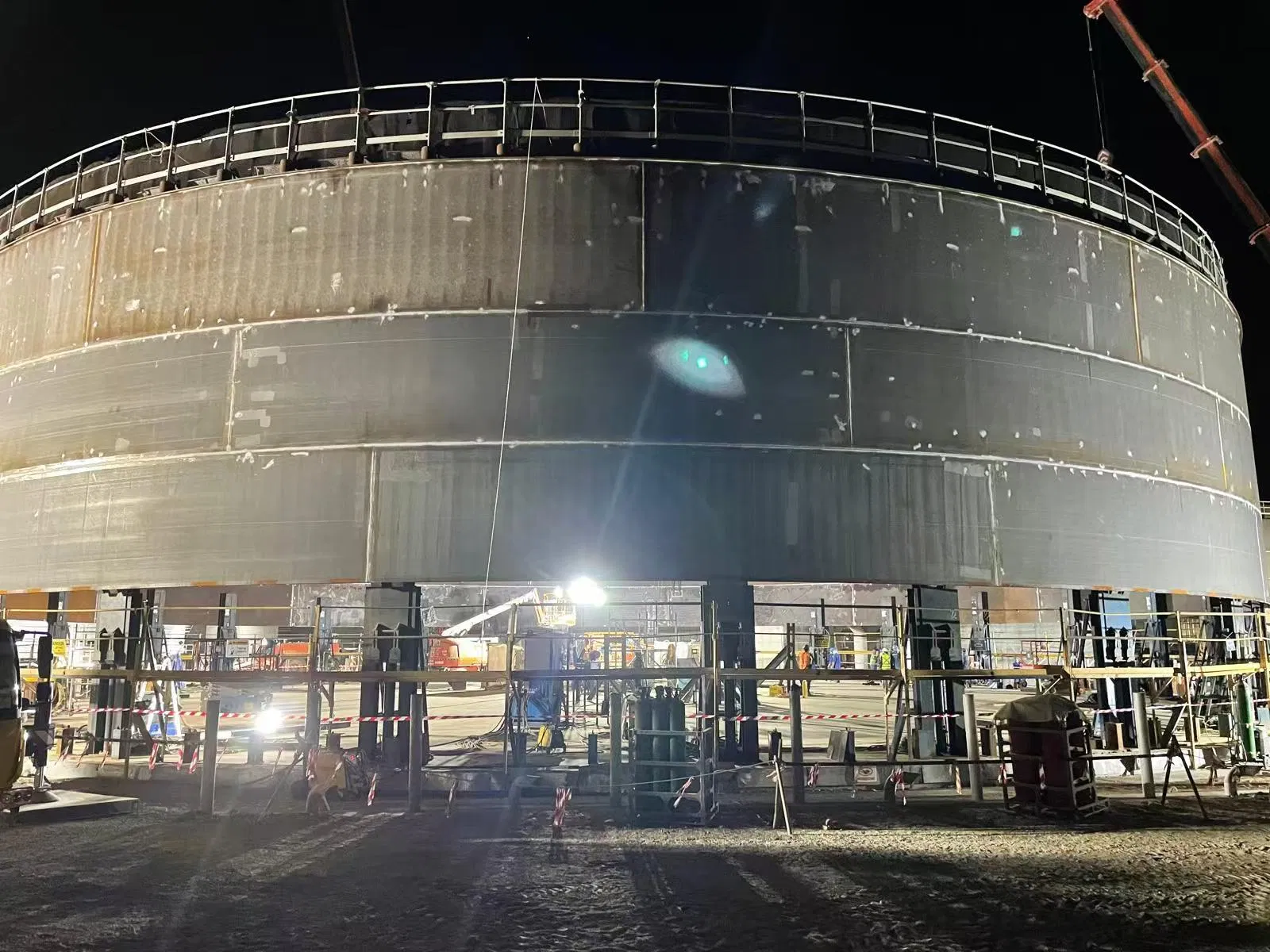

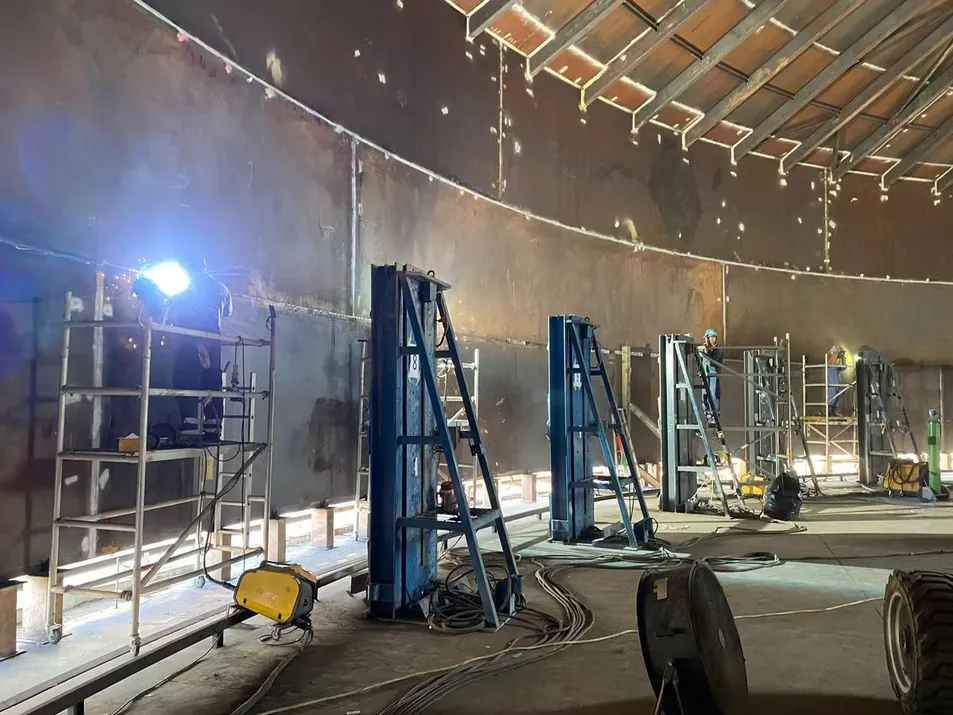

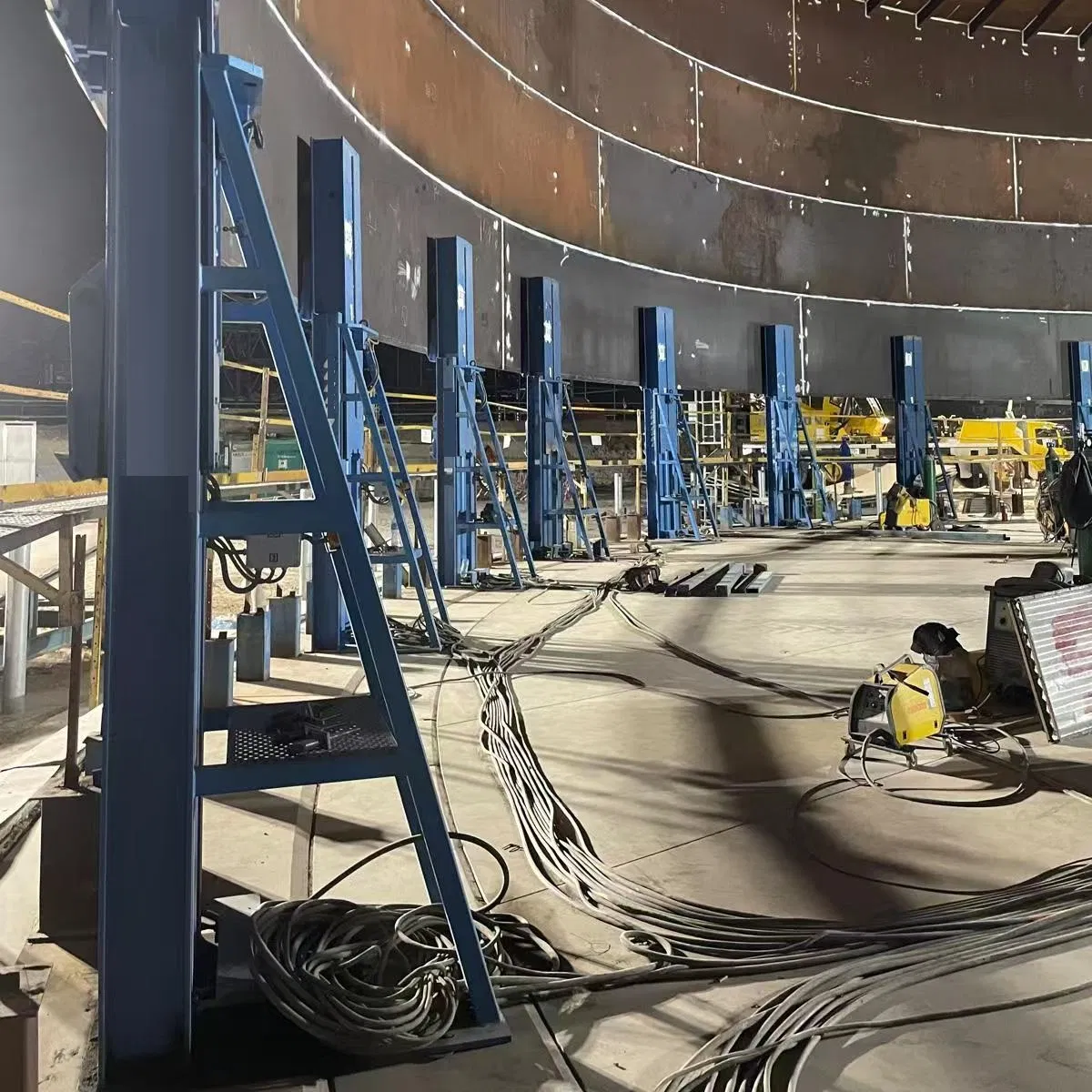

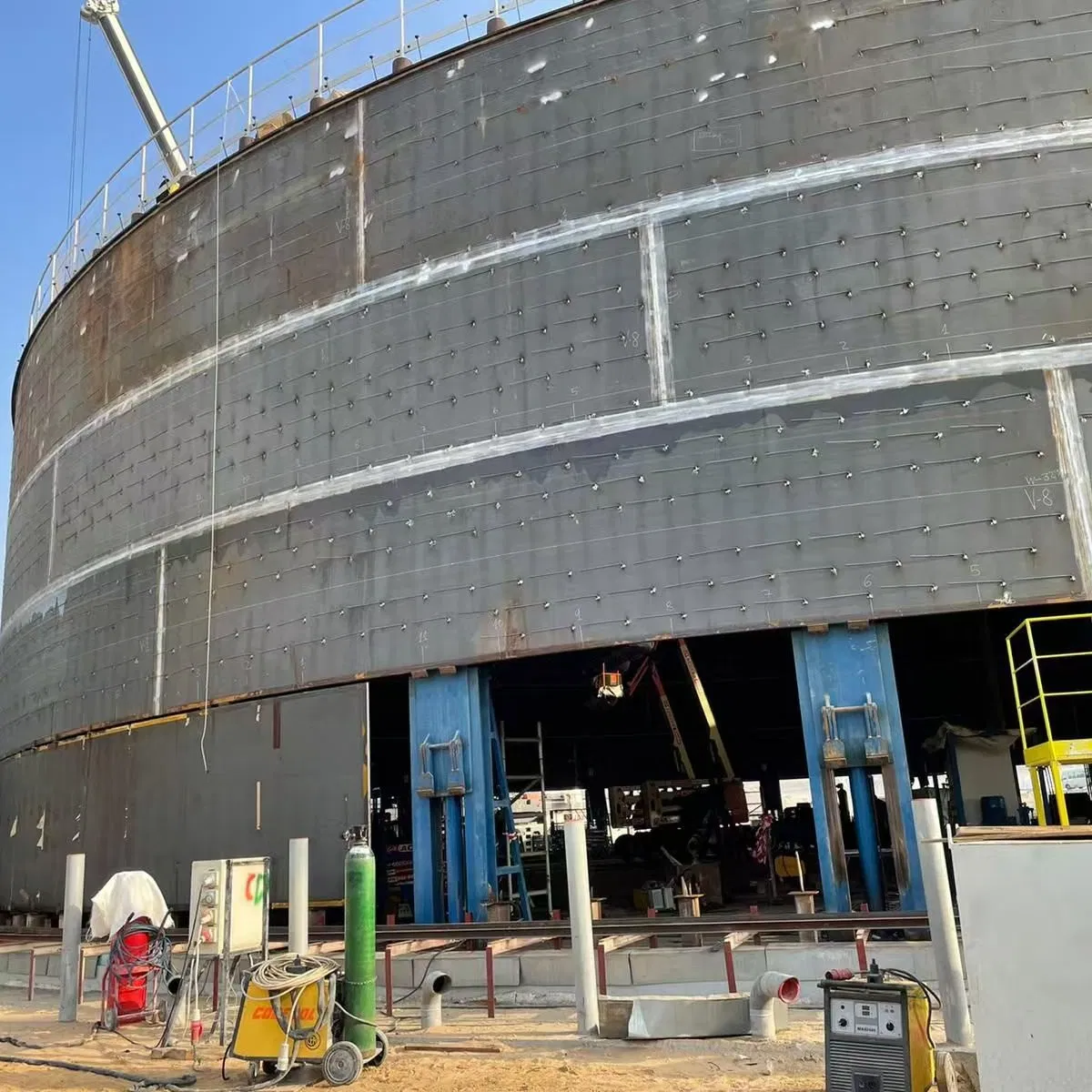

As an advanced mechanical tool, the lead screw jacking machine has been widely used in the construction of petroleum storage tanks because of its advantages of simple structure, convenient operation, strong bearing capacity and stable jacking.

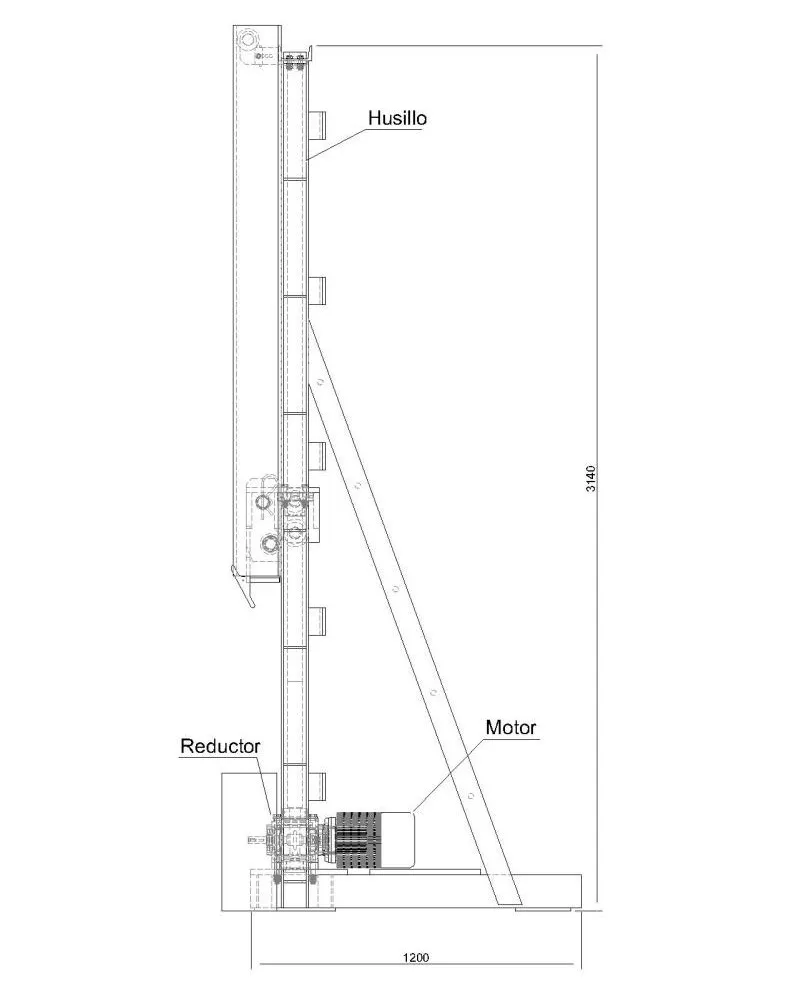

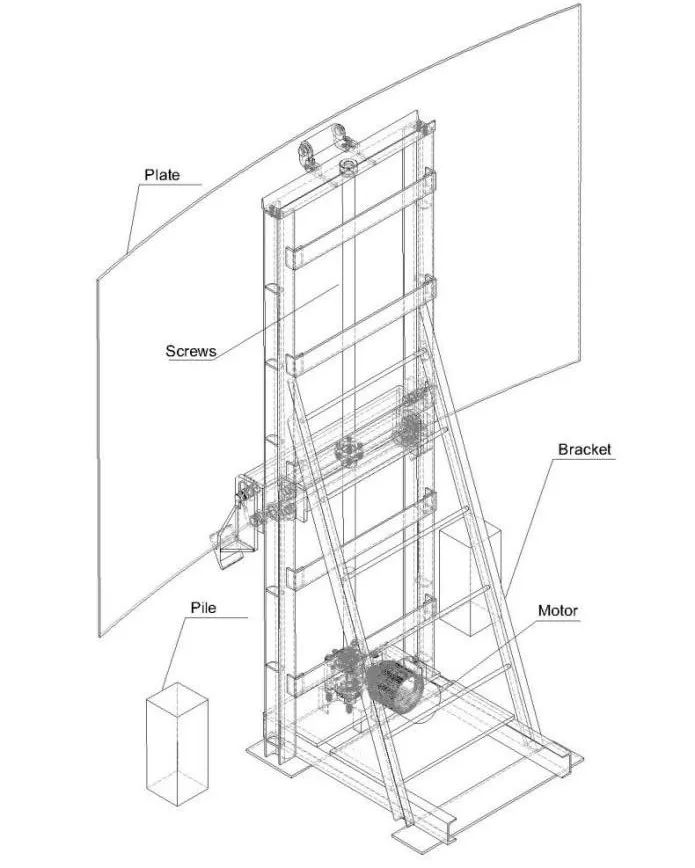

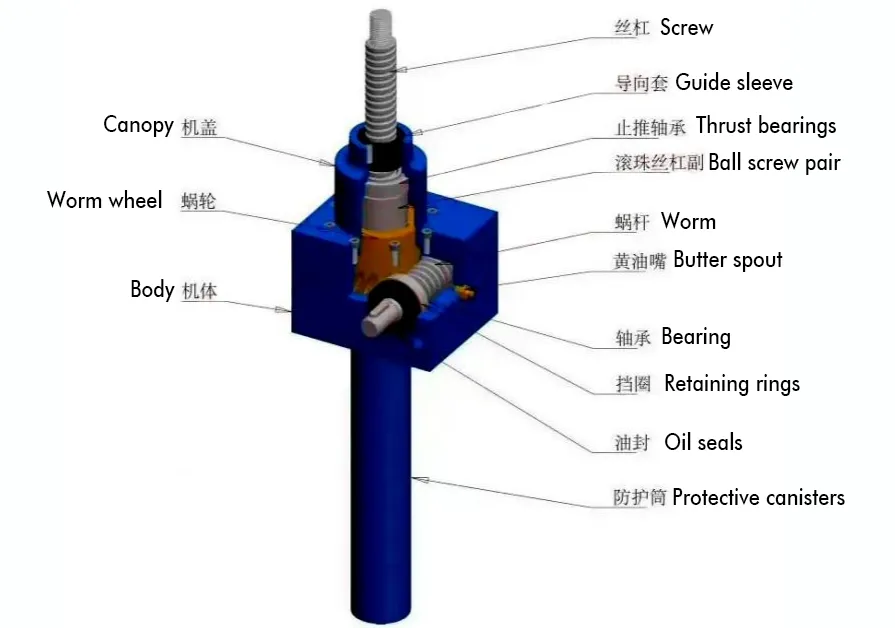

Major Components

1. Key Configurations:

Main structure: high-strength steel is used to ensure the bearing capacity and fatigue resistance of the jacking machine.

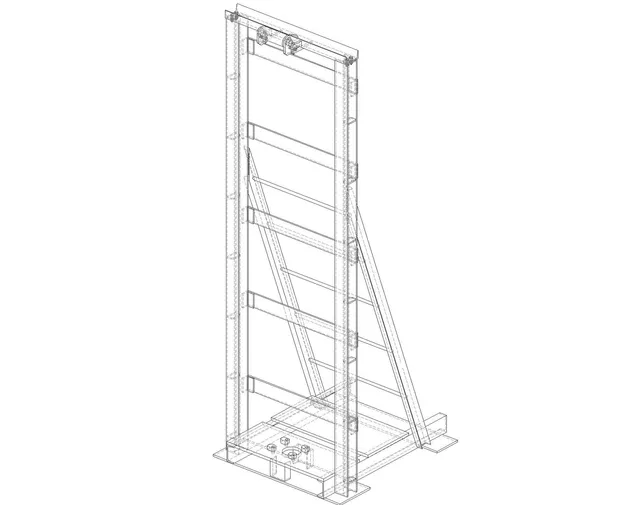

Bracket structure: mainly made of Q235B material to ensure the overall stability of performance.
Modular design: Modular components for quick assembly, disassembly and transportation.
Bottom support: Set up the bottom support with adjustable height to ensure the stability of the jacking machine on different grounds.

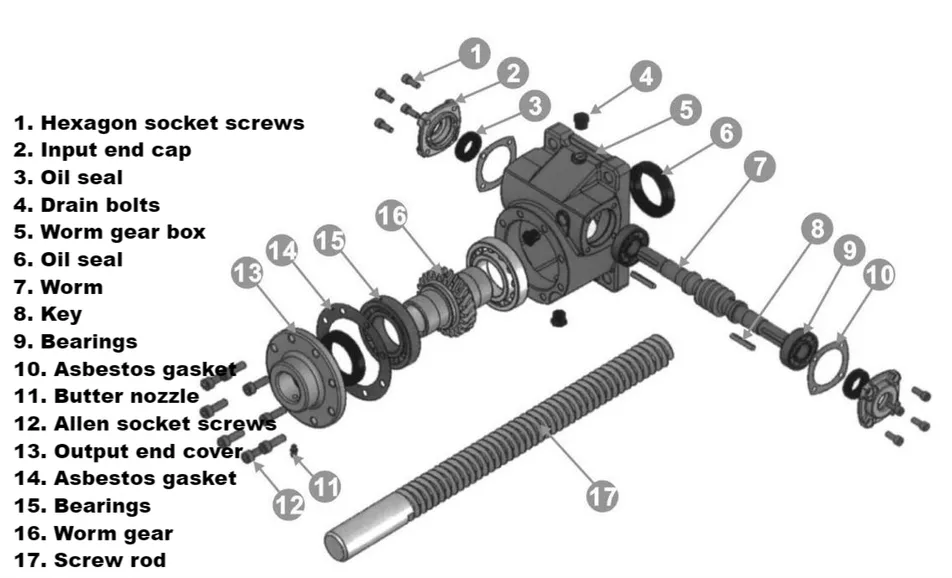

Transmission System

2. Transmission Features:

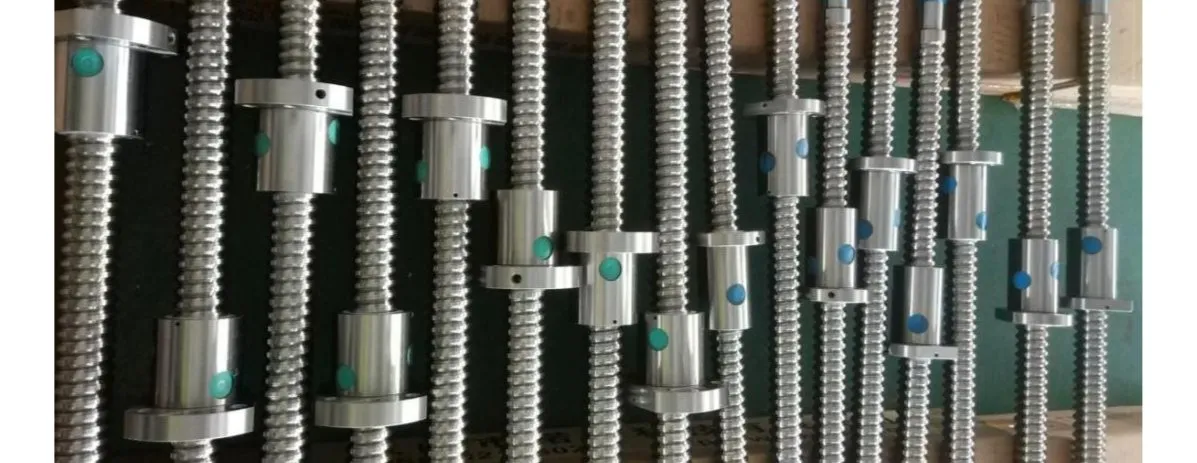

Lead screw system: select high-precision, high-wear-resistant ball screws to ensure smooth and accurate jacking process.
Drive mechanism: Servo motor or stepper motor is used to control the lead screw to achieve precise fine-tuning ability.
Reducer: Cooperate with a suitable reducer to reduce the motor load and provide sufficient torque.

Control Systems

3. System Integration:

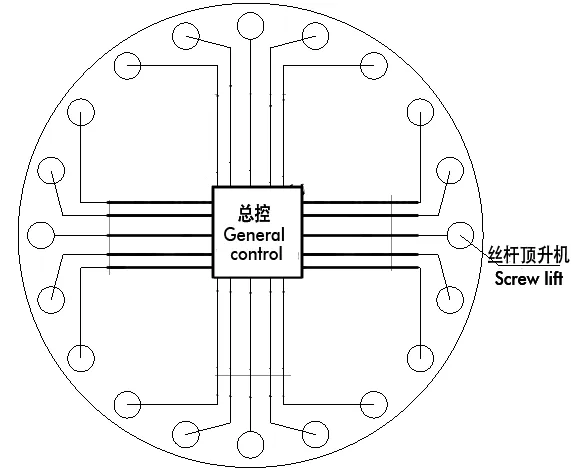

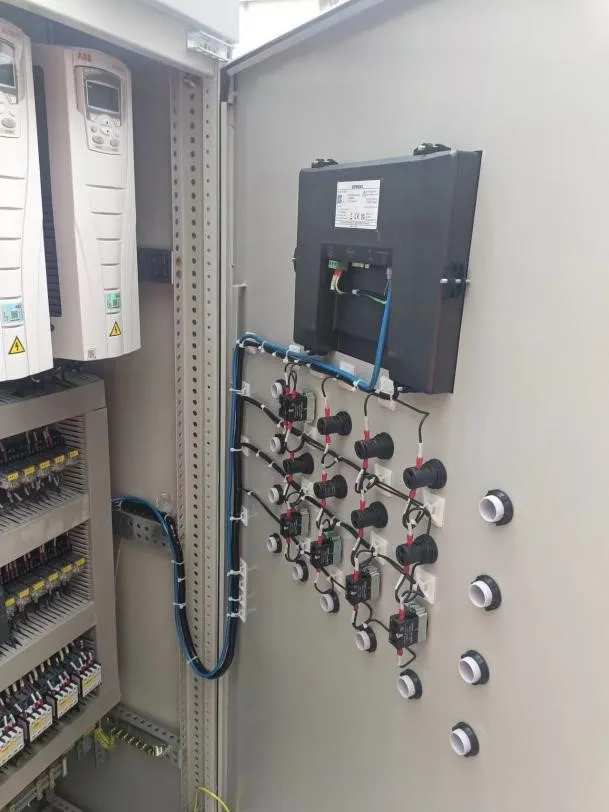

Automatic control: Integrate advanced PLC control system to achieve automatic lifting and position control.
Human-machine interface: The design is friendly to the human-machine interface, which can detect the running status of each motor.
Features: The servo motor is used with the planetary reducer to ensure the synchronous operation of the screw jacking and the error is within 2mm.

Advantages of Screw Design

High precision: The use of ball screws ensures high precision and stability in the jacking process.
Easy maintenance: Considering the convenience of maintenance, the jacking machine can maintain good performance for a long time.
Precise control: The screw jacking machine can achieve precise control at the micron level through the fine screw transmission system to ensure the stability and accuracy of the storage tank in the jacking process.
Easy to operate: Modular design and user-friendly interface make operation more simple and intuitive.
Strong bearing capacity: The lead screw jacking machine can be designed as a multi-stage combined type to meet the needs of tank jacking of different weights and heights.
Safe and reliable: with self-locking function, it can keep the jacking position stable even in the case of power failure and other emergencies, avoid accidents, and ensure the safety of jacking operations.

Technical Specifications

(Custom configurations available upon request.)

Parameter	Details

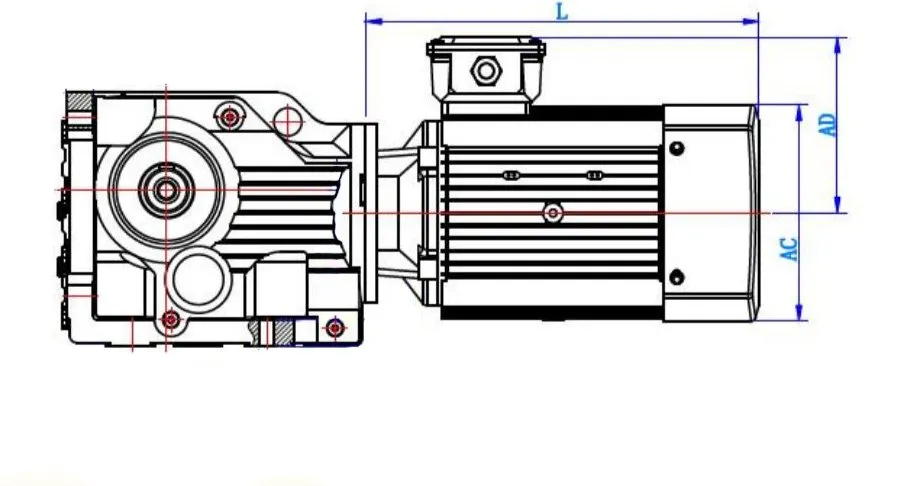

Motor model	Servo motor control (ZLH3130-7720) (Encoder built-in; 2000RMP; supporting planetary reducer ZLF120; rated output torque 192N.M)
The total length of the elevator	3220mm (base height: 217mm + nut height: 120mm + effective stroke: 2800mm + safety margin: 83mm)
Jacking machine model	ZNA300-UR-S-2800-M-III-M1
Maximum static load	250KN (25T)
Actual dynamic load	150KN (15T)
Screw	TR90*16
Load type	The nut bears the load, rises and falls up and down, and the screw rotates
Lifting speed	40-60mm/min (Adjustable) (the full distance is about 46-70min)
Safety feature	The top safety margin position is fixed with a bearing seat
Flange specification	Matching servo motor flange

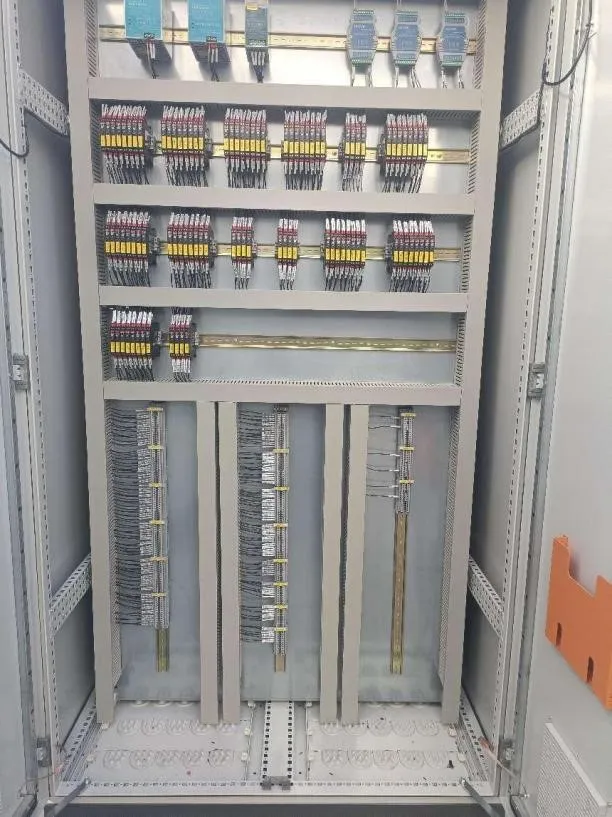

Control System - Automatic control	Integrate advanced PLC control system to achieve automatic lifting and position control
Control System - Human-machine interface	The design is friendly to the human-machine interface, which can detect the running status of each motor.

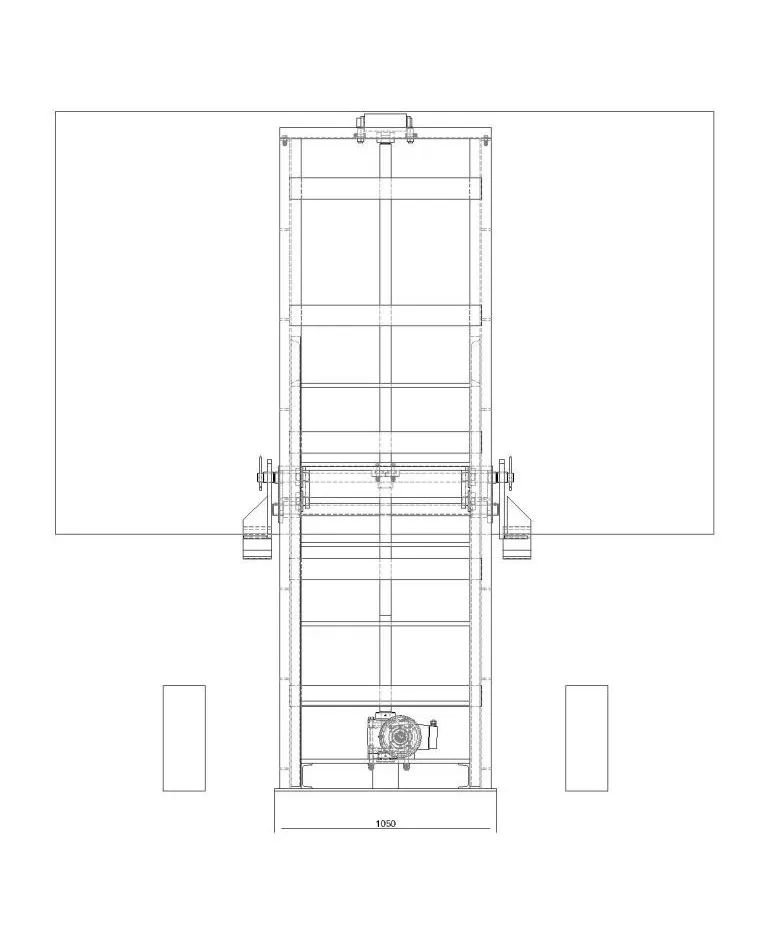

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

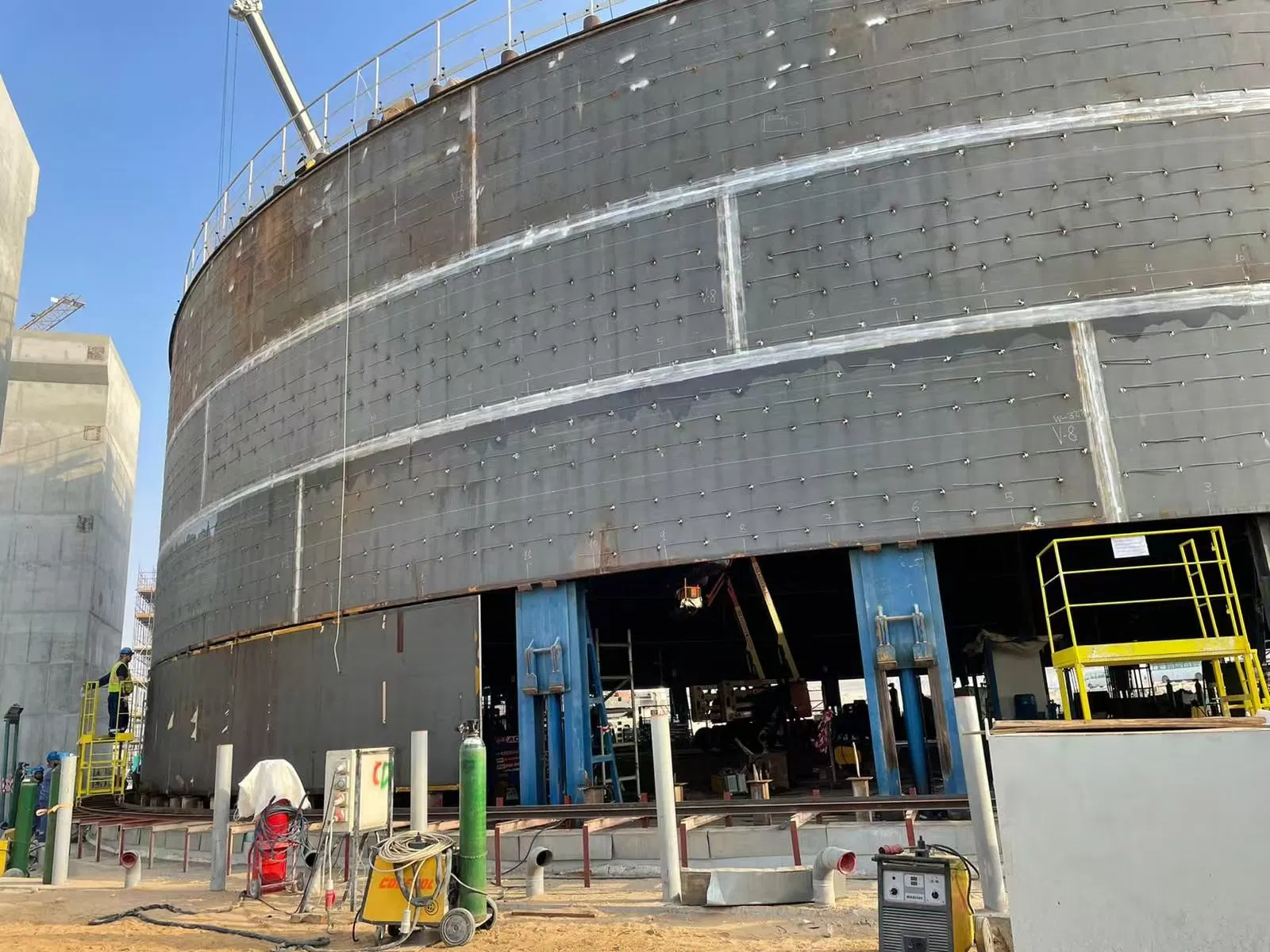

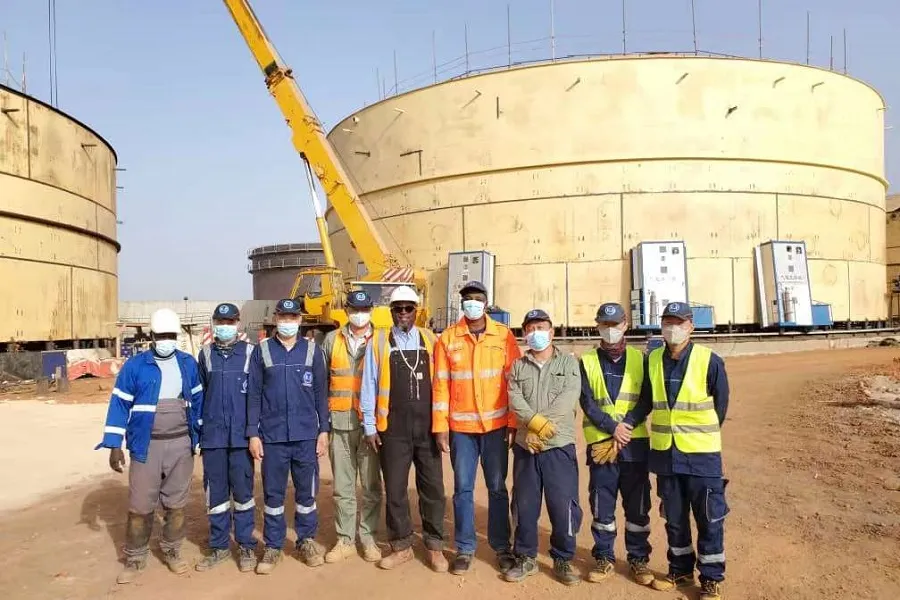

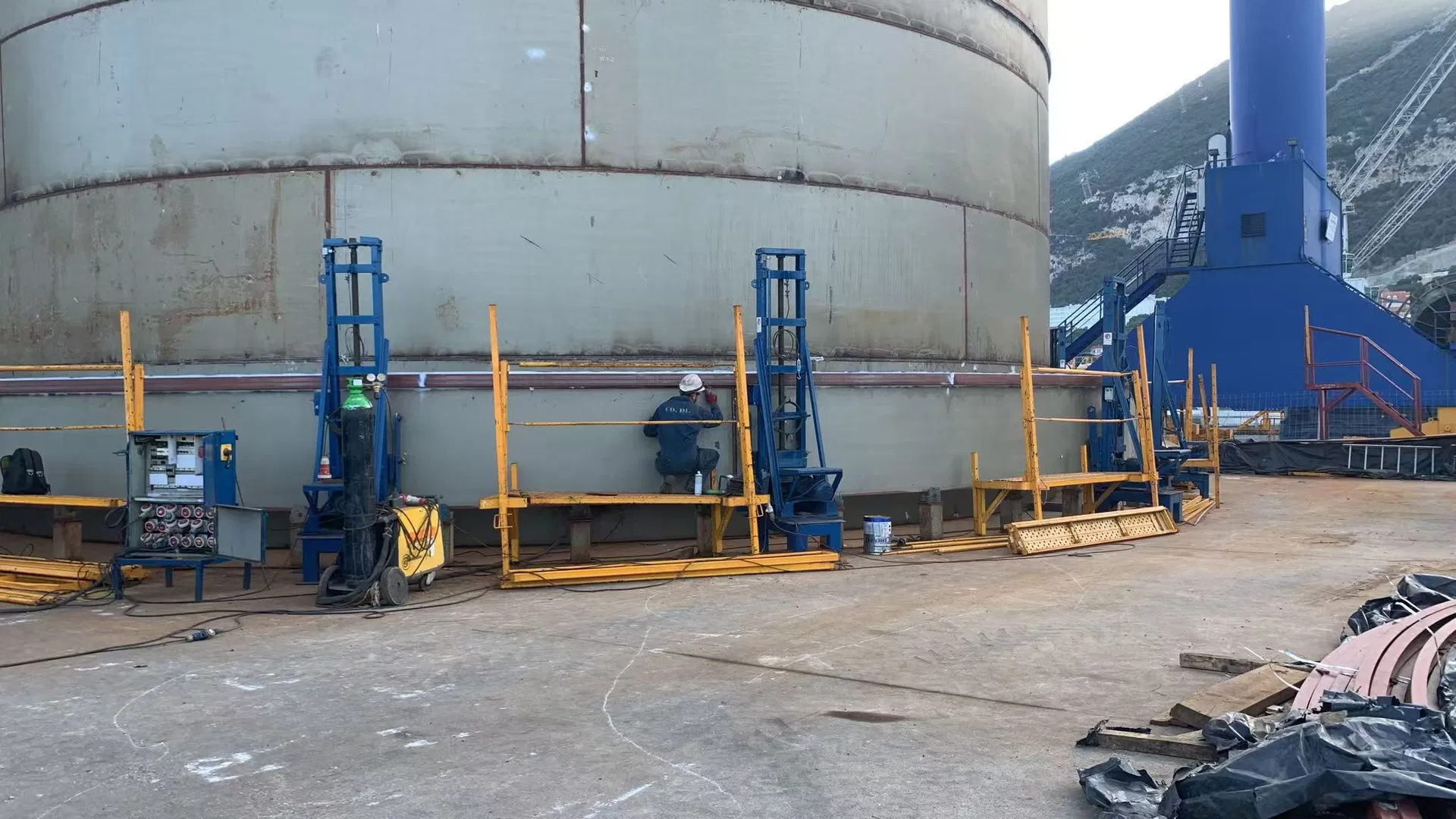

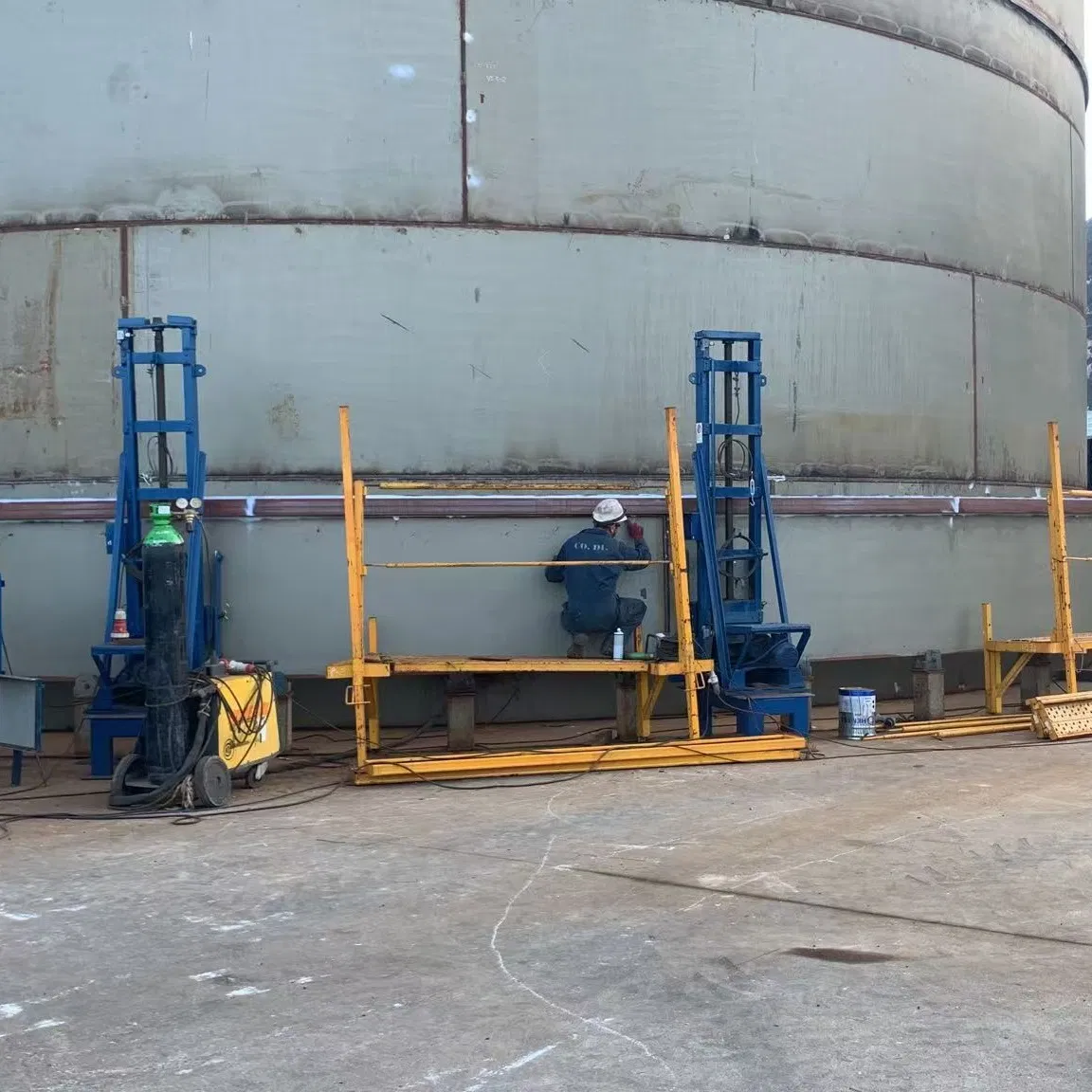

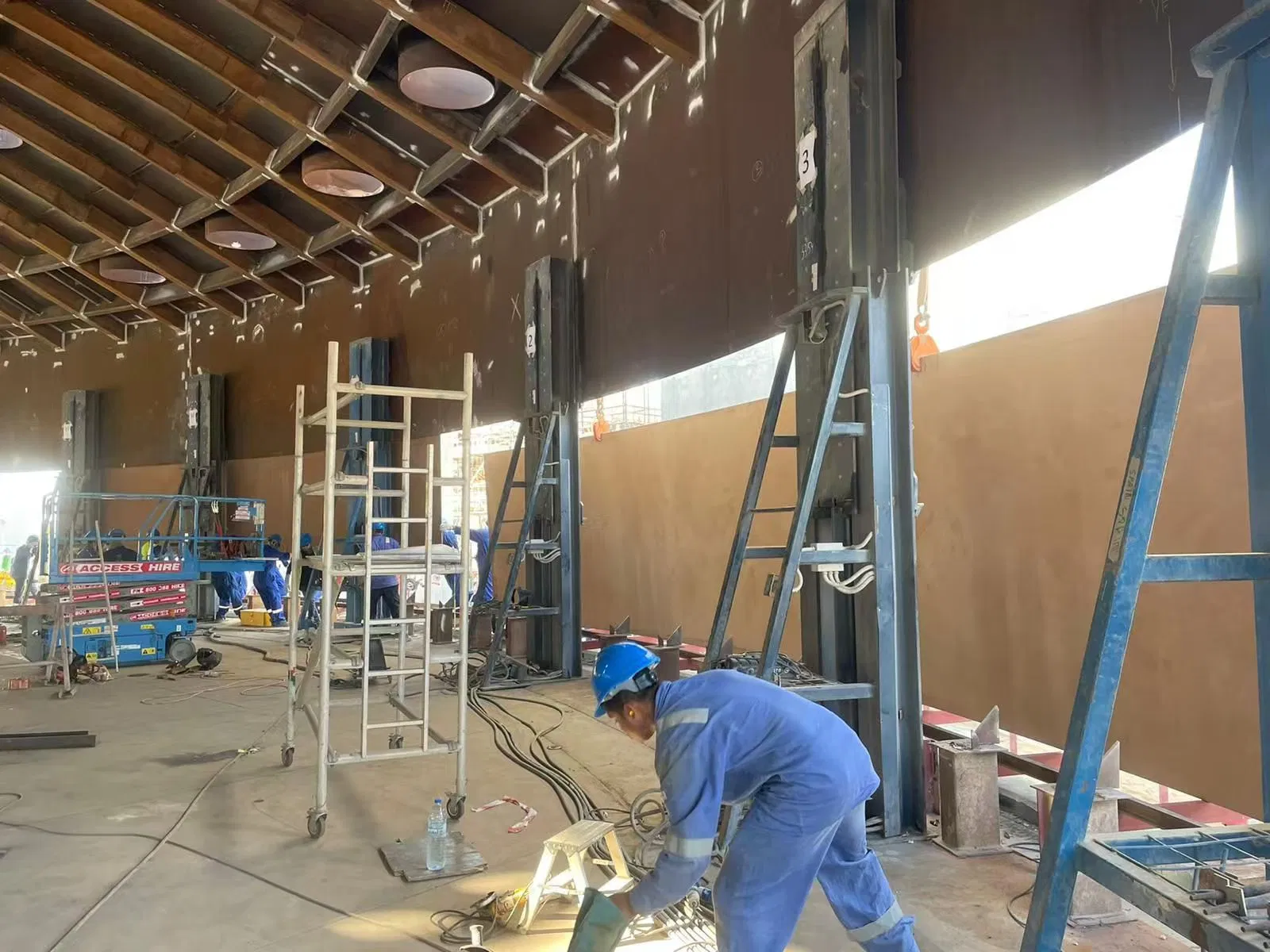

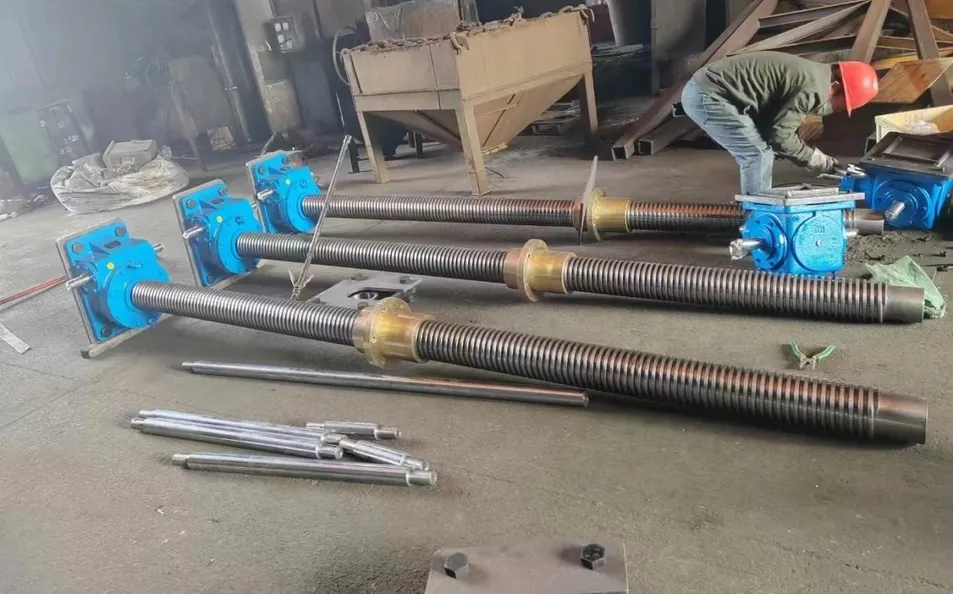

Product Photos

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Services & Strength

We are engaged in bringing the most suitable solutions and equipment for clients, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy projects, and other industrial fields.

We provide workable solutions to support clients with shorter project execution times, fewer man-hour costs, higher efficiency construction methods, and better quality during project bidding.
Based on client facility or site space availability, we design and present matched configurations on project schedule, quality, cost, and productivity to guarantee production pace is in accordance with project requirements.
To support project execution, we provide prompt supply of project materials from consumables, tools, and equipment/machines to special merchandise. We are also glad to perform as a procurement agent to seek required supply resources.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Other Products

PLC Tank hydraulic jacks
Tank girth/vertical/butt and corner welding machine
Simple tank chuck/chain hydraulic jacks
Silo hydraulic jacking system

FAQ

What's the lead time for orders?

Standard models ship in 5–15 days; customized units require 20–40 days.

Do you provide after-sales service overseas?

Yes, we can offer remote online support, as well as dispatch engineers to assist with the installation and operation of the equipment.

What documents do you provide for export?

We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, COC, and other required certification.

How do I place an order?

Contact us via our inquiry forms or details for a quote, then confirm with a Purchase Order (PO).

What is the lifting capacity of the SDT-1500 screw jack?

The SDT-1500 model features a maximum static load capacity of 250KN (25T) and an actual operating dynamic load capacity of 150KN (15T).

Is the lifting speed adjustable?

Yes, the lifting speed is adjustable between 40-60mm/min, taking approximately 46-70 minutes to complete the full travel distance.
