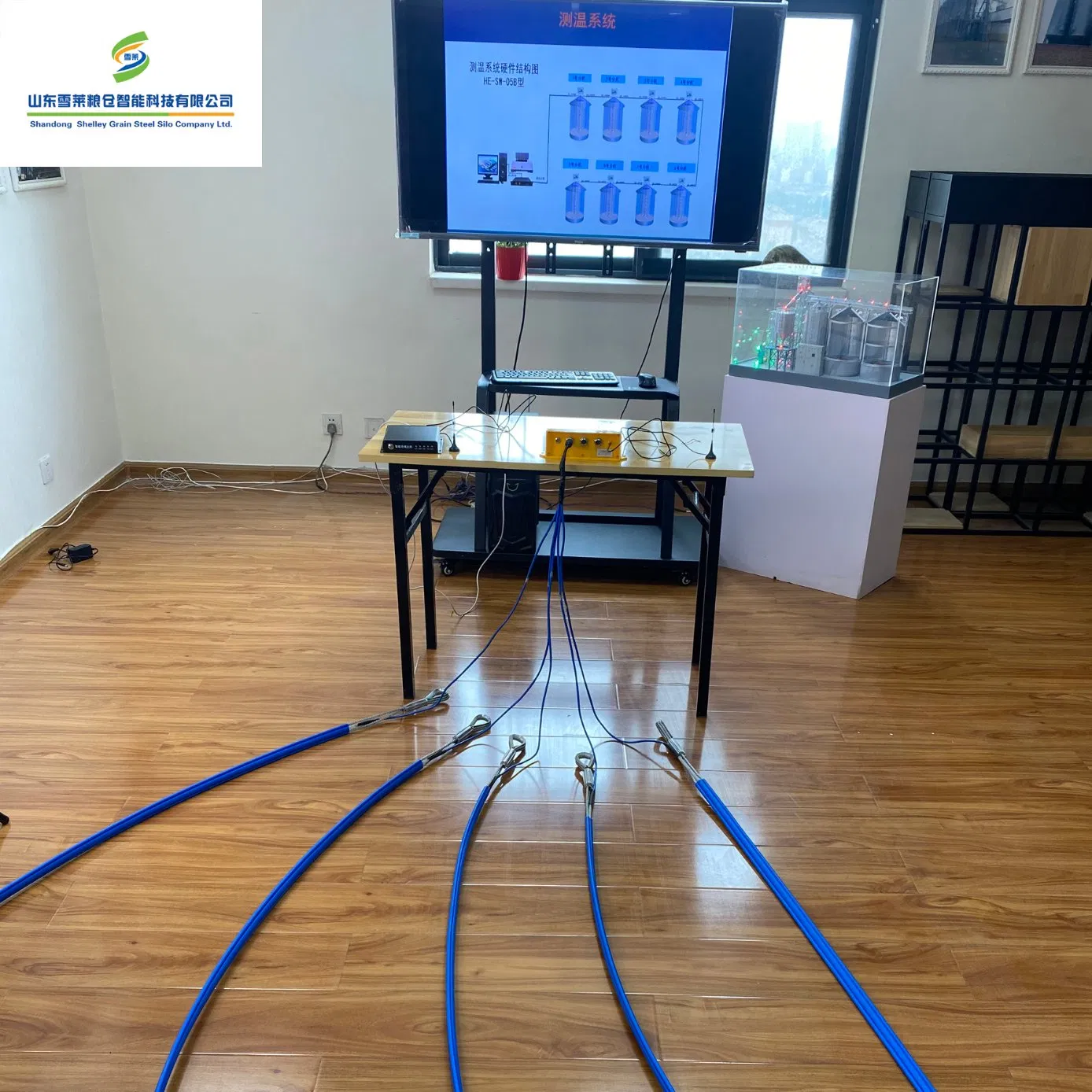

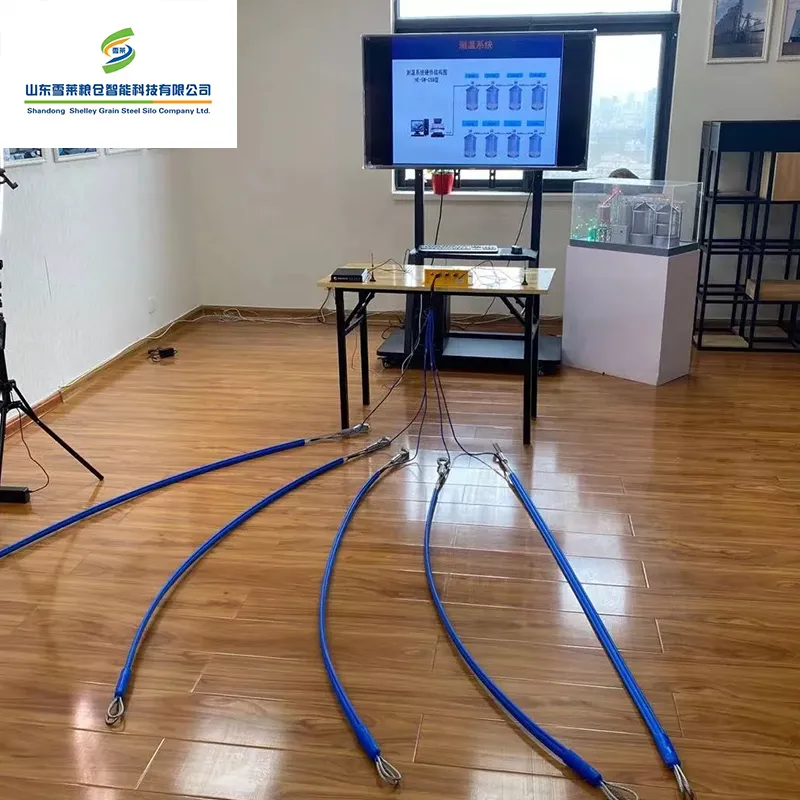

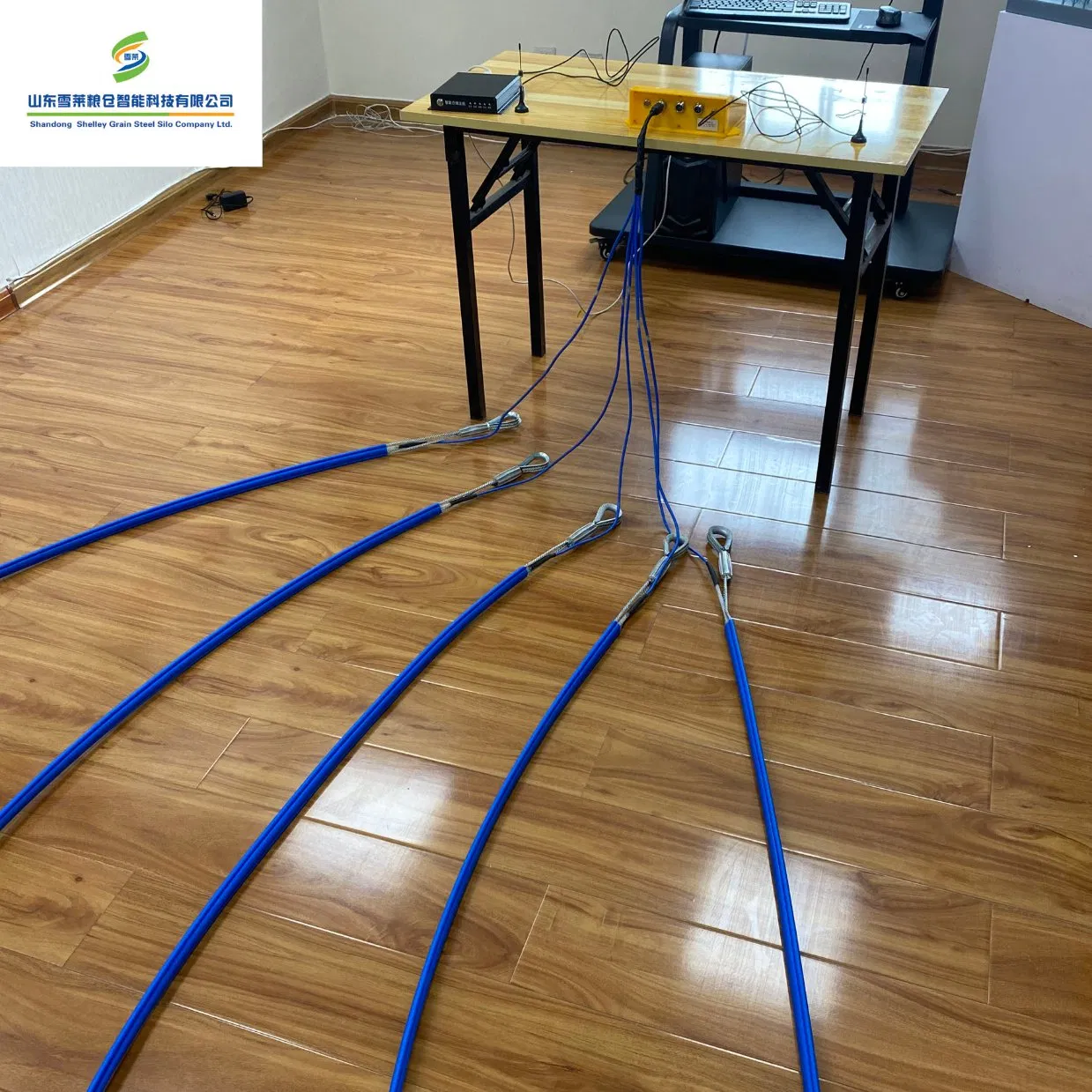

Temperature Monitoring System is the key component of grain storage control system. It is very important to keep the stored grains at the right temperature and prevent spoilage, loss of value. Temperature is the important factor to affect the grain quality. The temperature changes of stored products will indicate that there are problems inside the grain storage silos. Whenever grain rots or when there is a pest problem, the temperature in the silos will rise to indicate there is a problem. The temperature monitoring system is capable of measuring temperature changes inside the silos to enhance real-time temperature monitoring.

Usage: The temperature monitoring system is installed in silo or grain building warehouse. It is used for monitoring grain's moisture or temperature in order to keep material in good quality when stored for a long time.

Technical Data of Equipment:

• Temperature measuring range: -30ºC to +70 ºC
• Humidity measuring range: 20% to 99% RH
• Temperature measurement resolution ratio: 0.2ºC
• Humidity measurement resolution ratio: 1% RH
• Temperature measurement error: ±1ºC
• Humidity measurement error: ±5% RH
• Temperature measurement cable tension: Not less than 2.5 tons.

Device Introduction:

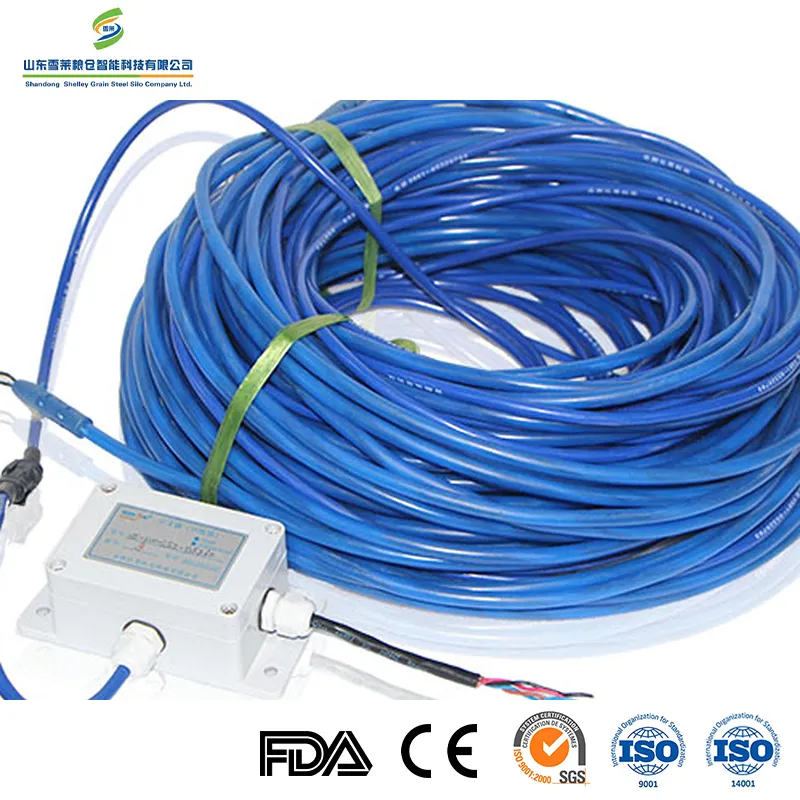

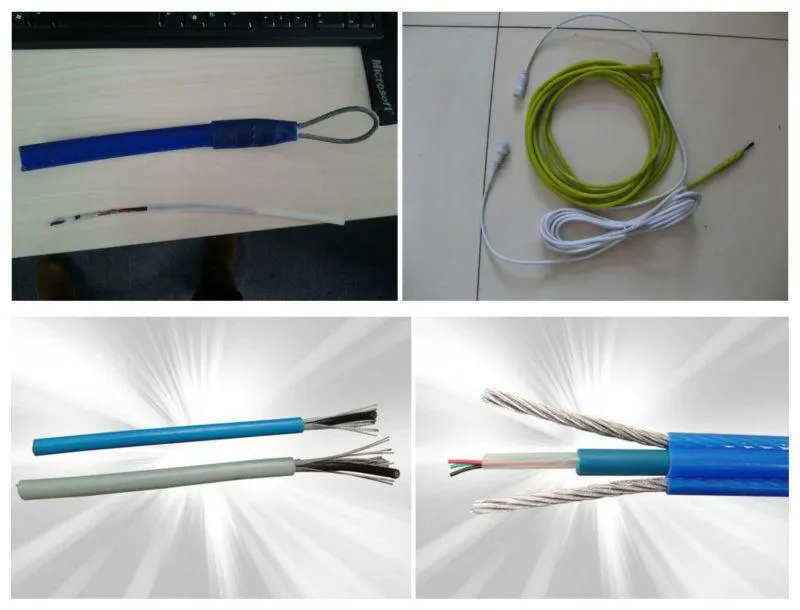

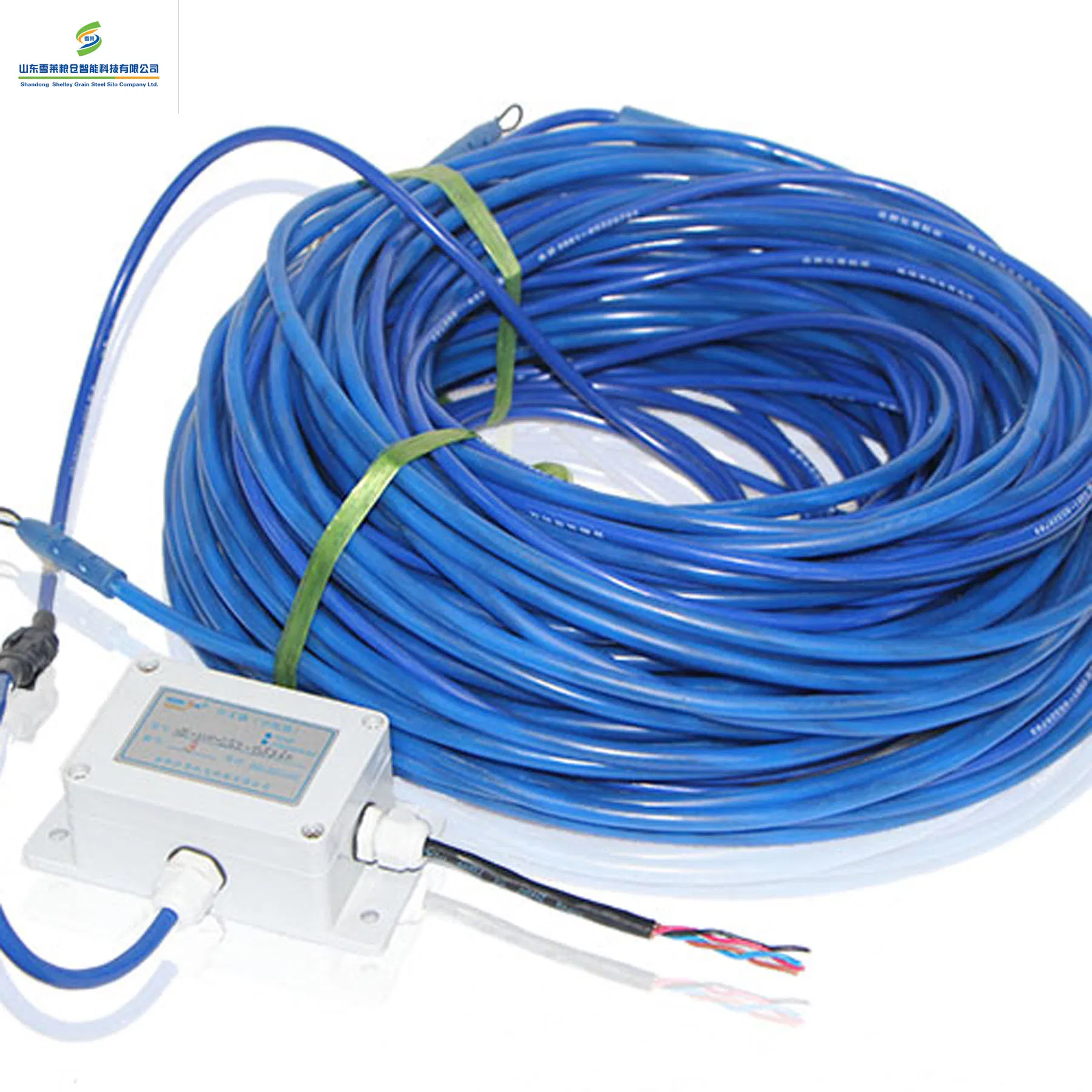

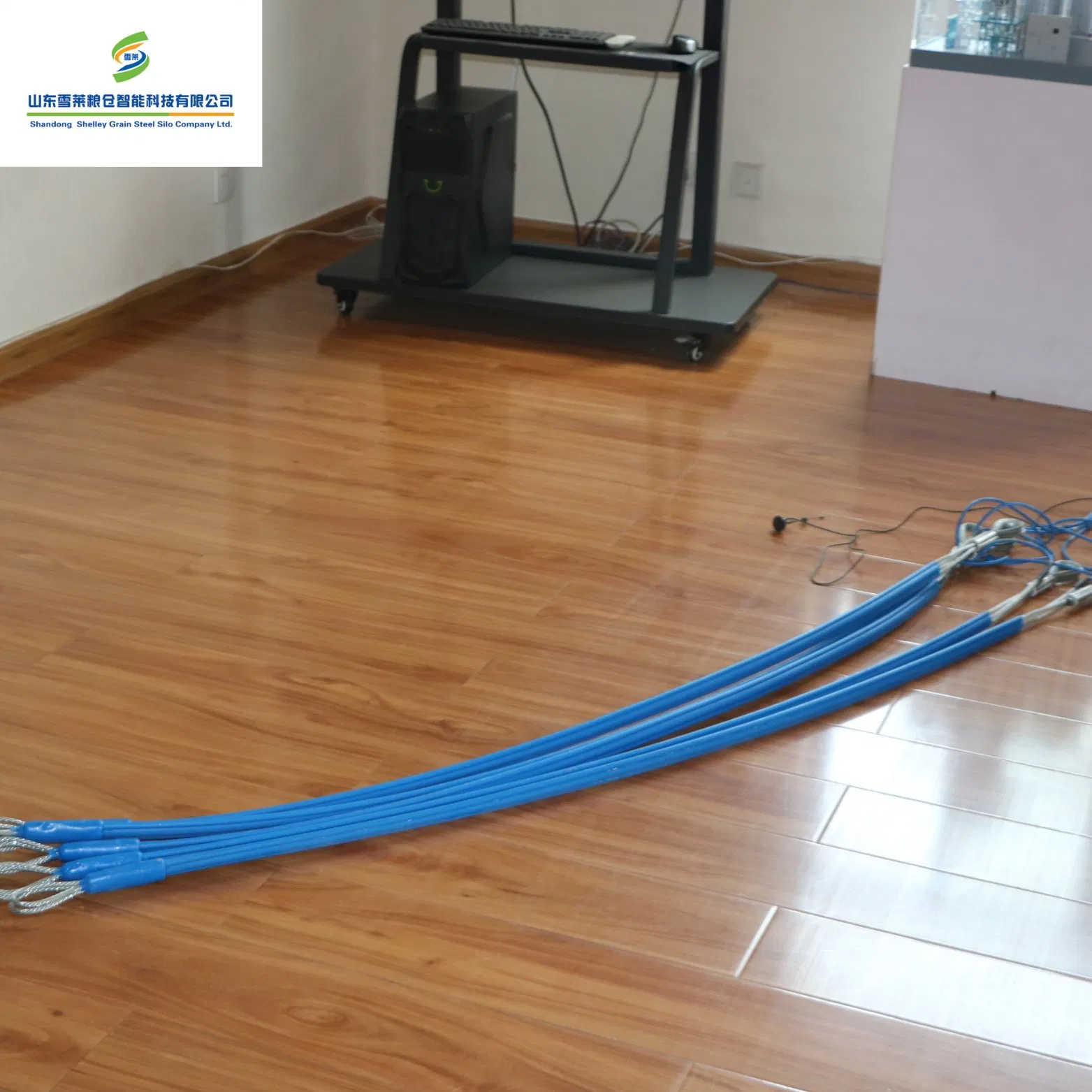

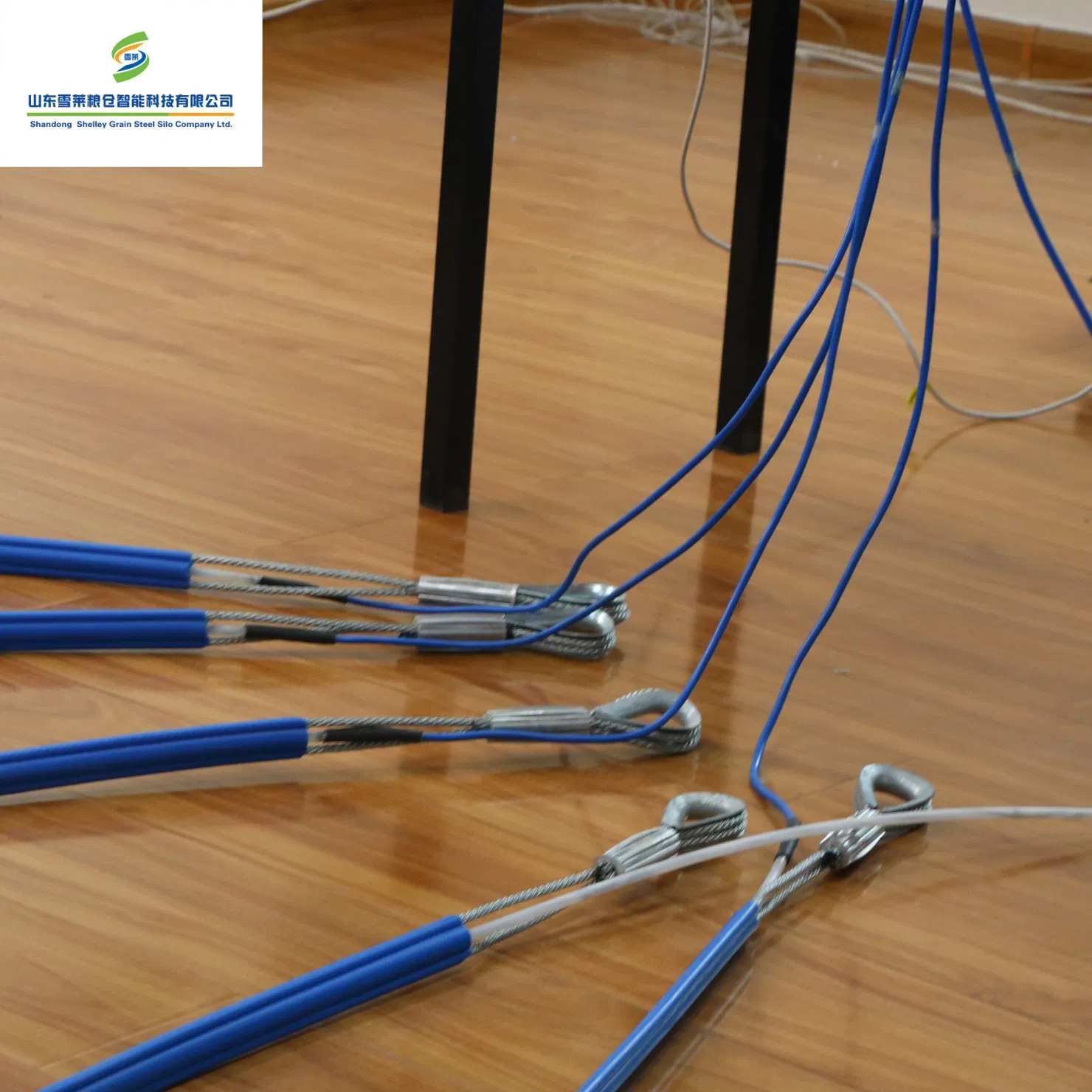

Temperature testing Cable: The temperature line has three or two cores inside, designed to convey both signals and power.

Sensor: The sensor is imported from USA DALLAS 18B20. As a key component, it is highly sensitive and of superior quality.
