PLC-Controlled Electric Lifting System for Storage Tanks & Grain Silos with High Precision Stroke and High Efficiency

Screw Jack System - Tank Lifting Construction Equipment

Petroleum storage tank is an important storage facility in the petroleum industry, and its construction quality directly affects the safe operation and service life of the storage tank. In the installation and maintenance of petroleum storage tanks, jacking operations are particularly critical, requiring precise control and a high degree of safety.

With the continuous advancement of industrial technology, the demand for precise control of heavy equipment is also increasing. As a widely used and superior jacking solution, the design of the lead screw jacking machine not only requires strong bearing capacity and high stability, but also takes into account the convenience and safety of operation.

The purpose of this scheme is to illustrate the application and advantages of lead screw jacking in the construction of oil storage tanks.

PLC-Controlled Electric Lifting System for Storage Tanks & Grain Silos with High Precision Stroke and High Efficiency

Specification

Design Overview

The design goal of the lead screw jack is to achieve efficient, stable and safe jacking operations. The design takes into account the convenience of user operation, the reliability of the equipment and the ease of maintenance.

Applications

As an advanced mechanical tool, the lead screw jacking machine has been widely used in the construction of petroleum storage tanks because of its advantages of simple structure, convenient operation, strong bearing capacity and stable jacking.

Major Components

1. Key Configurations

Main structure: High-strength steel is used to ensure the bearing capacity and fatigue resistance of the jacking machine.
Bracket structure: Mainly made of Q235B material to ensure the overall stability of performance.
Modular design: Modular components for quick assembly, disassembly and transportation.
Bottom support: Set up the bottom support with adjustable height to ensure the stability of the jacking machine on different grounds.

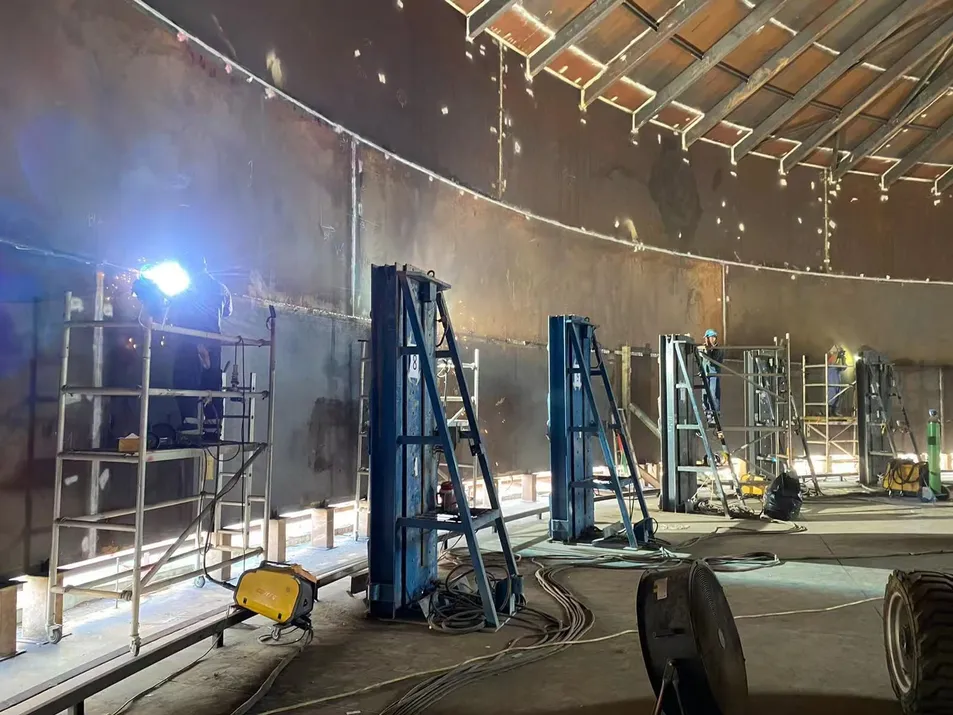

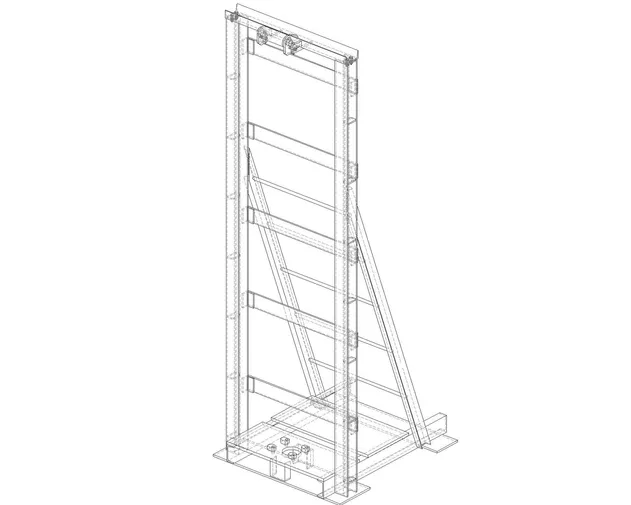

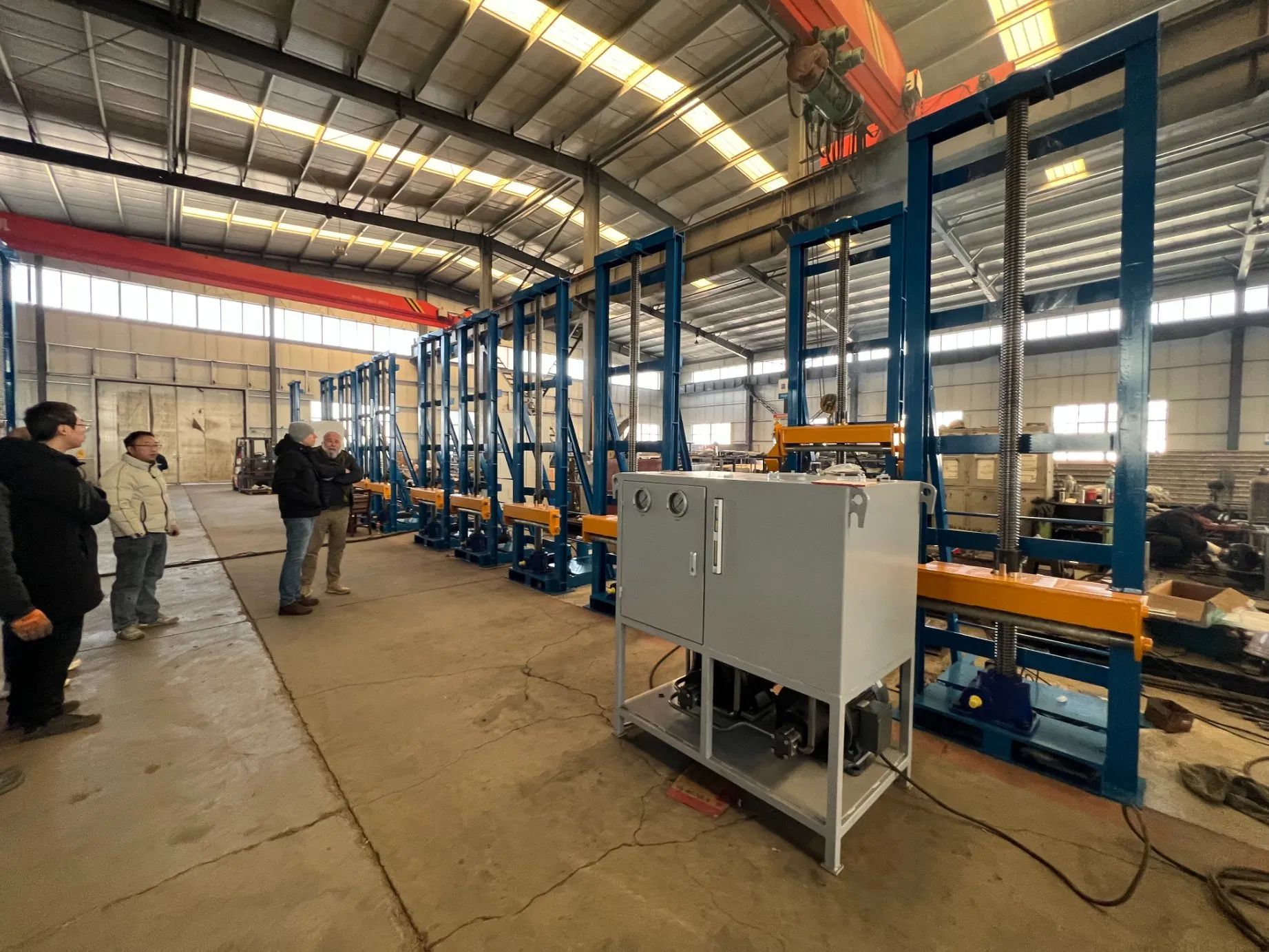

PLC-Controlled Electric Lifting System Detail 1

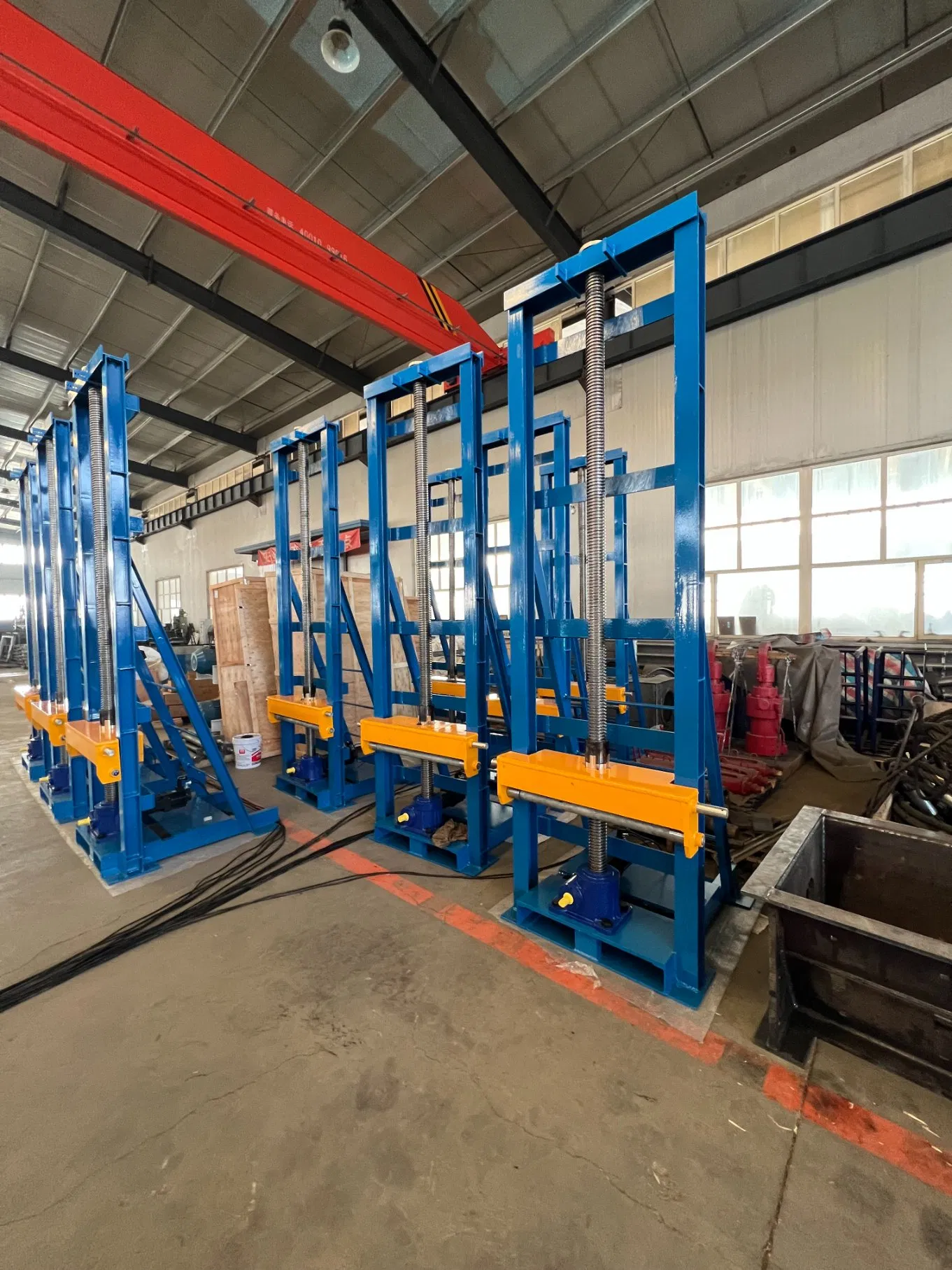

PLC-Controlled Electric Lifting System Detail 2

PLC-Controlled Electric Lifting System Detail 3

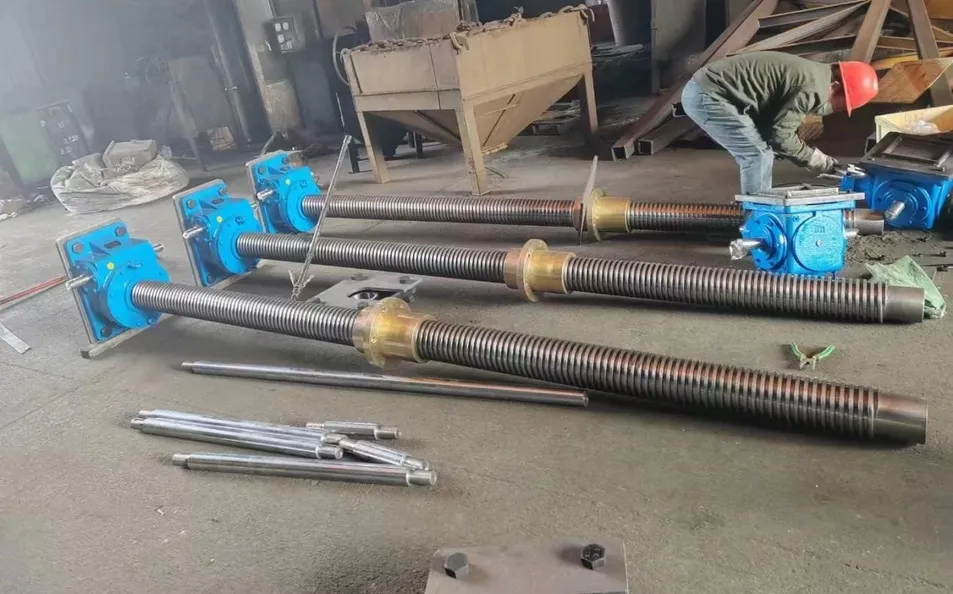

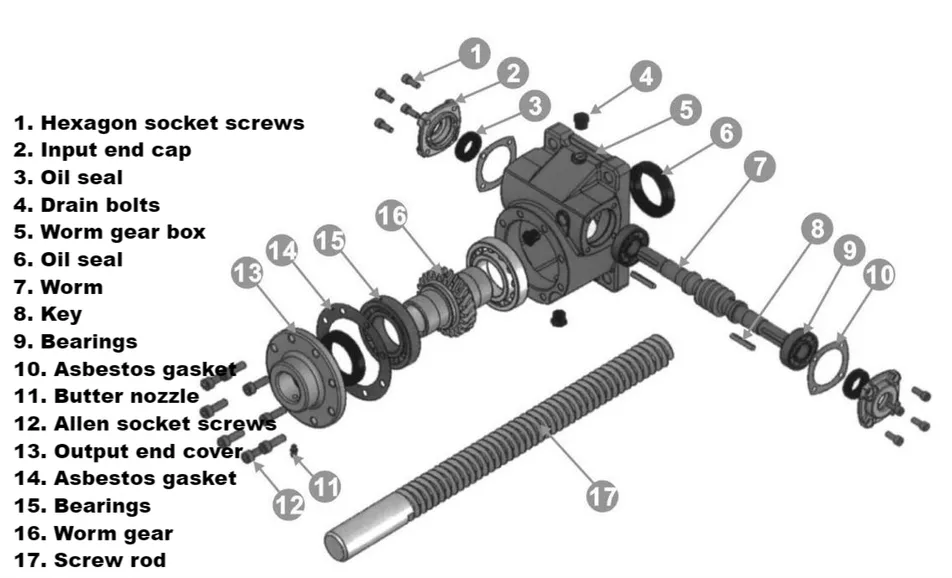

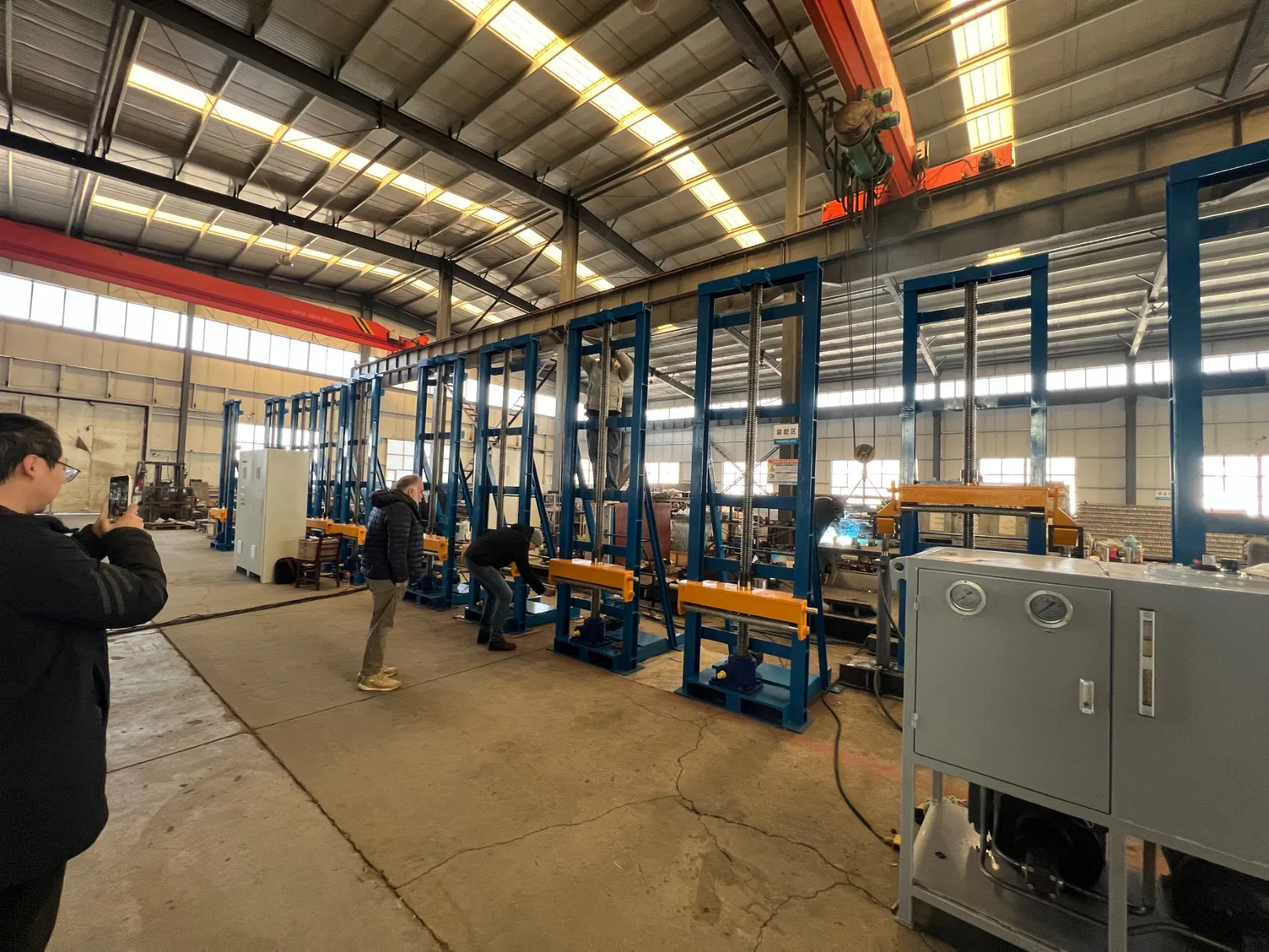

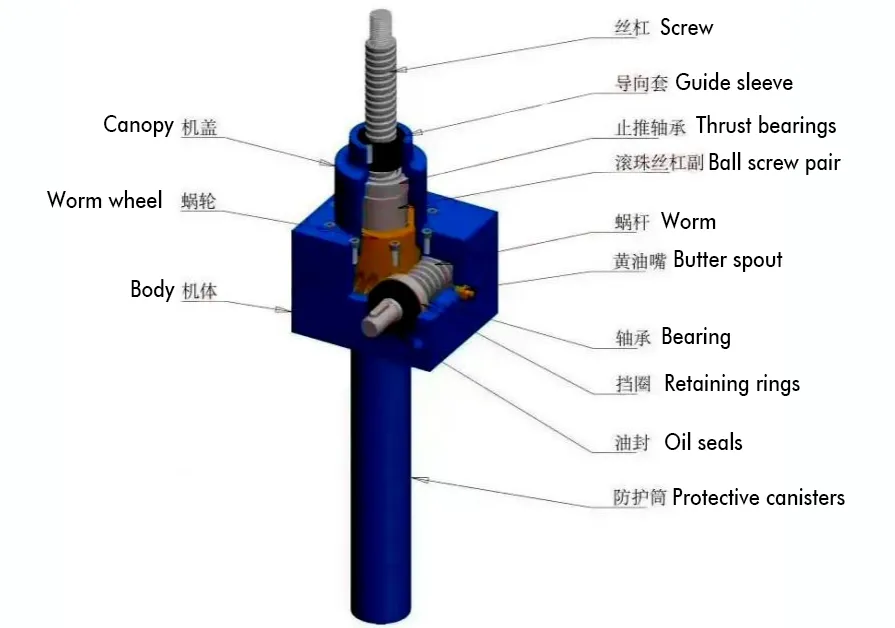

2. Transmission System

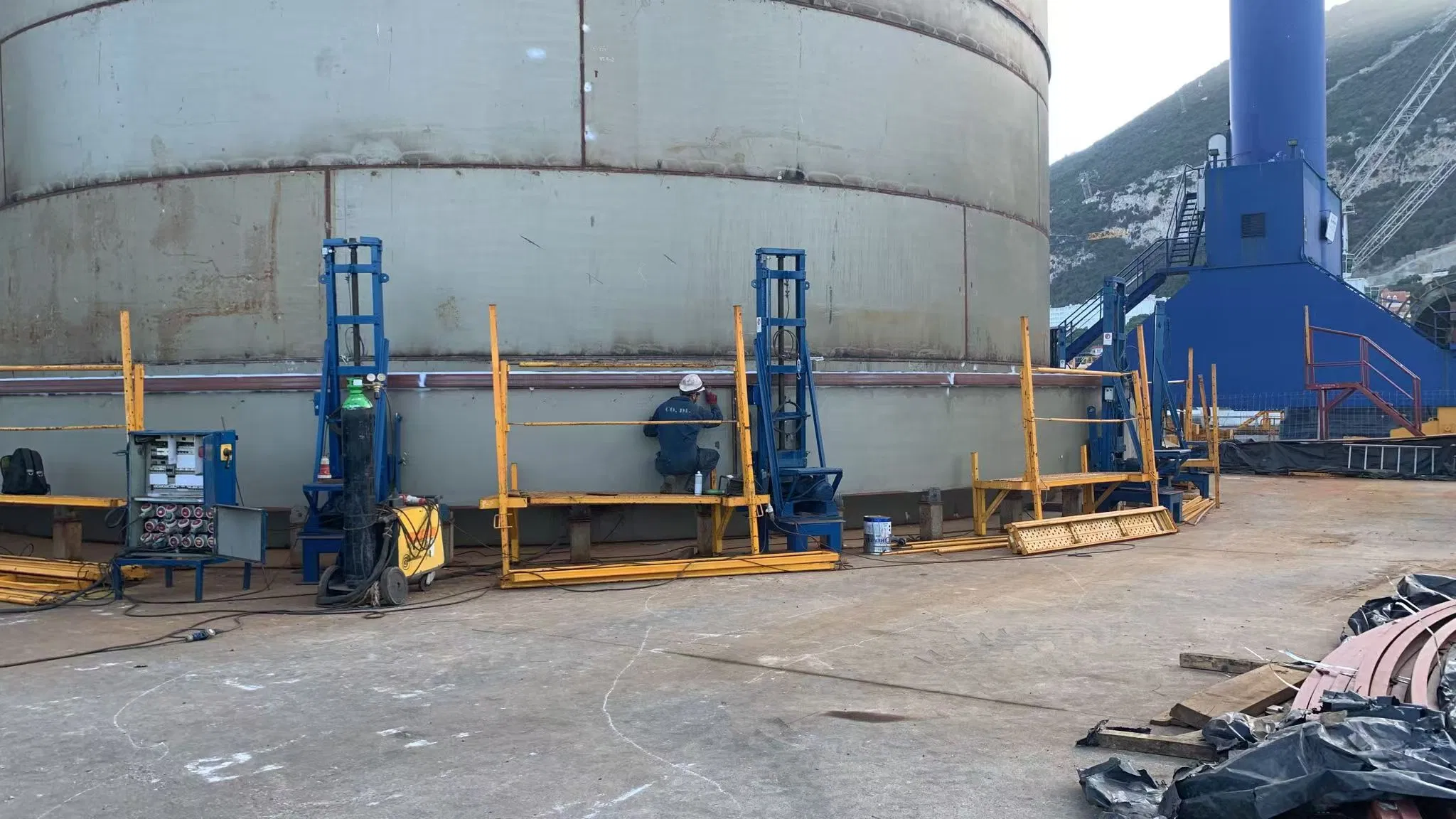

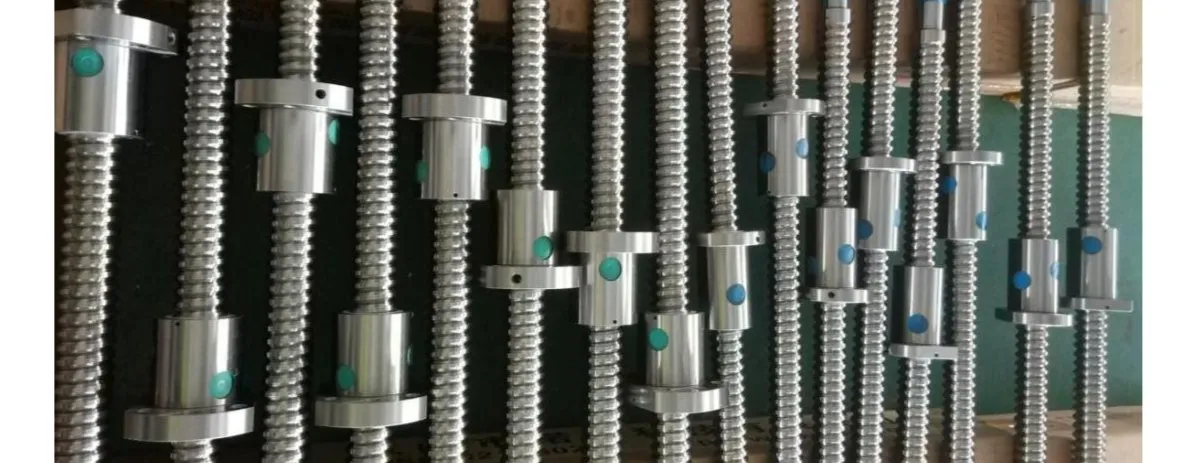

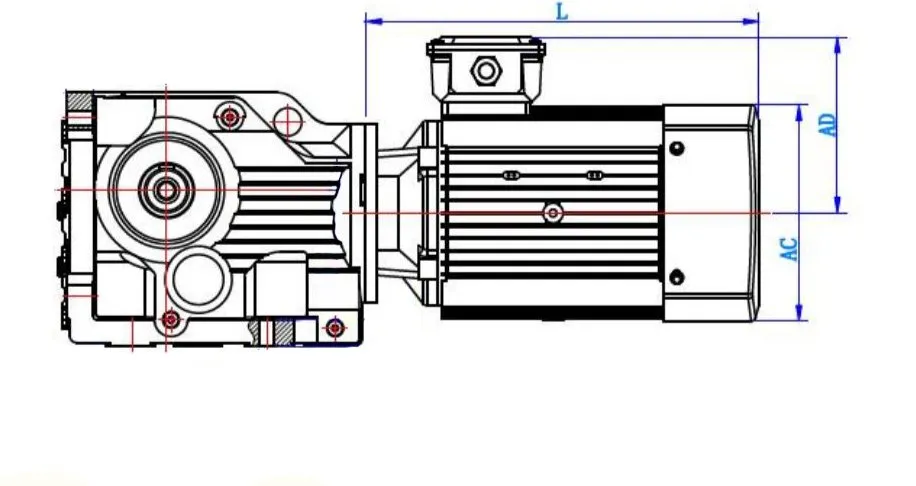

Lead screw system: Select high-precision, high-wear-resistant ball screws to ensure smooth and accurate jacking process.
Drive mechanism: Servo motor or stepper motor is used to control the lead screw to achieve precise fine-tuning ability.
Reducer: Cooperate with a suitable reducer to reduce the motor load and provide sufficient torque.

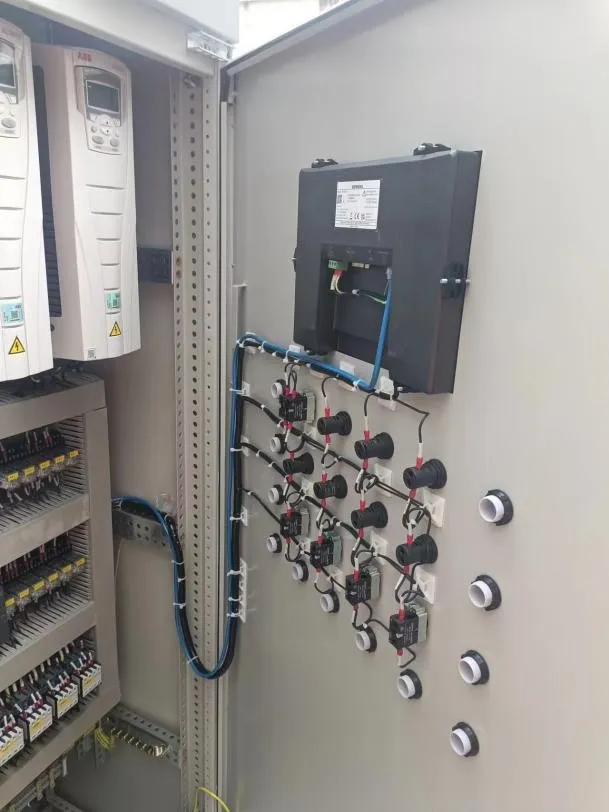

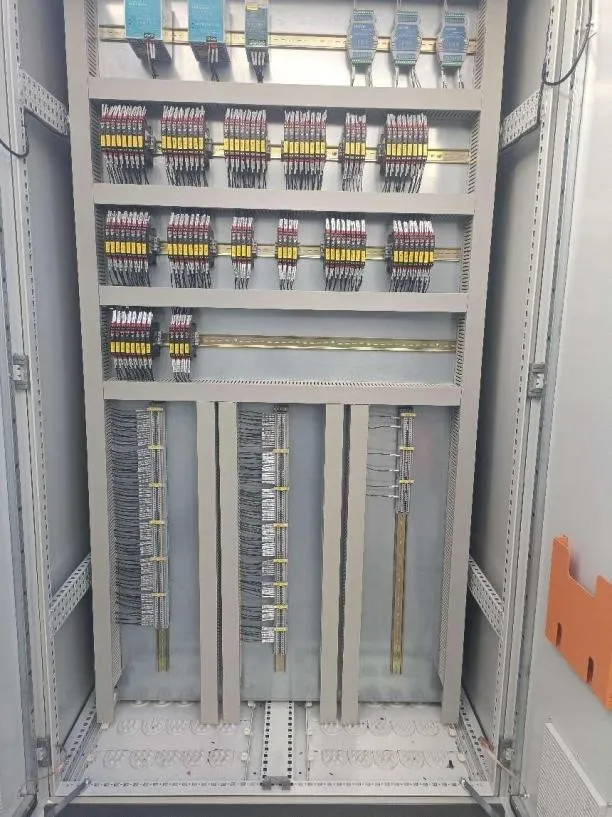

3. Control Systems

Automatic control: Integrate advanced PLC control system to achieve automatic lifting and position control.
Human-machine interface: The design is friendly to the human-machine interface, which can detect the running status of each motor.
Features: The servo motor is used with the planetary reducer to ensure the synchronous operation of the screw jacking and the error is within 2mm.

4. Advantages of Screw Design

High precision: The use of ball screws ensures high precision and stability in the jacking process.
Easy maintenance: Considering the convenience of maintenance, the jacking machine can maintain good performance for a long time.
Precise control: The screw jacking machine can achieve precise control at the micron level through the fine screw transmission system to ensure the stability and accuracy of the storage tank in the jacking process.
Easy to operate: Modular design and user-friendly interface make operation more simple and intuitive.
Strong bearing capacity: The lead screw jacking machine can be designed as a multi-stage combined type to meet the needs of tank jacking of different weights and heights.
Safe and reliable: With self-locking function, it can keep the jacking position stable even in the case of power failure and other emergencies, avoid accidents, and ensure the safety of jacking operations.

Technical Specifications

Custom configurations available upon request.

Parameter	Details
Motor model	Servo motor control (ZLH3130-7720) (Encoder built-in; 2000RMP; supporting planetary reducer ZLF120; rated output torque 192N.M)
The total length of the elevator	3220mm (base height: 217mm + nut height: 120mm + effective stroke: 2800mm + safety margin: 83mm)
Jacking machine model (ZNA300-UR-S-2800-M-III-M1)
Maximum static load	250KN (25T)
Actual dynamic load	150KN (15T)
Screw	TR90*16
The nut bears the load, rises and falls up and down, and the screw rotates
Lifting speed	40-60mm/min (Adjustable) (the full distance is about 46-70min)
The top safety margin position is fixed with a bearing seat
Matching servo motor flange
Control Systems
Automatic control	Integrate advanced PLC control system to achieve automatic lifting and position control
Human-machine interface	The design is friendly to the human-machine interface, which can detect the running status of each motor.

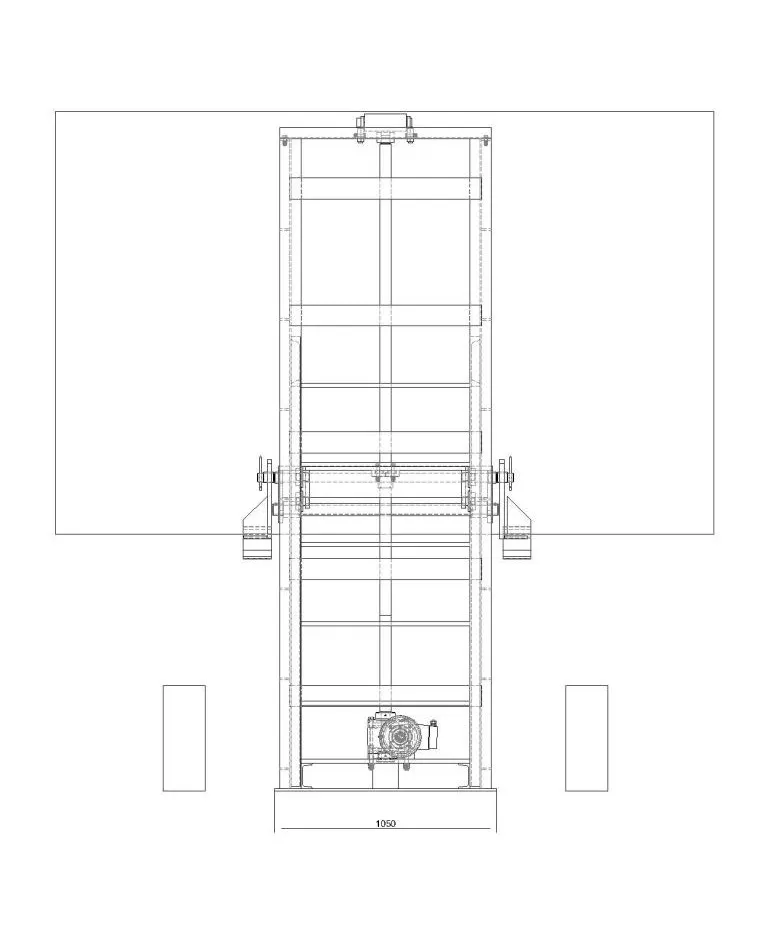

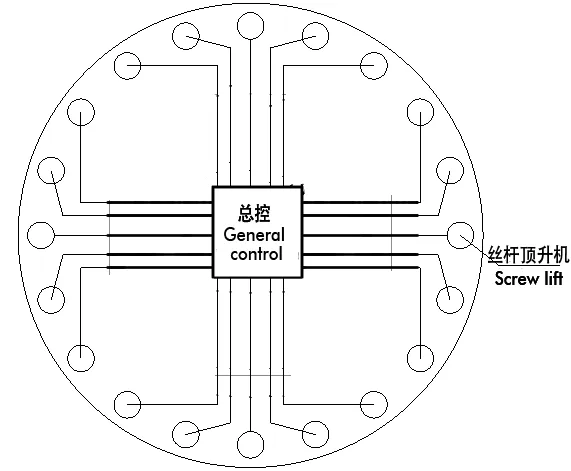

Drawings & Dimensions

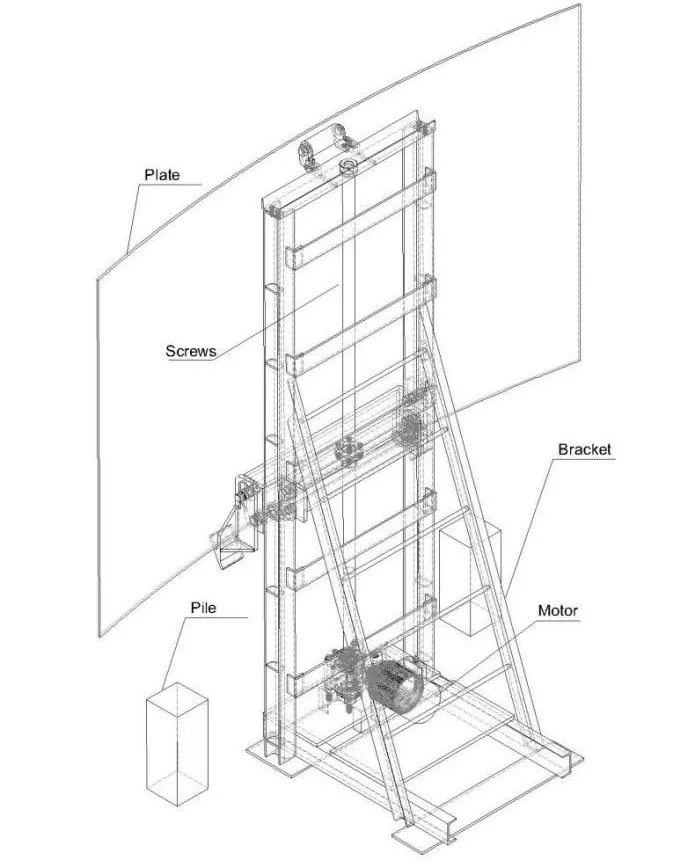

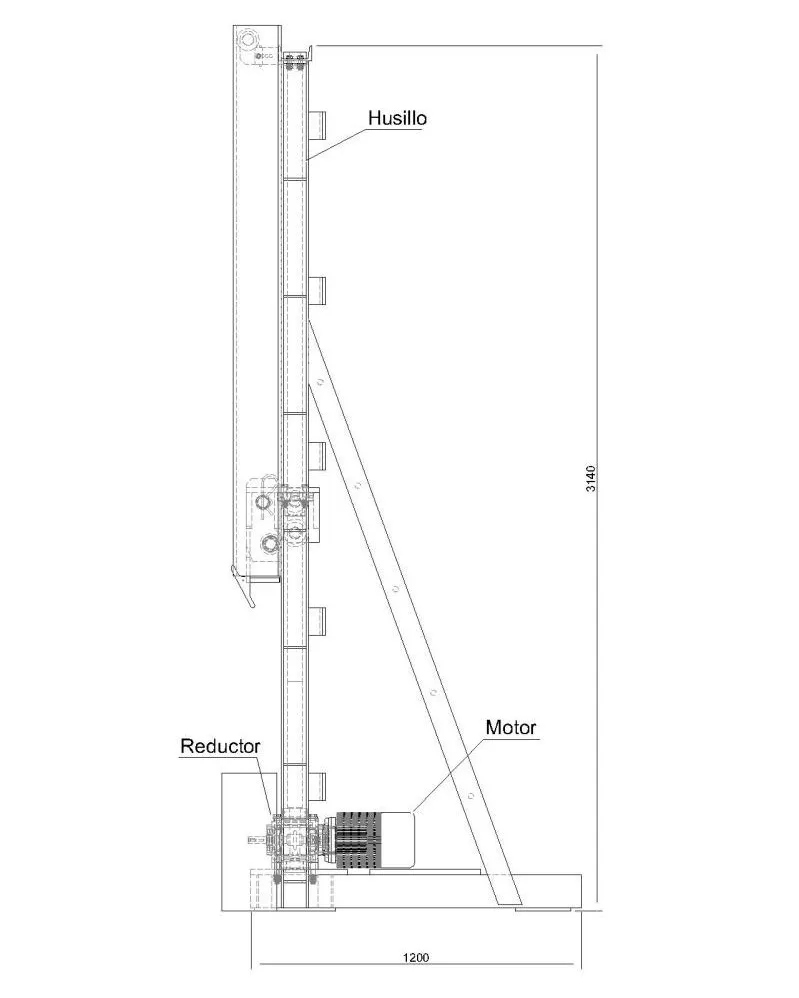

Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

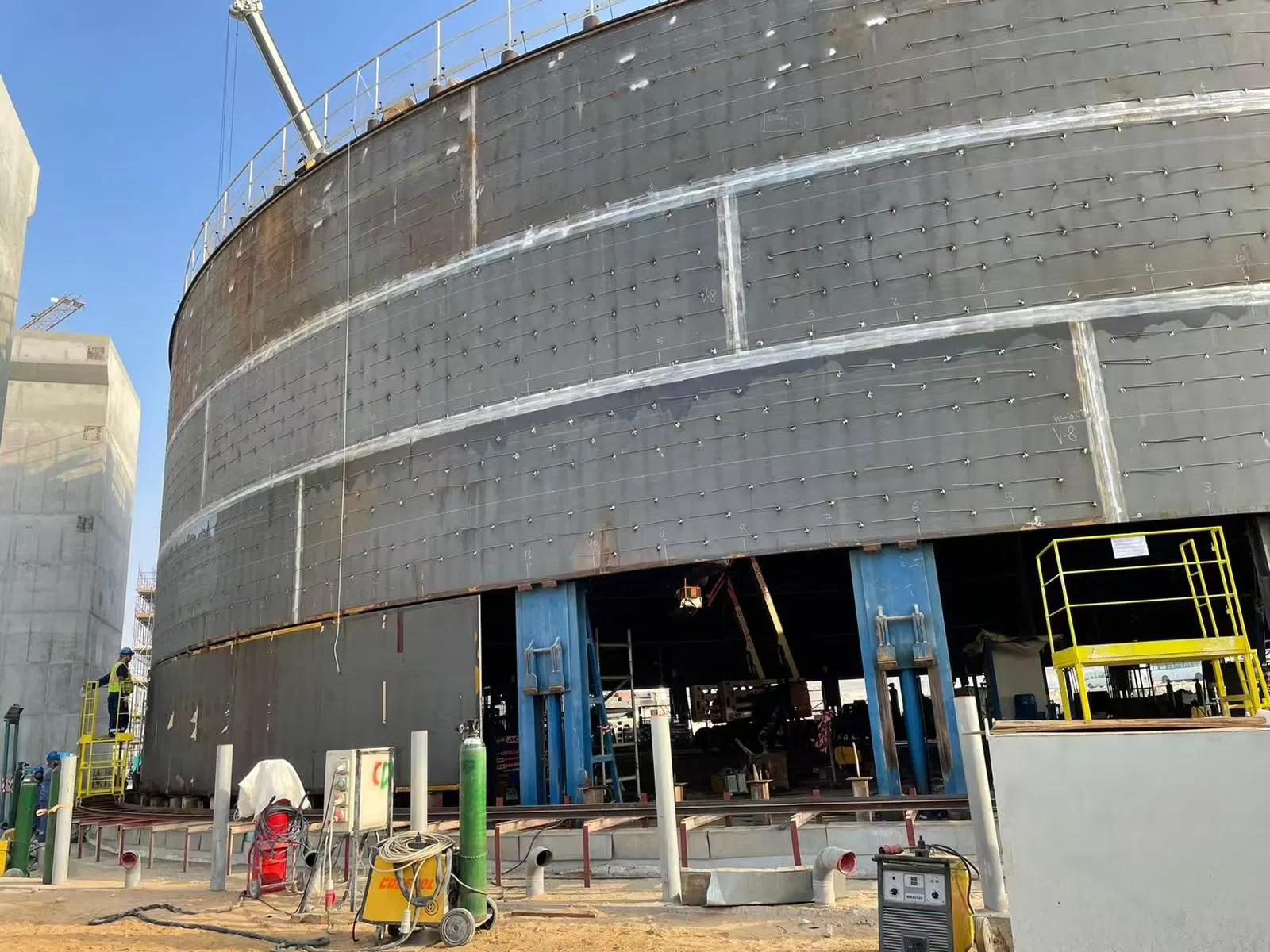

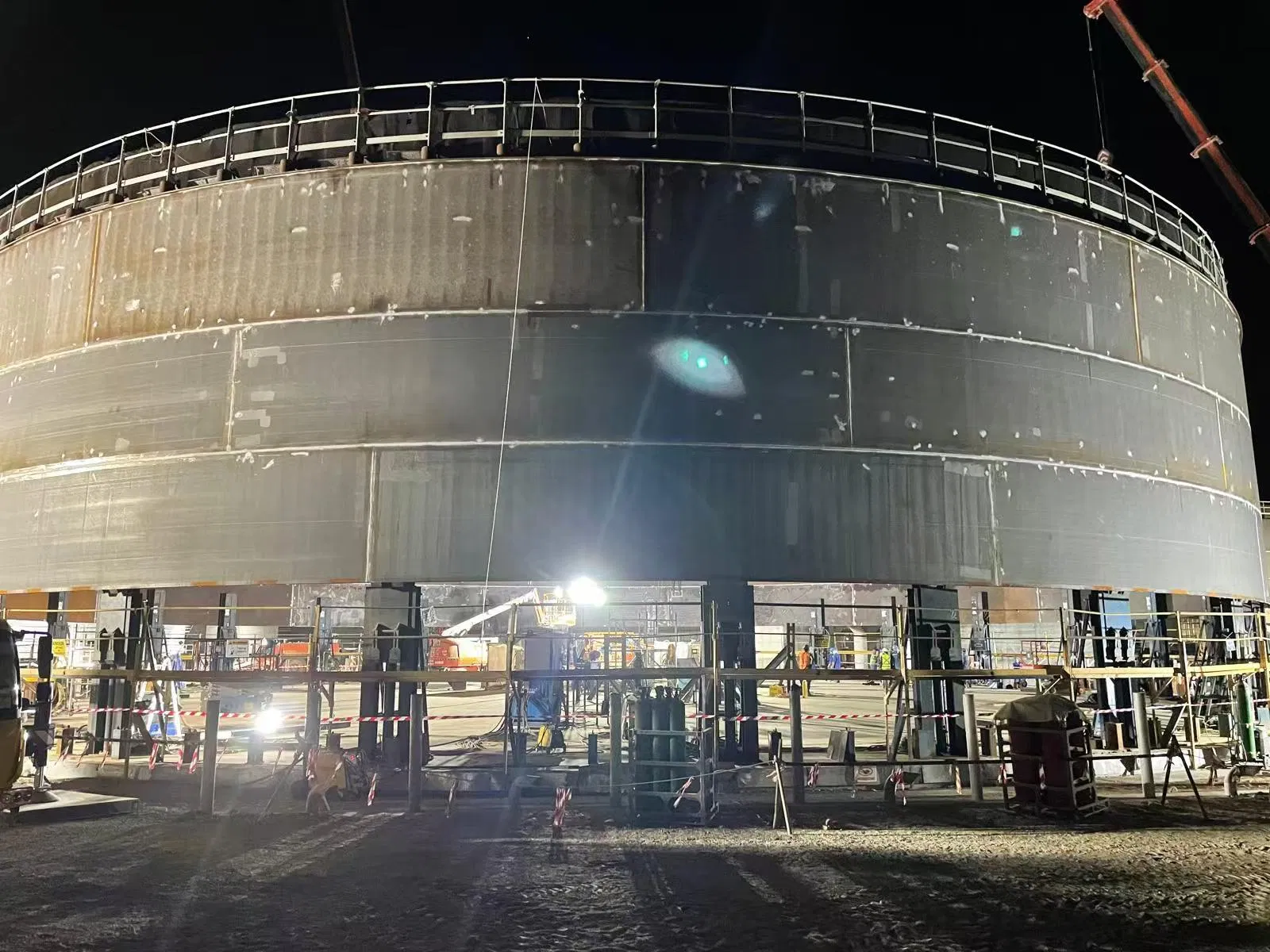

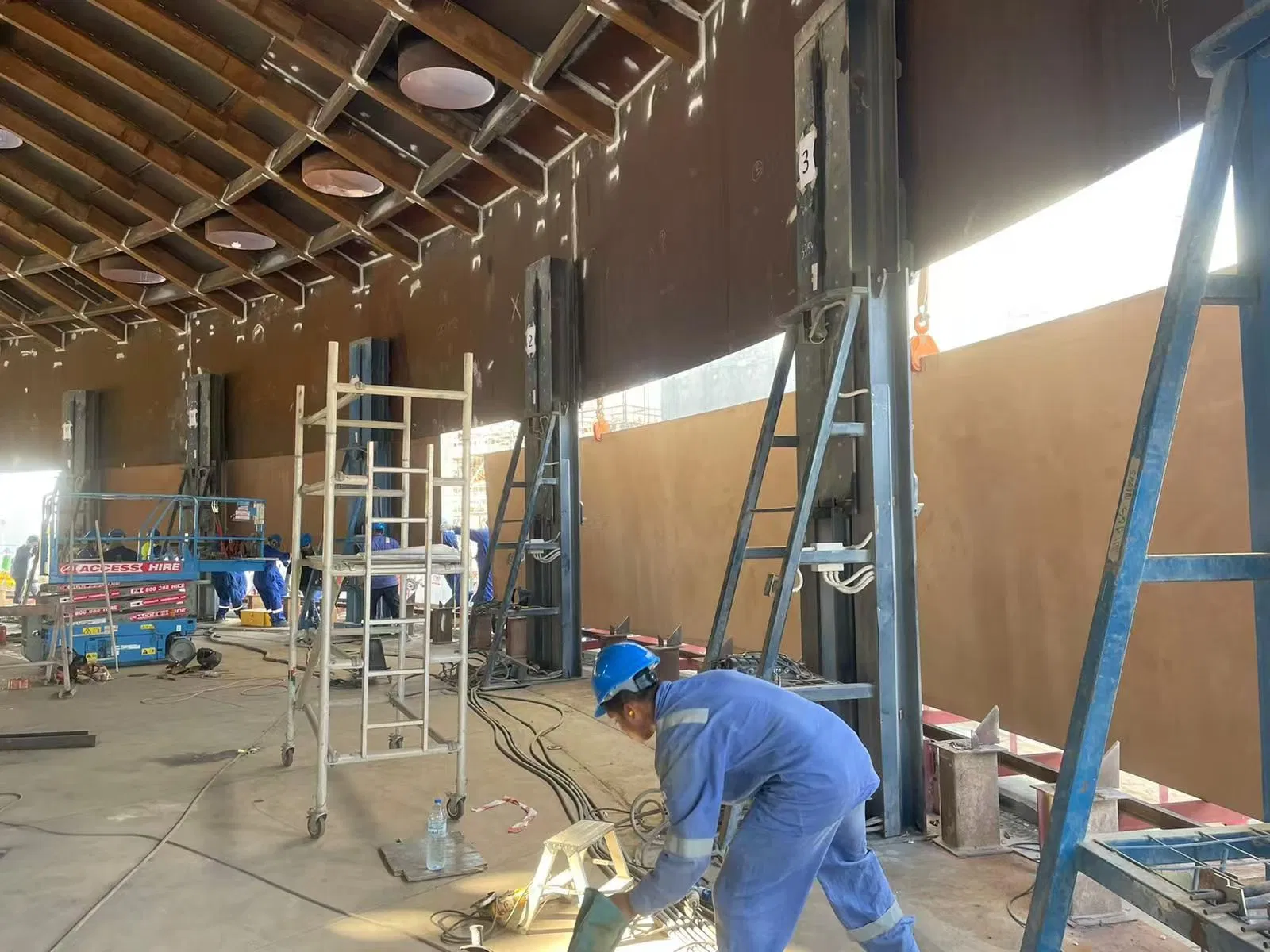

Product Photos

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Professional Services & Capabilities

We are engaged in bringing the most suitable solutions/equipments for clients, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy projects and other industrial fields.

Our Services & Strengths

We provide workable solutions to support clients with shorter project execution time, lower man-hour cost, higher efficiency construction methods, and better quality during the bidding phase.
Based on the client's facility and site space, we design and present matched configurations on project schedule, quality, cost, and productivity to guarantee the production pace matches project requirements.
To support project execution promptly, we supply project materials ranging from consumables, tools, equipment/machines to special merchandise. We are also glad to perform as a Chinese procurement agent to seek required supply resources.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Other Products

PLC Tank hydraulic jacks
Tank girth/vertical/butt and corner welding machine
Simple tank chuck/chain hydraulic jacks
Silo hydraulic jacking system

Frequently Asked Questions

What's the typical lead time for orders?

Standard models ship in 5 to 15 days, while customized units require 20 to 40 days depending on specific configurations.

Do you provide overseas after-sales support?

Yes, we provide overseas technical support, remote online troubleshooting, and can dispatch engineers for on-site installation, commissioning, and operational training.

What export documentation is provided?

We provide a complete export documentation package, including Commercial Invoice, Packing List, Bill of Lading, Certificate of Conformity (COC), and any other project-specific compliance files.

Can the jacking systems be customized for specific project capacities?

Yes, custom stroke lengths, base heights, static/dynamic loads, and motorized configurations can be tailored to meet your project's unique tank or silo specifications.

How can I request a quote or place an order?

Please submit an inquiry directly through our website contact portal with your project requirements, and our engineering team will provide a customized proposal.

Does the screw jack system feature an emergency self-locking function?

Yes. The lead screw system incorporates a self-locking mechanism that maintains the jacking position safely even in the event of power loss or emergency shutdowns.

Product Detail

PLC-Controlled Electric Lifting System for Storage Tanks & Grain Silos with High Precision Stroke and High Efficiency

Product Description

Screw Jack System - Tank Lifting Construction Equipment
