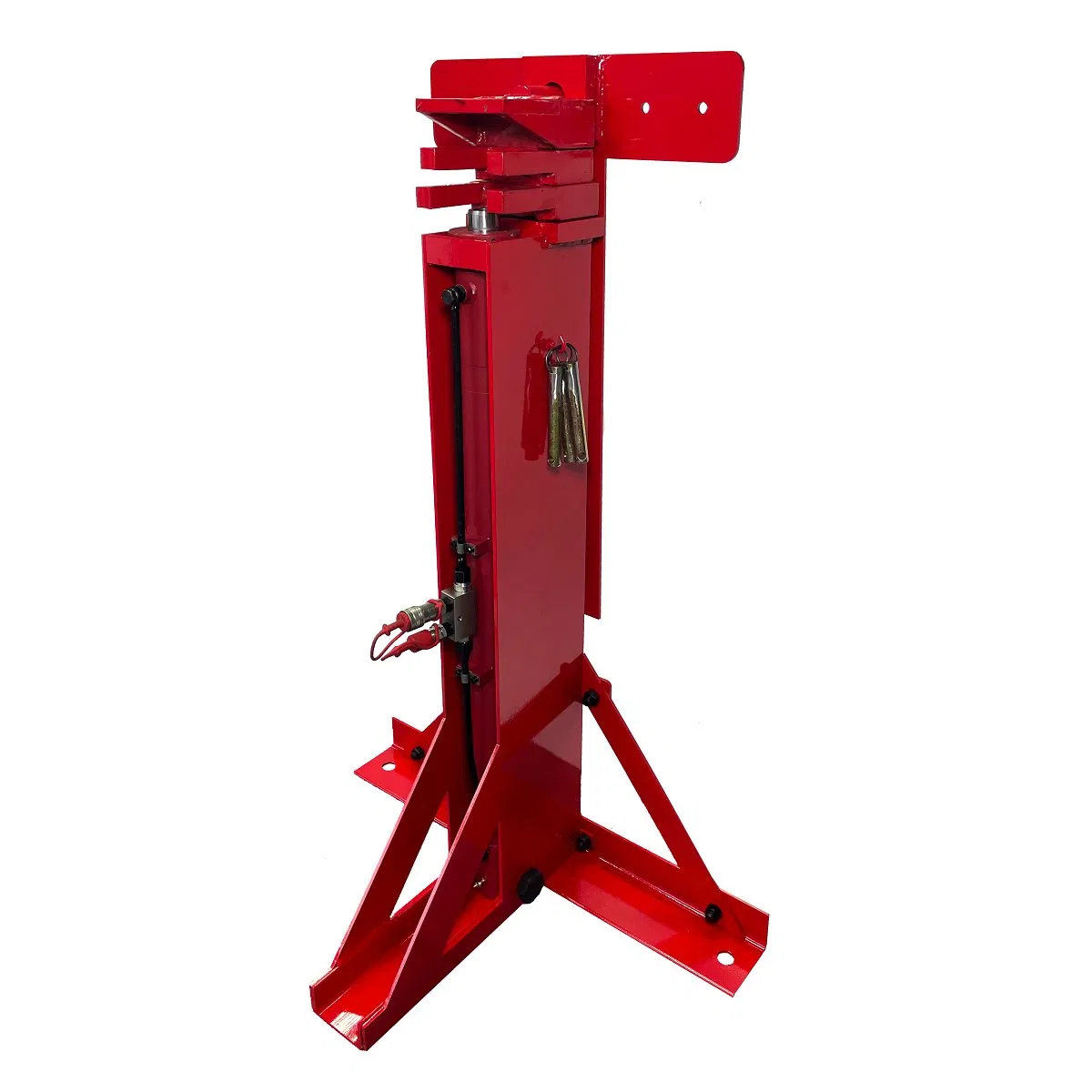

Three Stage Grain Bin Hydraulic Jacks
Product Overview
Suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.
Product Advantages
With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
Frequently Asked Questions
What types of storage tanks are these hydraulic jacks suitable for?
These hydraulic jacks are suitable for all kinds of large steel storage tanks, flat bottom corrugated board granaries, and enamel tank inverted installation constructions.
How is the jacking synchronization controlled?

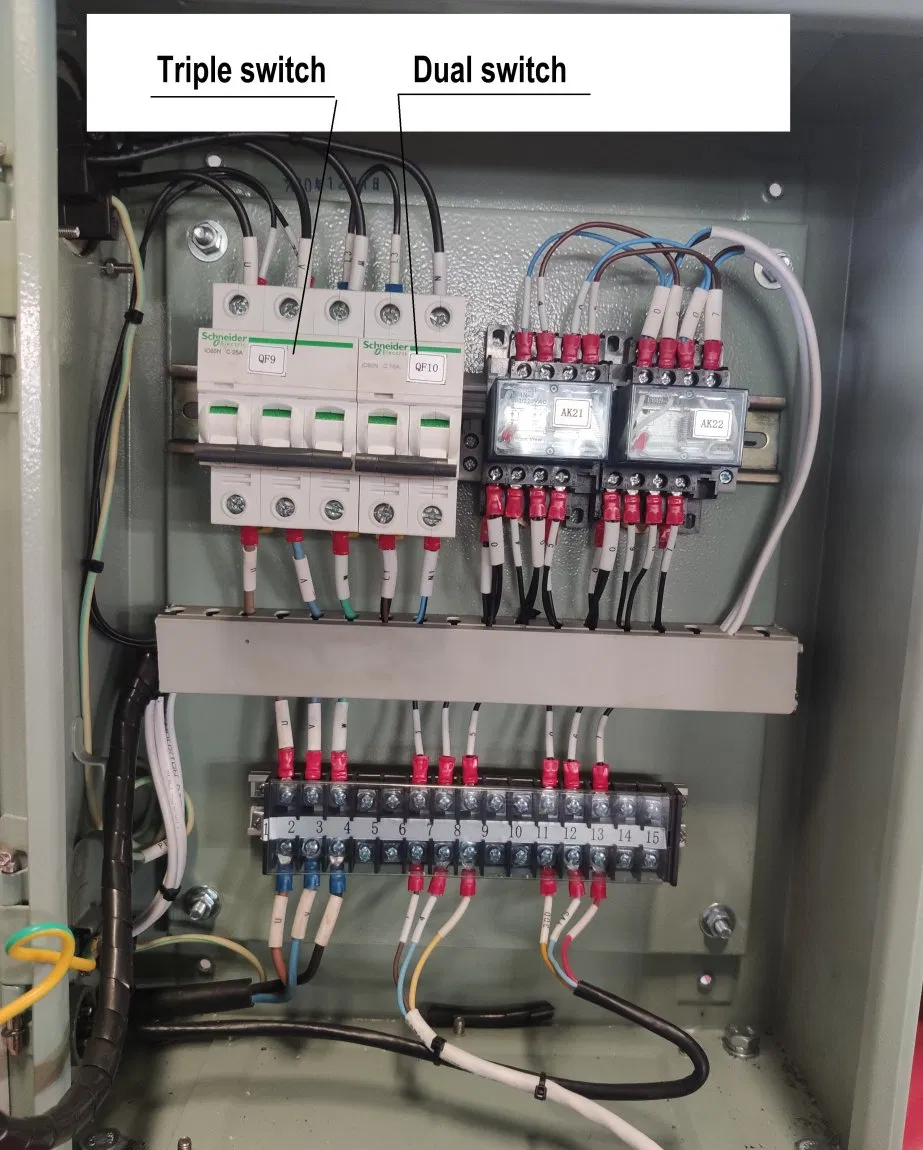

The equipment utilizes a PLC program to control the jacking process. This ensures simple operation, high synchronization precision, and a highly stable jacking process.
What safety mechanisms prevent the tank from falling during a power outage?

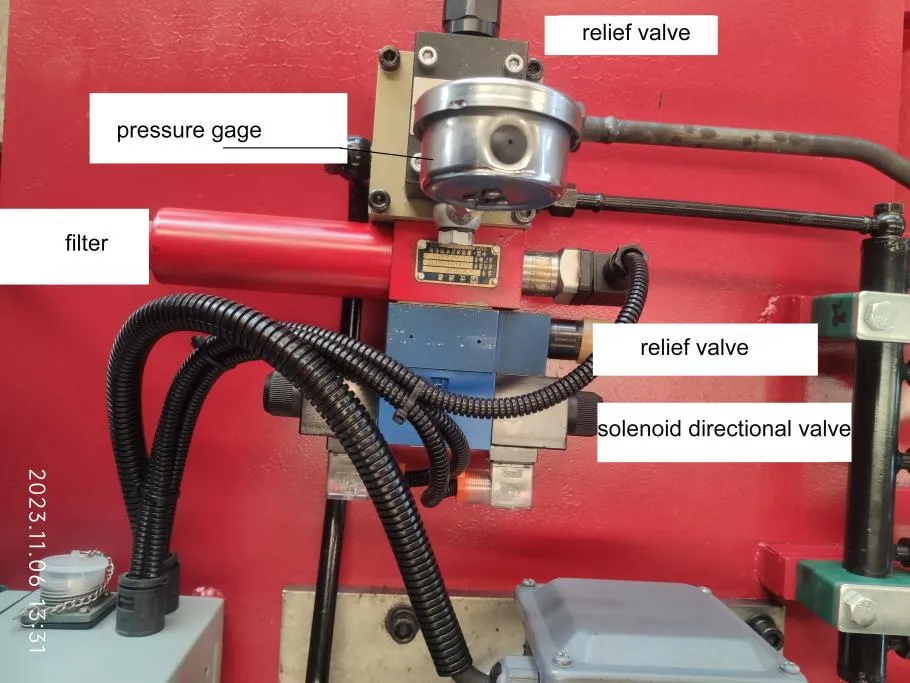

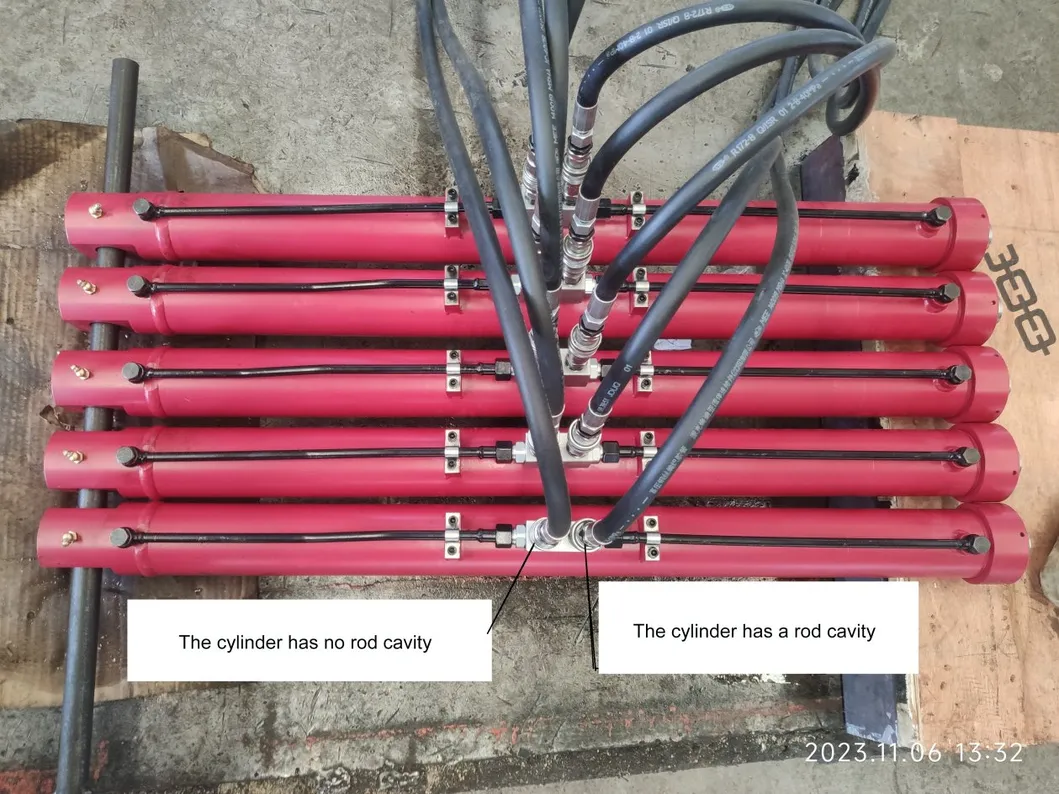

Each hydraulic cylinder is equipped with a self-locking safety valve. This prevents heavy objects or the tank from sliding or falling even in cases of power failure, high-pressure hose failure, or cylinder malfunctions.
Does the plunger type hydraulic jacking system affect the tank walls?
No, the plunger type hydraulic jacking system generates no side force during the jacking process, ensuring there is no adverse influence or damage to the tank wall.
How does the cylinder stroke improve construction efficiency?
With a stroke of 800 mm, the system can complete a one-time jacking for wall panel widths below 2300 mm. This significantly reduces overall jacking time, saves labor, and minimizes auxiliary costs.
What are the main components of this jacking system?

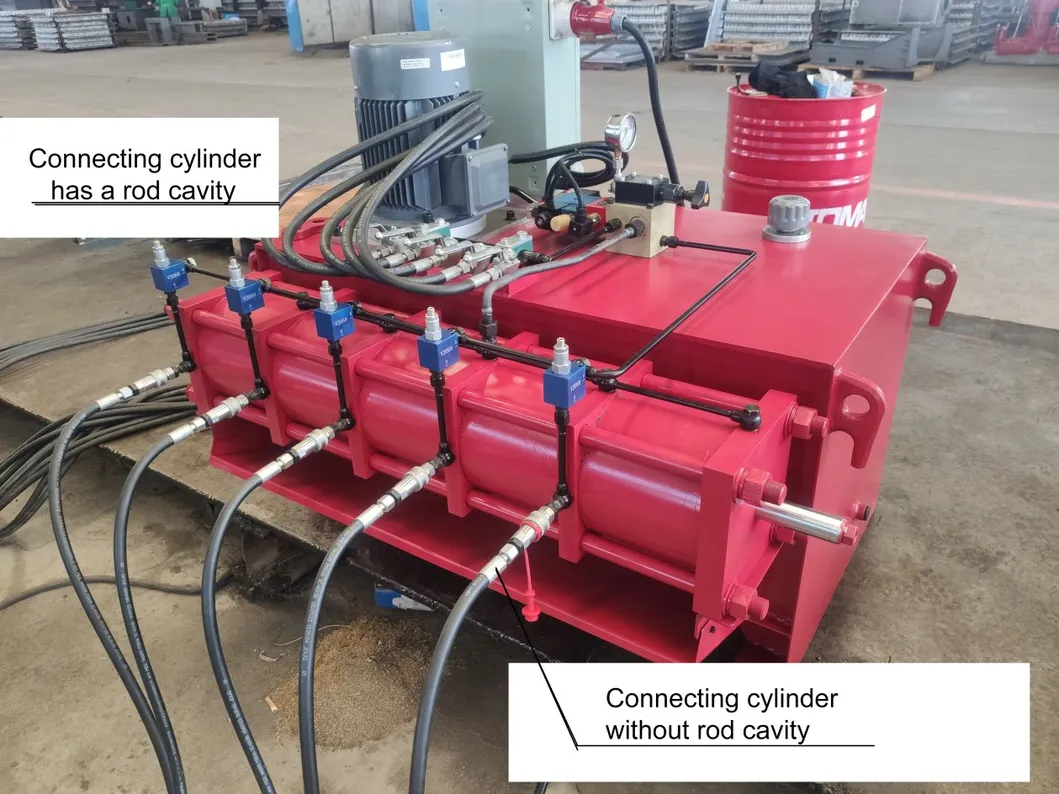

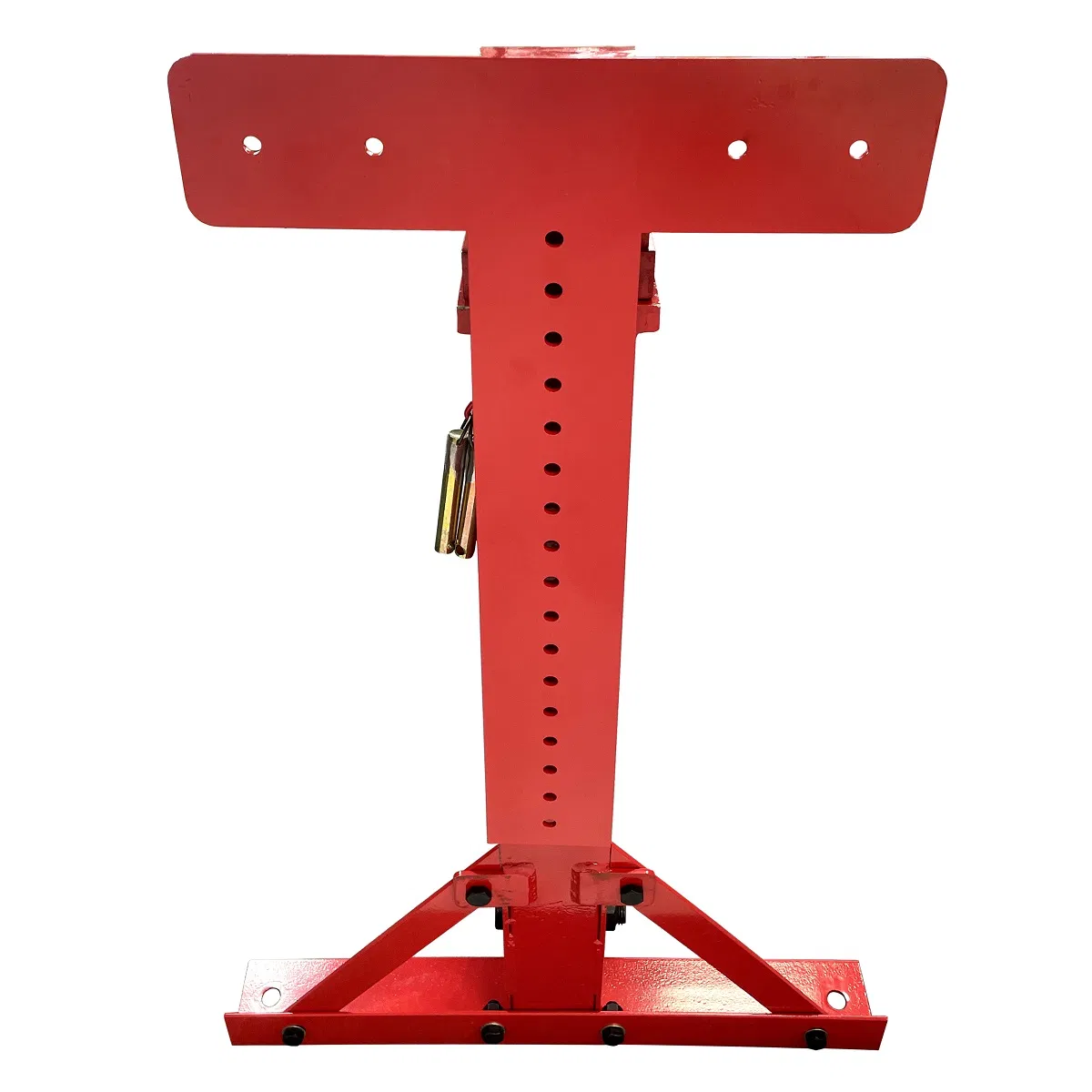

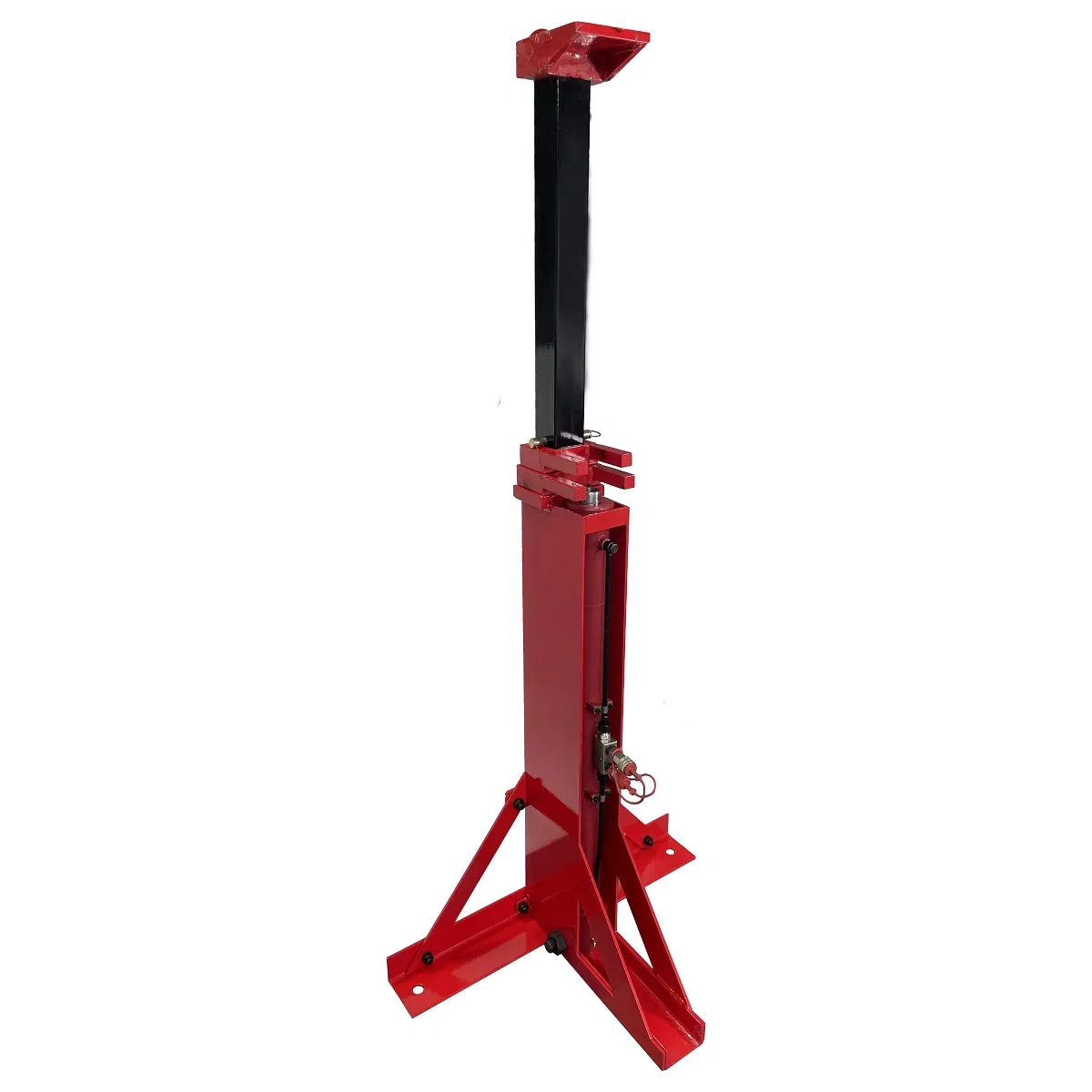

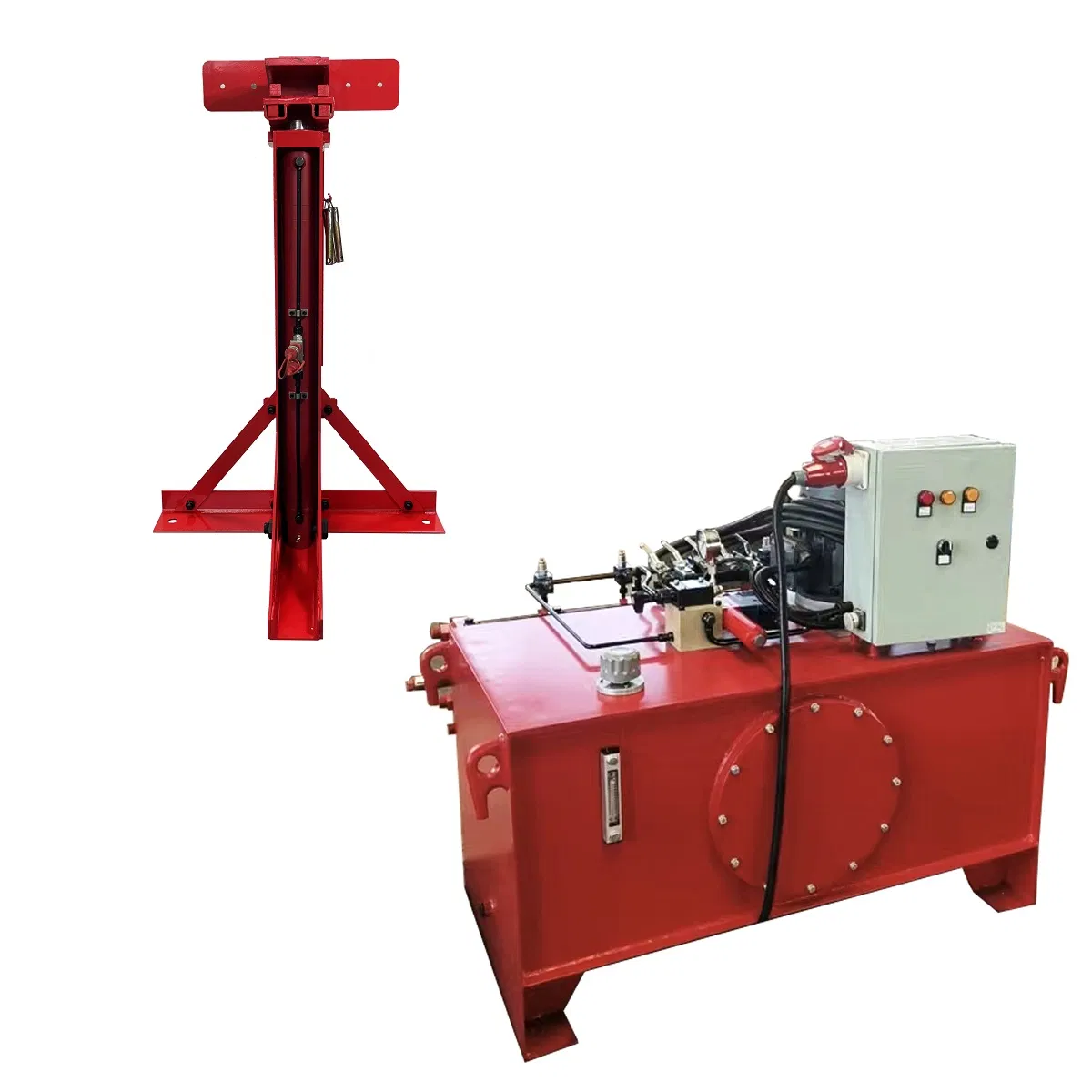

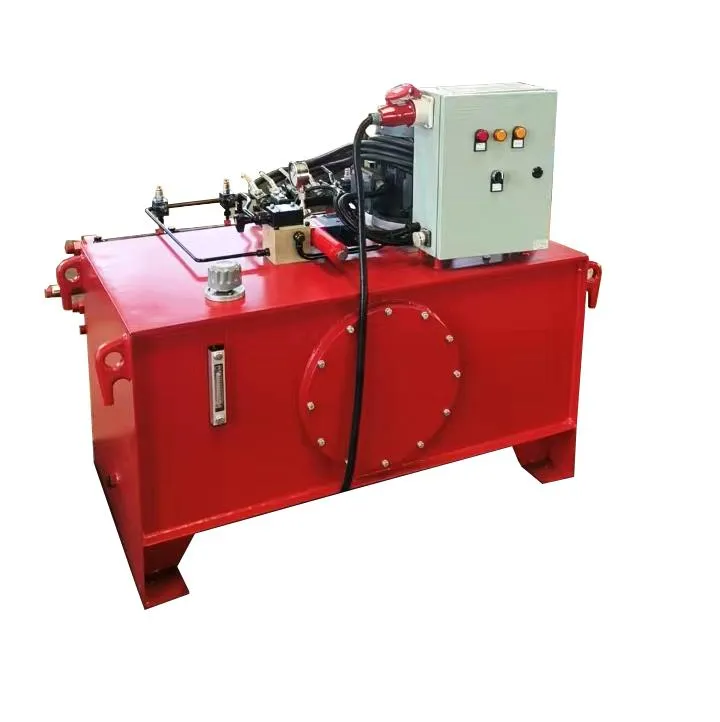

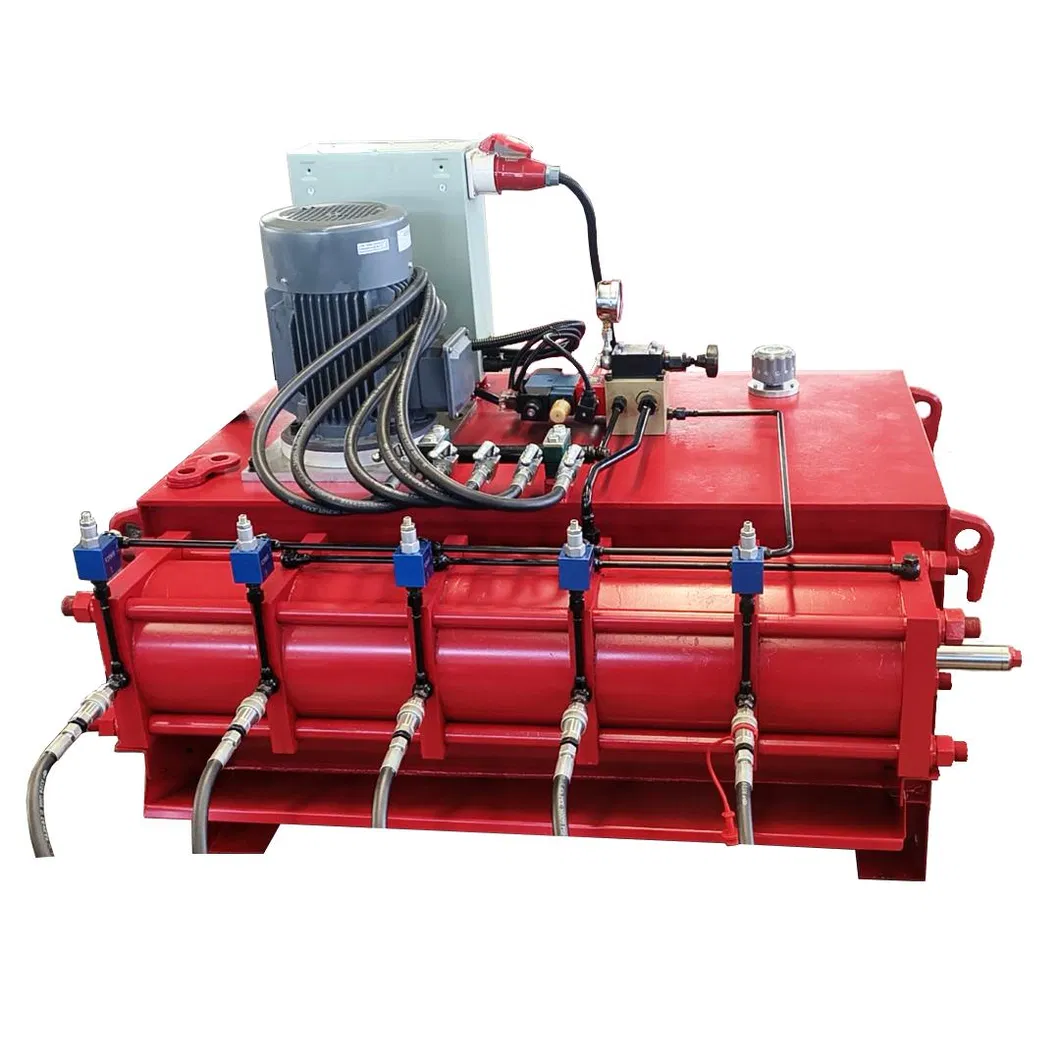

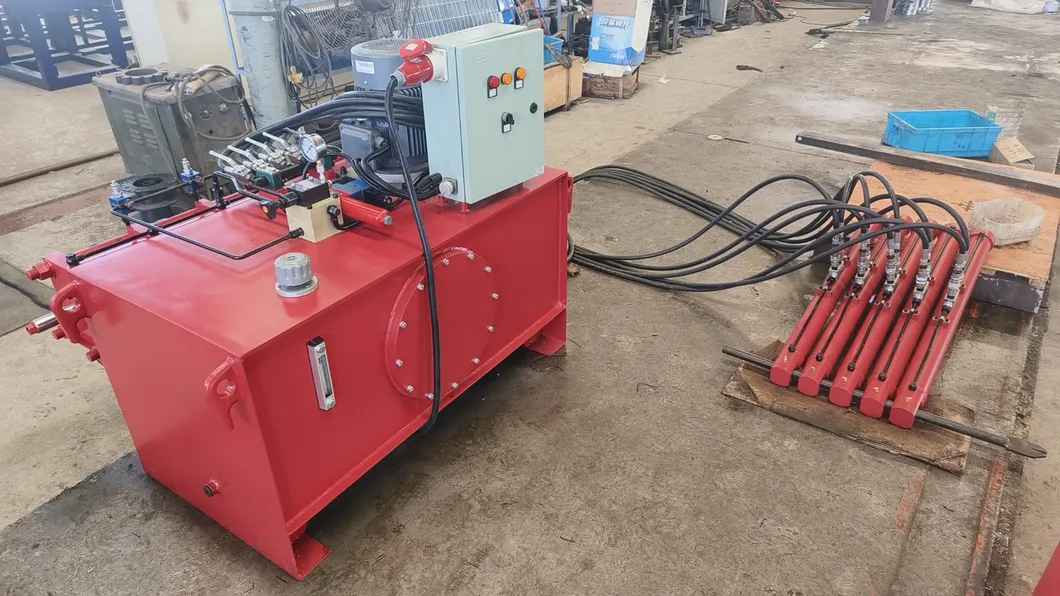

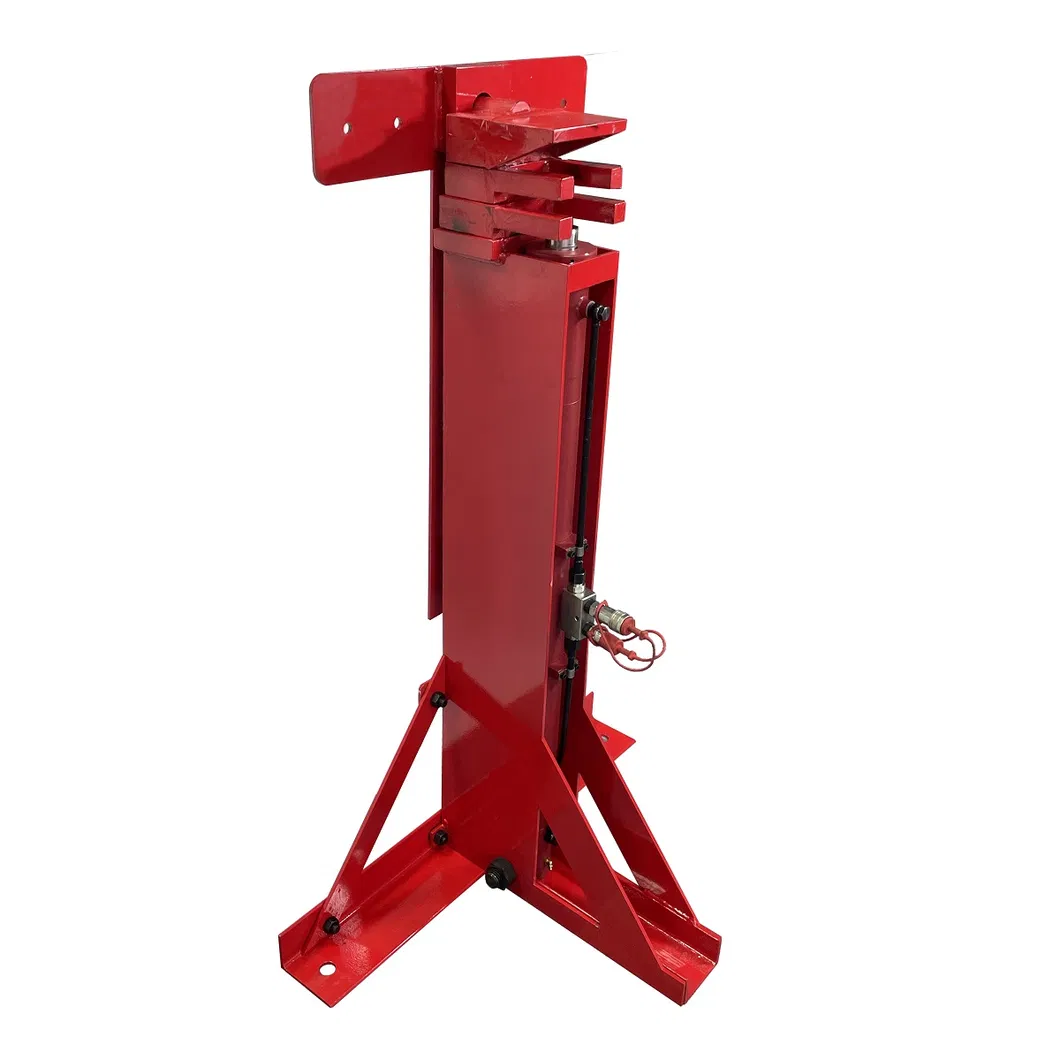

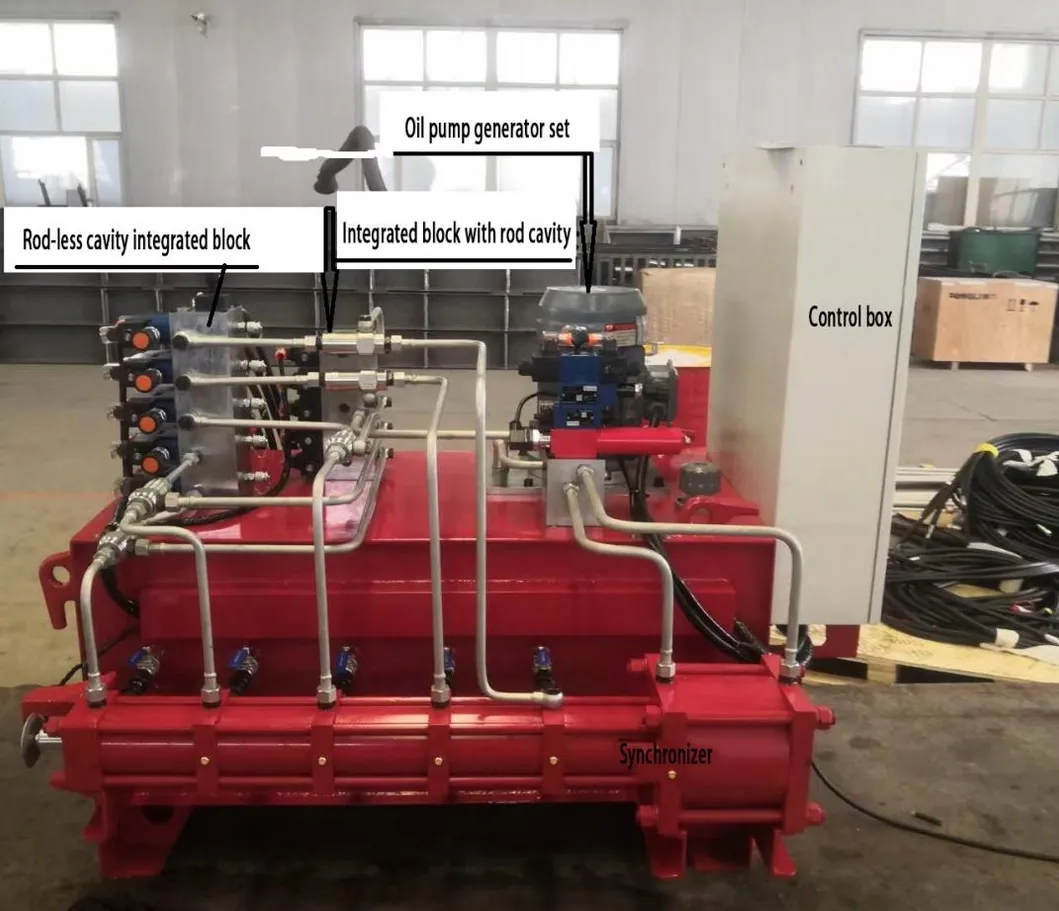

The system mainly consists of a hydraulic jacking pump station, hydraulic cylinders, and a rectangular steel frame, all designed for easy installation and reliable performance.
