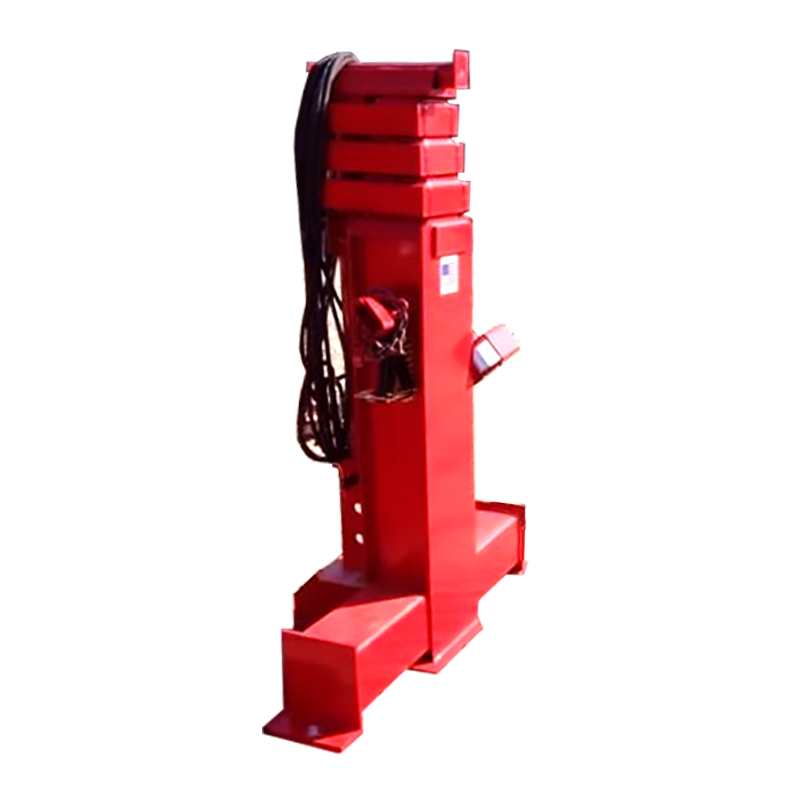

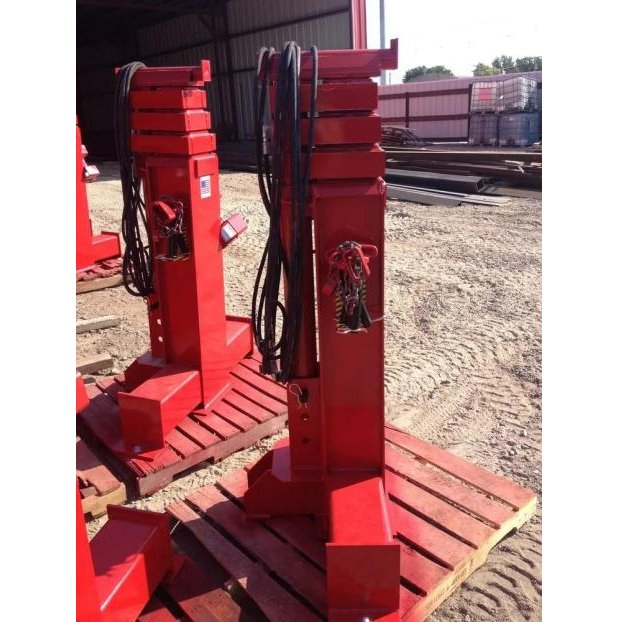

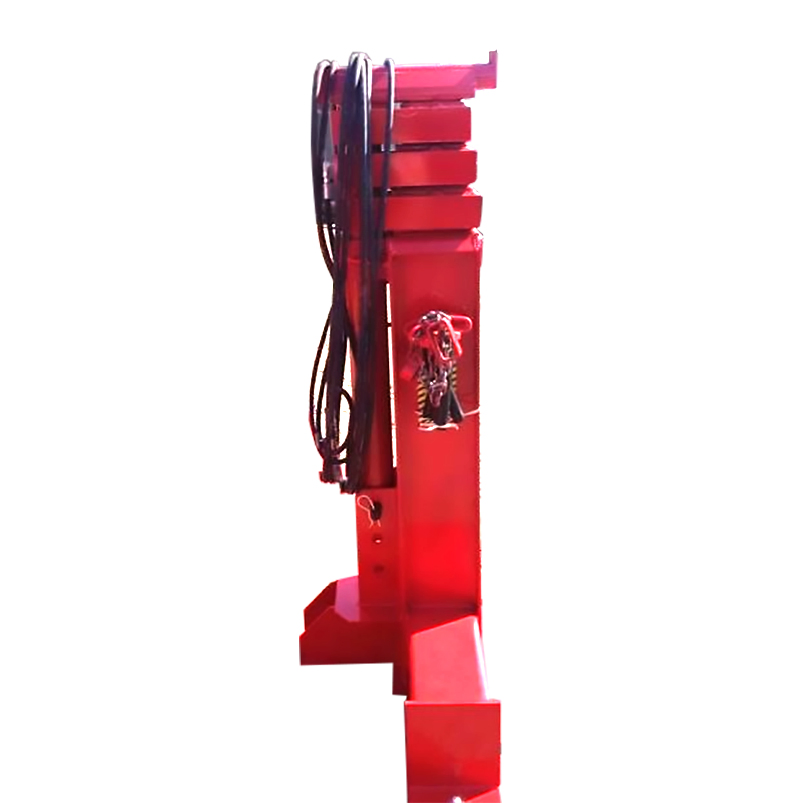

Basic Information
Model NO.
Piston type
Type
Hydraulic Jack
Structure
Hydraulic Jack
Capacity (Load)
1-10T
Power Source
Hydraulic
Max Height
>400mm
Certification
ISO 9001:2000
Condition
New
Keywords
Hydraulic Jacking System
Material
Stainless Steel
Min Height
800mm
Color
Red or Customized
Transport Package
Container
Specification
SGS, ISO9001, CE
Origin
China
HS Code
8425421000
Production Capacity
5000

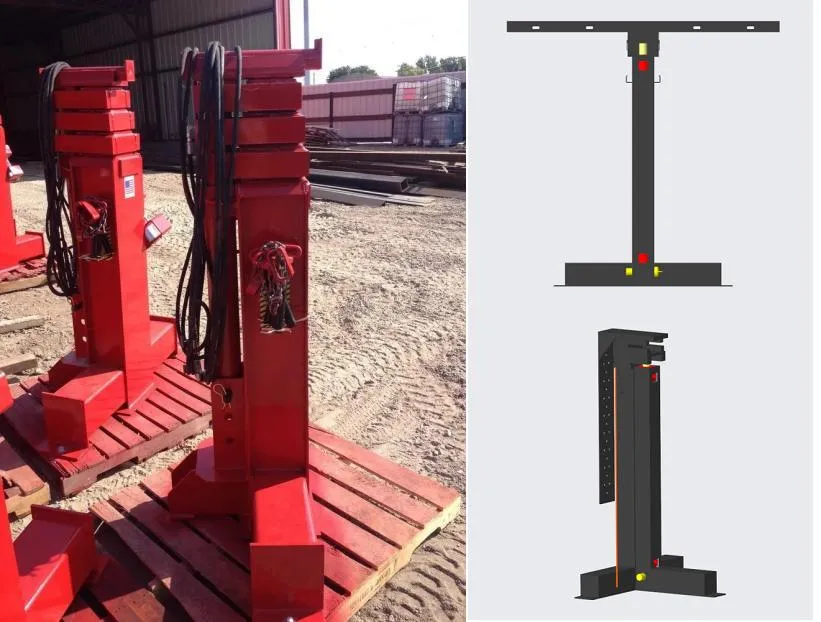

Product Description
Suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.
Product Advantages
With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
Reference Parameters
| Hydraulic Jacks |
| Rated lifting weight |
50KN |
| System pressure |
16MPa |
| Hydraulic travel stroke |
0.8m |
| Size of oil inlet and outlet |
M18*1.5 |
| Lifting height |
2.3m |
| Hydraulic operating mode |
Double-acting |
| Lifting mode |
Rectangular steel frame |
| Lock mode |
Hydraulic lock and Pin lock |
| Fixture type |
Triangular bracket base, self-tapping fixed |
| Size |
800*620*1180 mm |
| Weight |
60 kg |
| Basic height of hydraulic jacks |
1180 mm |
| Hydraulic Cylinder |
| Max working pressure |
16 MPa |
| System pressure |
380 V |
| System flow |
38 L/min |
| Individual maximum displacement |
5 L/min |
| Tank capacity |
300 L |
| Motor speed |
1470 r/min |
| Control voltage |
DC 220 V |
| System temperature |
20-60ºC |
| Size |
2500*2000*1500 mm |
Installation Procedure

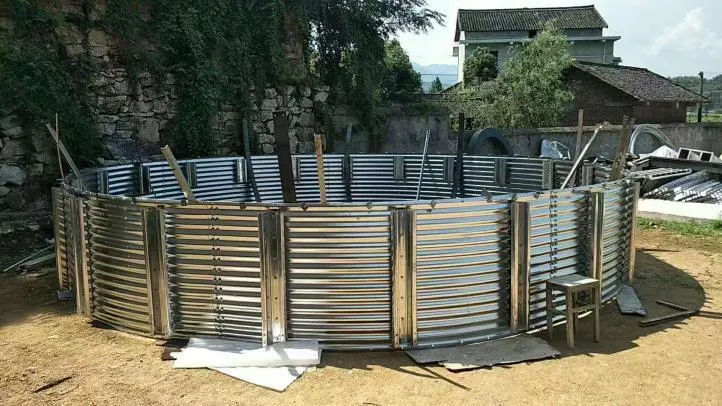

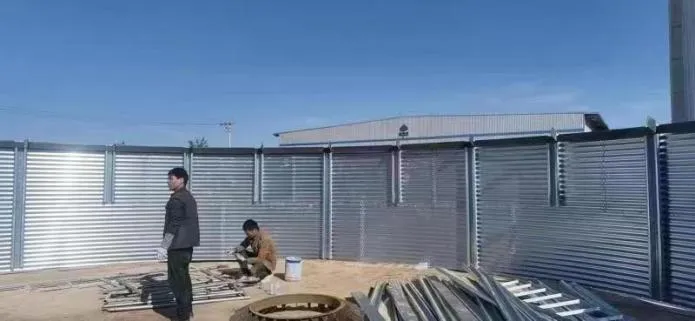

1, Install the first layer of tank wallboard/ corrugated plate
2, Install the granary vault

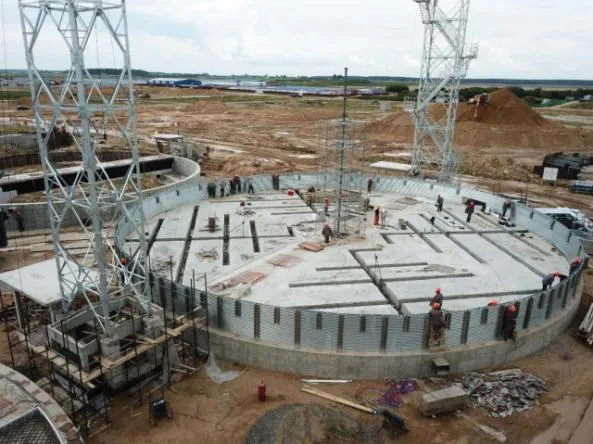

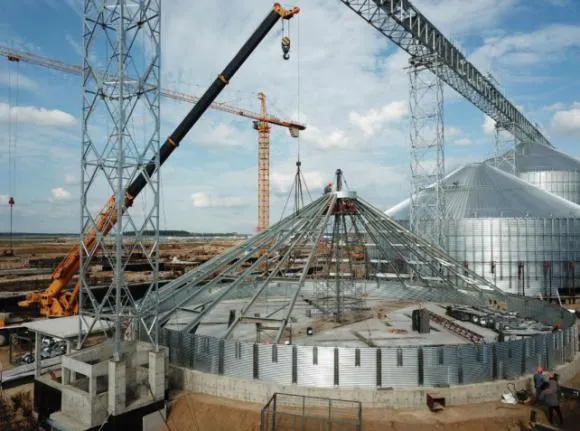

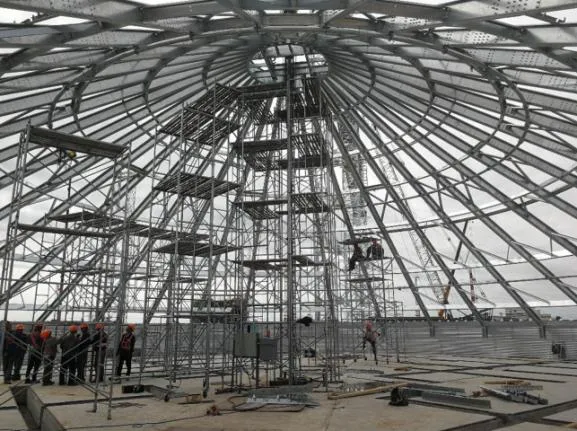

A. Install the central independent vault support fixture to ensure effective connection between vault and tank wall.

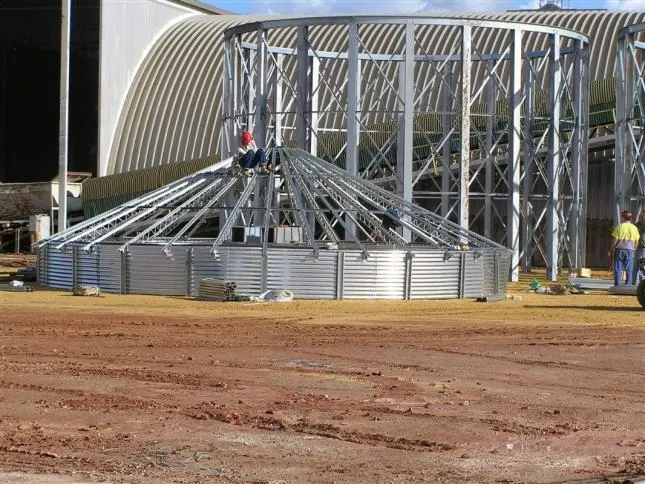

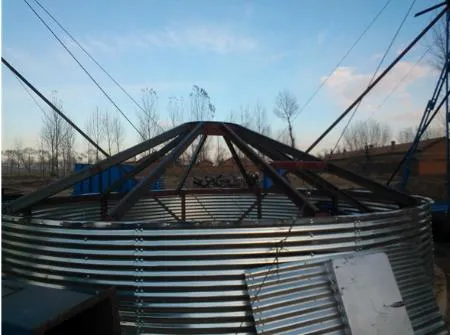

B. The top installation of the granary is divided into two parts: the first and second layer corrugated plate installation and the top installation of the granary.
Connection of hydraulic jacks to tank wall panel

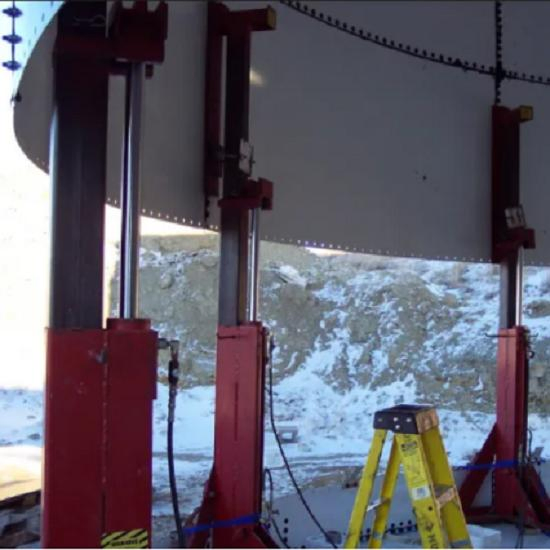

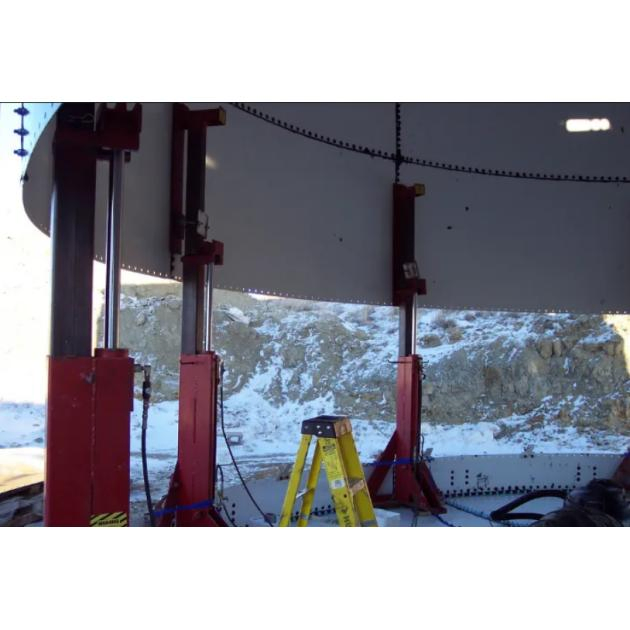

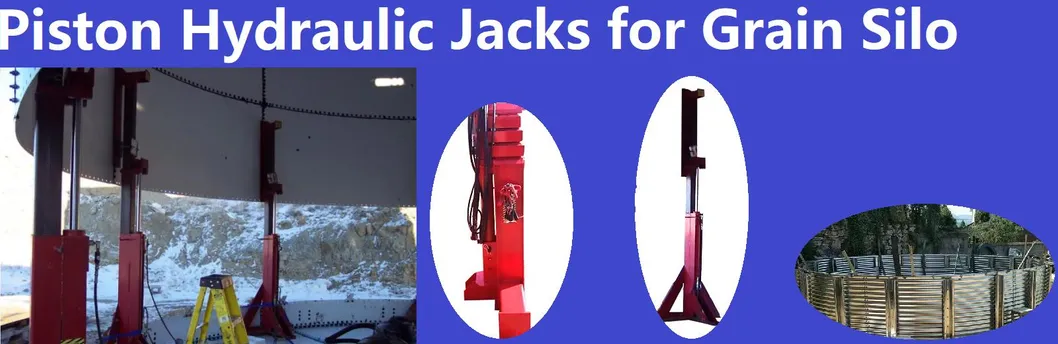

Hydraulic jacks lift condition
What We Can Bring to You
Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the construction time.
We can provide all technical documents and advices to support you for construction procedure clarifications.
We can calculate the most suitable number of hydraulic jack according to the weight of the tank.
We can provide your suitable hydraulic jack accessories with much more competitive price from our long time business partner if you need.
We can provide site people training service, and operation service or manpower service or as a subcontractor.
Frequently Asked Questions
What types of storage tanks is this hydraulic jacking system suitable for?
This system is designed for all kinds of large steel storage tanks, flat bottom corrugated board granaries, and enamel storage tanks using inverted installation construction.
How does the self-locking safety valve protect the tank from falling?
Each hydraulic cylinder is equipped with a self-locking safety valve. This prevents heavy objects or the tank itself from sliding or falling in the event of a power failure, a burst high-pressure hose, or cylinder failure.
Does the plunger type hydraulic system damage the tank walls?
No, the plunger type hydraulic jacking system generates no side forces during the jacking process, ensuring that there is no structural impact or deformation to the tank wall.
What are the control modes available for the hydraulic pump station?
The station features two control modes: manual and centralized control. Cylinders can be adjusted individually or in local groups for precise micro-adjustments and synchronized welding alignment.
How does the 800 mm cylinder stroke benefit the construction process?
The 800 mm stroke allows the system to complete one-time jacking of wall panels with widths below 2300 mm. This significantly reduces overall jacking cycles, saving labor costs and project time.
What locking mechanisms are utilized in the hydraulic jacks?
The system utilizes a double lock system consisting of a hydraulic lock combined with a pin lock to ensure structural security during construction.
