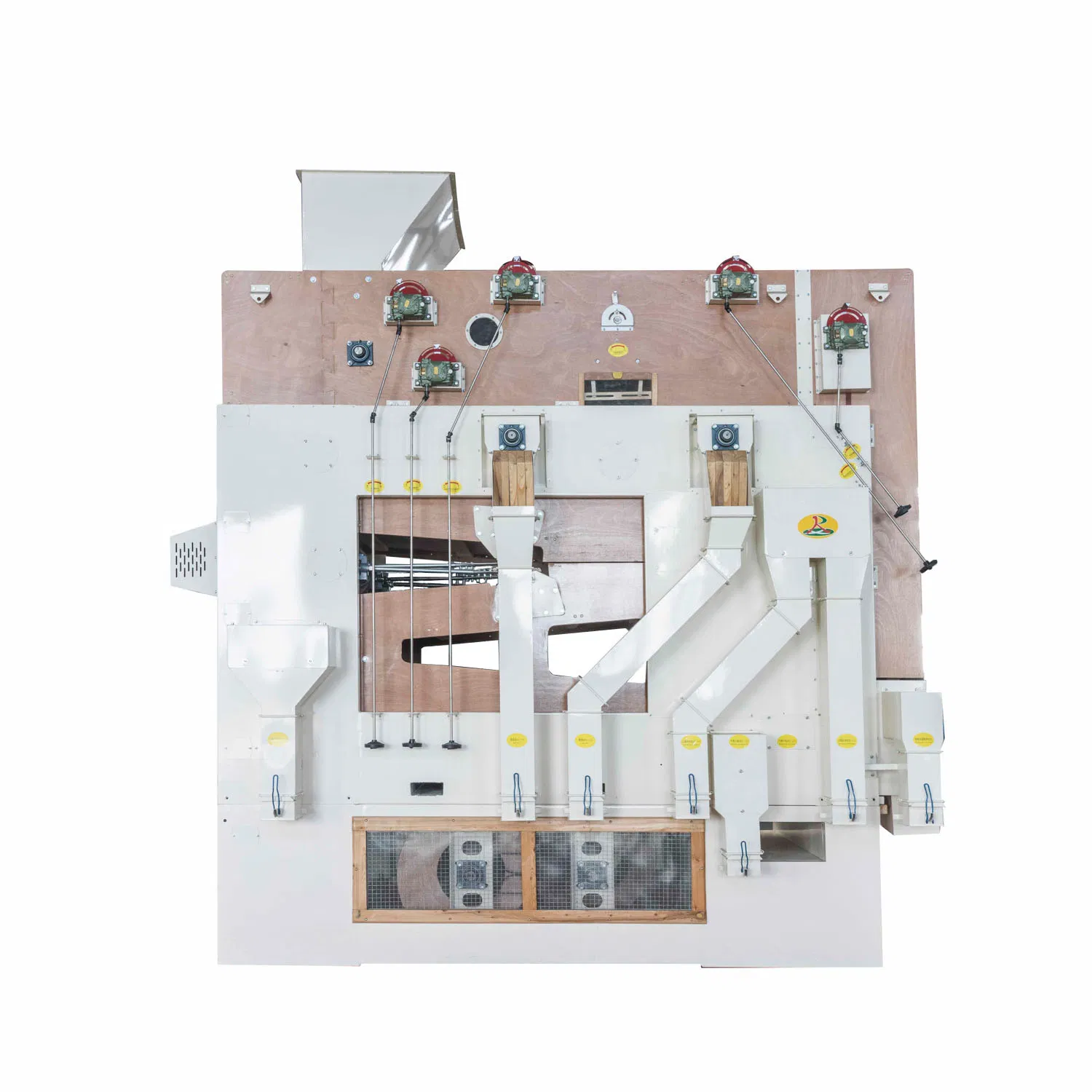

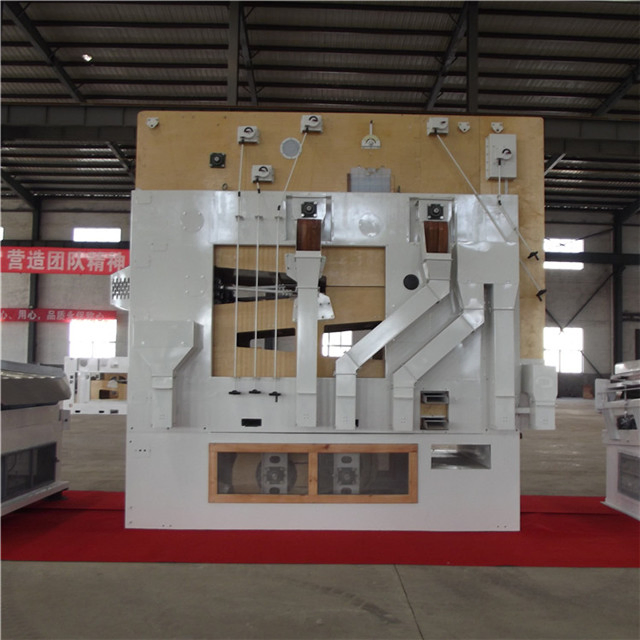

Wheat Paddy Seed Cleaning Equipment

Customization:	Available
Type:	Seed Sieving Machine
Capacity:	12t/H

Basic Info.

Model NO.5X-12

UsageAll Kinds of Grain and Beans

AdvantgeUsually Used in Front of Seed Processing Line

Warranty1 Year

Voltage220-600V Can Be Customized

Has Been Exported toAustralia, Africa, Southeast Asia, North America

Factory Production EquipmentAmerican Plasma Cutter, Laser Cutter

Workers QuantityMore Than 100 Workers

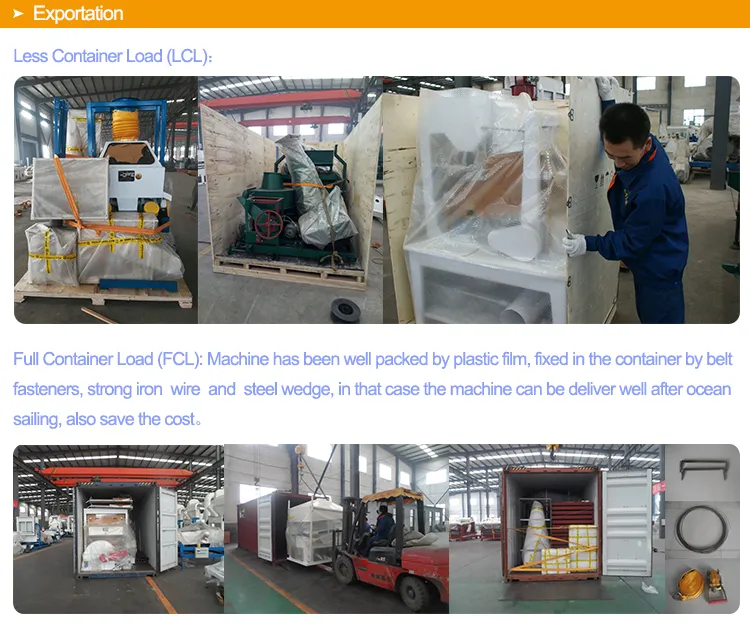

Transport Packageby Containers

SpecificationSGS, ISO9001, TUV

Trademarkgrain bean seed vibrating machine

OriginHebei, China

HS Code84371090

Production Capacity30 Sets Per Month

Product Description

Wheat Barkley Paddy Rice Maize Sesame Seed Cleaning Equipment

Function: fine cleaning to remove impurities, broken and abortive grains; grading seeds according to sizes.

Application: cereal grains, beans and seeds.

Capacity: up to 12t/h (wheat).

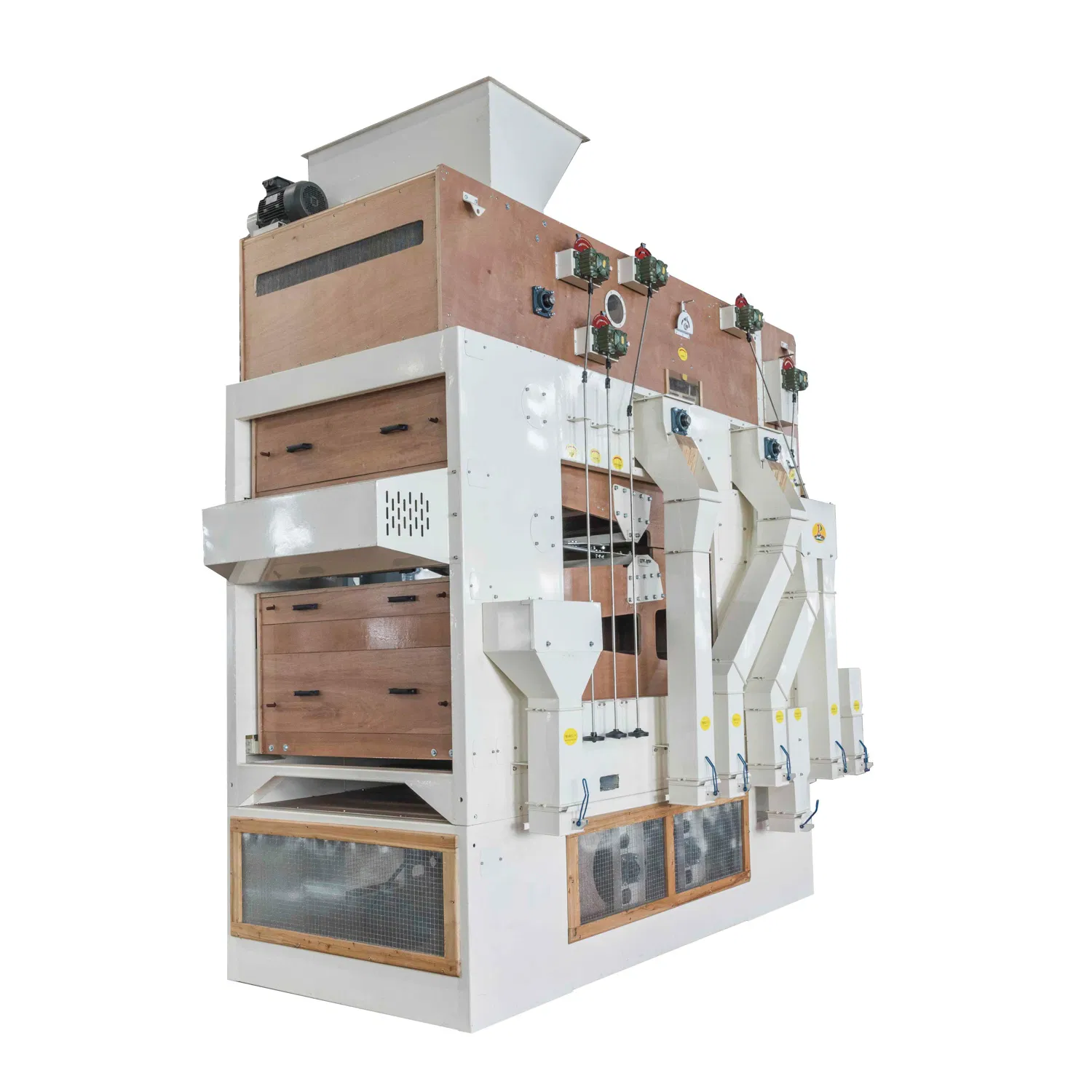

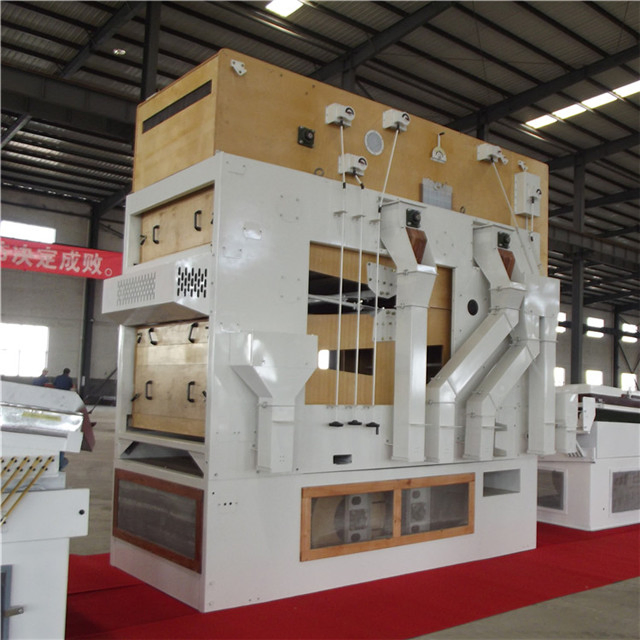

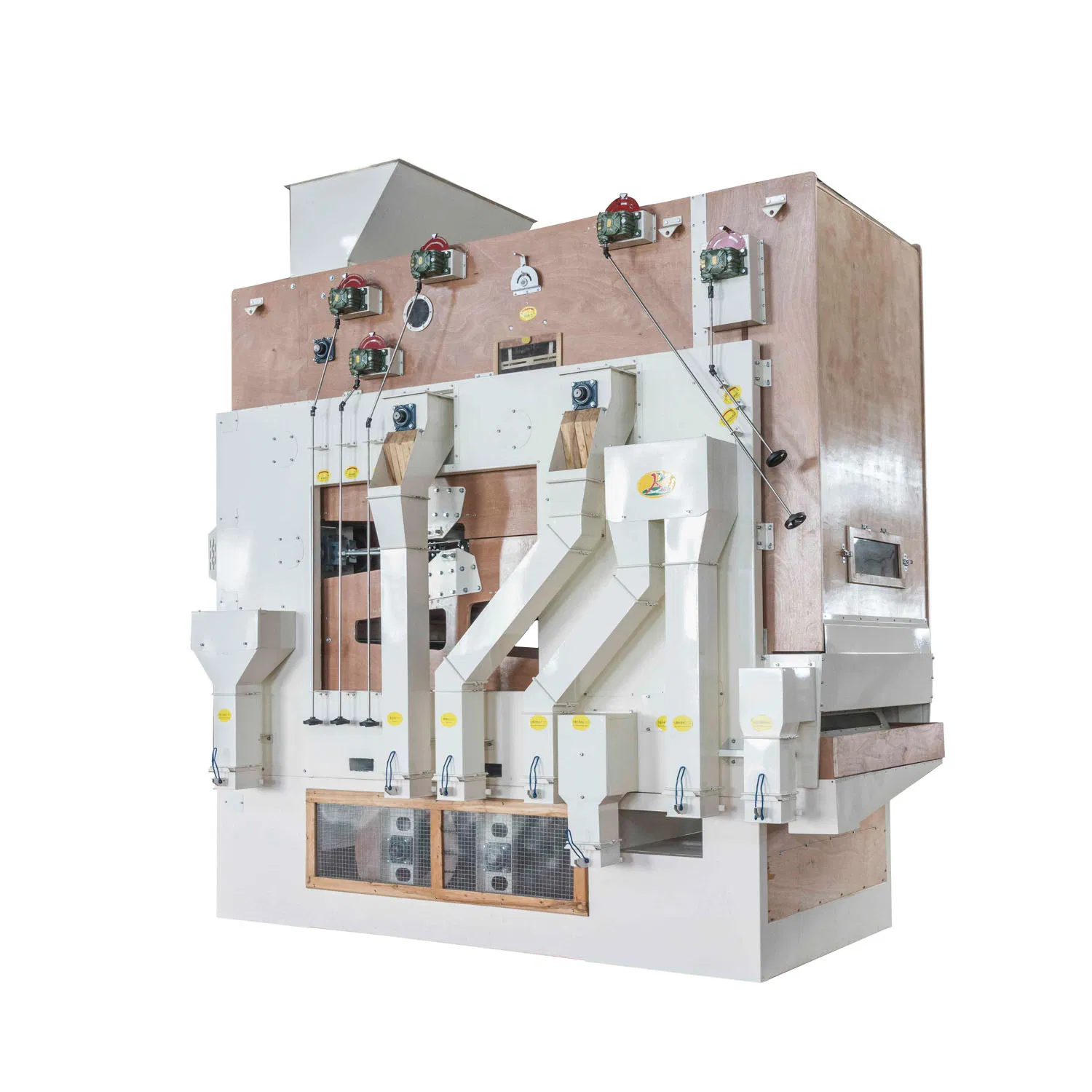

The 5X series air screen seed cleaner has been developed specially for flexible, high quality cleaning for grains and seeds. It can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning.

1. Application of 5X Fine Seed Cleaner

5X series air screen cleaners are widely used for cleaning and grading of grains and seeds, such as wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds and forestry seeds. The multi-layer cleaning screens are changeable easily for different processing requirements.

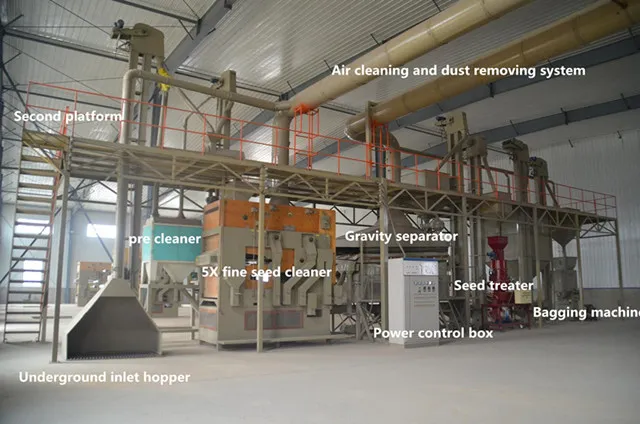

10 T/H Wheat Barley & Bean Cleaning Plant

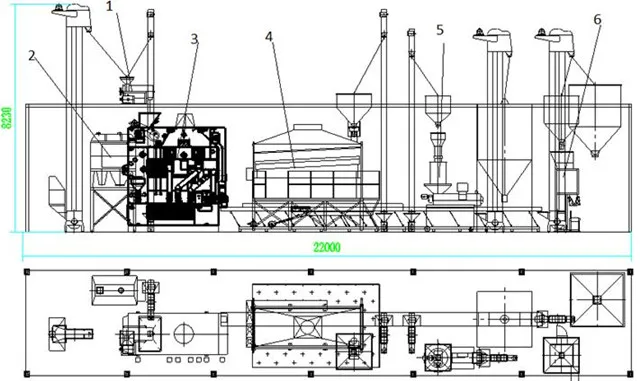

Drawing design of cleaning plant

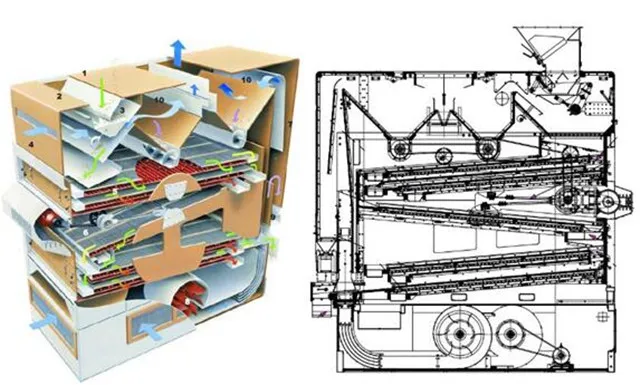

2. Working Principle of 5X fine seed cleaner

The seeds and grains can be separated from impurities for different physical and mechanical properties. The separation is completed by:

Fans (air blowers): by different weight and aerodynamic characteristics.
Screens: according to different width and thickness sizes of seeds.

Excellent cleaning and grading function is accomplished by variable screen configuration, pre and after suction system, and air lifting blowers at the bottom. Closed, bolted and painted steel construction ensures the long service life and safe operation.

3. Advantage of 5X fine seed cleaner

Multi-layer screens are equipped in opposite directions for good impurity cleaning performance.
Upper and lower screen decks dynamically balanced in opposite directions for good self-balance and stable running.
Easy interchangeable screens, flexible for different processing requirements.
Wide adjustable range realizes fine cleaning process easily.
Positive-negative pressure blower systems at top and bottom, twice remove light impurities and incomplete seeds.
Screen frames, main ball trays and feeder parts are made of high quality wood, good sealing and vibration absorption performance with low noise.
Integral steel frame rubber ball tray for easy screen cleaning and easy changes of processing materials.
Safety guard for every moving part to ensure safe operation.
Box-type screen body structure efficiently reduce dust content in workshop.
Symmetric machine structure, discharge system can be equipped left or right according to site conditions of customer.

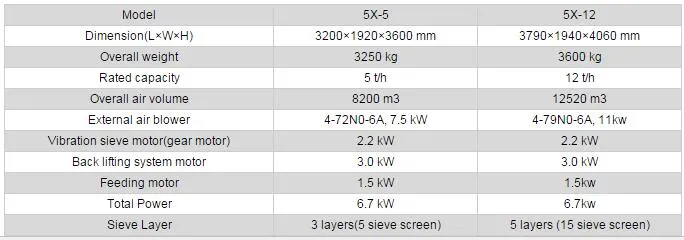

4. Technical Specification of 5X fine seed cleaner

Frequently Asked Questions (FAQ)

What is the main application of the 5X series air screen seed cleaner?

The 5X series air screen cleaners are widely used for the flexible, high-quality cleaning and grading of grains and seeds, including wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds, and forestry seeds.

What is the processing capacity of this seed cleaning equipment?

The machine has a fine cleaning and size grading capacity of up to 12 tons per hour specifically for wheat processing.

How does the working principle of the cleaner ensure effective separation?

Separation is achieved by utilizing physical and mechanical properties: air blowers (fans) sort materials by weight and aerodynamic traits, while multi-layer screens separate seeds according to width and thickness sizes.

Can the electrical voltage requirements be customized for different regions?

Yes, the operating voltage range is flexible and can be customized between 220V to 600V depending on local industrial power standards.

What design features help reduce noise and structural vibrations?

The screen frames, main ball trays, and feeder parts are constructed from high-quality wood, which provides excellent sealing, efficient vibration absorption, and low-noise operation.

What warranty is provided for the 5X-12 air screen cleaner?

The equipment comes standard with a 1-year warranty coverage.
