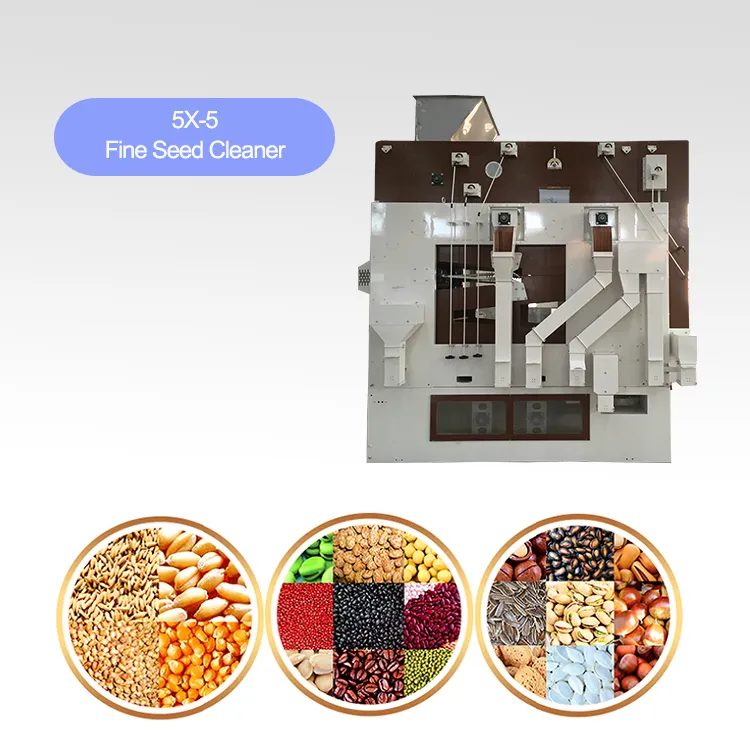

European Standard Wheat Barley Flax Fine Seed Cleaning Equipment

European Wheat Barley Flax Fine Seed Cleaning Equipment

Introduction

The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds. The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks. The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.

Characteristics of 5X series seed cleaner

Easy and quick operation and screen changing
The screen boxes are made of wear resistant plywood, which is approved for food
Screen cleaning with special rubber balls
Built-in light
Durable surface of the machine owing to high-quality powder lacquering

Specification of 5X series seed cleaner

Model	5X-5	5X-12
Dimension(L×W×H)	3200×1920×3600 mm	3790×1940×4060 mm
Overall weight	3250 kg	3600 kg
Rated capacity	5 t/h	12 t/h
Overall air volume	8200 m3	12520 m3
External air blower	4-72N0-6A, 7.5 kW	4-79N0-6A, 11kw
Vibration sieve motor(gear motor)	2.2 kW	2.2 kW
Back lifting system motor	3.0 kW	3.0 kW
Feeding motor	1.5 kW	1.5kw
Total Power	6.7 kW	6.7kw
Layers and number	4 layers, 7 pieces	5 layers, 15 pieces

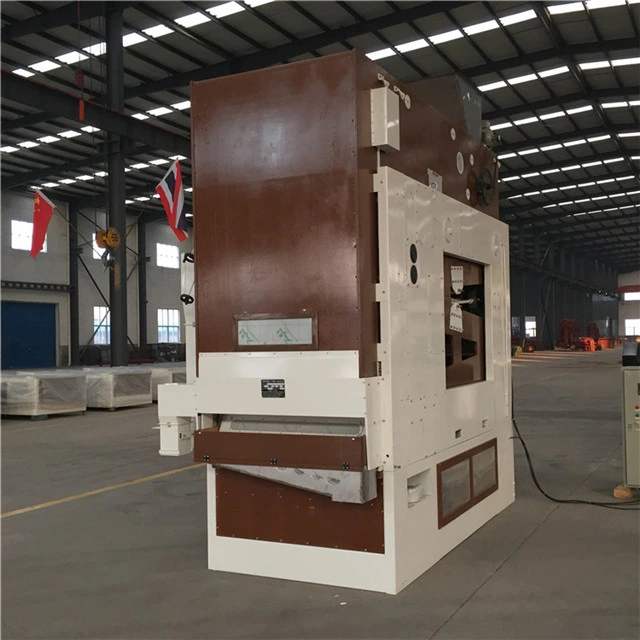

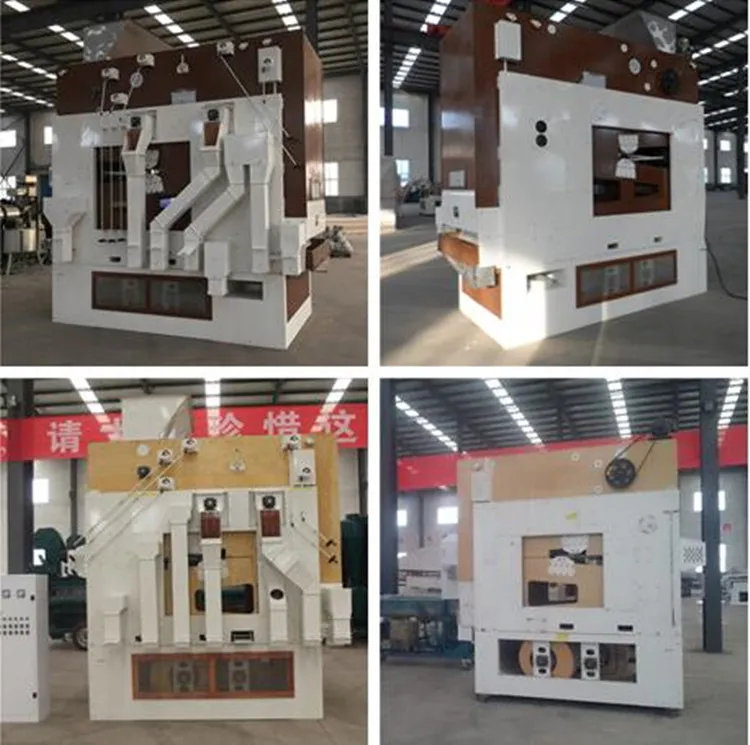

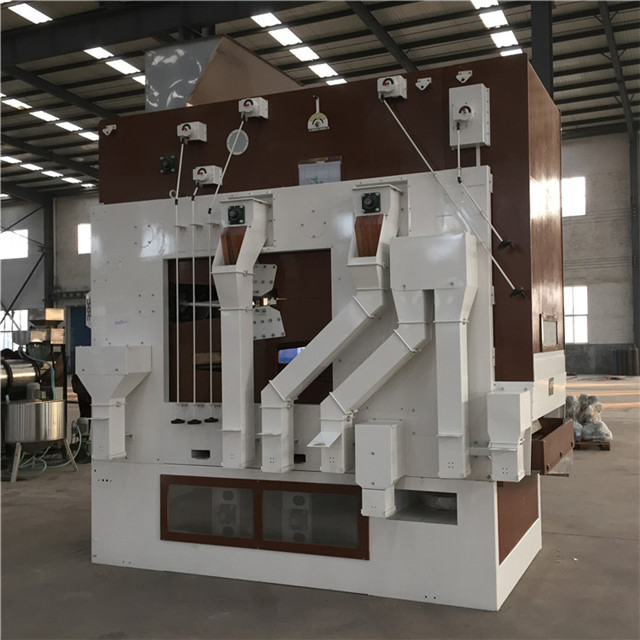

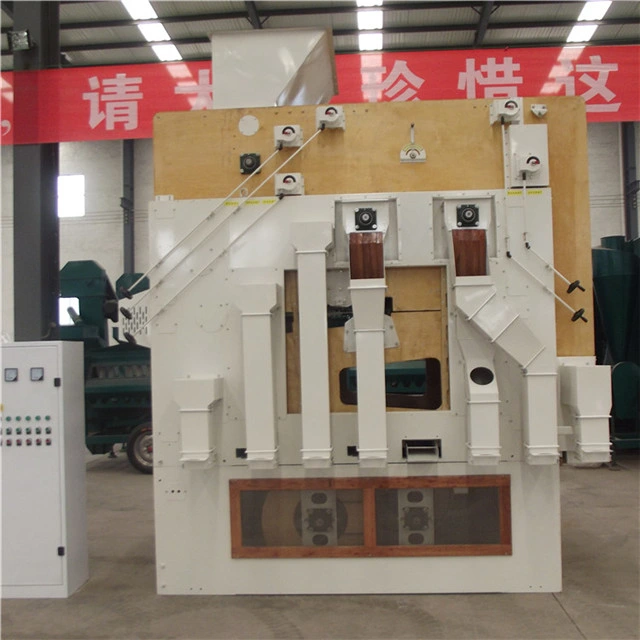

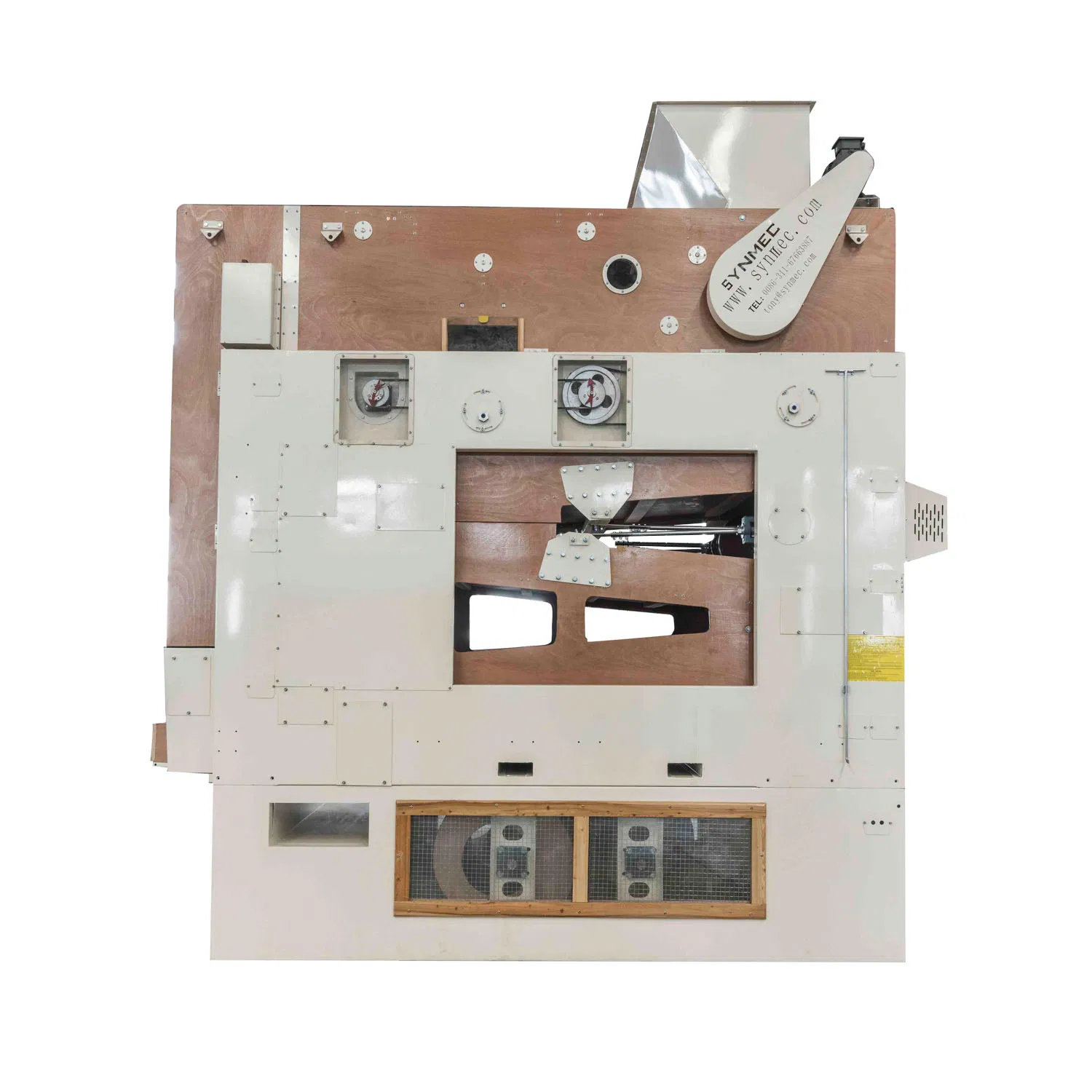

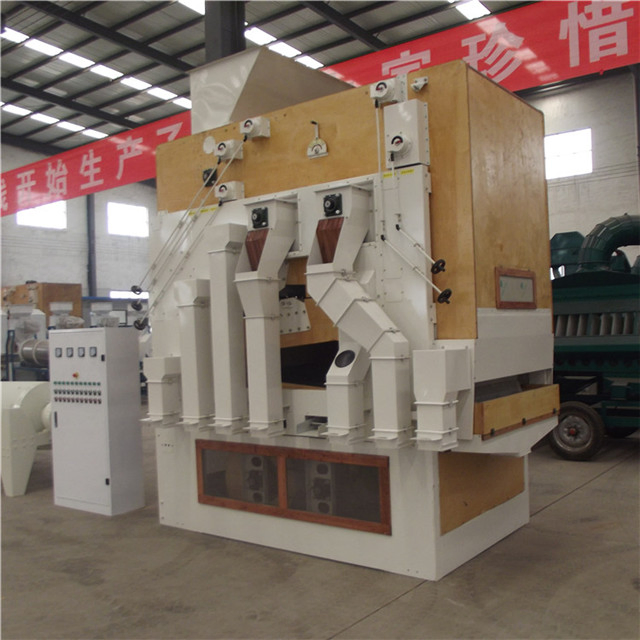

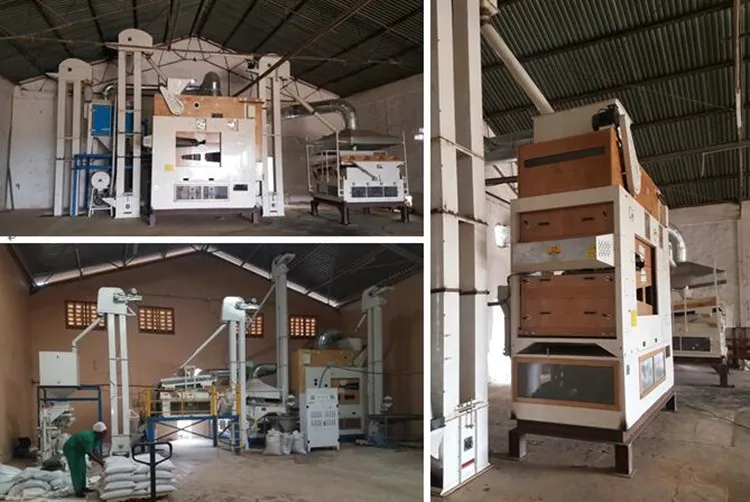

Detail

European Standard Wheat Barley Flax Fine Seed Cleaning Equipment

Frequently Asked Questions

What types of grains can the 5X series seed cleaner process?

The 5X series seed cleaner is a universal machine optimized for cleaning a wide range of grains and seeds, including wheat, barley, flax, and other fine seeds.

How does the machine achieve both pre-cleaning and fine cleaning?

The machine features quick screen changing capabilities, allowing operators to rapidly transition from pre-cleaning configurations to fine cleaning configurations to suit different processing requirements.

Are the materials used in the screen boxes safe for food processing?

Yes, the screen boxes are constructed from wear-resistant plywood that is fully approved for food-grade contact and applications.

What system is used to prevent screen clogging during operation?

The machine uses a dedicated screen cleaning mechanism equipped with special rubber balls to dynamically clear particles and prevent clogging.

What are the capacity differences between the 5X-5 and 5X-12 models?

The 5X-5 model has a rated processing capacity of 5 tons per hour, whereas the larger 5X-12 model is designed to handle a rated capacity of 12 tons per hour.

How is the durability of the machine's exterior surface ensured?

The outer surface of the seed cleaner is treated with high-quality powder lacquering, providing a long-lasting, robust, and corrosion-resistant protective layer.
