Wheat Barley Paddy Rice Grain Seed Cleaning Equipment
Introduction of 5X series seed cleaner
The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds. The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks. The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.
Characteristics of 5X series seed cleaner
- Easy and quick operation and screen changing
- The screen boxes are made of wear resistant plywood, which is approved for food
- Screen cleaning with special rubber balls
- Built-in light
- Durable surface of the machine owing to high-quality powder lacquering
Specification of 5X series seed cleaner
| Model |
5X-5 |
5X-12 |
| Dimension(L×W×H) |
3200×1920×3600 mm |
3790×1940×4060 mm |
| Overall weight |
3250 kg |
3600 kg |
| Rated capacity |
5 t/h |
12 t/h |
| Overall air volume |
8200 m3 |
12520 m3 |
| External air blower |
4-72N0-6A, 7.5 kW |
4-79N0-6A, 11kw |
| Vibration sieve motor(gear motor) |
2.2 kW |
2.2 kW |
| Back lifting system motor |
3.0 kW |
3.0 kW |
| Feeding motor |
1.5 kW |
1.5kw |
| Total Power |
6.7 kW |
6.7kw |

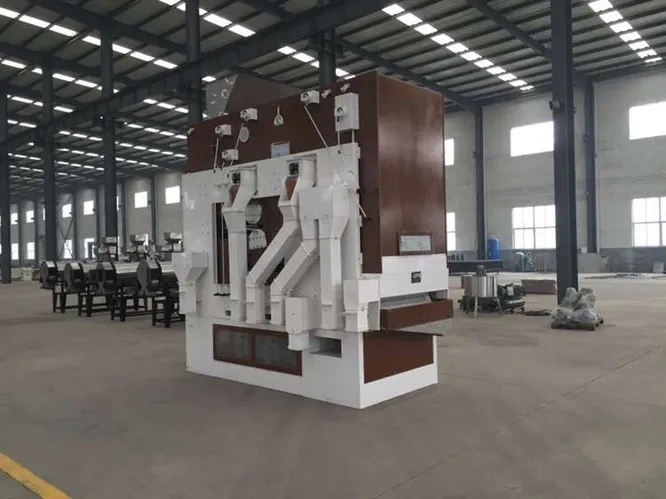

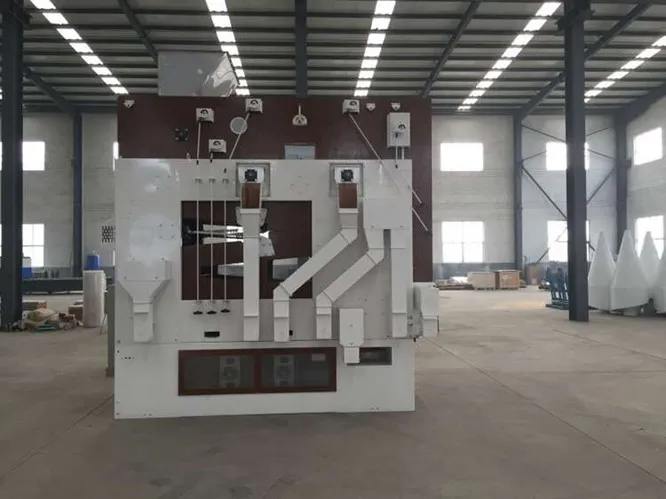

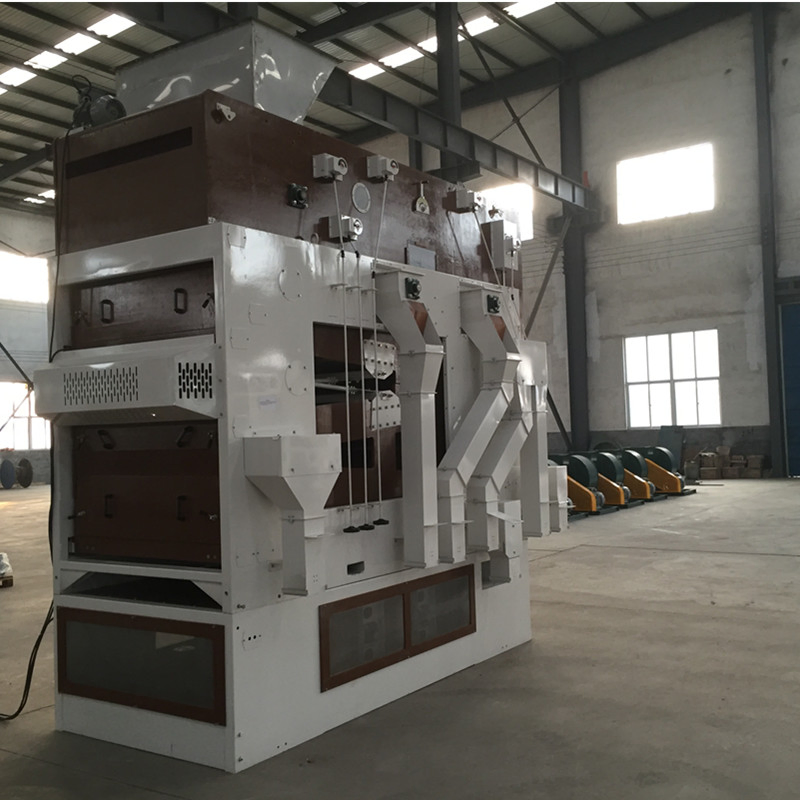

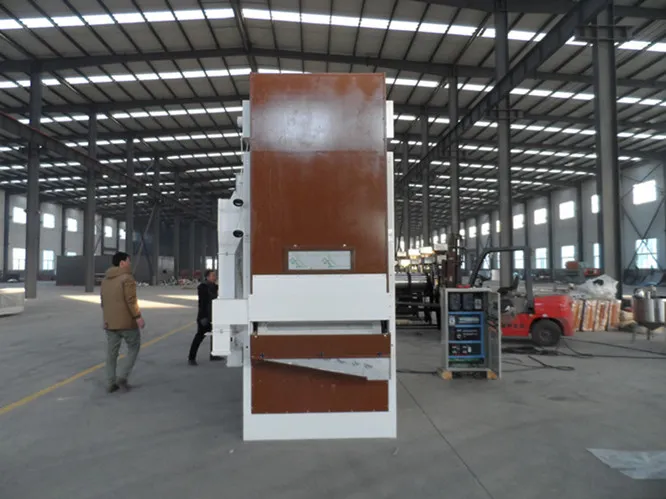

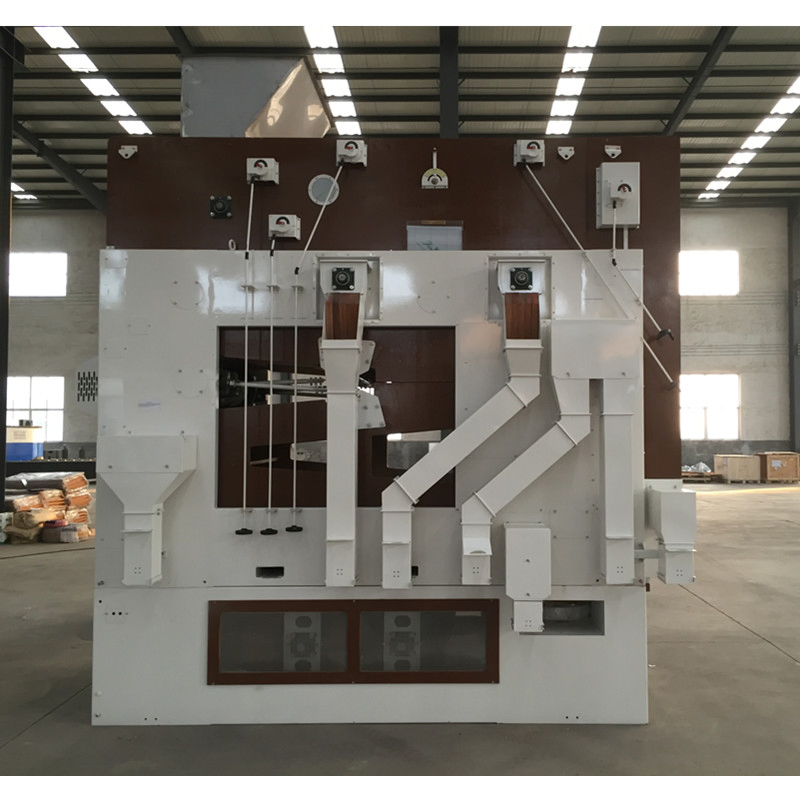

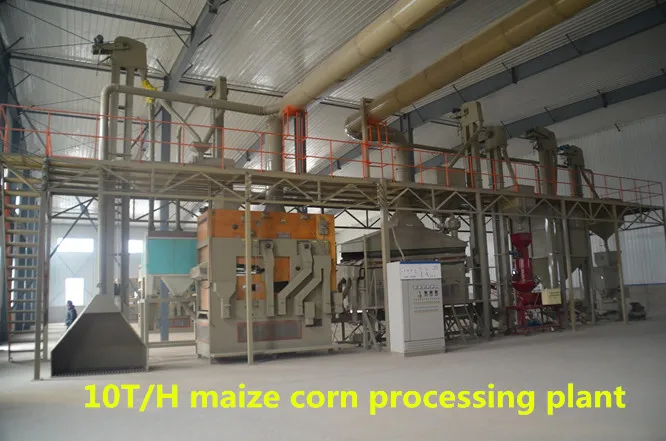

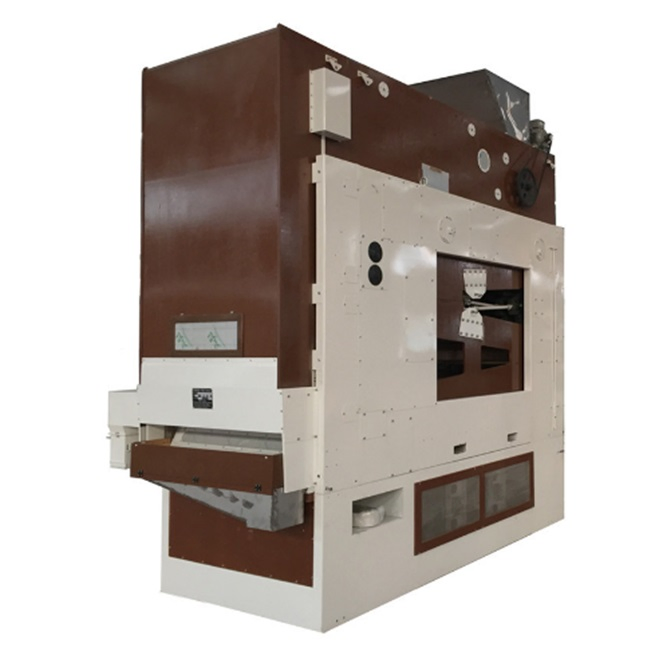

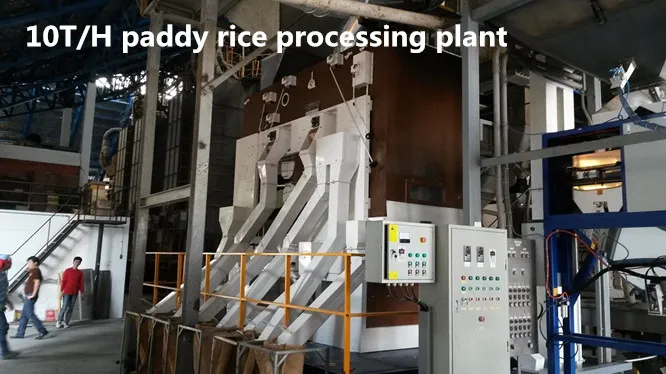

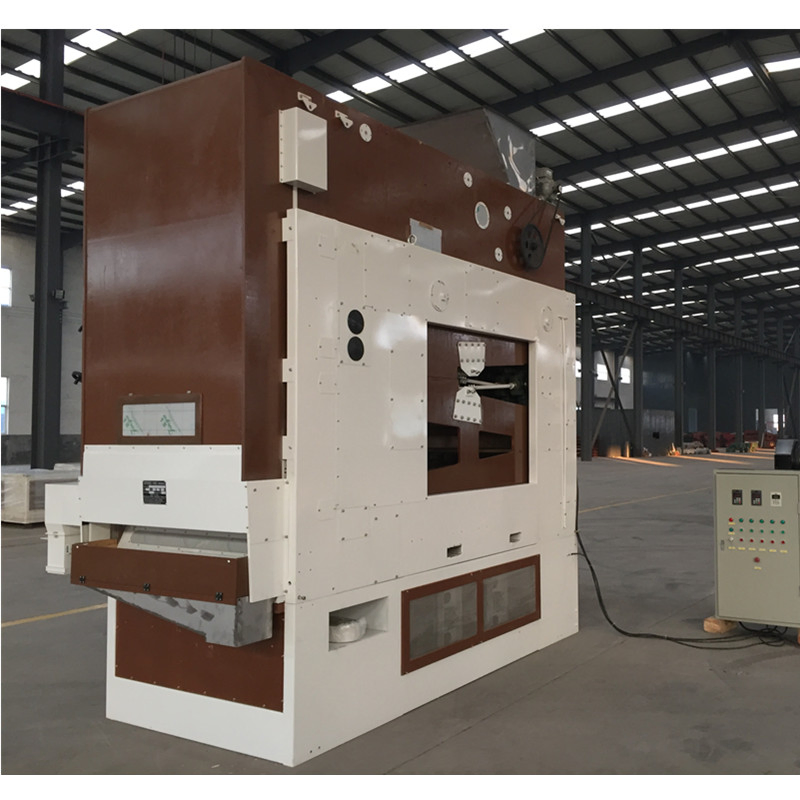

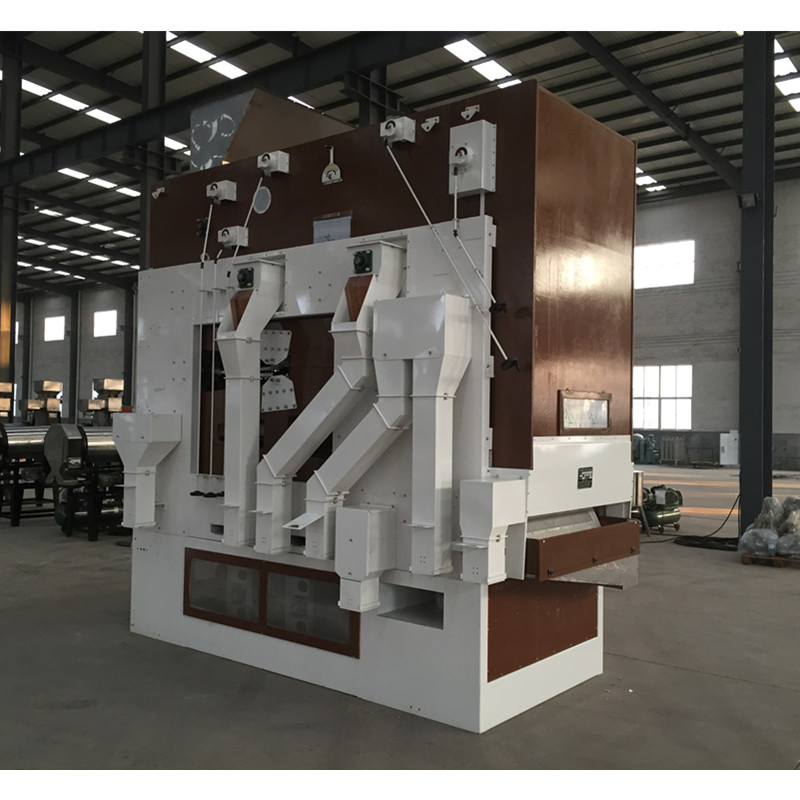

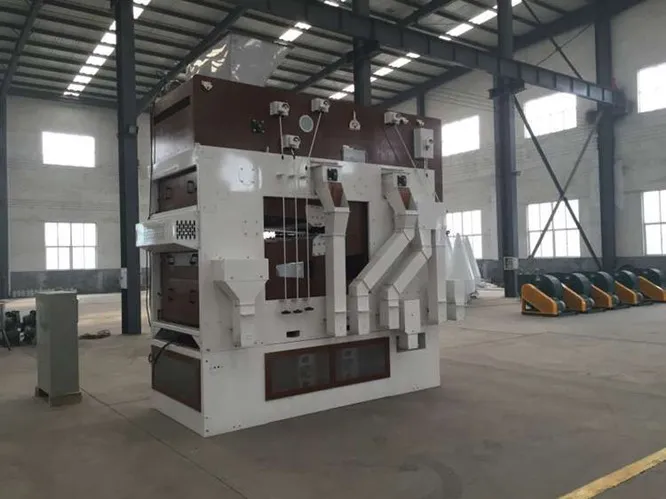

Photos of 5X series seed cleaner
Frequently Asked Questions
Q1: What crops can the 5X series seed cleaner process?
A1: It is a universal machine designed to efficiently clean many different species of grain and seeds, including wheat, barley, paddy, rice, and other seed varieties.
Q2: How does the screen changing system work on this equipment?
A2: The operator can perform quick screen changing to transition from pre-cleaning to fine cleaning, allowing for rapid adjustments to optimize the cleaning tasks.
Q3: Are the screen boxes safe for processing food seeds?
A3: Yes, the screen boxes are constructed from wear-resistant plywood that is officially approved for food, ensuring safe processing.
Q4: How does the machine prevent screen clogging?
A4: The machine features a dedicated cleaning mechanism utilizing special rubber balls to keep the screens clear during operation.
Q5: What are the processing capacities of the different models?
A5: The 5X-5 model offers a rated capacity of 5 t/h, while the larger 5X-12 model offers a capacity of 12 t/h.
Q6: What suction units are included in the standard design?
A6: The standard design is equipped with both pre-suction and after-suction units to ensure thorough dust and light impurity separation.
