Basic Info.
Model NO.
5X
Power
220-680V
Material
Wood, Carbon Steel
Application
Cereal Grain
Warranty
One Year
Discount
Yes
Spare Parts
One Year
Transport Package
Container Full
Specification
SGS, ISO9001, TUV
HS Code
8437109000
Production Capacity
Different Models Capacity From 1t/H to 20t/H
Product Description

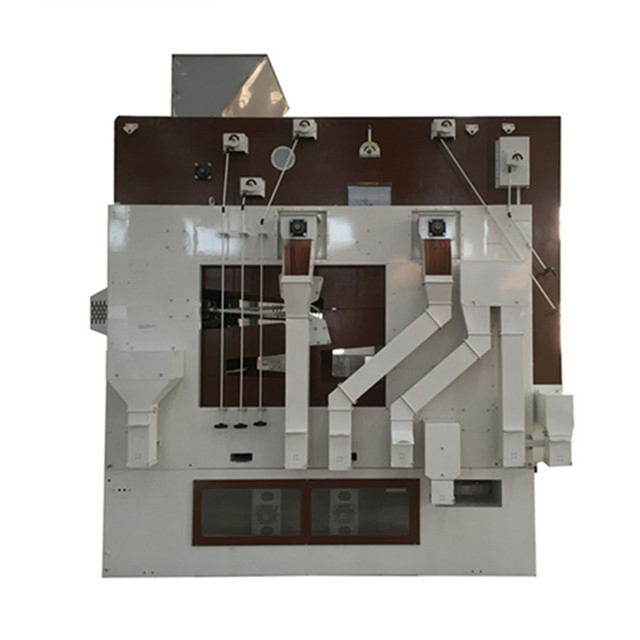

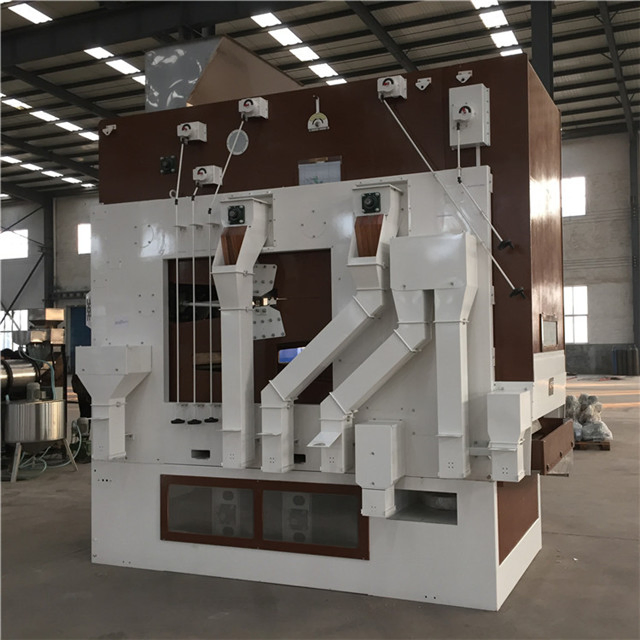

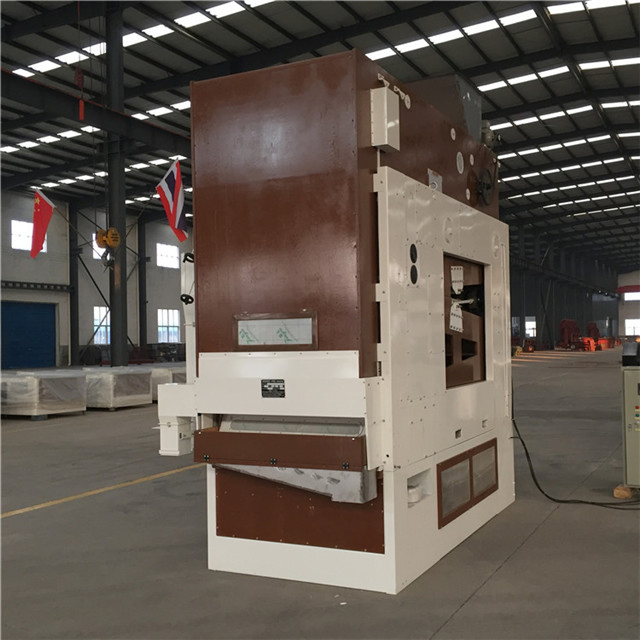

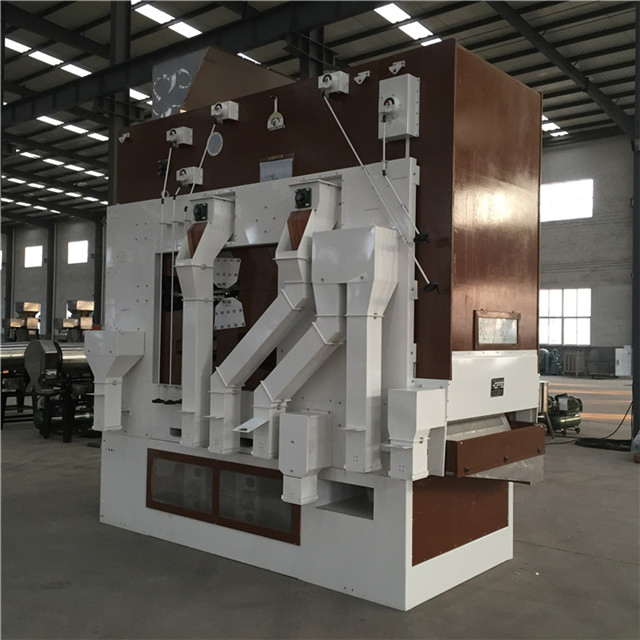

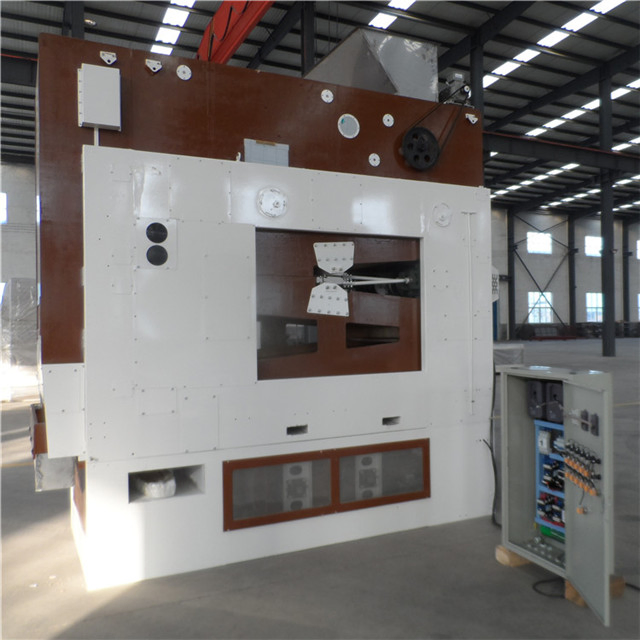

Seed Grain Bean Air Screen Cleaning Equipment
■
Function: Fine cleaning to remove impurities, broken and abortive grains; grading seeds according to sizes.
■
Application: Cereal grains, beans and seeds.
■
Capacity: Up to 12t/h (wheat).
The 5X series air screen seed cleaner has been developed specially for flexible, high quality cleaning for grains and seeds. It can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning.
1. Application of 5X Fine Seed Cleaner
5X series air screen cleaners are widely used for cleaning and grading of grains and seeds, such as wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds and forestry seeds.
The multi-layer cleaning screens are changeable easily for different processing requirements.

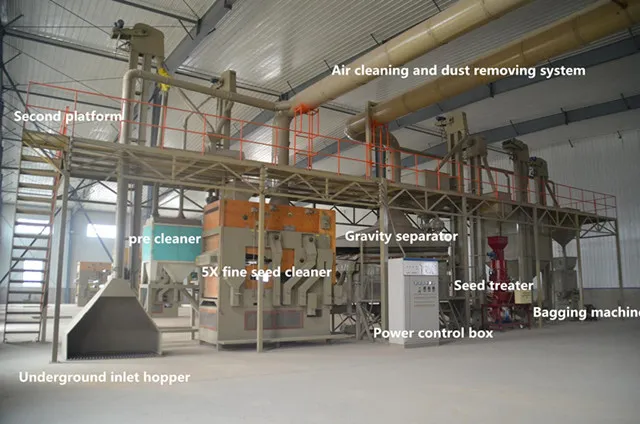

10 T/H Wheat Barley & Bean Cleaning Plant

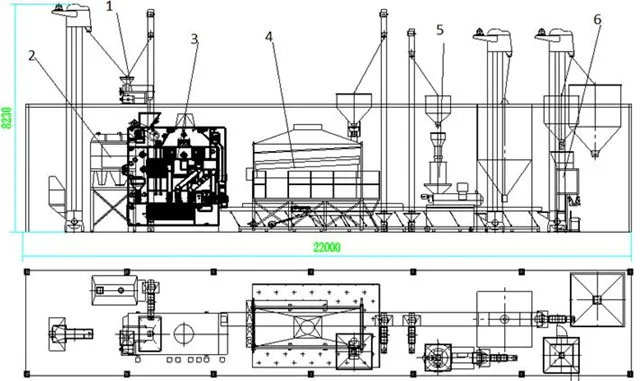

Drawing design of cleaning plant

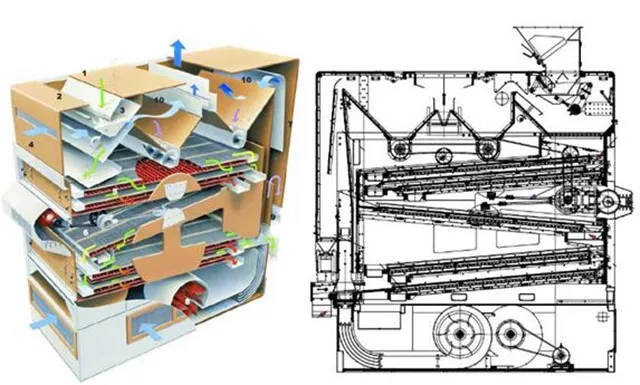

2. Working Principle of 5X fine seed cleaner
The seeds and grains can be separated from impurities for different physical and mechanical properties. The separation is completed by:
1.
Fans (air blowers): by different weight and aerodynamic characteristics.
2.
Screens: according to different width and thickness sizes of seeds.
Excellent cleaning and grading function is accomplished by variable screen configuration, pre and after suction system, and air lifting blowers at the bottom. Closed, bolted and painted steel construction ensures the long service life and safe operation.
3. Advantage of 5X fine seed cleaner
- Multi-layer screens are equipped in opposite directions for good impurity cleaning performance.
- Upper and lower screen decks dynamically balanced in opposite directions for good self-balance and stable running.
- Easy interchangeable screens, flexible for different processing requirements.
- Wide adjustable range realizes fine cleaning process easily.
- Positive-negative pressure blower systems at top and bottom, twice remove light impurities and incomplete seeds.
- Screen frames, main ball trays and feeder parts are made of high quality wood, good sealing and vibration absorption performance with low noise.
- Integral steel frame rubber ball tray for easy screen cleaning and easy changes of processing materials.
- Safety guard for every moving part to ensure safe operation.
- Box-type screen body structure efficiently reduce dust content in workshop.
- Symmetric machine structure, discharge system can be equipped left or right according to site conditions of customer.

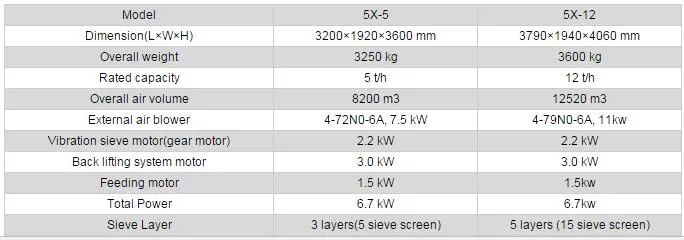

4. Technical Specification of 5X fine seed cleaner
Frequently Asked Questions
What is the primary function of the 5X air screen cleaning equipment?
The 5X cleaner is designed for fine cleaning and size grading of grains, seeds, and beans. It removes light impurities, broken grains, and abortive seeds while sorting the remaining crop based on size.
What kinds of materials can be processed with this machine?
This equipment is highly versatile and suitable for a wide variety of seeds and grains, including wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds, and forestry seeds.
How does the working principle of the cleaner work?
Separation is accomplished through two mechanisms: air blowers (fans) that sort materials based on their weight and aerodynamic characteristics, and customizable physical screens that separate materials based on width and thickness.
What materials are used to construct the 5X cleaner?
The machine is built using carbon steel and wood. The screen frames, main ball trays, and feeder components are constructed of high-quality wood, which provides excellent sealing, low noise, and effective vibration absorption.
What safety and dust-control features does the machine offer?
Every moving part is equipped with a safety guard to protect operators. Additionally, the box-type screen body structure is designed to efficiently minimize dust levels within the workshop.
Is the processing capacity adjustable?
Yes, the capacity varies depending on the specific model and material. The production capacity ranges from 1 t/h up to 20 t/h in total across different models, with wheat processing capacities reaching up to 12 t/h.
