| Model | Capacity (t/24h) | Roller Mill Model | Sifter Model | Space LxWxH (m) |
|---|---|---|---|---|
| BLWM-40 | 40 | Manual | Twin Sifter | 30x8x11 |
| BLWM-60 | 60 | 35x8x11 | ||
| BLWM-80 | 80 | Pneumatic | Plan Sifter | 38x10x11 |
| BLWM-100 | 100 | 42x10x11 | ||
| BLWM-120 | 120 | 46x10x11 | ||
| BLWM-150 | 150 | 50x10x11 |

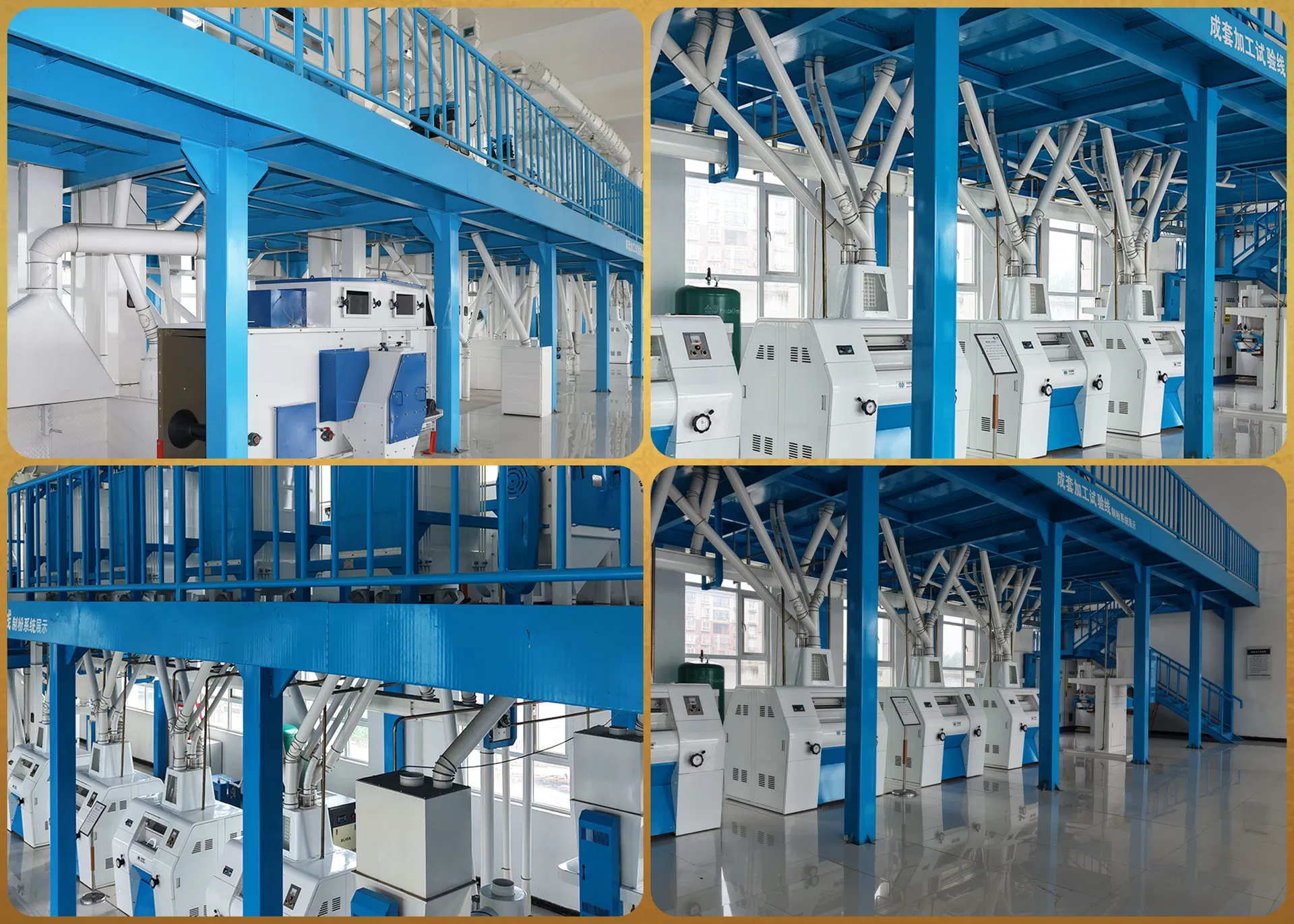

The complete set of medium-sized flour processing equipment, with product models of 100, 120, 150 and 200 tons, adopts building type structural layout (3-4 floors), and the wheat cleaning process is advanced and perfect, that is, it can be cleaned by dry cleaning or water cleaning. The flour is grinded by full-automatic pneumatic flour mill and screened by plansifter. The powder cleaning is combined with impact detacher, and the bran, semolina and residue are separated and homogenized, Light grinding and fine grinding can jointly produce grade flour and special flour. The equipment has a high degree of automation and stable and reliable performance. The factory provides one-stop service and the turn-key project, so that users have no worries.
This set of equipment realizes automatic continuous operation from raw grain cleaning, stone removal, grinding, packing and power distribution, with smooth process and convenient operation and maintenance. It avoids the traditional high-energy consumption equipment and adopts new energy-saving equipment to minimize the unit energy consumption of the whole machine.

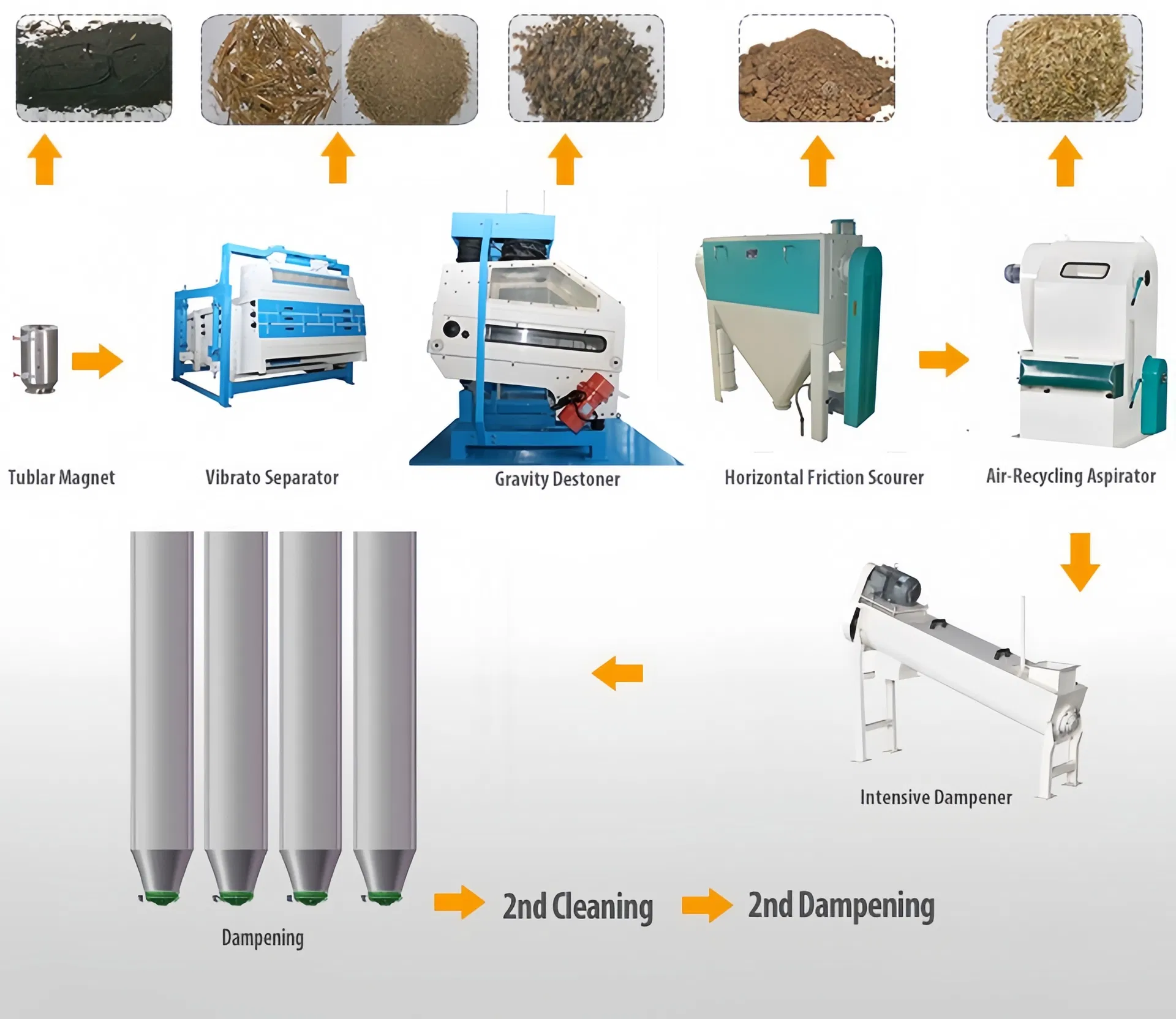

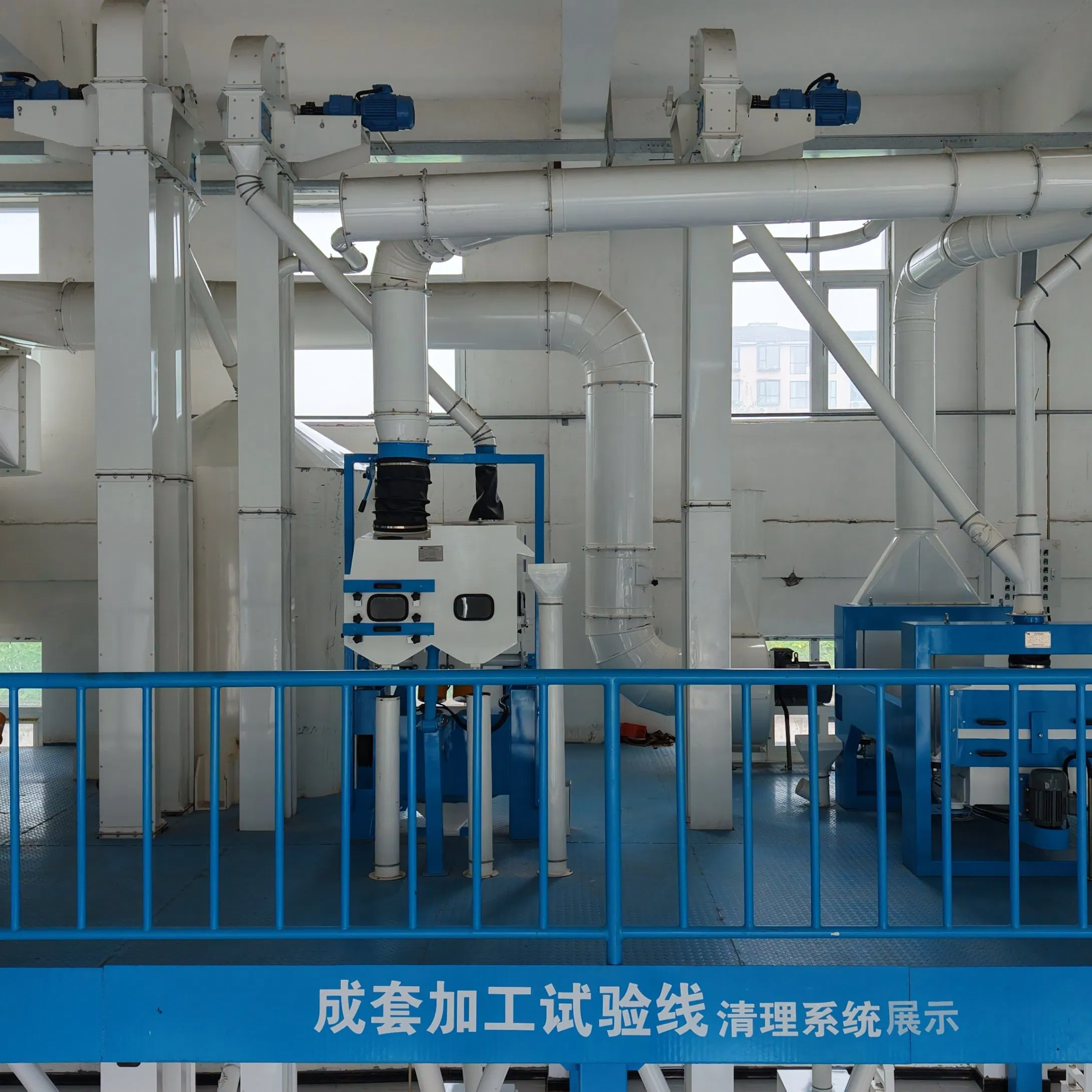

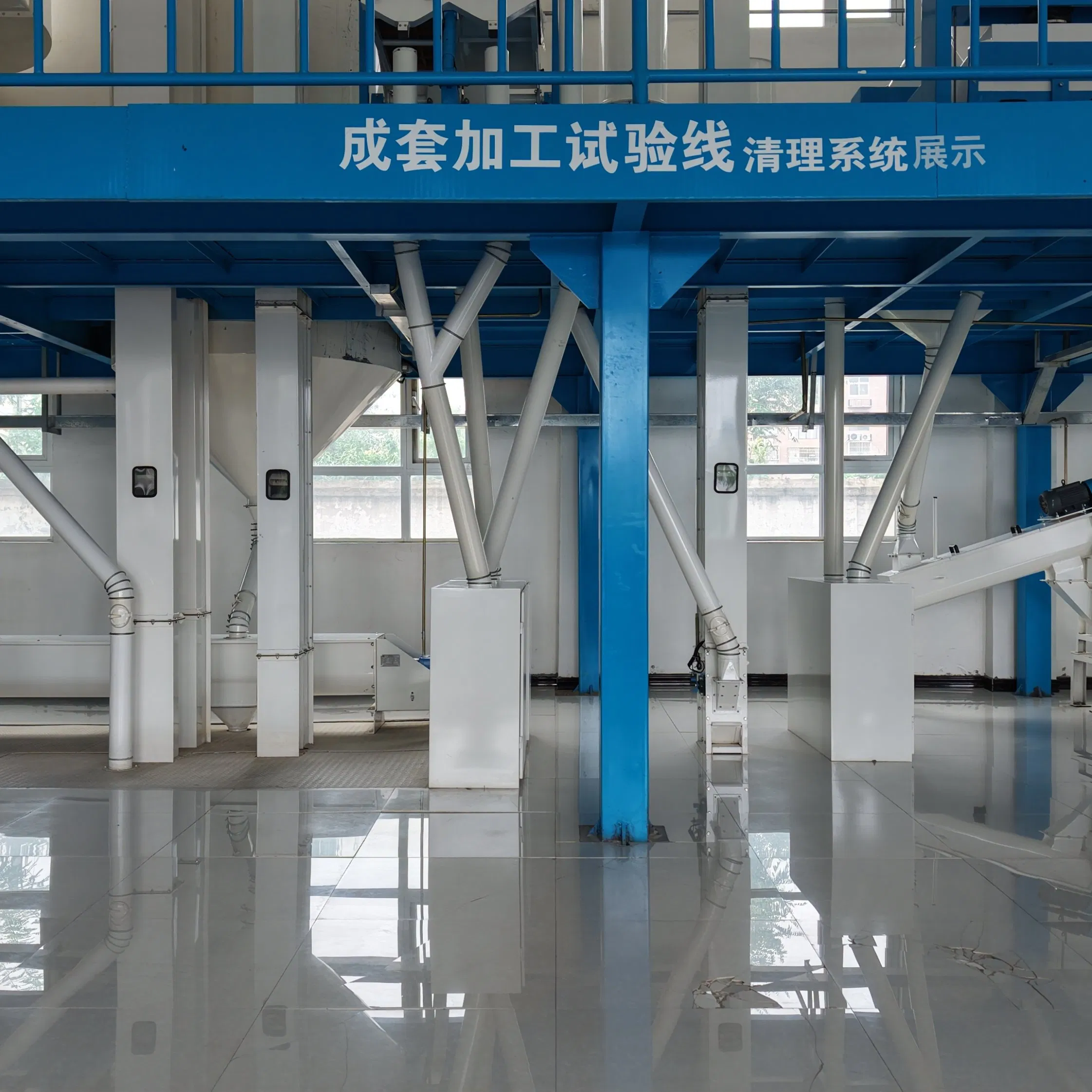

In the cleaning section, we adopt drying type cleaning technology. It normally includes 2 times sifting, 2 times scouring, 2 times de-stoning, one time purifying, 4 times aspiration, 1 to 2 times dampening, 3 times magnetic separation and so on. In the cleaning section, there are several aspiration systems which can reduce the dust spray-out from the machine and keep a good working environment. This is a complicated thorough flow sheet which can remove most of the coarse offal, middle size offal and fine offal in the wheat. The cleaning section is not only suitable for wheat imported with lower moisture and but also suitable dirty wheat from local customers.

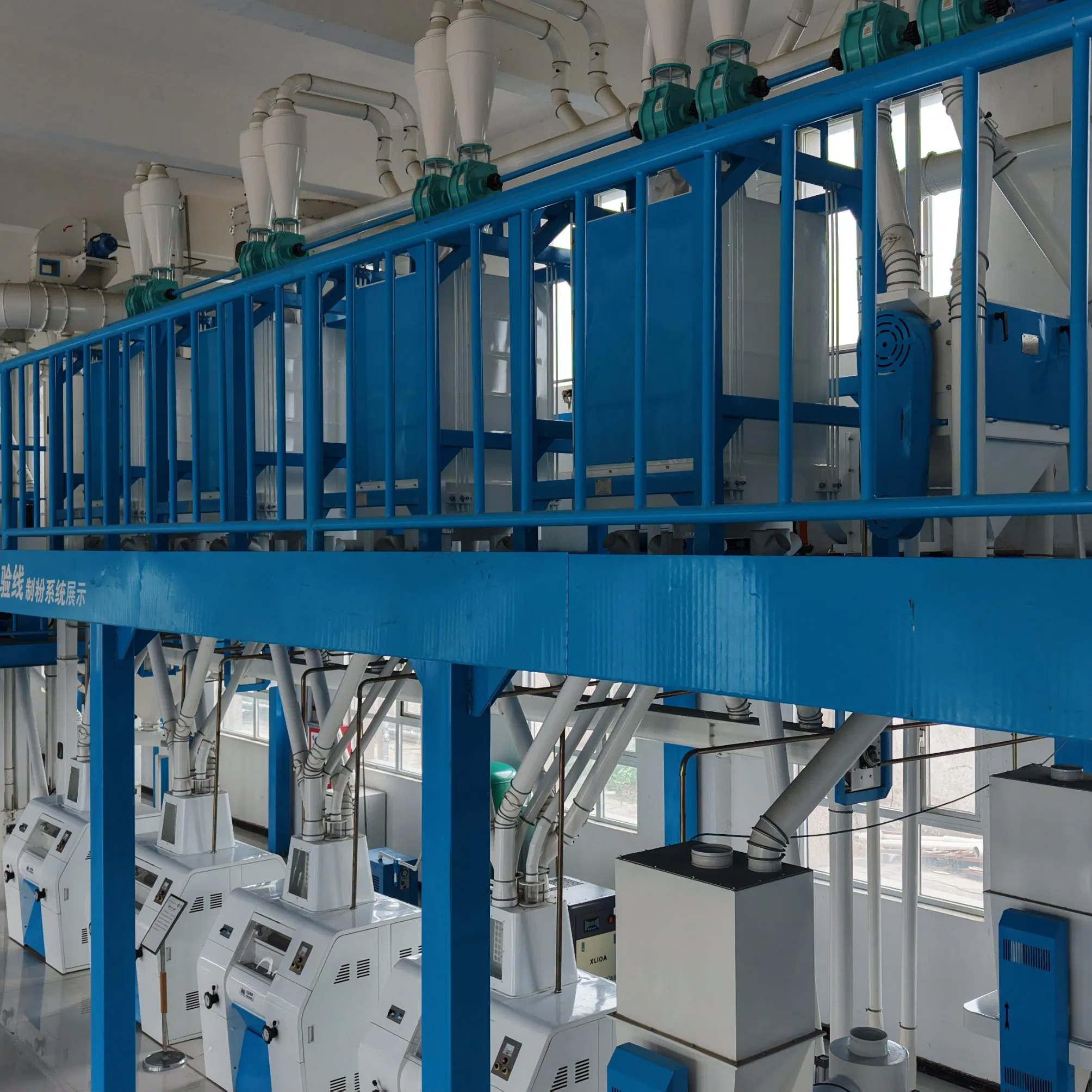

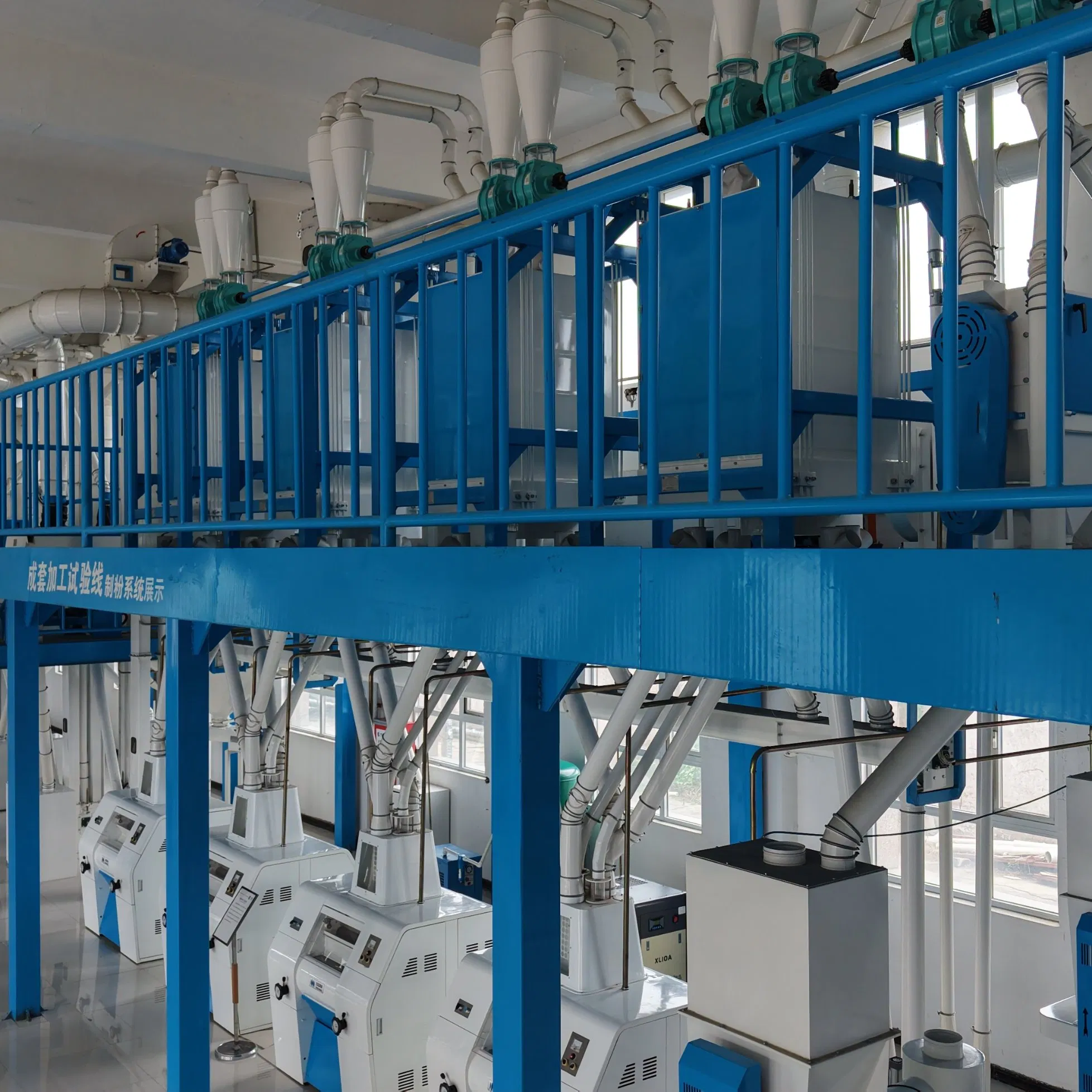

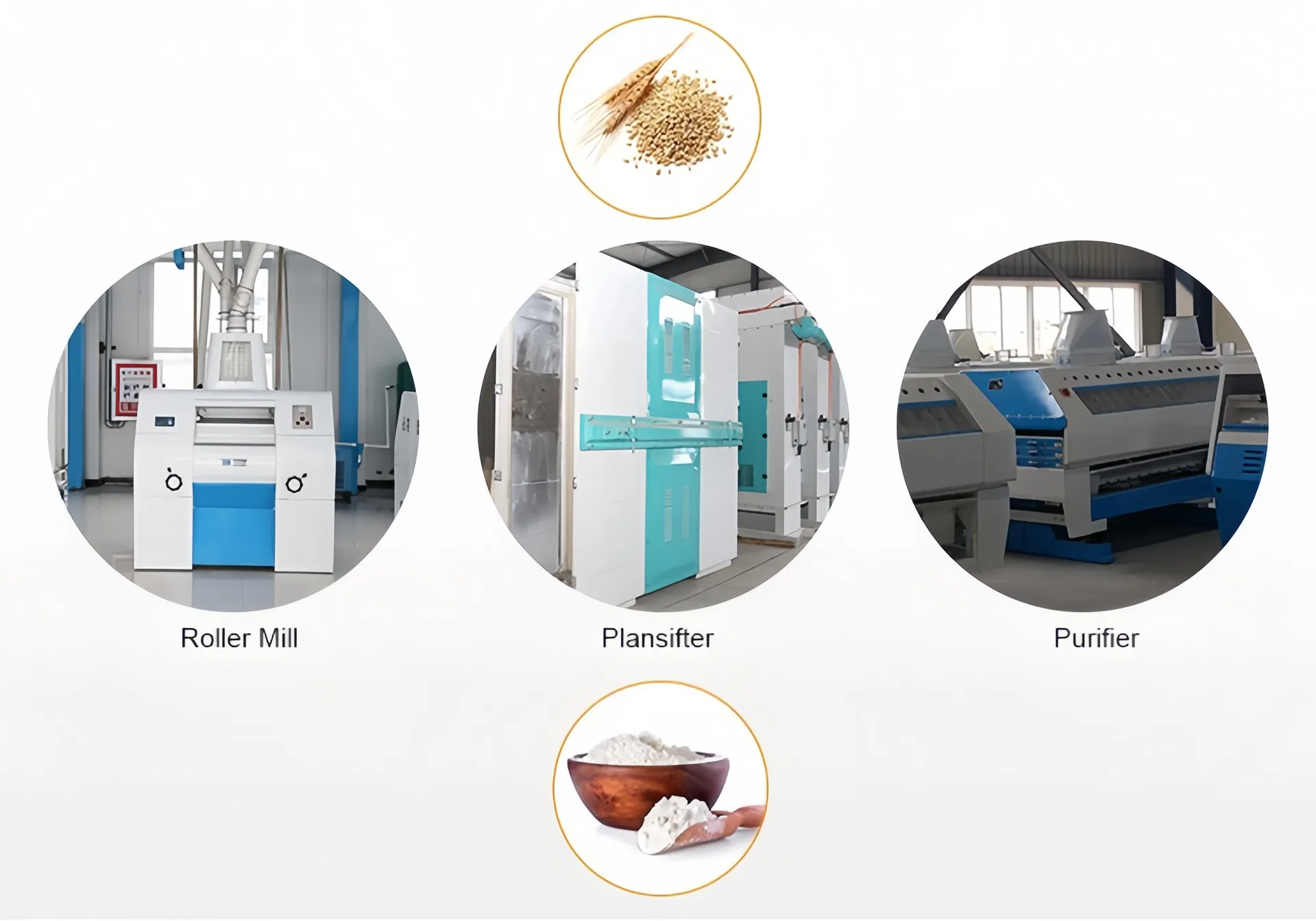

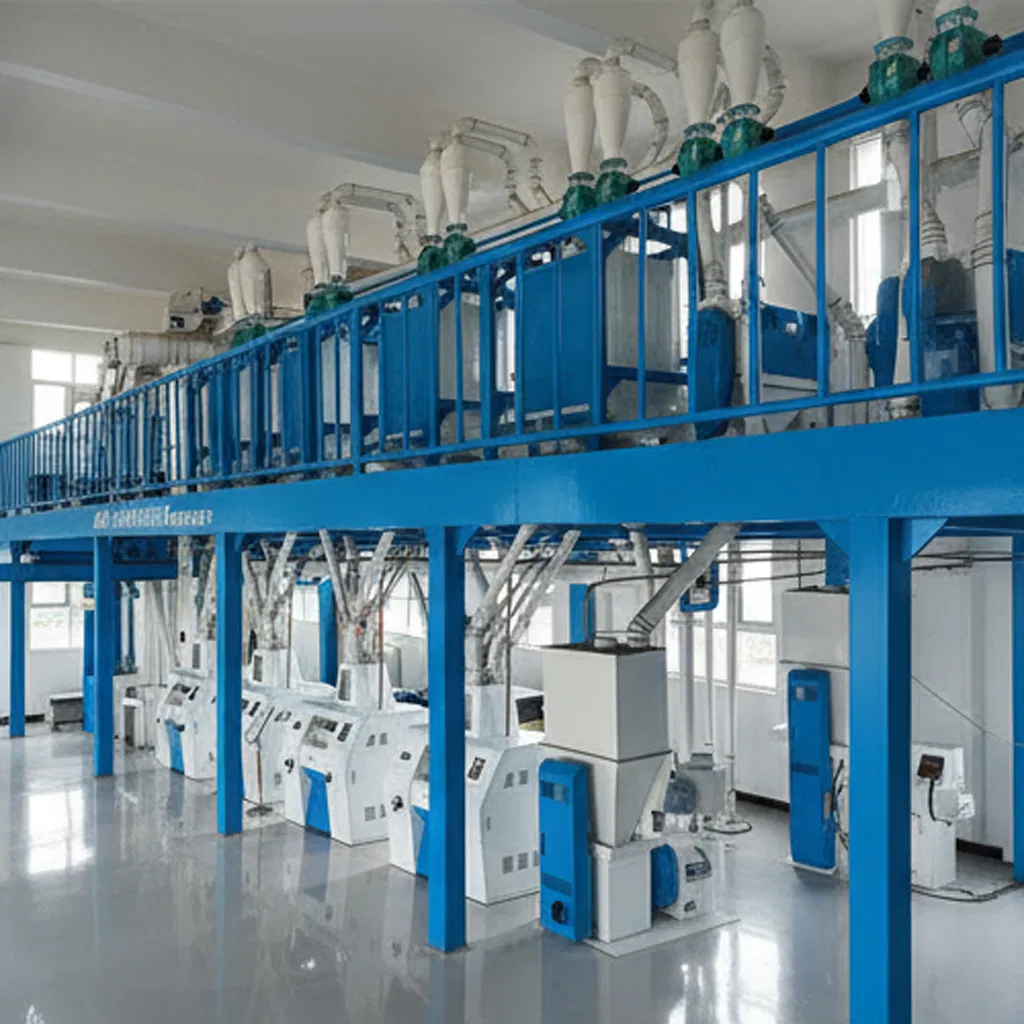

In the milling section, there are four types of systems to mill the wheat to flour. They are 4-Break system, 7-Reduction system, 1-Semolina system and 1-Tail system. Purifiers are specially designed to get more pure semolina sent to the Reduction which improves the flour quality by a large margin. The rollers for Reduction, Semolina, and Tail systems are smooth rollers which are well blasted. The whole design will insure less bran mixed into the bran and the flour yield is maximized. Because the well designed pneumatic lifting system, the whole mill material is transferred by High pressure fan. The milling room will be clean and sanitary for aspiration adoption.

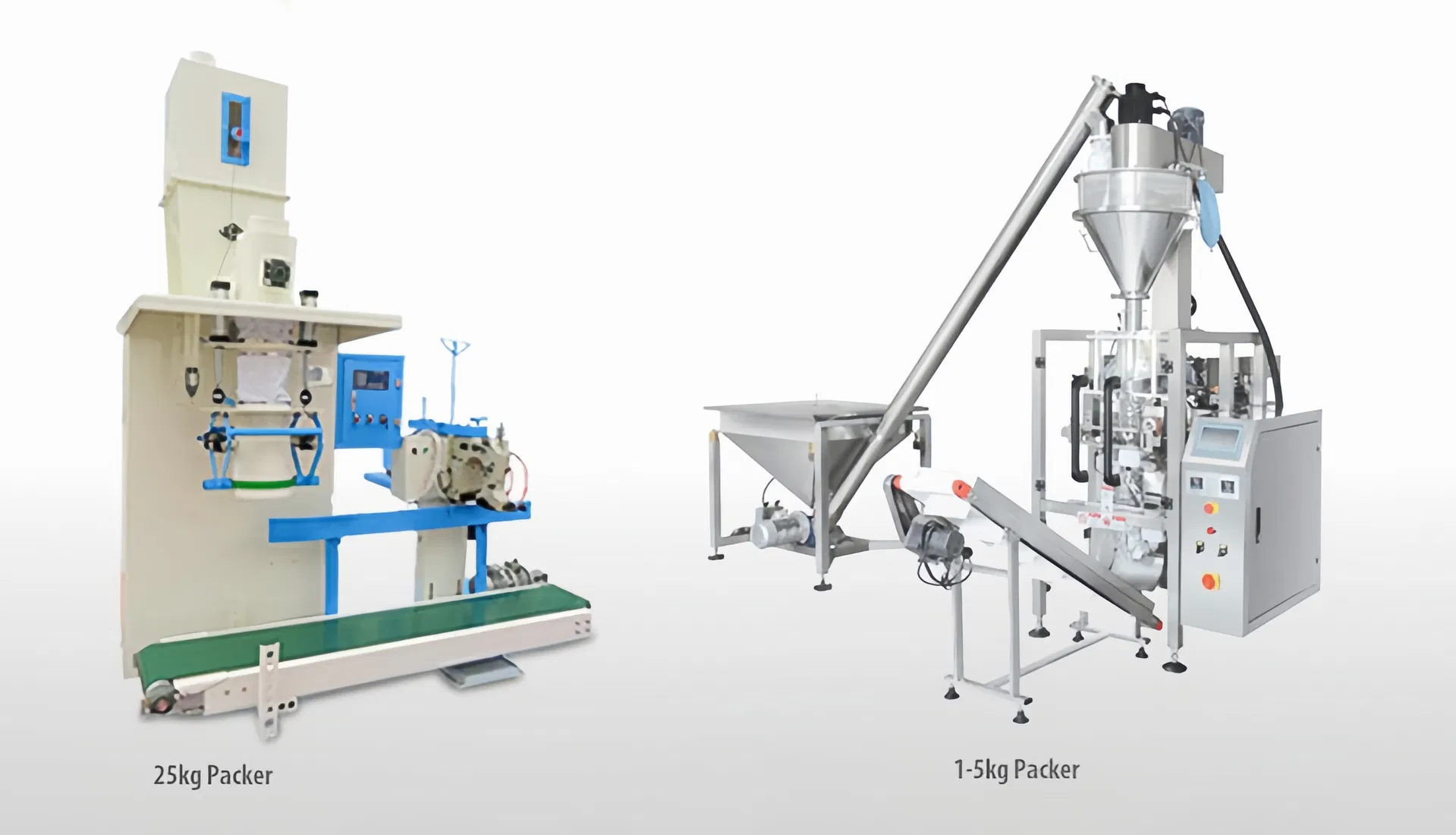

All the packing machines are automatic. The packing machine has features of high measuring accuracy, fast packing speed, reliable and stable working. It can weigh and count automatically, and it can accumulate weight. The packing machine has function of fault self-diagnosis. It's sewing machine has automatic sewing and cutting function. The packing machine is with sealed type bag-clamping mechanism, which can prevent material from leaking out. The packing specification includes 1-5kg, 2.5-10kg, 20-25kg, 30-50kg. The clients can choose different packing specification according to requirements.

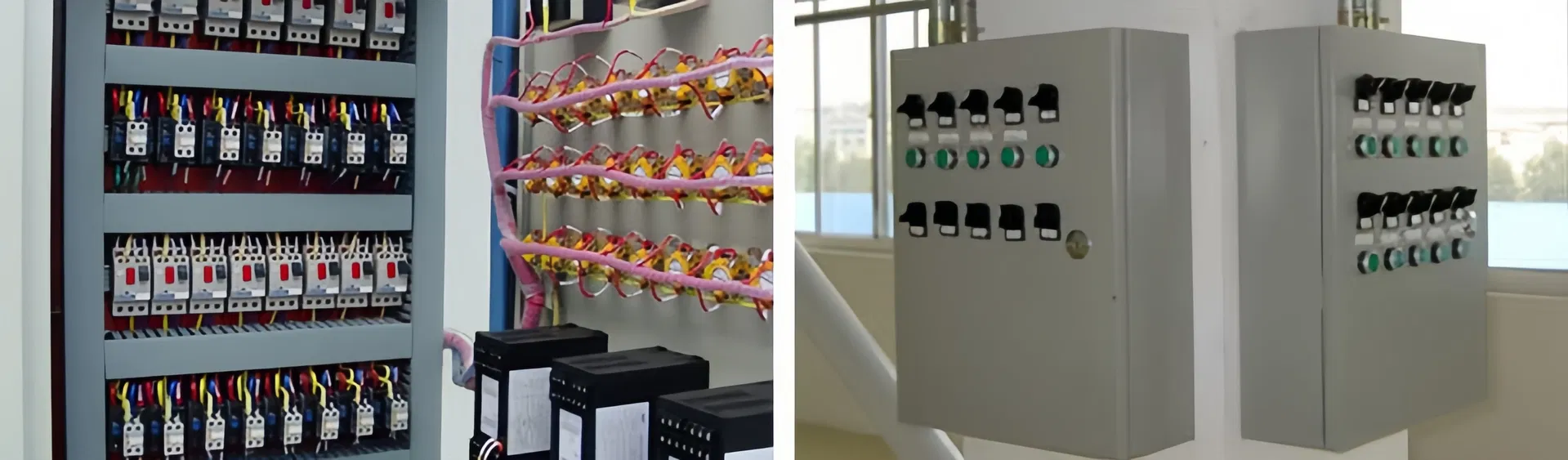

In this part, we will supply electrical control cabinet, signal cable, cable trays and cable ladders, and other electrical installation parts. The substation and motor power cable is not included except customer specially required. PLC control system is an optional choice for customer. In PLC control system, all the machinery is controlled by Programmed Logical Controller which can insure the machinery running stably and fluently. The system will make some judgments and do reaction accordingly when any machine is in fault or stopped abnormally. In the same time it will alarm and remind the operator to settle the faults. electrical parts are used in out electrical cabinet. The PLC brand will be Siemens, Omron, Mitsubishi and other international Brand. The combination of a good designing and reliable electrical parts insures the whole mill running smoothly.

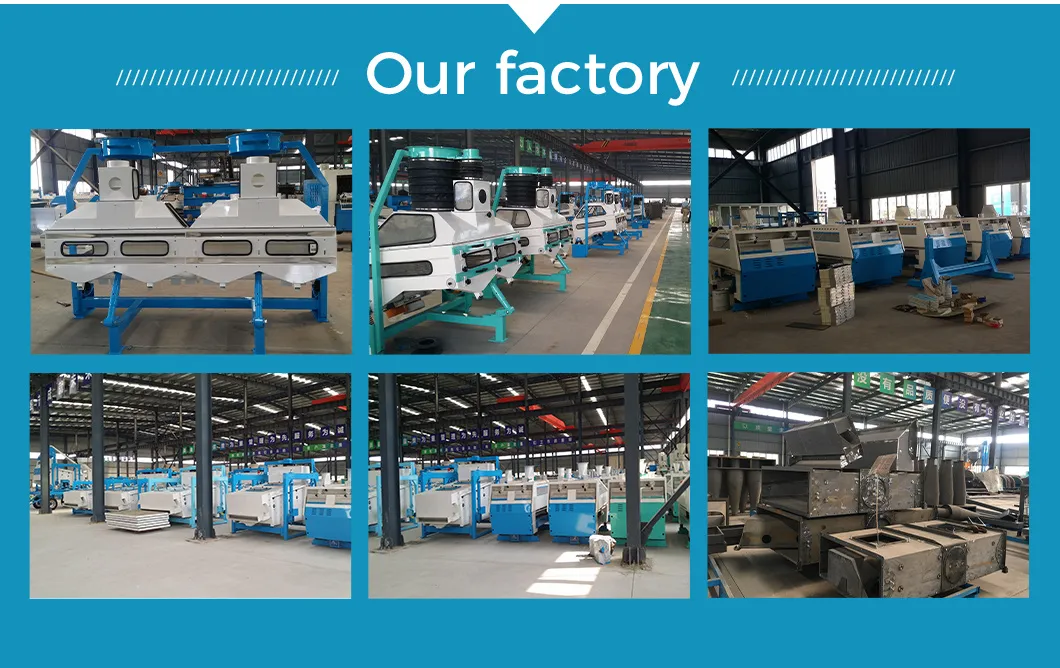

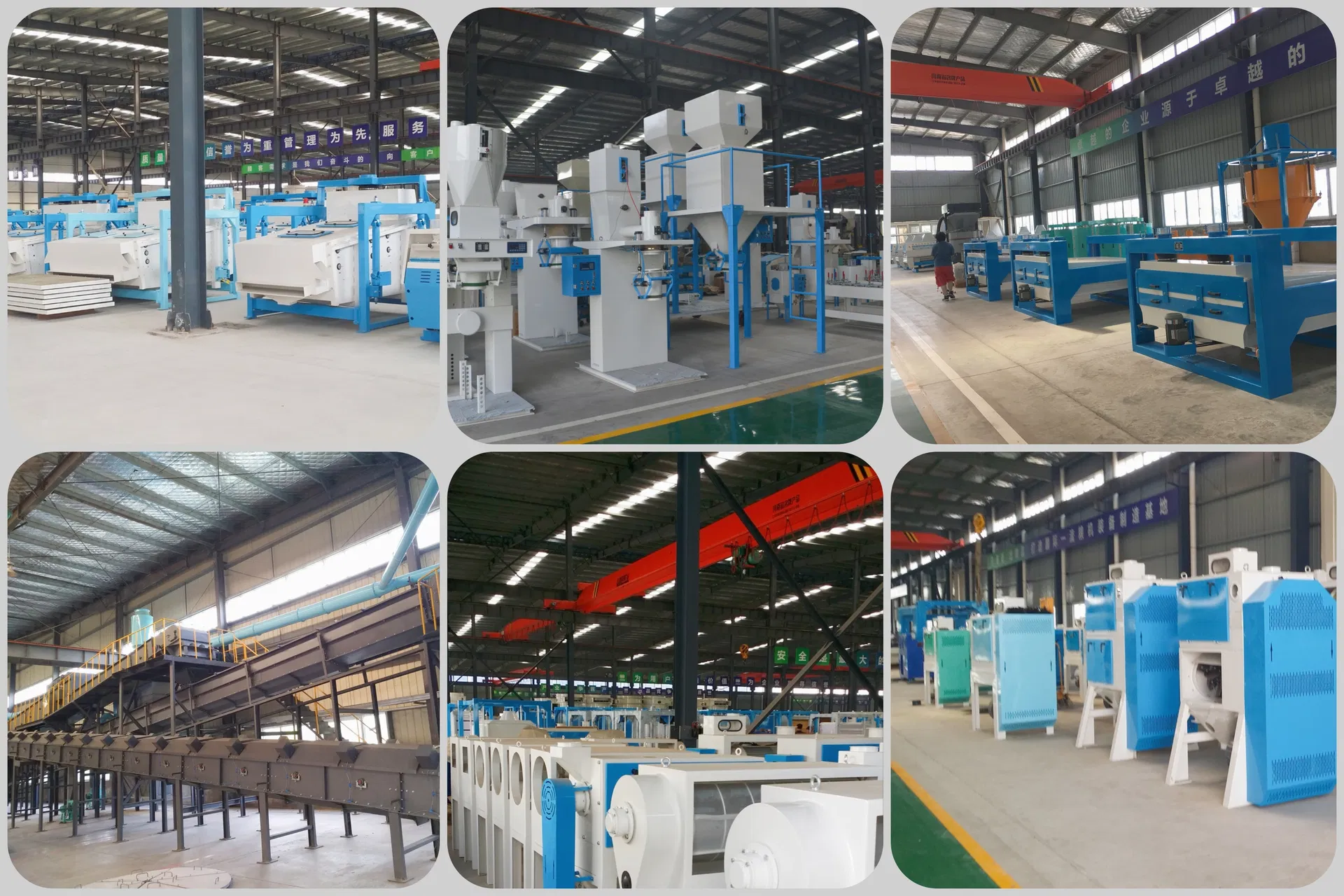

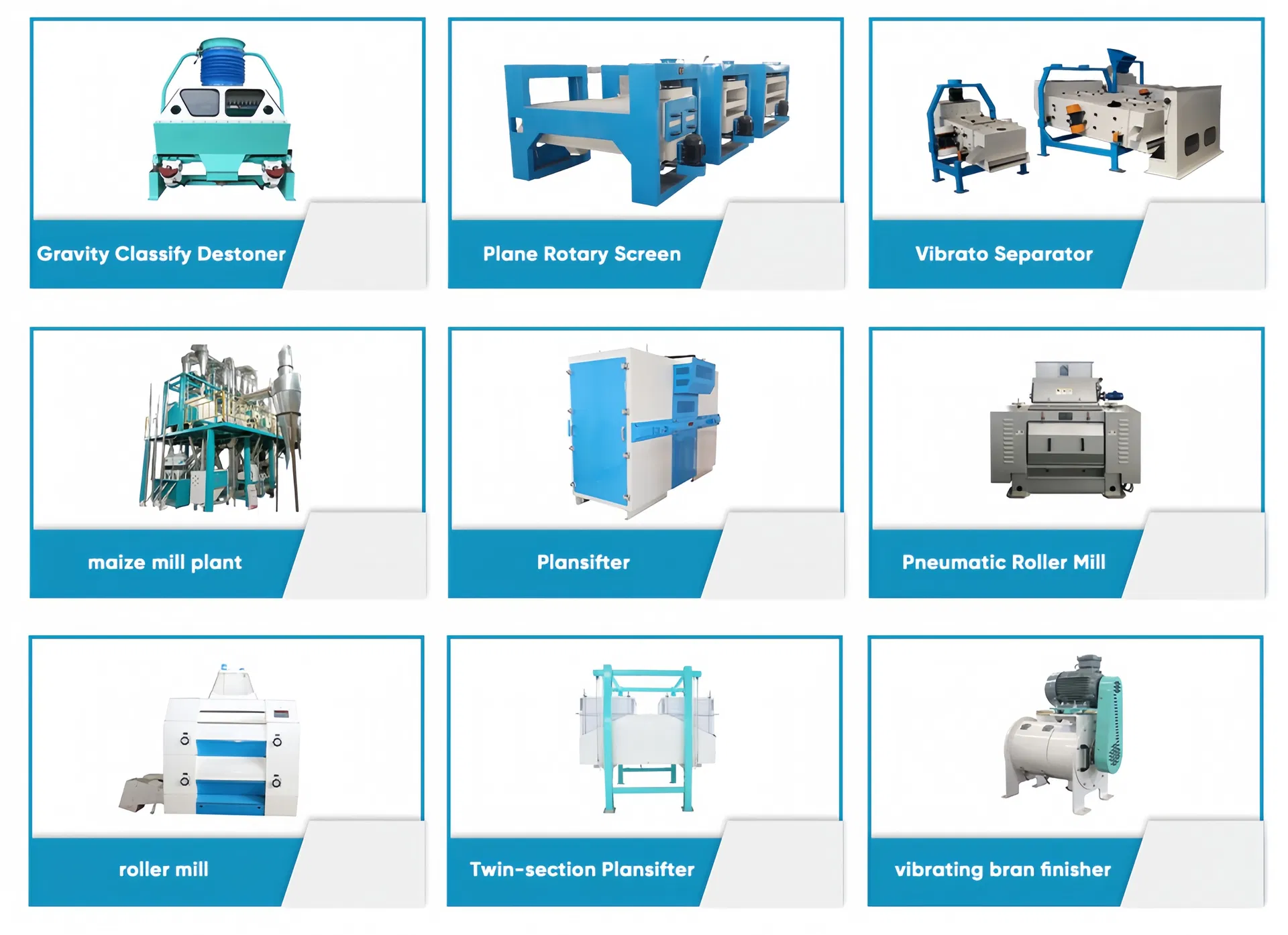

Our manufacturing enterprise specializes in the production of grain machinery, feed machinery and rice milling machinery for more than 20 years. No matter what kind of accessories you need, our products can match them wonderfully. Of course, the surface color, length and thickness can be customized if you need. With excellent materials, advanced design, precise dimensions and considerate service to ensure your grain machine smoothly runs at high speed. We will always be your trustworthy friend.
Yes, we are professional flour milling machine manufacturers.
Yes, our engineers can indicate installation, test running, and training local operators. Engineers are available to service machinery overseas for after-sales support.
Yes, we accept small orders; the minimum order quantity (MOQ) is 1 set.
You can make payment using the proforma invoice and our bank details. We accept T/T (bank transfer) and L/C to process the payment.
Our warranty time is 12 months, ensuring high reliability and product quality assurance.
Yes, specifications such as capacity, surface color, length, and layout thickness can be tailored to meet your plant layout requirements.
