Overview
Basic Info.
Model NO.
5XZC-DX
Type
Grain Seed Shaker
Application
Grain, Cocoa Bean
Certification
GS, CE, ISO9001
Capacity
3-20 T/H
Produce Time
5-10 Days
Weight
1800-2500 Kg
Color
White and Blue
Process Seed
All Kinds Seed
Transport Package
Wooden Box Plastic Film
Specification
4800X2500X3600 mm
Origin
China
HS Code
8437100000
Production Capacity
100 Sets Per Month
Product Description

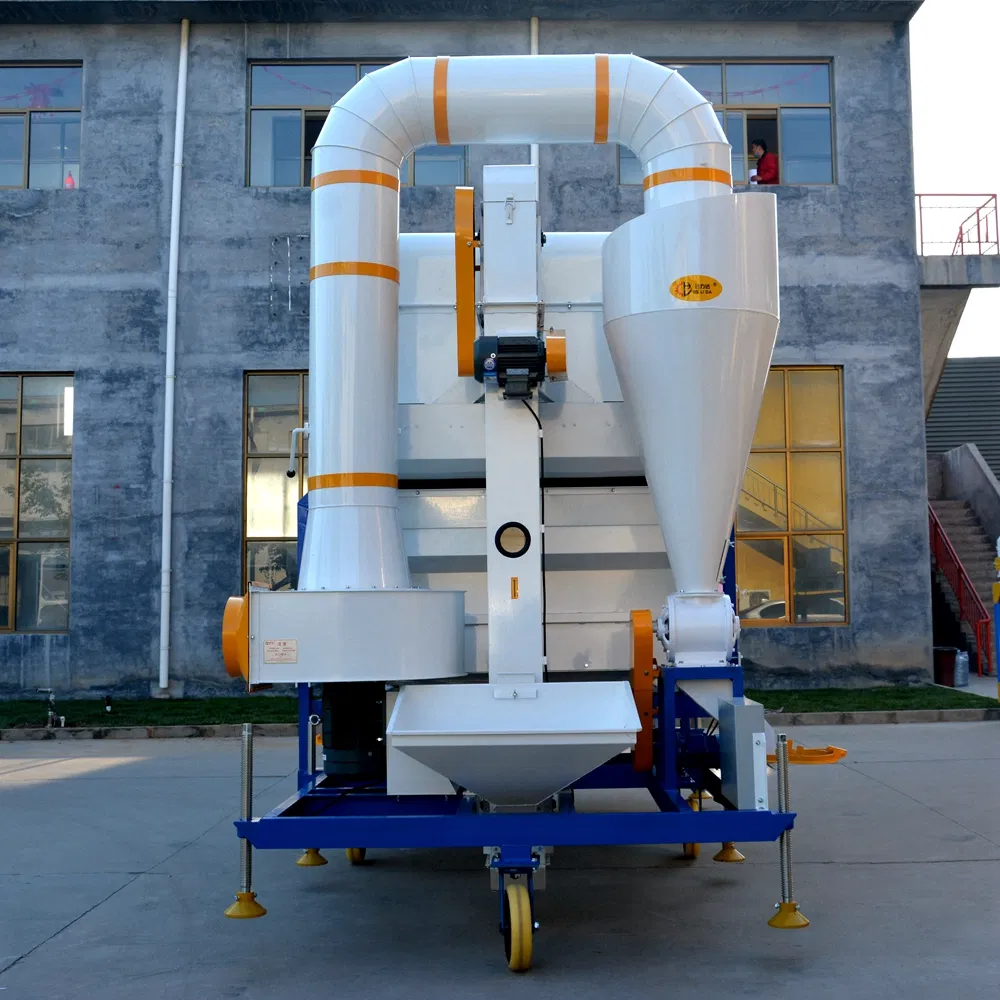

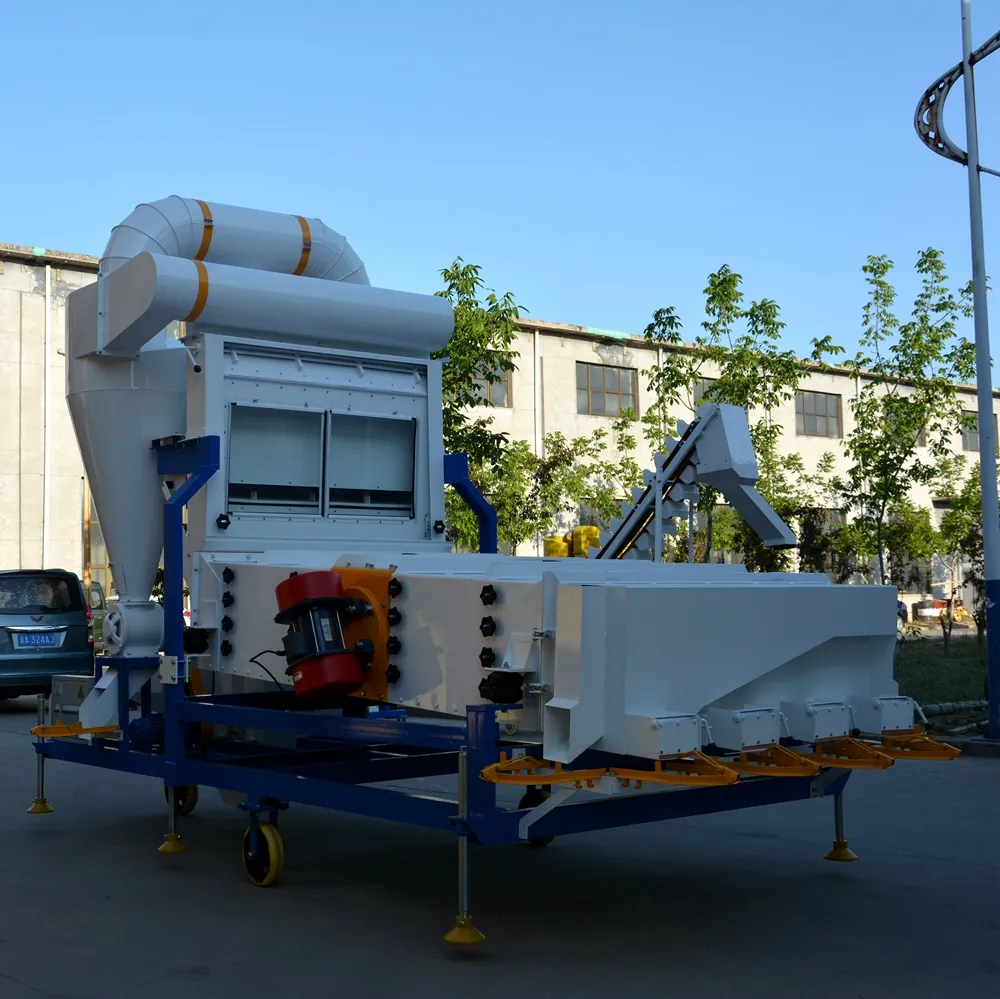

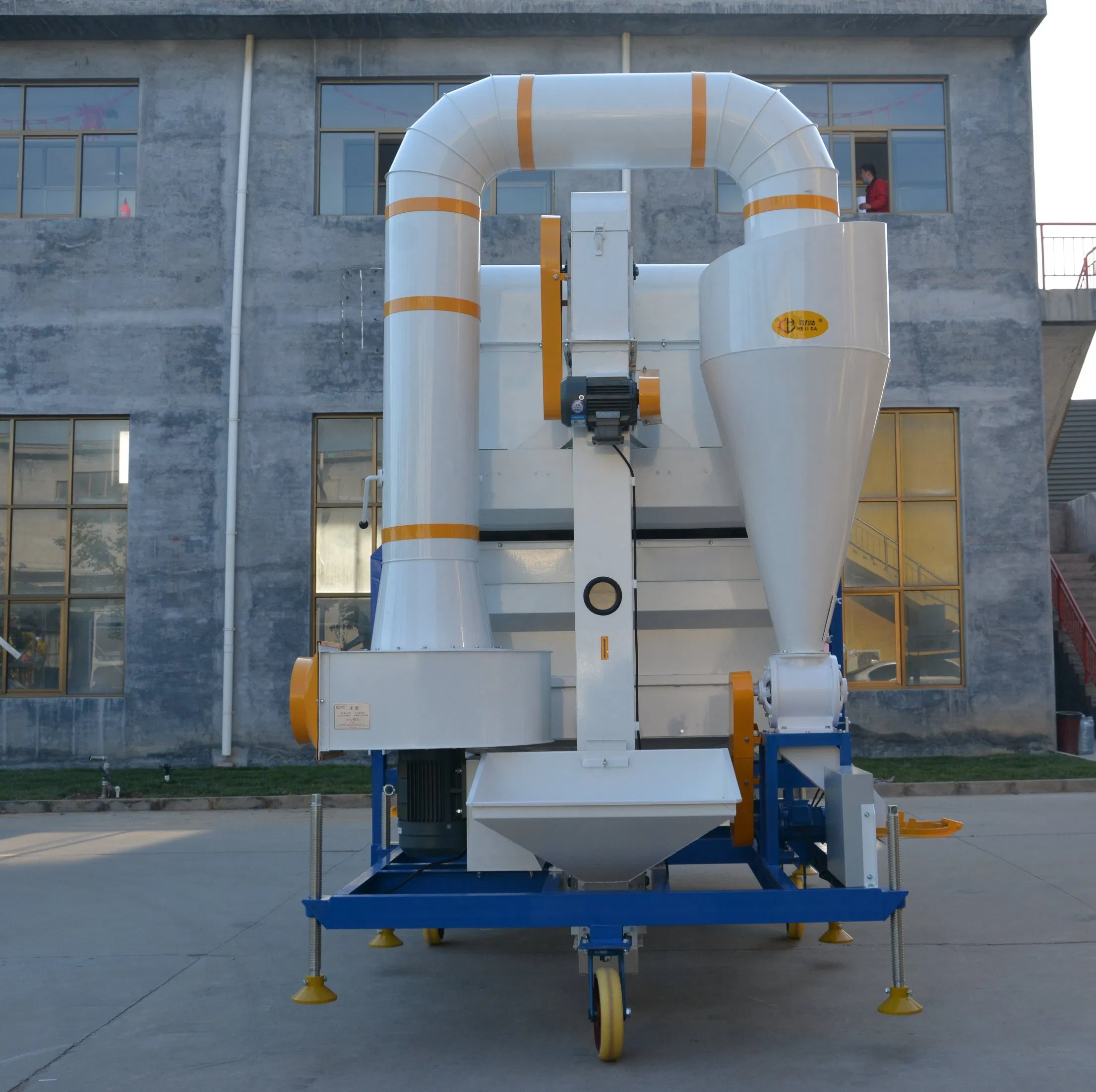

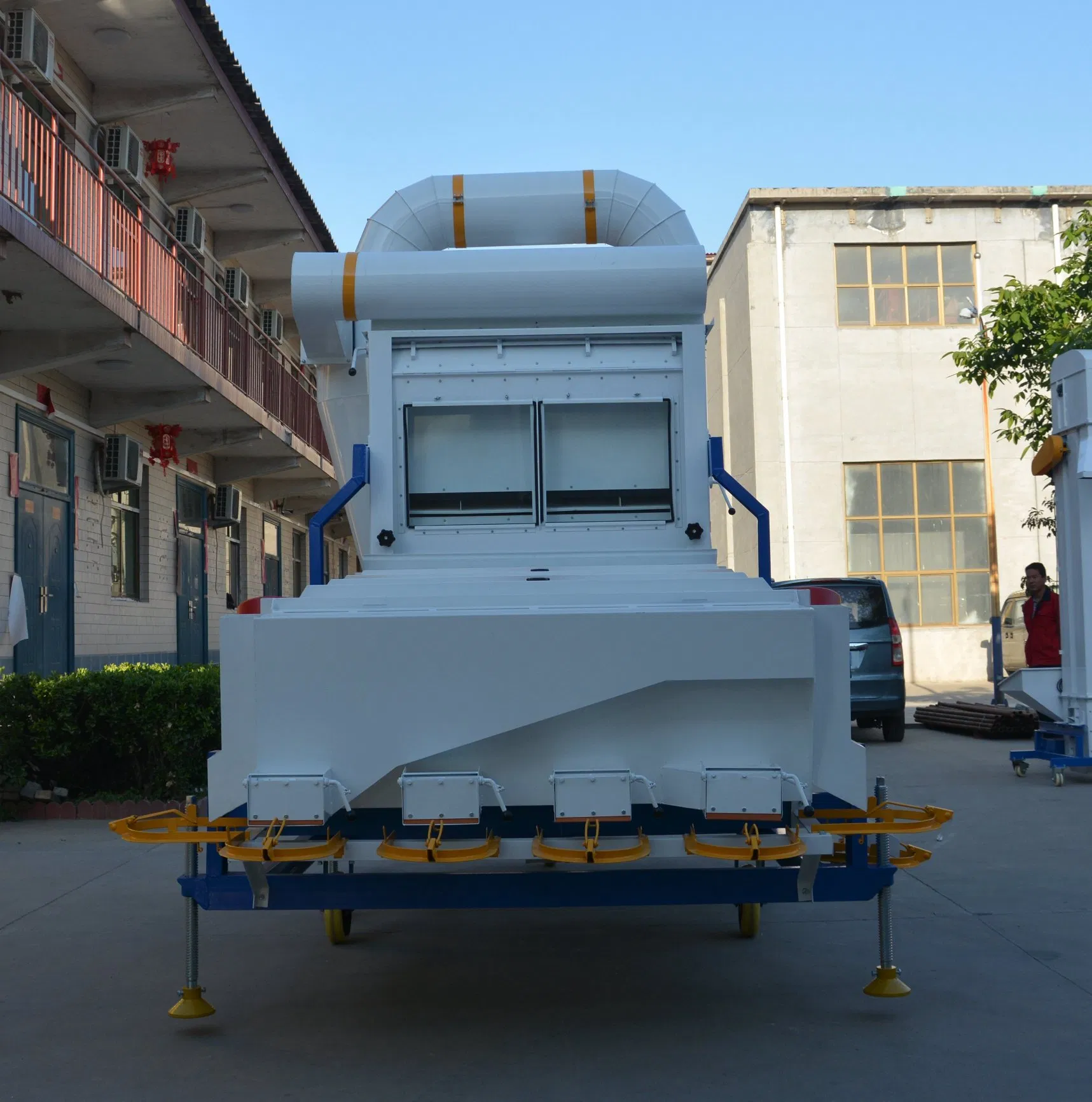

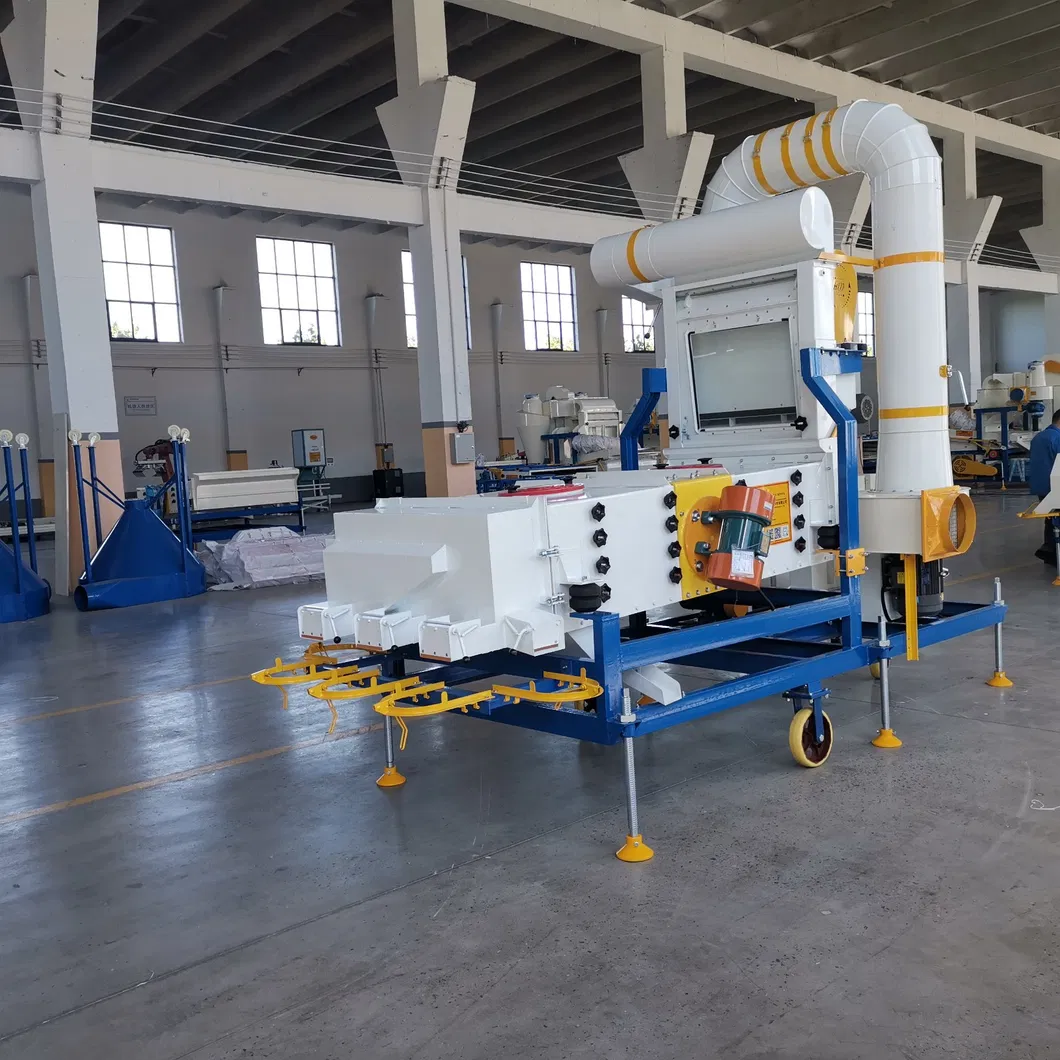

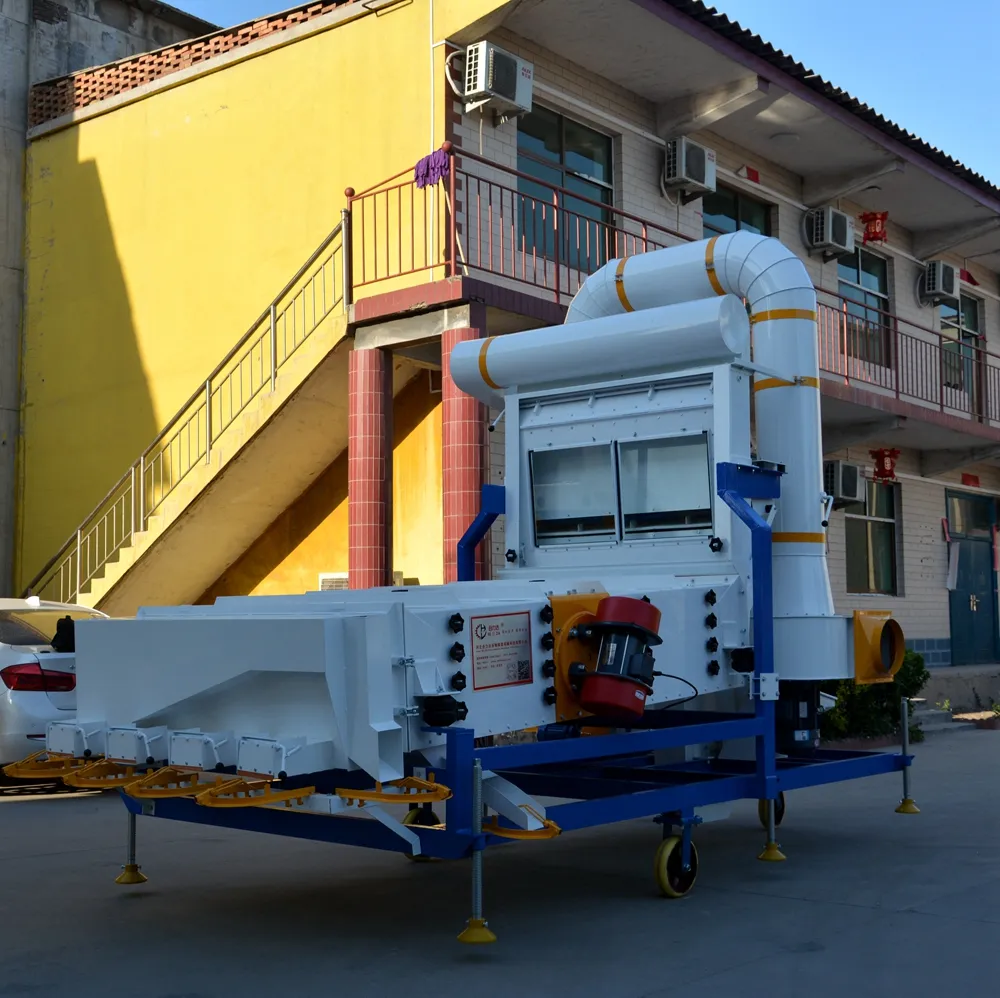

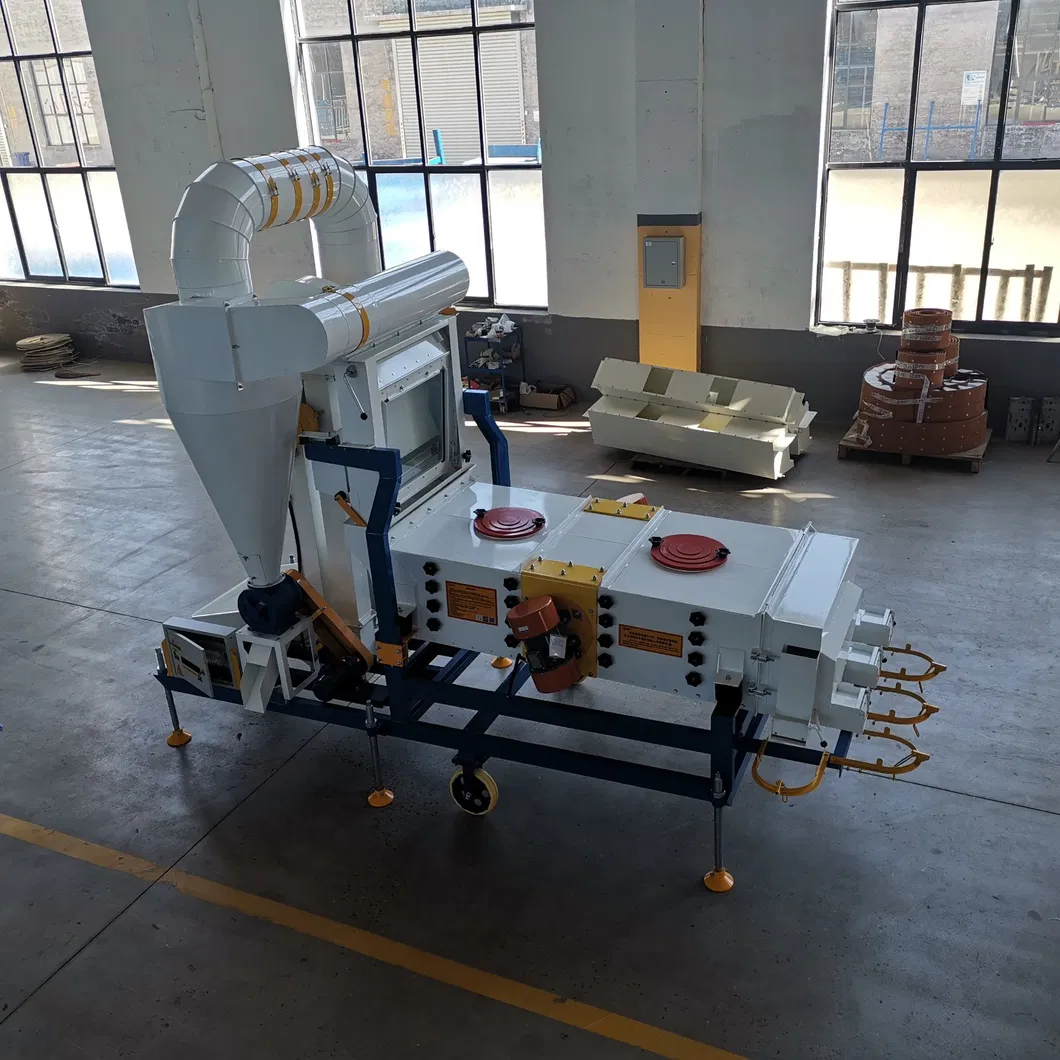

Wheat Paddy Rice Sorghum Seed Cleaning Equipment
1. Product description
5XZC series SEED CLEANER could clean and sieve kinds of grain and seed and agricultural byproducts, for example, corn, wheat, rice, peanut, soybeans, millet, sunflower seed, grass seed, melon seed, cocoa bean, pepper, cumin, spice.
2. Main structure

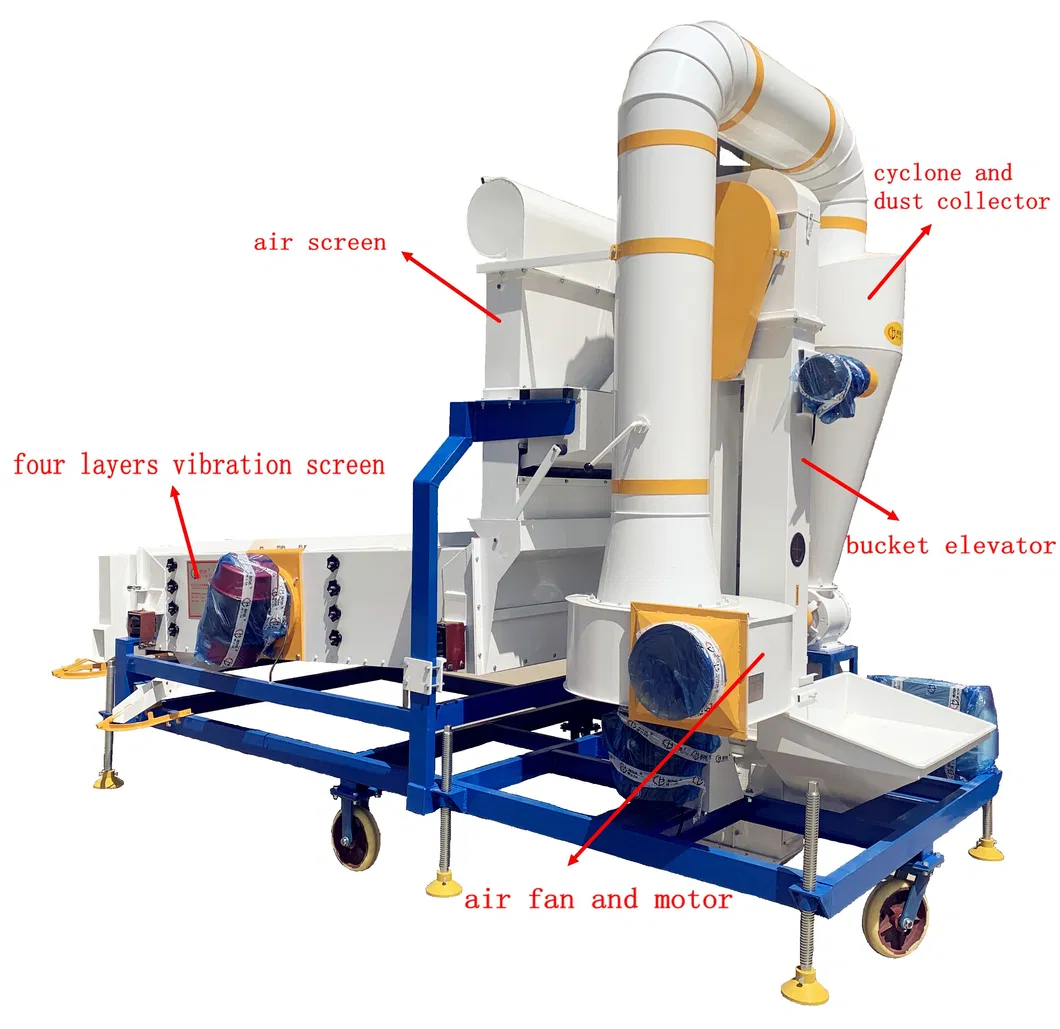

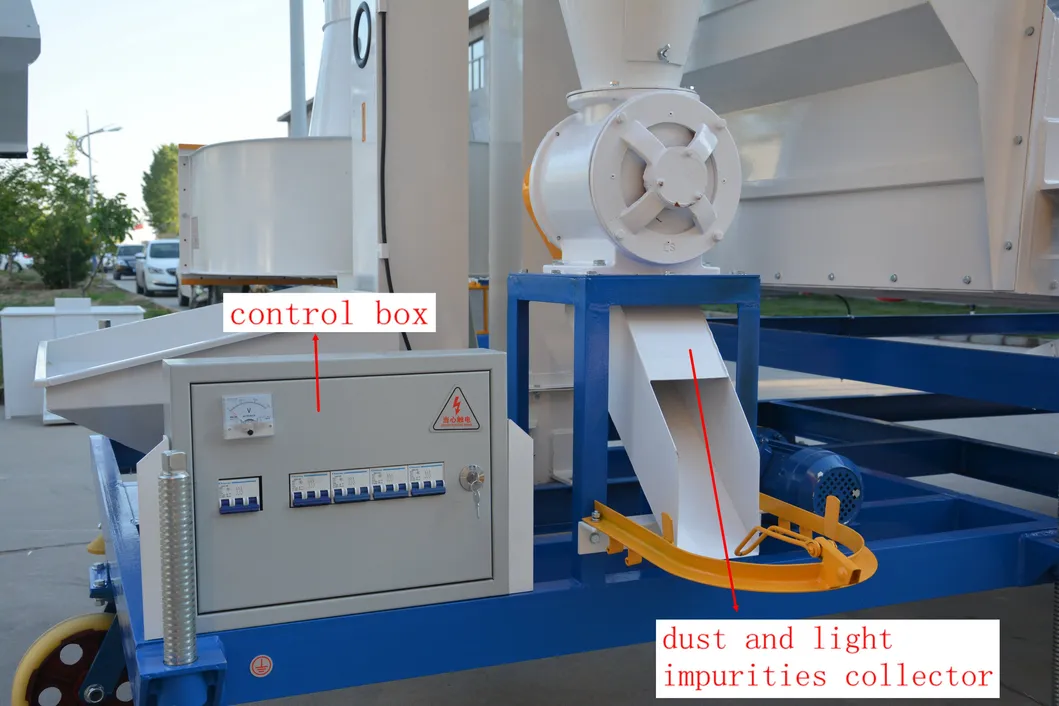

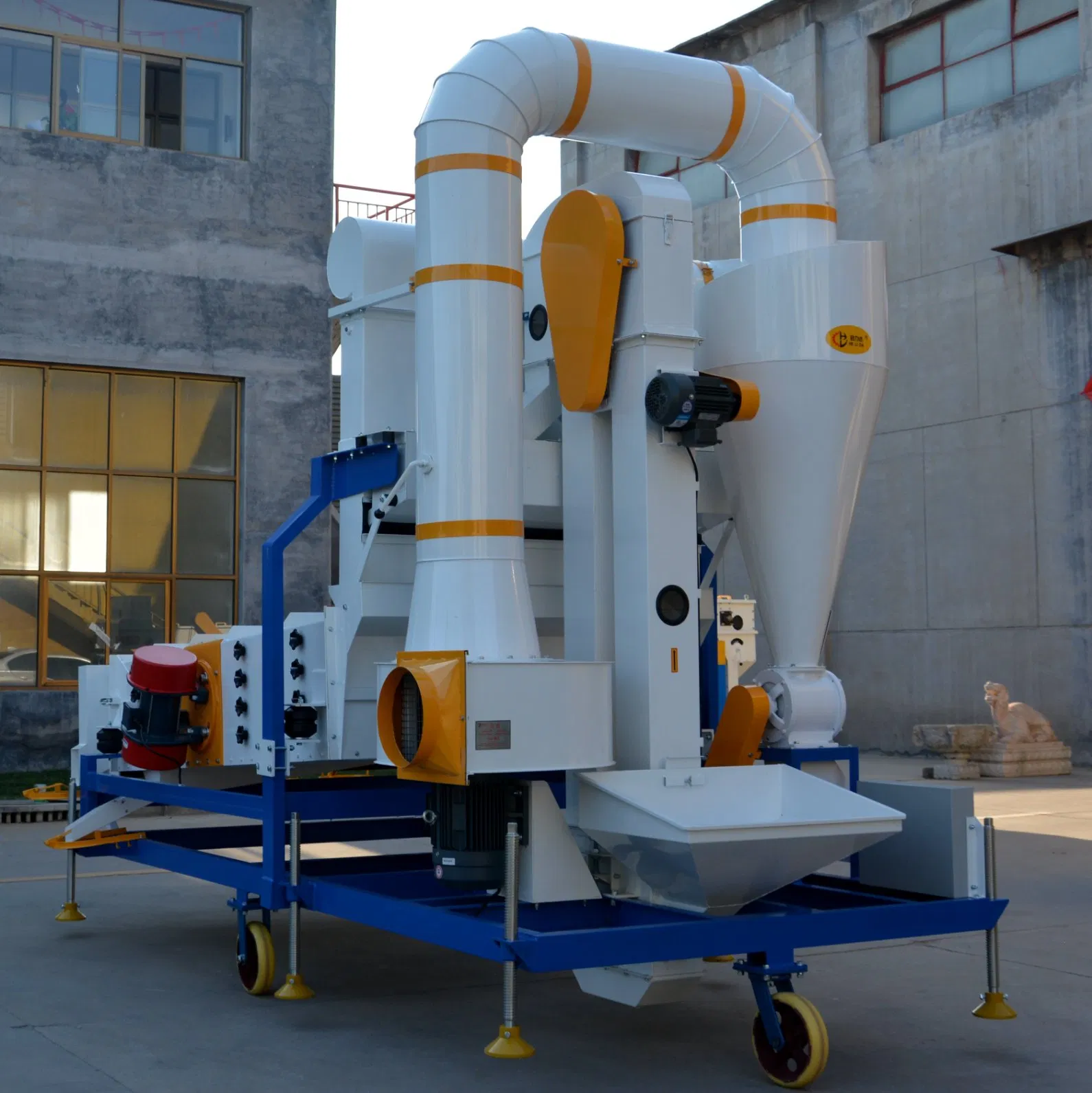

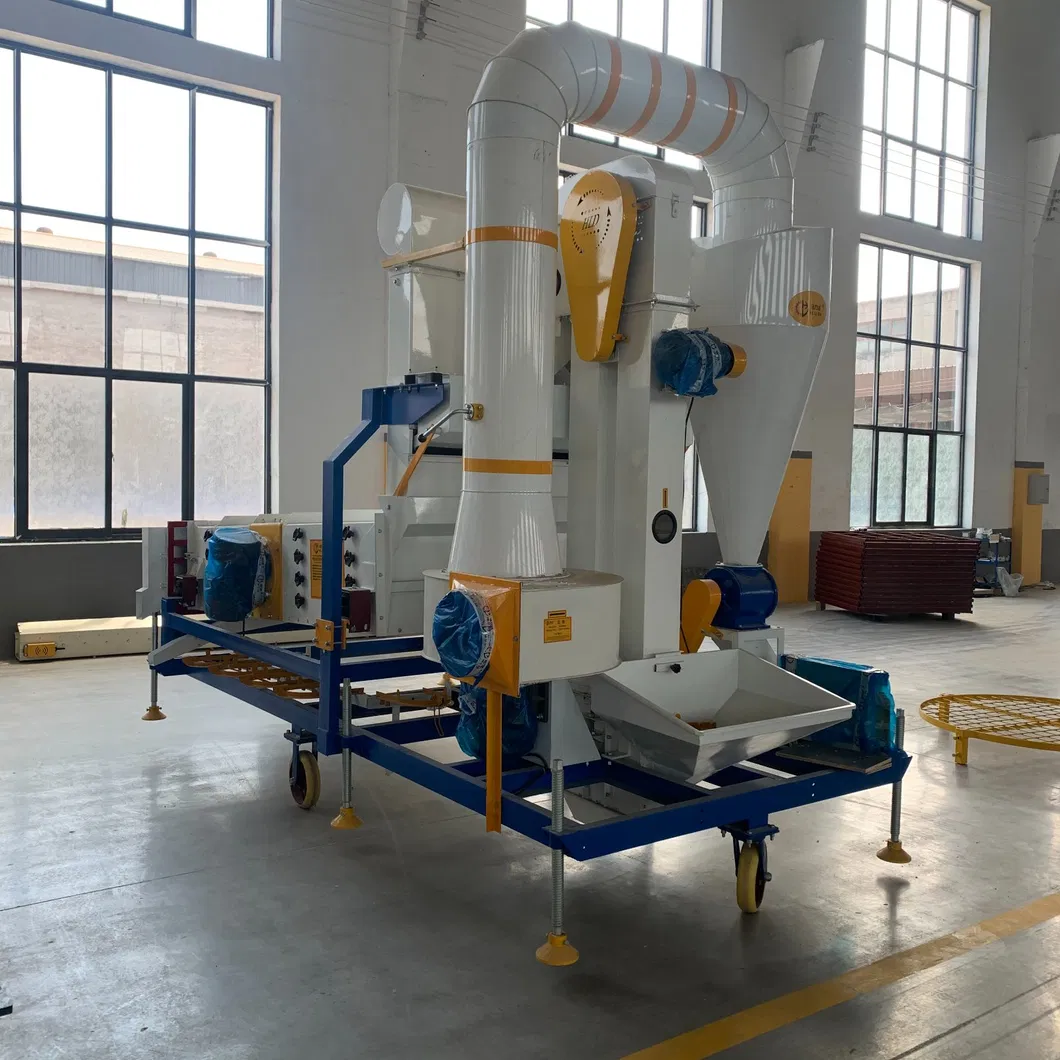

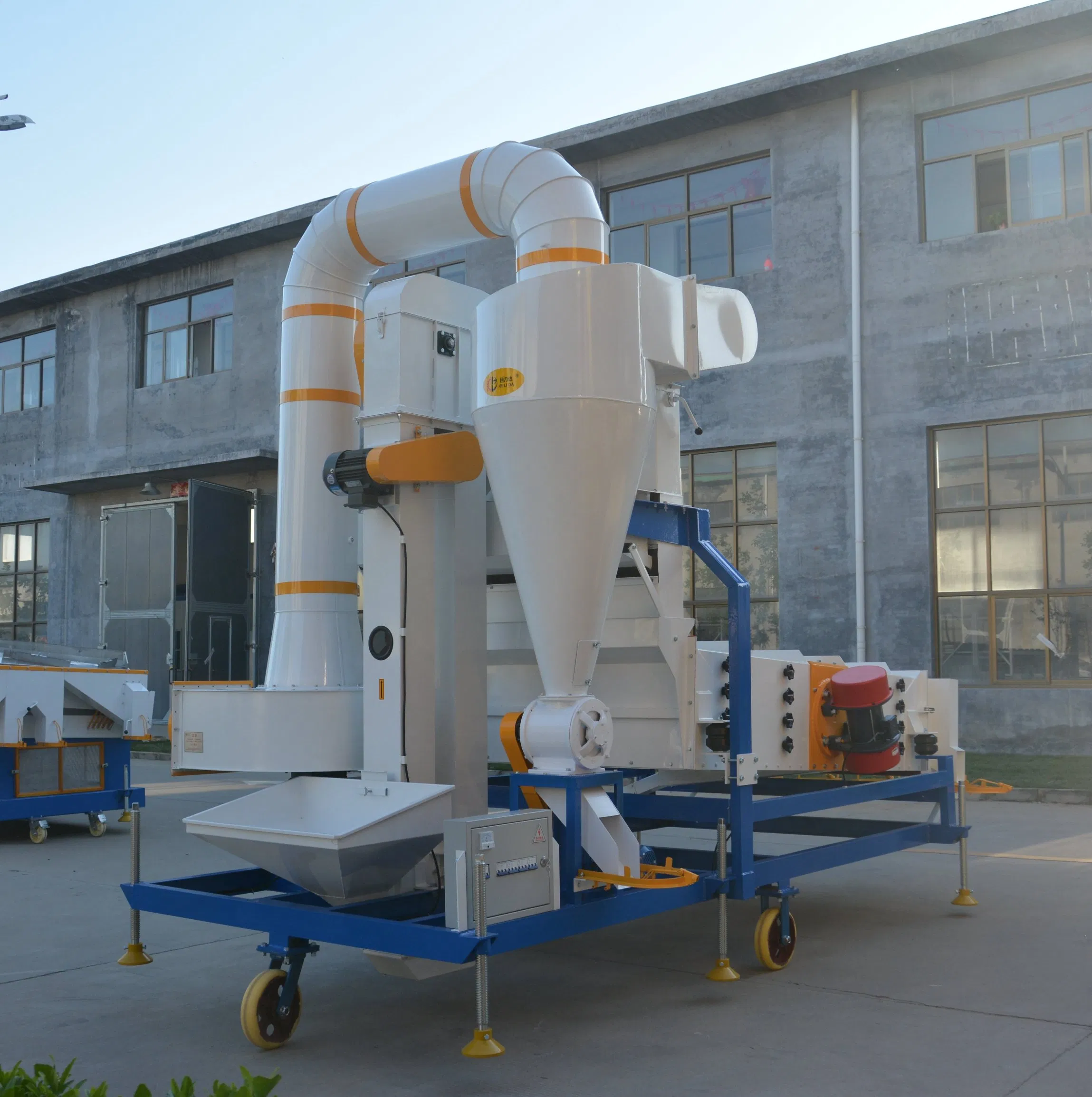

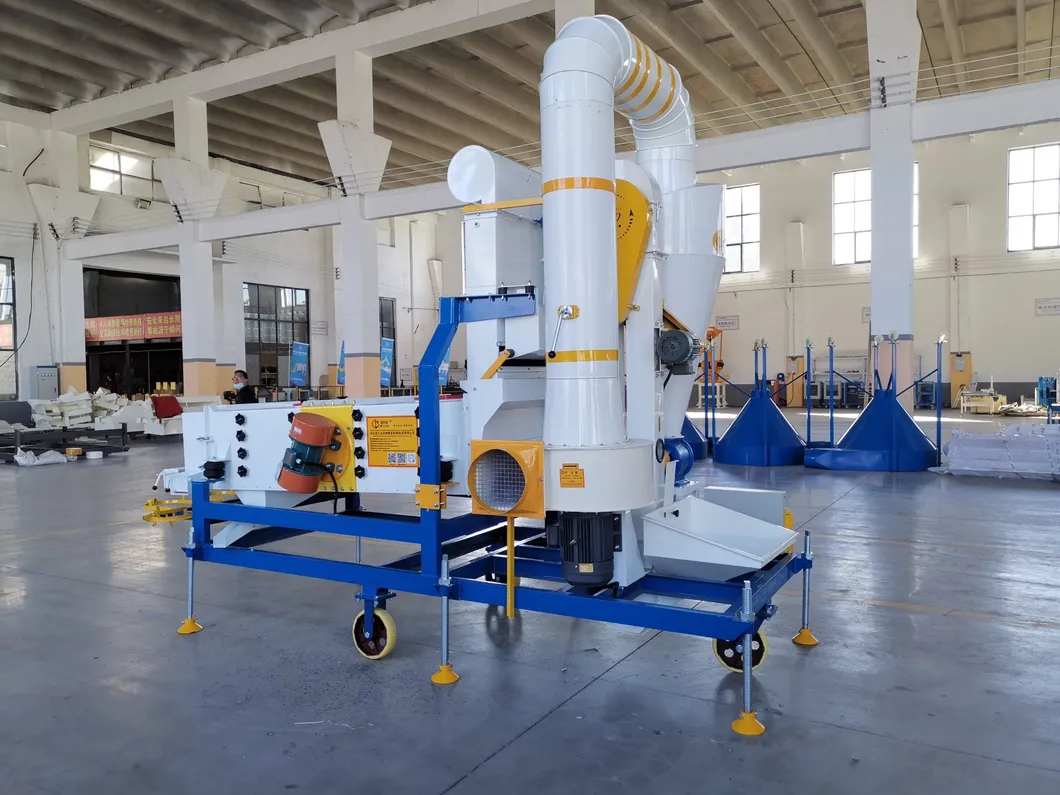

Our seed cleaner machine is consisted of machine frame, elevator system, seeds distributed box, air screen, vibration sieve, dust collector, seed discharged outlet and control cabinet.
3. Working process

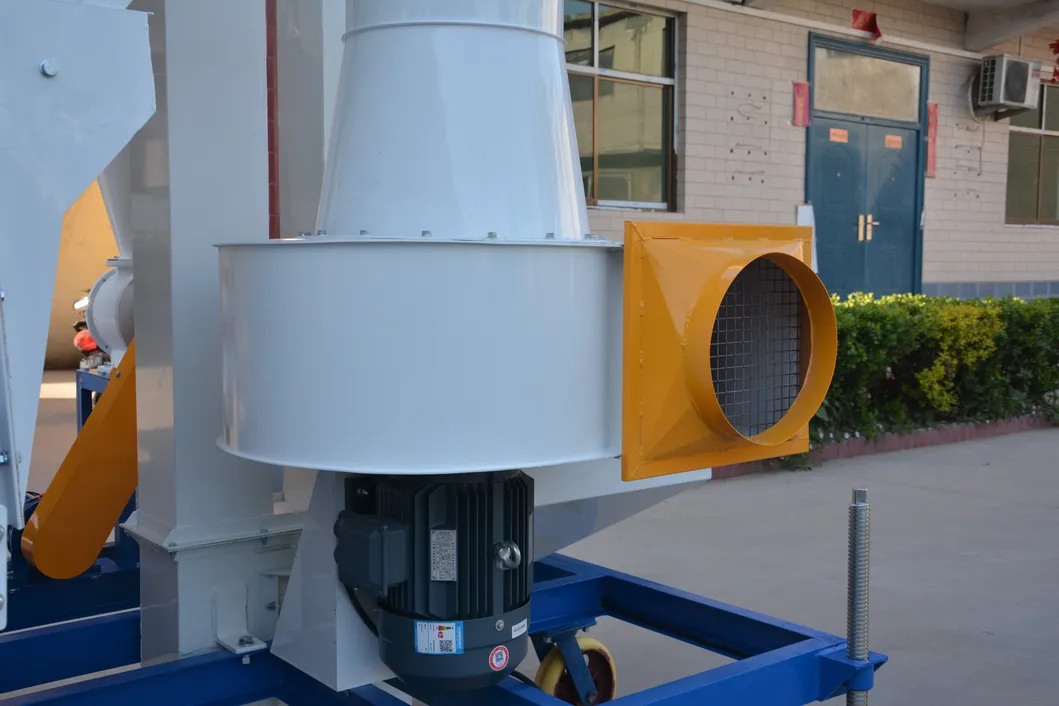

Feeding seeds by elevator hopper, then it is lifted by bucket elevator into seed distributed box, in which seed is distributed into air screen evenly. In air screen, light impurities is separated from seed under the action of air blowing and discharged from cyclone discharge valve. The remain seeds is gone into vibration sieve box. In vibration sieve box, large impurities, small impurities and good seed are separated by mesh screen of different size under the action of vibration, and be discharged from different outlet.
4. Features
- Large capacity
- Low broken rate seed bucket elevator
- Wind can be adjusted for different materials.
- Closed air channel and cyclone make process environmental very clean.

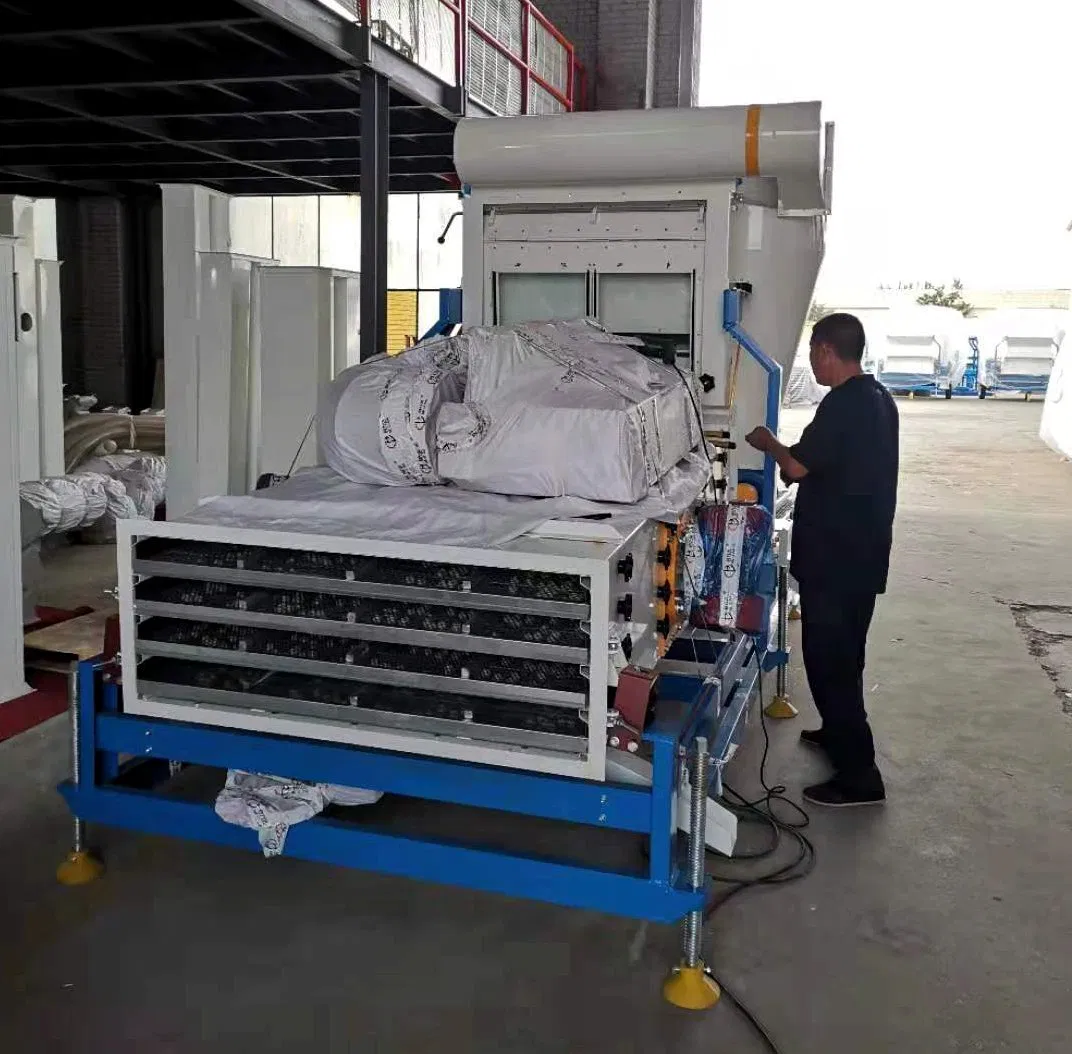

- Vibration sieve is high quality and easy cleaned by rubber ball.
- Whole machine is movable by equipped with tire.
- Brand electricity elements is used to guarantee seed cleaner work stable
- High performance with easy operation.
- Low level feed hopper equipped with feed control gate.
- Specially designed rubber ball to prevent sieve hole clogging.
- All motor triangular belts are equipped with protective covers to ensure production safety.
Frequently Asked Questions
What types of materials can this seed cleaning equipment process?
The 5XZC series seed cleaner is designed to clean and sieve a wide variety of grains, seeds, and agricultural byproducts, including wheat, paddy rice, corn, cocoa beans, soybeans, peanuts, millet, sunflower seeds, grass seeds, melon seeds, peppers, cumin, and various spices.
What is the production capacity of the 5XZC-DX model?
This equipment has a processing capacity ranging from 3 to 20 tons per hour (T/H) depending on the specific seed type and impurities being processed. The standard manufacturing capacity is up to 100 sets per month.
How does the sorting and cleaning process work?
Seeds are fed into the elevator hopper and lifted into the seed distribution box. They pass through an air screen that removes light impurities via air blowing, which are then discharged through a cyclone. The remaining seeds enter the vibration sieve box where large and small impurities are separated by mesh screens of different sizes.
Does the machine have features to prevent sieve clogging?
Yes, the vibration sieve features high-quality construction and is equipped with specially designed rubber balls that bounce during operation to prevent sieve hole clogging, ensuring easy cleaning and continuous operation.
How is operator safety guaranteed during production?
Safety is a priority. All motor triangular belts on the machine are fully equipped with protective covers to ensure a secure working environment and protect operators from potential hazards.
Is the machine easy to transport and relocate?
Yes, the entire machine is designed to be mobile and is equipped with heavy-duty tires, allowing easy movement and repositioning within your processing plant.
