Fine cleaning to remove impurities, broken and abortive grains; grading seeds according to sizes.
Application
Cereal grains, beans and seeds.
Capacity
Up to 12t/h (wheat).

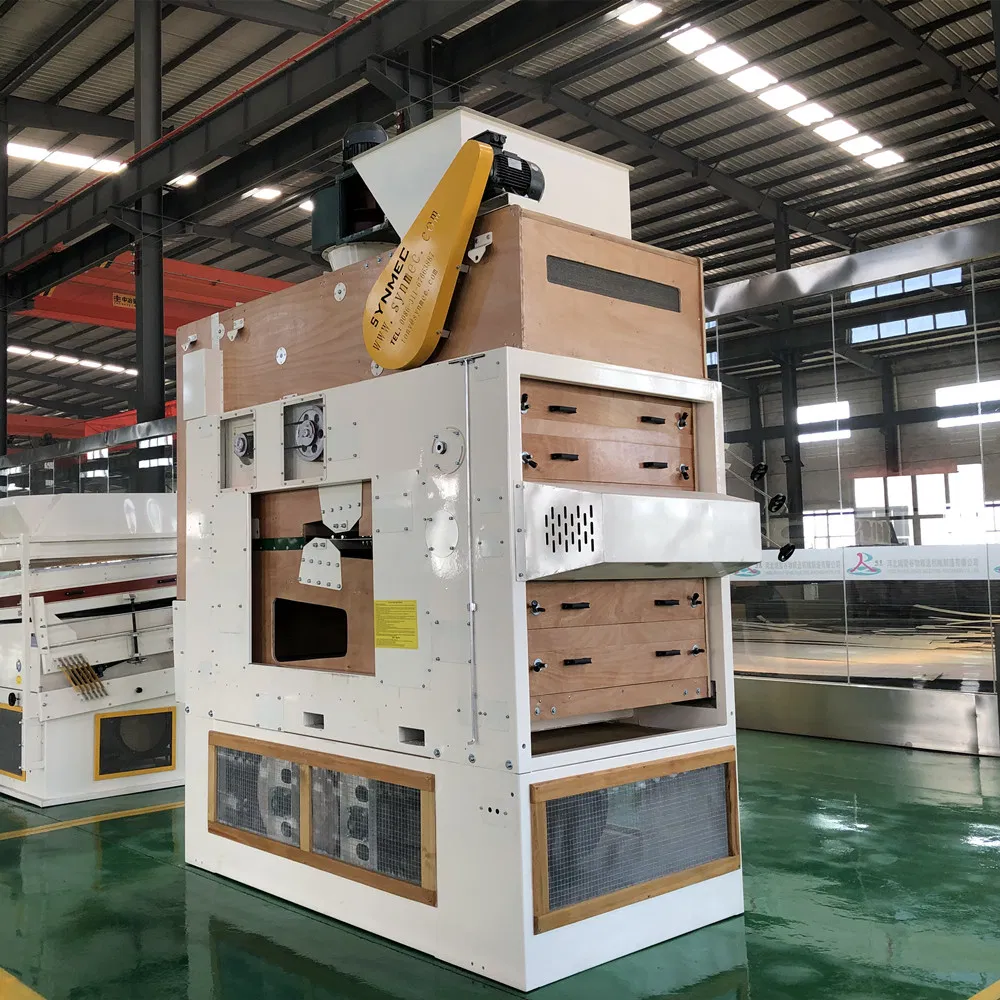

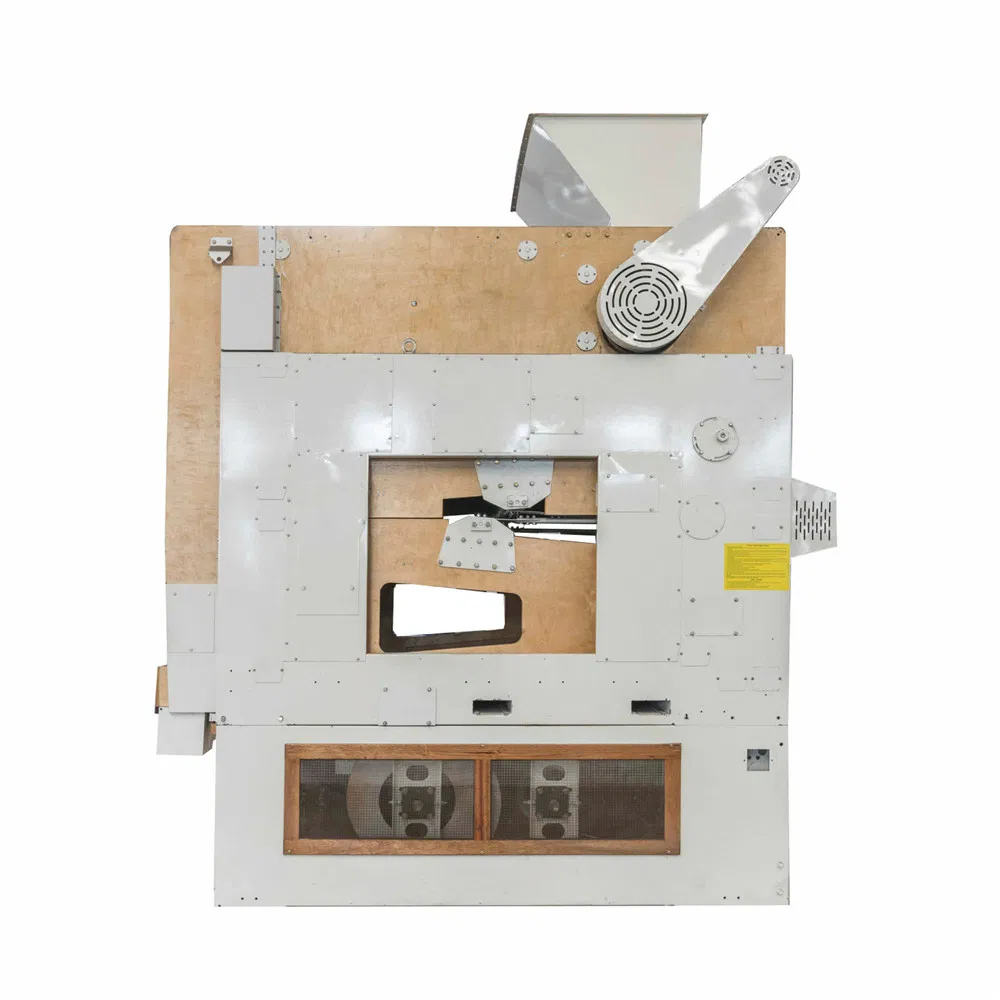

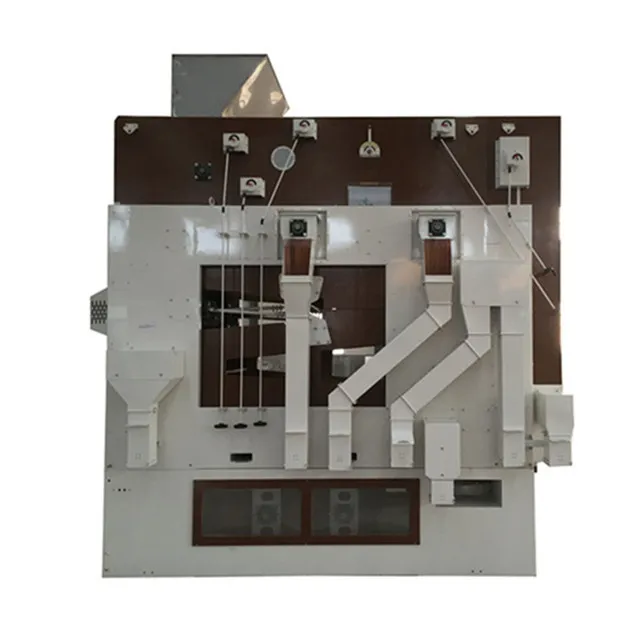

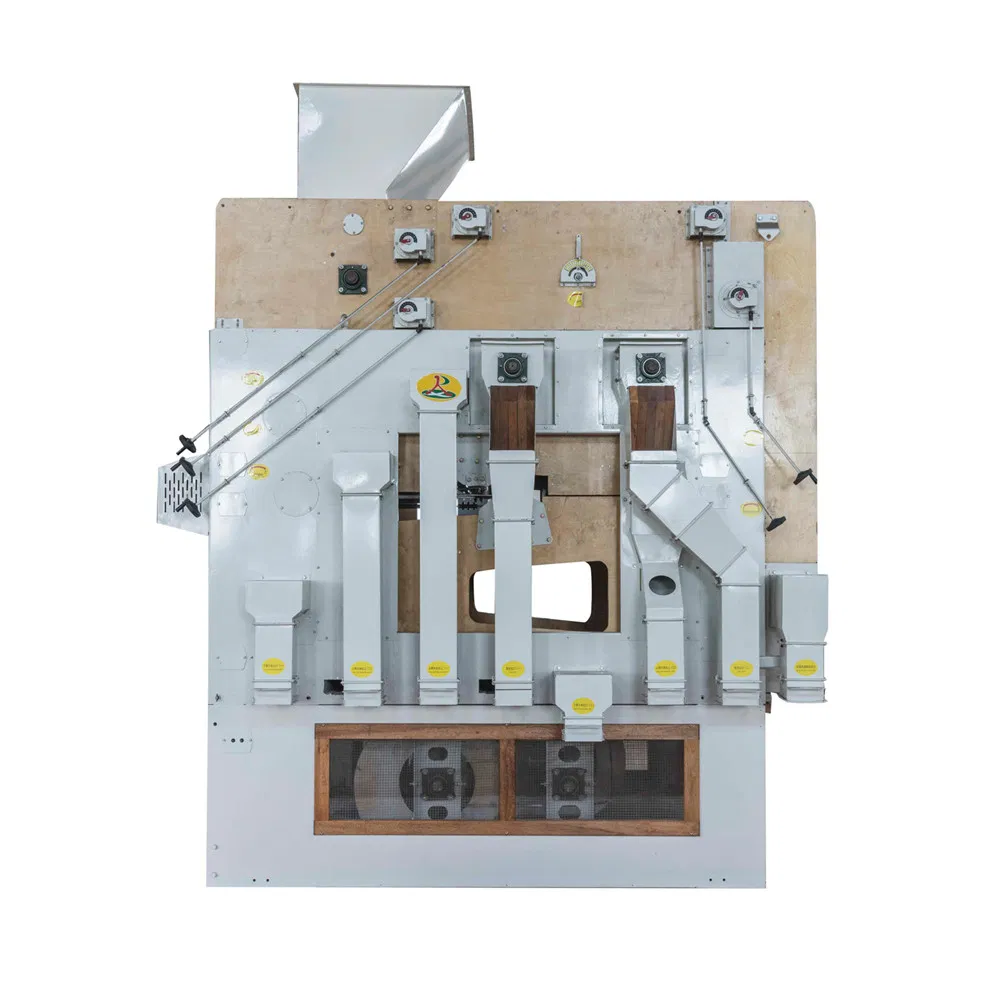

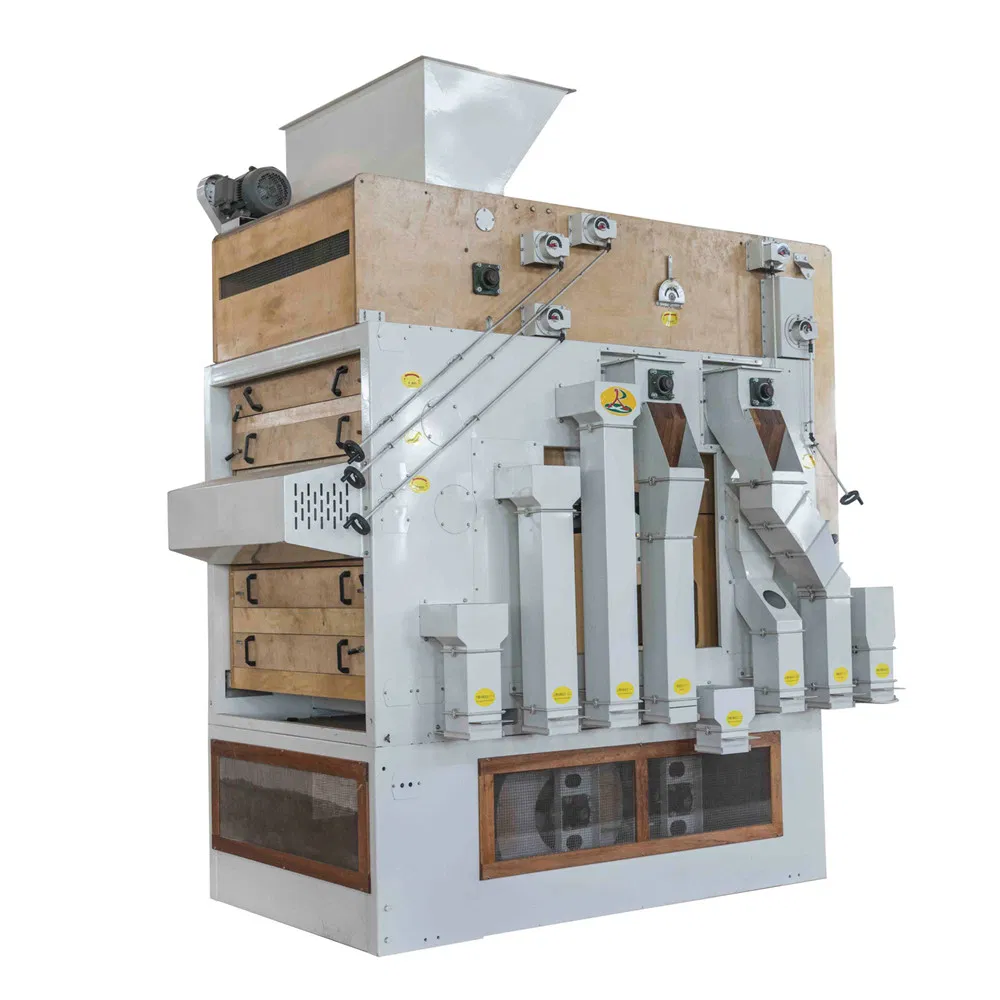

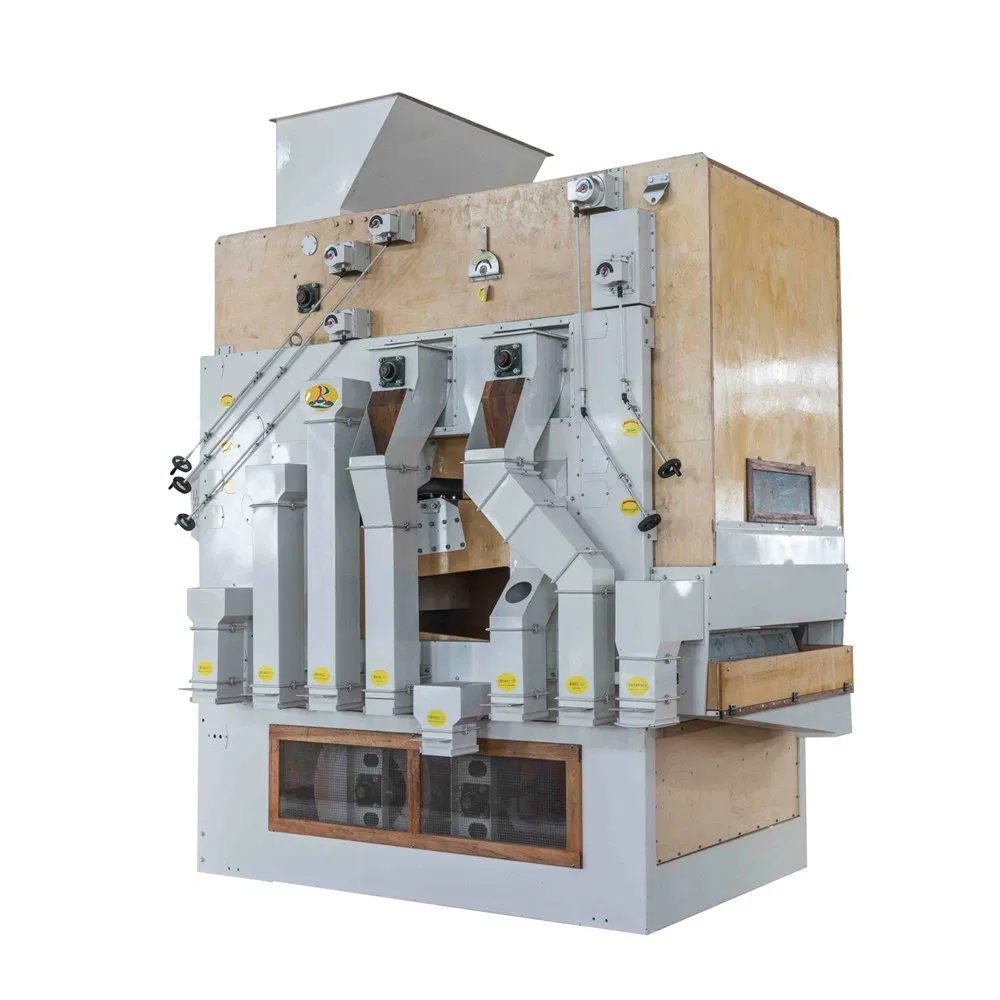

The 5X series air screen seed cleaner has been developed specially for flexible, high quality cleaning for grains and seeds. It can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning.
1. Application of 5X Fine Seed Cleaner
5X series air screen cleaners are widely used for cleaning and grading of grains and seeds, such as wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds and forestry seeds.
The multi-layer cleaning screens are changeable easily for different processing requirements.

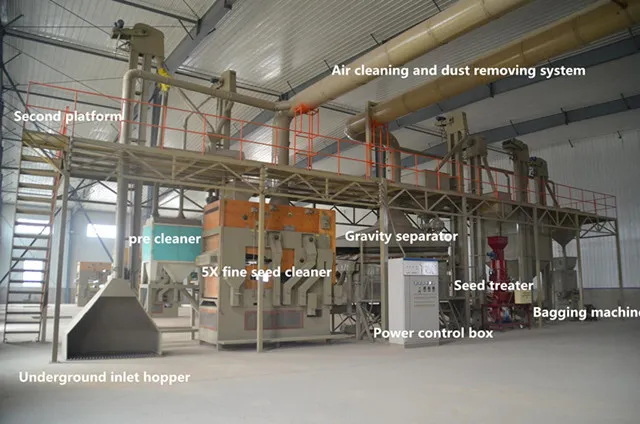

10 T/H Wheat Barley & Bean Cleaning Plant

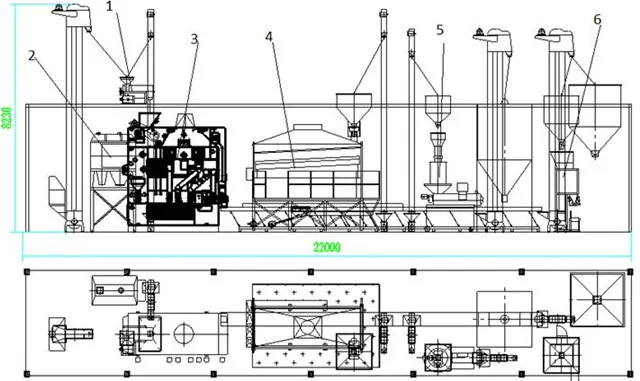

Drawing design of cleaning plant

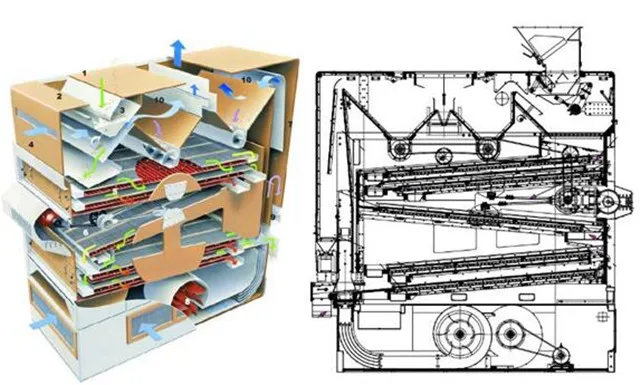

2. Working Principle of 5X fine seed cleaner
The seeds and grains can be separated from impurities for different physical and mechanical properties. The separation is completed by:
Fans (air blowers): by different weight and aerodynamic characteristics.
Screens: according to different width and thickness sizes of seeds.
Excellent cleaning and grading function is accomplished by variable screen configuration, pre and after suction system, and air lifting blowers at the bottom. Closed, bolted and painted steel construction ensures the long service life and safe operation.
3. Advantage of 5X fine seed cleaner
1
Multi-layer screens are equipped in opposite directions for good impurity cleaning performance.
2
Upper and lower screen decks dynamically balanced in opposite directions for good self-balance and stable running.
3
Easy interchangeable screens, flexible for different processing requirements.
4
Wide adjustable range realizes fine cleaning process easily.
5
Positive-negative pressure blower systems at top and bottom, twice remove light impurities and incomplete seeds.
6
Screen frames, main ball trays and feeder parts are made of high quality wood, good sealing and vibration absorption performance with low noise.
7
Integral steel frame rubber ball tray for easy screen cleaning and easy changes of processing materials.
8
Safety guard for every moving part to ensure safe operation.
9
Box-type screen body structure efficiently reduce dust content in workshop.
10
Symmetric machine structure, discharge system can be equipped left or right according to site conditions.

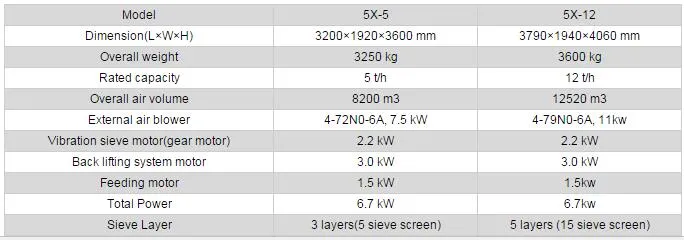

4. Technical Specification of 5X fine seed cleaner
Frequently Asked Questions (FAQ)
Q1: Which types of grains and seeds can the 5X series air screen cleaner process?
A1: It is widely used for cleaning and grading various grains and seeds, such as wheat, malting barley, beans, rice, maize, spices, grass seeds, flower seeds, and forestry seeds.
Q2: How does the machine achieve its separation function?
A2: The separation processes rely on two main mechanisms: air blowers (fans) which separate impurities based on aerodynamic weight differences, and multi-layer screens which sort seeds by their width and thickness.
Q3: What is the maximum processing capacity of the seed cleaner?
A3: The 5X series air screen seed cleaner can process up to 12 tons per hour when handling wheat.
Q4: Why does the machine have low noise levels and minimal vibration?
A4: The screen frames, main ball trays, and feeder components are constructed of high-quality wood, which offers excellent sealing and vibration absorption properties, thus reducing working noise.
Q5: Can the discharge setup be customized for my site layout?
A5: Yes. The machine features a symmetric structure, meaning the discharge system can be installed on either the left or the right side depending on your site conditions.
