Wheat Barley Oat Paddy Seed Cleaning Equipment

Customization:	Available
Type:	Air Screen Seed Cleaner
Application:	Flour, Beans, Wheat, Starch, Rice flour, Beans Corn Rice Oil Seed

Basic Info

Model NO.5X

Voltage110~600V

AppearanceVertical

Press MaterialsBeans Corn Rice Oil Seed

Press SeriesFourth

ConditionNew

CustomizedCustomized

Transport PackageWooden Case

Specification3200*1920*3600mm

HS Code8437109000

Production Capacity360 Set Per Year

Product Description

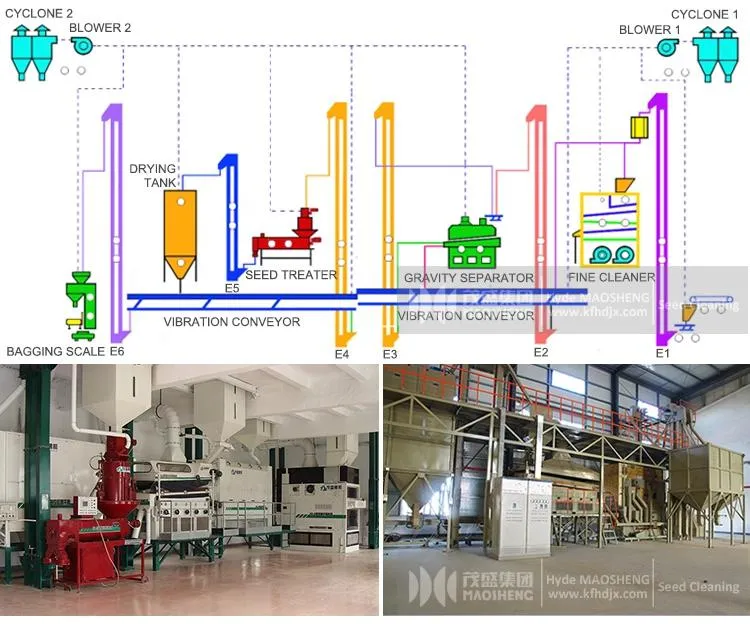

Seed processing plant: 1~15 t/h Flour mill plant: 40~1000 t/d Manufacturer since 1976

Wheat Barley Oat Paddy Seed Cleaning Equipment

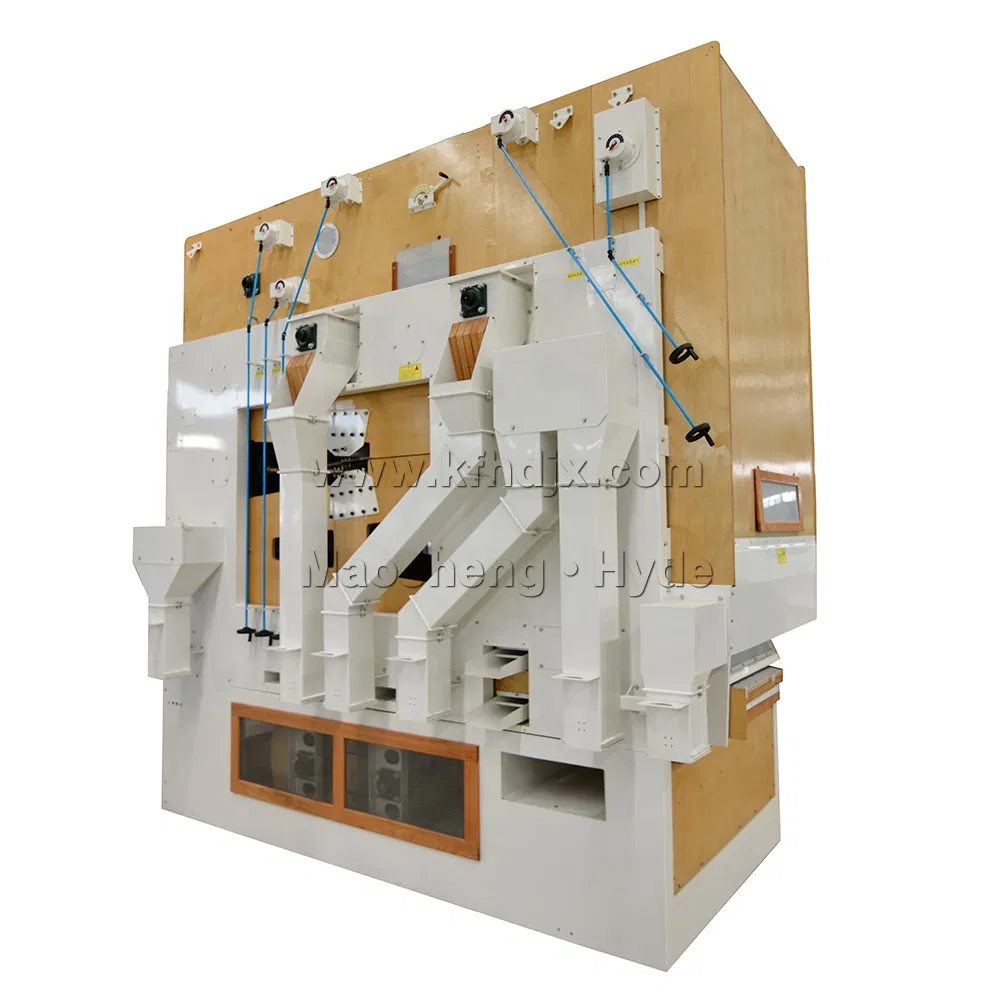

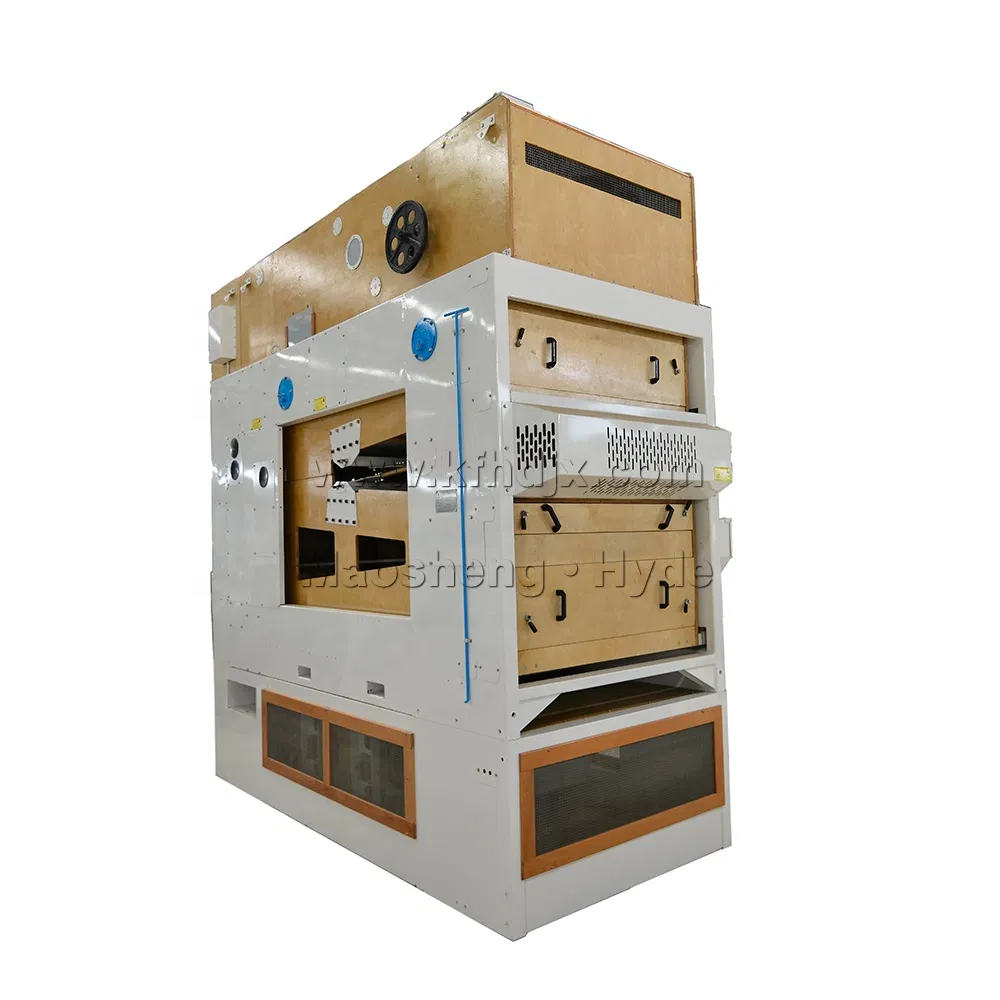

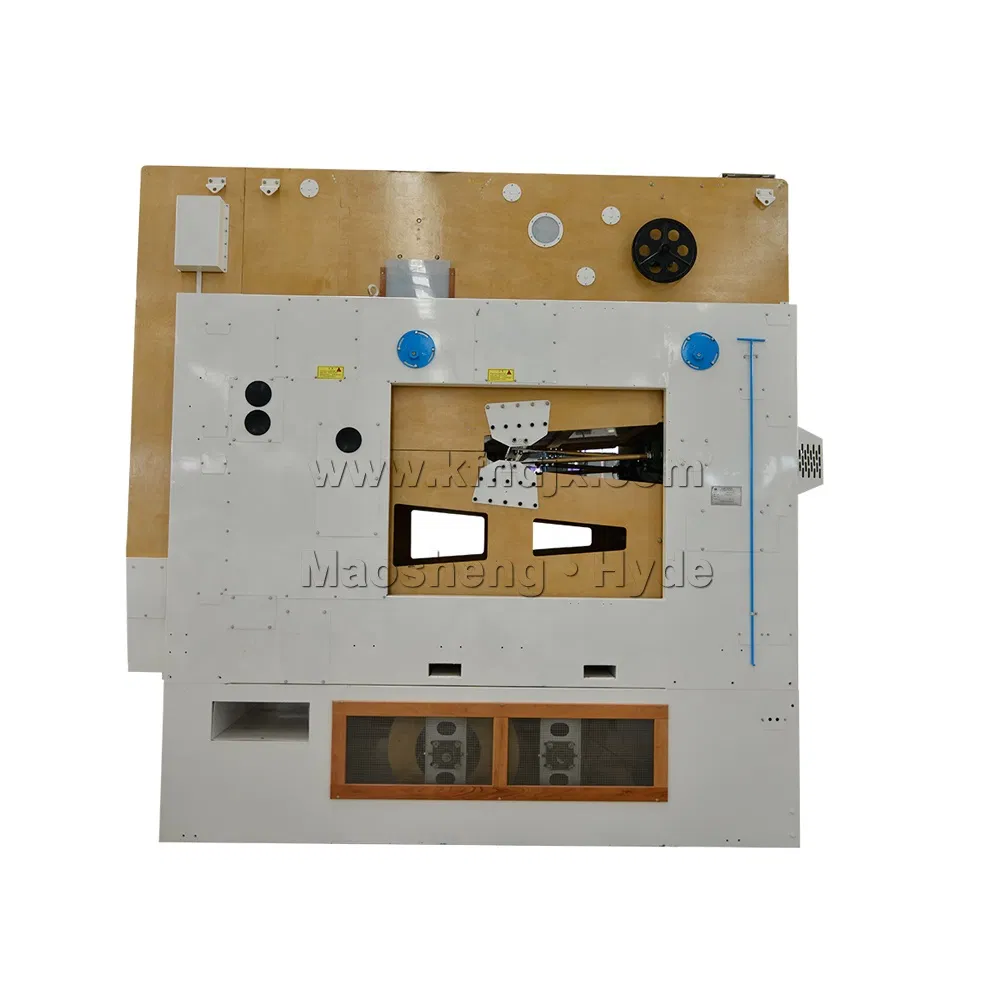

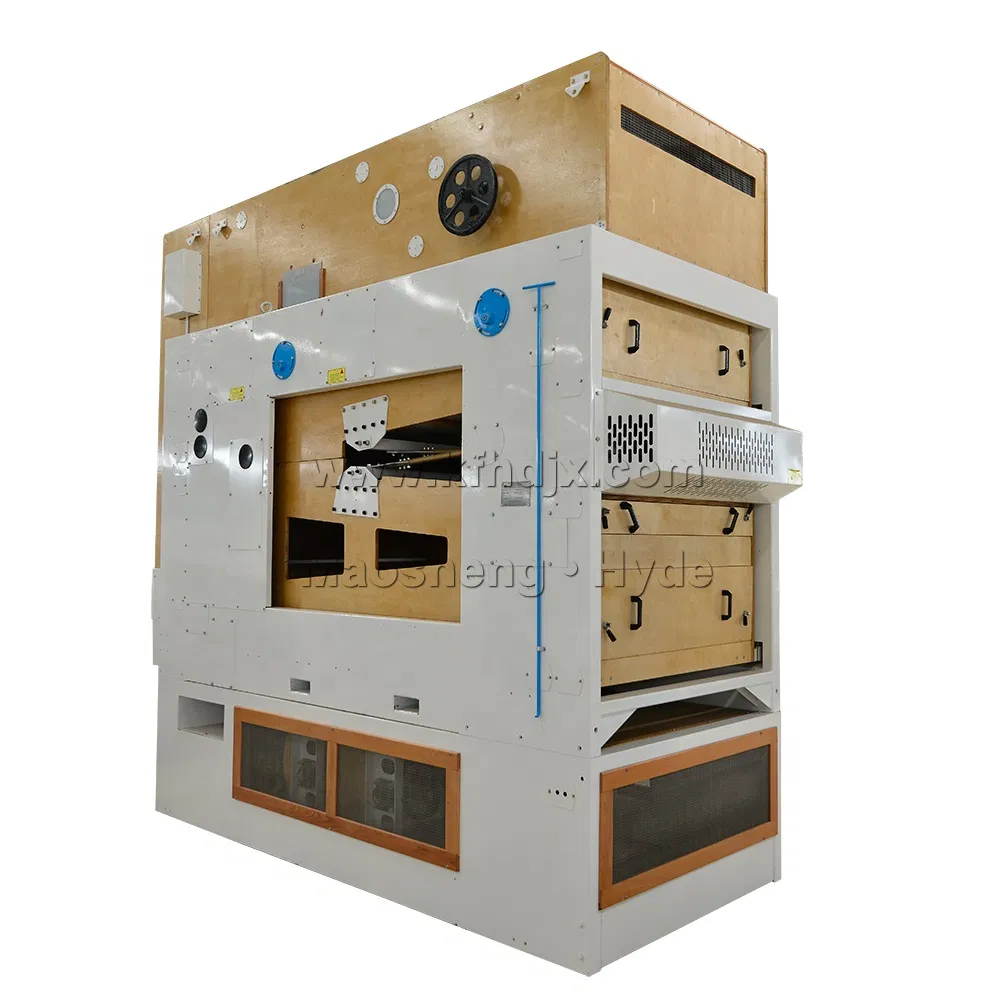

5X Air Seed Cleaner — Fine Cleaning

We provide Rice Cleaning Machine Paddy Seed Super Fine Screen Cleaner Sesame Sorting Processing Machine, Agriculture Machinery Rice Sunflower Seeds Paddy Rice Super Fine Air Screen Seed Cleaner, and Seed Cleaning Machine Coffee Bean Paddy Rice Super Fine Air Screen Seed Cleaner.

Function: Fine cleaning to remove impurities, broken and abortive grains; grading seeds according to sizes.
Application: Cereal grains and seeds.
Capacity: Up to 12t/h (wheat).

The 5X air screen seed cleaner has been developed specially for flexible, high quality cleaning for grains and seeds. It can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning.

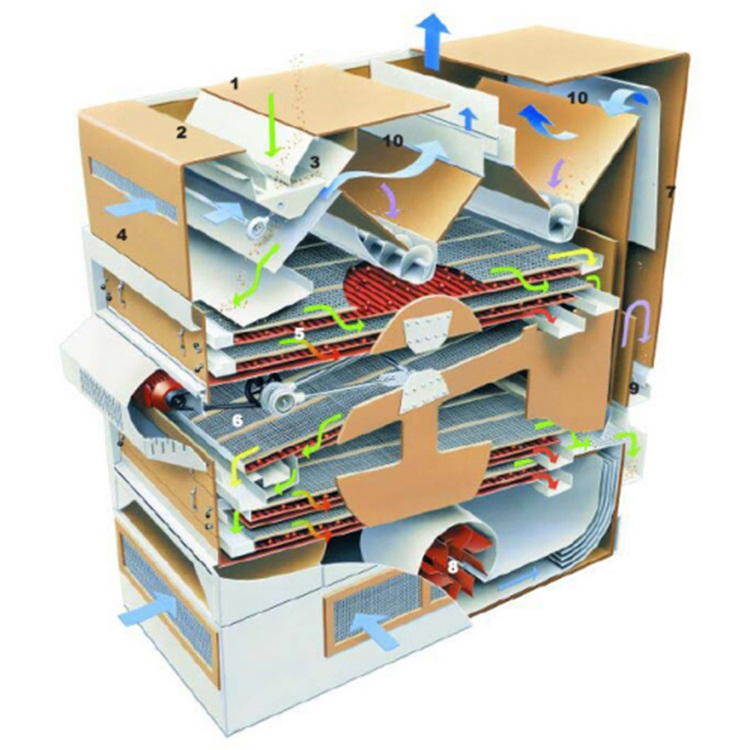

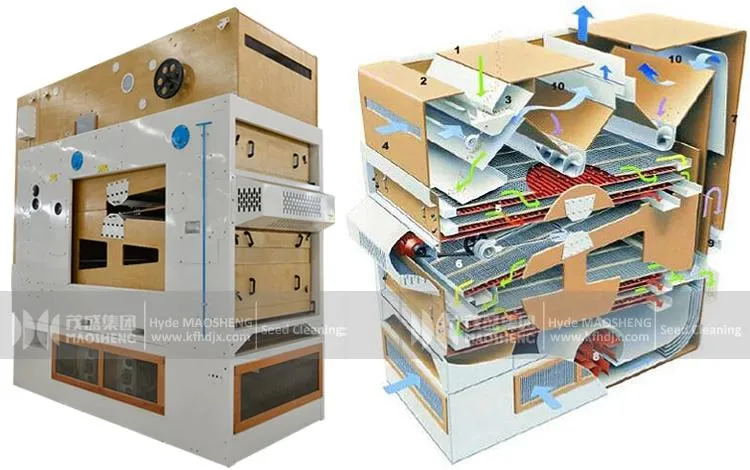

Working Principle of 5X Air Screen Cleaner

Seeds and grains can be separated from impurities for different physical and mechanical properties. Separation is completed by:

Fans (air blowers): Separation by different weight and aerodynamic characteristics.
Screens: Separation according to different width and thickness sizes of seeds.

Excellent cleaning and grading function is accomplished by variable screen configuration, pre and after suction system, and air lifting blowers at the bottom. Closed, bolted and painted steel construction ensures the long service life and safe operation.

Application of 5X Super Fine Seed Cleaner

5X air screen cleaners are widely used for cleaning of grains and seeds, such as wheat, barley, lentils, beans, rice, maize, spices, grass seeds and forestry seeds. The multi-layer cleaning screens are changeable easily for different processing requirements.

Advantages of 5X Air Screen Cleaner

Multi-layer screens are installed in opposite directions, products discharge at lowest layer, good cleaning for large and small impurities.
Upper and lower screen boats are installed in opposite directions, good dynamical balance for stable running.
Easy interchangeable screens are flexible for different processing requirements.
Positive and negative pressure blower systems are installed at top or external and bottom, twice remove light impurities and diseased seeds.
Screen frames, light impurity settling chamber and feeder parts are made of high quality wood, good sealing and vibration absorption performance, whole machine running with low noise.
Wide adjustable range and easy adjustment realize fine cleaning process easily.
Integral steel frame rubber ball tray for screen cleaning, easy to clean the sieve and machine.
Safety guard is equipped for every moving part to ensure safe operation.
Box-type screen body structure efficiently reduce dust content in workshop.
Symmetric machine structure, products discharge system can be installed left or right according to site conditions of customer.

Technical Specification of 5X Air Screen Cleaner

Model	5X-5	5X-12
Overall Dimension (L×W×H)	3200×1920×3600 mm	3790×1940×4060 mm
Total Weight	3250 kg	3600 kg
Rated Capacity (wheat)	5 t/h	10~12 t/h
Total Air Inflow	8200 m³	12520 m³
Power
Top Air Blower (Optional)	4-72N0-5A, 7.5 kW	4-79N0-6A, 11kw
Sieve Vibration Motor	2.2 kW	Y132S-8, 2.2 kW
Bottom Lifting System Motor (VVVF Motor)	3.0 kW	3.0 kW
Feeding Motor (VVVF Motor)	1.5 kW	WR41-Y0.75-4P-1.68-M1, 1.5kw
Total Power	6.7 kW	6.7kw
Screen
Screen Type	Pierced Screen
Screen Dimension (L×W)	800×1250 mm
Frequency	300(80~400) /min
Amplitude	30 mm
Layers and Number	4 layers, 7 pieces	5 layers, 15 pieces
1st layer	1 piece, round hole	3 pieces, slot hole
2nd layer	2 pieces, slot hole	3 pieces, slot hole
3rd layer	2 pieces, slot hole	3 pieces, slot hole
4th layer	2 pieces, slot hole	3 pieces, slot hole
5th layer	/	3 pieces, slot hole

Notes:
1. Individual machine will be supplied with 1 set of screens (7 pcs or 15 pcs), no top blower.
2. Machine can be converted to different cleaning programs, screens shall be changed accordingly.
3. Above technical data can vary due to continued development, or different machine configurations.

Why Choose Us

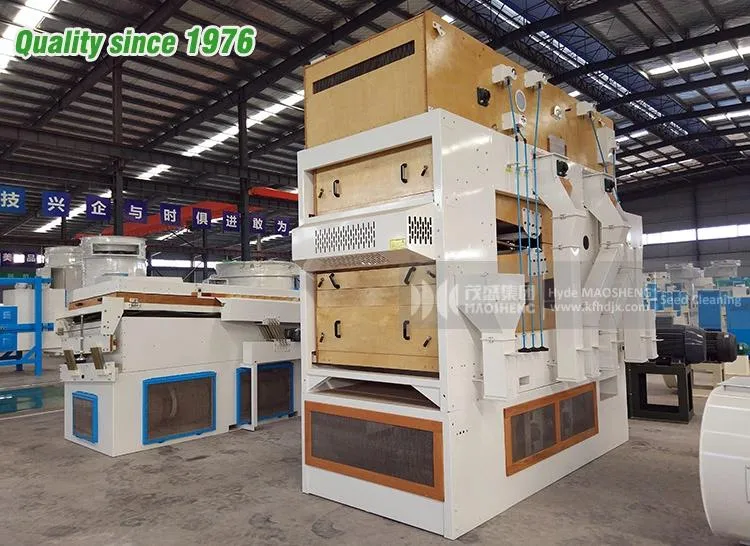

40 YEARS manufacturing experience since 1976.
Ranked as a TOP 10 Grain Processing Machinery Manufacturing Company.
Member of 13 national standards DRAFTER in grain processing industry.
75 PATENTED technologies and products.

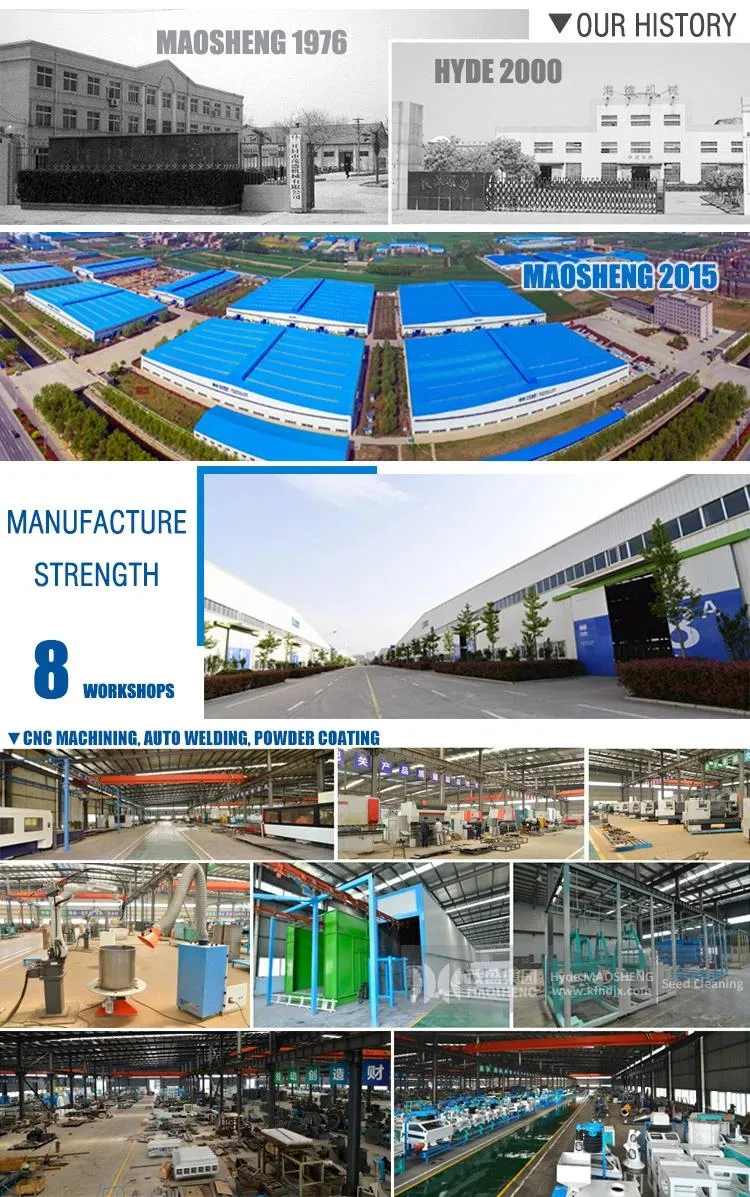

600,000 square meter production area.
Over 100 experienced engineers, research staff and technicians.

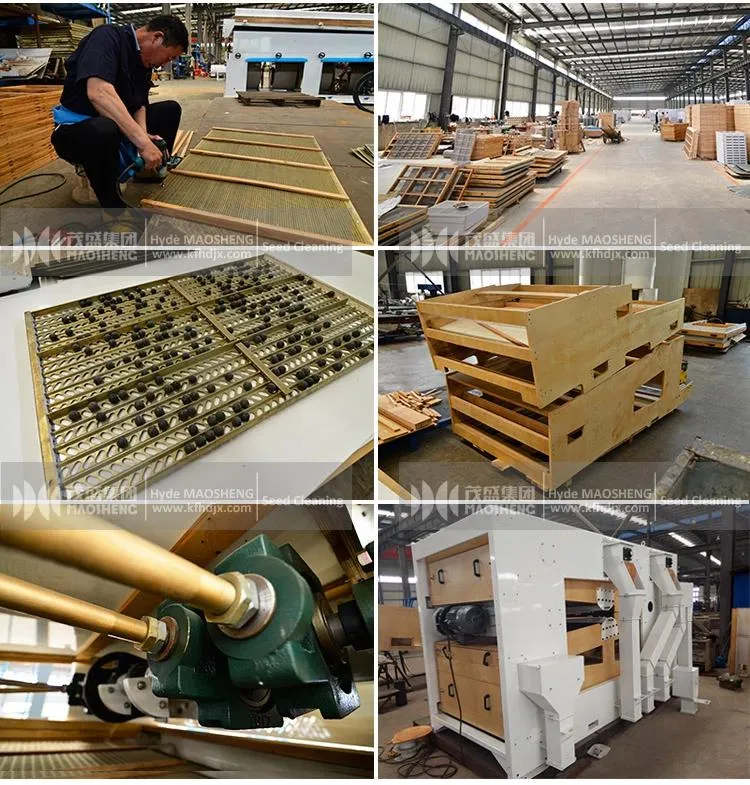

State-of-the-art facilities with advanced imported CNC machines for functional parts.
Full range of service, from single machine to turnkey systems in grain and flour industry.
Machinery and equipment quality tested by domestic and global market with rich installation and trouble-shooting experience.

Our Services

Pre-sales Service

Technical Consulting Service: Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.
Company and Production Line Visit: Customers are welcome to visit our facility. We can also arrange visits to existing customer sites to observe operating conditions.

In-sales Service

Reliable delivery time.
Strict quality control by in-production 100% check and test.
User manual and spare parts provided for free.

After-sales Service

Fast technical guidance for construction, installation and commissioning.
Necessary training for daily maintenance on site.
12 months warranty.
Lifelong regular technical service.
Timely solutions to problems.

Frequently Asked Questions

Q: What do you need to know for fast communication and quotation?

A: It would be highly appreciated if you can provide details of your processing material specs, capacity and efficiency request, screen specification, motor power supply voltage and special brand needed, and other working conditions.

Q: Can you make the machines as per our special requirement?

A: Yes, OEM/ODM service is available.

Q: What about the lead time?

A: 10~30 workdays, depending on the type of machine and parts availability.

Q: What is your payment terms?

A: T/T, L/C, Western Union, and Cash are accepted. 30% deposit with purchase order, 70% balance paid before shipment.

Q: How can you guarantee the quality?

A: Quality control is handled by incoming material inspection, 100% in-production checks, and random checks after packaging. Spare parts and technical solutions are provided in a timely manner.

Q: How do we visit the production facility?

A: The production factory is located in Henan Province, China, which is about a 1-hour drive from the nearest international airport. Visits can be arranged upon request.
