Wheat as a staple food with over 700 million metric tons annual crop volume, plays a crucial role in our diet. The quality of flour is also directly related to the grain quality and how it is processed, as it should keep its nutritional value and other unique characteristics. Whether the flour is used for bread, pastries, biscuits, cookies or pasta, a highly efficient processing capability for the end product starts with a successful milling process.
According to the customers' different requirements for production capacity of the flour milling industry and flour market needs, we have different flour processing solutions and flour processing plant construction options, which can fully meet the various needs of consumers.

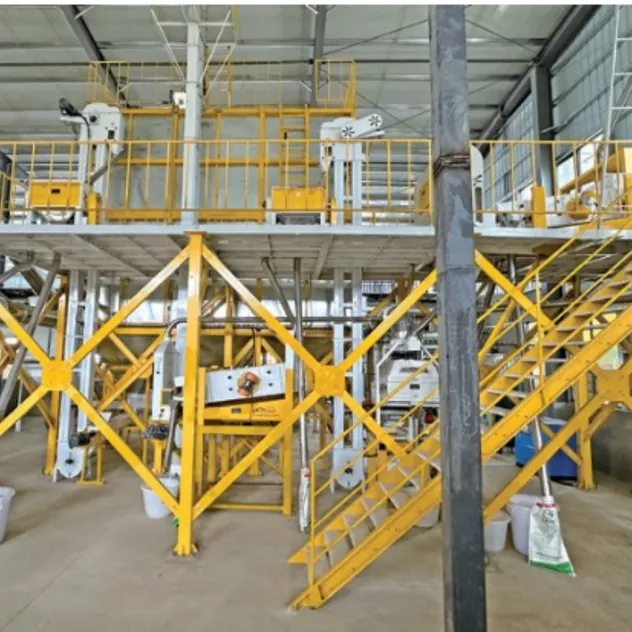

The wheat purchased from the farm is mixed with large impurities such as stones, weeds, sand, and rags. When these impurities enter the equipment, they may cause damage. Therefore, preliminary cleaning is required before the wheat is put into the warehouse.
The pre-cleaned wheat needs further cleaning before being ground to remove smaller impurities and ensure the taste and quality of the flour. After the clean wheat enters the conditioning bin, it is adjusted with water to enhance epidermis toughness and reduce endosperm strength, facilitating the subsequent milling process.

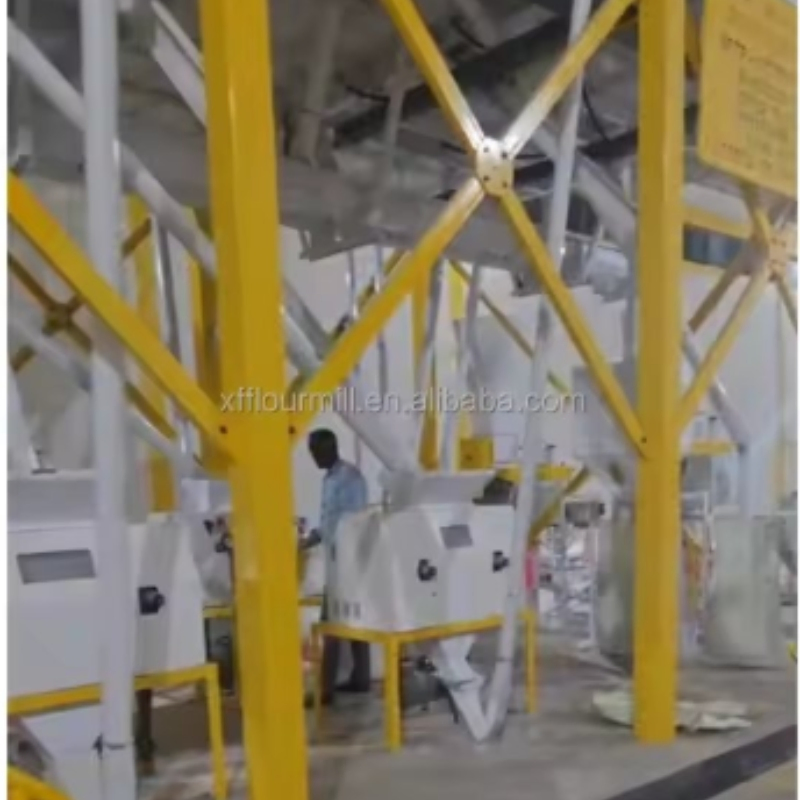

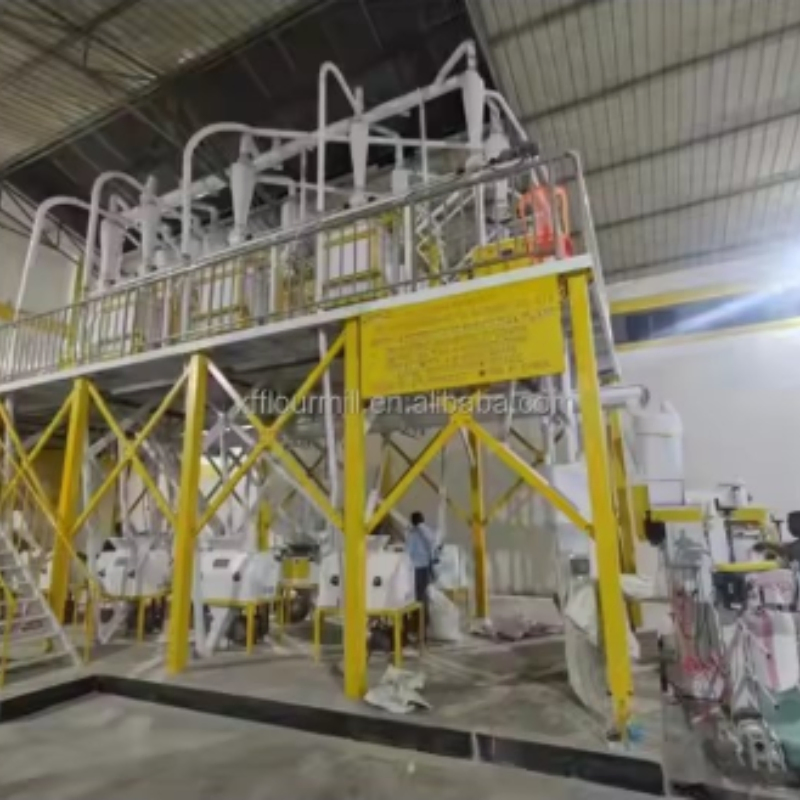

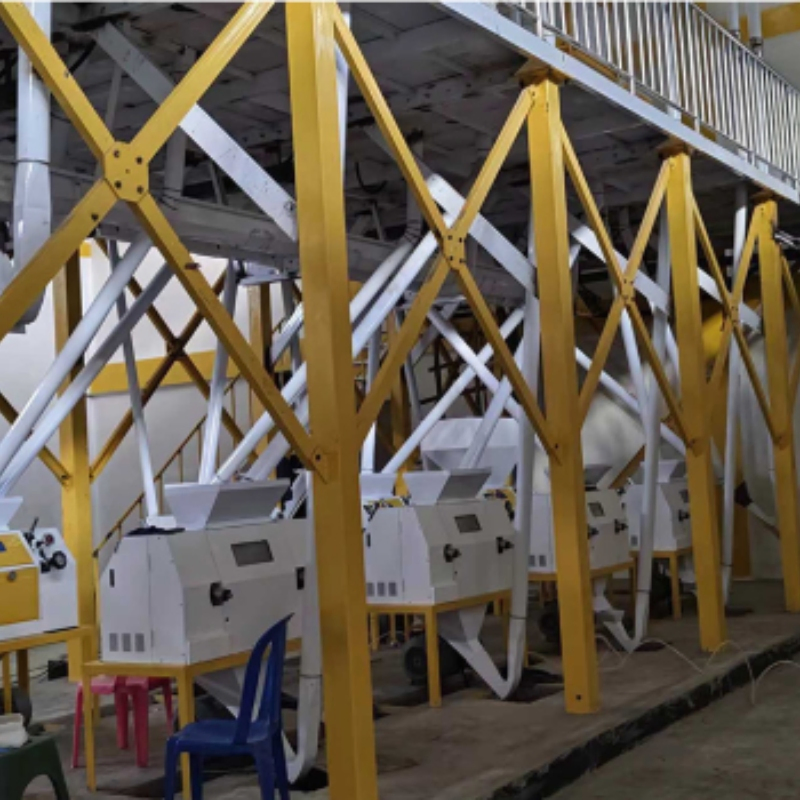

The principle of modern milling is to separate the bran and endosperm (flour) by grinding the wheat grains gradually using multiple sieves. Cortex is tight and tough, while endosperm tissue is loose and soft. Under controlled pressure, shear force, and cutting force, crushed particles of different sizes are produced and separated via sieving.
This equipment packs the processed flour into 10kg or 25kg packages. After milling, post-processing is performed, including insecticide, mixing, adding trace elements, weighing, and bagging to stabilize quality and increase variety. Automation is managed based on a modern PLC system for real-time production data.
| Parameter | Specification Details |
|---|---|
| Machinery size | With 25m length, width 8m, and height 9m (adjustable to client requirements) |
| Flour size | 100-160 mesh (adjustable as market requirement) |
| Capacity | 42T/24HOURS |
| Power | About 168KW |
| Operating Conditions | Voltage: 380v/440v, Frequency: 50HZ/60HZ, below an elevation of 1500m |
| Electricity consumption | 58KWH-70KWH / Ton Maize Flour |
| Operation worker | 2-3 persons |

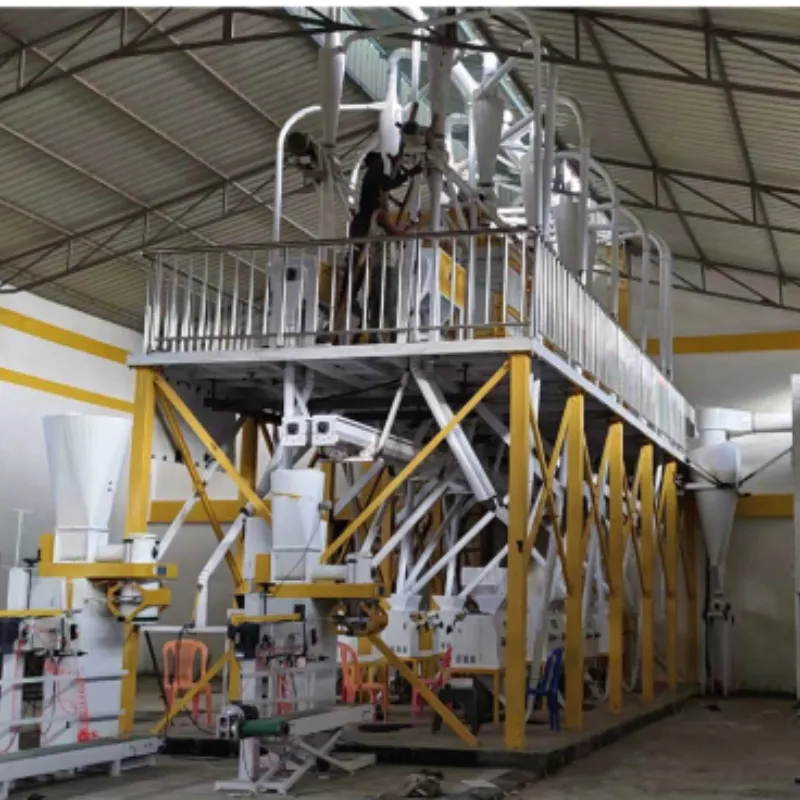

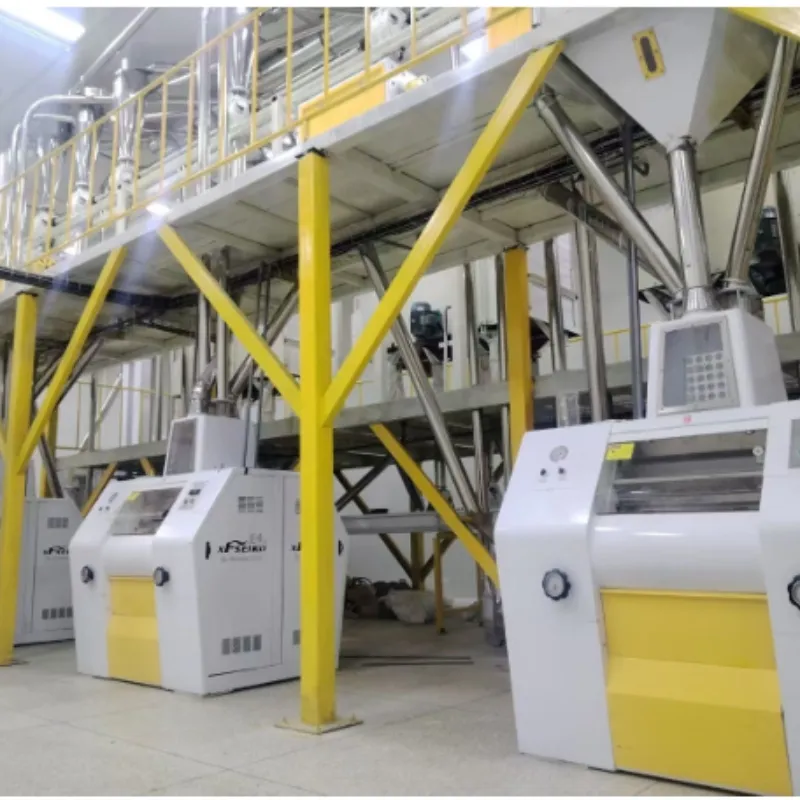

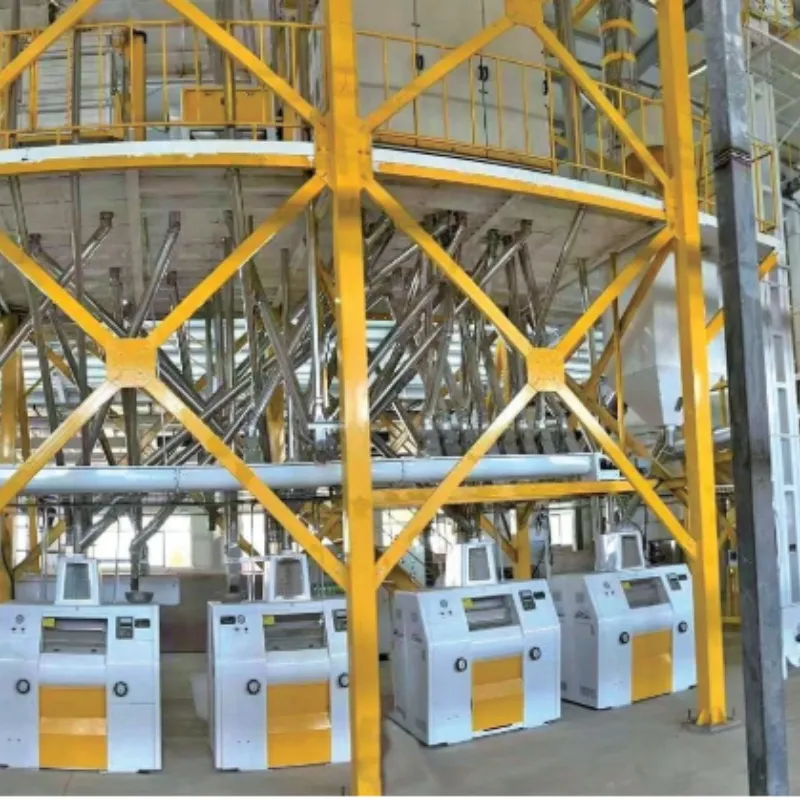

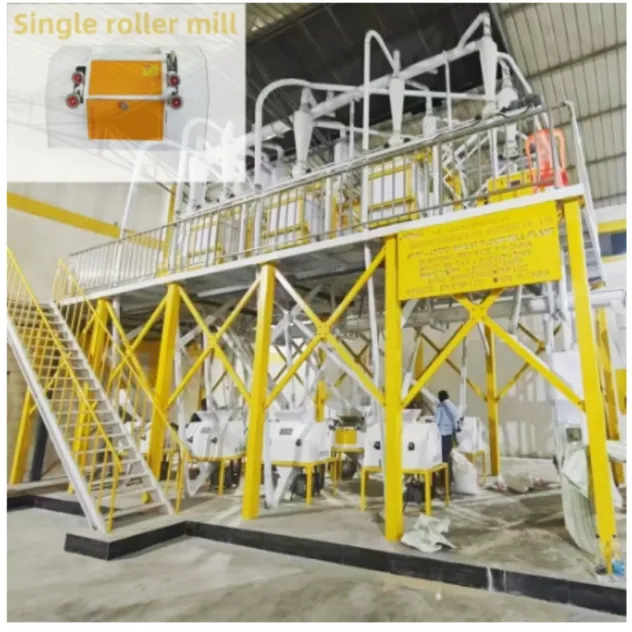

This industrial-grade 50 TPD (Tons Per Day) combined wheat and maize flour milling machine is a complete processing plant designed for high-yield production and exceptional versatility. It efficiently handles both wheat and corn (maize) through a fully integrated system that includes cleaning, degerminating (for maize), milling, sifting, and packing. The core of the operation features robust roller mills and high-capacity plansifters, engineered to produce a wide range of refined flours—from pure white wheat flour to fine maize meal—with excellent extraction rates and consistent granulation. Built for continuous, 24/7 operation with minimal downtime, this machine is constructed from high-strength materials and incorporates advanced automation for operational ease and stability. It represents a prime investment for seeking to capitalize on the dual-market for wheat and maize products, offering an optimal balance of large-scale capacity, superior product quality, and long-term operational cost-effectiveness.
| Parameter | Specification Details |
|---|---|
| Machinery size | With 35m length, width 8m, and height 9m (adjustable to client requirements) |
| Flour size | 100-160 mesh (adjustable as market requirement) |
| Capacity | 50T/24HOURS |
| Power | About 126KW |
| Operating Conditions | Voltage: 380v/440v, Frequency: 50HZ/60HZ, below an elevation of 1500m |
| Electricity consumption | 50KWH / Ton Maize Flour |
| Operation worker | 3-4 persons |
| Finished products | Grade flour, special flour, all-purpose flour, and so on |
We are a multiple manufacturer of Grains milling machinery for seventy-three (73) years in Shandong Province, China. The Company has a wealth of experience in designing, building, manufacturing and installing of various flour machines of different/ various capacities to meet customer demands and needs. We are a specialist in the manufacture of flour processing machinery producing equipment for wheat, maize, oats, soya bean, teff, buckwheat, cassava, millet, sorghum etc and other bi-products like animal feeds. Our capacities for the wheat and maize grain processing equipment range between five ton to five hundred ton per day (05-500T/24H) production lines. These machines are highly efficient and very economical. We have over the years installed turnkey projects in The Philippines, South Korea, Thailand, India, Russia, Kazakhstan, Pakistan, Syria, Brazil, Chile, Venezuela, Argentina, New Zealand, Ethiopia, Kenya, Uganda, Tanzania, Zimbabwe, Mozambique, Nigeria, Algeria, Cameroon, Angola, Mali, the kingdom of Swaziland, Cote d'voire, Congo, Malawi, Madagascar, etc. We are ISO 9001-2008 and CE certified, meaning quality of the machines is good which is of great importance to the manufacturer and customer.
