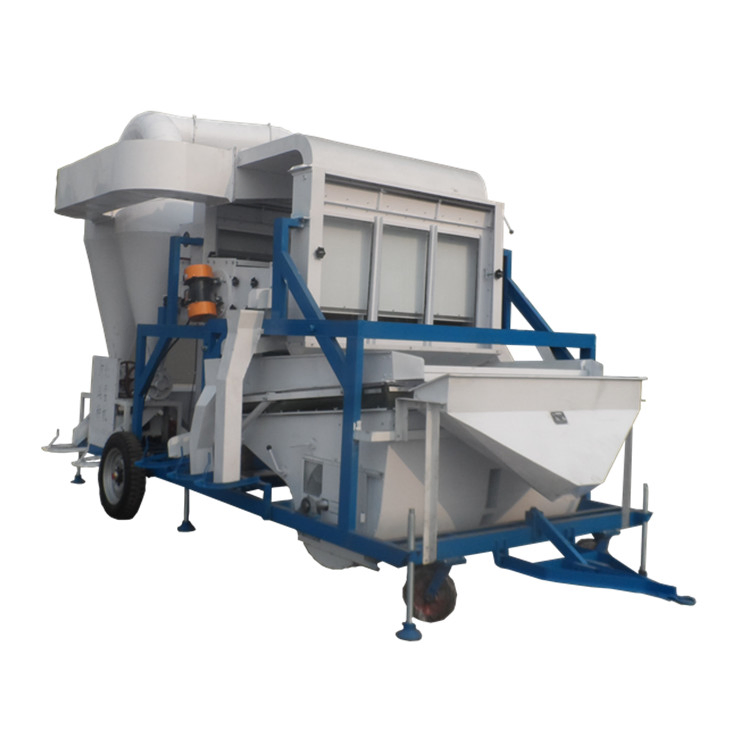

Maize Whear Seed Cleaning Equipment Machine for Sesame Beans Wheat

Customization:	Available
Capacity:	10 Ton/Hour
Application:	Various Seed Grain Cleaning

Basic Info.

Product Name Seed Processing Machine

Usage Grain Cleaning

Weight 2900kg

Power 15.6kw

Color Green/White/Cream/Optional

Screen Area 2400*1500mm

Warranty 1 Year

Voltage 220V/380V

Transport Package Mill's Standard Plastic Package/Wooden Case

Specification ISO9001

HS Code 84371090

Production Capacity 30 Sets/Month

Product Description

Seed Cleaning Plant Machine for Sesame Beans Wheat

Application of 5XZS Seed Processing Equipment:

The Seed Processing Equipment is uniquely designed with wheat hulling, air cleaning, gravity separating, vibratory sieve separating and grading, maximizing the cleaning efficiency, minimizing the wear and tear and ease of removability & changeability.

Note: When you process other grains (not wheat), you can put the grain into the hopper of bucket elevator straight way, and turn off the wheat huller.

Working Process of 5XZS Seed Processing Equipment:

1

The intake hopper enables wheat filling into the wheat huller to hulling the wheat.

2

Following lifting up by the bucket elevator to enter to the vibratory air cleaning chamber, which is a new design and leads to the best air cleaning efficiency.

3

Then the air cleaned wheat enters the gravity separator to remove the bad seed (partially eaten, immature, insect damaged, sick seed, etc.).

4

Finally, it enters the vibratory sieve to remove the large and small impurity, also grading your seed to different levels by size. The grain after processed by the machine will become seed which can be sown.

Specification of 5XZS Seed Processing Equipment

Model	Capacity (MTH)	Power (KW)	Weight (KG)	Dimension LWH (mm)	Sieve Size L*W (mm)	Remark
5XZS-10CDS	10	23.6	3200	600022003300	2400*1500	With Wheat Huller
5XZS-10DS	10	15.6	2900	600022003300	2400*1500	-

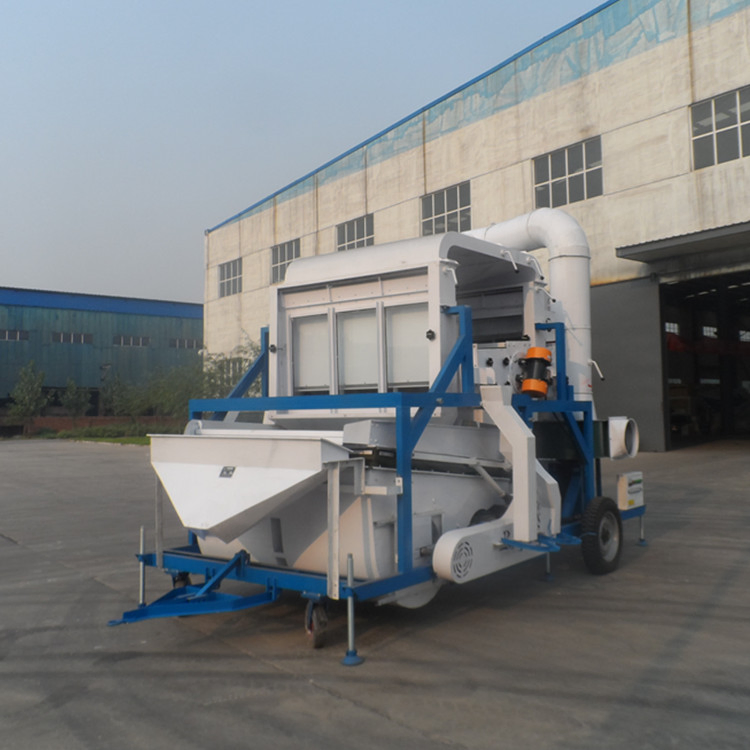

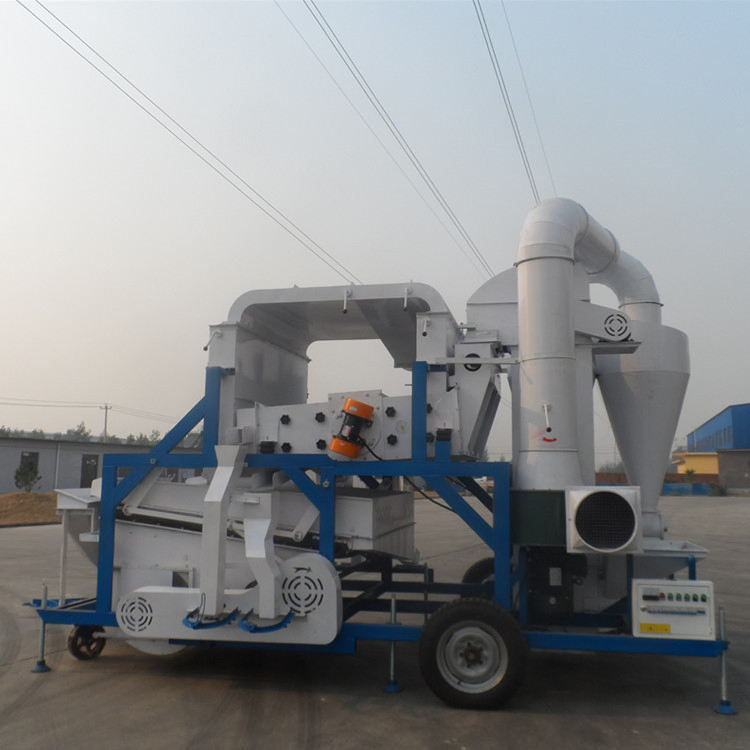

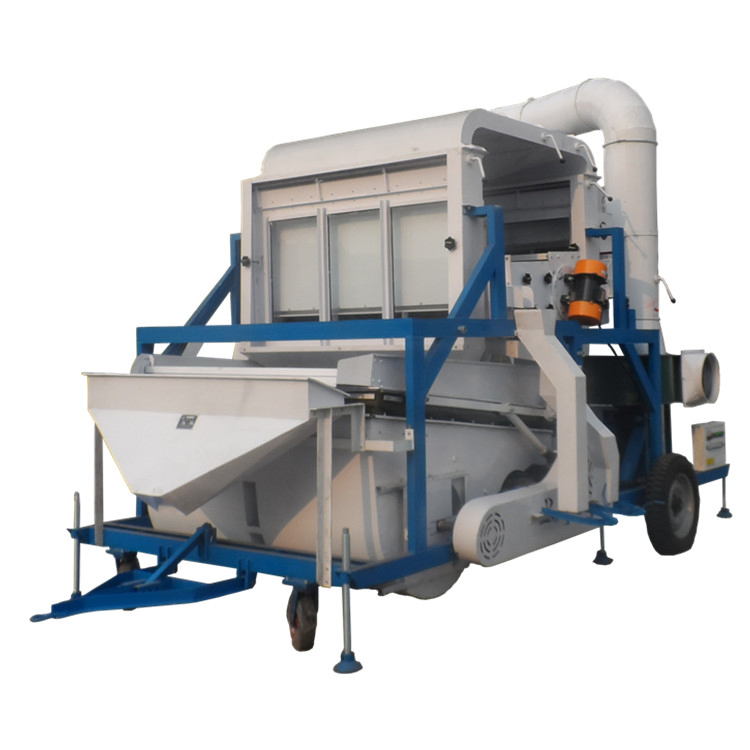

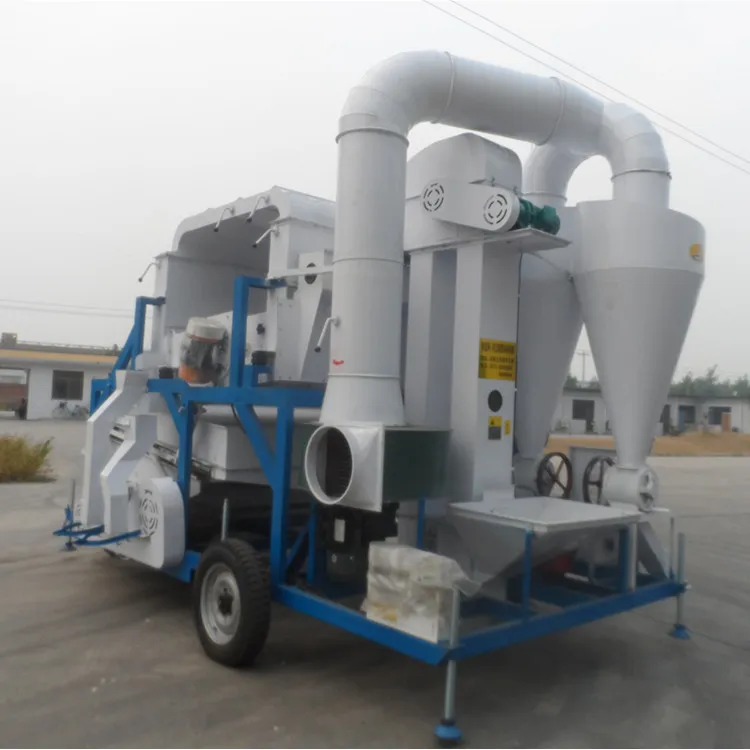

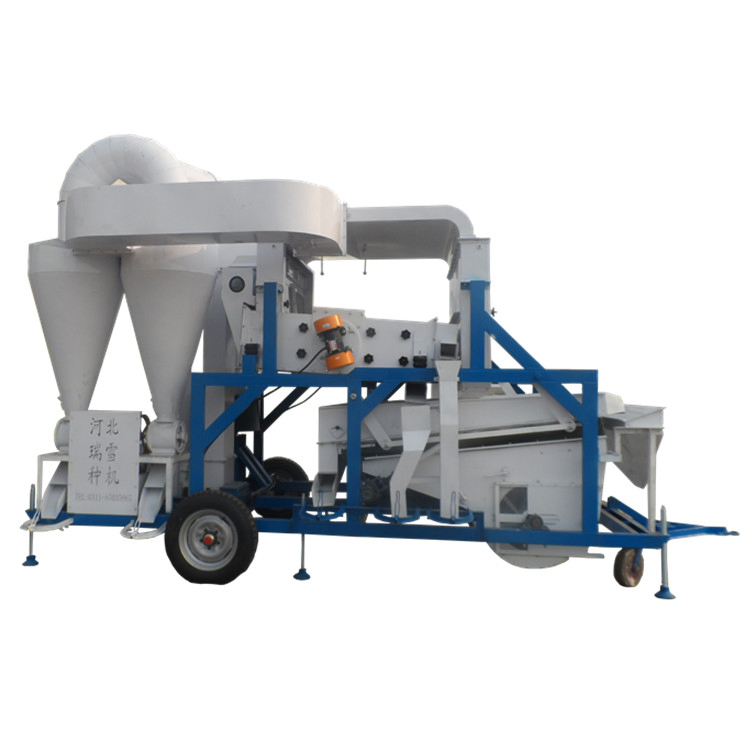

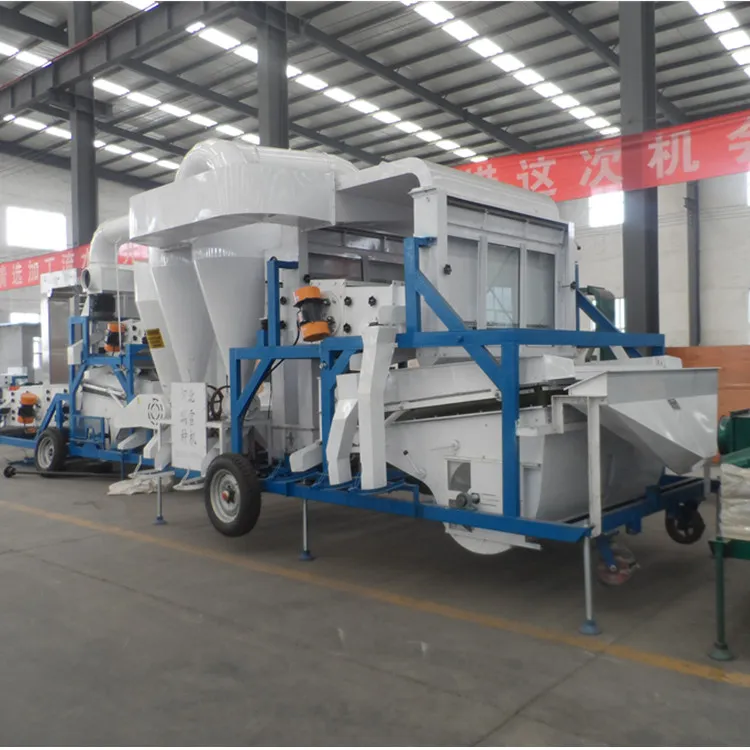

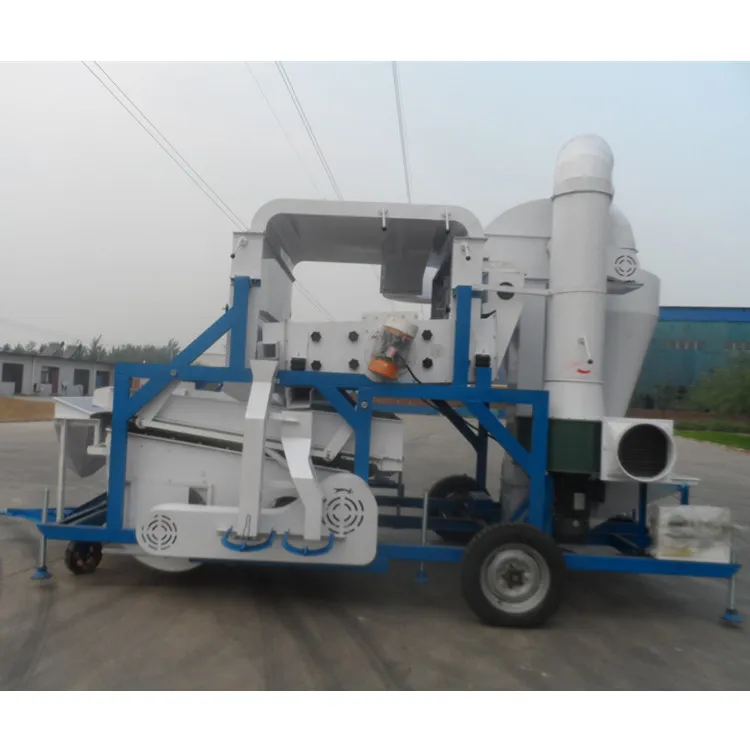

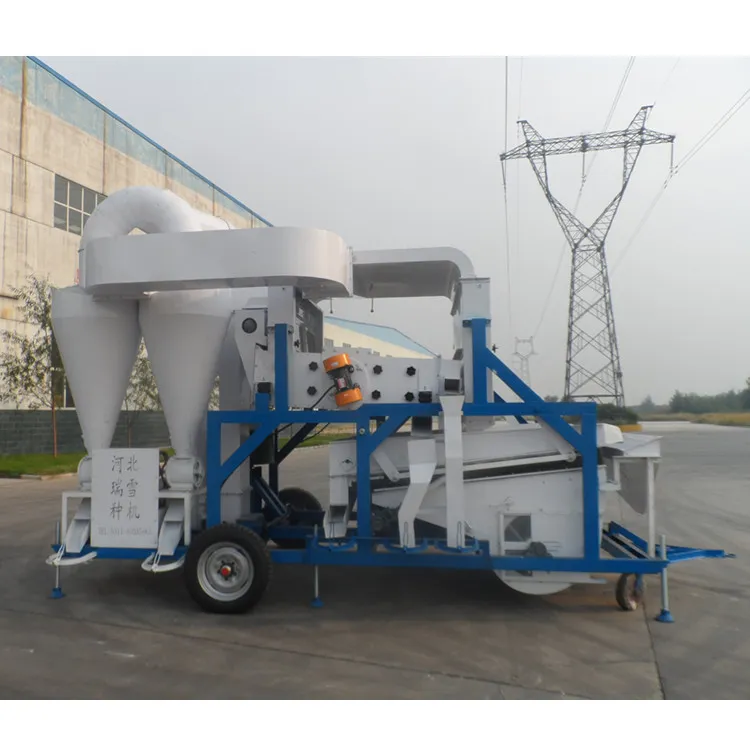

Equipment Showcase

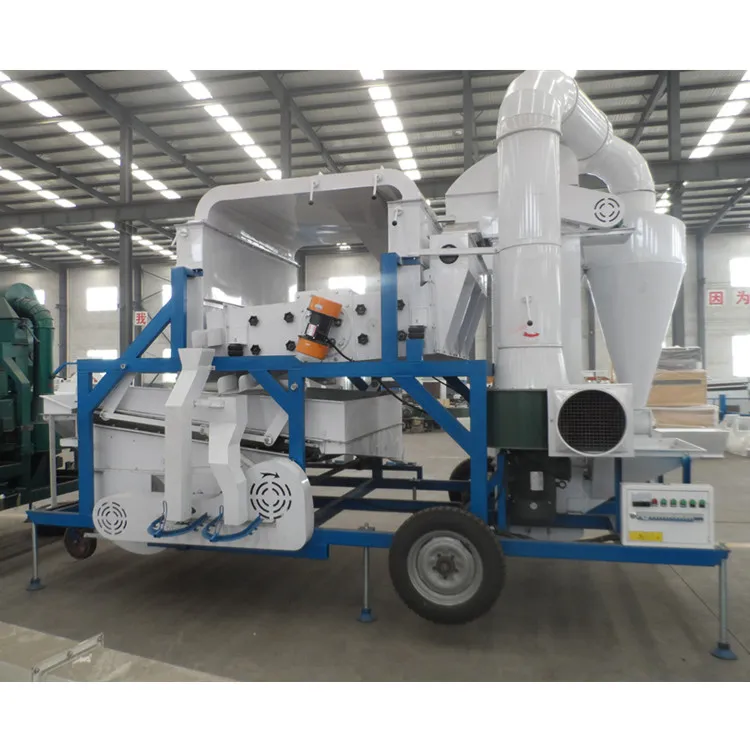

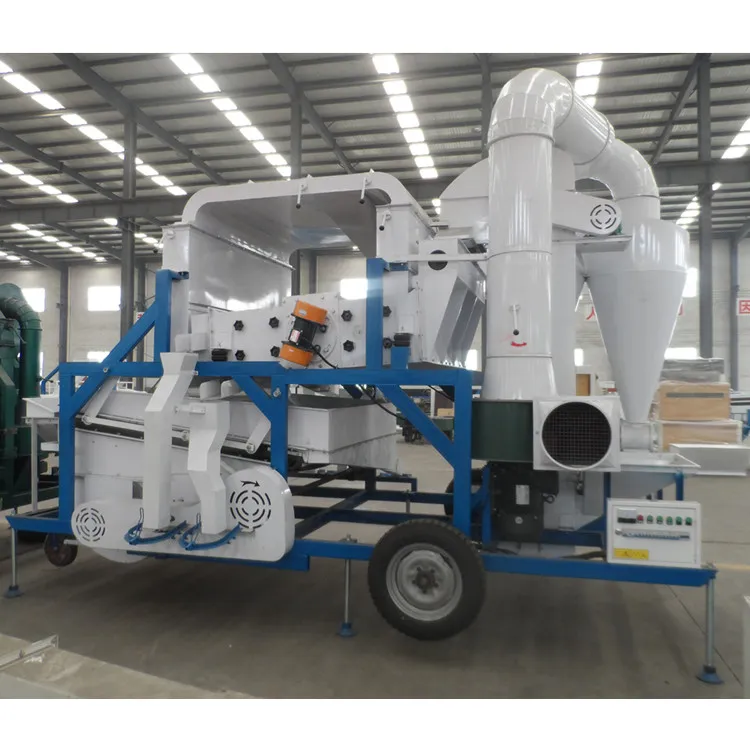

Maize Wheat Seed Cleaning Equipment Machine for Sesame Beans Wheat

Frequently Asked Questions

Q1: What is the main application of the 5XZS seed processing equipment?

A1: The machine is uniquely designed for wheat hulling, air cleaning, gravity separating, vibratory sieve separating, and grading to maximize cleaning efficiency for sesame, beans, wheat, and other grains.

Q2: How can I process grains other than wheat with this equipment?

A2: When processing other grains, you can put the grain directly into the hopper of the bucket elevator and turn off the wheat huller.

Q3: What types of impurities does the gravity separator remove?

A3: The gravity separator is designed to remove bad seeds including partially eaten, immature, insect-damaged, and sick seeds.

Q4: What is the processing capacity of the 5XZS machine?

A4: Both the 5XZS-10CDS and 5XZS-10DS models have a processing capacity of 10 metric tons per hour.

Q5: What are the differences between model 5XZS-10CDS and 5XZS-10DS?

A5: The 5XZS-10CDS model is equipped with a wheat huller, operating at a power of 23.6 KW and weighing 3200 kg. The 5XZS-10DS model does not include a wheat huller, operates at 15.6 KW, and weighs 2900 kg.

Q6: What is the production capacity and warranty for this machine?

A6: The machine has a production capacity of 30 sets per month and comes with a 1-year warranty.
