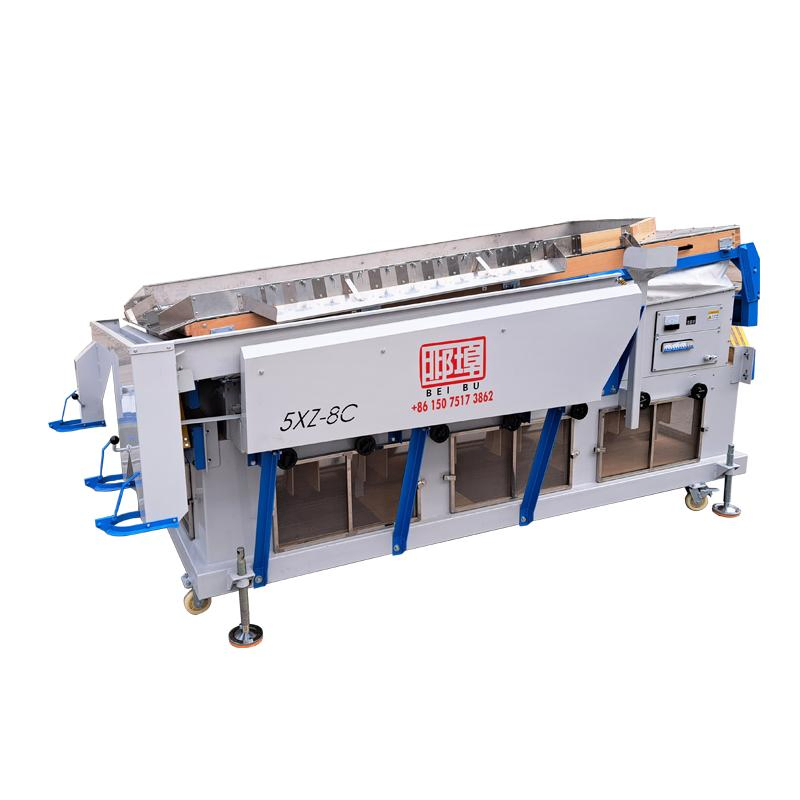

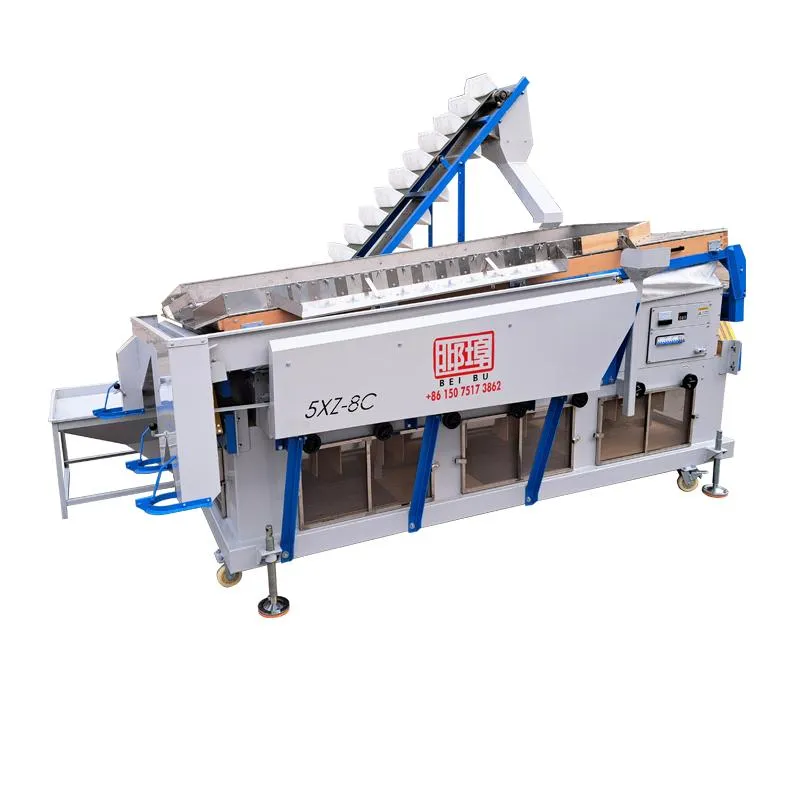

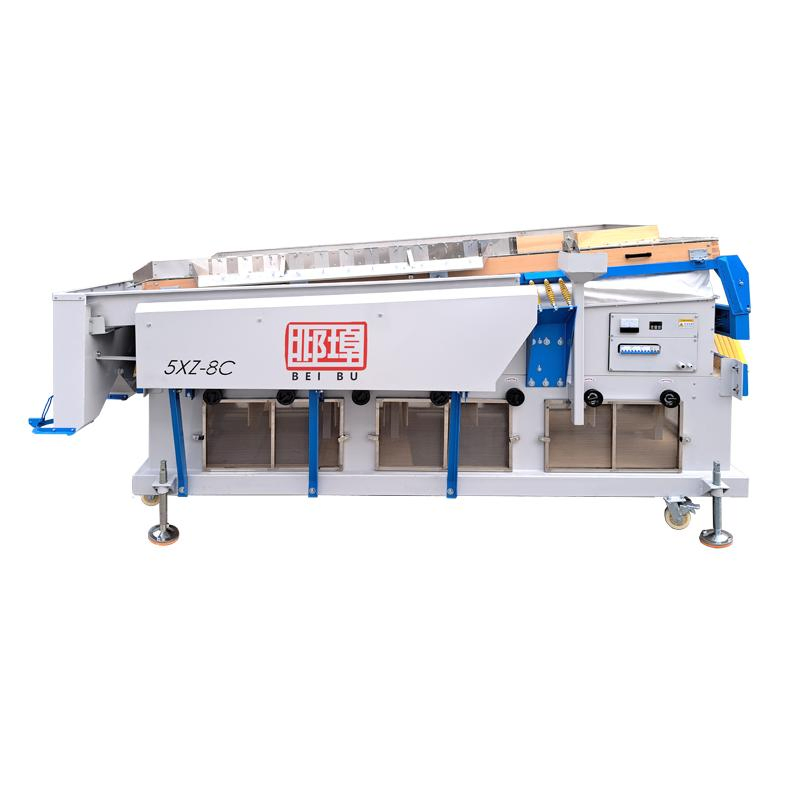

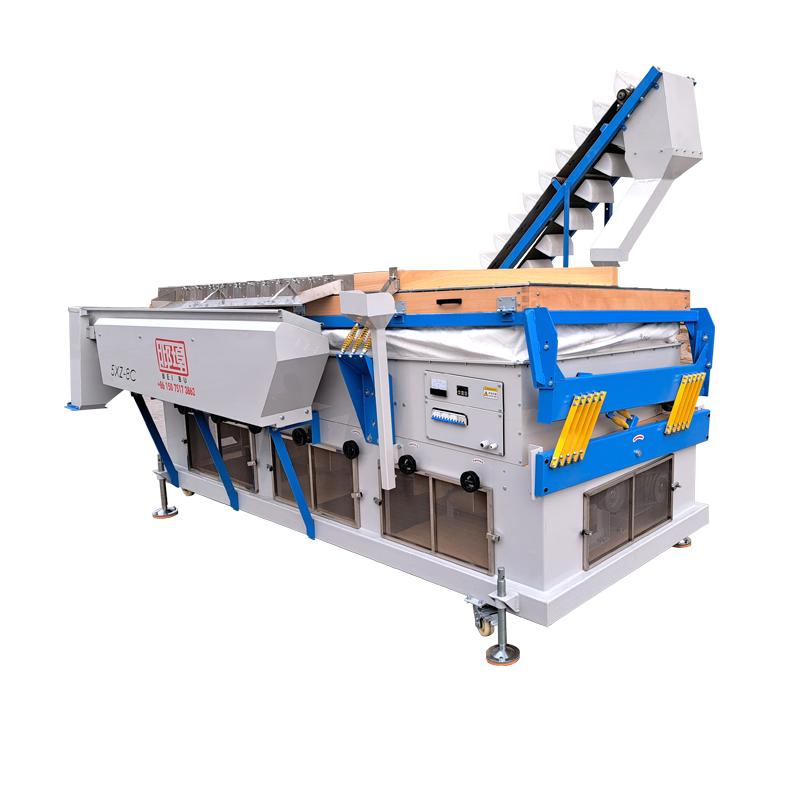

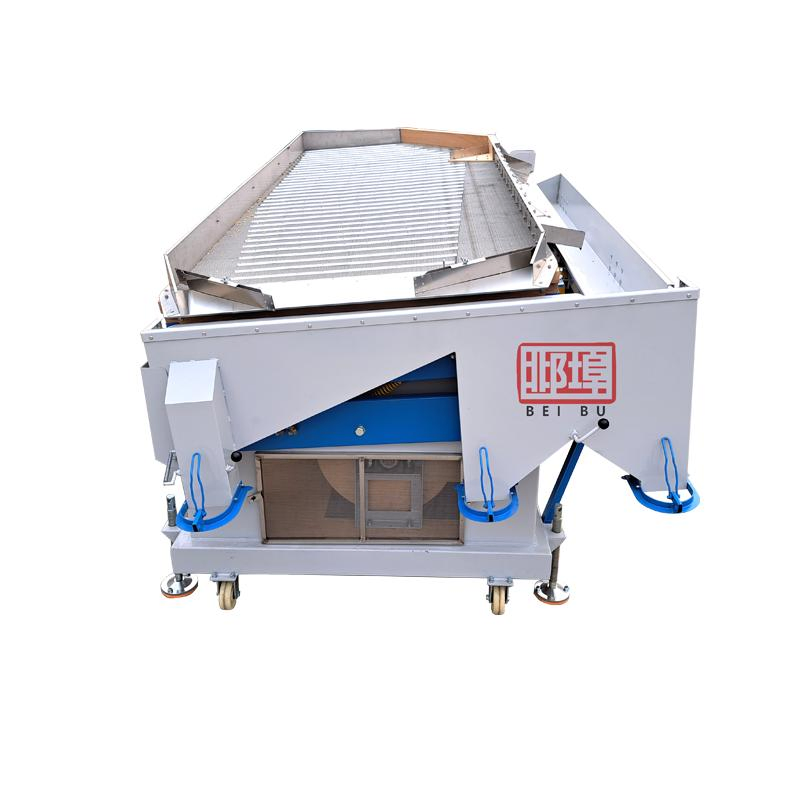

5XZ-8 Gravity Separator Gravity Table Sesame Beans Cleaning Machine

Product Description

Blowing type Gravity Separator will separate the moldy, blighted, and insected grain from the good grain.

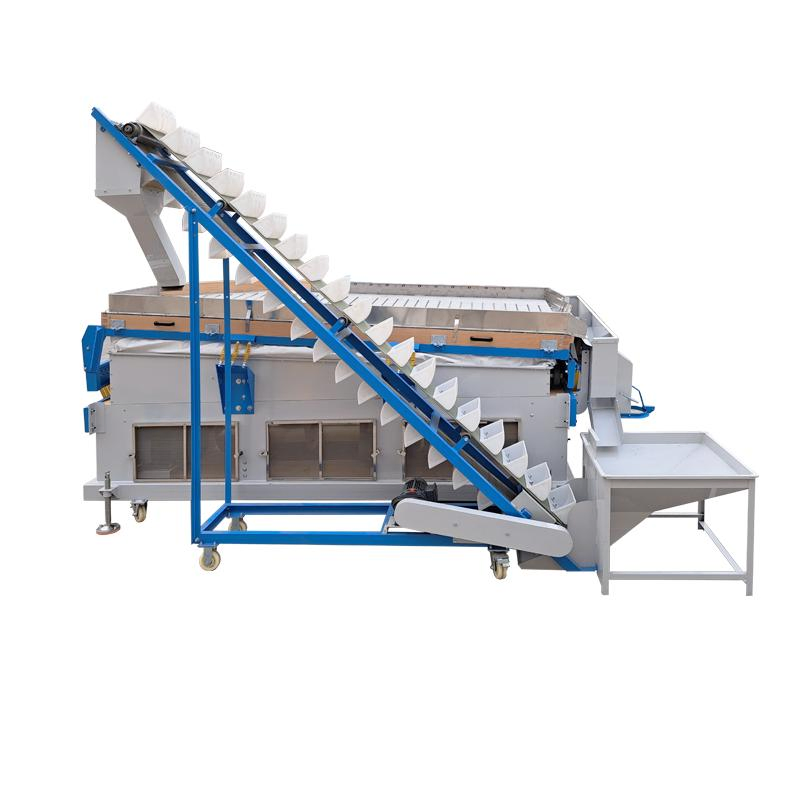

The raw material will deliver to the gravity separator by elevator, then the material will evenly scattered on the gravity separator table, with the fan motor under the table blow up the wind and the vibration of machine, and the different angle of the gravity table, the moldy, blighted, and insected grain will go to the down side and the good grain will go to the higher side and getting out, the middle part will be the mixed area, the mixed part will go to the slope elevator for the recycling.
The Gravity Separator can work for different grain like sesame, soybean, sunflower seeds, pepper seeds, pumpkin seeds, water melon seeds, and for soybean the capacity is about 3-4t/h, for sunflower seeds which is about 2.5t/h.

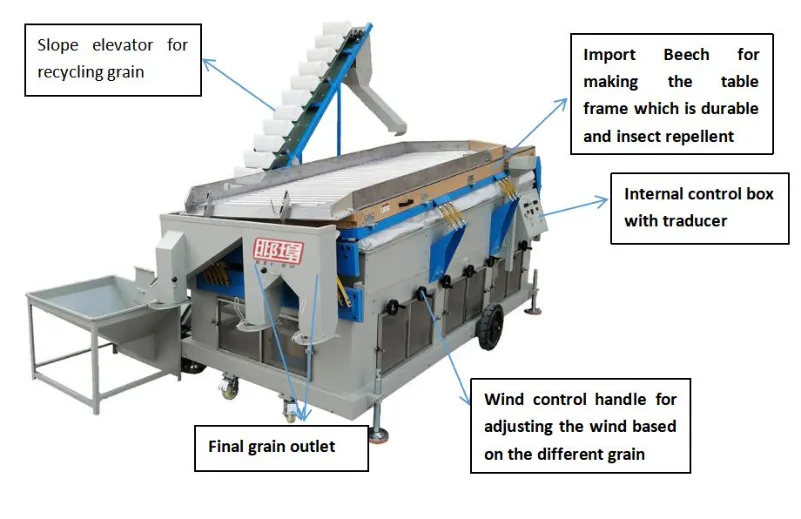

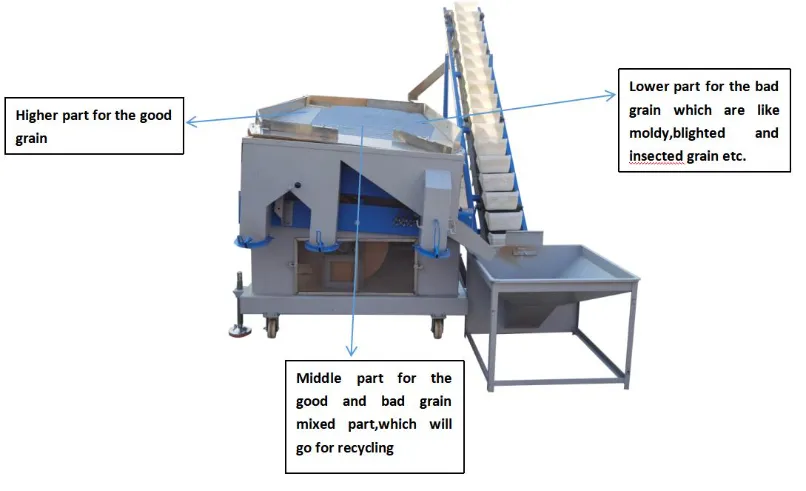

Machine Structure

Product Parameters

Model	5XZ-8	5XZ-10
Gravity Table Size	1380*3150mm	1500*3900mm
Power (kw)	13.2KW	15KW
Capacity (t/h)	5t/h based on beans	10t/h based on beans
Weight (kg)	1600	2000
Overall Size L×W×H (mm)	3870mmx1720mmx1700mm	4300×1960×2500
Voltage	380V, 50HZ, three phase	380V, 50HZ, three phase

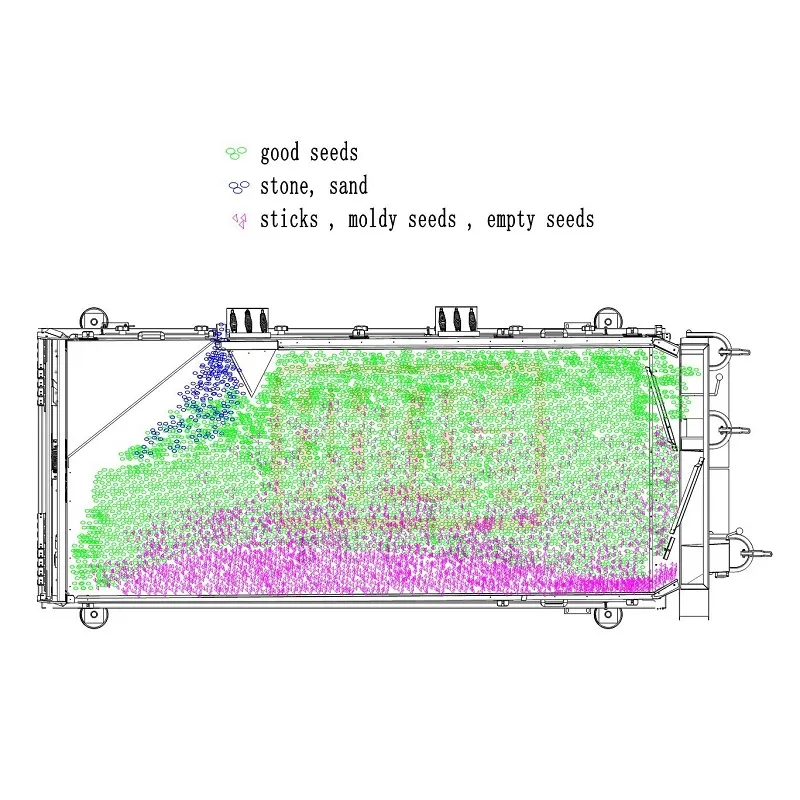

Cleaning Result

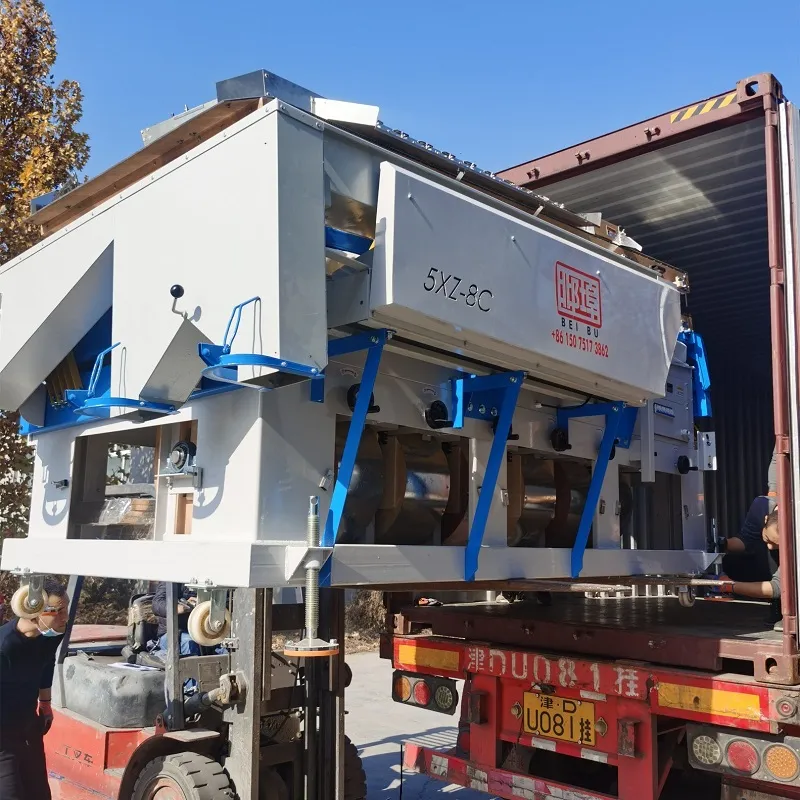

Machine Loading

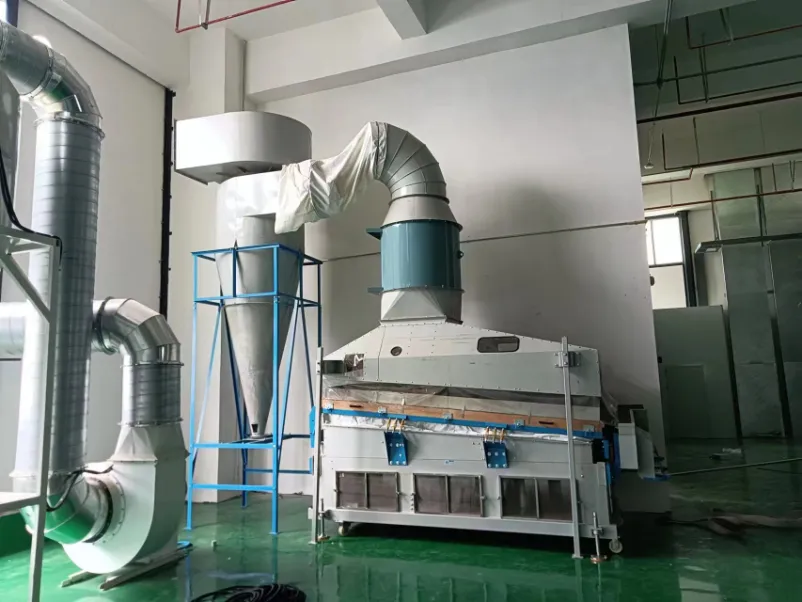

Client Cases

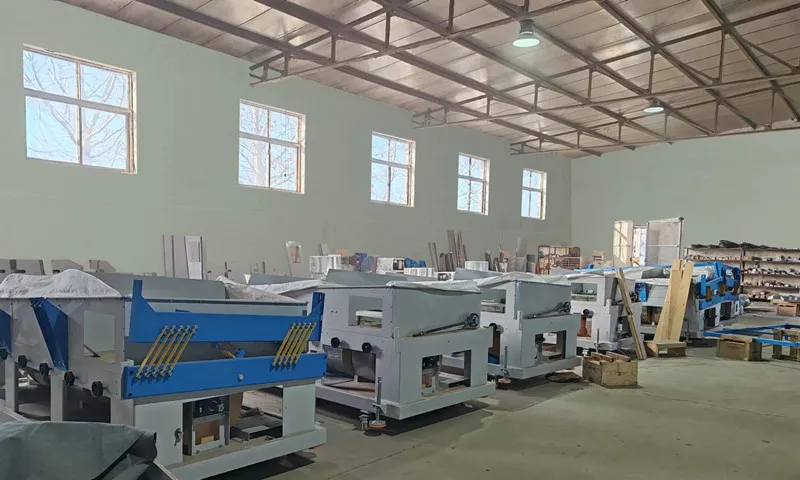

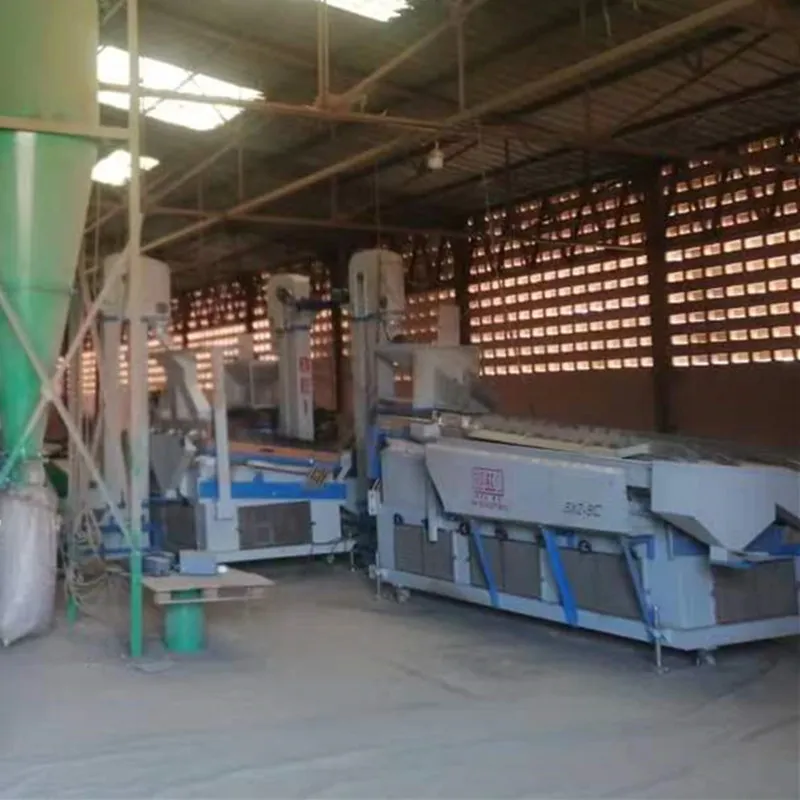

Installation Warehouse

Frequently Asked Questions

Q: How does the blowing type gravity separator work?

A: Raw material is delivered via elevator and scattered evenly onto the gravity separator table. Powered by a fan motor beneath the table producing air draft, combined with table vibration and adjustable table angles, the lighter, damaged (moldy, blighted, or insected) grains shift downward, while the high-quality, heavier grains move upward to the discharge outlet.

Q: What types of grains and seeds can this gravity separator clean?

A: It processes a wide range of grains and seeds, including sesame, soybeans, sunflower seeds, pepper seeds, pumpkin seeds, and watermelon seeds.

Q: What is the output capacity of the 5XZ-8 and 5XZ-10 models?

A: The 5XZ-8 model offers a capacity of 5 tons per hour based on beans (approx. 3-4t/h for soybean, and 2.5t/h for sunflower seeds). The larger 5XZ-10 model delivers up to 10 tons per hour based on beans.

Q: What power supply and voltage are required for these machines?

A: Both the 5XZ-8 and 5XZ-10 models operate on a 380V, 50HZ, three-phase electrical supply.

Q: What happens to the mixed portion of materials during separation?

A: The mixed part of the material falls into the middle zone and is fed back via the slope elevator for recycling and separation.
