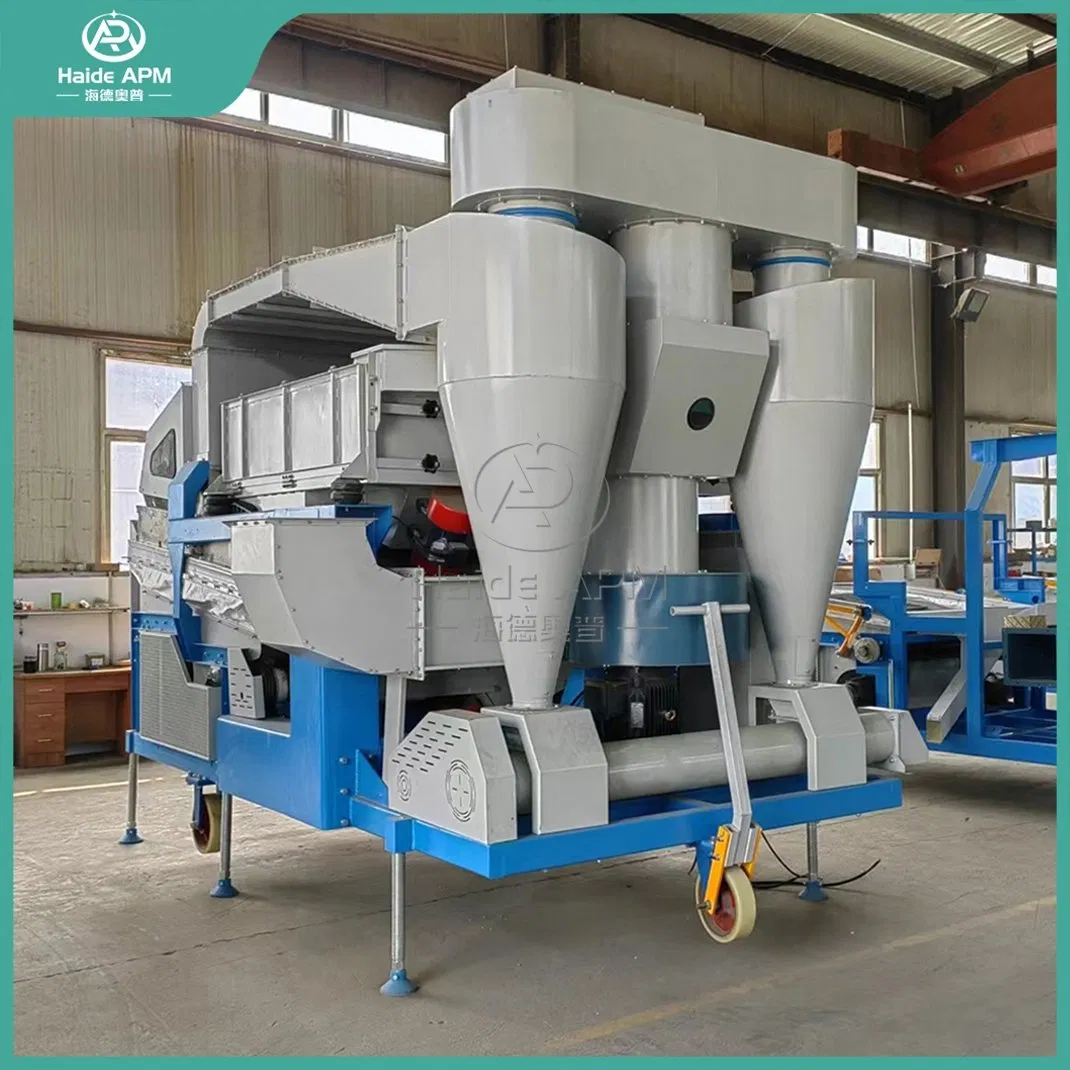

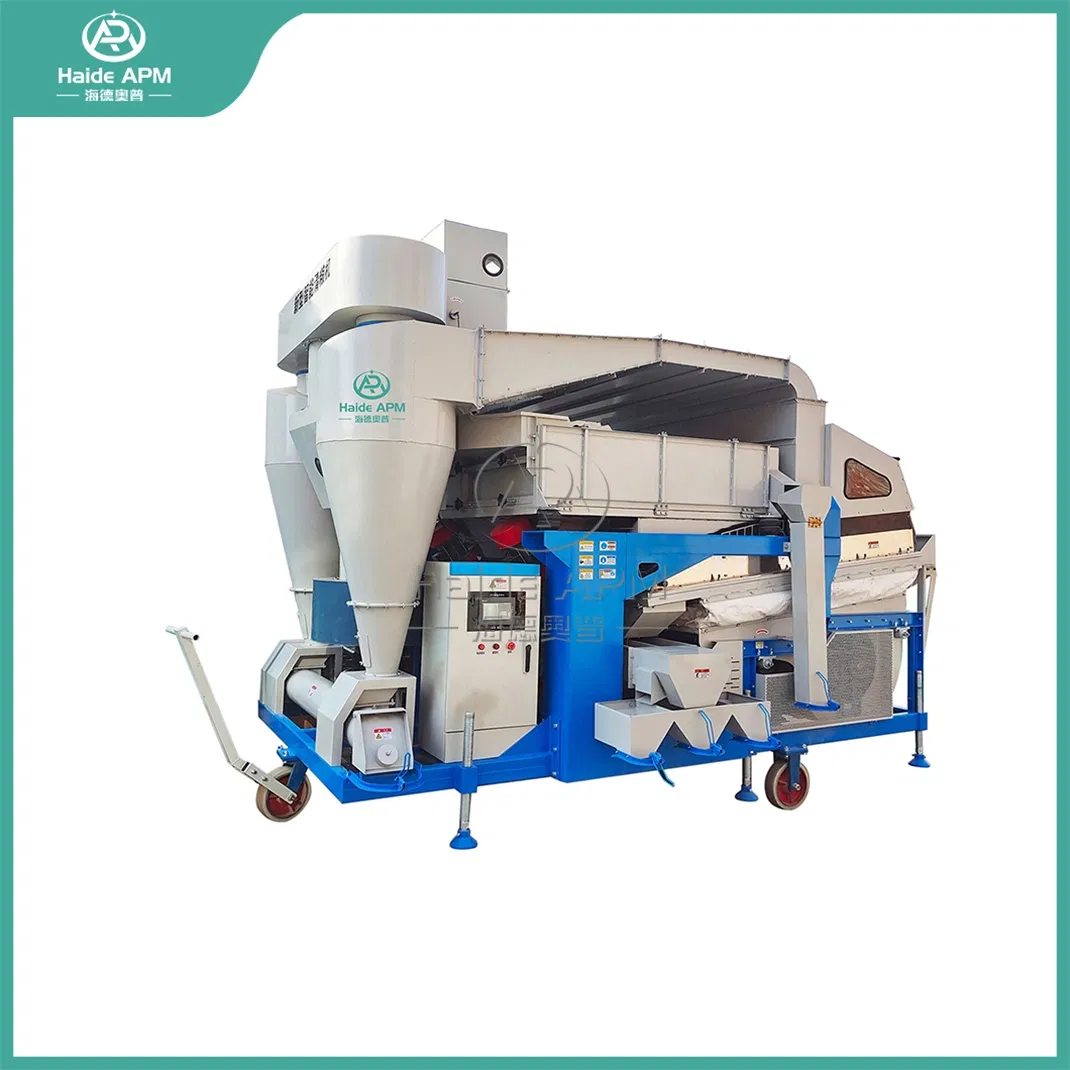

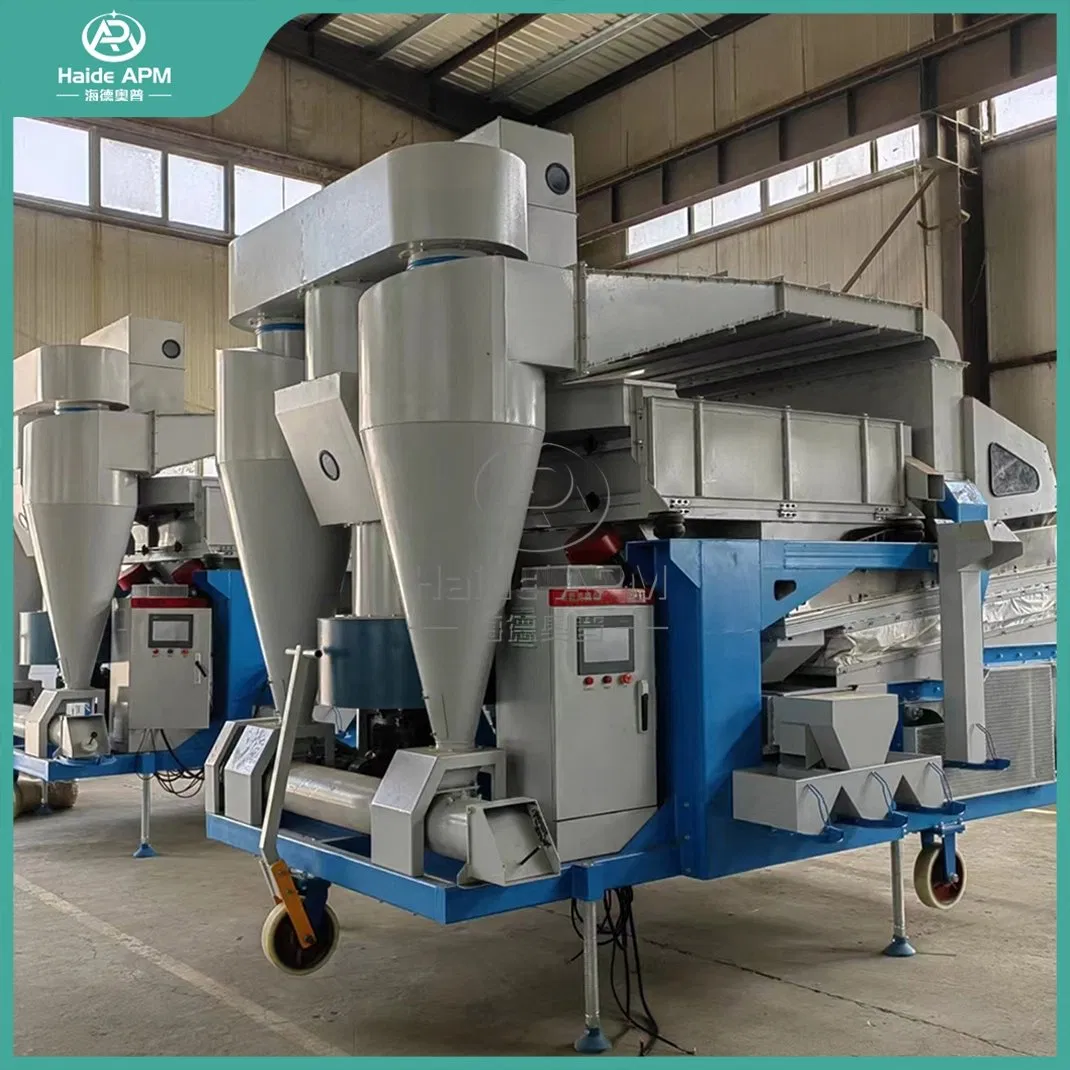

Haide Apm Gravity Separator Cleaner China Wholesaler 30t/H Multifunction Wheat Seed Cleaning Equipment with Gravity Table

Customization: Available
After-sales Service: Online Guide
Warranty: 2 Years

Product Description

Overview & Basic Info
Model NO.Grain Cleaning Machine
TypeSeed Grain Processing Machinery
ApplicationBeans, Wheat, Corn, Soybean, Sesame etc.
Voltage380V, Customizable
AppearanceVertical
ConditionNew
CustomizedCustomized
Product NameIntelligent Compound Cleaning Machine
KeywordsGrain Cleaning Machines
Model5xfz-50s
Input3 Phase Electricity
Power36 Kw
Productivity20-30t/H
Gravity Table2250X2000 mm
Sieves1500X2000 mm
Weight5600 Kg
Overall Size4270 X 3215 X 4290 mm
FeatureDouble Cyclones, Very Big Gravity Table
FunctionSeed and Grain Cleaning, Remove Impurity
CertificateCE, Soncap, Ectn etc.
OEM/ODMAccept
MOQ1set
Transport PackageStandard or Customized
SpecificationStandard or Customized
Production Capacity500 Set/Sets Per Month
Product Description

Gravity Separator Cleaner 30T/H Multifunction Wheat Seed Cleaning Equipment With Gravity Table

Gravity Separator Cleaner
Multifunction Wheat Seed Cleaning Equipment
Seed Cleaning Equipment with Gravity Table

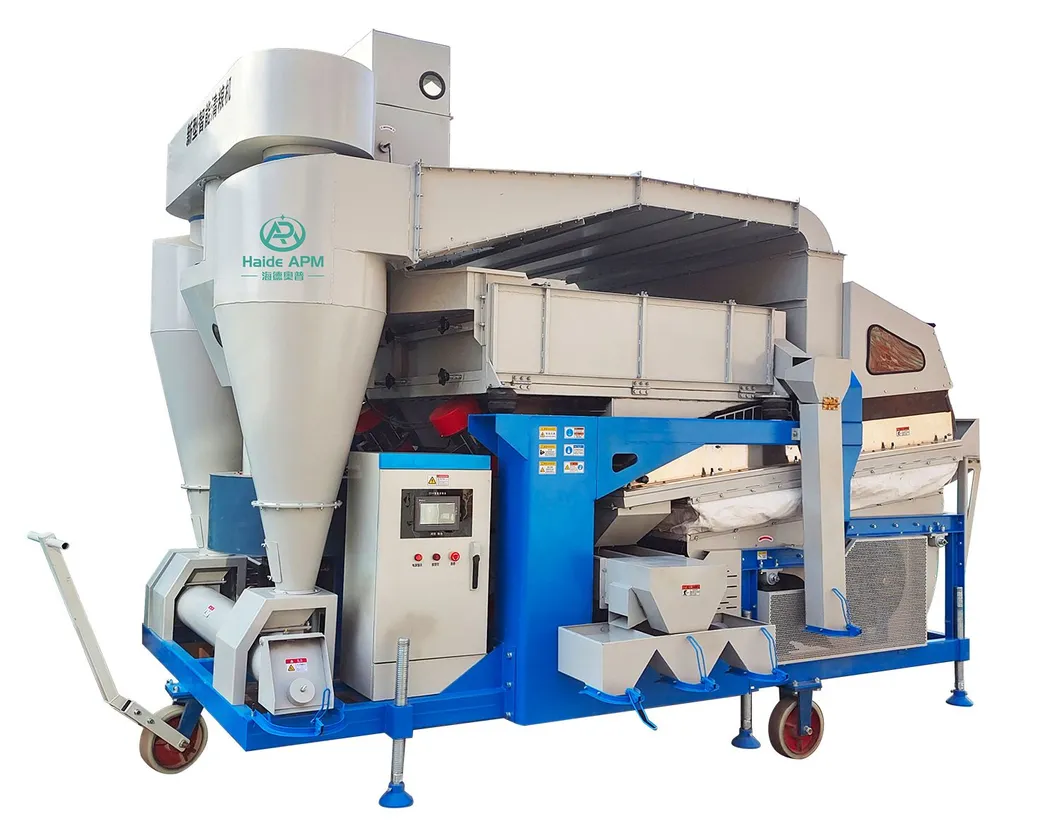

Intelligent Compound Cleaning Machine details
Intelligent Compound Cleaning Machine

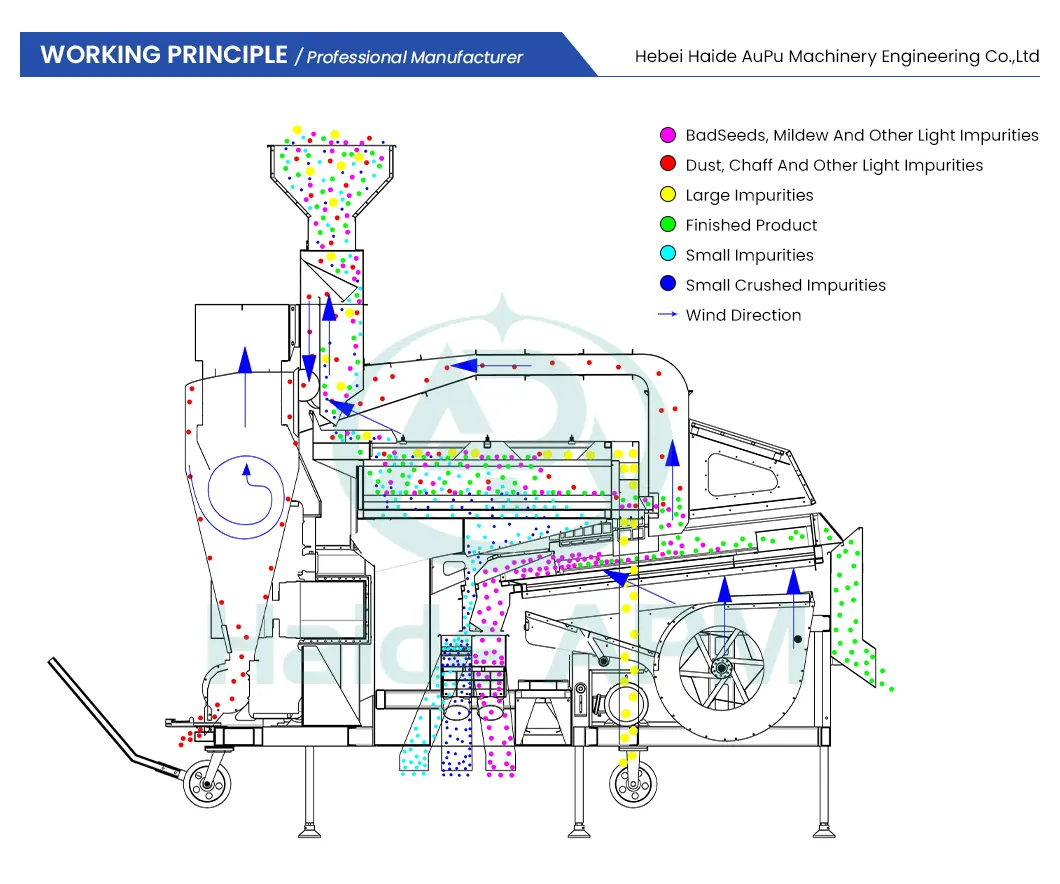

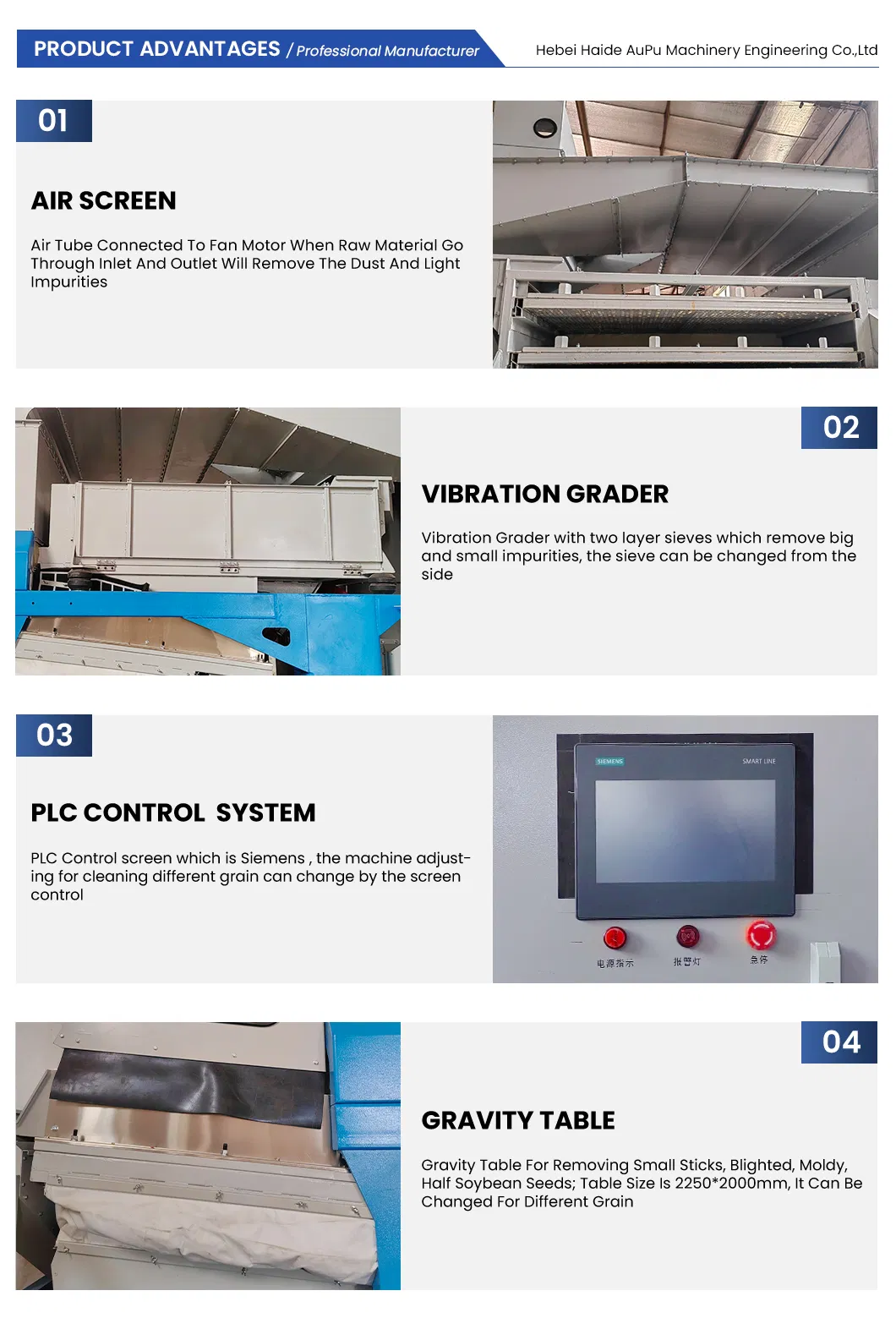

This Seed Cleaner, a Compound Cleaner with a gravity table, removes dust, leaf, and light impurities by the air screen.

Remove large and small impurities by Vibration screening. Remove more than 90% of bad seeds, like blighted seeds, budding seeds, damaged seeds (by insects), rotten seeds, deteriorated seeds, moldy seeds, non-viable seeds, seeds with black powder sick by the gravity table.

A vibrating groove is arranged below the outlet of the vibrating screen to separate a part of the half beans. This machine is mainly used to remove light impurities, large impurities, small impurities, and relatively light bad seeds, insects, and mildew.

Detailed Photos

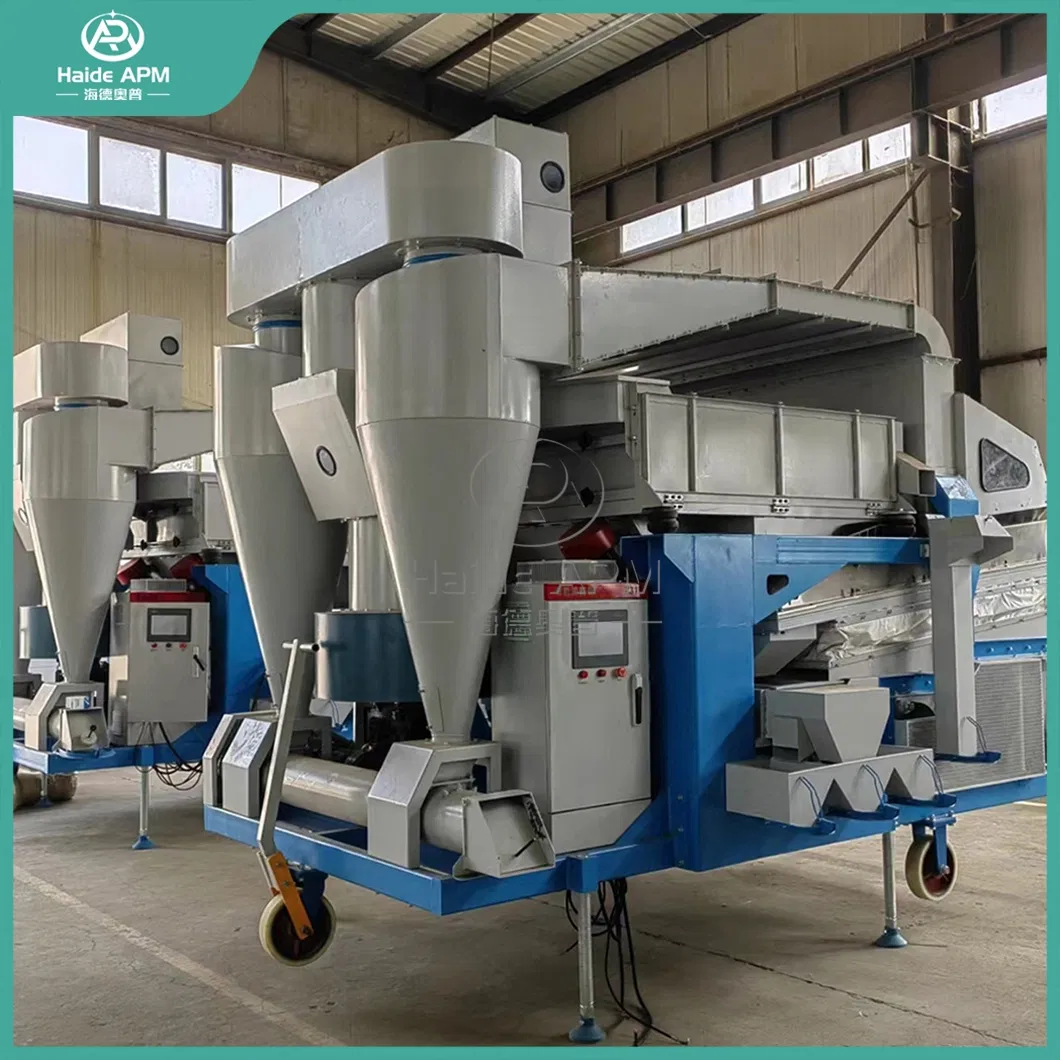

Detailed overview

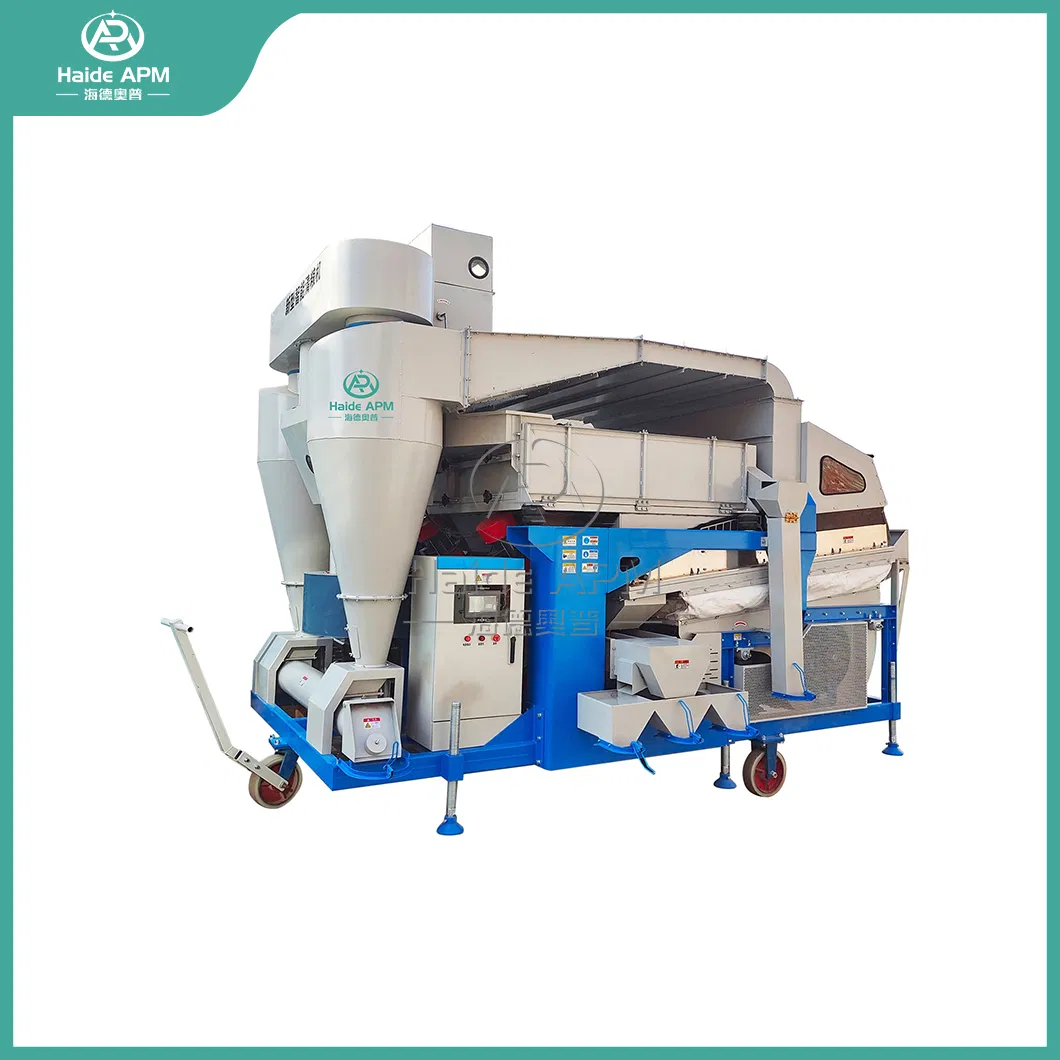

Component close-up 1

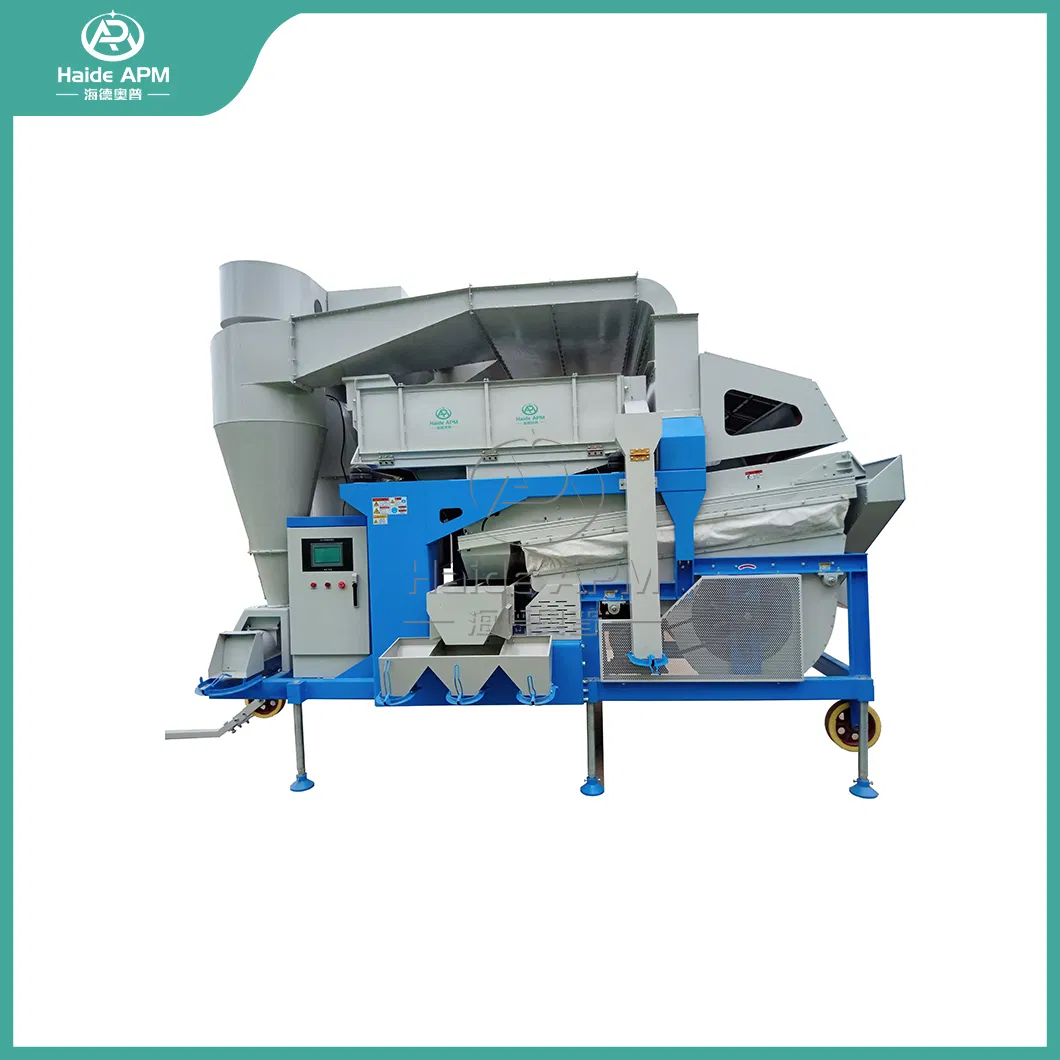

Component close-up 2
Component close-up 3
Product Parameters
Product Parameter Specifications
Product NameIntelligent Compound Cleaning Machine
KeywordsGrain Cleaning Machines
Model5XFZ-50S
Input3 Phase Electricity
Power36 Kw
Productivity20-30t/h
Gravity Table2250x2000 mm
Sieves1500x2000 mm
Weight5600 kg
Overall Size4270x3215 x4290 mm
FeatureDouble Cyclones, Very Big Gravity Table
FunctionSeed and Grain Cleaning, Remove Impurity
CertificateCE, SONCAP, ECTN, etc.
OEM/ODMAccept
MOQ1set
Model Gravity table (mm) Sieves (mm) Power (Kw) Capacity (ton/h) Weight (Kg) Overall Size L×W×H (mm)
5XFZ-50S 2250x2000 1500x2000 36 20-30 5600 4270 x 3215 x 4290

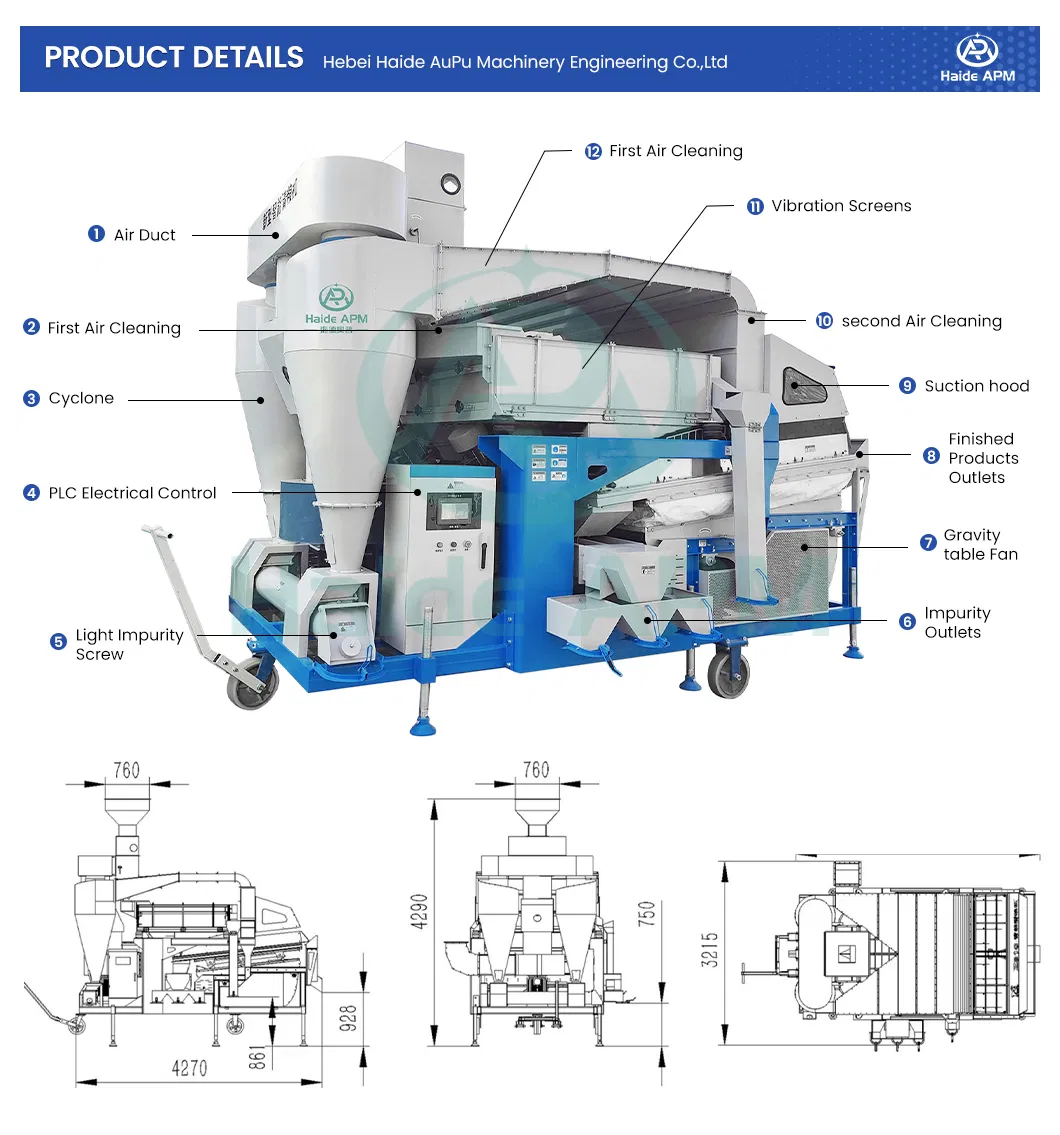

Structure layout

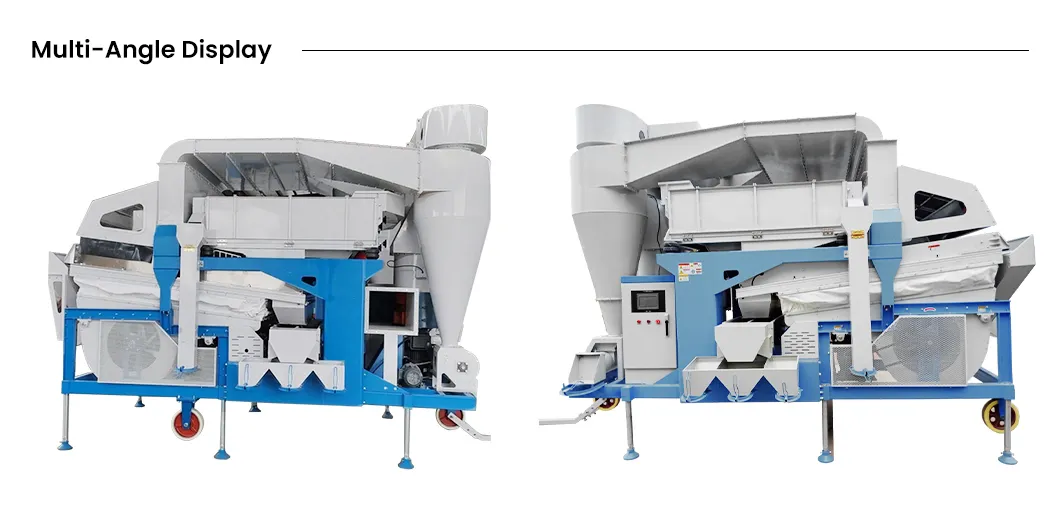

Operating structure
Machine blueprint
Dimension specifications
Clean cycle diagram
Technical parameters info
Operational flow chart
Operational Overview
Processing flowchart
Workshop workflow
Frequently Asked Questions
Q1: Are you a factory or trading company?
We are a professional manufacturer of seed processing machinery and also operate an international trading division to serve our global clients.
Q2: Can we visit the production facility?
Absolutely! Our production facilities are open for visits. Please coordinate with our business managers in advance to arrange scheduling and pick-up services.
Q3: How can I request the latest product catalog?
You can contact us directly, and our team will promptly send over the latest catalog containing our comprehensive machinery range.
Q4: How do you guarantee the quality of the machinery?
Prior to dispatch, our engineers carefully configure and test each unit to ensure optimal operation. Additionally, we supply common spare parts and provide reliable technical support to address any operating issues.
Q5: What details are needed to receive a tailored solution?
To configure the perfect setup, please provide:
1. Raw material type and purity requirements.
2. Impurity level of the input material.
3. Desired production capacity.
4. Target purity of the finished product.
5. Plant layout or size specifications.
Q6: What payment methods are supported?
We support multiple flexible payment methods, including T/T, L/C, MoneyGram, Western Union, and PayPal.
