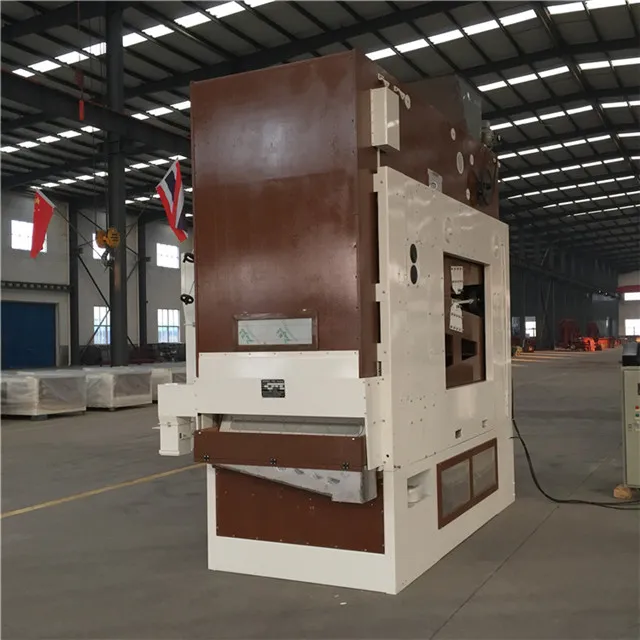

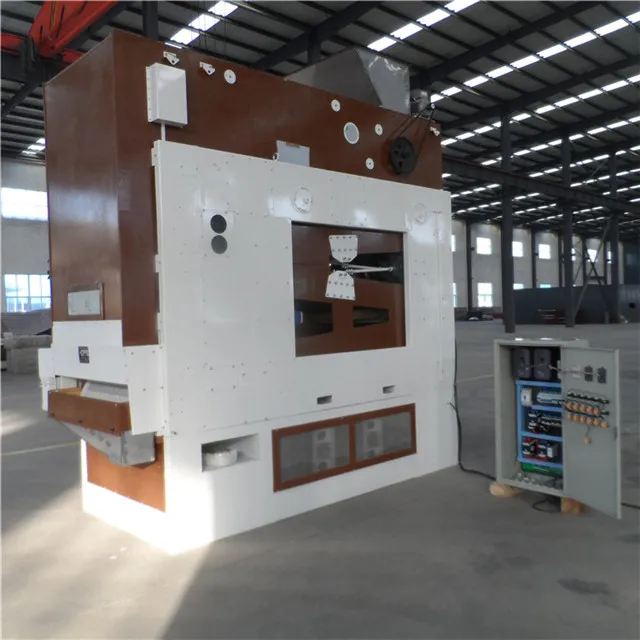

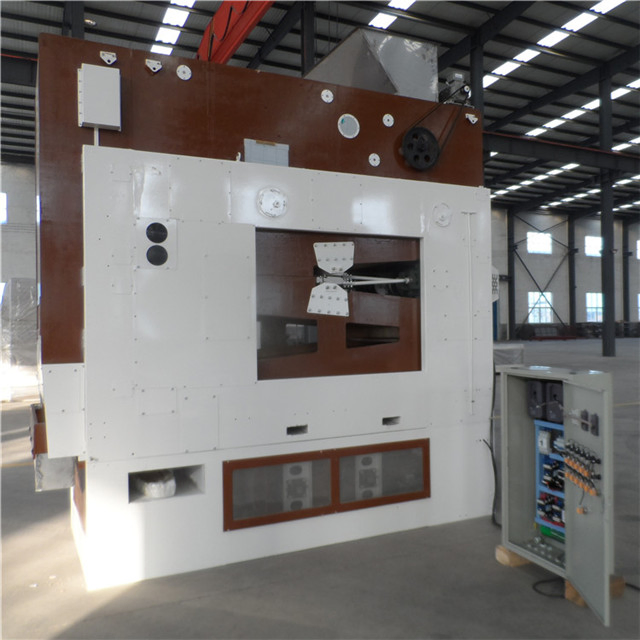

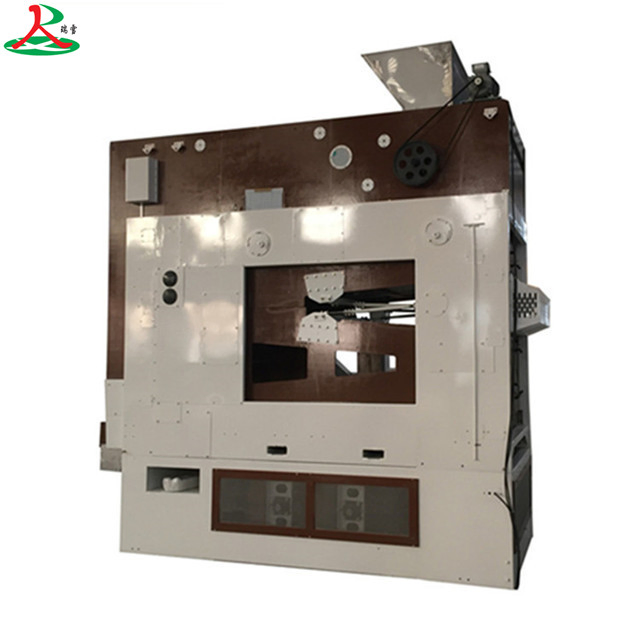

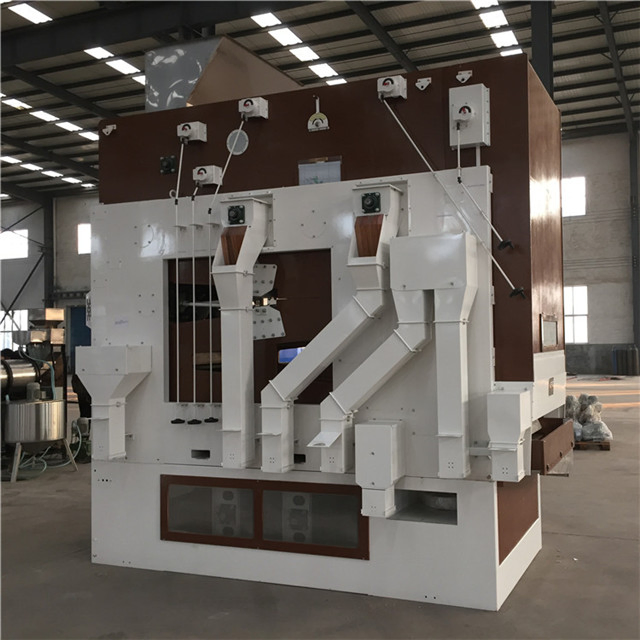

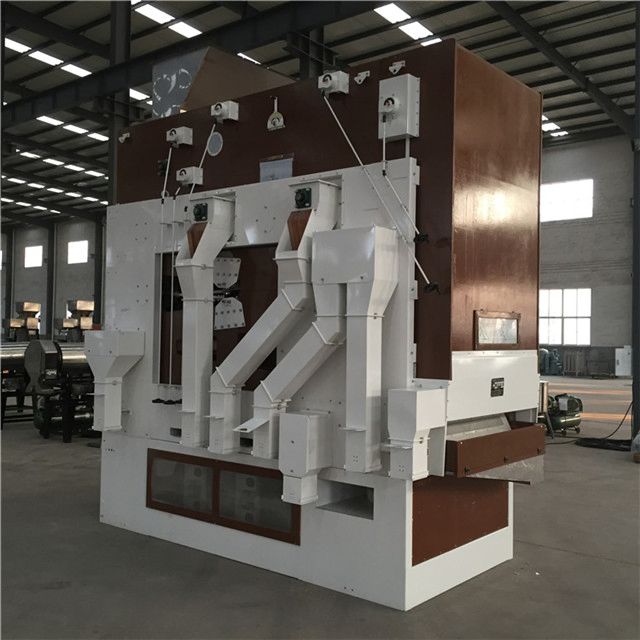

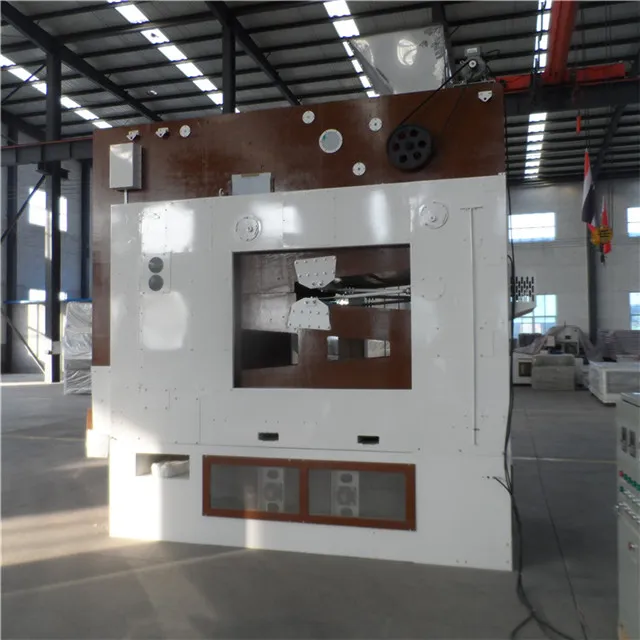

The 5X series Grain Wheat Maize Paddy Rice Seed Cleaning Equipment is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds. The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.
| Model | 5X-5 | 5X-12 |
| Dimension(L×W×H) | 3200×1920×3600 mm | 3790×1940×4060 mm |
| Overall weight | 3250 kg | 3600 kg |
| Rated capacity | 5 t/h | 12 t/h |
| Overall air volume | 8200 m3 | 12520 m3 |
| External air blower | 4-72N0-6A, 7.5 kW | 4-79N0-6A, 11kw |
| Vibration sieve motor(gear motor) | 2.2 kW | |
| Back lifting system motor | 3.0 kW | |
| Feeding motor | 1.5 kW | |
| Total Power | 6.7 kW | |
| Air Blower Type | centrifuge air blower | |
| Top air blower Rotary speed | 4-79NO6A,1400 r/min | |
| Back lifting air blower Rotary speed | 100~1000 r/min | |
| Screen Type | piercing screen | |
| Screen Dimension (L×W) | 800×1250 mm | |
| Frequency | 300(80~400) times/min | |
| Amplitude | 30 mm | |
| Layers and number | 4 layers,7 pieces | 5 layers,15 pieces |
The 5X series seed cleaning equipment is a universal machine designed for both pre-cleaning and fine cleaning of various grain and seed species, including wheat, maize, paddy, and rice.
The machine features a quick screen changing system designed for operator convenience, allowing fast transitions from pre-cleaning to fine cleaning settings to optimize performance.
Yes, the screen boxes are made of high-quality, wear-resistant plywood that is fully approved for food-grade processing applications.
The equipment utilizes special rubber balls designed for continuous and efficient screen cleaning during operation to prevent clogging.
The rated capacity depends on the model: the 5X-5 model has a capacity of 5 tons per hour, while the larger 5X-12 model has a capacity of 12 tons per hour.
The machine is finished with a high-quality powder lacquering, which provides a durable, wear-resistant surface protectant for heavy-duty operations.
