Basic Info.
Application
Flour, All, Beans, Wheat, Starch, Rice flour
Production Capacity (Kg/H)
100000 - 300000
Sieve Size(mm)
100X200 Cm or Customized
Transport Package
Customized
Production Capacity
Customizable
Product Description

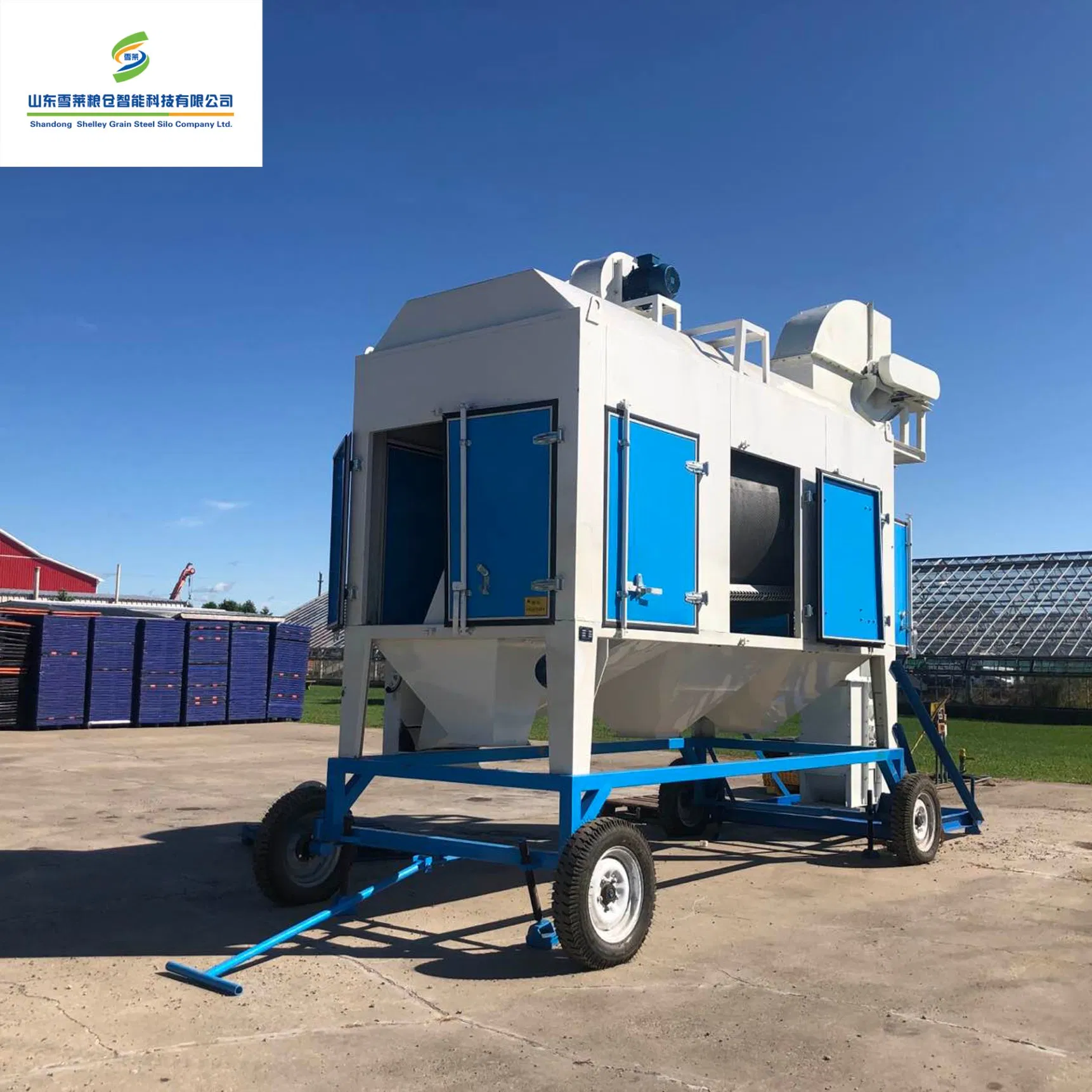

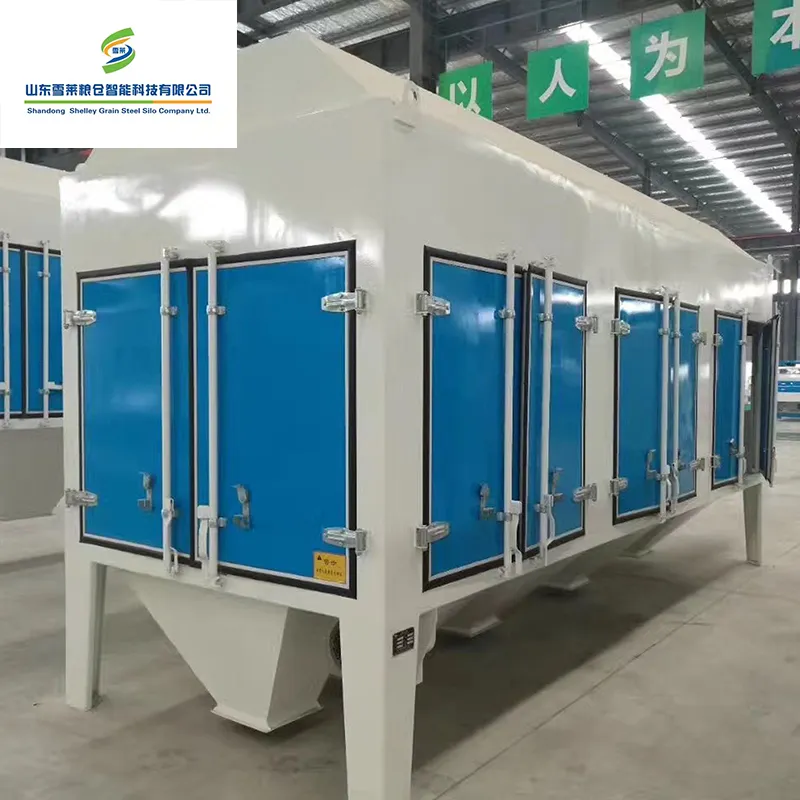

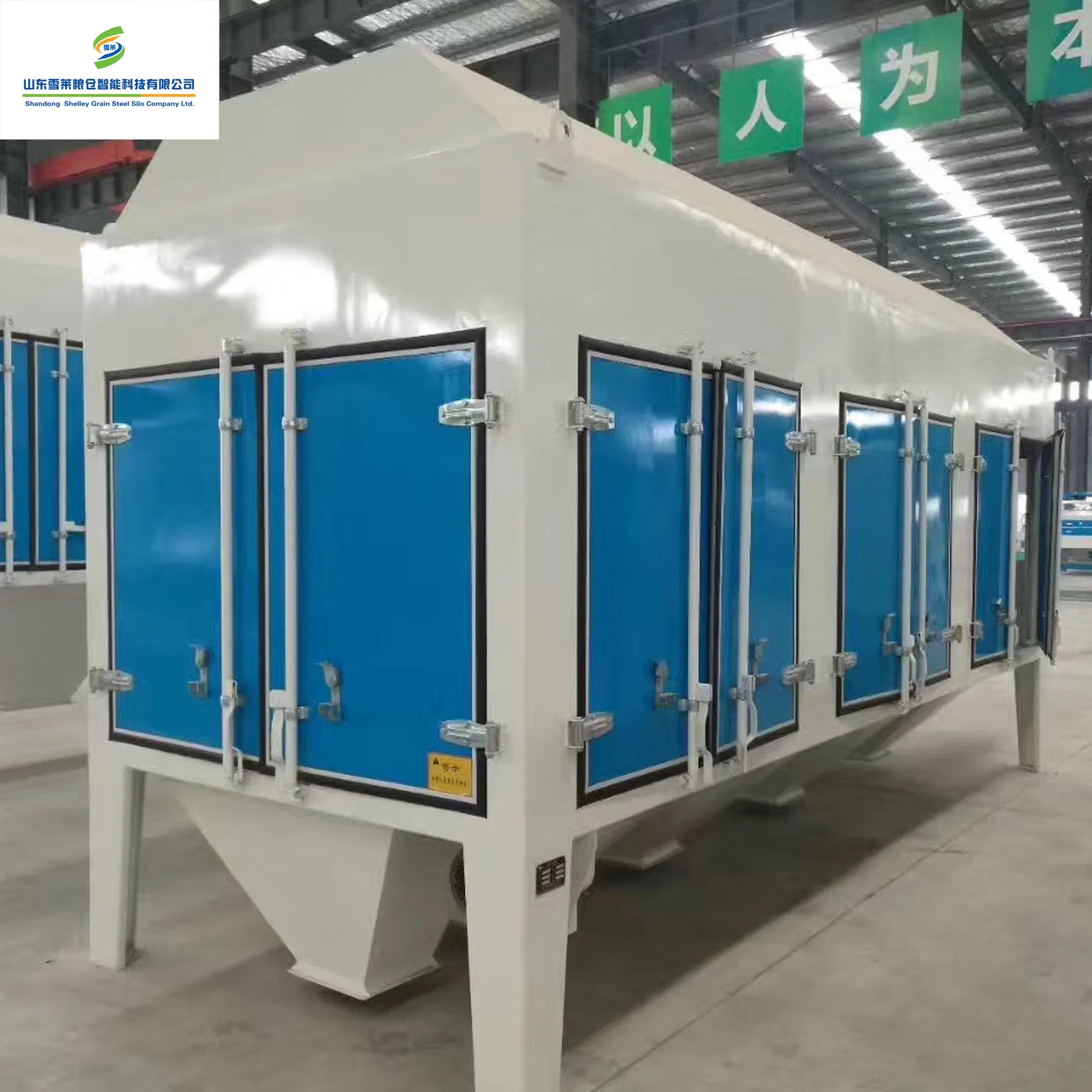

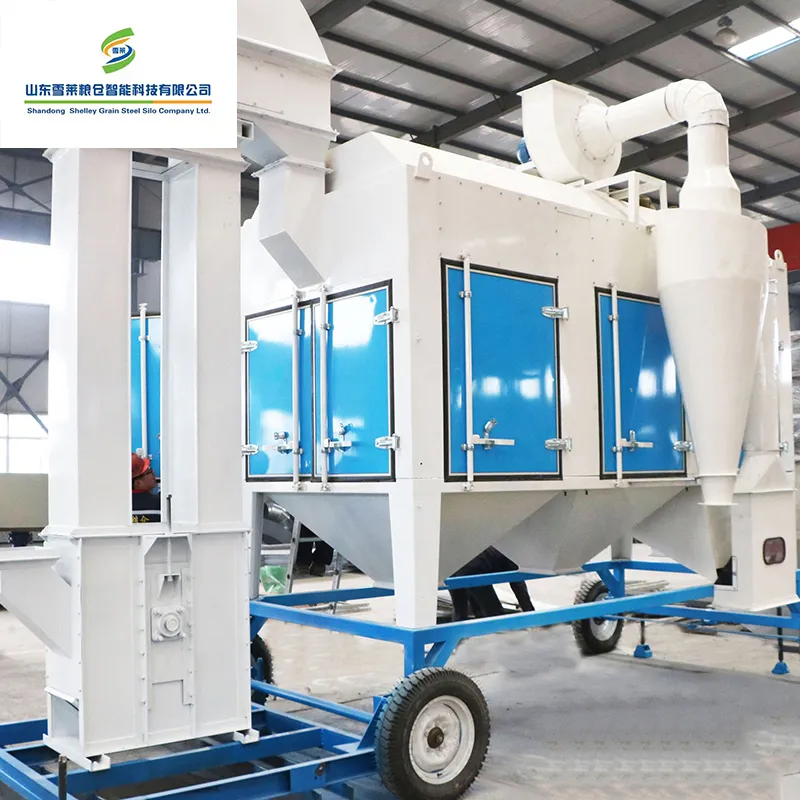

Grain Soybean Corn Paddy Pre Cleaning Machine Equipment
TQLY adjustable angle double barrel cleaning screen is a new type of cleaning equipment. It is widely used in food, starch, oil, alcohol and other industries. It mainly removes the impurities in the original grain such as corn, soybean, wheat, rice, etc. through the sieve cylinder to achieve continuous screening, and separates the large impurities larger than the inner sieve hole and the small impurities smaller than the outer sieve hole from two different outlets.
When the original grain is cleaned, the material enters the sieve cylinder from the feeding port. Through the rotation of the sieve cylinder, the material is continuously separated in the sieve cylinder, and the net grain, large impurities, fine impurities and light impurities flow out according to the specific position.
Specification
| Model parameter |
TQLY 100/220 |
TQLY 100/320 |
TQLY 100/320-4B |
TQLY 100/420 |
TQLY 125/420 |
TQLY 125/520 |
| Produce quantity T/H |
Corn |
30-50 |
40-80 |
120-180 |
60-100 |
75-130 |
85-150 |
| Wheat |
35-55 |
50-90 |
120-160 |
70-100 |
80-120 |
80-140 |
| Soybeans |
40-55 |
45-90 |
120-200 |
65-100 |
80-150 |
80-165 |
| Rice |
20-30 |
30-40 |
70-90 |
45-80 |
55-90 |
65-110 |
| Standard miscellaneous rate (%) |
80 |
80 |
80 |
80 |
80 |
80 |
| Cleanup rate (%) |
40 |
40 |
40 |
40 |
40 |
40 |
| Power (Kw) |
2.2 |
4 |
2×4 |
5.5 |
7.5 |
7.5 |
| Air volume (m³/h) |
3000 |
4000 |
7500 |
5500 |
6000 |
7000 |

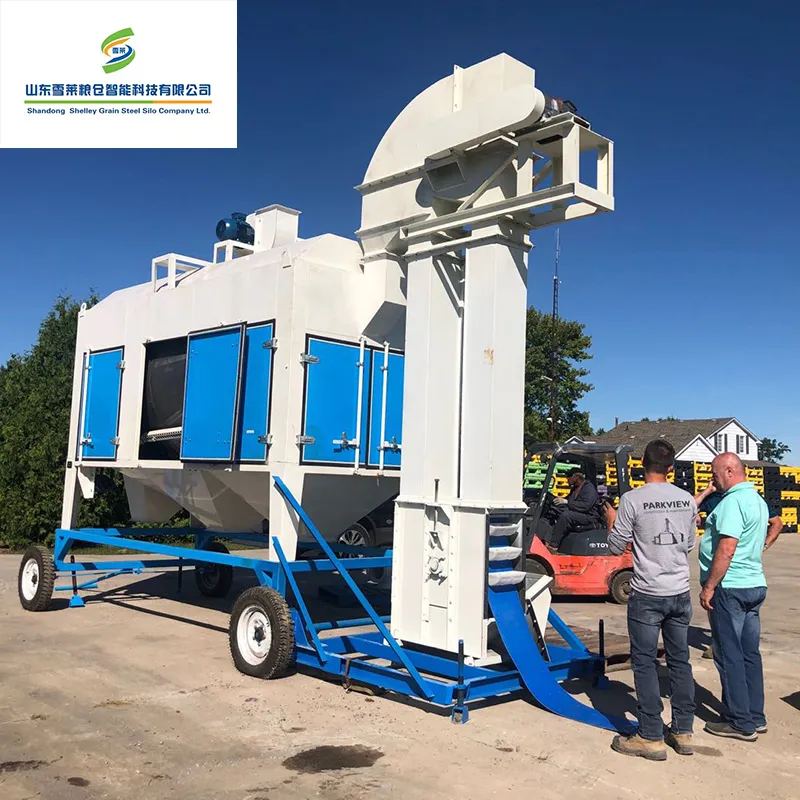

Features
- Suitable to remove light dust or chaff.

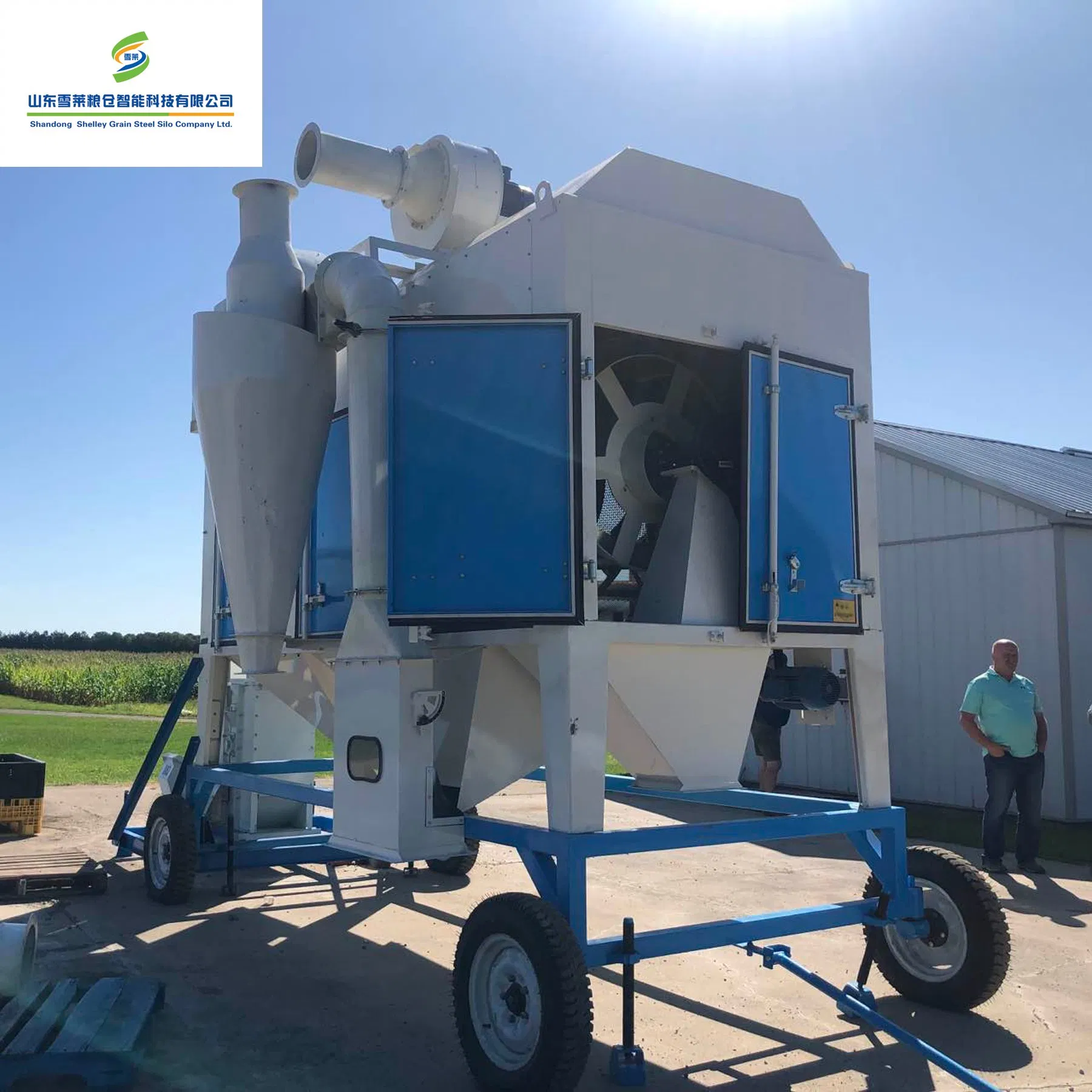

- Fan can be situated to cyclone with negative pressure to minimize dust leaks when exhaust ducting.
- Equipped with 4 fitted mounting brackets.
- Fully galvanized construction for outdoor use.
- Triple extraction point for 3 times the performance.
- Fully adjustable internal guides to ensure the best performance on every crop.
- Side viewing panels to see the adjustment effects.
Wearing parts list
The double-barrel cleaning screen is guaranteed for one year under normal use. The vulnerable parts are provided free of charge according to the time shown in the following table. The details are as follows:
| Number |
Item |
Warranty Time |
| 1 |
Bearing |
Within 6 months |
| 2 |
Universal joints |
Within 6 months |
| 3 |
Riding wheel |
Within 6 months |
| 4 |
Sieve plate |
Within 6 months |
| 5 |
Chain |
Within 6 months |
Frequently Asked Questions
What types of grains can this pre-cleaning machine process?
This equipment is highly versatile and ideal for pre-cleaning various raw grains, including corn, soybeans, wheat, rice, beans, starch, and rice flour.
How does the double-barrel screening mechanism separate impurities?
The machine uses a rotating sieve cylinder. As the cylinder rotates, materials continuously separate. Large impurities (larger than the inner sieve hole) and small impurities (smaller than the outer sieve hole) exit through different designated outlets.
Is this pre-cleaning equipment suitable for outdoor installation?
Yes, the machine is designed with a fully galvanized construction which provides excellent durability and weather resistance, making it suitable for outdoor operations.
How does the machine control and minimize dust leakage?
The pre-cleaning machine can be paired with a negative pressure fan attached to a cyclone system, which actively reduces dust leaks during exhaust ducting.
What is the warranty policy for the wearing parts?
Under standard operating conditions, key wearing parts like bearings, universal joints, riding wheels, sieve plates, and chains are eligible for a free replacement within 6 months.
