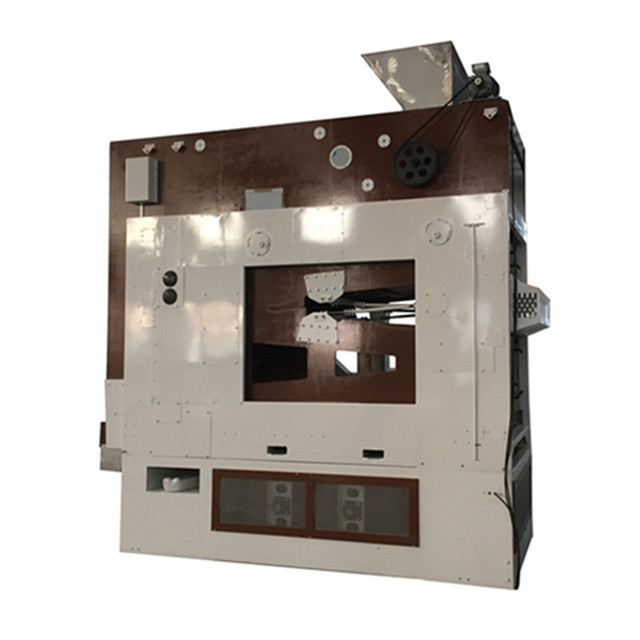

Air Screen Fine Seed Cleaning Equipment for Wheat Paddy Sesame Bean

Customization:	Available
Name:	Air Screen Fine Seed Cleaning Equipment for Wheat
Model:	5X-12

Basic Info

Model NO. 5X-12

Capacity 10 Tons Per Hour

Power 6.7kw

Voltage 110-680V

Layer 5

Color Designed

Warranty One Year

Spare Parts One Year

Discount Yes

Transport Package Container

Specification ISO9001, TUV, SGS, CE, SONCAP

HS Code 84371090

Production Capacity 100 Sets/Month

Air Screen Fine Seed Cleaning Equipment

Introduction

The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds. The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks. The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.

Characteristics of 5X series seed cleaner

Easy and quick operation and screen changing

Screen boxes made of wear resistant plywood approved for food

Screen cleaning with special rubber balls

Built-in light

Durable surface due to high-quality powder lacquering

Specification of 5X series seed cleaner

Model	5X-5	5X-12
Dimension(L×W×H)	3200×1920×3600 mm	3790×1940×4060 mm
Overall weight	3250 kg	3600 kg
Rated capacity	5 t/h	12 t/h
Overall air volume	8200 m3	12520 m3
External air blower	4-72N0-6A, 7.5 kW	4-79N0-6A, 11kw
Vibration sieve motor(gear motor)	2.2 kW	2.2 kW
Back lifting system motor	3.0 kW	3.0 kW
Feeding motor	1.5 kW	1.5kw
Total Power	6.7 kW	6.7kw
Layers and number	4 layers, 7 pieces	5 layers, 15 pieces

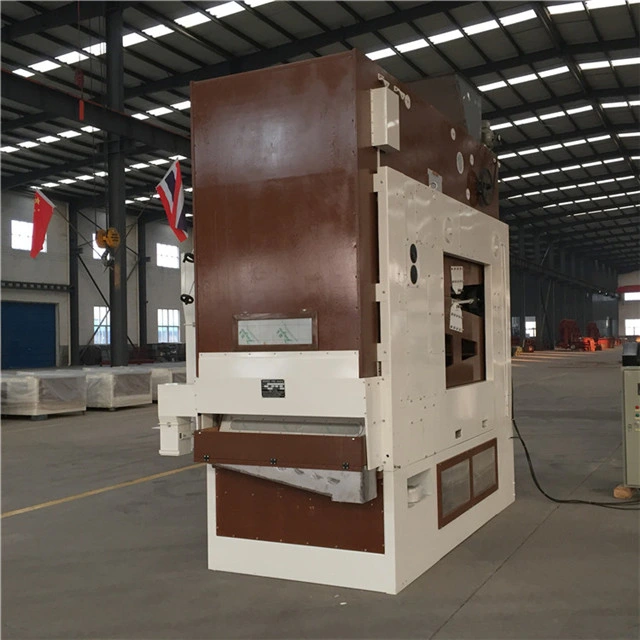

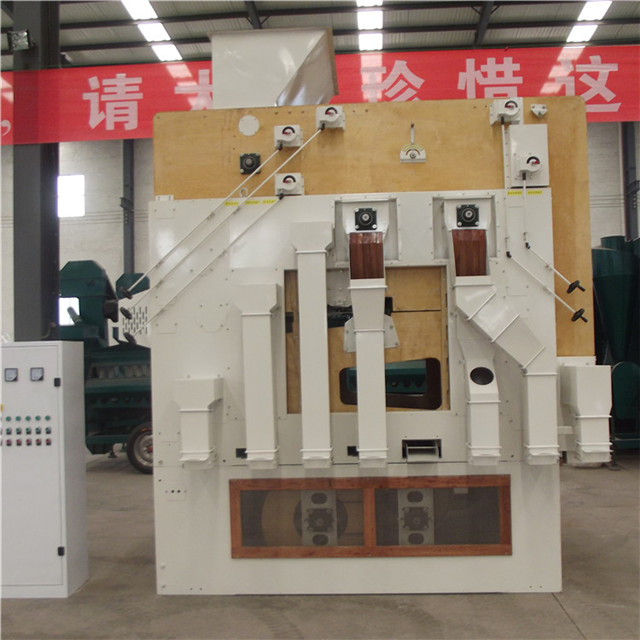

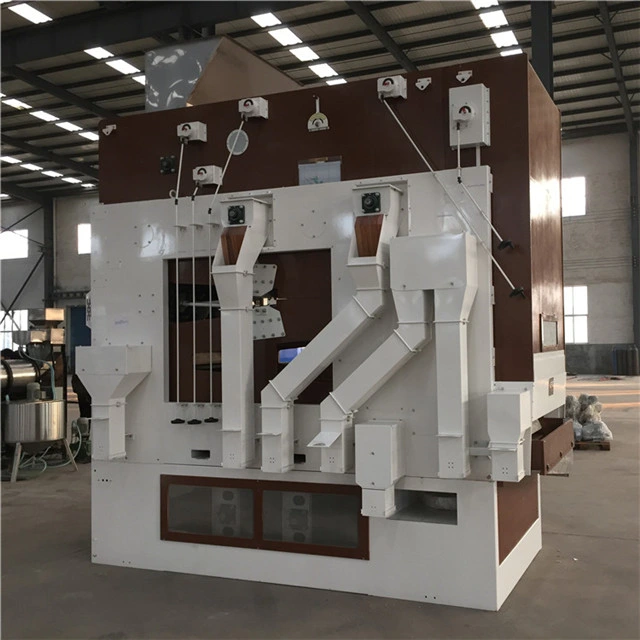

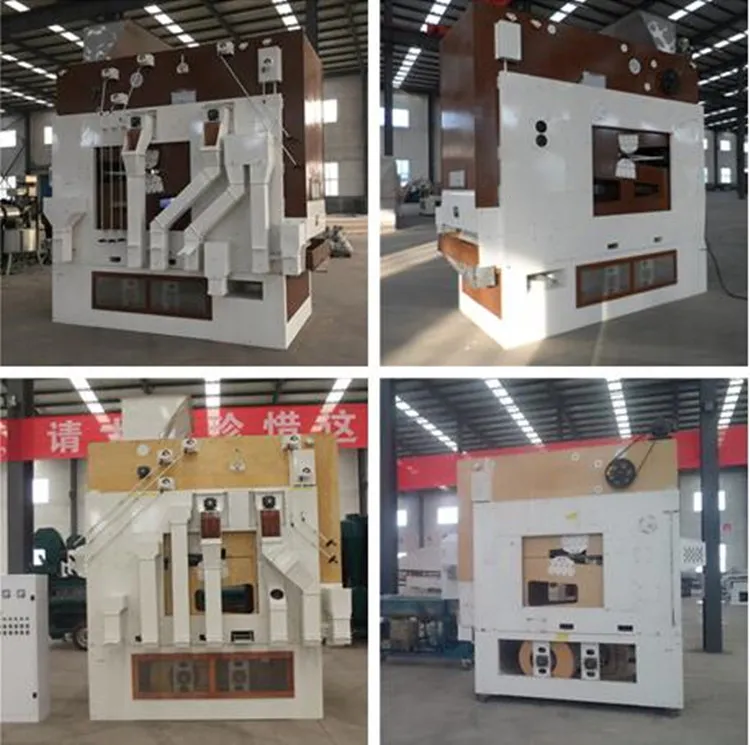

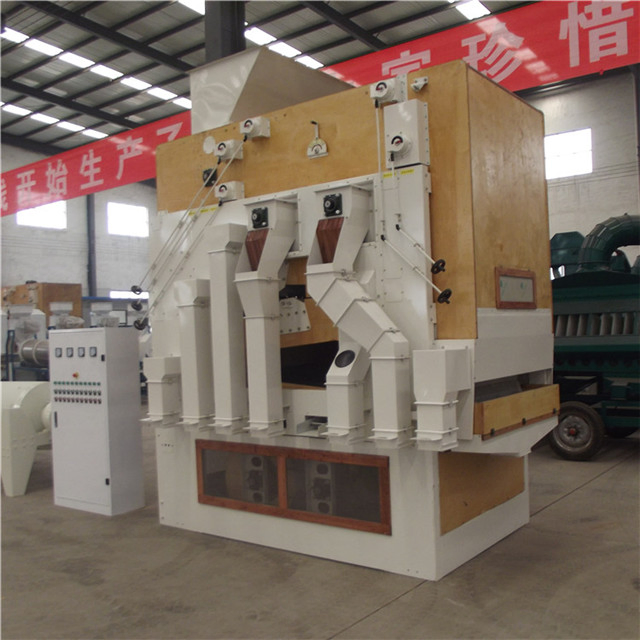

Detail Images

Air Screen Fine Seed Cleaning Equipment for Wheat Paddy Sesame Bean

Frequently Asked Questions

What are the primary applications of the 5X series seed cleaner?

The 5X series seed cleaner is a universal machine designed for both pre-cleaning and fine cleaning of many different types of grain and seeds, including wheat, paddy, sesame, beans, and more.

What capacities are available for the 5X series?

We offer different configurations, including the 5X-5 model with a rated capacity of 5 tons per hour and the 5X-12 model which provides a capacity of up to 12 tons per hour.

How does the machine prevent screens from clogging?

The machine features a built-in screen cleaning system utilizing special rubber balls that continuously bounce against the screens to clear blockages during operation.

What electrical voltages does the seed cleaner support?

The equipment is highly adaptable and supports standard industrial voltages ranging from 110V to 680V to suit different regional requirements.

What materials are used for the screen boxes?

The screen boxes are constructed of wear-resistant plywood that is officially approved for food processing, ensuring hygiene and durability.

What is the warranty period for this equipment?

Both the equipment itself and its replacement spare parts come with a standard one-year warranty.
