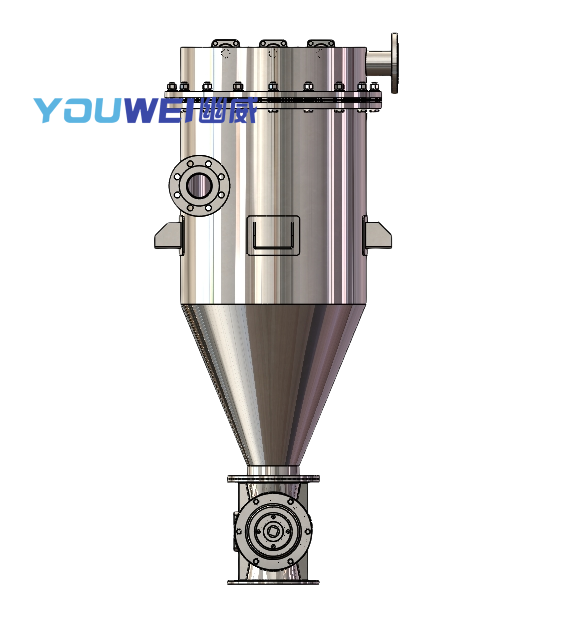

Vacuum Feeder 200 KG-h Pneumatic Vacuum Conveyor Powder Moving Pneumatic Conveying System

Product Description

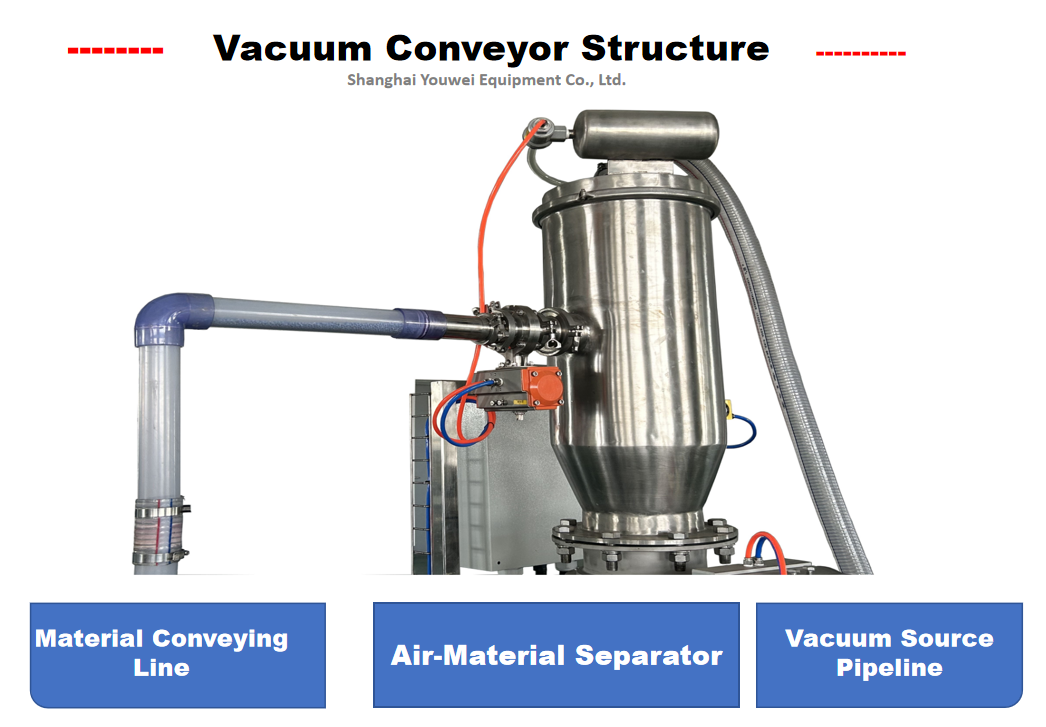

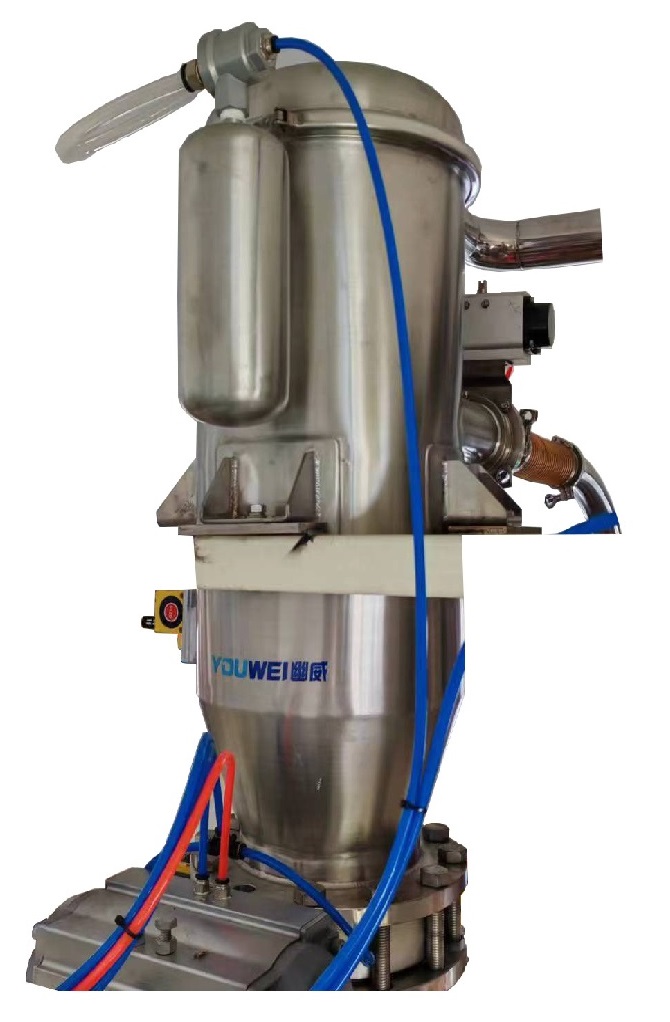

Vacuum Conveyor without Buffer Hopper

Vacuum Conveyor is interactive, enclosed transfer system;
To introduce small quantity of Powder/ Granules into production line system;
Material: Stainless Steel 304 as standard, option for SS 316, PTFE/Ceramic coating
Air Filter with Back flush air bag;
Technology: Inner surface mirror polished, outside surface brushed as standard.

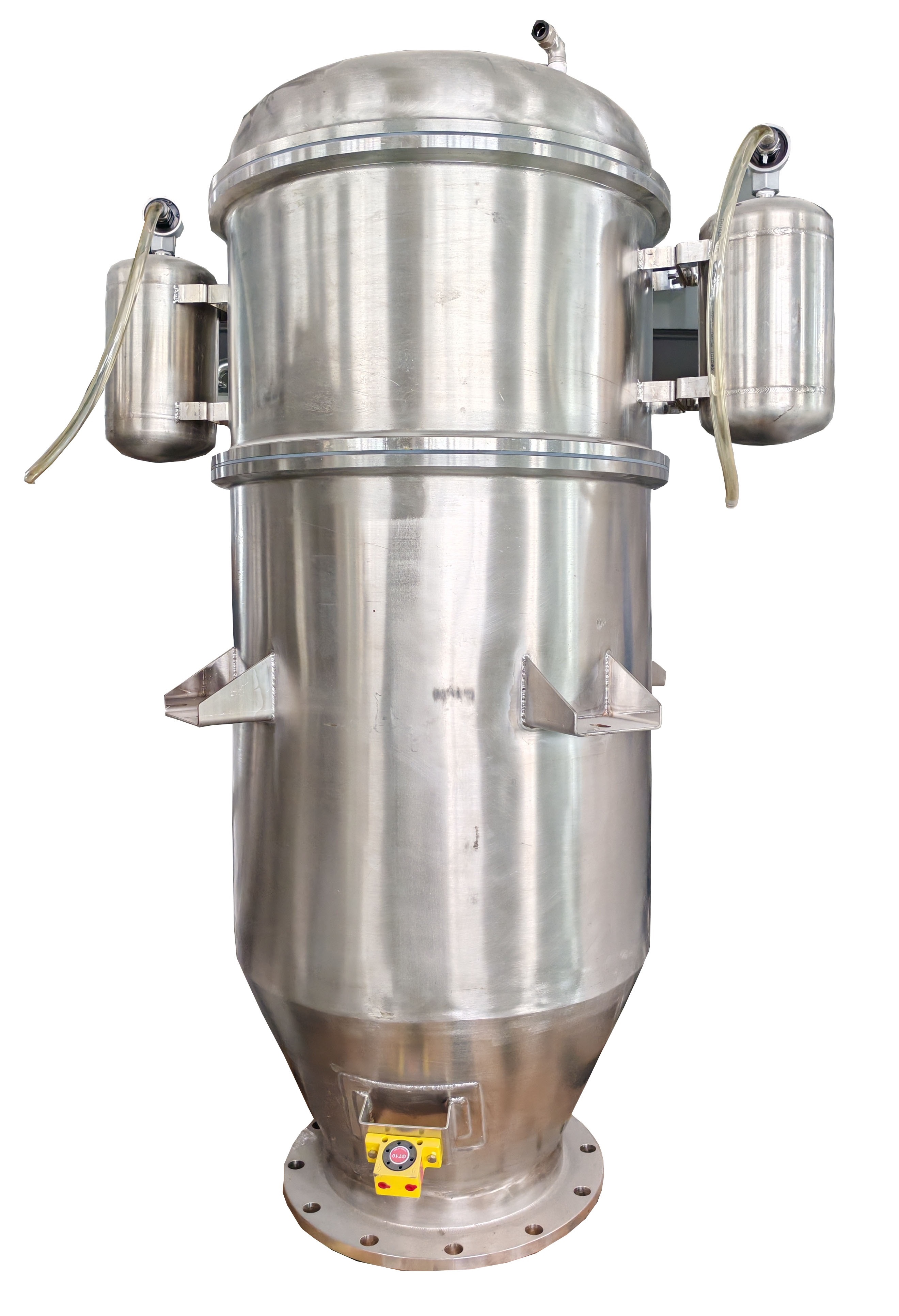

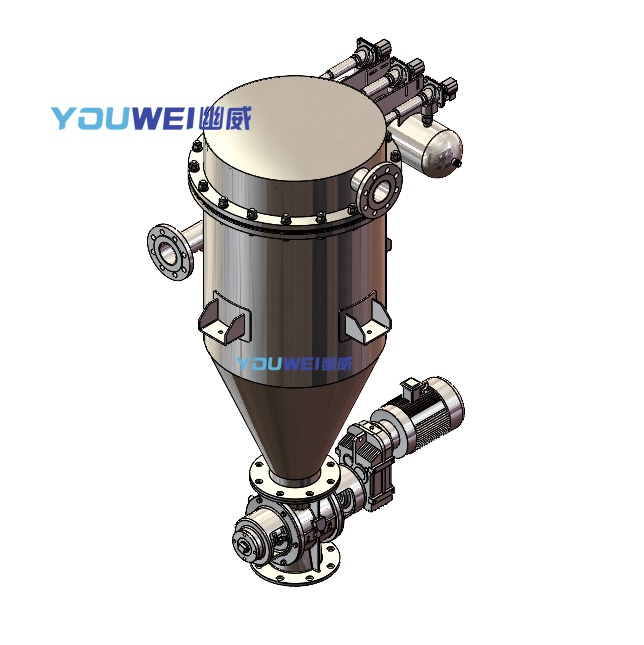

Vacuum Conveyor with Buffer Hopper

Vacuum Conveyor work seamlessly in a multitude of product transfer situations;
Buffer hopper increases conveying capacity. Actual capacity can be calculated by our Engineer with your transferring data;
Material: Stainless Steel 304 as standard, option for SS 316, PTFE/Ceramic coating;

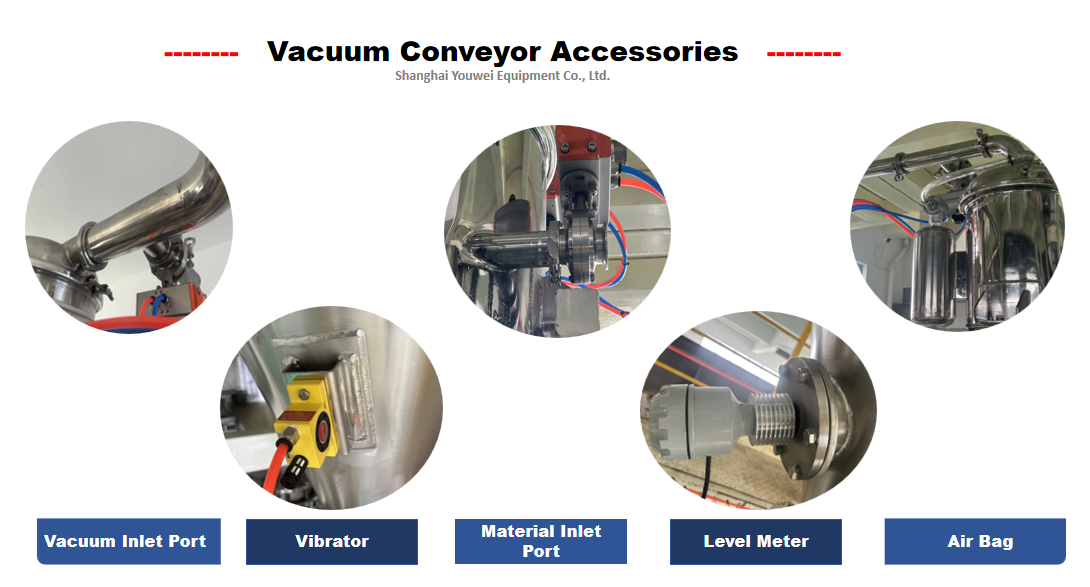

Option for Vibrator for viscosity material;
Can be continuous feeding after configuring rotary valve.

Technical Parameter

Type	Specification (MM)	Capacity (KGS/H)	Power (KW)	Filter Area (m²)	Material
UV-180	Φ250*600	≤250	2.2 KW	0.35	304/316L
UV-250	Φ300*1200	≤500	4 KW	0.55	304/316L
UV-320	Φ430*1500	≤1000	5.5 KW	1.5	304/316L
UV-430	Φ560*1800	≤2000	7.5 KW	2.5	304/316L
UV-560	Φ800*2000	≤3000	11 KW	4.6	304/316L
UV-250S-300L	Φ800*1600	≤1200	5.5 KW	0.9	304/316L
UV-320S-500L	Φ900*2150	≤2500	7.5 KW	1.8	304/316L
UV-430S-1000L	Φ1100*2600	≤4500	11 KW	2.7	304/316L
UV-560S-1500L	Φ1400*3250	≤6000	15 KW	5.4	304/316L

✦

Gentle handling: Ideal for fragile materials like food, powders, and chemicals.

✦

Enclosed transport: Minimizes dust and spills, improving safety and cleanliness.

✦

Flexible routing: Pipes can navigate complex layouts and reach to Receiving bin.

✦

Wide range of materials: Handles bulk solids, liquids, and slurries.

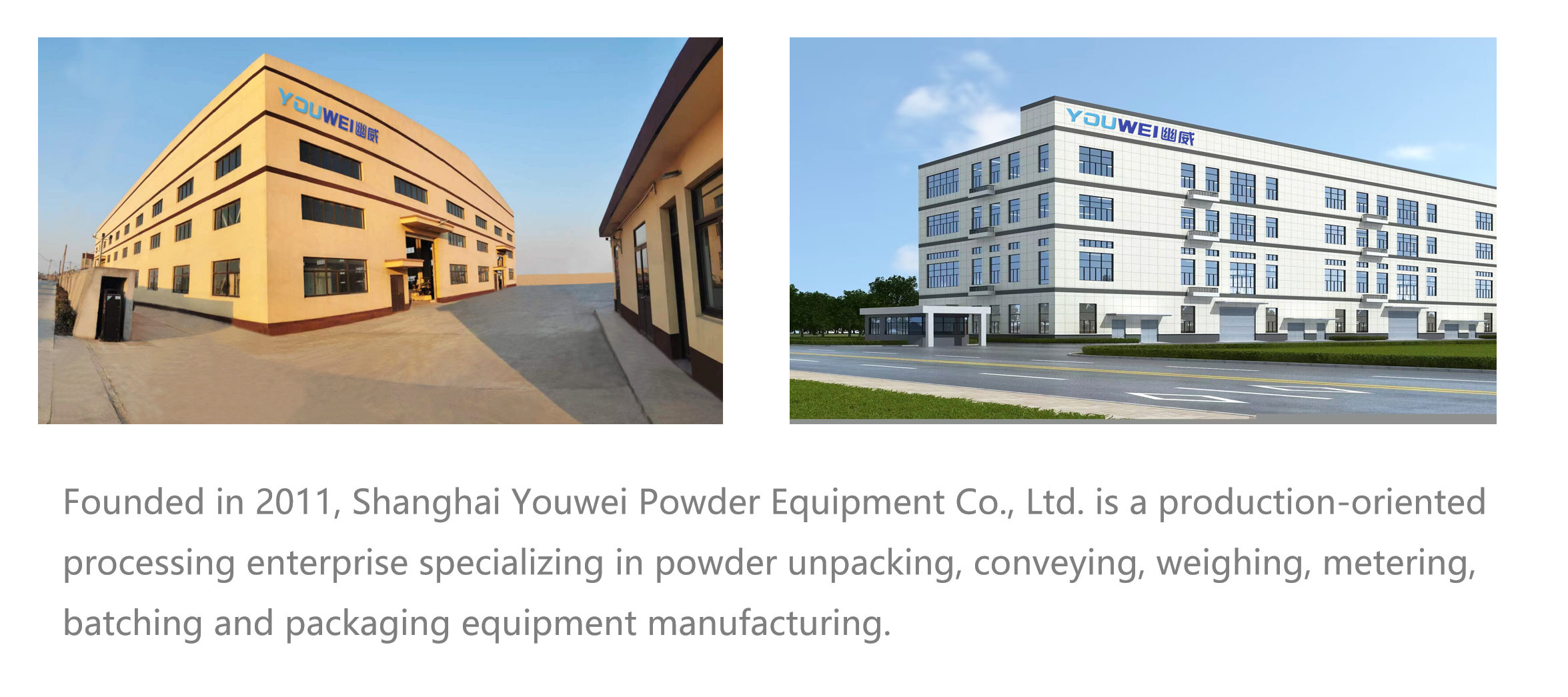

About Us

Why Choose Us

FAQ

1. Q: How long is the warranty period?

A: Usually 1 year.

2. Q: What is the delivery time?

A: Generally, it takes 10-25 days from the receipt of the deposit. Large-scale equipment requirements will be discussed separately.

3. Q: What are the installation methods?

A: We support installation through: 1) Remote guidance, 2) Arranging designated engineers on-site, and 3) Providing detailed installation manuals.

4. Q: Where is the production base?

A: Our manufacturing facilities are located in Jiangsu Province, optimized for efficient production and shipping.

5. Q: What are the payment methods?

A: We accept L/C (Letter of Credit) and T/T (Telegraphic Transfer).

6. Q: Can the vacuum conveyor handle viscous or sticky materials?

A: Yes, we provide an option to configure a vibrator specifically designed to assist in conveying viscous materials smoothly.
