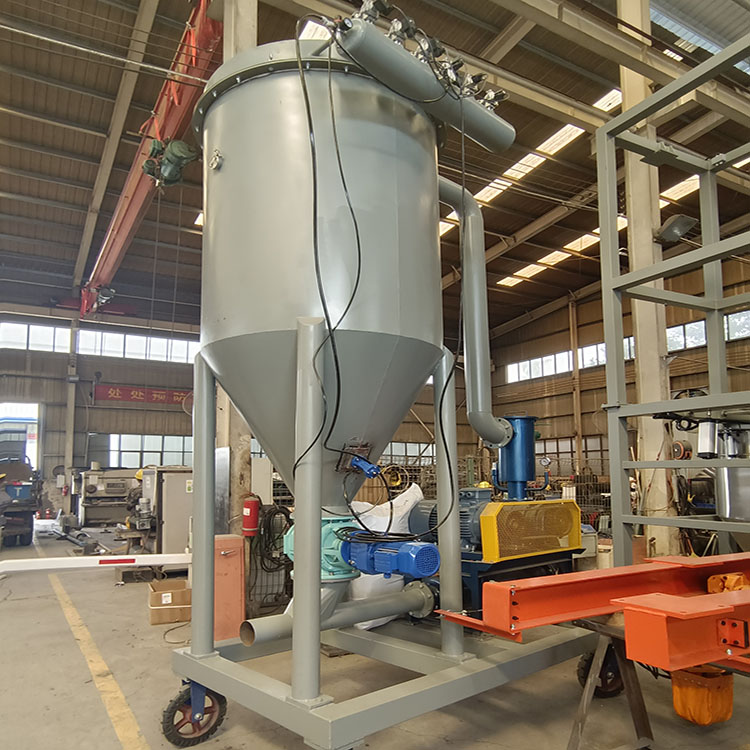

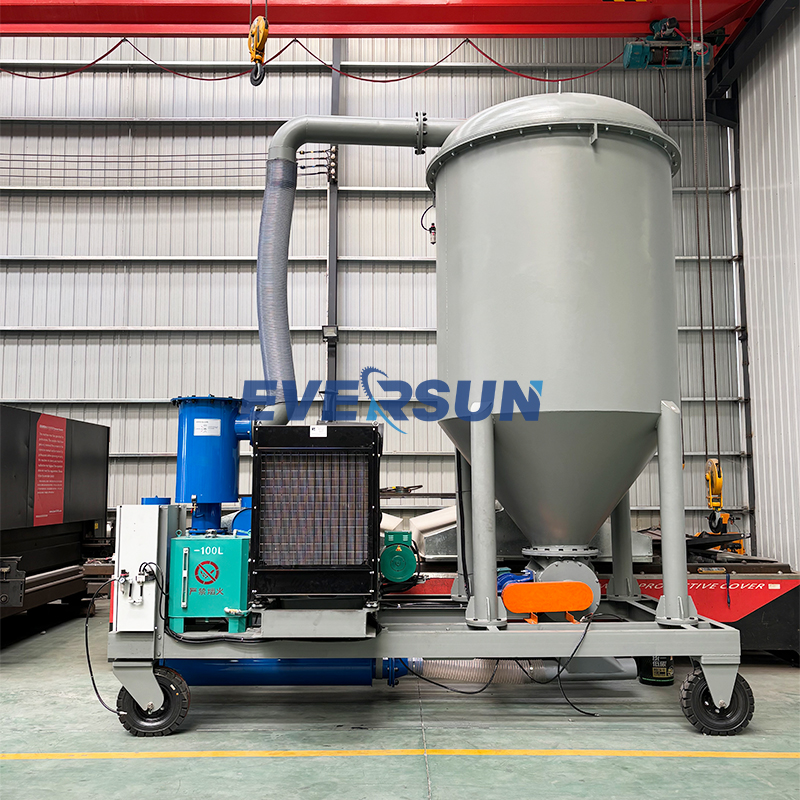

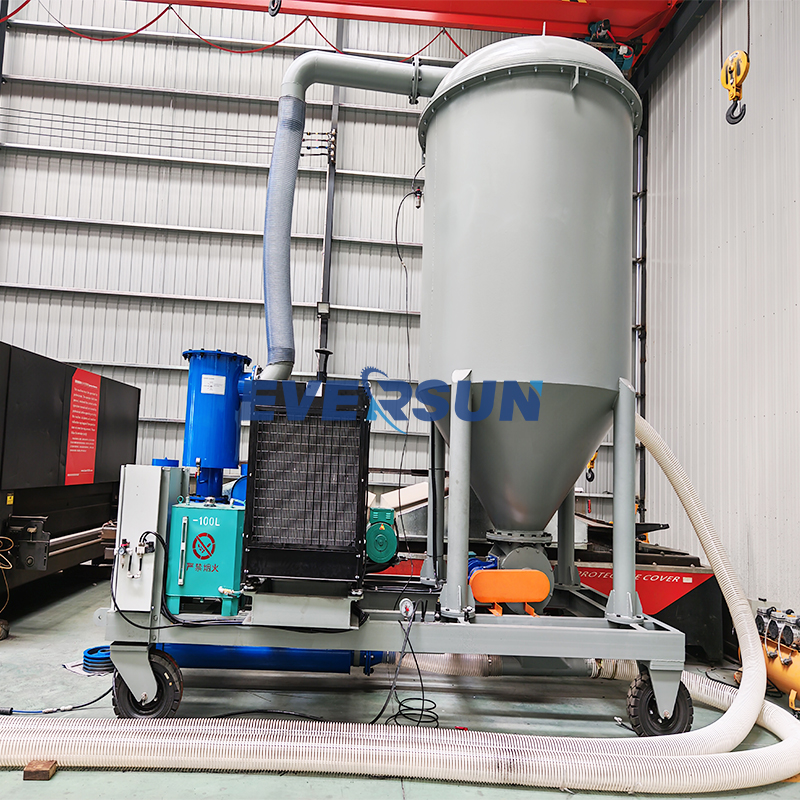

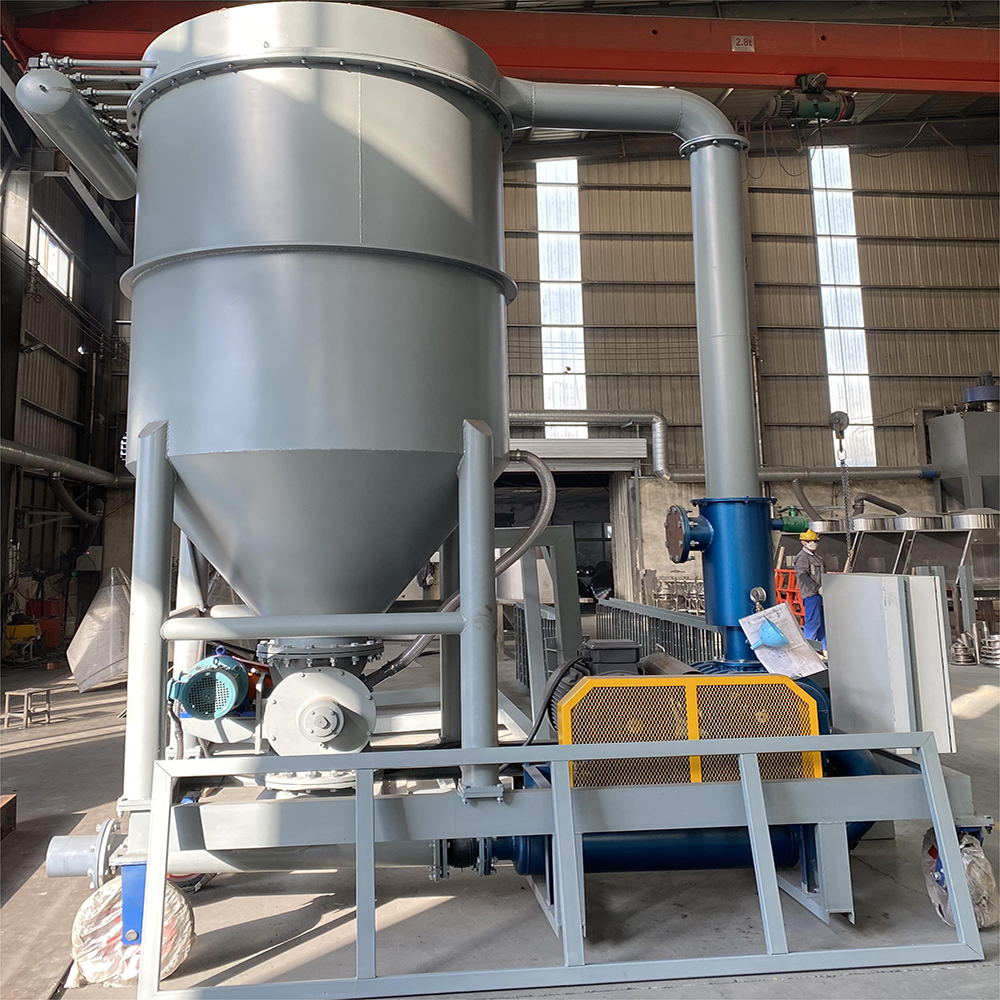

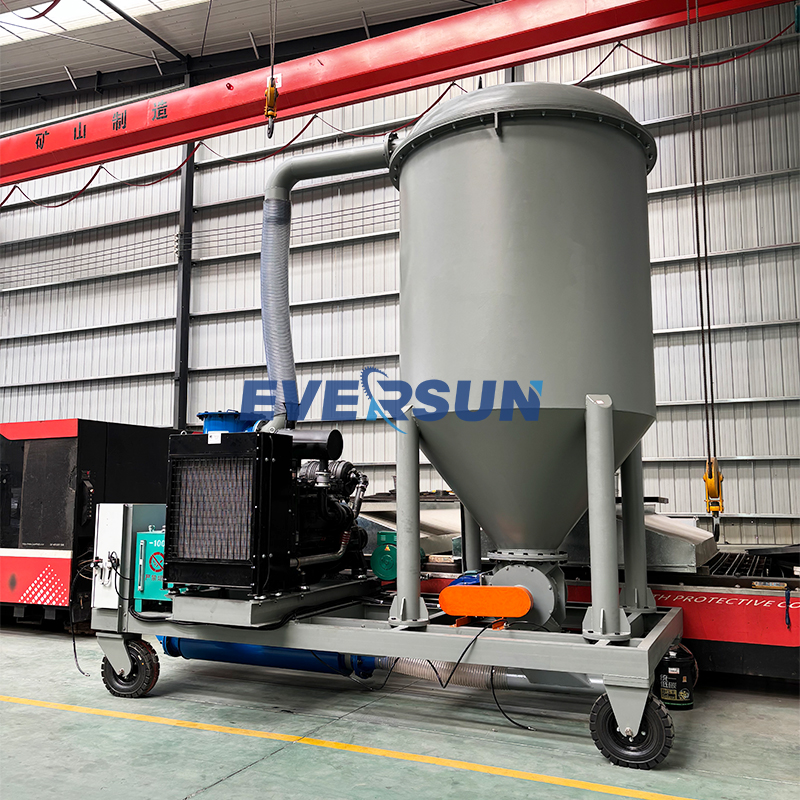

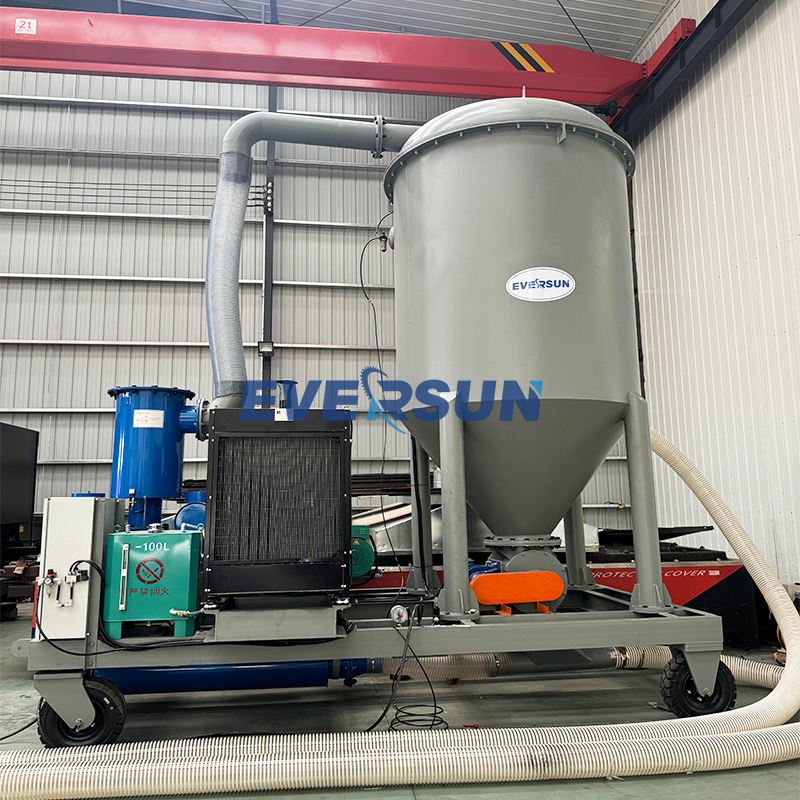

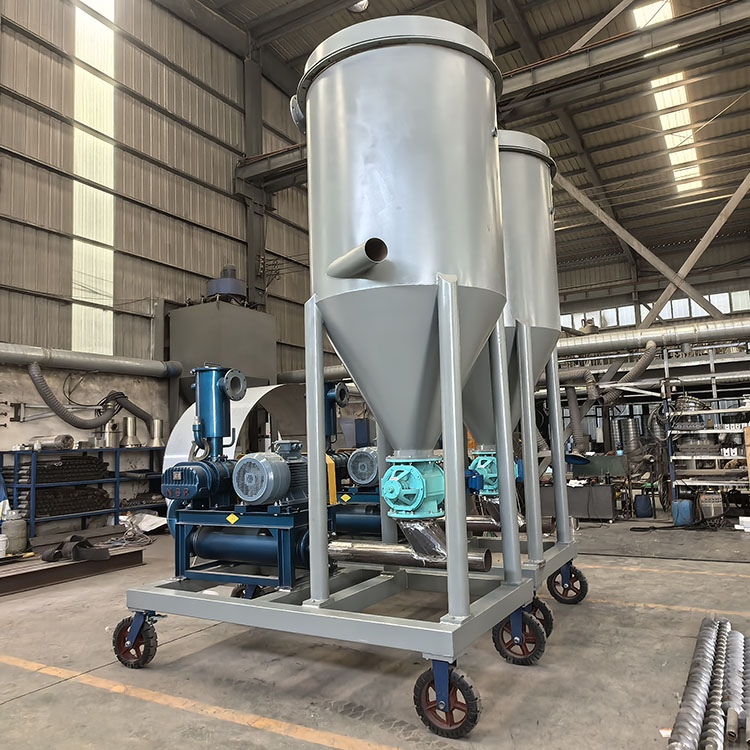

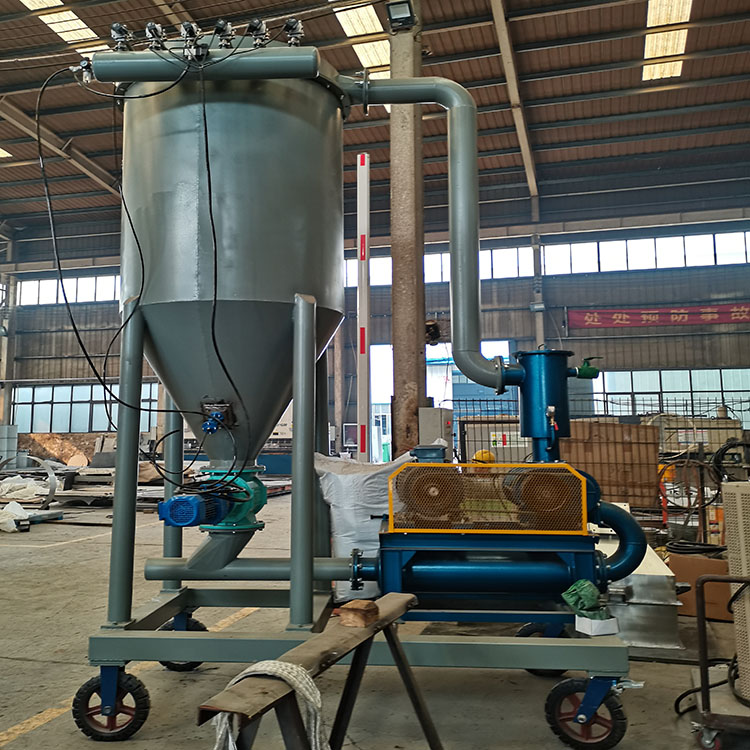

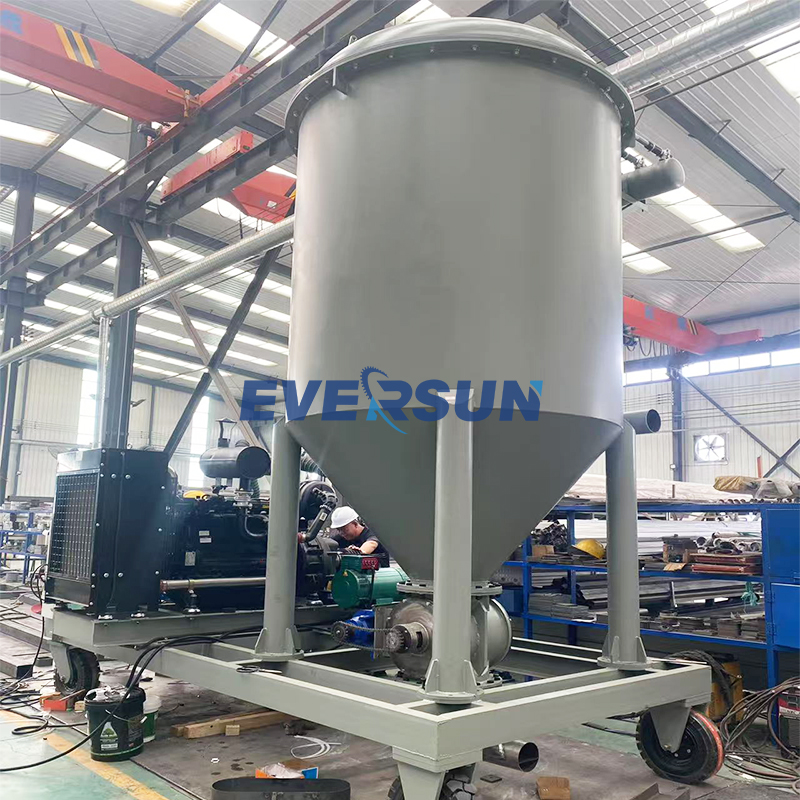

Suction machine: Pneumatic conveyor (i.e. grain suction machine) is an advanced material handling machine that can transport horizontally, tilted, and vertically, such as rice, rice, wheat, corn, sorghum, peanuts, plastics and granular materials. It is especially suitable for mechanized operations such as restocking, unloading, tumbling, and stacking of large grain depots such as farms, stations, and docks, as well as bulk loading, bulk transportation, and bulk unloading in the production process of grain processing, feed processing, and beer brewing industries. When conveying grains, this machine has the function of removing impurities and dehydrating grains.
The characteristics of the grain suction machine are high air pressure, long conveying distance, high lift, small volume, low voice, low energy consumption, and rough cleaning and dehydration of grains. The grain suction machine can be used for separate suction, pressure feeding, or suction and pressure mixed transportation, just arrange the transportation pipeline as needed, and it can transport horizontal, vertical, inclined, etc., such as transporting grains, wheat, rice, corn, sorghum, beans, plastics, resins and other granular materials.
Grain suction machines are divided into two types according to the conveying method:

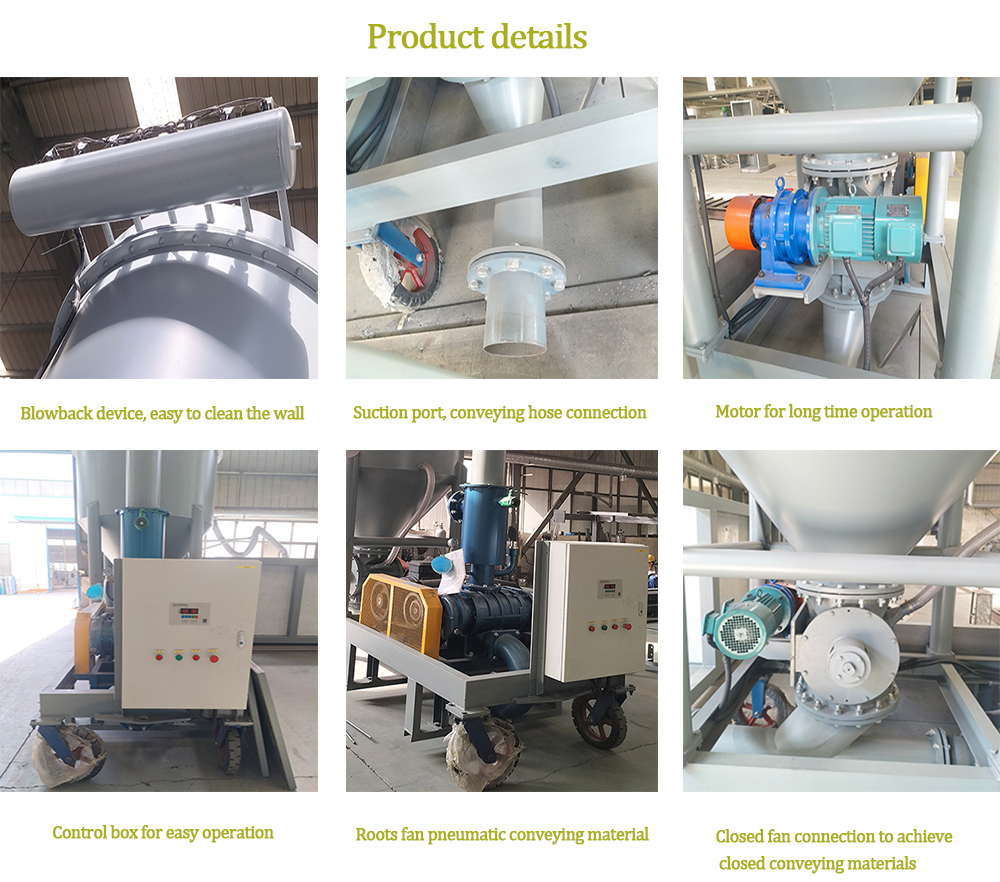

Suction-type grain suction machine: The wind-driven material is sucked into the machine through the suction device and suction pipe, and the air and material are separated through the separator, and then sent to the warehouse, carriage and other destinations by the pipe and unloader.
Suction-only type: The grain suction machine only sucks but does not deliver. After the material is sucked into the machine, it passes through the separator and the blower, and then falls freely to the blower outlet, where it can be directly stacked, bagged, or connected to other conveying equipment.
| Model |
ES-5 |
ES-10 |
ES-20 |
ES-30 |
ES-50 |
ES-85 |
| Power |
5.5-15.5kw |
18.5-22kw |
30kw |
55kw |
75kw |
110kW |
| Capacity |
2-5t/h |
8-10t/h |
18-20t/h |
26-30t/h |
45-50t/h |
70-80t/h |
| Horizontal Conveying Distance |
20-40m |
20-40m |
20-40m / Customize |
20-60m / Customize |
20-60m / Customize |
20-60m / Customize |
| Lift Height |
2-10m |
2-15m |
7-15m |
7-15m |
7-15m |
7-15m |
| Lift Flow (m³/h) |
1150 |
1300 |
2700 |
3480 |
3480 |
3680 |
| Size (m) |
1.9 * 1 * 1.7m |
2 * 1 * 2.9m |
2.6 * 1.3 * 2.5m |
3.3 * 1.5 * 3.5m |
4 * 1.6 * 3.5m |
4.6 * 1.8 * 4m |
| Weight (Kg) |
800 |
980 |
1200 |
2560 |
4000 |
5000 |
1. The hose standard configuration length is 30m, we can customize hose length according to client's horizontal conveying length and use environment.
2. Conveying distance, lift height and raw material specific gravity affect capacity.

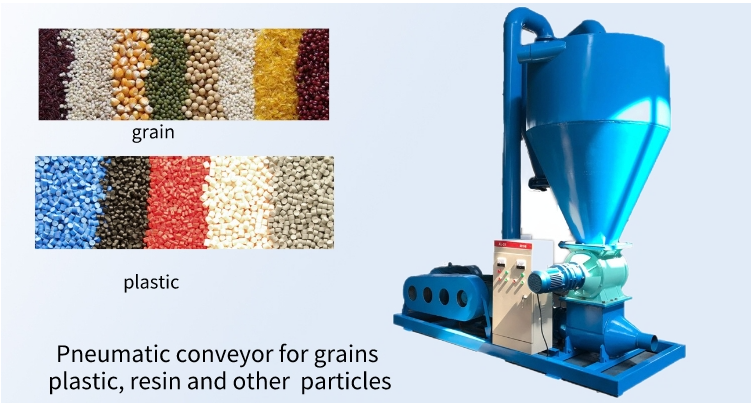

Pneumatic conveyor is widely used in handling materials in bulk loading, bulk conveying, bulk unloading, silo to silo, stack to stack in grain, farm depots, railway stations, docks, grain processing and brewing industries, agriculture, forestry, animal husbandry, fishery, medicine, health, metallurgy, minerals, petrochemicals.

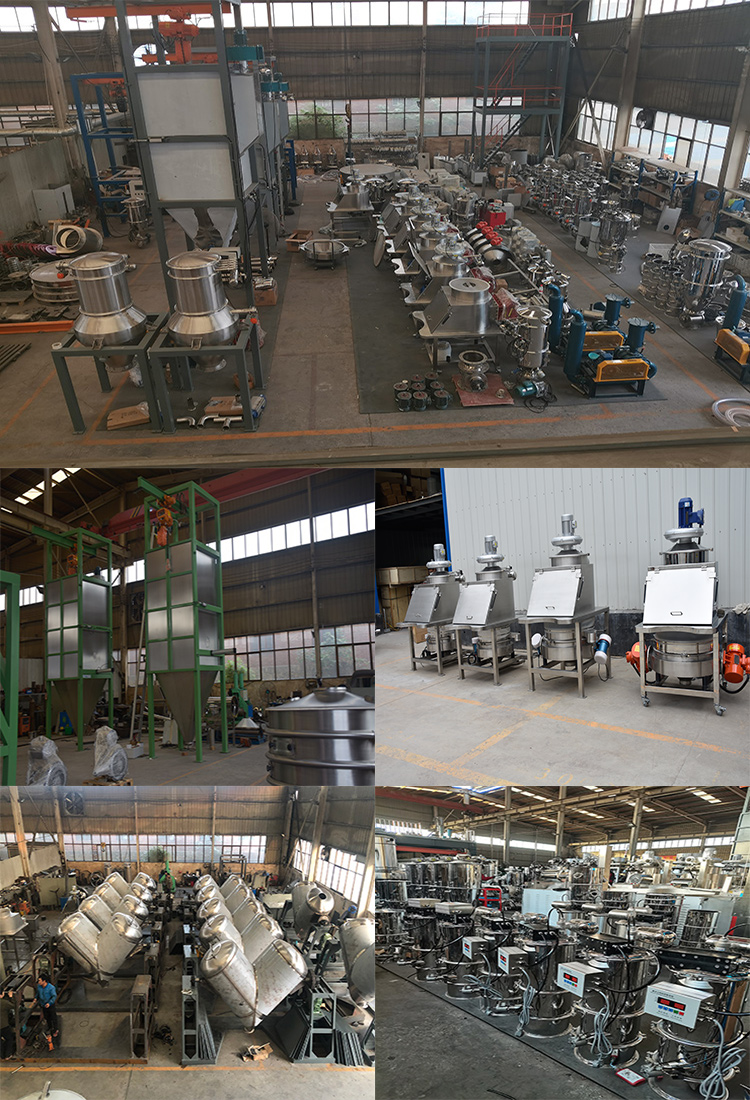

We have been specializing in the production of Screening and Conveying equipment for 30 years. As a leading manufacturer in the vibrating screen industry, we have provided high-quality matching and OEM services for many large global companies. Our products are exported to Australia, Thailand, Indonesia, New Zealand, and other countries. Our main products include: sieving machines, vibro sifter machines, ultrasonic screeners, sieve separators, vibrating sieve screens, conveying equipment, and sieve machines.
