4 Key Reasons to choose pneumatic conveying system:
Application:

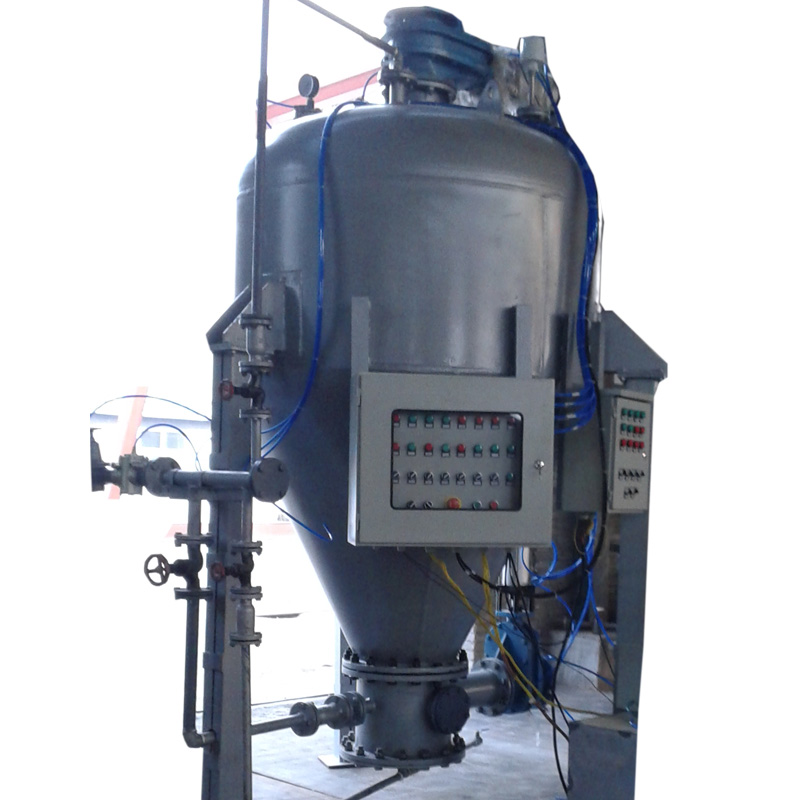

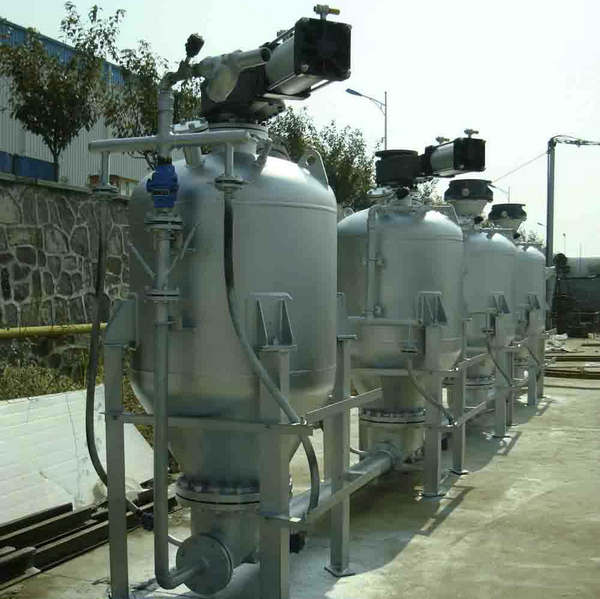

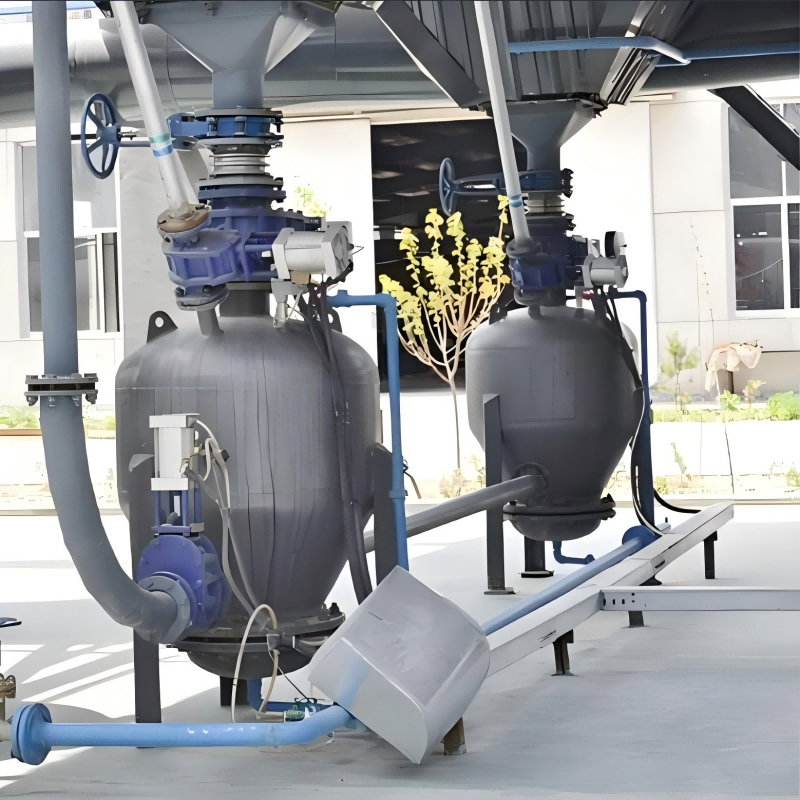

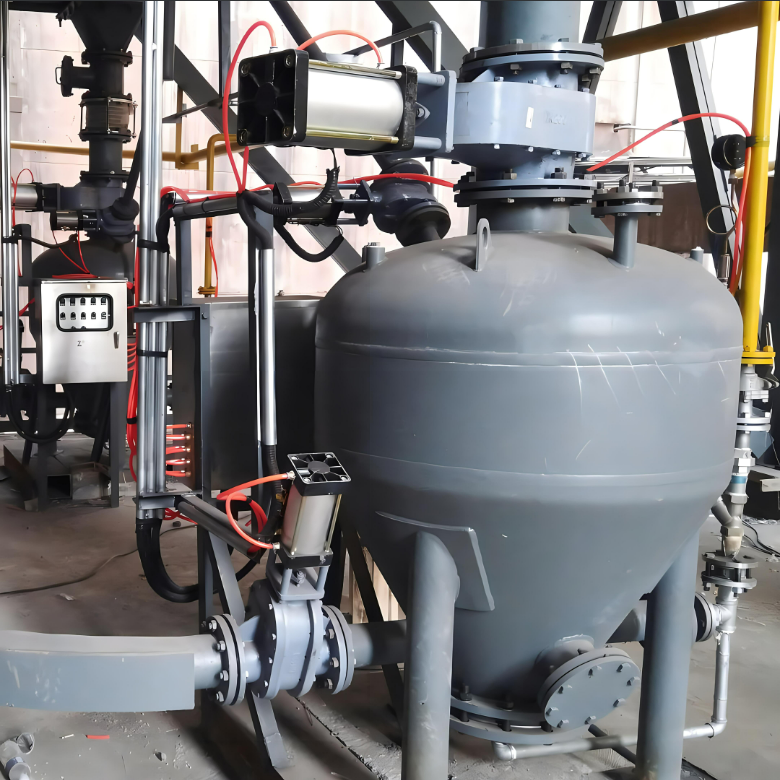

Dense Phase Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materials with pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Suitable for the material conveying from enclosed device to another enclosed device because of the high pressure in the pipe, e.g., from silo to silo, hopper to silo.
The conveying pipe is flexible in arrangement according to different topography. It is easy to convey in a centralized, high-height, and long-distance manner, with the distance reaching up to 800 meters.
LD type pneumatic conveyor data:
| Parameters | LD0.6 | LD1.0 | LD1.5 | LD2.0 |
|---|---|---|---|---|
| Body Inner Diam.(mm) | 800 | 1000 | 1200 | 1400 |
| Total volume(M^3) | 0.6 | 1.0 | 1.5 | 2.0 |
| Body material | Q235-B | |||
| Operation Temp.(℃) | ≤120 | |||
| Max. design pressure(Mpa) | 0.78 | |||
| Operation Pressure(Mpa) | 0.2-0.5 (Basis on the conveying distance) | |||
| Max. conveying distance(m) | <1000 | |||
| Outlet conveying Dia. | DN80 | DN100 | ||
| Air consumption (m^3/min) | 3.5-7 | 5-10 | ||
We are a specialized manufacturer and trader. Both our quality and technology are in the leading position at the domestic level.
With 1 factory, we have exported to Colombia, Russia, India, Indonesia, Malaysia, etc. Over our development, we have become a professional company integrating research and development, design, sales, installation, after-sales service, and technical guidance.
Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers.
We test the Dust Collector before it is packaged and transported:
Main parts, relative valves, and instruments: composite material box packed, rain-proof.
Will be marked on each part according to the regulations on goods.
Steel parts will be loaded into the container directly.

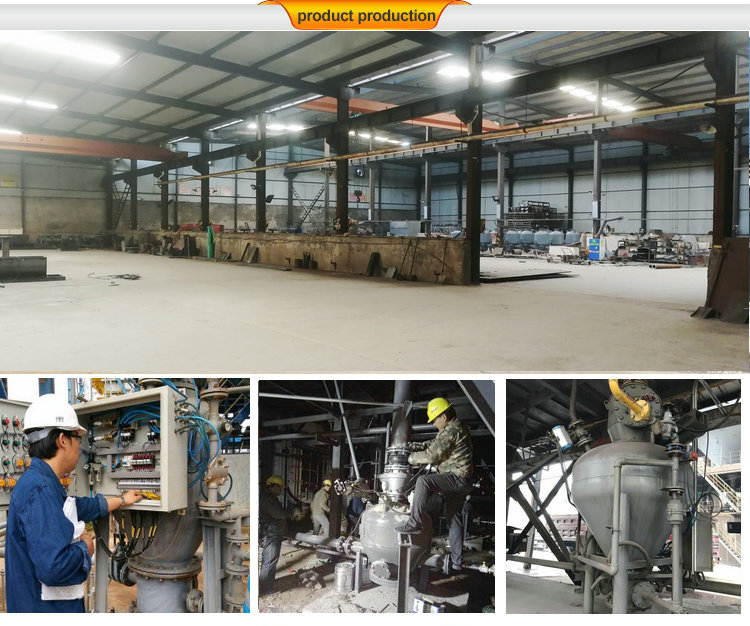

We own 1 factory and have 2 cooperated factories. We have dedicated teams for design, manufacturing, installation, commissioning, and staff training.
We thoroughly test our machines before shipping. Our factory has gained ISO9001:2008 authentication.
One year warranty and free consultation during the period of use.
L/C, T/T and Western Union options are available.
Simply provide us with the following information: working conditions, dust characteristics, conveying capacity, particle size of the ash, moisture of the ash, horizontal and vertical conveying length, etc. Our experts will put forward a feasible plan for you ASAP.
