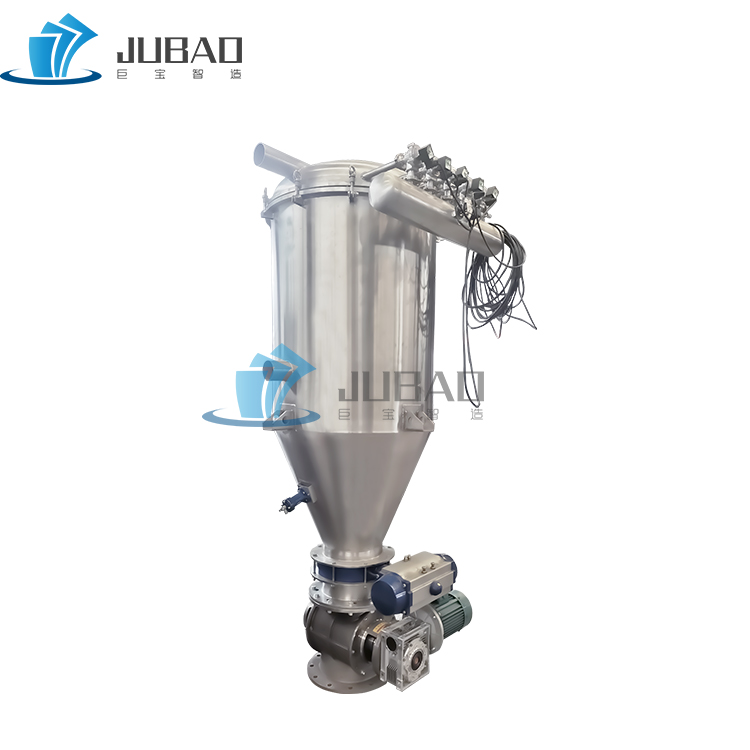

dust free cement powder transfer pneumatic vacuum conveying system
pneumatic conveying system is one kind of pneumatic conveying equipment for transfering powder, particles by vacuum pump. It is non electric which is power saving. Because of it's closed structure, it is widely used for feeding material for packaging machines, injection molding machines, shredders, mixer etc.
pneumatic conveying system is a dust - free closed pipe conveying equipment that transfers particles and powder materials by means of vacuum suction. It makes use of the air pressure difference between vacuum and environmental space to travel the air flow in the pipe and drive the movement of powder materials, so as to complete the conveying of powder.

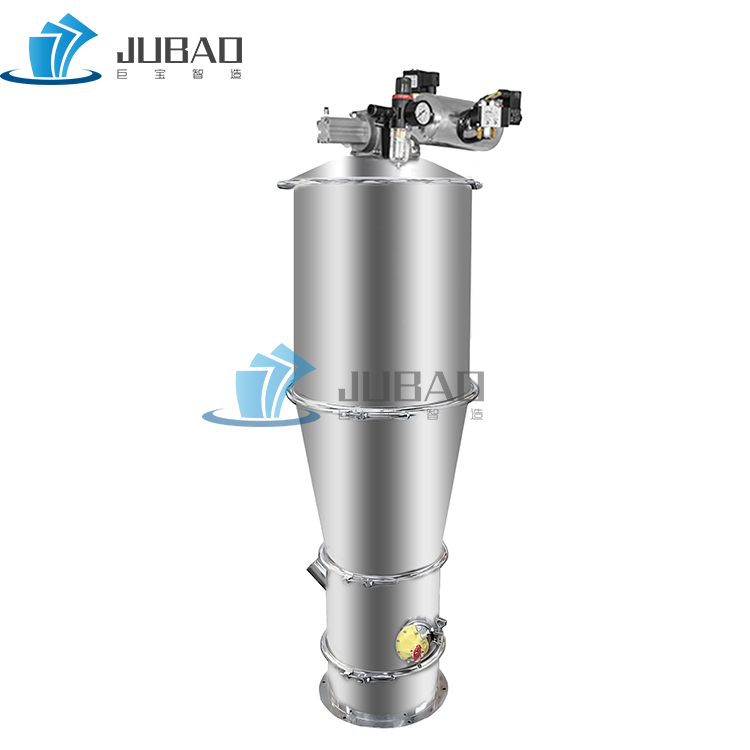

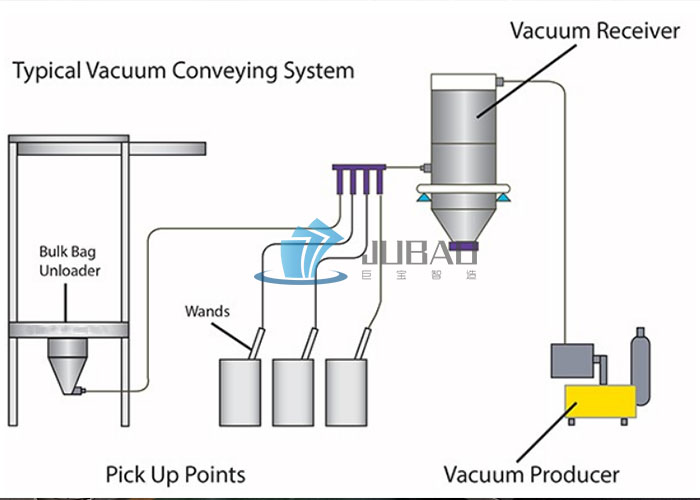

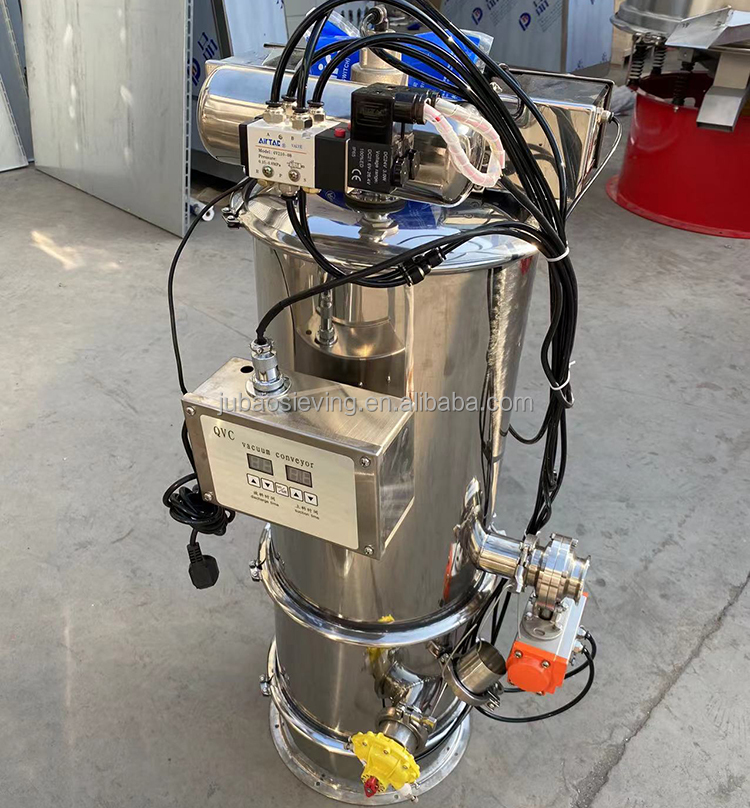

The below picture is the typical pneumatic conveying system:
Model
Delivery (kg/h)
Warehouse volume (L)
Operating pressure (Mpa)
Compressed air consumption (N/min)
ZKS-1
50-300
1.1
0.4-0.6
180
ZKS-2
100-700
6.0
0.4-0.6
360
ZKS-3
300-1500
12.0
0.4-0.6
720
ZKS-4
600-3000
42
0.4-0.6
1440

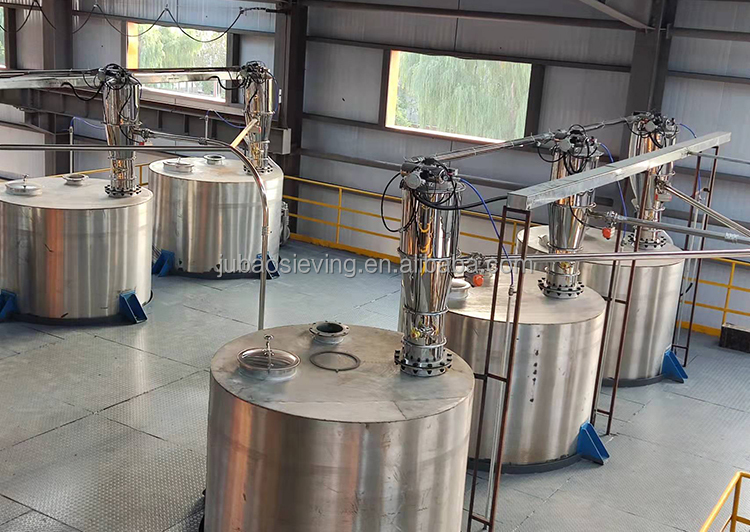

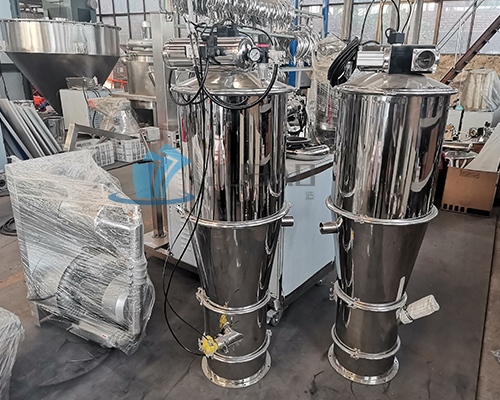

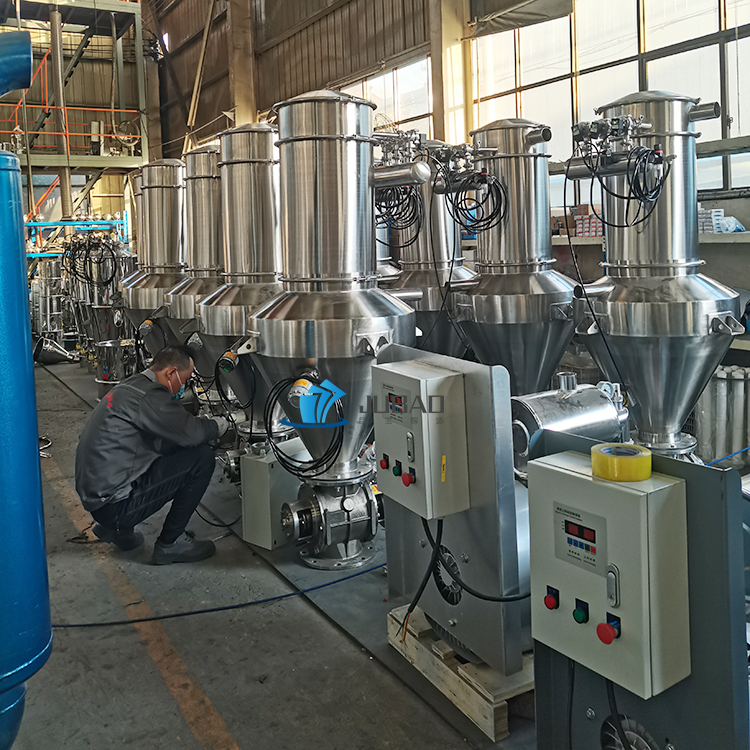

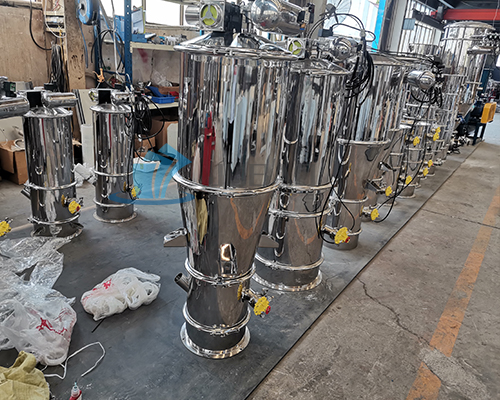

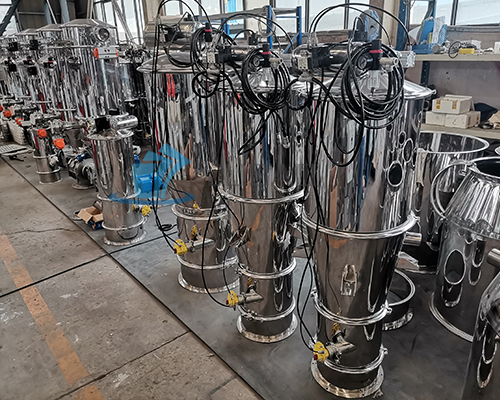

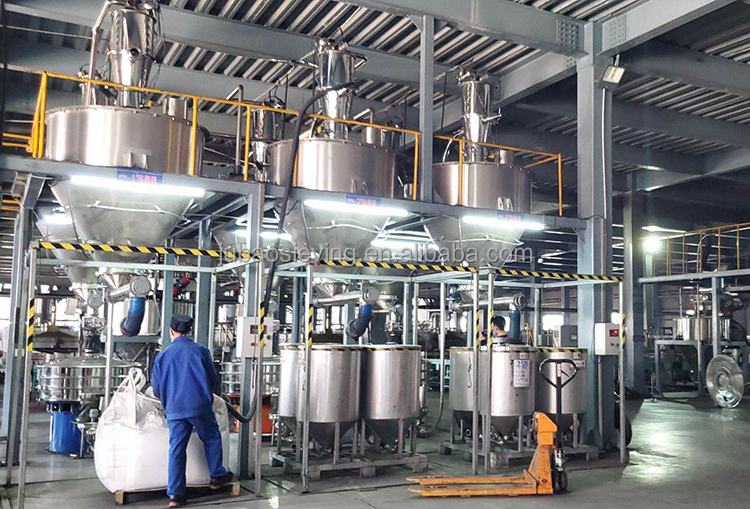

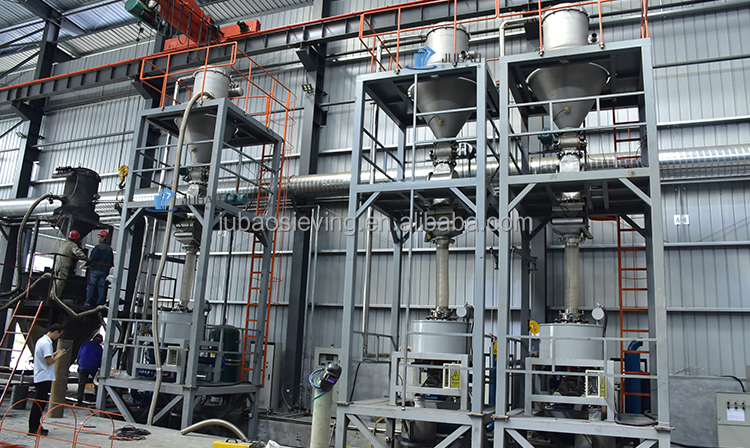

Successful Project
Product Uses
Pneumatic vacuum conveyor is widely used in a variety of industries. It can negative pressure transport all kinds of powder and particle materials, conveying materials in a closed environment to avoid air pollution.
Service and Ordering
1. 24 hours online chat
2. Customization Acceptable
3. CE & ISO9001 Certification
4. Complete sales & Service system
5. Fast delivery ,Strictly check
6. 12 months warranty
Frequently Asked Questions
Q1: What materials can be transported by this pneumatic vacuum conveying system?
A1: The system is designed to convey various dry bulk materials, including dust-free cement, powder, granules, particles, and pellets.
Q2: How does the vacuum conveying system achieve dust-free operation?
A2: The system uses a completely closed pipeline structure. By utilizing negative pressure vacuum suction, the materials are moved inside sealed pipes, which prevents dust leakage and avoids air pollution in the workspace.
Q3: Is the system energy efficient and safe to operate?
A3: Yes. It runs on a non-electric, power-saving configuration utilizing compressed air or a vacuum pump, which significantly lowers energy usage and ensures high operational safety.
Q4: Can this conveyor be integrated with packaging or mixing machines?
A4: Absolutely. The closed structure and automated vacuum suction make it ideal for automatically feeding materials into packaging machines, injection molding machines, shredders, and mixers.
Q5: What are the capacity differences between the ZKS models?
A5: The capacity varies by model, ranging from ZKS-1 (delivering 50–300 kg/h with a 1.1L volume) up to ZKS-4 (delivering 600–3000 kg/h with a 42L volume), allowing customization for different production demands.
Q6: What certifications do these vacuum conveying systems hold?
A6: Our conveying systems are fully certified with CE and ISO9001 quality standards, ensuring reliability, strict safety control, and compliance with international manufacturing guidelines.
