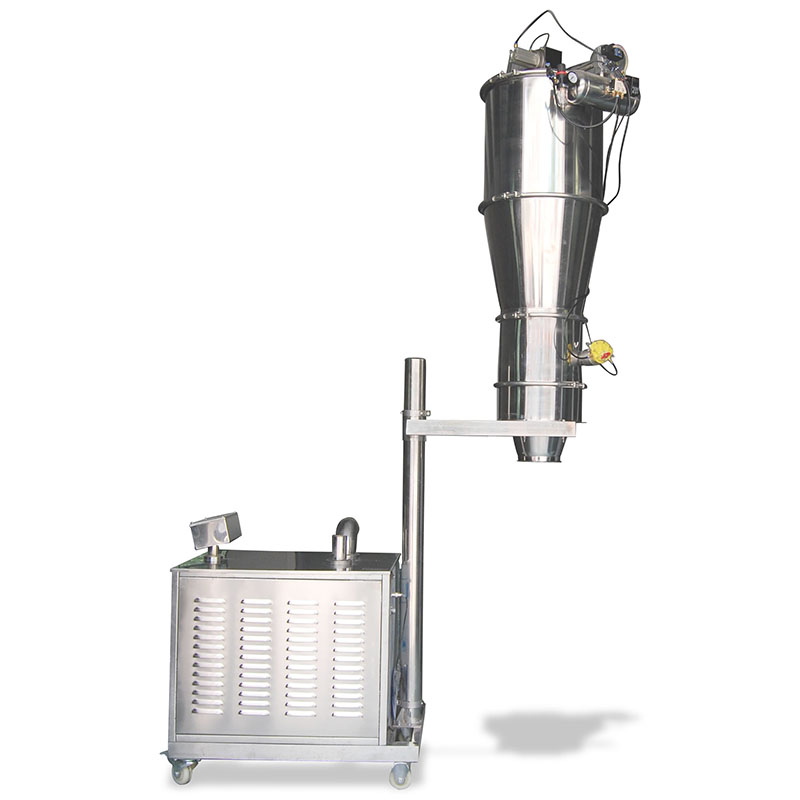

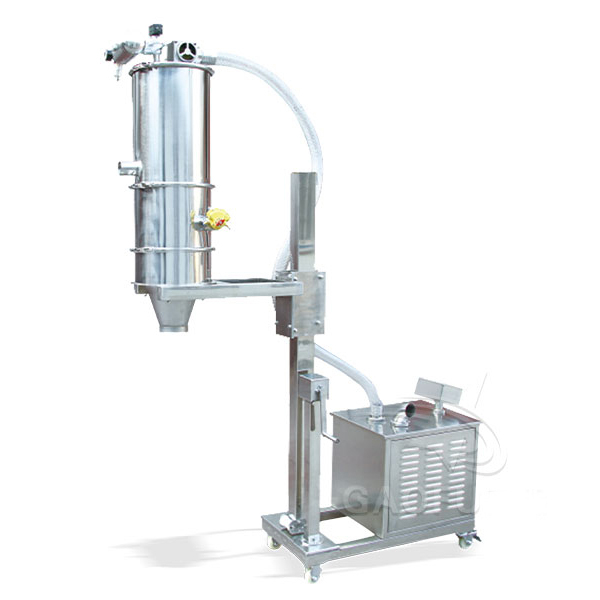

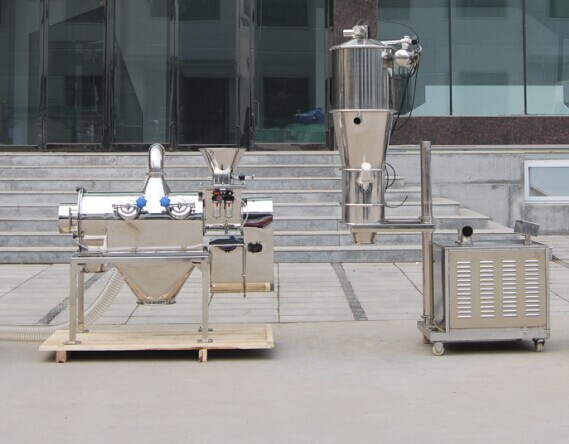

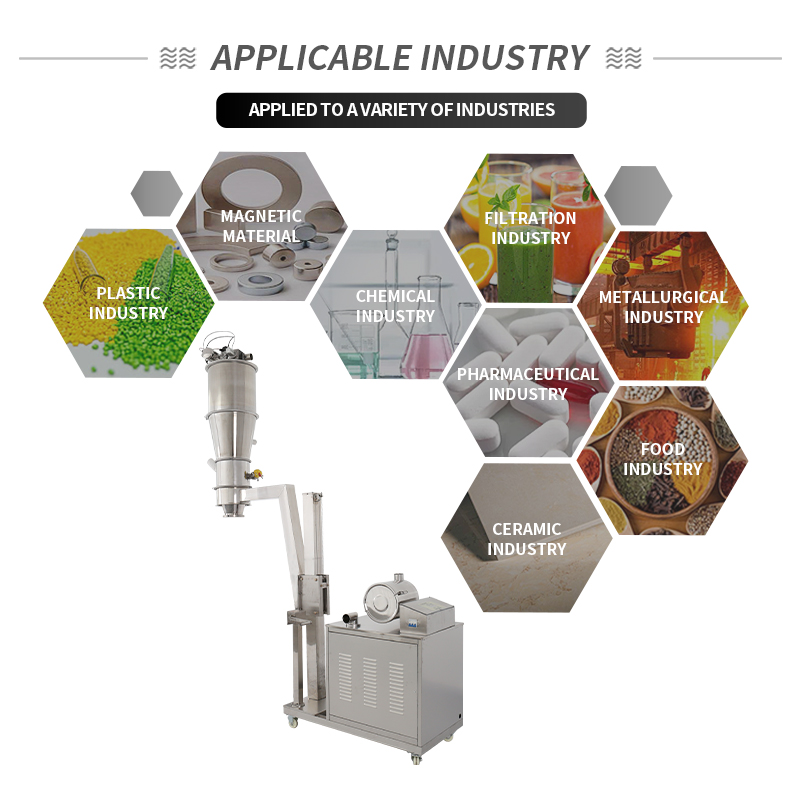

The vacuum feeding machine manufactured by our company is a newly developed product which is the most advanced, ideal vacuum conveying equipment for conveying powder material, granular material, mixture of powder and granular material. It can not only automatically convey a variety of materials to the mixing machine, packing machine, injection molding machine, and grinder but also directly deliver the mixed materials to the mixing machine such as v-type mixing machine, two dimensions mixer and three dimensions mixer. It can reduce the labor intensity and prevent the dust overspill. Pharmaceutical factories and food factories can use it to promote clean production and pass the GMP certification.

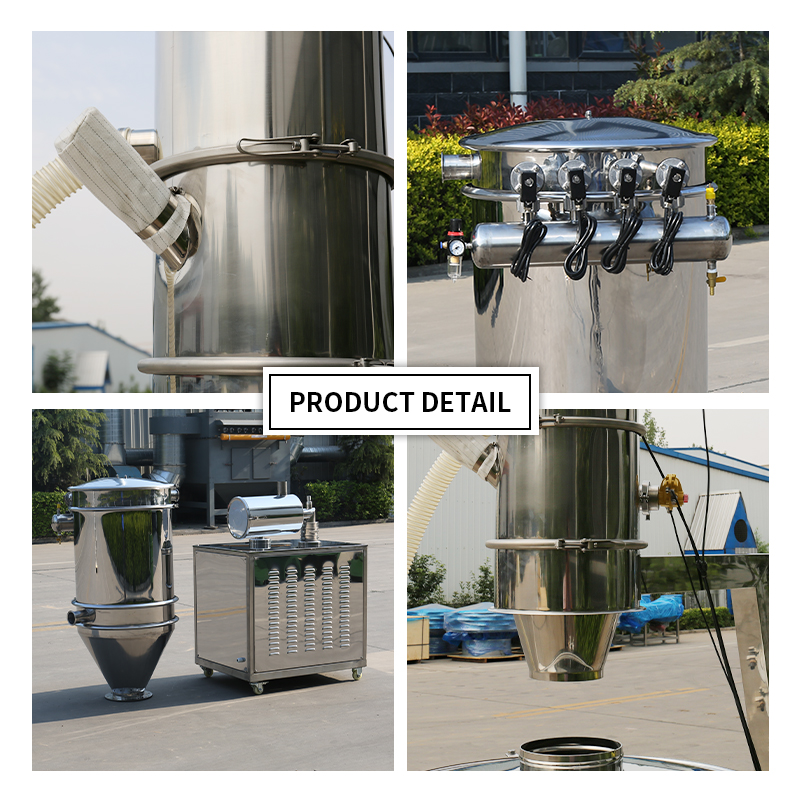

The vacuum feeder machine consists of vacuum pump (oil-free or water-free), vacuum hopper, filter (polyester coated, PE, 316L stainless, titanium), compressed air anti-blowing device, pneumatic feeding door device, automatic material level control device, stainless suction nozzle, conveying hose. The whole equipment is well designed and manufactured.

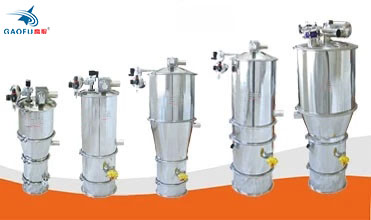

| Model | Motor Power (KW) | Conveying Capacity (KG/H) |
|---|---|---|
| ZKS-1 | 1.5 | 200-400 |
| ZKS-2 | 2.2 | 300-600 |
| ZKS-3 | 3 | 400-1200 |
| ZKS-4 | 5.5 | 800-2500 |
| ZKS-6 | 5.5 | 1000-3200 |
| ZKS-7 | 7.5 | 2000-6000 |
| ZKS-10-6 | 7.5 | 2000-6000 (Conveying distance is 10 meters) |
| ZKS-20-5 | 11 | 1500-5000 (Conveying distance is 20 meters) |
Note: The data based on when the conveying distance is 4 meters and the materials is flour.
The longer the conveying tube, the lower the capacity. The capacity also has a relationship with the characteristics of conveying materials.

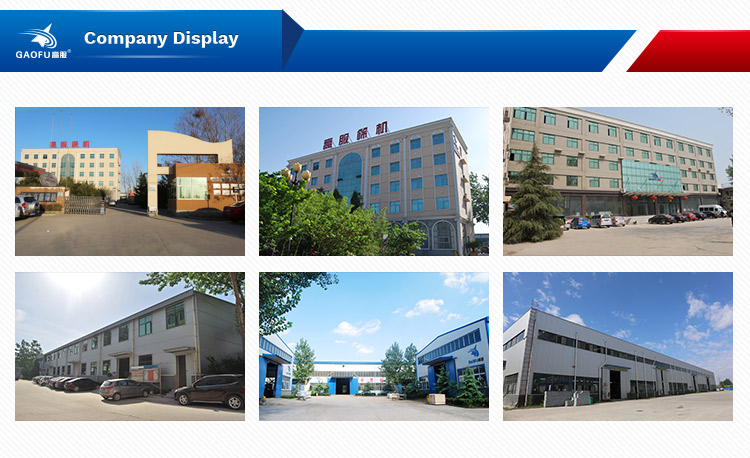

Our company was founded in 1982. With 30 years of development history, we have gradually improved and integrated our industrial chain. Main products include screening machinery, vibration equipment, crushed coal machinery, filtration equipment, dust removal equipment and other industrial solutions. With 56 national patents, we are an integrated machinery manufacturing company with strong design and production capabilities.
After customers receive the goods, if there are any questions or quality problems, our Customer Service Department will always be available to assist.
Our customers visit our manufacturing plant from different countries every year.
