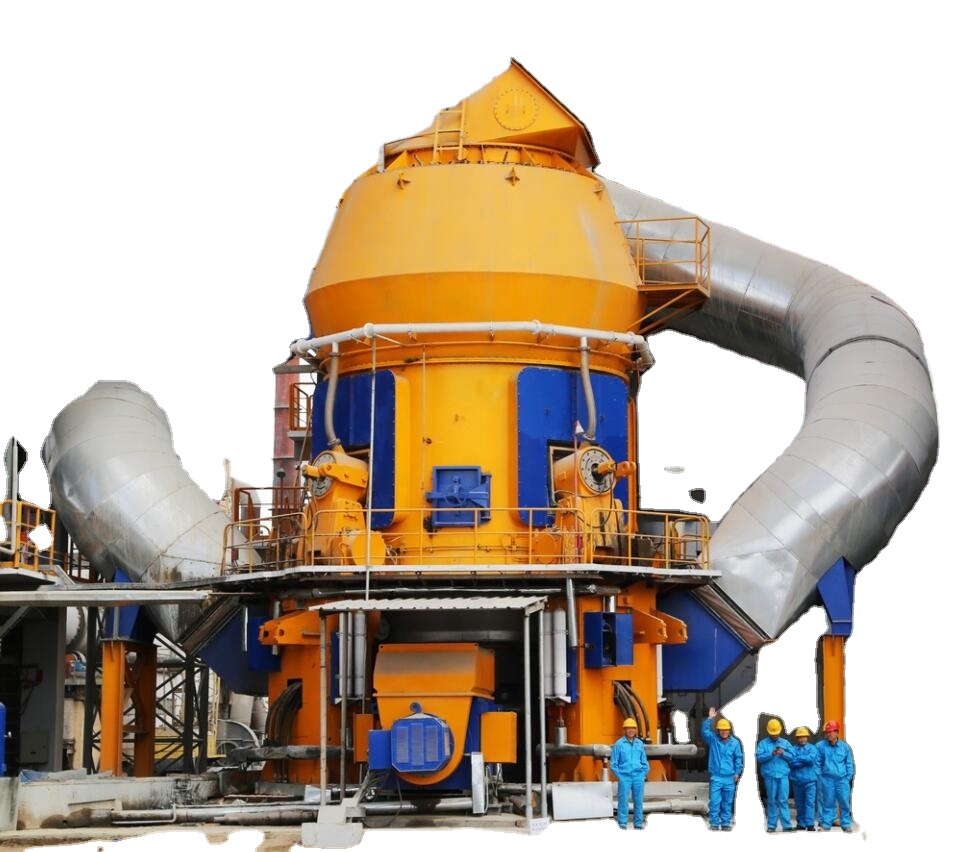

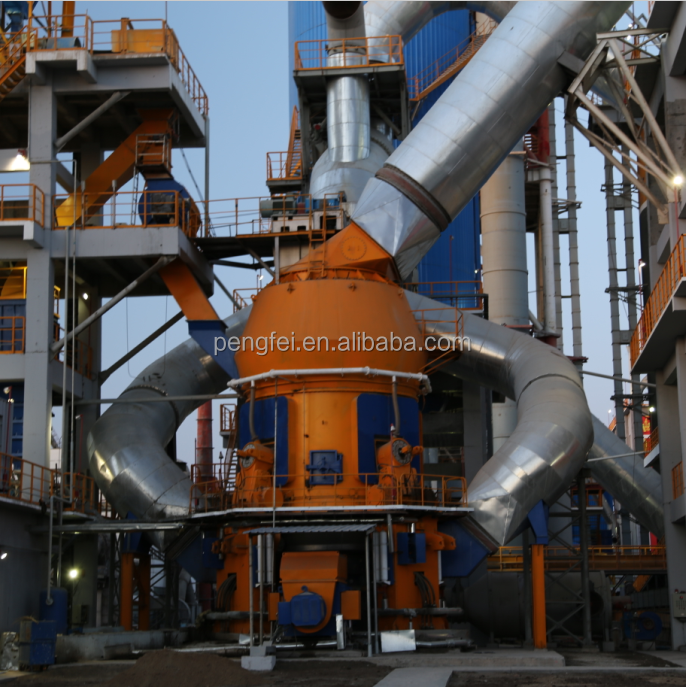

Vertical roller mill is a perfect large-scale grinding equipment which is widely used in cement, electrical, metallurgical, chemical industries, etc. It combines crushing, drying, grinding, and classifying with high efficiency, and it is able to grind block type, particle type, or powder type raw material into required powder material.

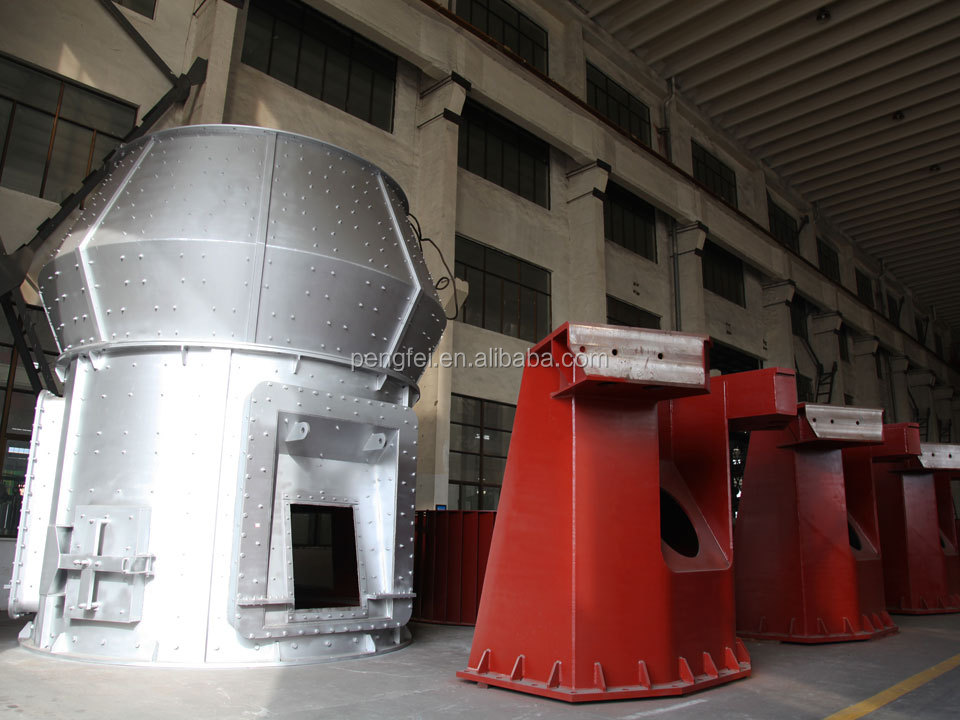

This slag grinding vertical roller mill is used for grinding steel slag and GGBFS into powder, which will be used for cement production.
Technical Parameters of vertical roller mill
| Vertical Roller Mill Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Specification / Technical Date | HRM 1300 | HRM 1700 | HRM 1900 | HRM 2200 | HRM 2400 | HRM 2800 | PRM 1512 | PRM 1714 | PRM 1914 | PRM 2216 |
| Center to Center (mm) | 1300 | 1700 | 1900 | 1900 | 2400 | 2800 | 1900 | 1900 | 1900 | 2250 |
| QTY of Roller | 2 | 2 | 2 | 2 | 3 | 3 | 2 | 3 | 4 | 4 |
| Capacity (t/h) | 20-25 | 40-48 | 50-60 | 70-90 | 95-130 | 120-160 | 42-50 | 55-65 | 70-85 | 95-115 |
| Max. feed size (mm) | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 | <50 |
| Moisture of the feed (%) | <15 | <15 | <15 | <15 | <10 | <10 | <15 | <15 | <15 | <15 |
| Fineness of the product (RO.08%) | 8-12 | 8-12 | 8-12 | 8-12 | ≤14 | ≤14 | 8-12 | 8-12 | 8-12 | 8-12 |
| Moisture of the product (%) | <1 | <1 | <1 | <1 | ≤1 | ≤1 | <1 | <1 | <15 | <1 |
| Power of main motor (kw) | 200 | 400 | 450 | 630 | 900 | 1120 | 380 | 450 | 610 | 745 |
| Air inter temperature °C | <450 | <450 | <450 | <450 | <450 | <450 | <450 | <450 | <450 | <450 |
| Weight (t) | 40 | 70 | 80 | 150 | 218 | 256 | 56 | 75 | 80 | 160 |
We have a wide range of product lines for customers, and we provide overall contracting services for cement production enterprises, including technological design, equipment supply, and assembly and debugging of equipment. And we undertake international bidding projects as well. Moreover, we also provide equipment and technical service for grinding, calcining, crushing, dust collecting, and transporting in enterprises like metallurgy, chemical industry, mining, electricity, and environmental protection, etc.
We provide various services including engineering design, civil construction, equipment supply, assembly and debugging, technology services, and general contracting service.
Features simpler processing flow, easier operation, lower investment requirements, electricity saving, and environmental protection with the ability to mix with admixtures.
Widely used in fields like metallurgy, chemical industry, building refractories, environmental protection sector, and related industries.
Typically designed for grinding various ores and grindable materials for industrial and mining enterprises. It is also suitable for open-circuit and circulatory closed-circuit grinding with a powder classifier.
Designed specifically for coarse and medium crushing of ores and other materials.
Used widely across multiple fields, including metallurgy, electricity, chemical industry, building materials, and other sectors.
Our monocular cooler features a compact, rational, and simple structure, high thermal efficiency, low maintenance costs, and high-efficiency operation.
Our rotary dryer is mainly used for drying slag, clay, limestone, and other materials in cement, chemical engineering, metallurgy, and building material fields.
Features easy technology implementation, low investment costs, and convenient operation.
Quality Control
We have our own engineering technology center. We maintain a complete set of international quality management systems, allowing us to examine and test the entire process of our products from the raw material stage to the moment they leave our facility. We have established cooperative relations with authoritative quality inspection institutions, as well as many international quality supervision and consulting companies. All of our raw materials come from premium, first-grade companies, ensuring the high quality and performance of our products.
Service1. We offer after-sales services globally. Our skilled and experienced after-sales service staff can reside at your facility for equipment assembly and debugging.
2. We provide emergency after-sales services to resolve operational issues and equipment faults in production processes, deploying our technicians directly to your site.
3. We strictly observe the set delivery times, ensuring on-schedule completion and delivery.
