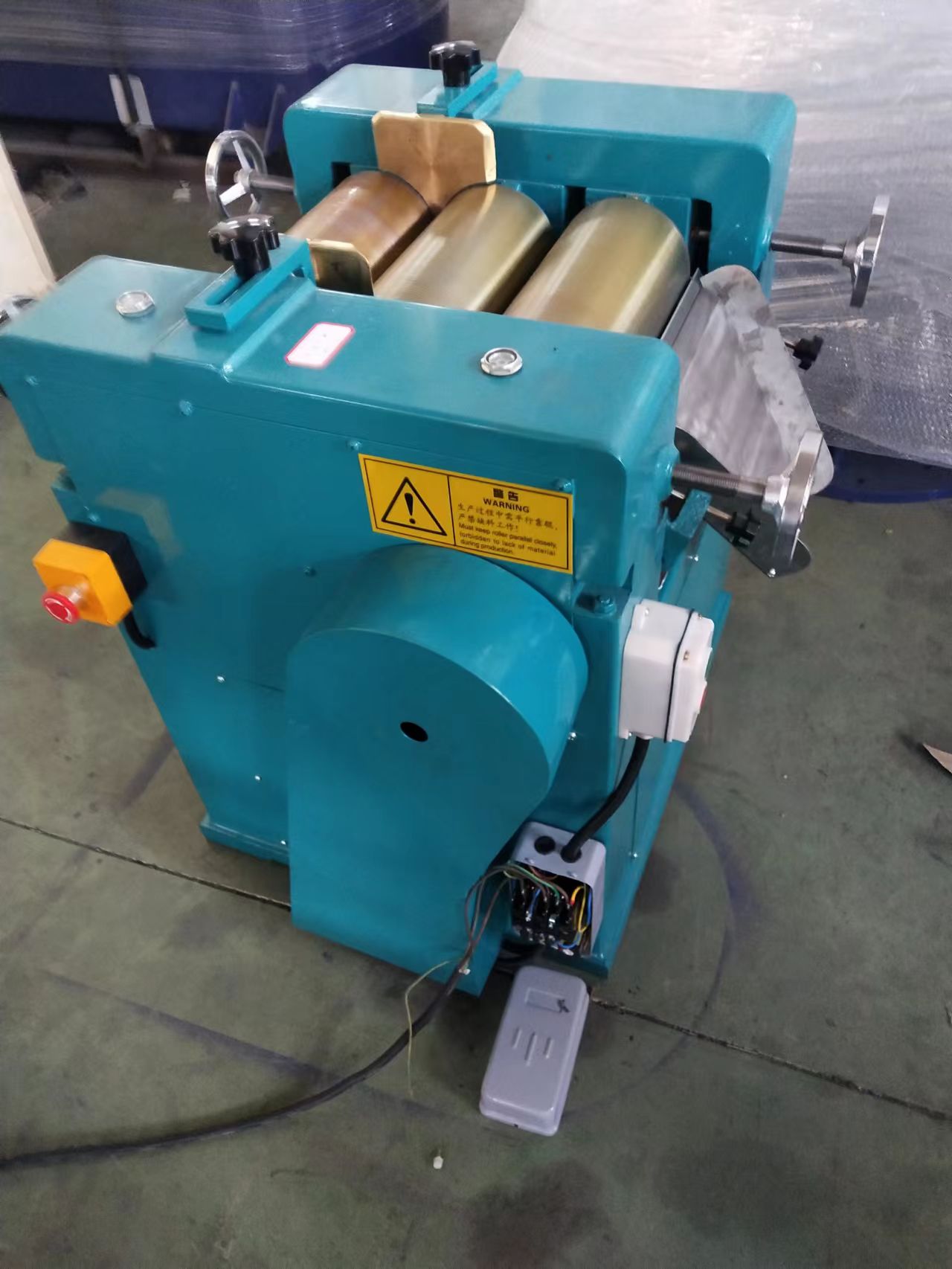

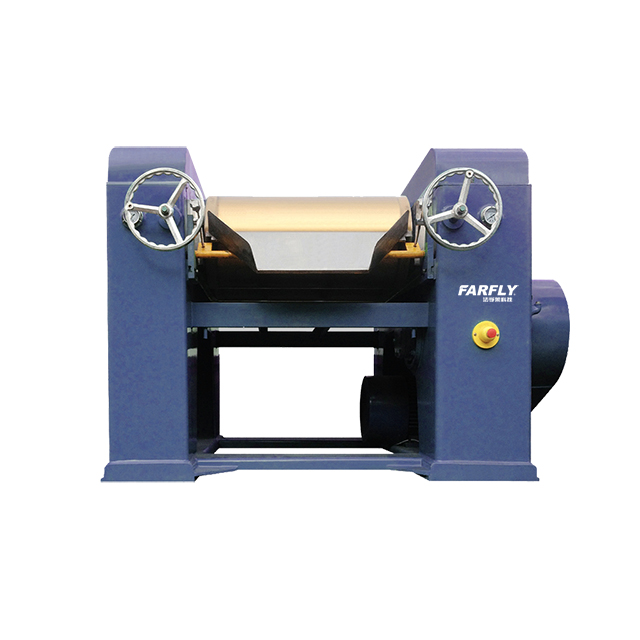

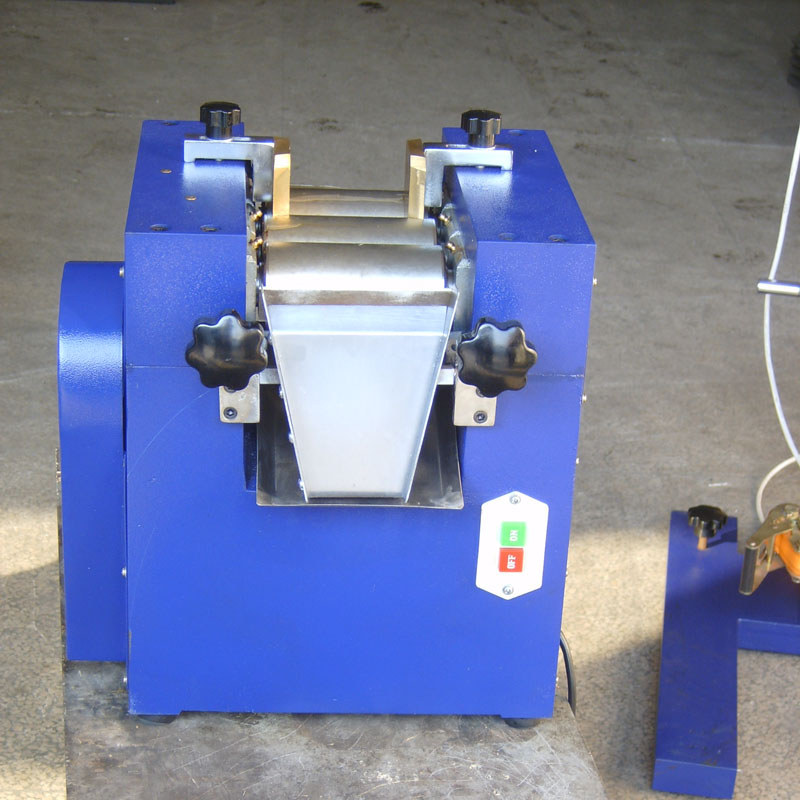

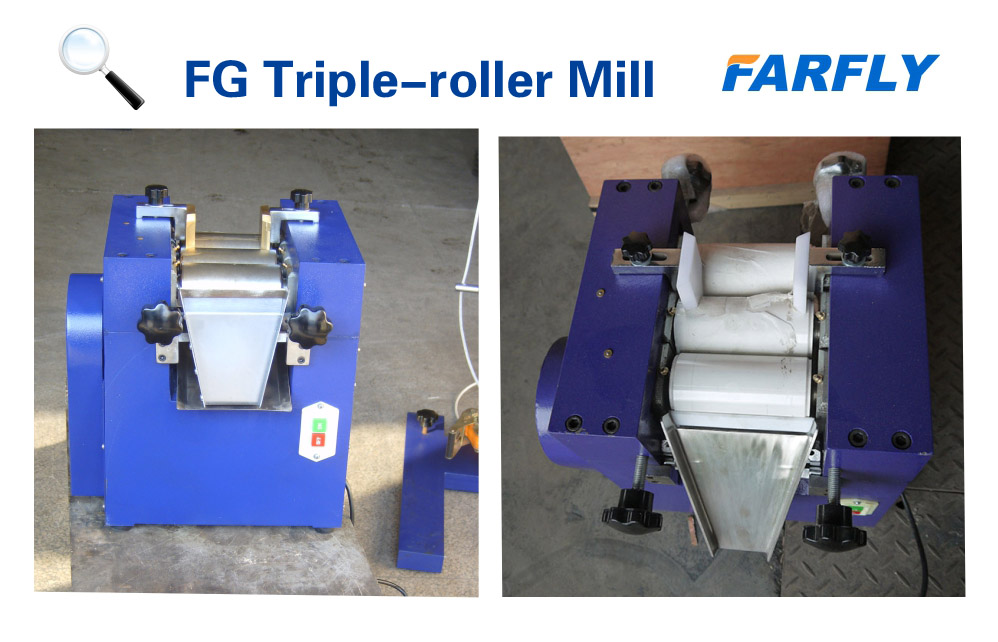

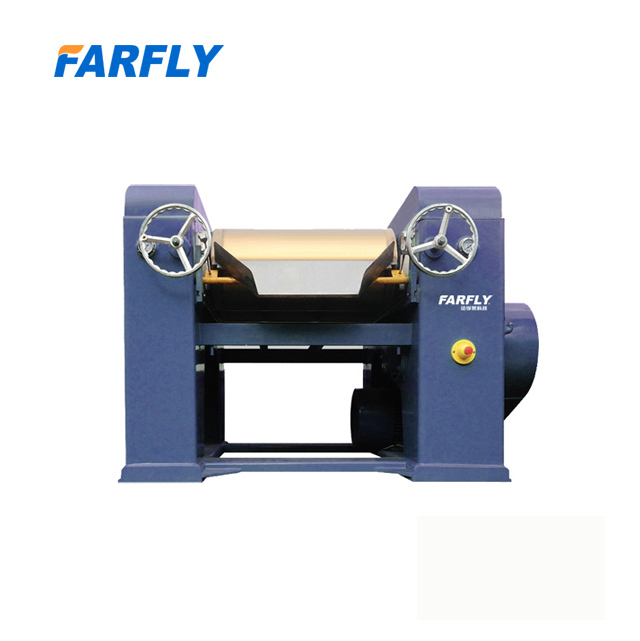

The triple-roller mill is mainly used in paint, printing ink, pigment, plastic, etc., especially mill and disperse products with high viscosity and small granularity. Due to mutual squeezing of three horizontal alloy bowls and friction with different velocity, great milling effect can be realized. It adopts sprocket driven, the gear is immerged into lubricant, so service life of the machine is maximum prolonged, noise and energy consumption is reduced. The bowl adopts wear-resistant alloy steel, has a longer life.
Technical Data
Parameter/Type
FG150
FG260
FG406
FG406L
Roller diameter (mm)
150
260
406
406
Working length (mm)
300
675
810
1000
Speed (rpm)
Slow
26
24
16
16
Middle
78
68.5
48
48
Fast
205
195
145
145
Motor power (KW)
2.2
7.5
15
22
Overall size (mm)
980×750×915
1750×1400×1180
2100×1900×1360
2530×1778×1320
Weight (Kg)
500
2000
5300
5800
Frequently Asked Questions
Q
What applications are triple-roller mills best suited for?
They are ideal for grinding and dispersing high-viscosity materials such as paint, printing ink, pigment, plastics, cosmetics, and electronic pastes to achieve small granularity.
Q
How does the three-roller mill achieve its dispersion effect?
Dispersion is achieved through the squeezing force generated by three horizontal alloy rollers and the shearing force caused by their rotation at different speeds.
Q
What are the benefits of the wear-resistant alloy steel rollers?
The wear-resistant alloy steel bowls (rollers) offer high durability, prevent material contamination, and significantly prolong the overall service life of the machine.
Q
How does the sprocket-driven system improve performance?
The gears are completely immersed in lubricant, which minimizes noise during operation, decreases energy consumption, and extends the transmission's service life.
Q
How do I choose between models like FG150 and FG406L?
Selection depends on your production scale. The FG150 is compact with a 150mm roller diameter and 2.2KW motor for smaller batches, while the FG406L is a heavy-duty model with a 406mm roller diameter and 22KW motor for mass production.
