Rolling Centre Height1080 to 1100 mm (above ground)
B. Dilute Oil Lubrication System
Maximum Flow7.5 m³/h
Working Pressure3.6 kgf/cm²
Oil Temperature35 ~ 45 ºC
Tank Volume1.7 m³
CoolingCirculating cooling water

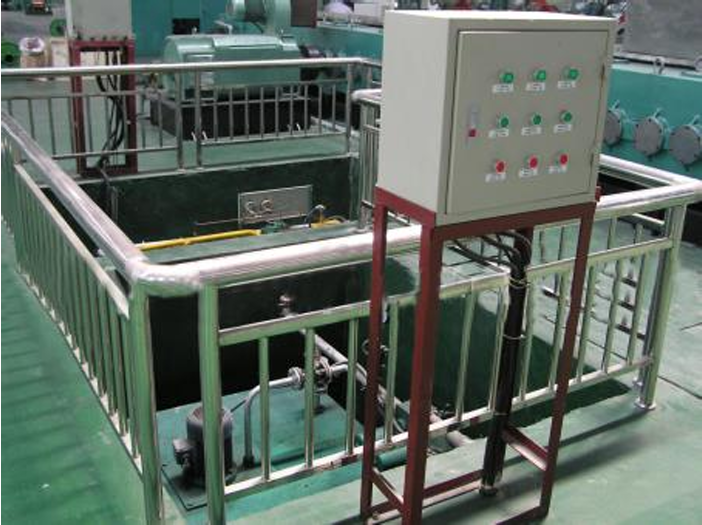

C. Emulsion System
Maximum Flow18 m³/h
Working Pressure2.2 kgf/cm²
Oil Temperature35 ~ 45 ºC
Emulsion Tank Volume7.65 m³
CoolingSelf-cooling

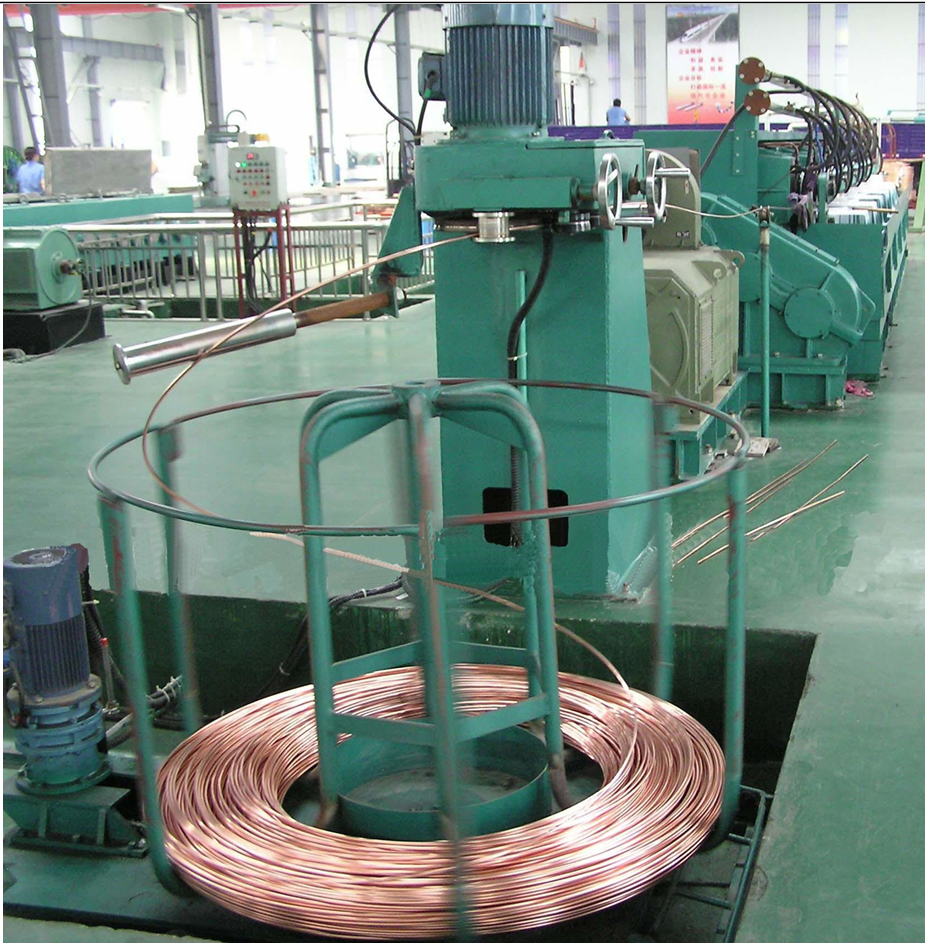

D. Continuous Coiler
Scope of Applicationφ8 mm
Max Circle Diameterφ1500 mm
Max Speed Traction1.1 m/s
Largest Weight3 tons
Dimensionφ600 × φ1500 × 1000 mm
Haul Off Motor Power1.1 Kw
Coiler Motor Power1.5 Kw
Frequently Asked Questions
Q
What are the input and output sizing capabilities for the rolling process?
The system handles an input diameter of φ20 mm and delivers an output diameter of φ7.8 mm with a tolerance of ± 0.2 mm.
Q

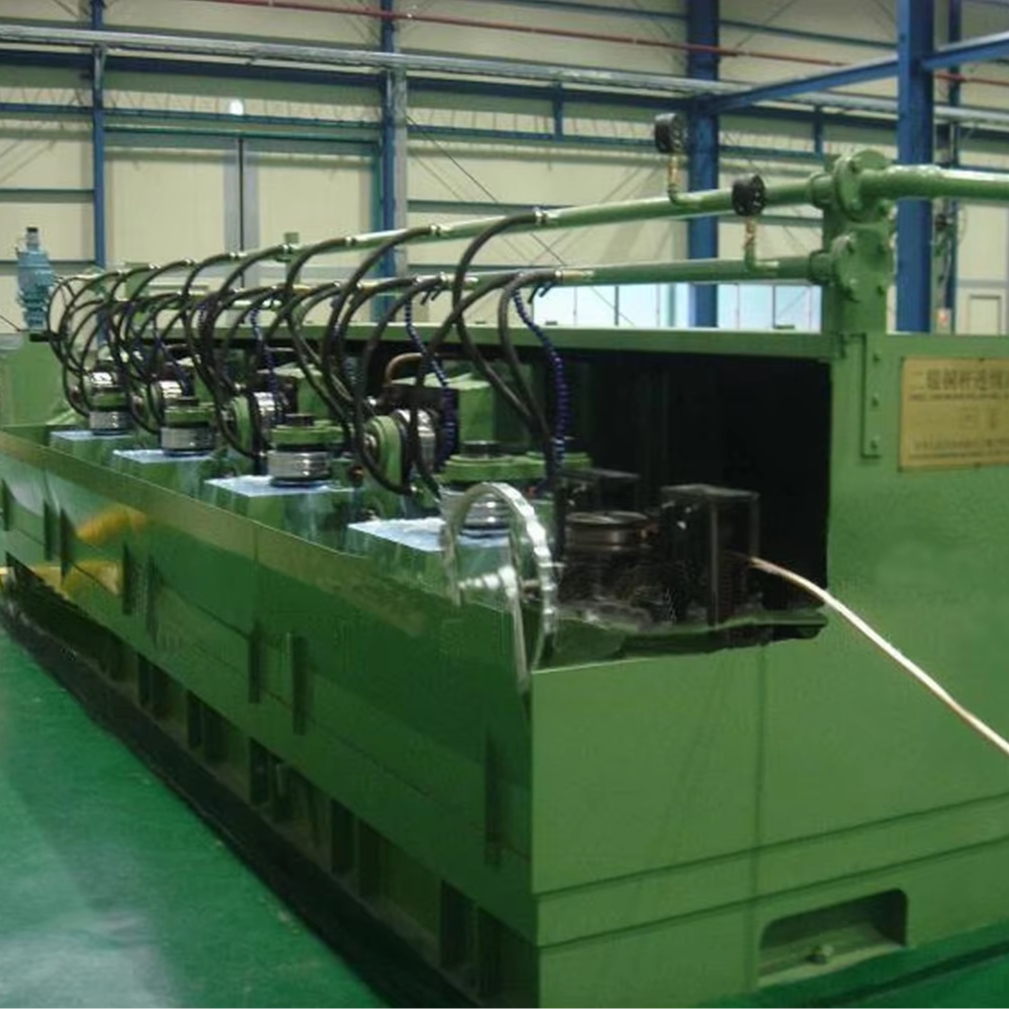

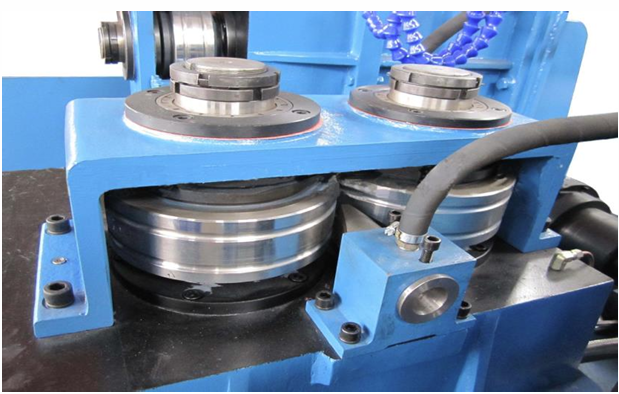

What are the primary specifications of the main machine's rack and motor?

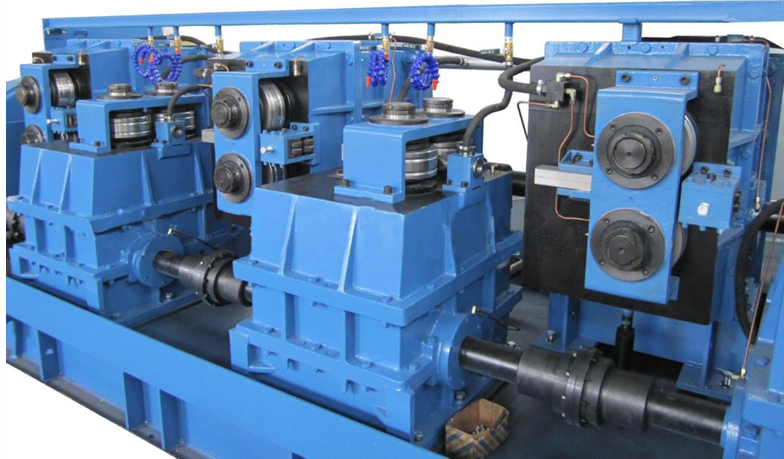

The main machine operates with 4 horizontal racks and 4 vertical racks. It is powered by a 200kw main motor running at 1000RPM.
Q
How does the dilute oil lubrication system manage temperature and cooling?
It maintains oil temperatures between 35 and 45 ºC using a circulating cooling water system with a tank volume capacity of 1.7 m³.
Q
What are the maximum flow rates for the lubrication and emulsion systems?
The dilute oil lubrication system has a maximum flow rate of 7.5 m³/h, while the emulsion system reaches a maximum flow rate of 18 m³/h.
Q
What capacities and dimensions does the continuous coiler support?
The continuous coiler supports a maximum circle diameter of φ1500 mm, a maximum traction speed of 1.1 m/s, and a largest weight capacity of 3 tons. Its dimensions are φ600 × φ1500 × 1000 mm.
