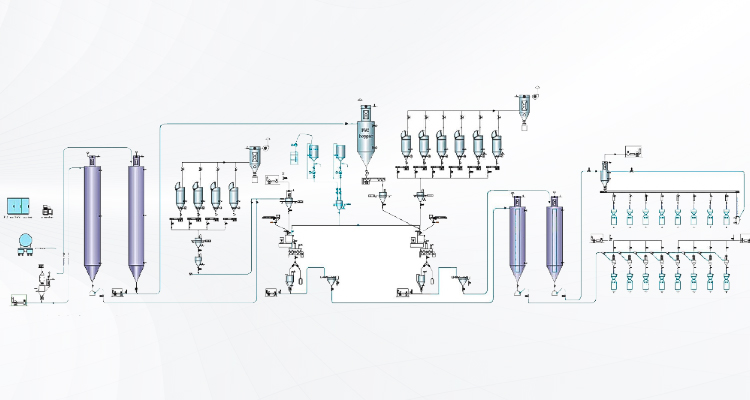

| No | Composition | Principles |
|---|---|---|
| 1 | Material collection system | The material collection system is used to collect bulk or bagged raw materials into storage silos in various ways. |

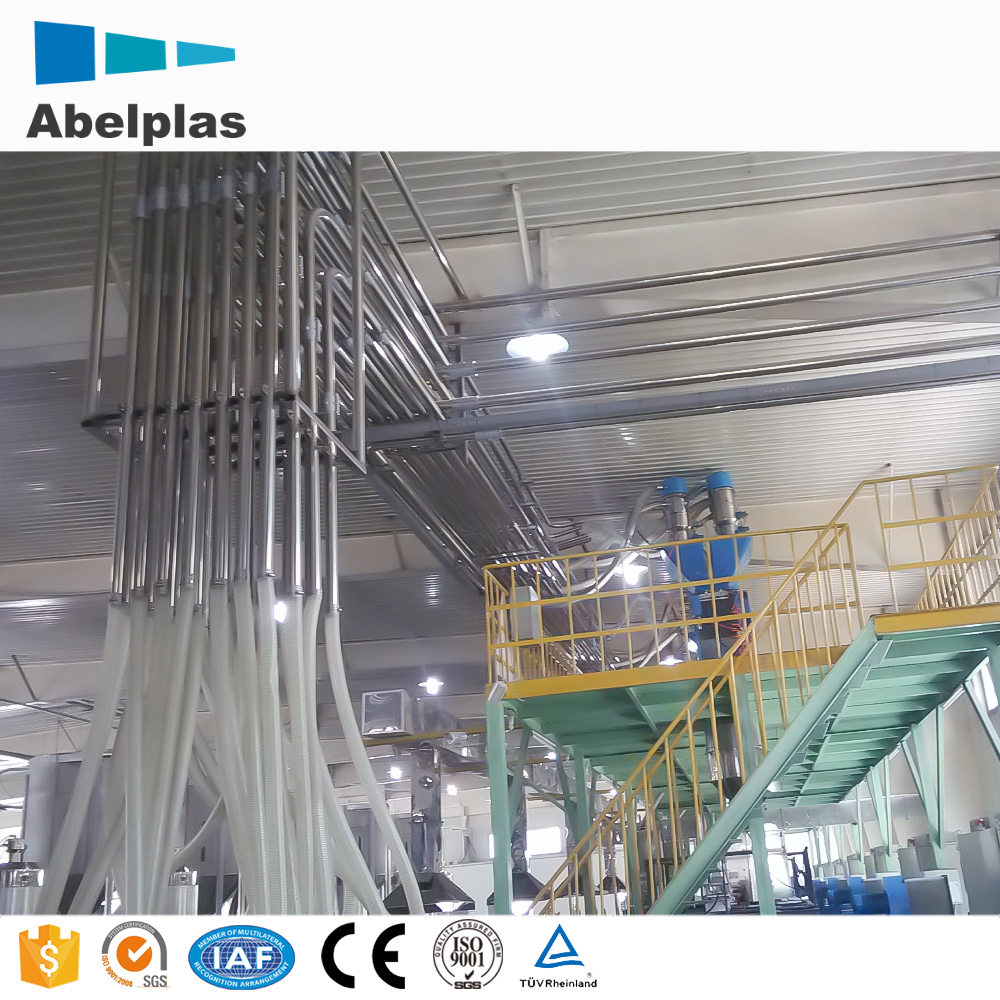

| 2 | Material conveying system | The conveying of the materials is the key to the automation of the compounding and feeding system. |
| 3 | Weighing batching system | In the PVC automatic compounding system, the weighing batching system is normally composed of two separate subsystems. |

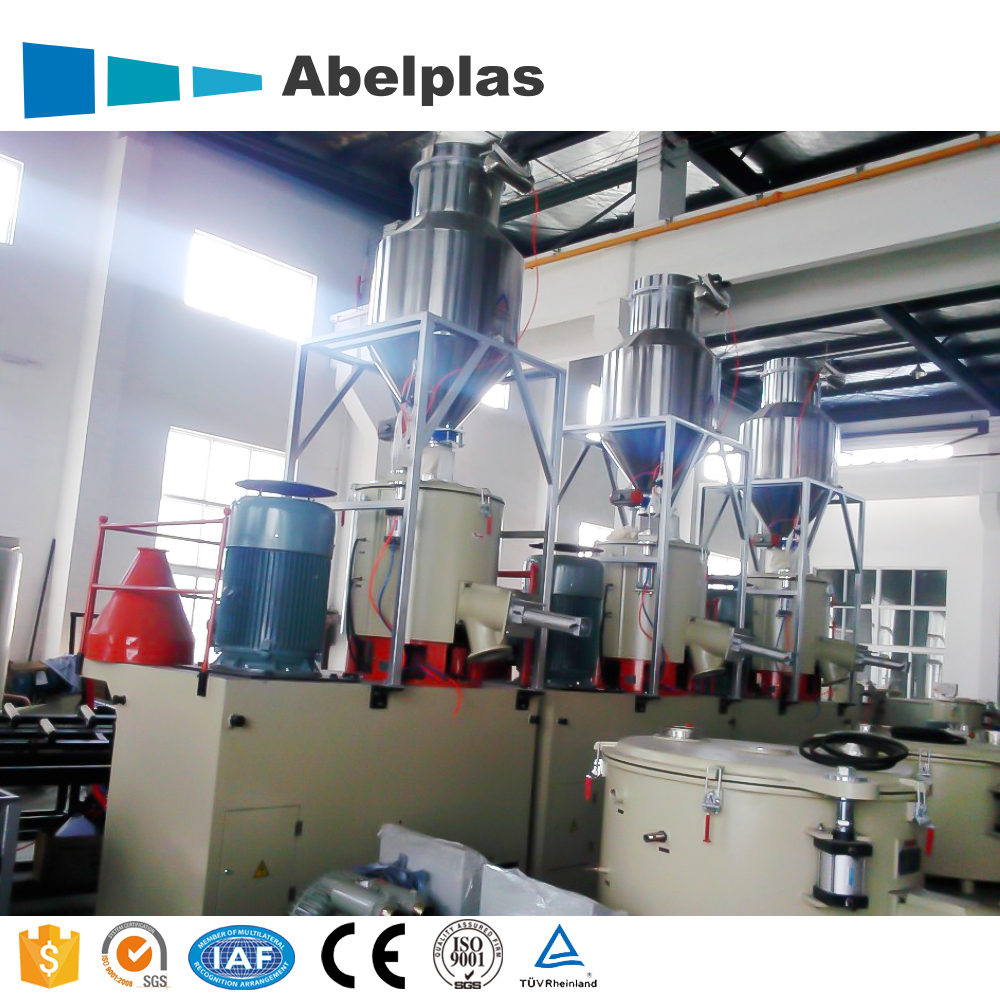

| 4 | Mixer Unit | The high speed hot and cooling mixer is a preferred equipment suitable for the PVC blending process, which is a combination of a high speed hot mixer and a horizontal cooling mixer. |

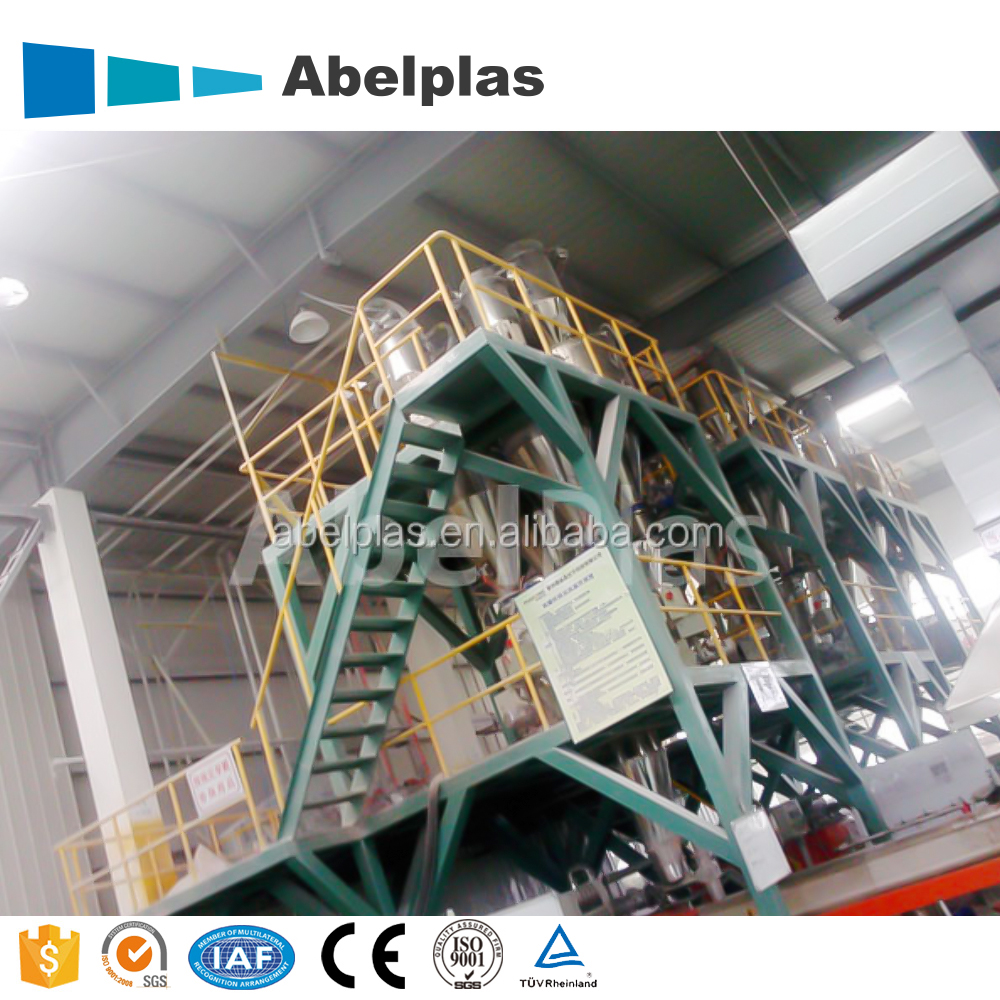

| 5 | Material storage equipment | Material storage equipment are separately silos mainly used for storing raw materials and finished materials. |
| 6 | Dust removal system | The model of the dust collector varies depending on the case of use. We use the imported coating materials as the filter material in dust collector, the filter aperture’s size should less than 0.5 microns, which is the most advanced filter material in the world. |
| 7 | Electrical Control System | The electrical control system connects the complete set of equipment together. It is the guarantee of long-term stable operation of the compound mixing line. |
| 8 | Auxiliary equipment | The auxiliary equipment includes an operating platform, sieves, rotor splitters, switching valves, pipes and etc. |
| 9 | Feeding system for extruder | Feeding system is composed of vacuum feeder or spring feeder. |
