Product Description

Product Description
The equipment is widely used in superfine grinding and processing of non-metallic minerals such as calcite, marble, limestone, heavy calcium, talc, barite, dolomite and so on. The fineness of the finished powder is 45~8μm (325~1500 mesh). The equipment production capacity is between 3.8~16t/h. The finished powder can provide high-quality fillers and additives for papermaking, plastics, coatings, rubber, ink, chemical and other industries.

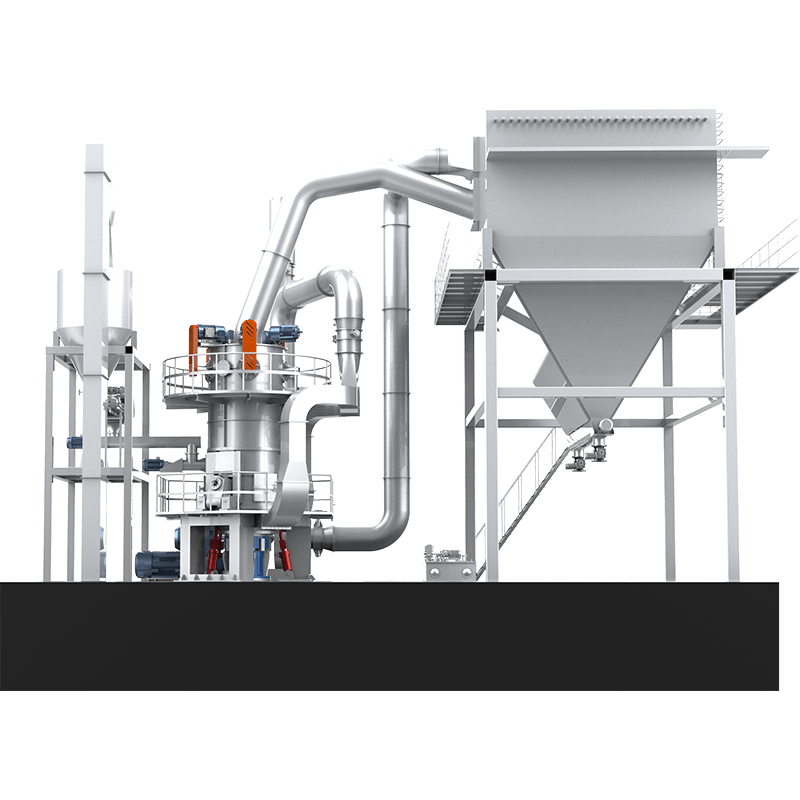

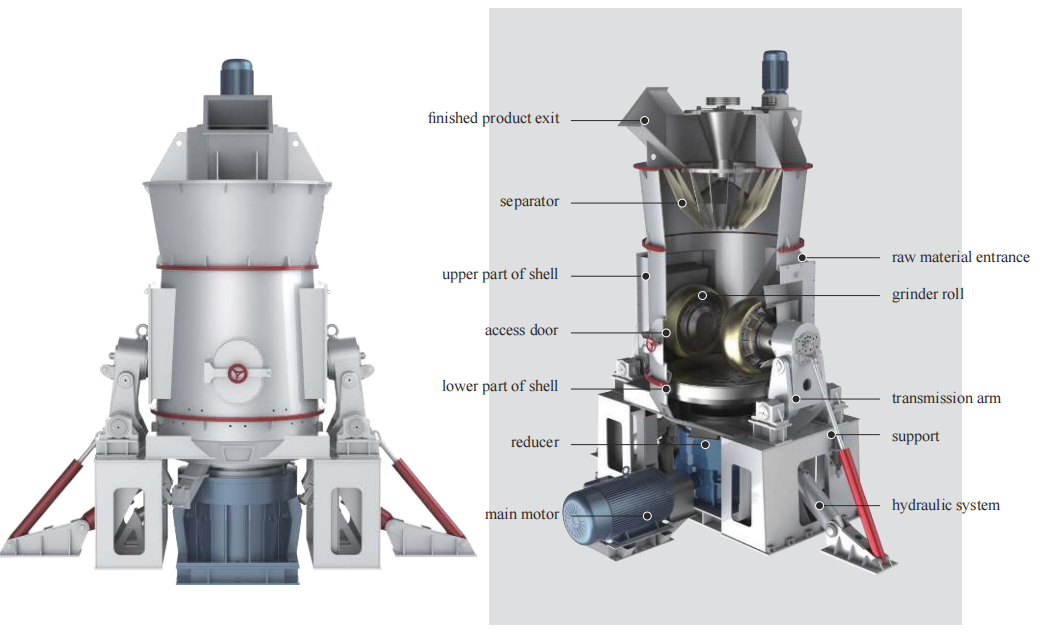

Industrial Superfine Vertical Roller Mill
Product Parameters
GKLMX series Superfine Vertical Roller Mill Specifications and Models
Model GKLMX1200 GKLMX1400
Capacity (t/h) 3.8~12.0 6~16.0
Fineness (Mesh) 325~1500 325~1250
System Power (Main Motor Power+Fan Power +Classifier Electric motor Power +Auxiliary Power)(KW) 560~600 700~750
GKLMX1400 Heavy Superfine Calcium Carbonate Data
Fineness (mesh) 325 600 1000 1250
Fineness 15~16 11~12 7.5~8.0 6.0~6.5
Size Distribution D97 (μm) 45±1 25±1 13±1 10±1
Specific Surface Area (cm²/g) 6000 12000 14000 16000
±1000 ±1000 ±1000 ±1000
Material: calcite or marble, Moh's hardness ≤ 3, feeding size ≤ 10mm.
The above data is for reference only. For specific information, please refer to the actual product or product manual.
Applicable Materials
Applicable Materials
Packaging & Shipping
Packaging & Shipping Details
Our Services
Service Process
Technical Support
Frequently Asked Questions
1. What equipment lines are available for purchase?
We offer a comprehensive selection of industrial grinding solutions, including:
  • Vertical Roller Mill
  • Superfine Vertical Roller Mill
  • Raymond Mill
  • Hydrated Lime Production Line
  • Ultra-fine Ring Roller Mill
  • Crusher
  • Innovative Sand Making Machine
  • Integrated Sand and Powder Grinding Machine
  • Other related production lines
2. What details should be provided before requesting an equipment list and quotation?
To receive a precise and customized quotation, please provide the following details:
  • The specific raw materials to be processed (e.g., quartz, talc, calcite).
  • The maximum size of the raw stone before feeding into the mill.
  • The expected hourly or daily handling capacity requirements.
3. How long is the equipment warranty and are spare parts available?
The equipment is covered by a warranty of at least 12 months. All required spare parts are supplied on an ongoing basis at the lowest possible cost.
4. What payment methods are accepted?
Flexible payment options are supported, including T/T, Letter of Credit (L/C), and Western Union. Additionally, trade assurance payment options are accepted.
5. What is the standard fineness range of the finished powder?
The standard finished powder output fineness ranges from 45 to 8μm, which corresponds to 325 to 1500 mesh, depending on the machine adjustments and material type.
6. What production capacity can be expected from these mills?
Depending on the specific mill model, configuration, and material hardness, the system offers an hourly production capacity ranging from 3.8 to 16 tons.
