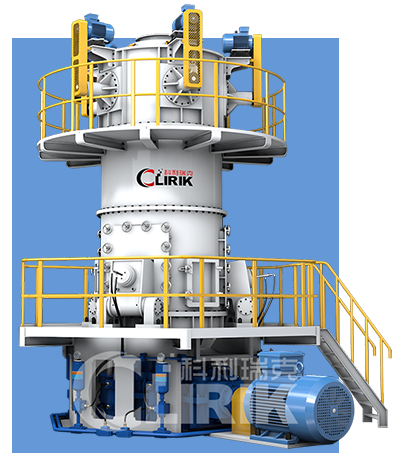

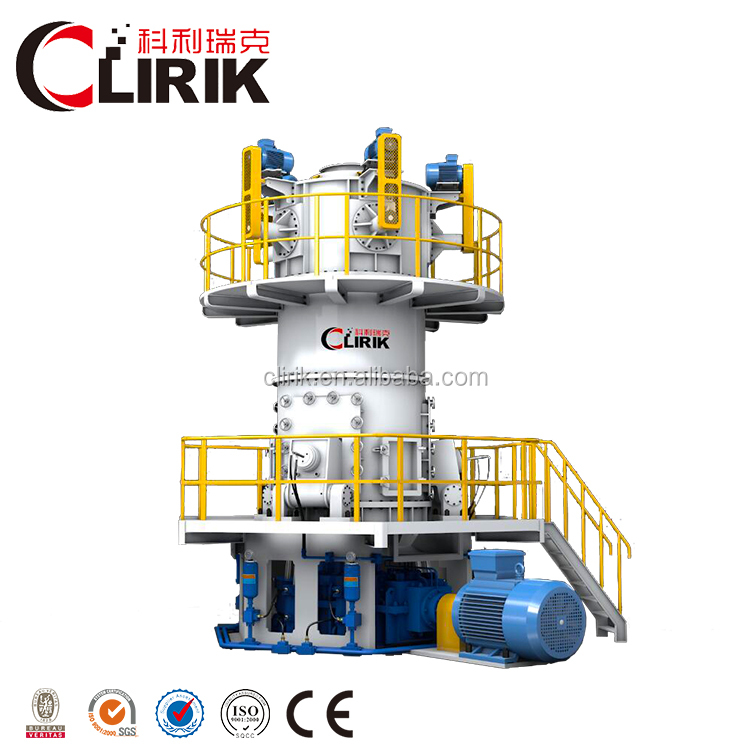

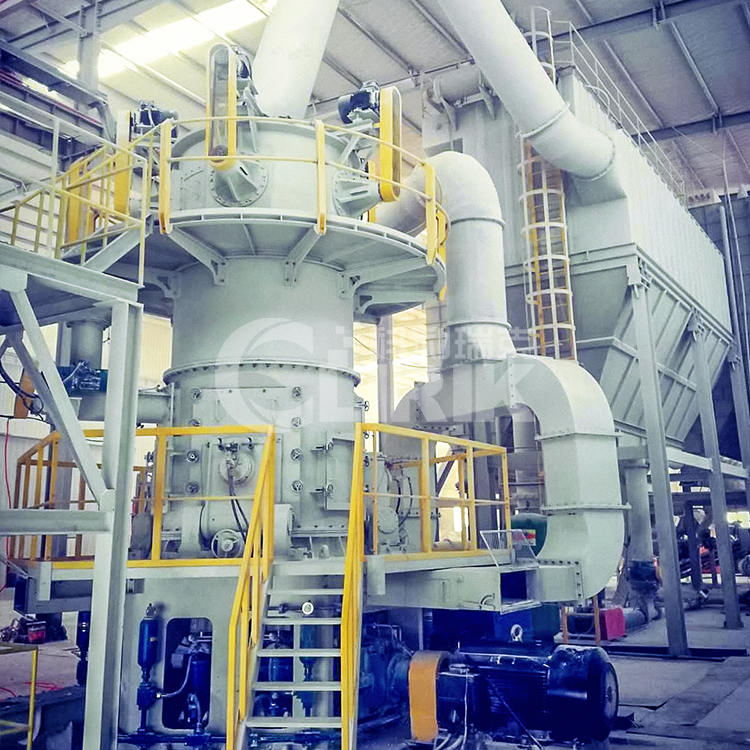

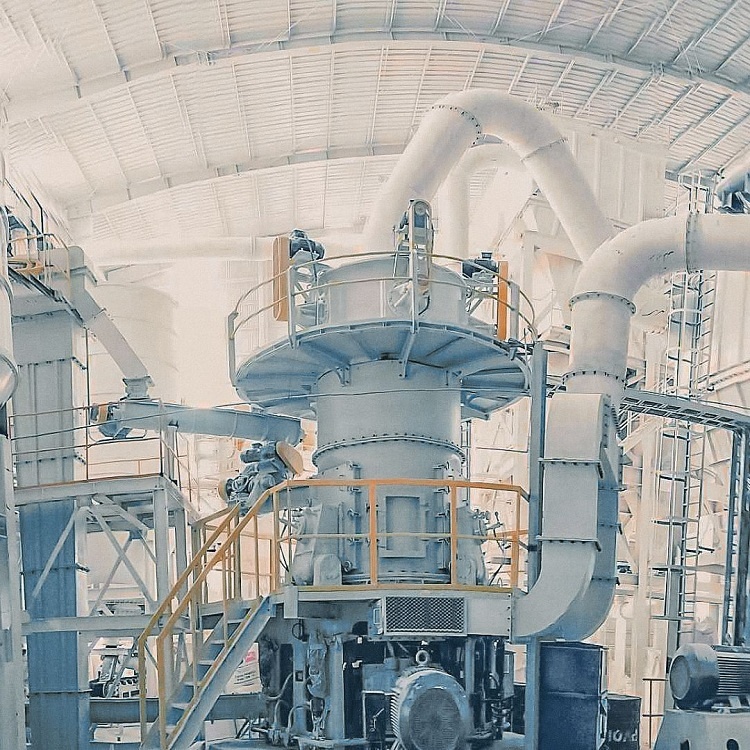

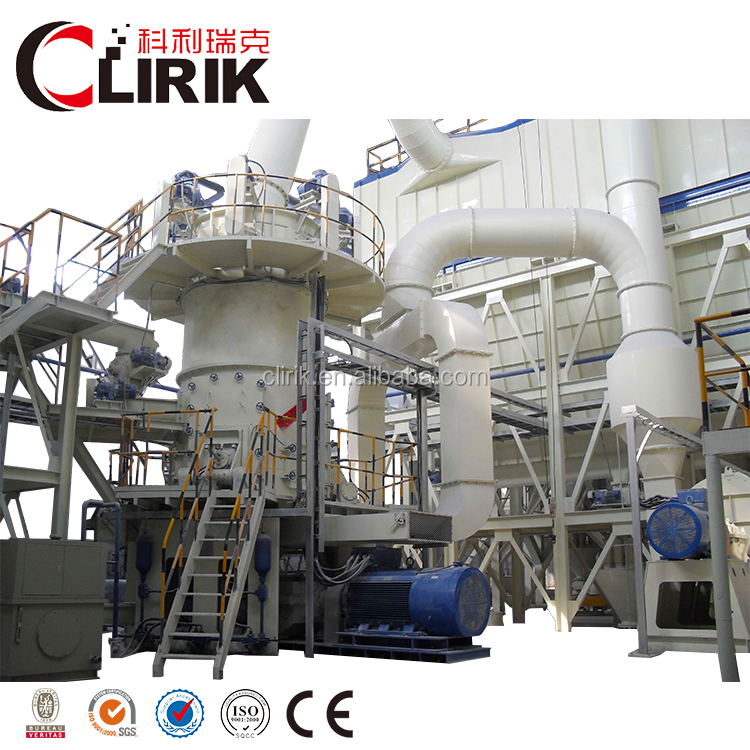

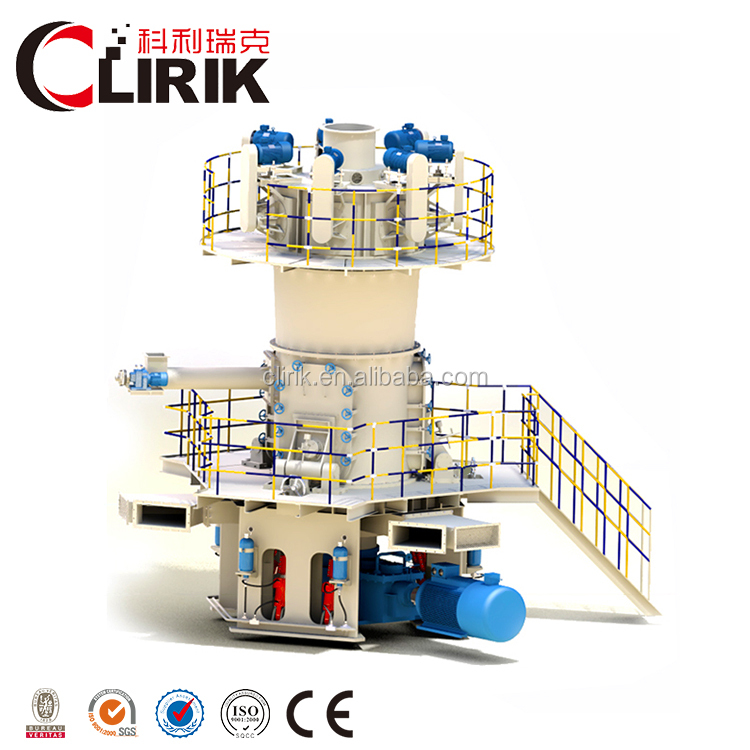

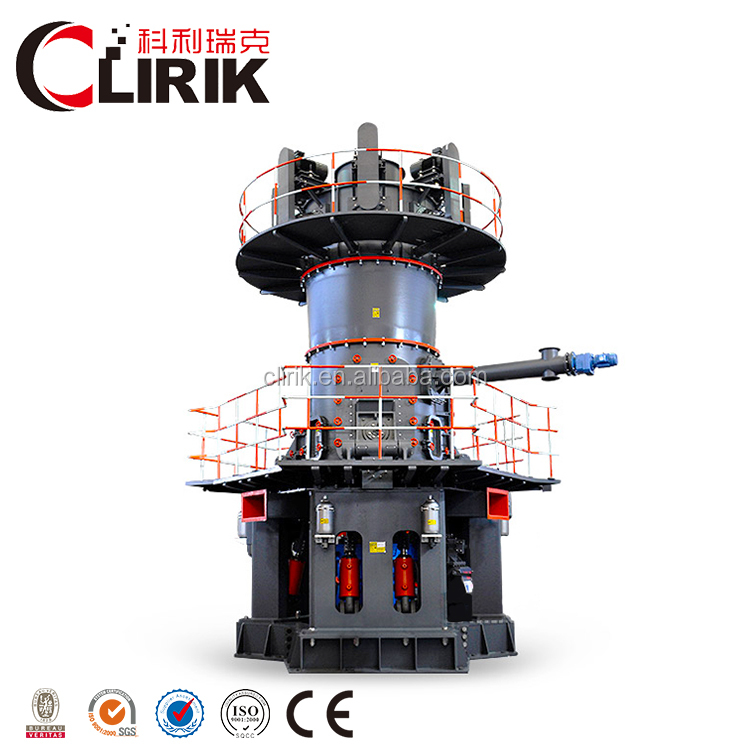

The CLUM series vertical roller mill integrates the functions of grinding, classifying, conveying, secondary classifying, and packing progress into one machine.

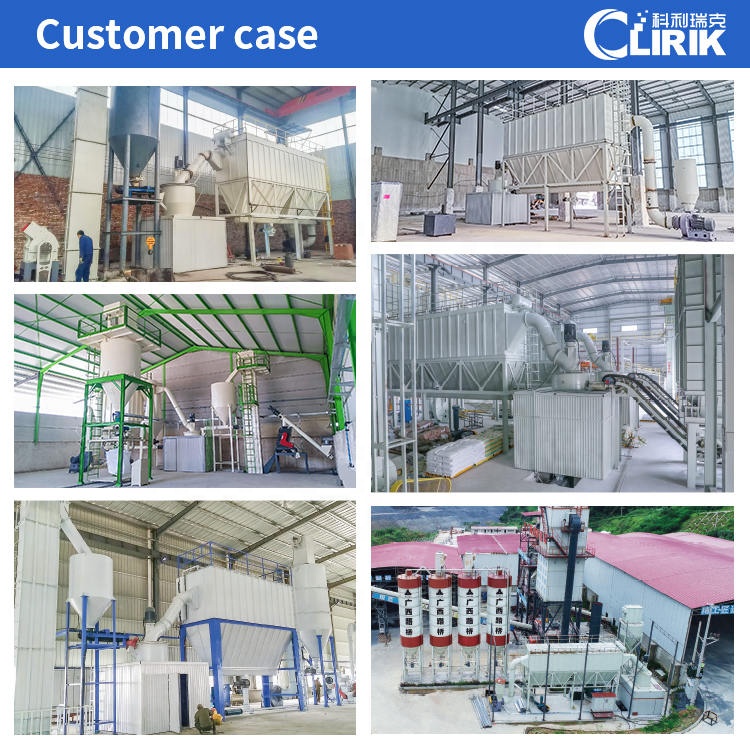

Its powder fineness can reach 400-3000 mesh. The CLUM vertical roller mill breaks through the bottleneck of low capacity. Over 5 years' development, more than 30 ultra fine powder production lines have been installed worldwide.
It can provide high-end ultra fine fillers powder for paper making, coating materials, plastics, rubber, PVC, printing ink and other industries.
| Model | CLUM1425 | CLUM1632 | CLUM1736 |
|---|---|---|---|
| Plate Diameters (mm) | 1400 | 1600 | 1700 |
| Number of rollers (pieces) | 3 | 3 | 3 |
| Number of classifier (pieces) | 6 | 6 | 8 |
| Powder of classifier (Kw) | 6*15 | 6*22 | 8*22 |
| Main unit powder (Kw) | 220-250 | 315-355 | 355-410 |
| Blower powder (Kw) | 180-200 | 250-280 | 325-355 |
| Feed size (mm) | <10 | <10 | <10 |
| Moisture of feeding materials | <3% | <3% | <3% |
| Less than 2 um=30% output (t/h) | 9-12 | 12-16 | 14-18 |
| Less than 2 um=45% output (t/h) | 5.5-7.5 | 7-9 | 10-12 |
| Less than 2 um=60% output (t/h) | 3-4 | / | / |
| Output (t/h) | 10.0-12.0 | 7.5-9.5 | 6.0-8.0 | 4.5-6.5 | 3.0-4.0 |
|---|---|---|---|---|---|
| specific surface area (cm²/g) | 11000±500 | 13500±500 | 15000±500 | 17000±500 | 19000±500 |
| 325 mesh remaining amount(%) | 0.015 | 0.015 | 0.01 | 0 | 0 |
| Less than 2 um powder content (%) | 30 | 40 | 45 | 50 | 60 |
| Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 | 2.0 | 1.4 |
| General name (mesh) | 600 | 800 | 1250 | 2000 | 2500 |
| Particle size distribution D97 (um) | 30 | 25 | 20 | 15 | 9 |
| Particle size cut point D100 (um) | 80 | 48 | 38 | 28 | 18 |
| Moisture content (%) | <0.3% | <0.3% | <0.3% | <0.3% | <0.3% |
| Energy consumption (Kw/T) | 38-40 | 40-50 | 47-53 | 50-53 | 110-125 |
| Output (t/h) | 12.5-14.5 | 9.5-11.5 | 7.5-9.5 | 6.0-8.0 |
|---|---|---|---|---|
| specific surface area (cm²/g) | 11000±500 | 13500±500 | 15000±500 | 17000±500 |
| 325 mesh remaining amount(%) | 0.015 | 0.015 | 0.01 | 0 |
| Less than 2 um powder content (%) | 30 | 40 | 45 | 50 |
| Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 | 2.0 |
| General name (mesh) | 600 | 800 | 1250 | 2000 |
| Particle size distribution D97 (um) | 30 | 25 | 20 | 15 |
| Particle size cut point D100 (um) | 80 | 48 | 38 | 28 |
| Moisture content (%) | <0.3% | <0.3% | <0.3% | <0.3% |
| Energy consumption (Kw/T) | 38-40 | 40-50 | 47-53 | 50-53 |
| Output (t/h) | 15.0-18.0 | 11.5-13.5 | 9.0-11.0 |
|---|---|---|---|
| specific surface area (cm²/g) | 11000±500 | 13500±500 | 15000±500 |
| 325 mesh remaining amount(%) | 0.015 | 0.015 | 0.01 |
| Less than 2 um powder content (%) | 30 | 40 | 45 |
| Median particle diameter D50 (um) | 5.2 | 3.0 | 2.5 |
| General name (mesh) | 600 | 800 | 1250 |
| Particle size distribution D97 (um) | 30 | 25 | 20 |
| Particle size cut point D100 (um) | 80 | 48 | 38 |
| Moisture content (%) | <0.3% | <0.3% | <0.3% |
| Energy consumption (Kw/T) | 38-40 | 40-50 | 47-53 |
Our ultra fine vertical roller mill is widely applied in chemical, metallurgical, and non-metallic ore industries.
In particular, it is outstanding in processing white superfine non-metallic ore powders, providing superior quality fillers and additives for paper making, coating materials, plastics, rubber, PVC, printing ink, etc.
It can be extensively used to process superfine dry powder of non-mental materials such as calcite, marble, limestone, dolomite, barite, talc, kaolin, wollastonite, gypsum, feldspar, pyrophyllite, etc.
If you are interested in our ultra fine vertical roller mill, we also supply other stone processing equipment:
As a pioneer enterprise, we specialize in the research, manufacture, and sales of all kinds of mining equipment. Our enterprise has already formed a full set of modern production lines, equipped with intelligent, standardized testing and controlling laboratories, and supported by a professional team for R&D, production, sales, and service.

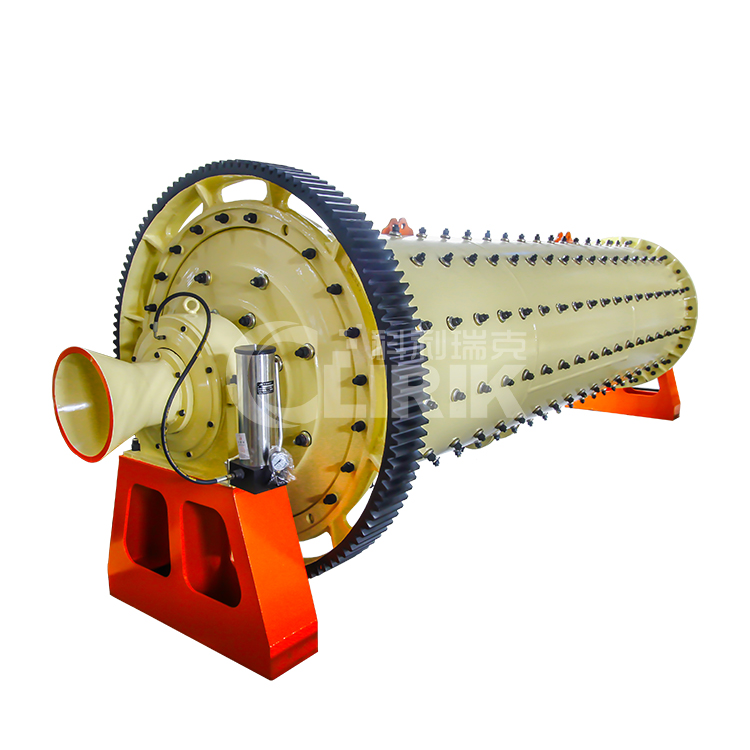

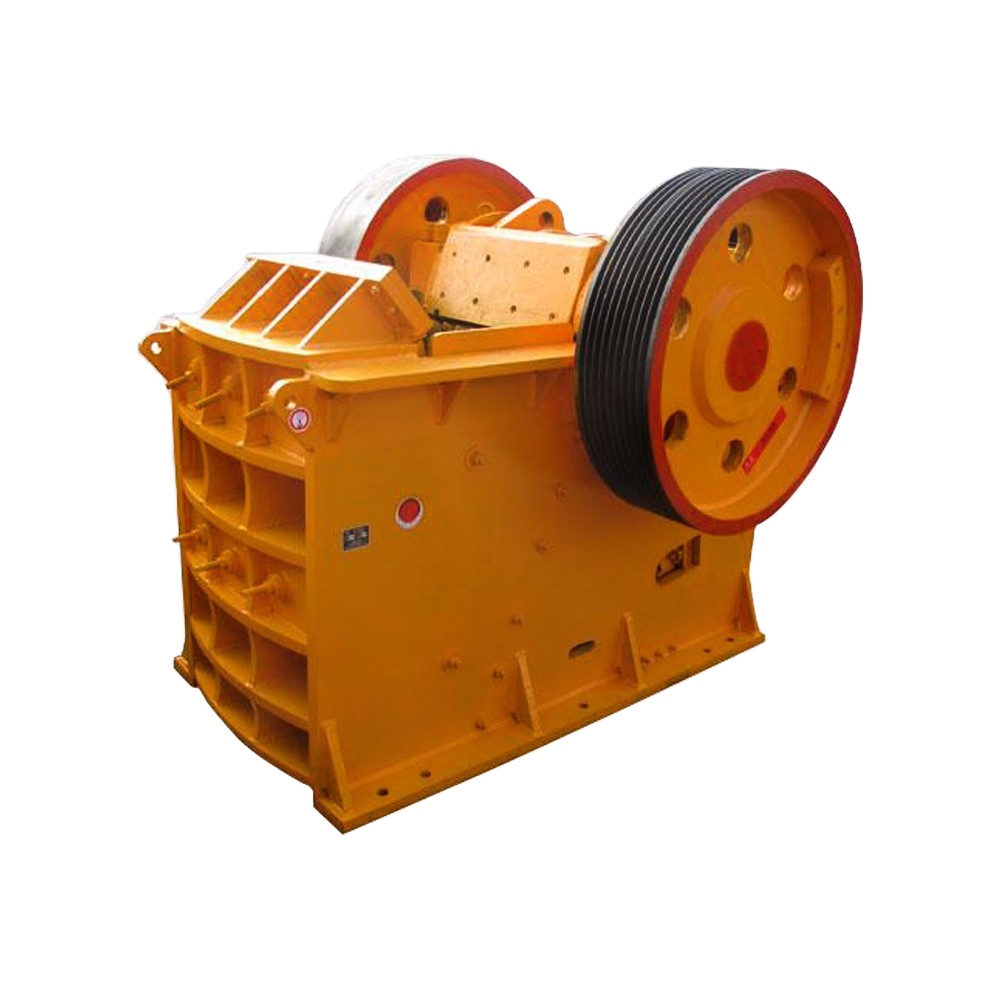

So far, we have established a complete production chain. The products cover micro powder grinding mills, high pressure grinding mills, European version coarse grinding mills, hammer crushers, jaw crushers, screw conveyors, bucket elevators, and more. They are widely used in mining, construction materials, chemicals, metallurgy, transportation, and hydraulic engineering. In particular, our independently developed micro powder grinding mills are not only renowned domestically, but also widely exported to Eastern Europe, the Middle East, Africa, South Asia, Southeast Asia, Oceania, and the Americas.
We continue to prioritize communication and cooperation with prestigious scientific research institutions to keep our development capabilities at the forefront of the industry. Based on the principles of constant innovation, quality assurance, and customer first, we provide our customers with high-quality products, competitive pricing, and tailored optimization configuration solutions.
We maintain the service philosophy of "creating more value for customers," treating our clients with complete dedication. With professional knowledge and global support capabilities, we ensure optimal results for your projects.
