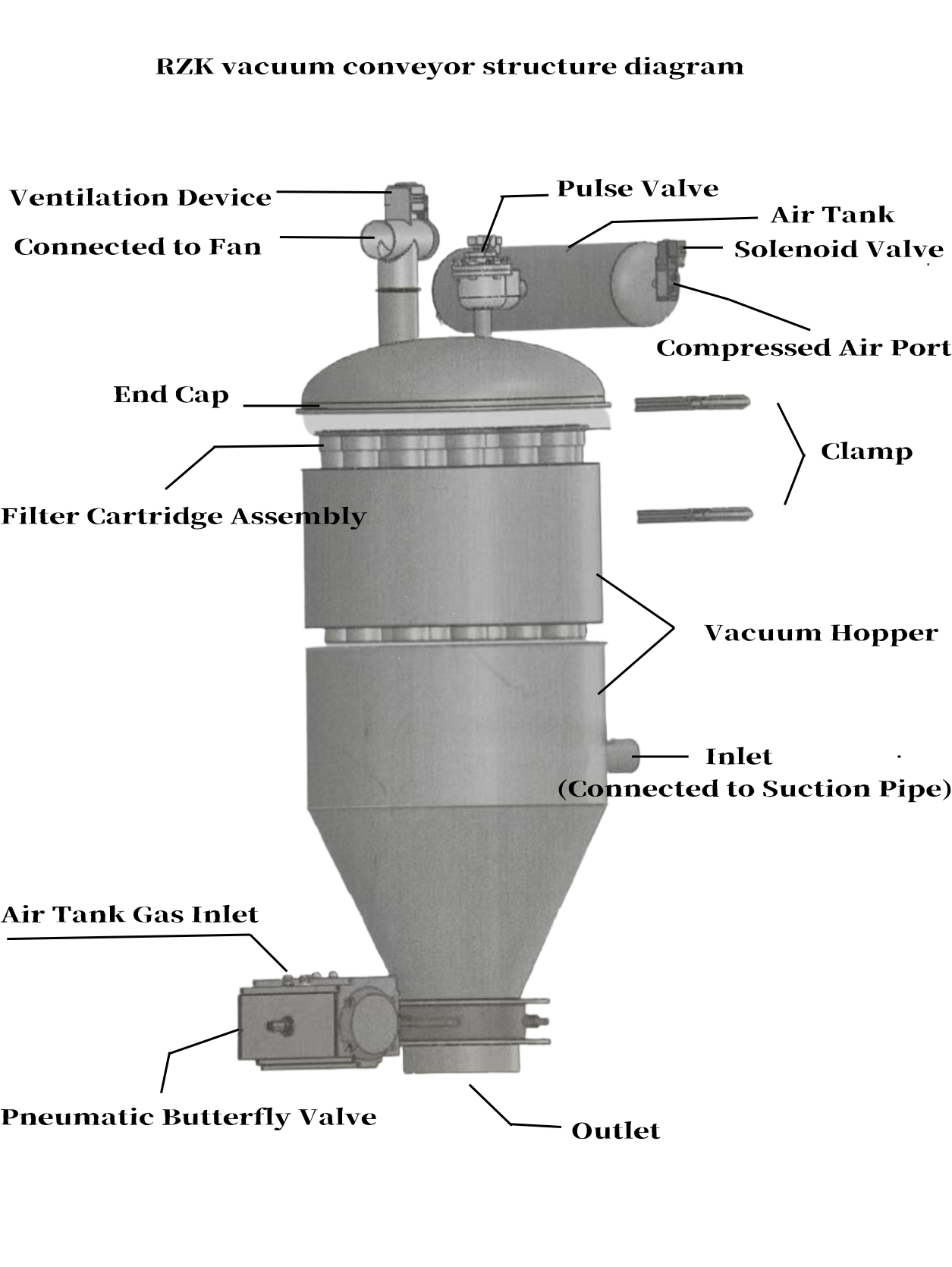

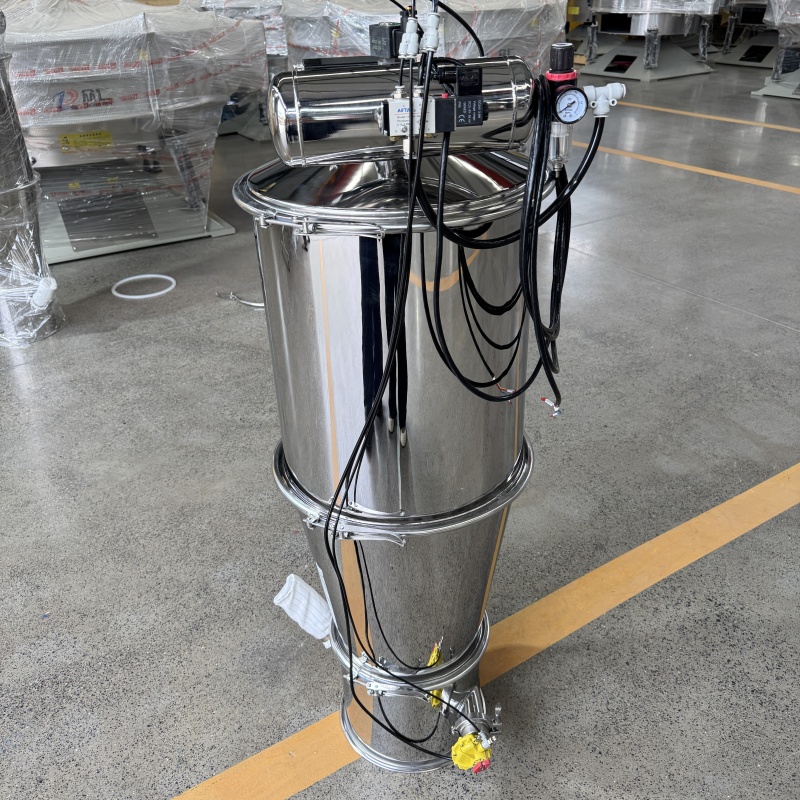

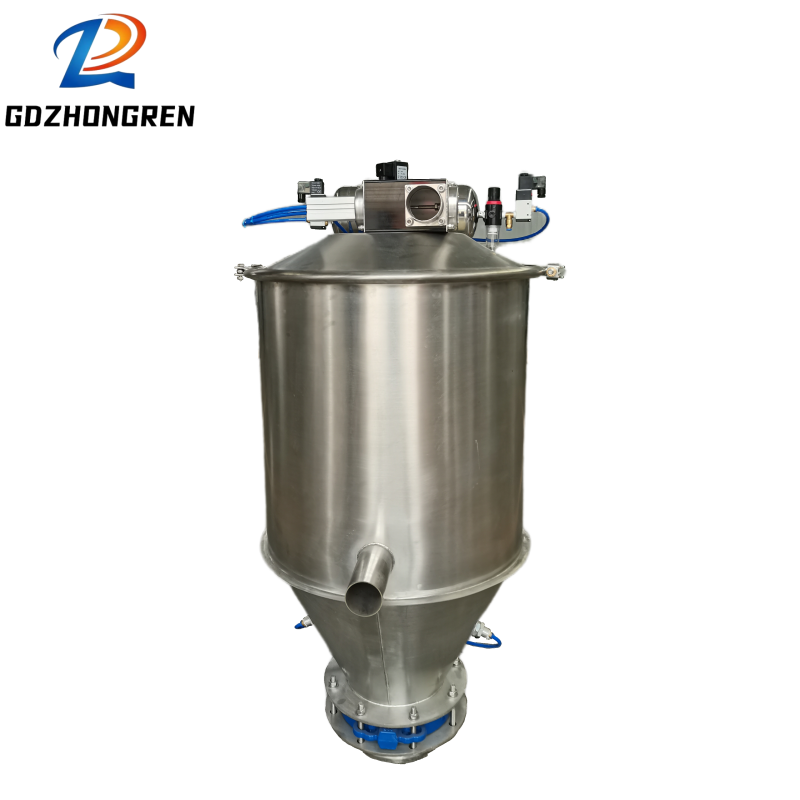

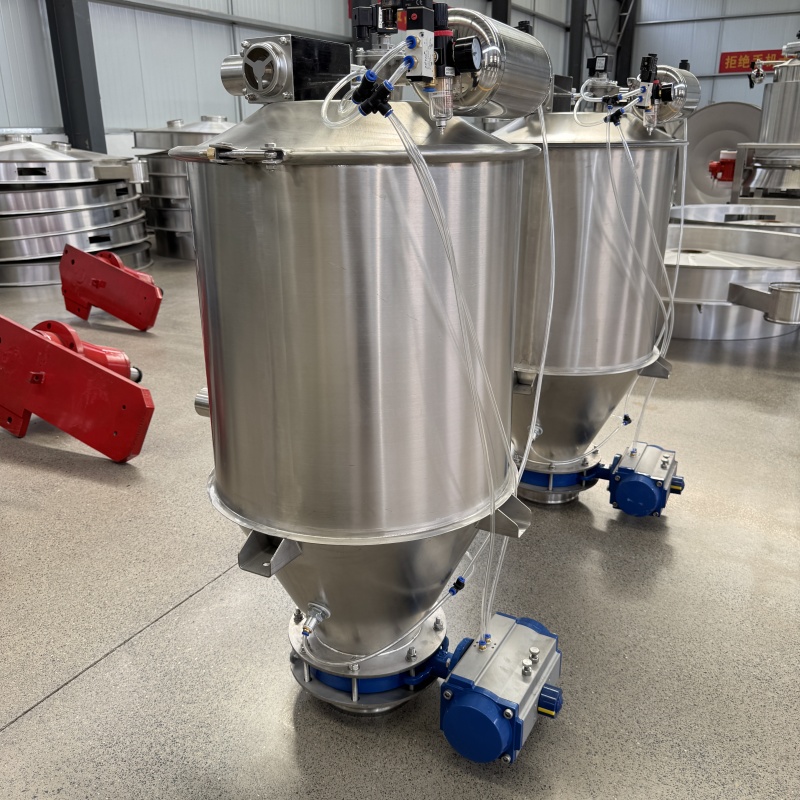

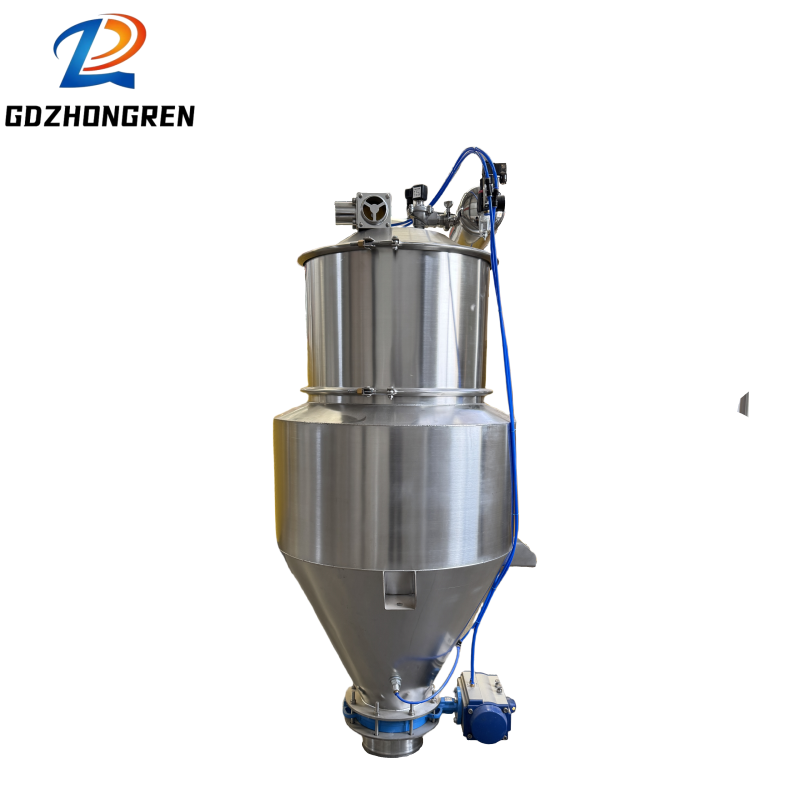

This machine uses strong air to suck up stuff like a giant vacuum cleaner! When air is pushed into the machine, it creates suction that pulls materials in through a hose. The material and air mix travel into a big container. Inside, a special filter catches the material, letting only clean air out. After a set time, the air stops, turning off the suction. A door at the bottom of the container pops open automatically, dropping the material into the next machine. At the same time, stored air blows backwards to clean the filter. Then, the air starts again, the suction comes back, the door closes, and the machine starts sucking up more material. This automatic cycle keeps repeating to feed material non-stop.
The R-series three-dimensional vibrating screening and filtering machine uses a dedicated vertical vibrating motor, and is optimized with American technology. It utilizes the vibrators (i.e., unbalanced weights) installed at the upper and lower ends of the motor. The screen changing process is simple and convenient, which can be completed by two people within five minutes. It has a unique anti-clogging device, ensuring that the mesh holes will never be blocked. It has a good sealing effect, preventing powder from flying. It is small in size and light in weight, not occupying much space, and can achieve the classification of materials in four specifications.
| Model | Power (kW) | Capacity (kg/h) | Gas consumption (L/min) | Gas pressure (MPa) |
|---|---|---|---|---|
| RZK-40 | 5 | 700 | 11 | 0.5-0.6 |
| RZK-60 | 7.5 | 1500 | 17 | 0.5-0.6 |
| RZK-80 | 11 | 3000 | 20 | 0.5-0.6 |
| RZK-100 | 15 | 5000 | 25 | 0.5-0.6 |

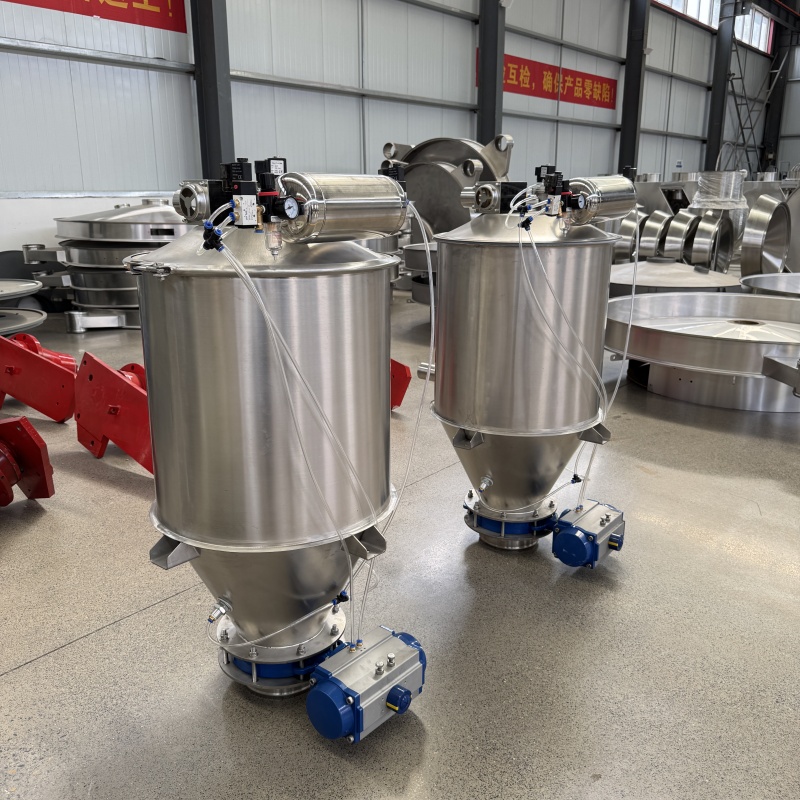

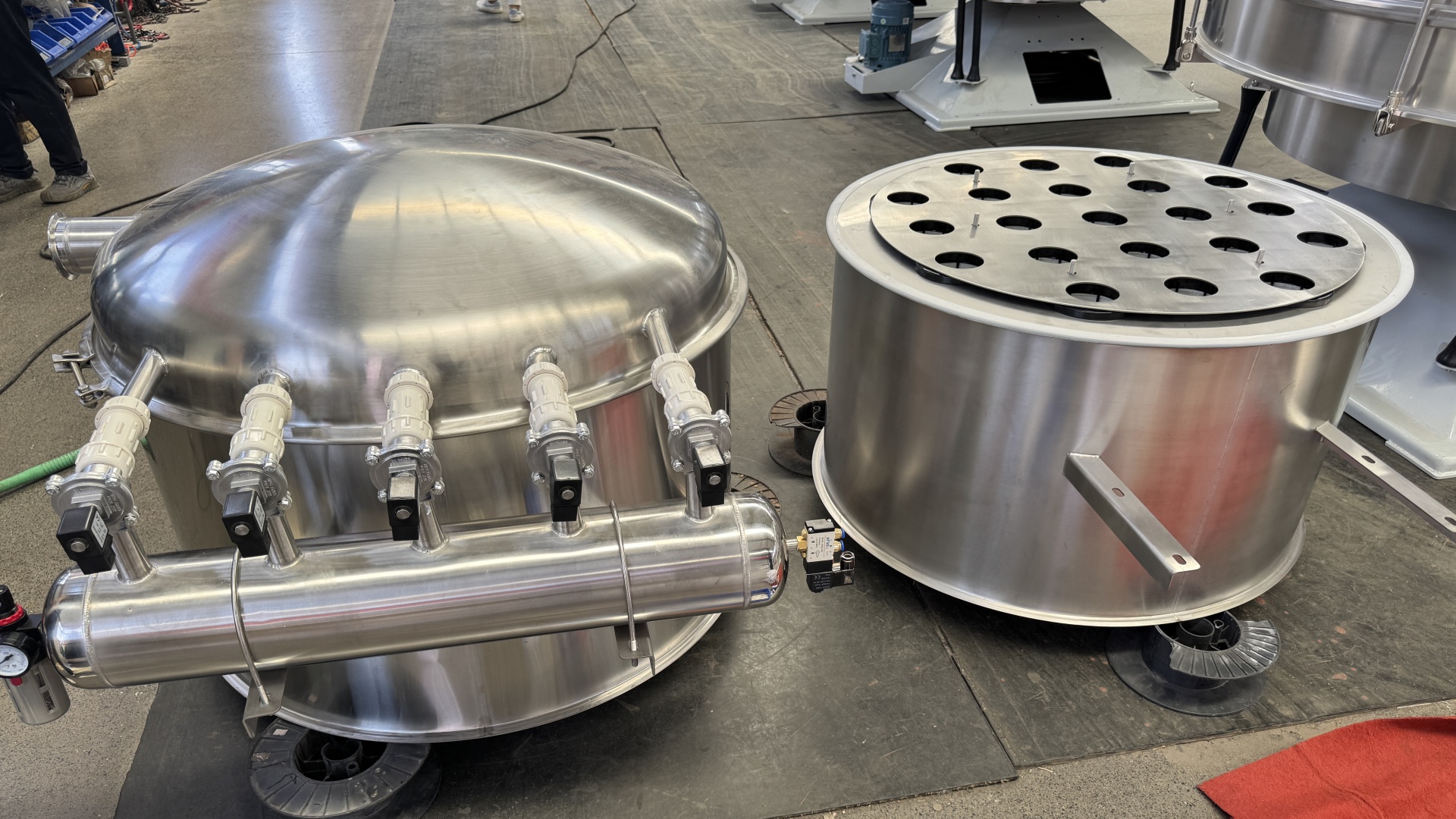

The 2.5mm thick steel plate construction of the vacuum conveyor provides significant advantages. It ensures superior structural strength and durability, effectively resisting deformation and withstanding heavy-duty use. This robust design guarantees a longer operational lifespan, reduces maintenance needs, and minimizes vibration for more stable and reliable material handling.

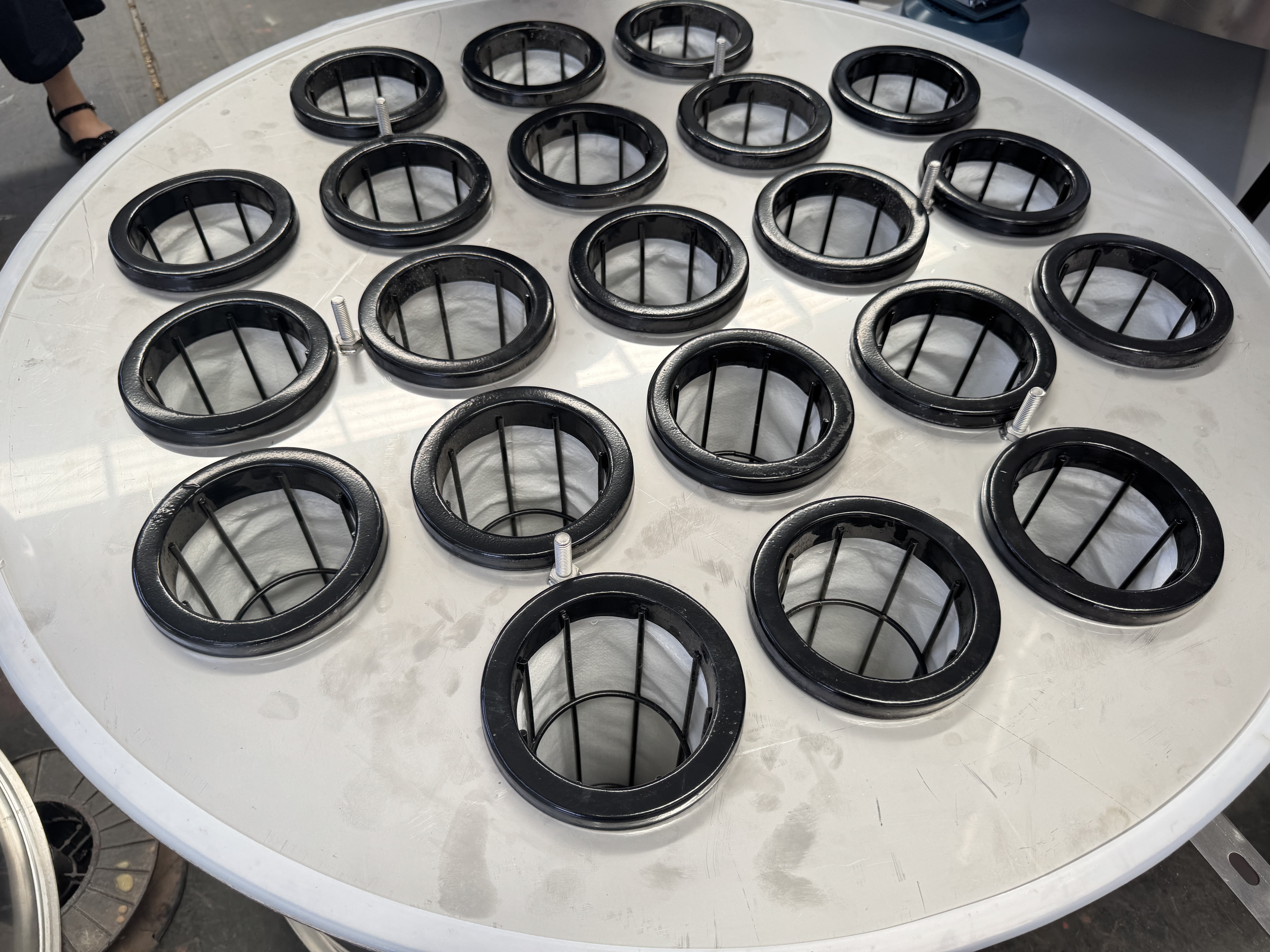

Our vacuum feeder incorporates 50% more internal filter cartridges than standard models. This significantly increases the total filtration area, boosting dust-holding capacity and filtration efficiency. The result is more stable suction power, extended intervals between cleaning, and significantly enhanced overall operational efficiency and productivity.

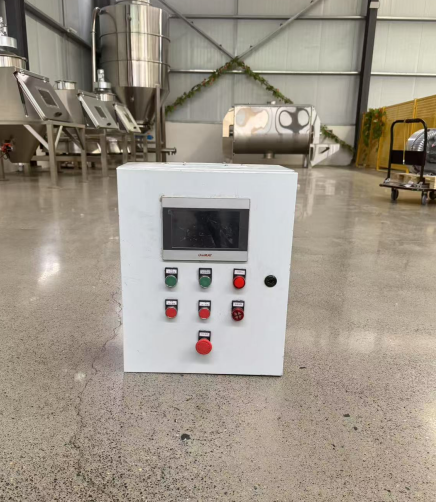

Unlike standard microcontrollers, our PLC-controlled vacuum feeder is built for harsh industrial environments. It offers superior resistance to interference, exceptional stability, and a much longer lifespan. This translates to fewer malfunctions and uninterrupted, reliable production.

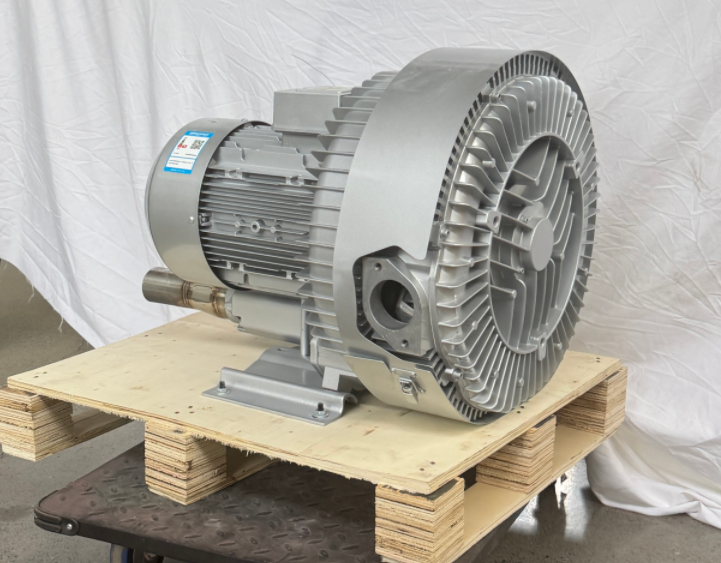

The Roots blower delivers a powerful, consistent, and stable vacuum flow, ensuring superior suction power and much higher conveying efficiency compared to other vacuum sources. It enables faster material transfer over longer distances and is highly effective for dense or challenging powders.

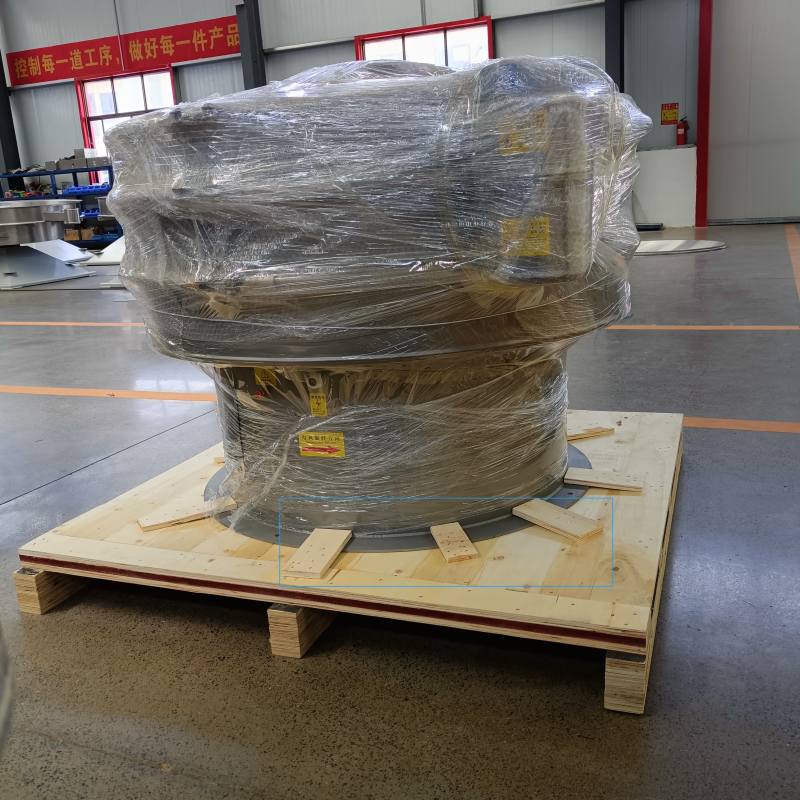

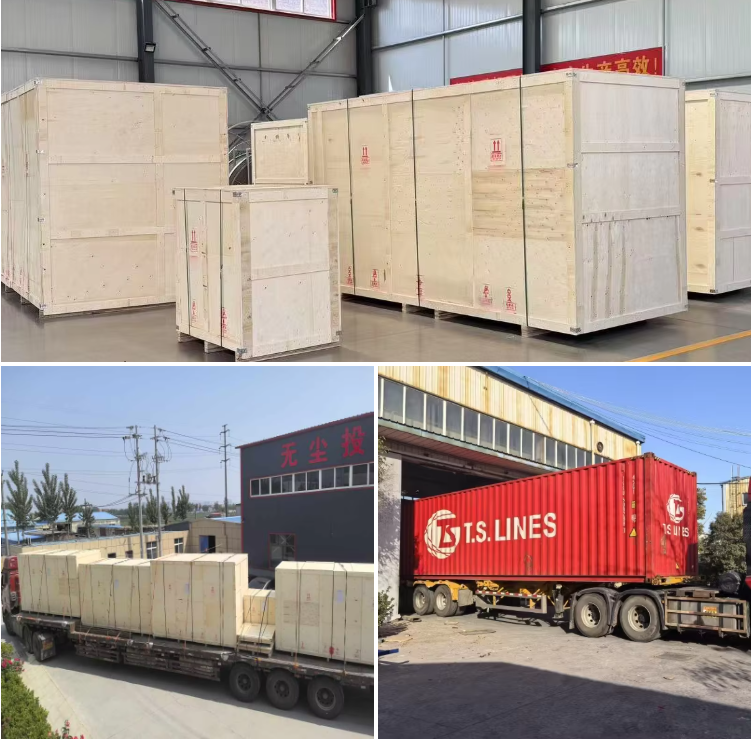

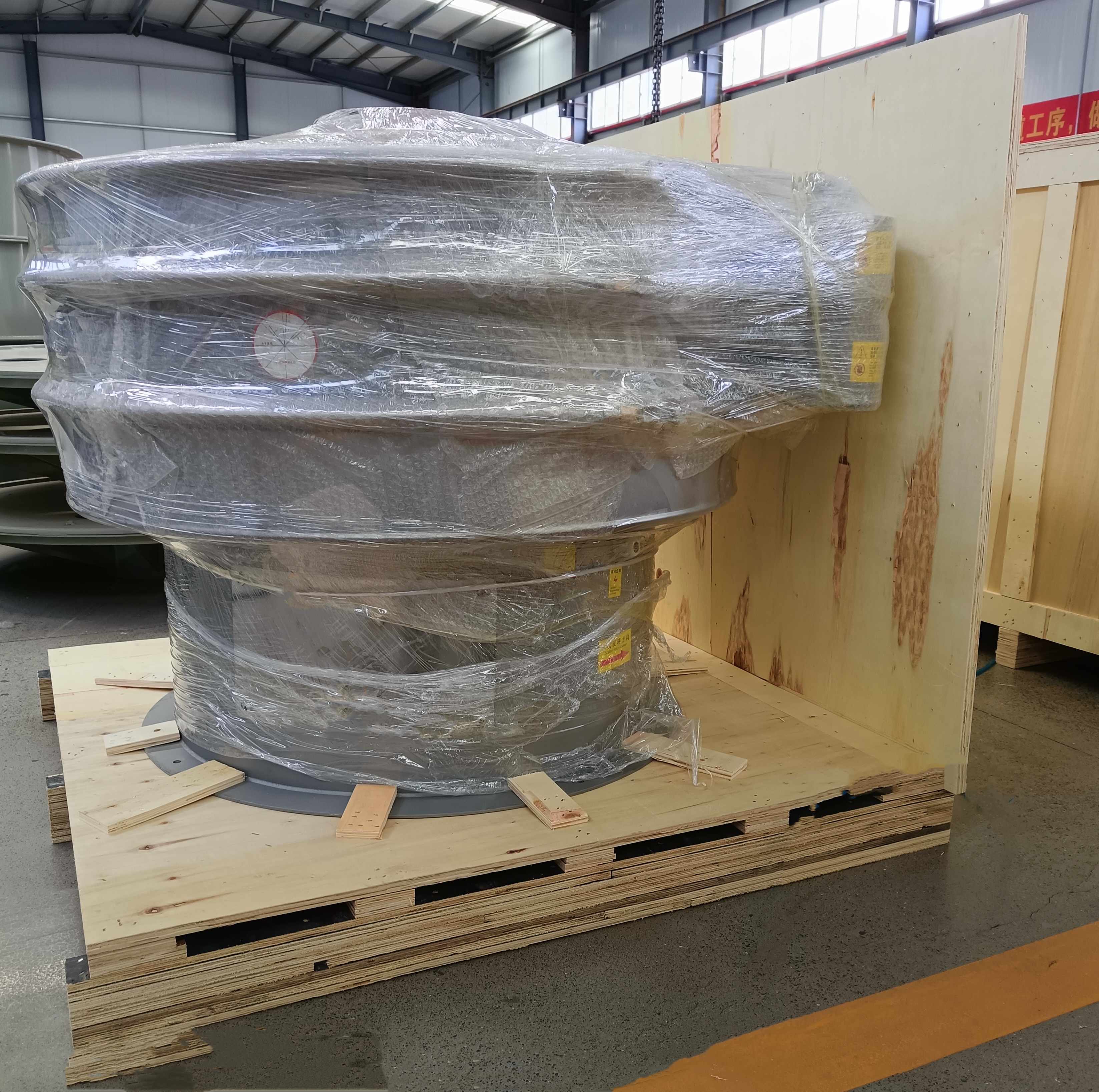

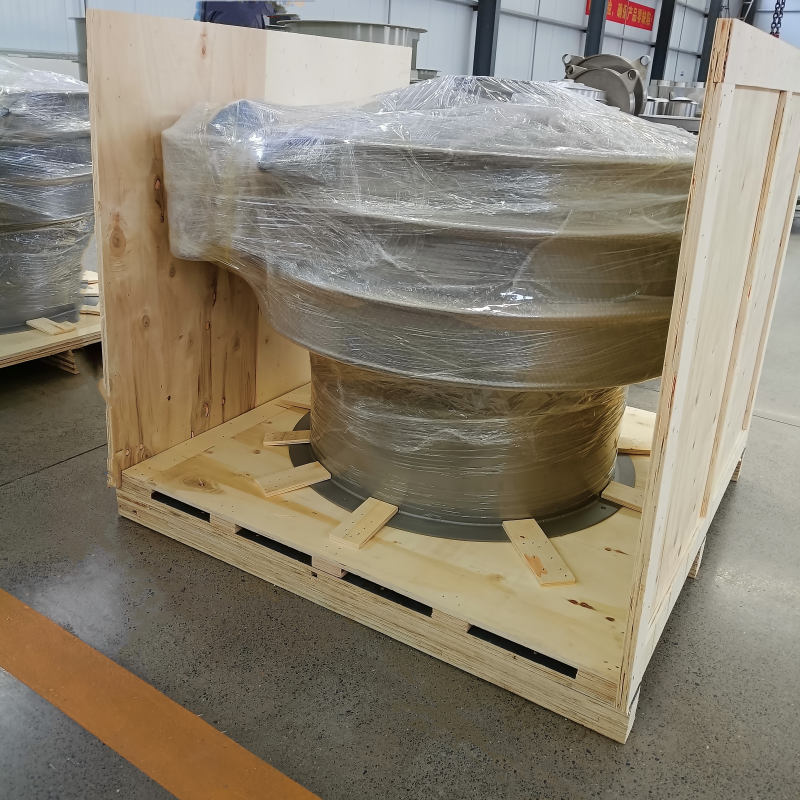

The product packaging adopts a combined packaging of solid wood boards and fully enclosed boxes. The bottom is fixed as solid as a rock, providing 360" all - round protection for the equipment during transportation, truly achieving high quality delivery of 'always maintaining the ex - factory state from the factory to the customer's hands'.
Please provide the following parameter requirements to receive an accurate quotation soon, including additional discounts! The selection of a 210 micron vibrating screen screening machine or gum arabic powder vibrating screen machine depends on your specific materials and operation requirements:
