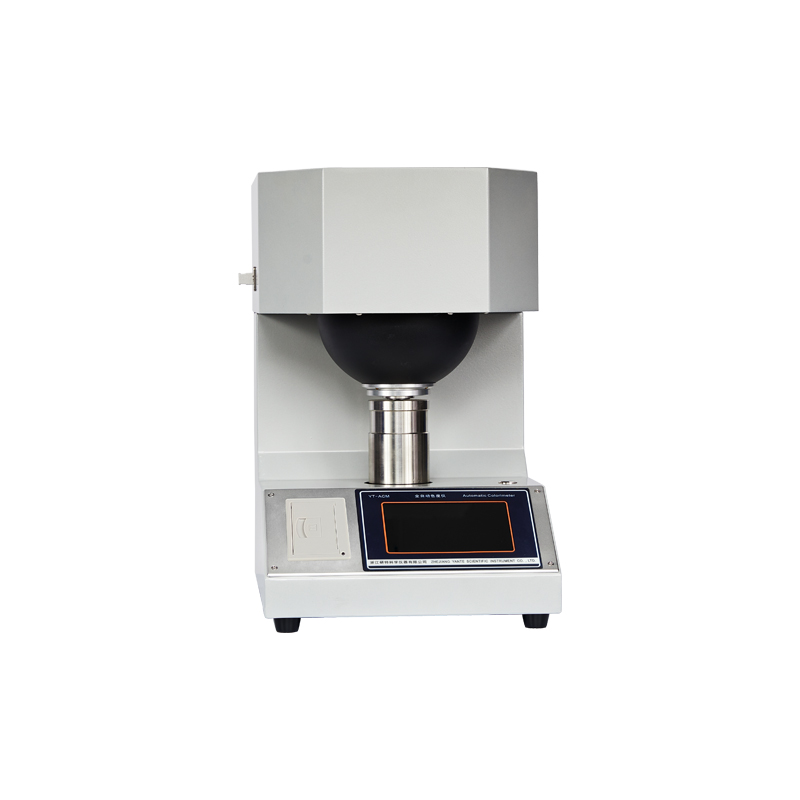

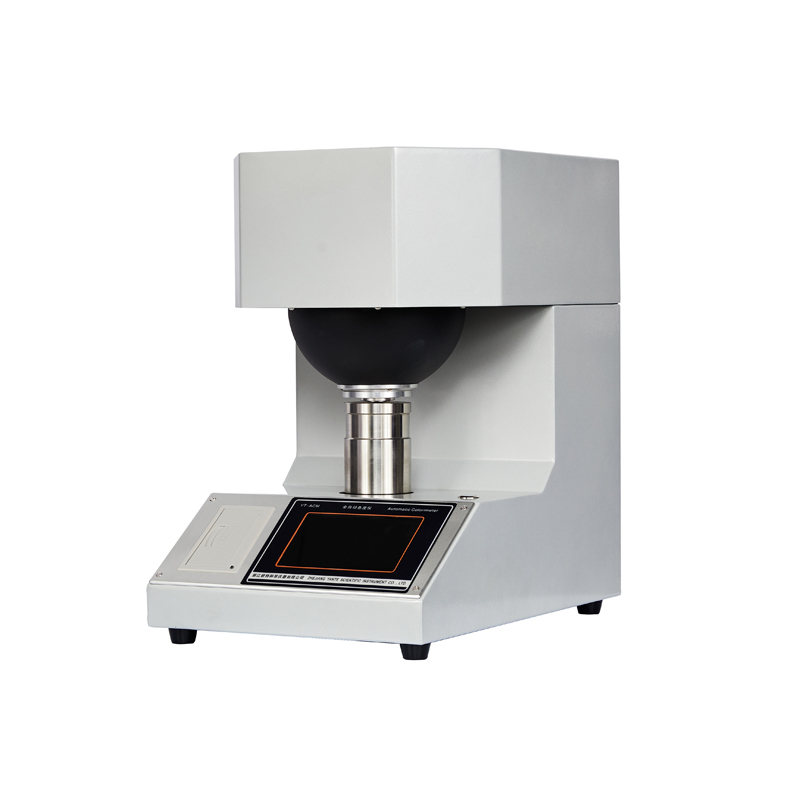

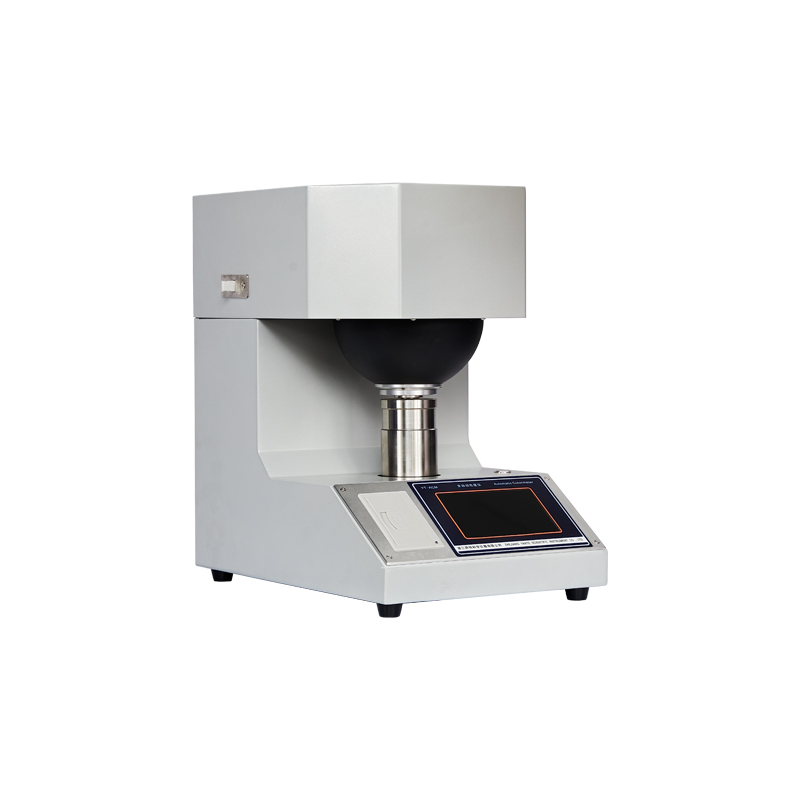

The Automatic Colorimeter is a light reflection principle to determine the object color and color difference, whiteness detection instrument.
Paper, cardboard, pulp, ceramics, cement, starch, calcium carbonate, talcum powder and other powders.

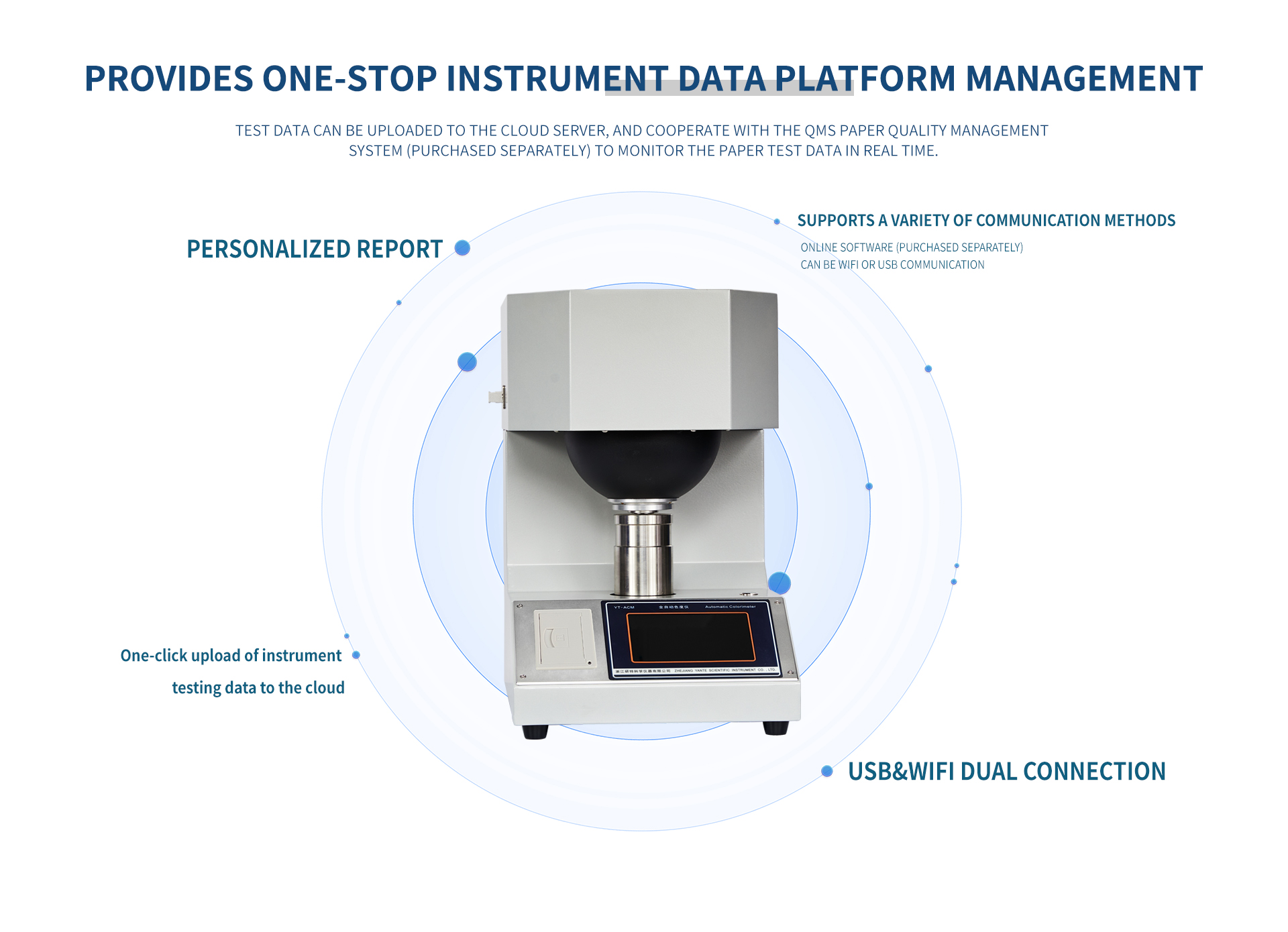

Through the automated data collection engine, real-time upload of test data to the cloud is achieved to build a digital laboratory testing system, helping companies to promptly identify and resolve links that may cause quality problems, thereby improving production efficiency and product quality.
| No. | Parameter Item | Technical Index |
|---|---|---|
| 1 | Power supply | AC(100～240)V, (50/60)Hz, 50W |
| 2 | Working environment | Temperature: (10~35)°C, relative humidity ≤ 85% |
| 3 | Display | 5-inch IPS high-definition screen, 800*480 resolution capacitive touch |
| 4 | Light source | Simulate D65 |
| 5 | Integrating sphere diameter | 150mm |
| 6 | Sample size | The test plane ≥ φ30mm, and the thickness ≤ 40mm |
| 7 | Resolution | The chrominance coordinates are 0.0001, and the rest are 0.01 |
| 8 | Zero drift | ≤0.1 |
| 9 | Indication drift | ≤0.1 |
| 10 | Accuracy of the indication | Chrominance coordinates ≤0.01, R457 ≤0.5, Y ≤1.0 |
| 11 | Repeatability | R457 ≤0.1, Chrominance coordinates ≤0.001, Y ≤0.1, ΔE ≤0.2 |
| 12 | Specular reflection | ≤0.2 |
| 13 | Built-in thermal printer | |
| 14 | Data export | Export data to USB flash drive |

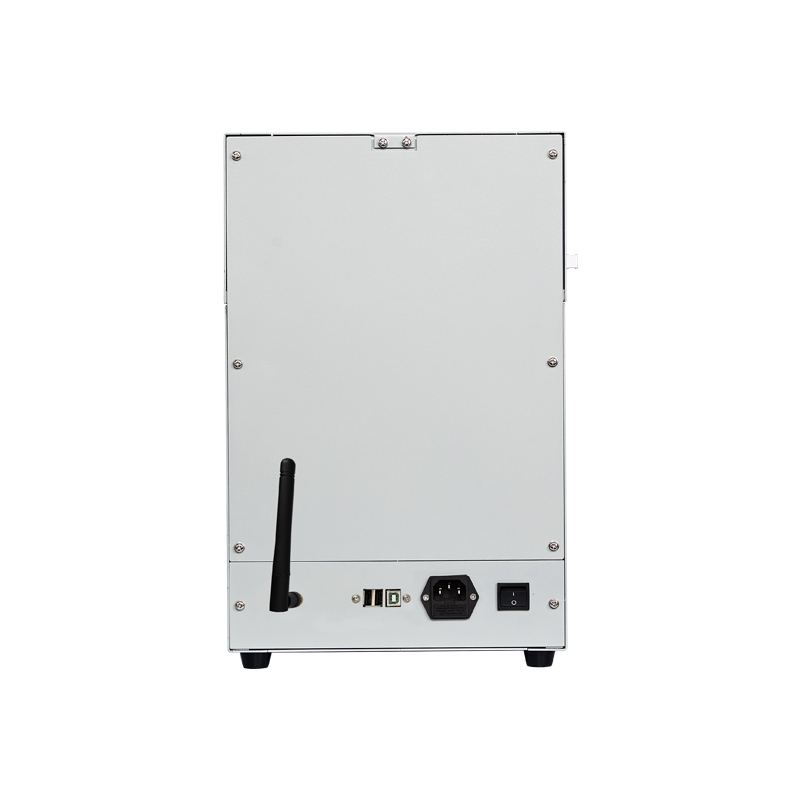

| 15 | Communication interface | USB, WIFI (2.4G) |
| 16 | Dimensions | 385 × 280 × 410 mm |
| 17 | Net weight | 12.5kg |
