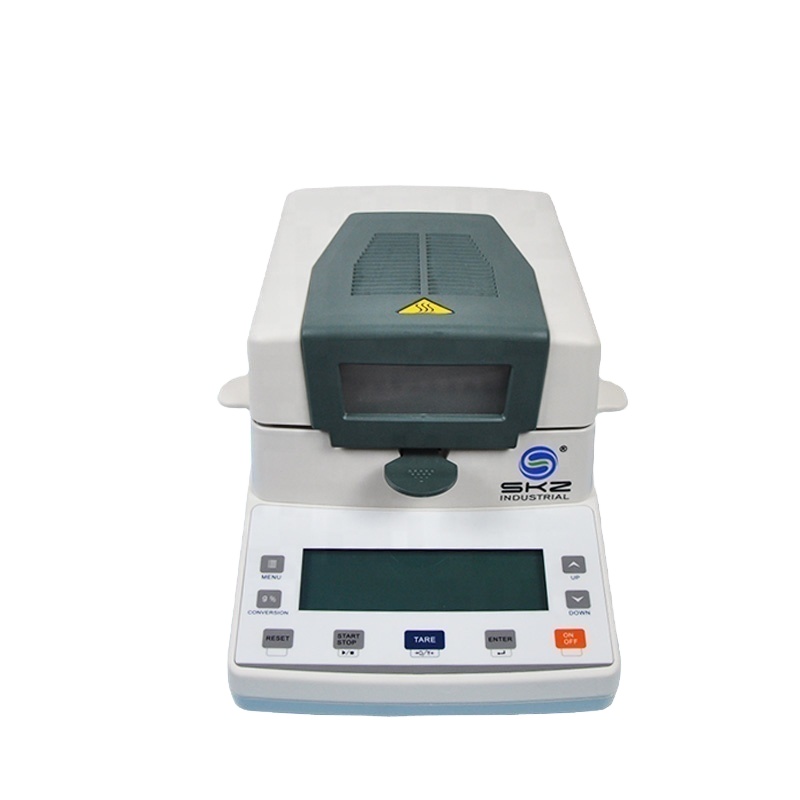

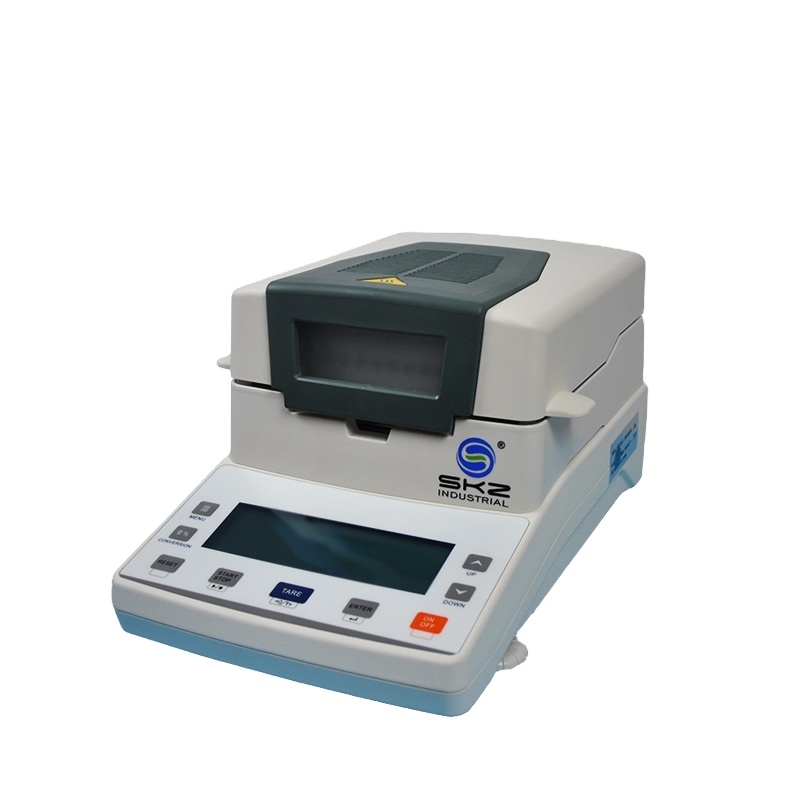

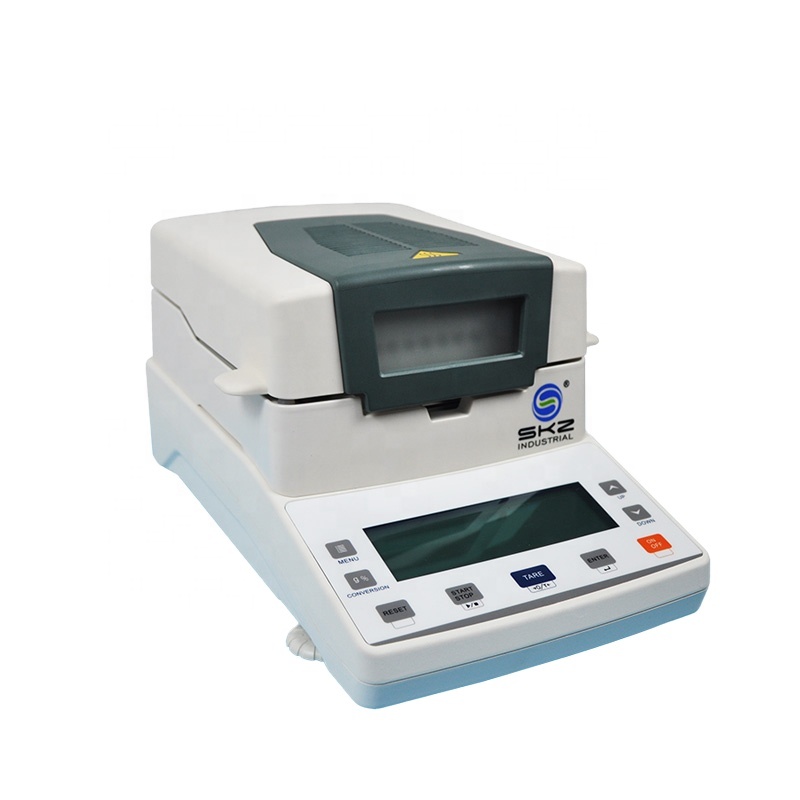

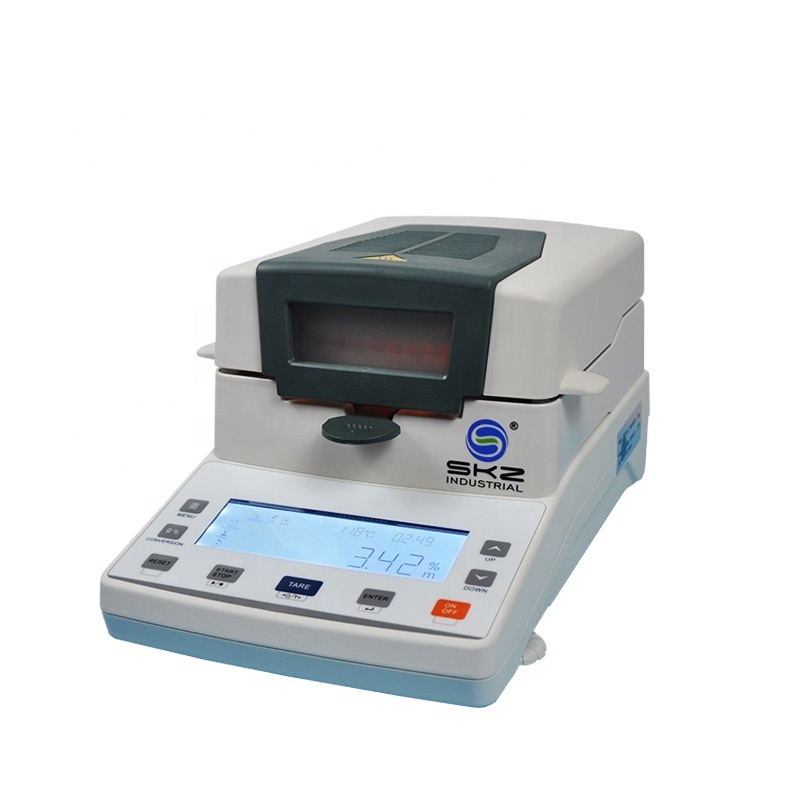

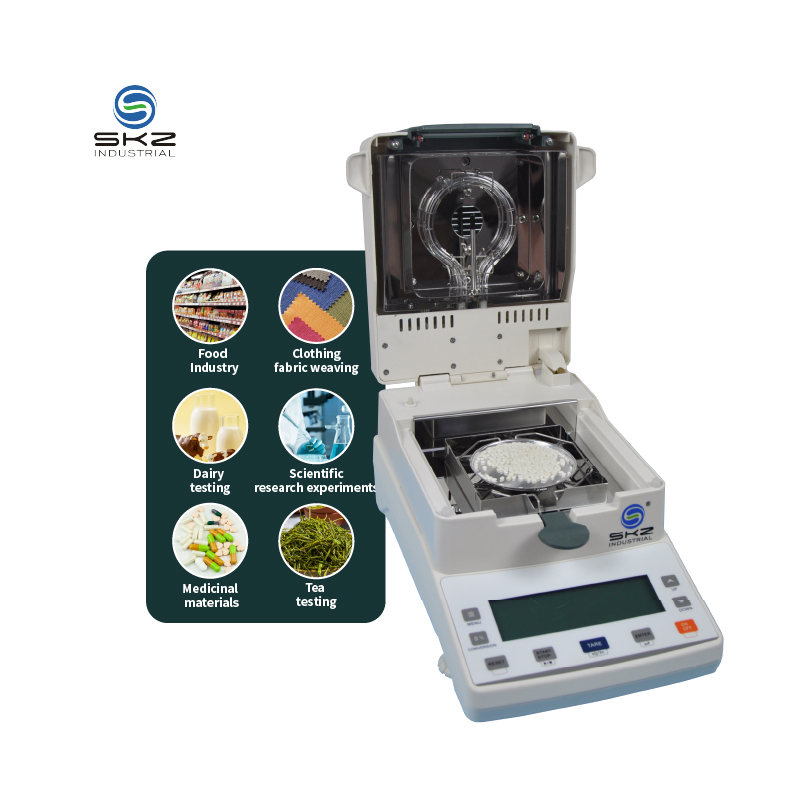

SKZ111L-5 Granule Powder Feed Starch Flour Food Bread Grain Infrared Lab Halogen Fish Moisture Meter Tester Analyzer

Product Description

Moisture Meter Tester Analyzer
SKZ111L-5 Granule Powder Feed Starch Flour Food Bread Grain Infrared Lab Halogen Fish Moisture Meter Tester Analyzer
Product Description

Quick (1-6 minutes) Determination of moisture of the measured object, using the principle of heating and drying, moisture values measured object is automatically displayed, the data is stable and accurate.

Measurement Scope:

Powder form, granular, paste, liquid, organic and inorganic chemical raw materials, a variety of cereals, grain, seed, feed, starch, food, meat, tobacco, tea, paper, grass, soil, sludge, textiles, fuel, resin, silica, plastic particles, coal, fertilizer, medicine, ceramics, wood, ore.

Key Features
  • High accuracy: Halogen moisture analyzer with fast and sensitive load cell.
  • Standard RS-232 interface: Easily connect to a PC or a printer.
  • Easy to operate: Ergonomically designed handle plate, to avoid burns hot when placed in a sample taken, wing-shaped handle easily turned off heated lid.
  • Three kinds of drying processes:
  • 1). Standard Drying: The default setting, Suitable for most samples. The heating temperature can be set, the sample is heated to the set temperature, and remains on until test is automatically terminated.
  • 2). Slow Drying: For sample with lower moisture content, easy to form the shell surface, flammable. It takes long time from initial heating temperature to a set value, User can select the heating time.
  • 3). Fast drying: Suitable for higher moisture content samples. Can be set the heating temperature, Initial heating temperature exceeds a set value, Would later reduced to a set temperature and maintained until the test is automatically terminated.
  • Three shutdown modes: Automatic shutdown, manual shutdown, timed shutdown.
  • Optional printer support: Can be equipped with printer (with extra charge).
  • Calibration weight: Provided 100g poise for calibration.
Specifications
Model SKZ111L-10 SKZ111L-5 SKZ111L-2 SKZ111L-1
Specification 110g/10mg 110g/5mg 110g/2mg 110g/1mg
Readability 10mg 5mg 2mg 1mg
Moisture range 0.0%-100% 0.00%---100%
Moisture Readability accuracy 0.2% 0.1% 0.04% 0.01%
Dry residual range 100.00%---0.00%
Dry residual Readability accuracy 0.2% 0.1% 0.04% 0.01%
Pan size Φ 90mm
Heating mode Halogen lamp
Display LCD
Temperature sensor PT-100
Temperature Setting 40℃~199℃
Temperature interval 1°C
Working temperature 5°C---35°C
Time Setting 1~99 minutes
Automatic shutdown 0.1%---9.9%within 1 min
ATRO 100%~999%
ATRO 0%~999%
History store 15 groups
Power supply 220V
Heater 220V+15%50Hz, 115V+15%, 400W
Balance External power, Output: 9V, input: 220V+15%, 50Hz
Calibration mode External calibration with provided poise 100g
Connect output RS232

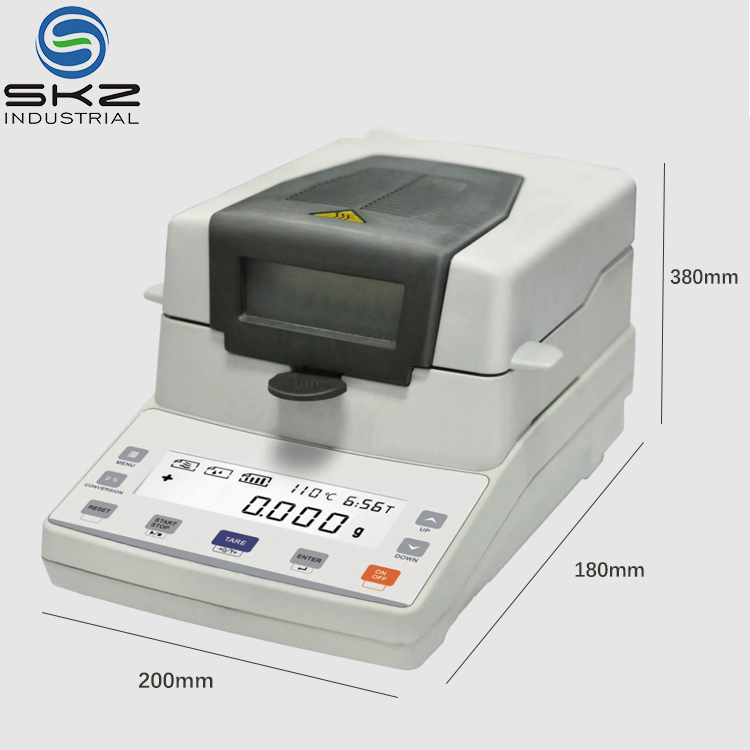

Dimensions(W*L*H) 200*180*380mm
Weight 6kg
Optional with extra charge Printer, moisture regain (R)
Standard Packing List
Standard Quantity Remark
Moisture Meter 1 set
Wind Cover 1 piece
The sample pan holder 1 piece
Tray handle 1 piece
Power cord 1 piece
Aluminum sample pan 1 set 50pcs
100g standard weight 1 piece
Product Manual 1 piece
Product certification 1 piece
Warranty card 1 piece
Details Images

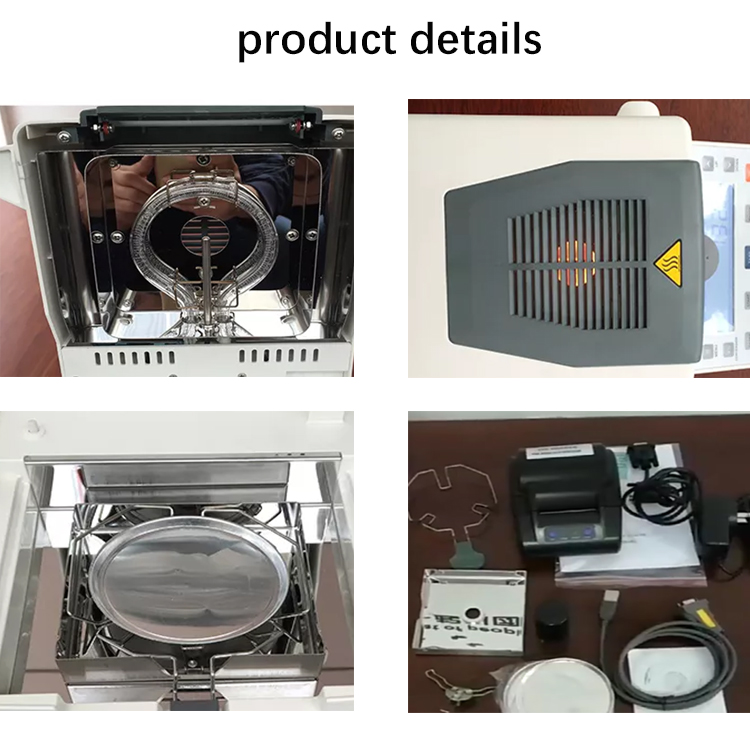

Moisture Analyzer Detail 1
Moisture Analyzer Detail 2
Moisture Analyzer Detail 3
Packing & Delivery
Packing & Delivery
Customer Show
Customer Showcase 1
Customer Showcase 2
Laboratory and Production Tour
Manufacturing Area
Testing Lab
Verification Device
Certificate & Quality Assurance
Frequently Asked Questions
Q Are you a factory or a trading company?
We are a professional testing equipment manufacturer.
Q What are your delivery terms?
We accept EXW, FOB, CFR, CIF, and CPT. You can choose the one which is most convenient or cost-effective for you.
Q What are the payment terms?
We support T/T bank transfer, L/C, Western Union, and secure online transaction processing.
Q What about the after-sale service?
The standard guarantee period is 14 months. Beyond the warranty period, we also provide lifetime paid repair and support services.
Q What type of package do you use for shipping?
Usually we offer standard ply-wooden cases (free fumigation) or multilayer carton boxes. The interior is wrapped in plastic film or cushioned with custom foam/aluminum suitcases.
Q Can you accept OEM services?
Yes, we can accept OEM orders, manufacturing according to your specific requests, incorporating your logo, or offering neutral packaging.
