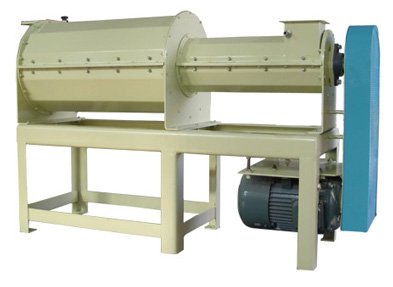

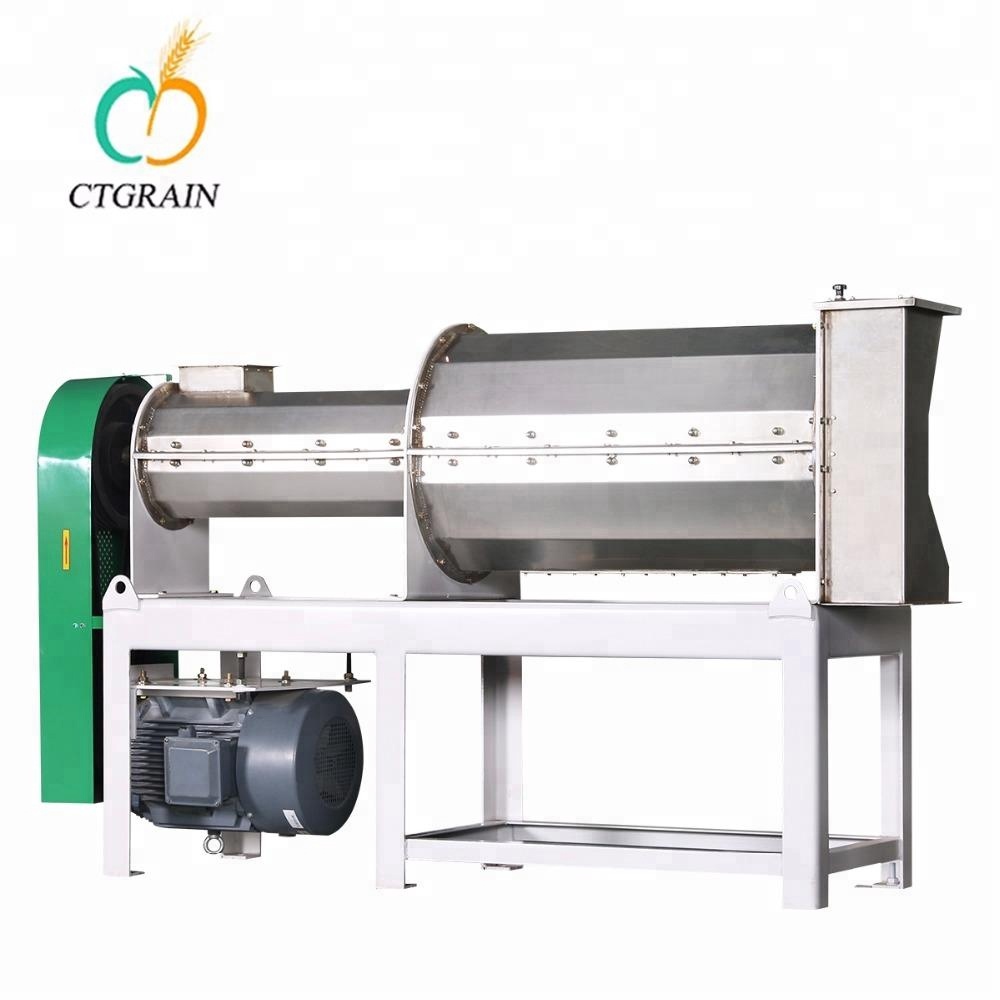

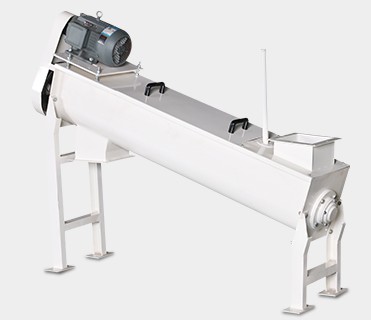

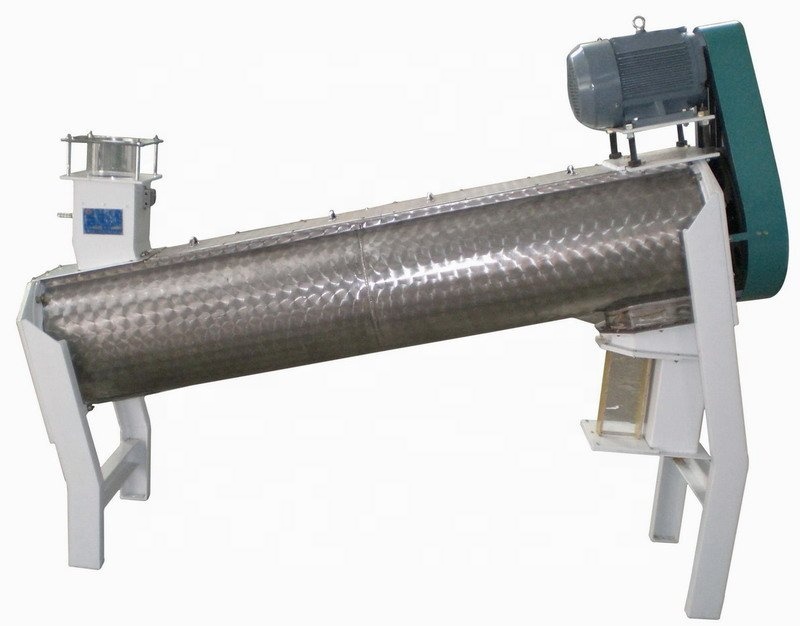

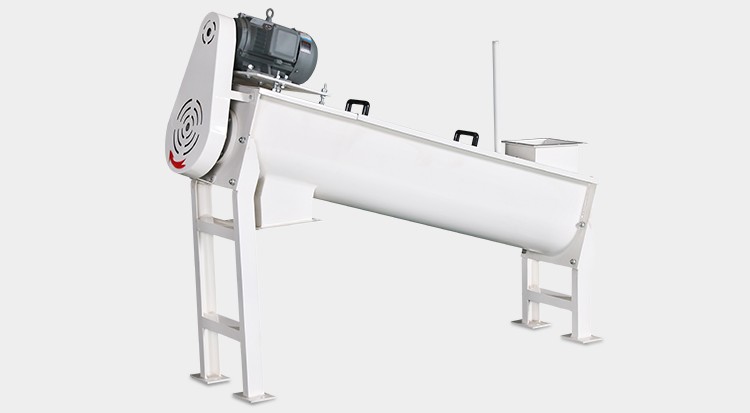

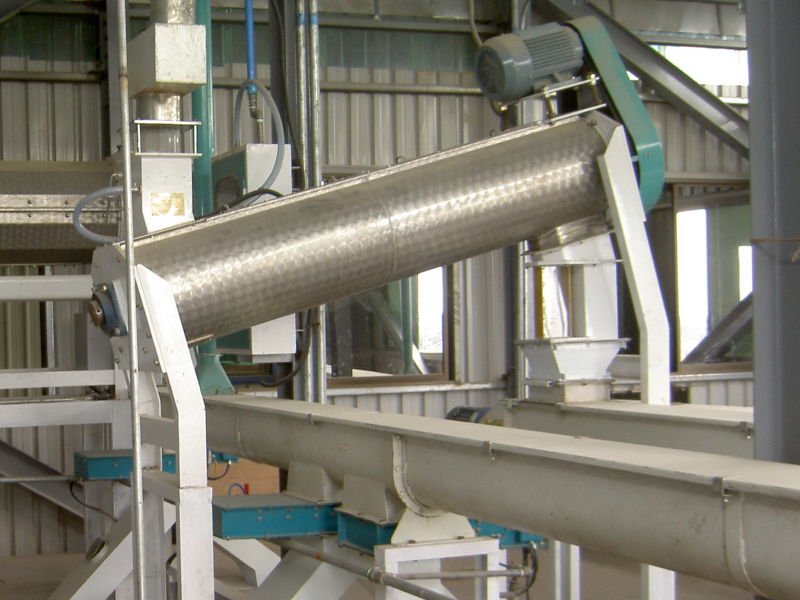

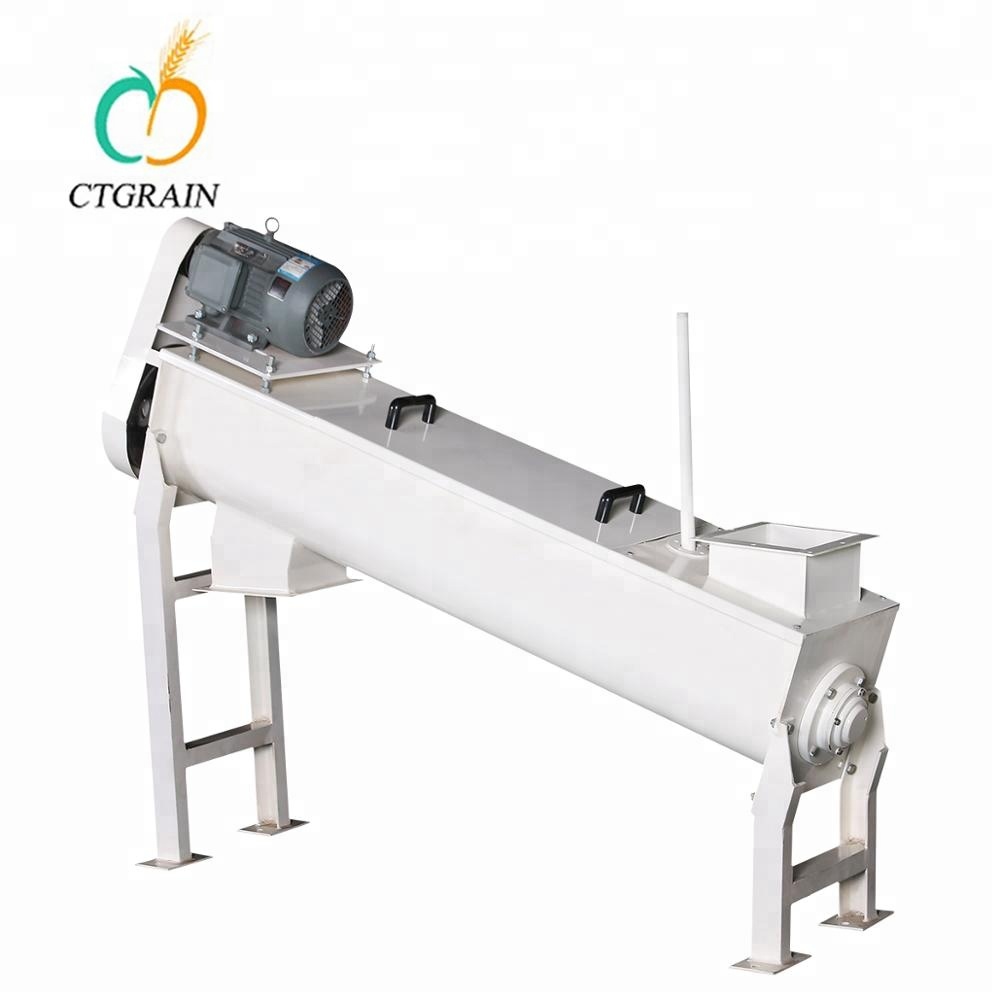

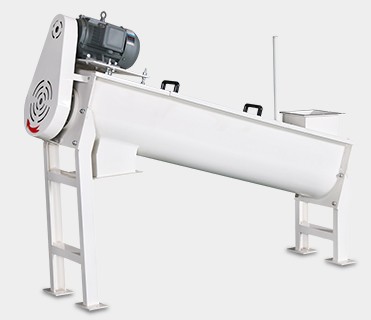

The Intensive Dampener is the main equipment for wheat water regulation in the process of wheat cleaning in flour mills. It can stabilize the wheat dampening quantity, ensure the dampening of wheat grain evenly, improve the grinding performance, enhance the bran toughness, reduce the endosperm strength and reduce the adhesion of bran and endosperm which is beneficial to improve the efficiency of grinding and powder sieving. Besides, it is helpful to improve the flour extraction yield and quality. The machine has advantages of high output, low energy consumption, light weight, high dampening volume, homogeneous dampening, stable and reliable and low wheat crushing rate. In the process of dampening to the wheat it plays a role of cleaner. It's suitable for technical transformation in large, medium and small flour mill and the selection of new flour mills.
Type
Capacity (t/h)
Diameter (mm)
Length (mm)
Max. Moisture (%)
Precision (%)
Power (kW)
Weight (kg)
Shape Size (L×W×H) (mm)
FZSQ25×125
5
250
1250
4
≤±0.5
2.2
420
1535*420*1688
FZSQ32×180
10
320
1800
4
≤±0.5
3
460
2110*490*1760
FZSQ40×200
15
400
2000
4
≤±0.5
5.5
500
2325*570*2050
FZSQ40×250
20
400
2500
4
≤±0.5
7.5
550
2825*570*2140
FZSQ60×300
30
500
3000
4
≤±0.5
11
1000
3450*710*2200
Features
The dampener has induction switch in the feeding tube. when the wheat in feed tube has a certain flow, the induction switch works. At the same time, the solenoid valve of dampening system open, the water system supply water. When the feed pipe is empty, the water system will stop water supply.

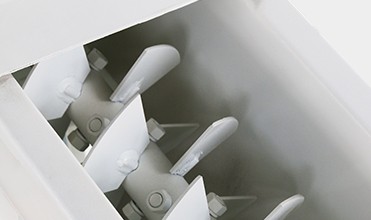

Fan blades: surface will get heat treatment which will make it more wear-resisting with long service life. The fan blades are arranged in spirals on the low-speed rotating shafts, and when the paddle flips the material, some material is pushed forward. And as the cylinder is tilted upward, other material flow down by gravity to be mixed again so that the water evenly distributes in each wheat grain, finally achieves the good dampening effect;
Dampening system: Water through the inlet of the floating ball valve flows into the constant-level water tank, and through the cut-off valve, solenoid valve, automatic control valve, flow control valve, rotor flowmeter from the discharging tube flows into the mixer's water nozzle to begin the process of dampening.
The upper lid can be opened at any time to check the dampening condition.
About Us

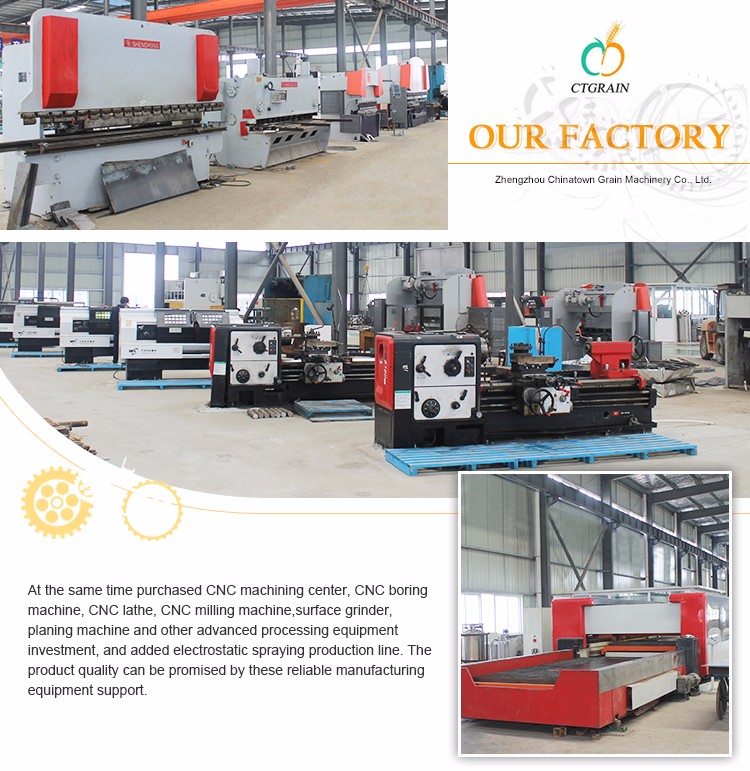

The company focuses on technology reformation, improving the manufacturing ability and quality of machine. The company took the lead in the introduction of CNC laser cutting machine, CNC bending machine, CNC lathes and other advanced processing equipment.
Our company adopt steel plate laser cutting machine, CNC bending machine, carbon dioxide arc welding and argon arc welding, welding scale, rotary automatic welding, electrostatic spraying surface treatment, continuous improvement and innovative models. Our products are not only of good performance, but also easy for installation and maintenance with low cost. The product with advanced technology, reliable quality, and nice appearance has been appreciated by many clients.

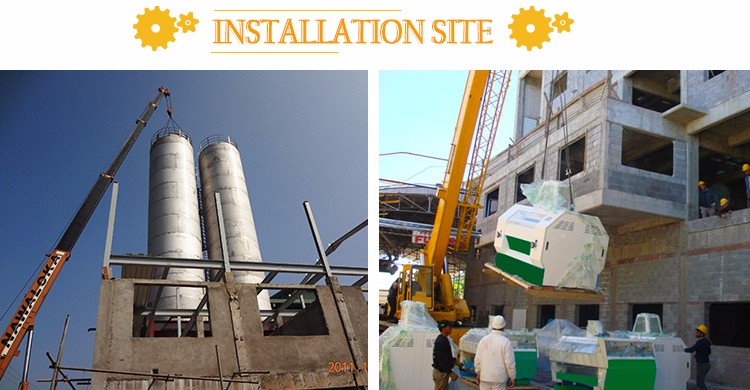

Project installation: we have professional electrical and mechanical project installation team. The display of the equipment is neat, reasonable, beautiful, generous, and easy maintenance. The commissioning is carried out under the guidance of experienced experts and professors on the spot. The test can be successful by one time commissioning, and can totally meet or exceed the design specifications and requirements.
Our machinery are widely used in many domestic users. And our turn-key projects and single equipment were exported to Thailand, Burma, Australia, Sri Lanka, Italy, Germany, Chile, Argentina, Brazil, Ukraine and other more than 20 countries and regions. Many clients around the world have visited our company on business. We warmly welcome clients and supply excellent solutions with best quality equipment and technical services, and we received high recognition from them.
Certificate
The company has a strong technical force, with more than 20 engineers and technicians who are specialized in flour, electric, automatic control computer and so on. The products have passed ISO9001:2000 international quality management system, European Union CE quality certification and other international quality management system certification. It also has obtained Henan Province Science and Technology Type Sme Certification, National High-tech Enterprise Certification and 7 national invention patent certificates. The company can provide a turn-key project design, including the flowchart drawing design, electrical and automatic control design, architectural planning. These designs all get CAD computer aided design. Detailed drawing materials, advanced tool and rapid design can supply the client the best choice.
Frequently Asked Questions
Q:
Are you the manufacturer?
Yes, We are a professional flour milling machine manufacturer.
Q:
Will you help to install the machines?
Yes, our engineers can indicate installation, test running, and train local operators. Engineers are available to service machinery overseas after-sales Service.
Q:
Do you accept small order?
Yes, We accept small order, the MOQ is 1.
Q:
How do I make payment for my order?
You make payment by taking the proforma invoice and our bank details, you can use T/T (bank transfer) and L/C to finish the payment.
Q:
What's the warranty time?
Our warranty time is 12 months, so you can trust us and the quality of our machine.
Q:
What are the benefits of using an Intensive Dampener?
It stabilizes the wheat dampening quantity, ensures even dampening of wheat grains, improves grinding performance, enhances bran toughness, reduces endosperm strength, and reduces adhesion of bran and endosperm, which improves overall flour extraction yield and quality.
