The machine is widely used for the grading of dry powder granule material in chemical industry, foodstuff industry, etc.
The machine is designed according to GMP standard and has the features of compact structure, non-dust flying, low noise, high output, low energy consumption, convenient maintenance. The machine is suitable for line production. It is an ideal device for granules that has uneven size to sieve continuously.

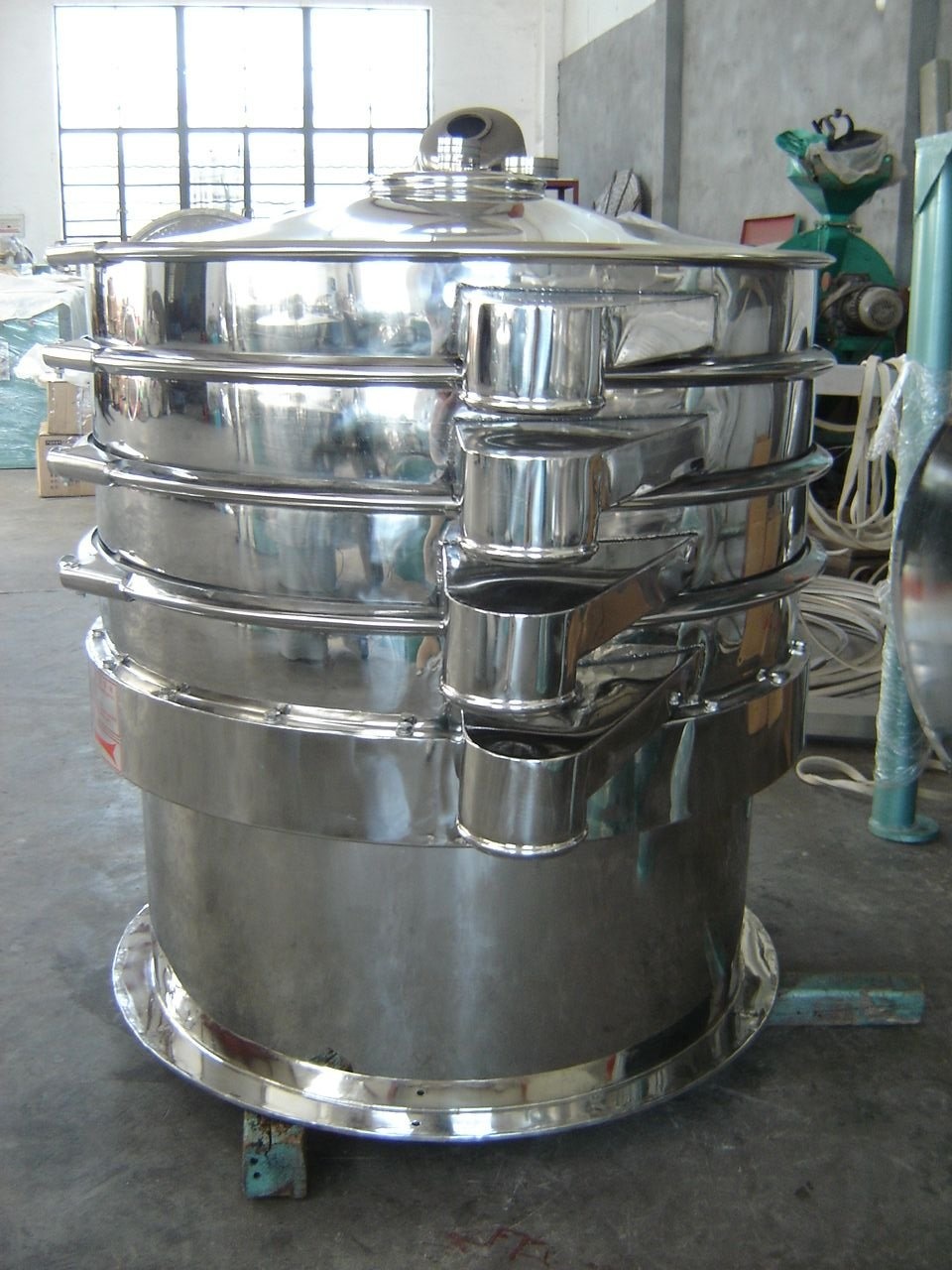

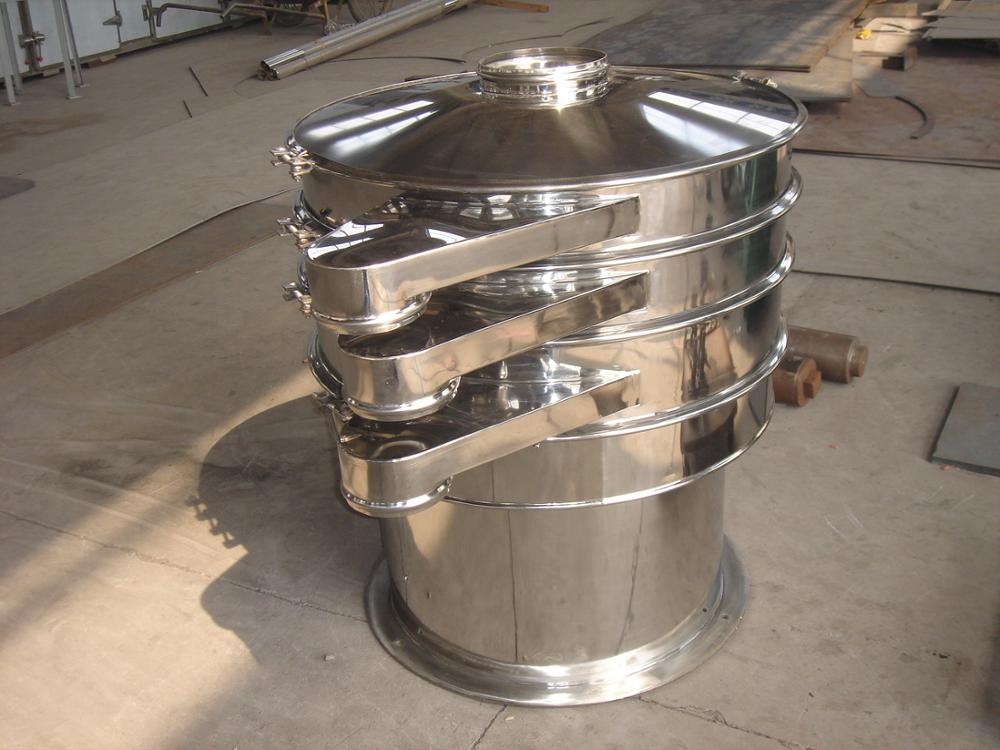

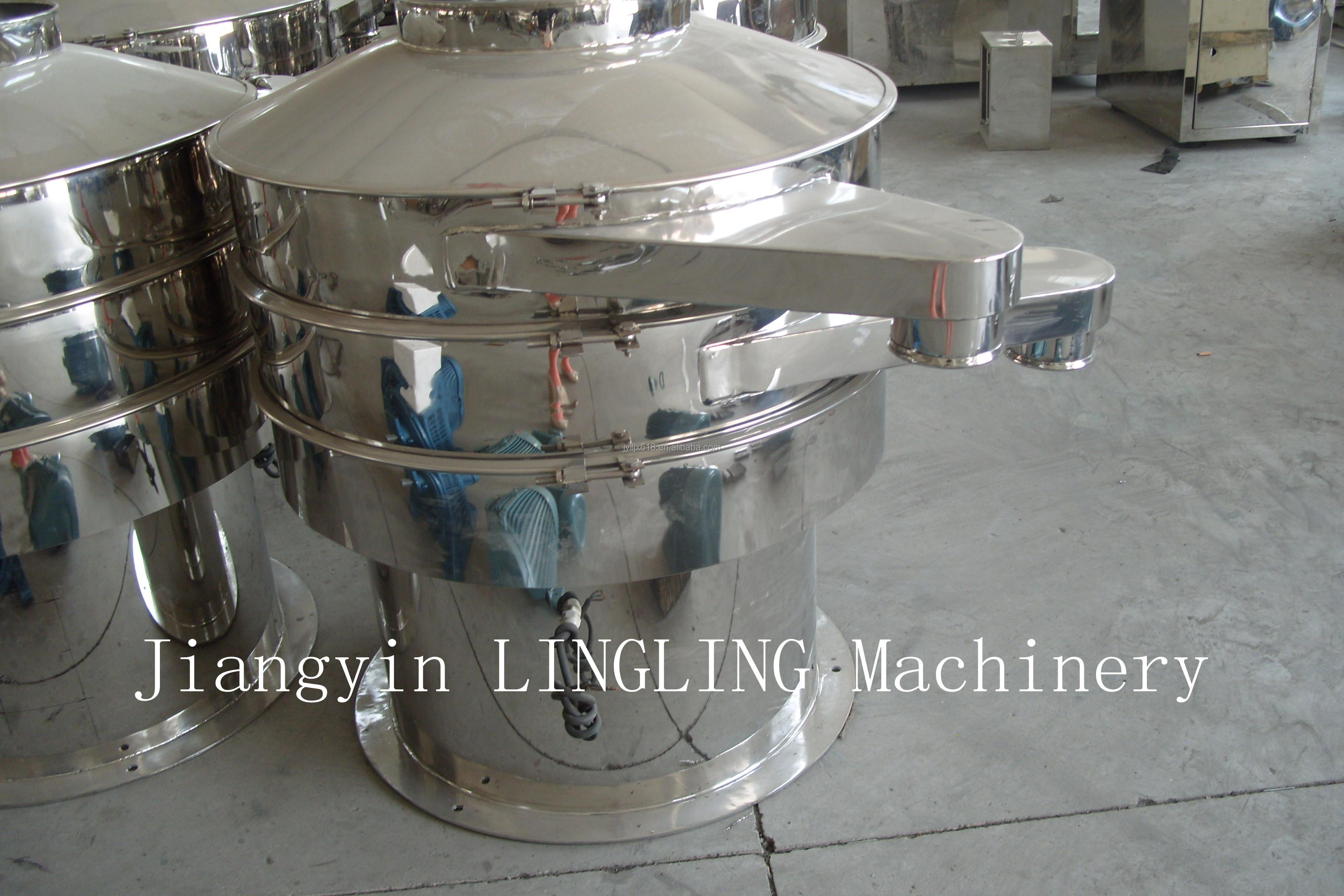

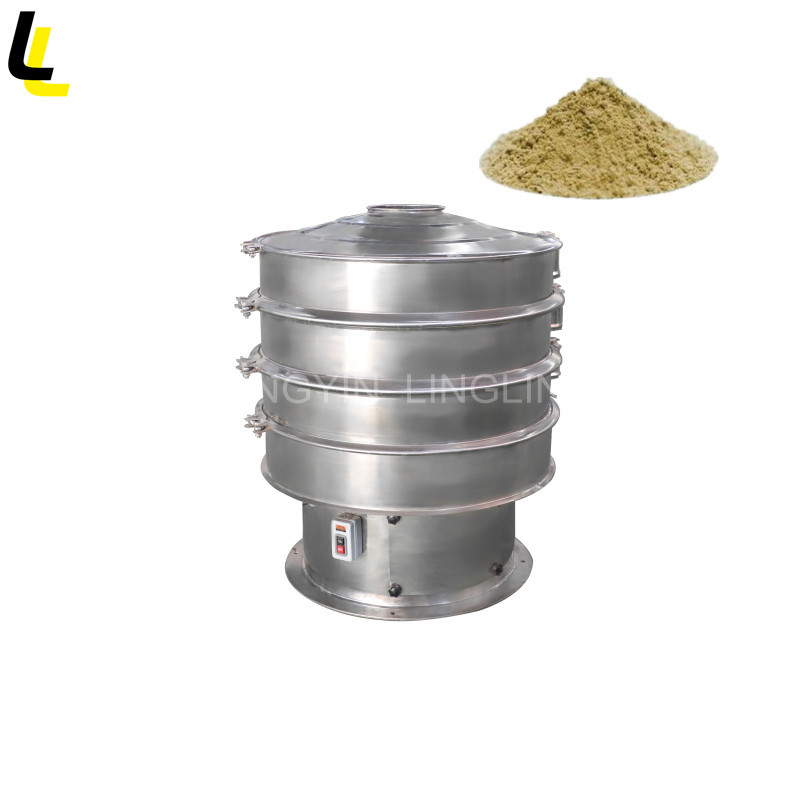

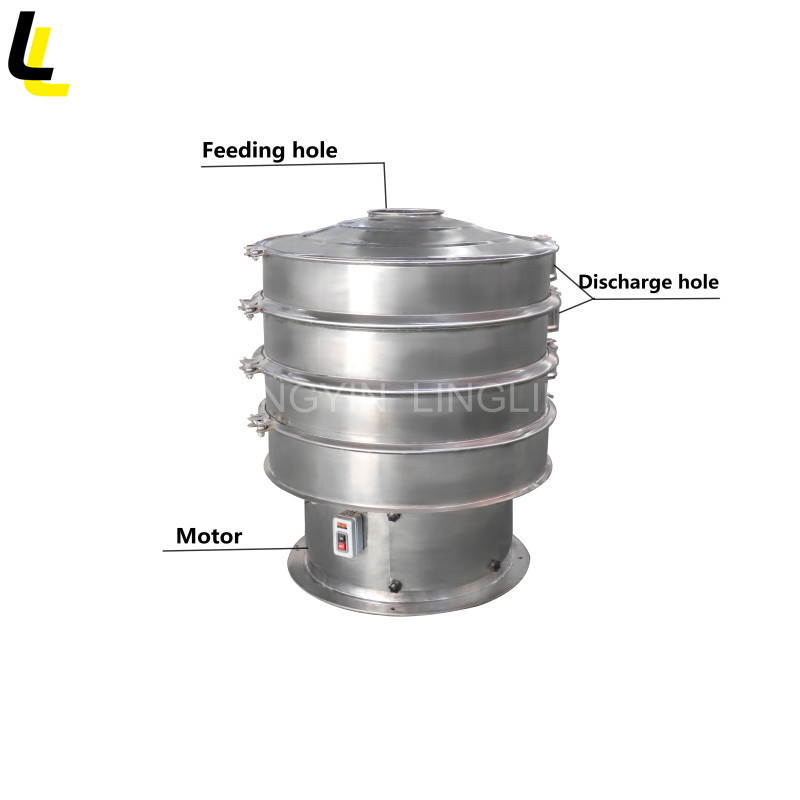

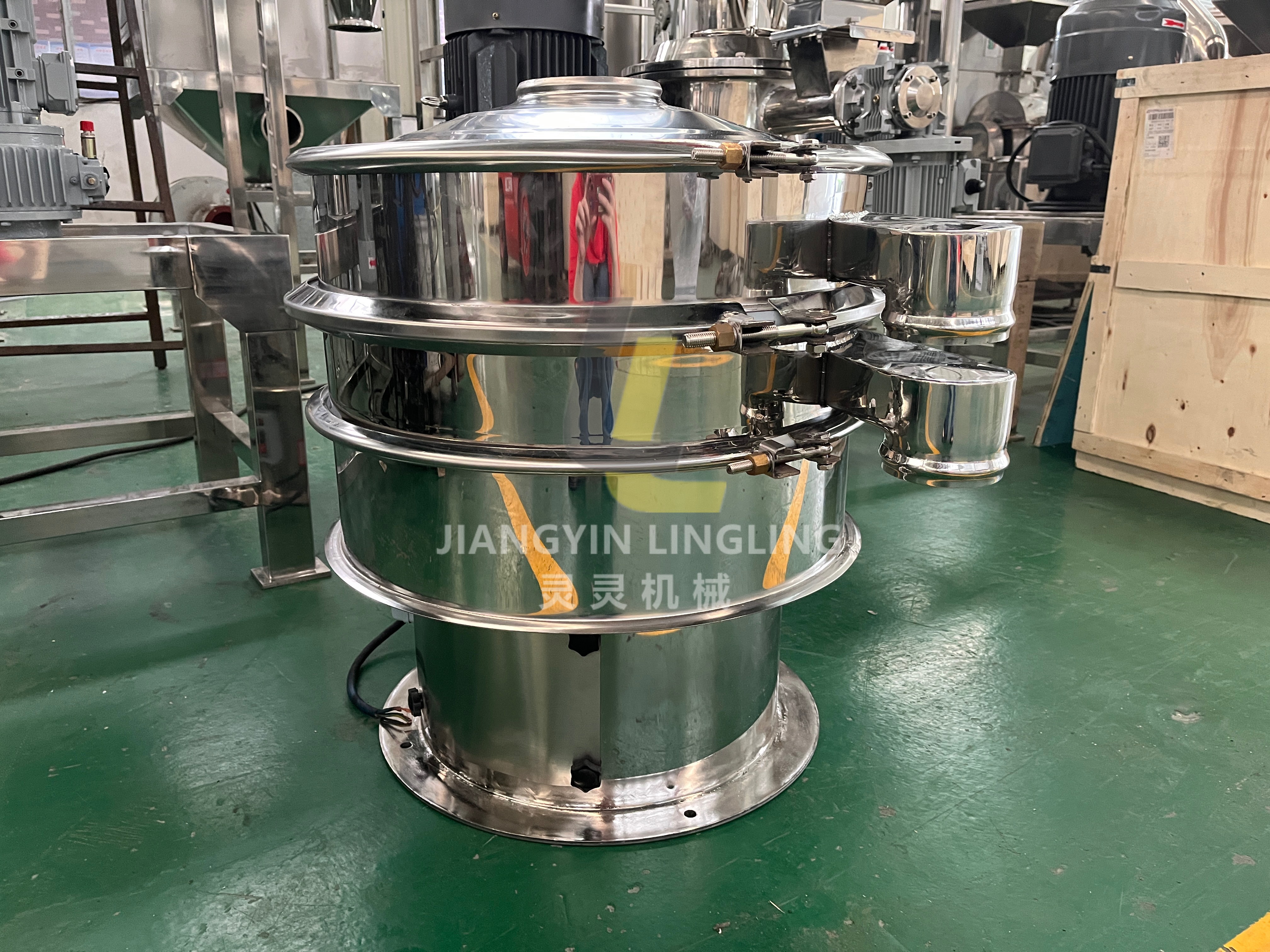

The machine consists of vertical vibration motor, screen base, mesh frame, screening chamber and rubber vibration ring and so on. The vibrating ball on mesh bracket flaps the mesh continuously so that the screen is not easy to be blocked. This machine can be used either for single layer or multi-layer grading.
| Type | ZS-400 | ZS-600 | ZS-800 | ZS-1000 | ZS-1200 |
| Production capacity(kg/h) | 50~500 | 100~1000 | 200~1500 | 300-2000 | 400~2500 |
| Overall dimensions(mm) | 650*500*800 | 800x800x1100 | 1100x950x1150(two layers) | 1100x1100x1200 | 1600*1250*1300 |
| Power(kw) | 0.2 | 0.4 | 0.75 | 1.1 | 1.5 |
| Screen mesh | 12~200 | 12-200 | 12-200(optional) | 12-200(optional) | 12~200 |
| Vibration Freq(time/min) | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight(kg) | 200 | 250 | 320 | 420 | 500 |
The above is our technical data. We can also design and manufacture different varieties upon customer's request.
We have cooperated with customers across 100+ countries, delivering reliable performance and receiving highly positive feedback worldwide.

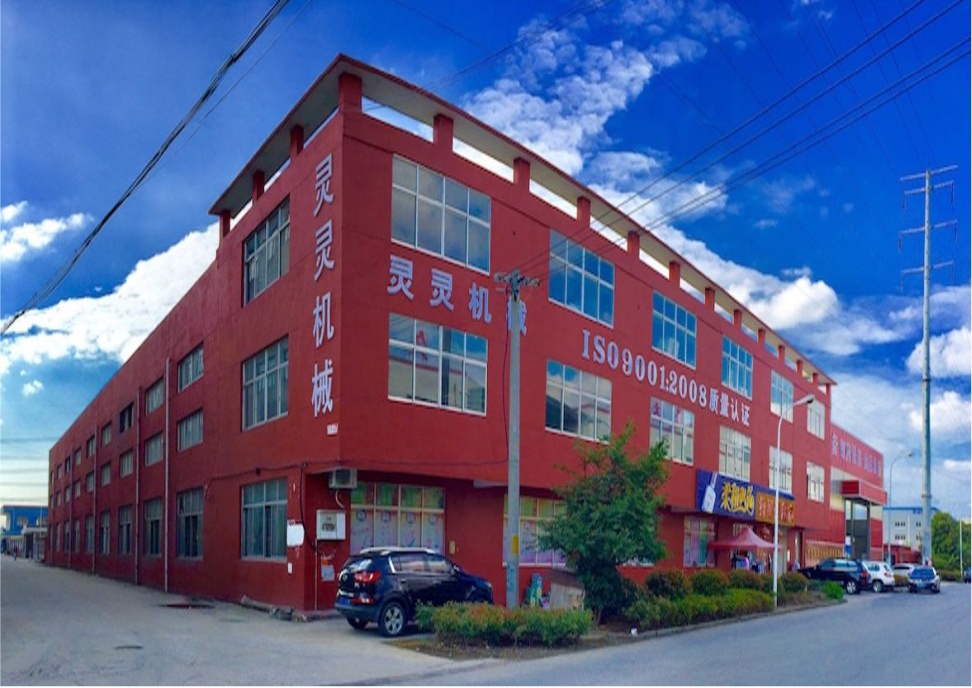

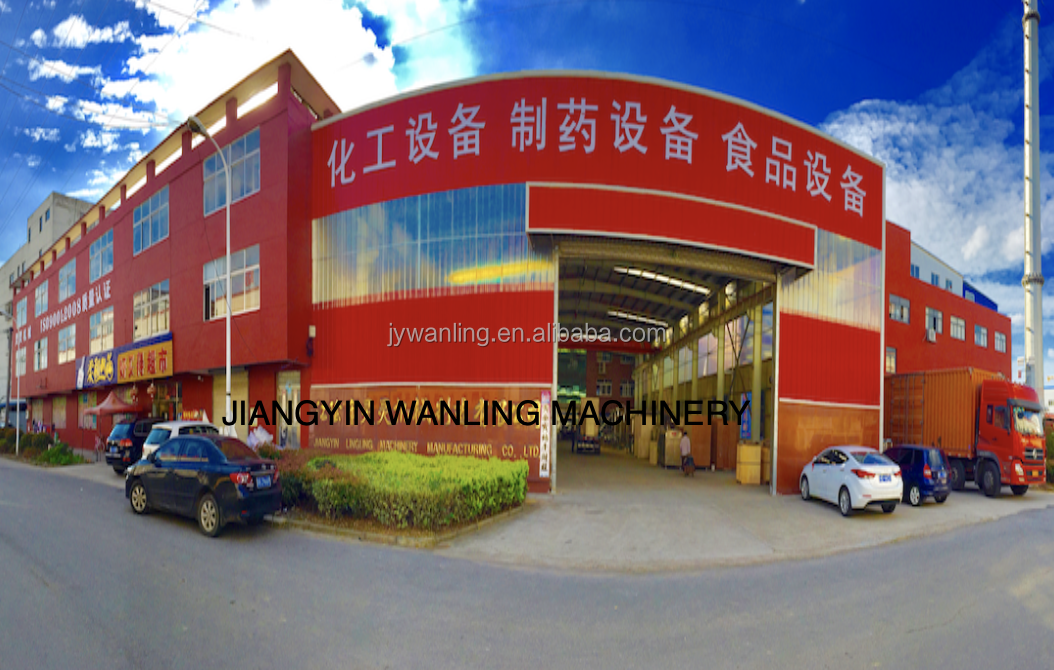

YES! We have our own factory specialized in producing spice, chemical, and food machinery, including pre-washing, cutting, crushing, fine grinding, mixing, drying, sifting, granulating, packing, filling, and conveyor series. Additionally, we operate our own trading company to design customized machine production lines to meet specific client requests.
YES! With over 23 years of experience in this field, we have deep industry knowledge and partner with many high-quality manufacturers in China. We can always provide you with efficient answers and economical solutions to help expand your market and business quickly.
We offer professional advice and rich experience to help you choose the right machine. We provide long-term maintenance, considerate technical support, and can send technicians abroad for installation. We offer a ONE-year guarantee and WHOLE-life service. Within 1 year, any problematic part (damaged by the machine itself) can be replaced for free.
We work with long-term shipping forwarders to send machines to your port safely. If needed, we can also assist with customs clearance. For packaging, the inner layer uses stretch film, and the outer layer is packed in standard export wooden cases. Production is typically finished in about 25 workdays after payment.
Normally we accept T/T or L/C terms. On T/T terms, a 30% down payment is required in advance, and the remaining 70% balance must be settled before shipment. On L/C terms, a 100% irrevocable L/C without soft clauses is acceptable.
Yes. This machine can be custom designed with 1 to 4 layers and 2 to 5 discharging mouths. The sieve mesh size is also interchangeable (ranging from 12 to 200 mesh) to accommodate different grading requirements for your raw materials.
