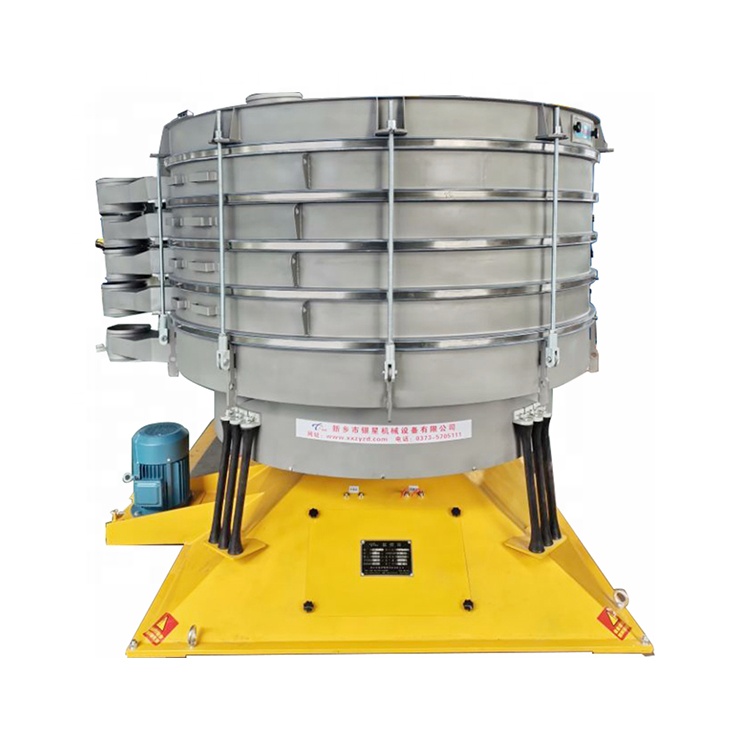

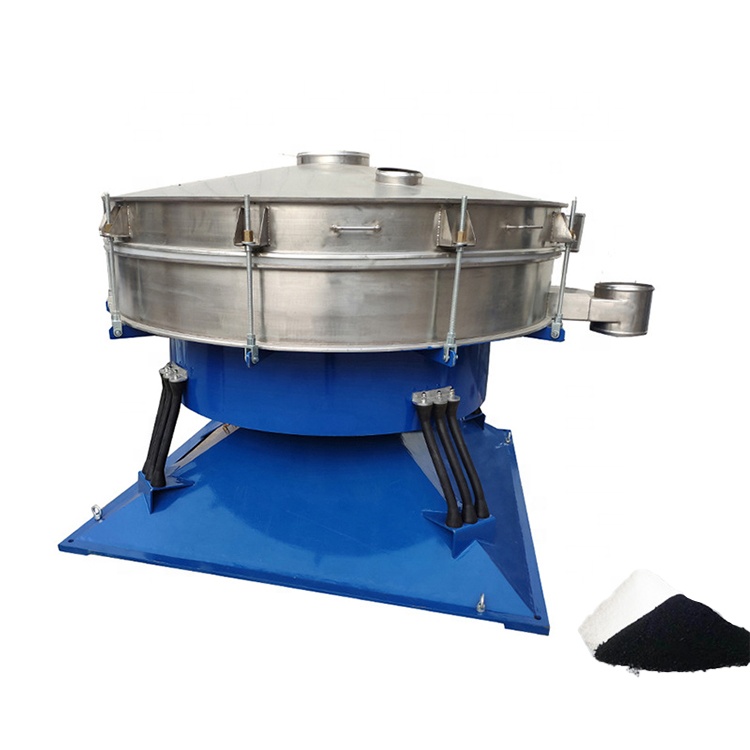

The movement of a tumbler screening machine is usually compared with simple hand screening similar to the "gold washing pan".

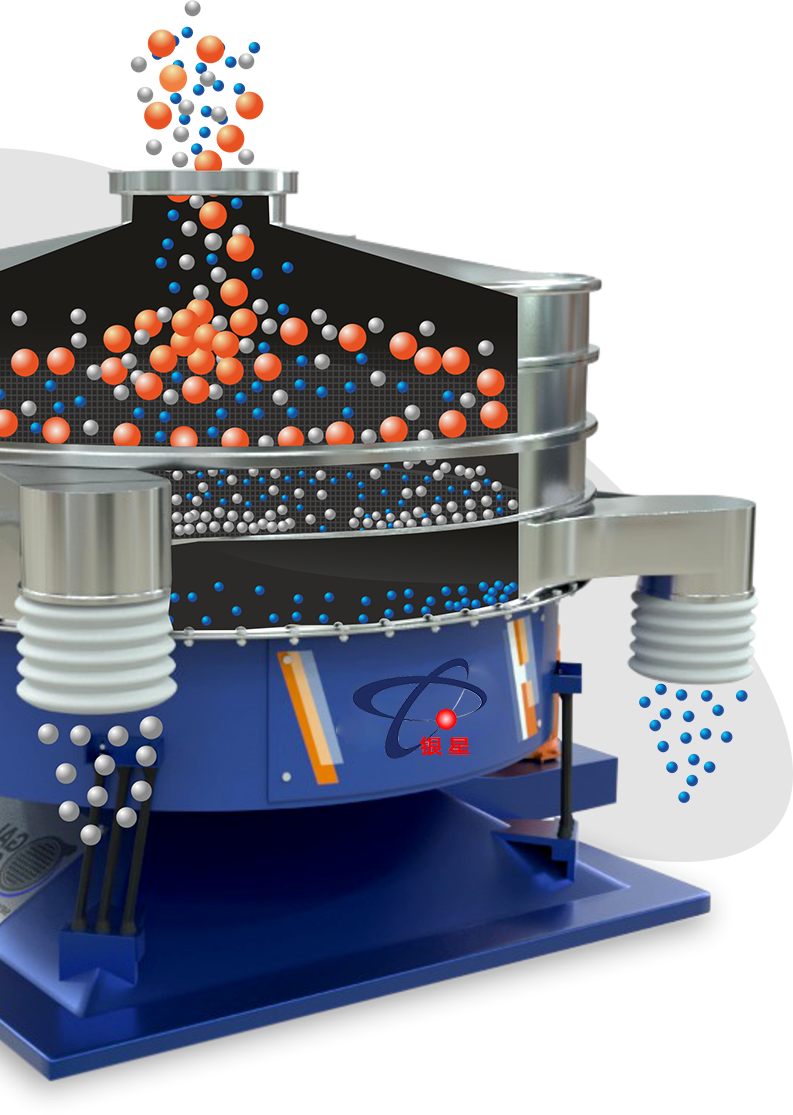

The product is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer particles fall through the screen near the centre and the coarser ones successively towards the periphery. The material is moved in a spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each deck.
Our products are widely used in the food industry. 99% of powder and granular dry materials can be screened with low screening noise and high screening efficiency. If you are interested in our machines, please feel free to inquire.
| Model | YX-1000 | YX-1200 | YX-1600 | YX-2000 | YX-2600 |
|---|---|---|---|---|---|
| Effective area (㎡) | 0.67 | 1.13 | 1.83 | 2.63 | 5.3 |
| Effective diameter (mm) | 980 | 1180 | 1580 | 1980 | 2580 |
| Layers (s) | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
| Motor power (kw) | 1.5 or 4 | 2.2 or 4 | 3 or 4 | 4 or 4 | 5.5 or 4 |

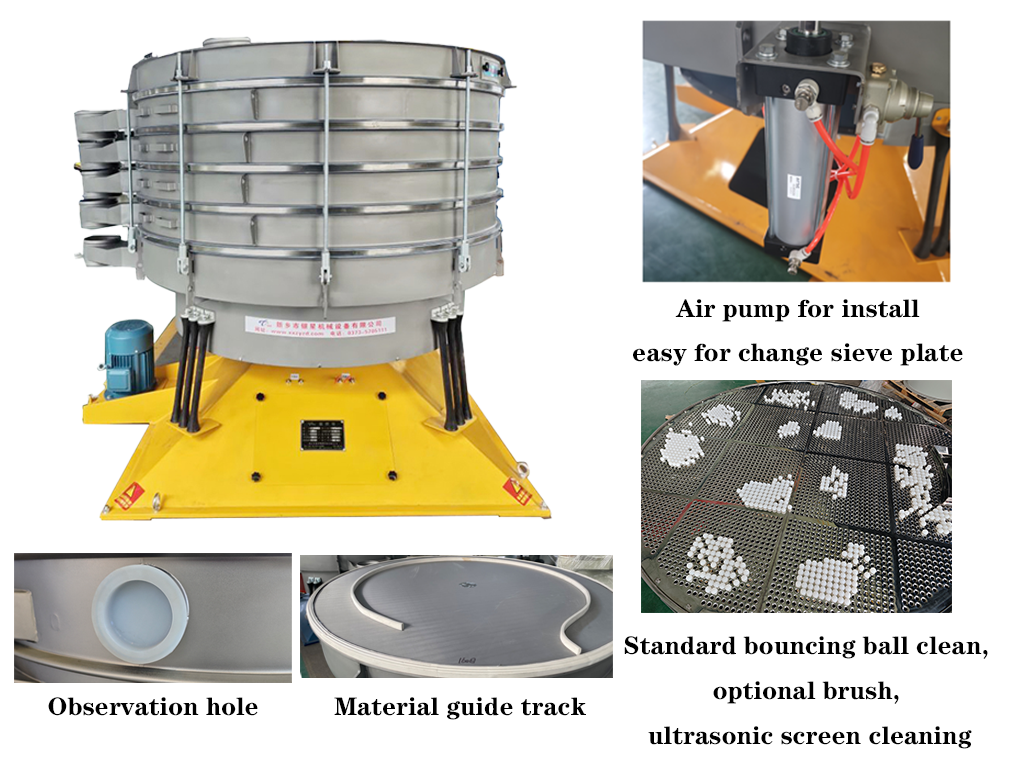

| Cleaning system | Optional silicone cleaning ball, rotating brush, ultrasonic | ||||
Due to space limitations, we only show the standard models. If you want to customize, please contact us.

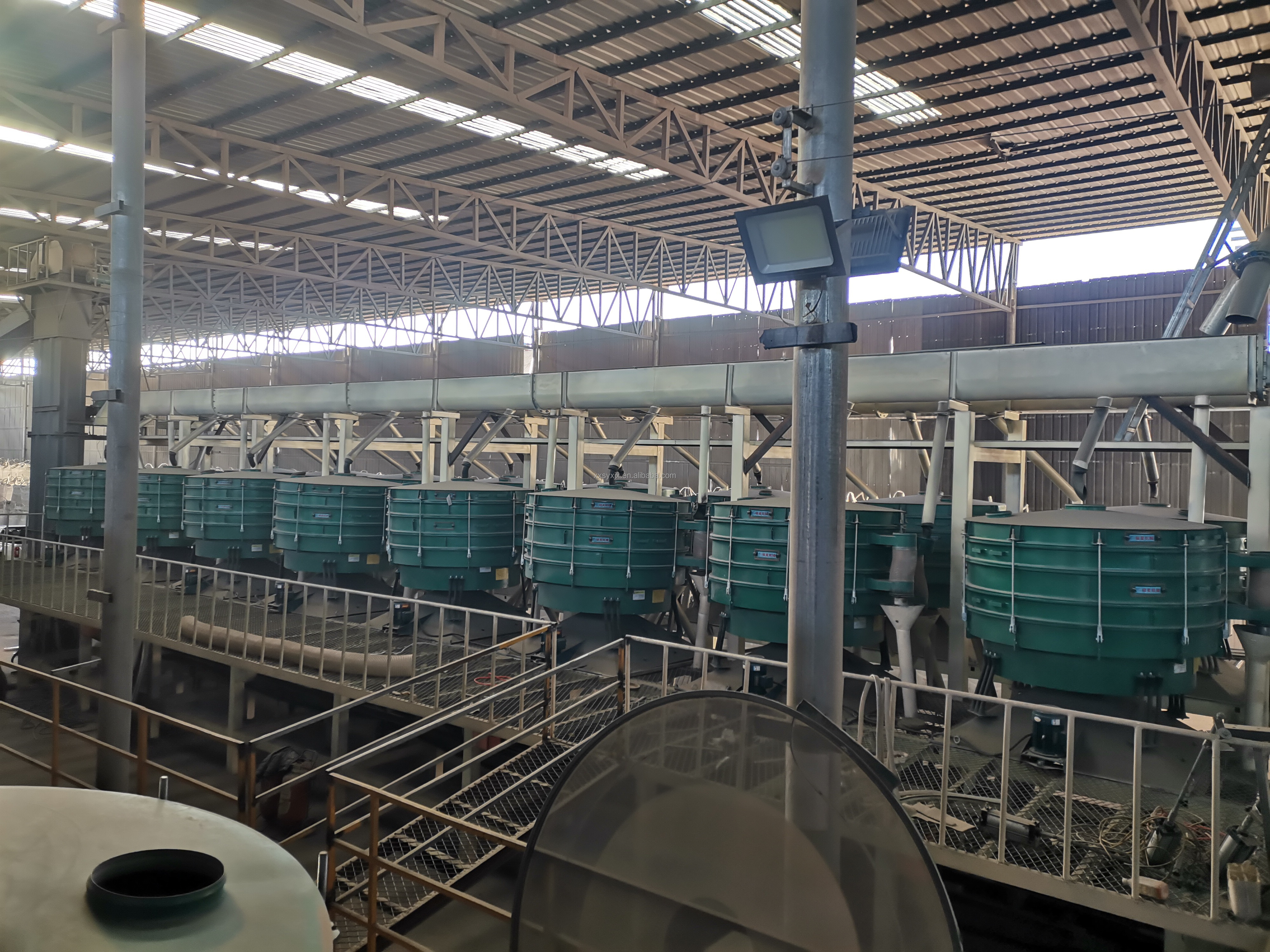

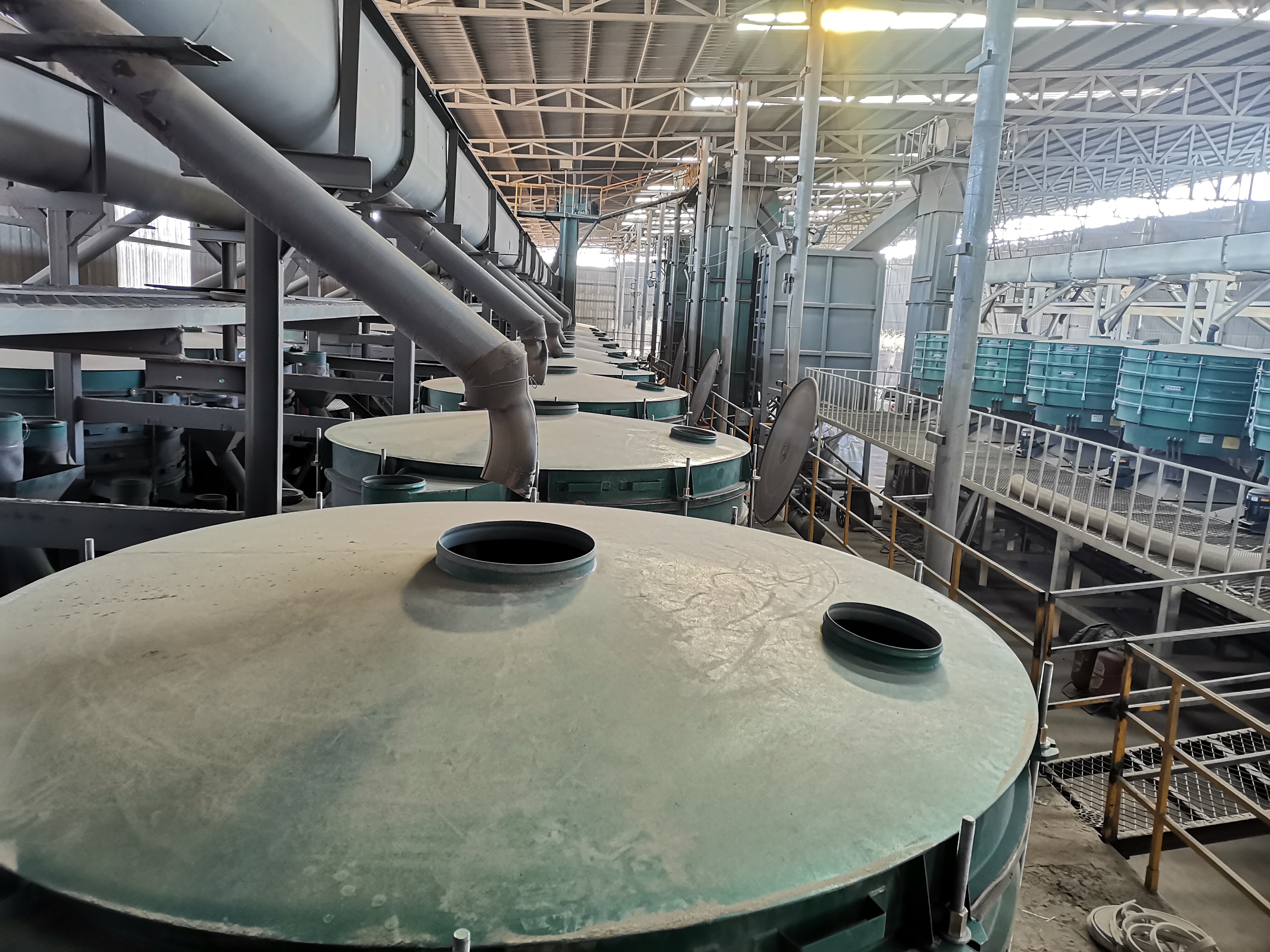

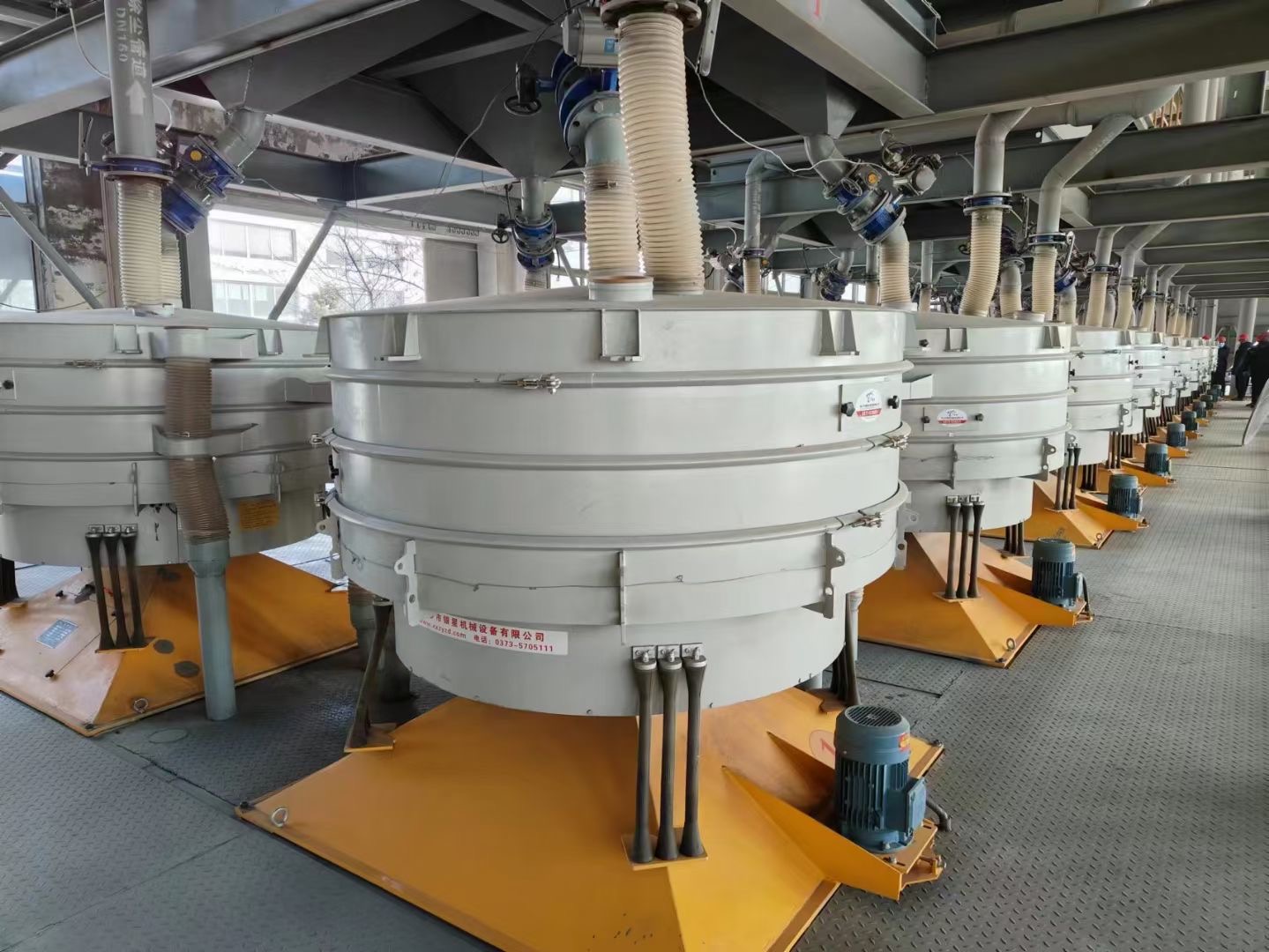

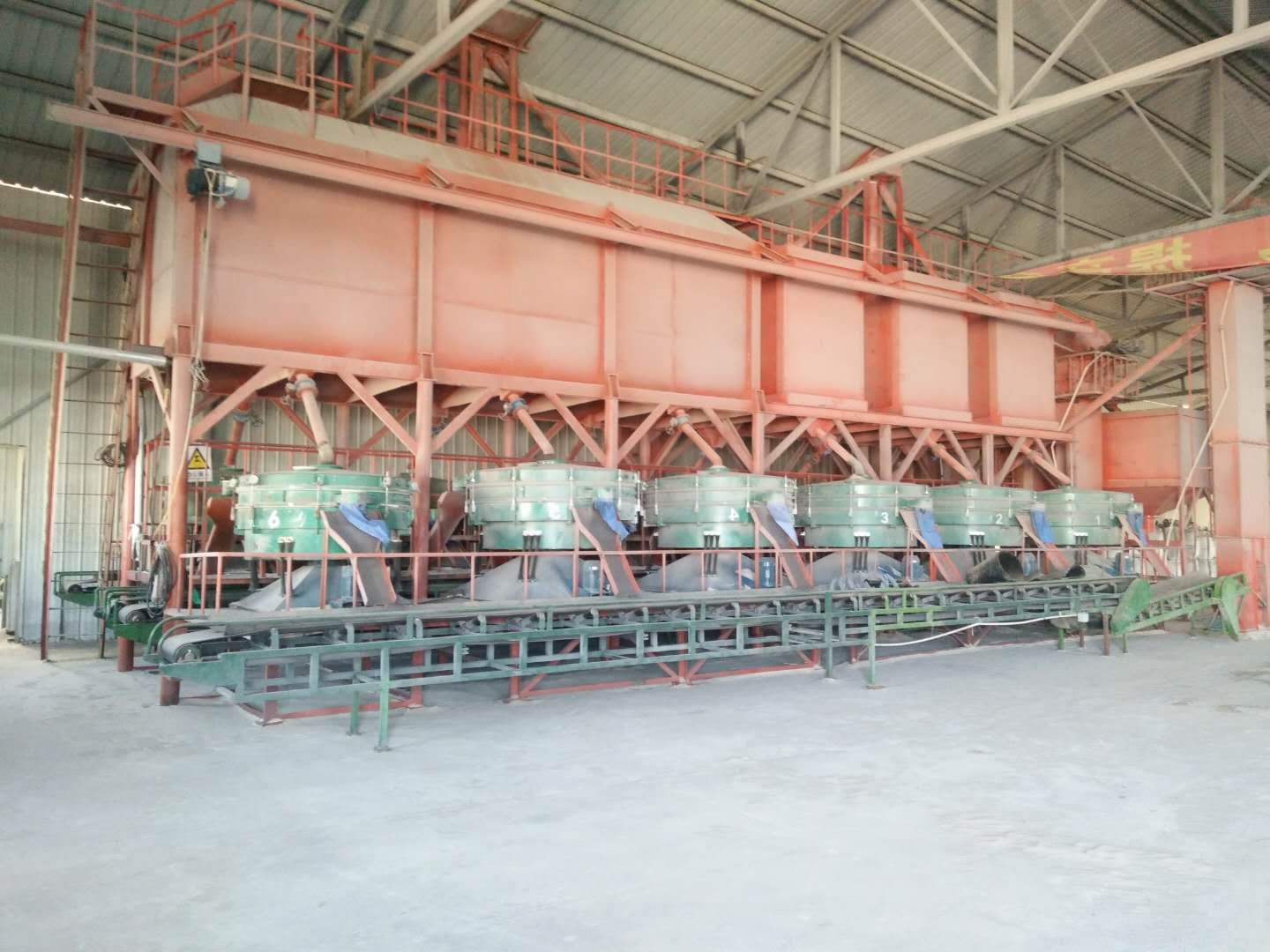

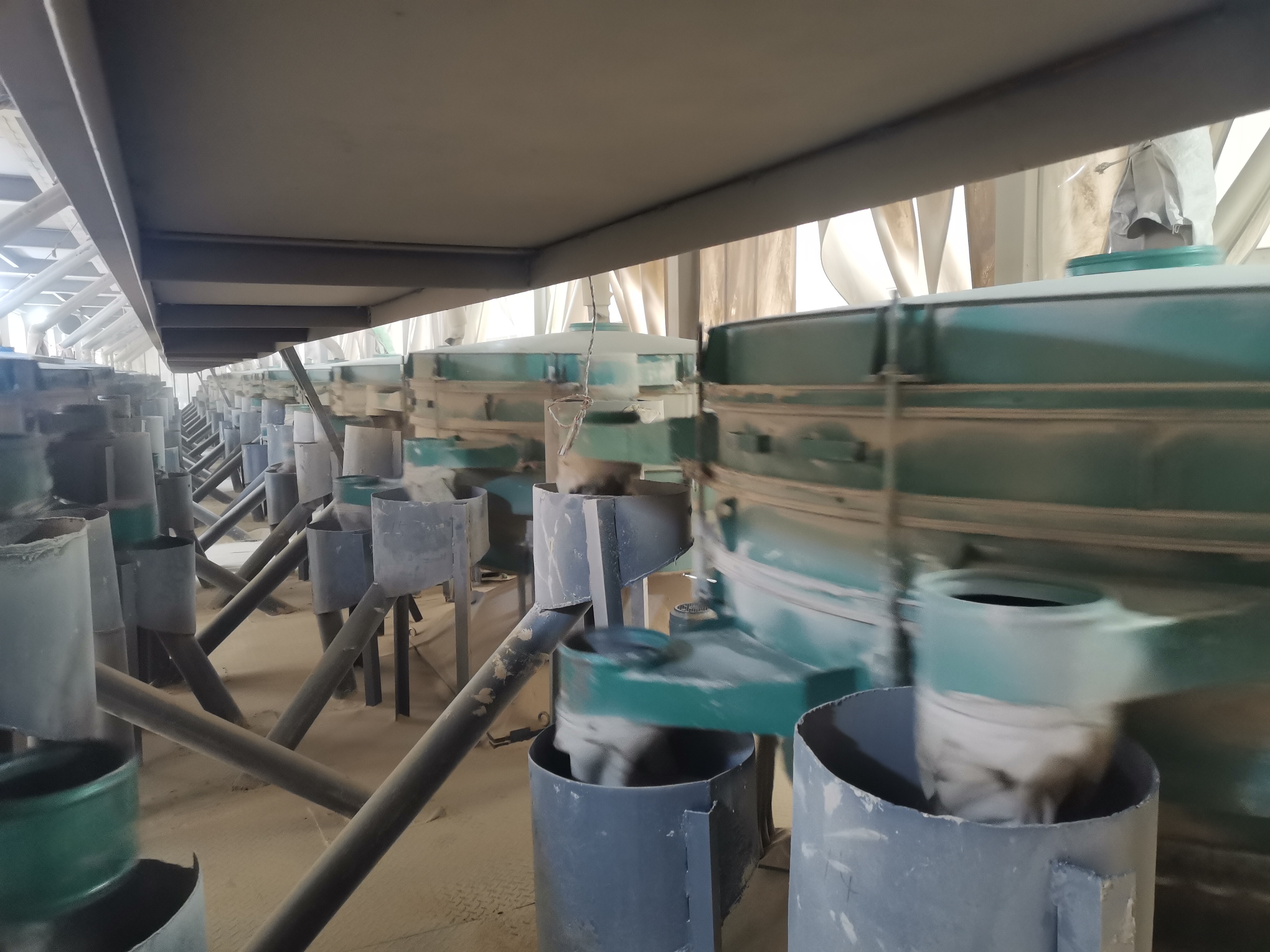

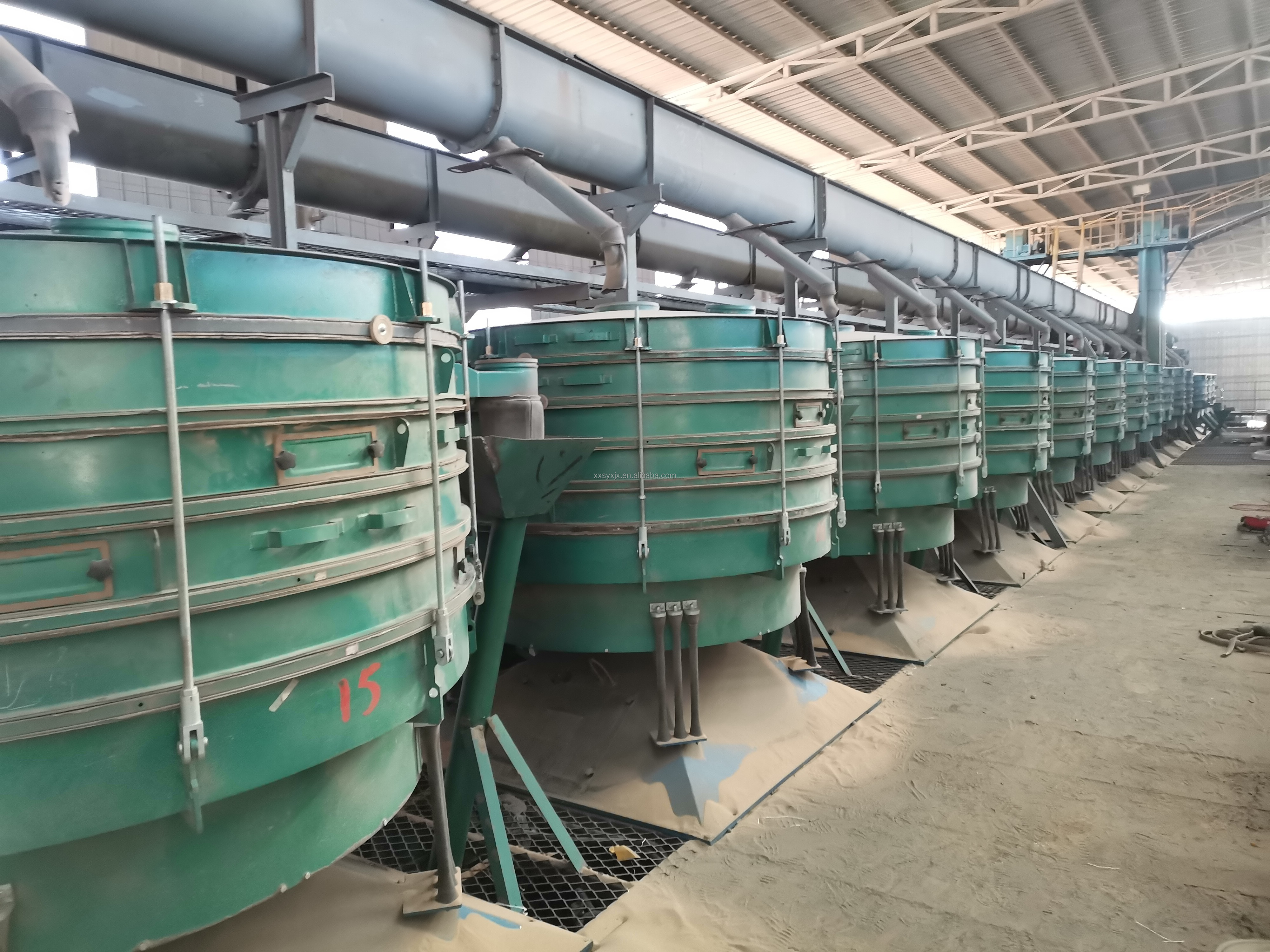

These are the pictures we took at the customer's site. Our equipment is sold in a very wide area and has received numerous positive reviews.

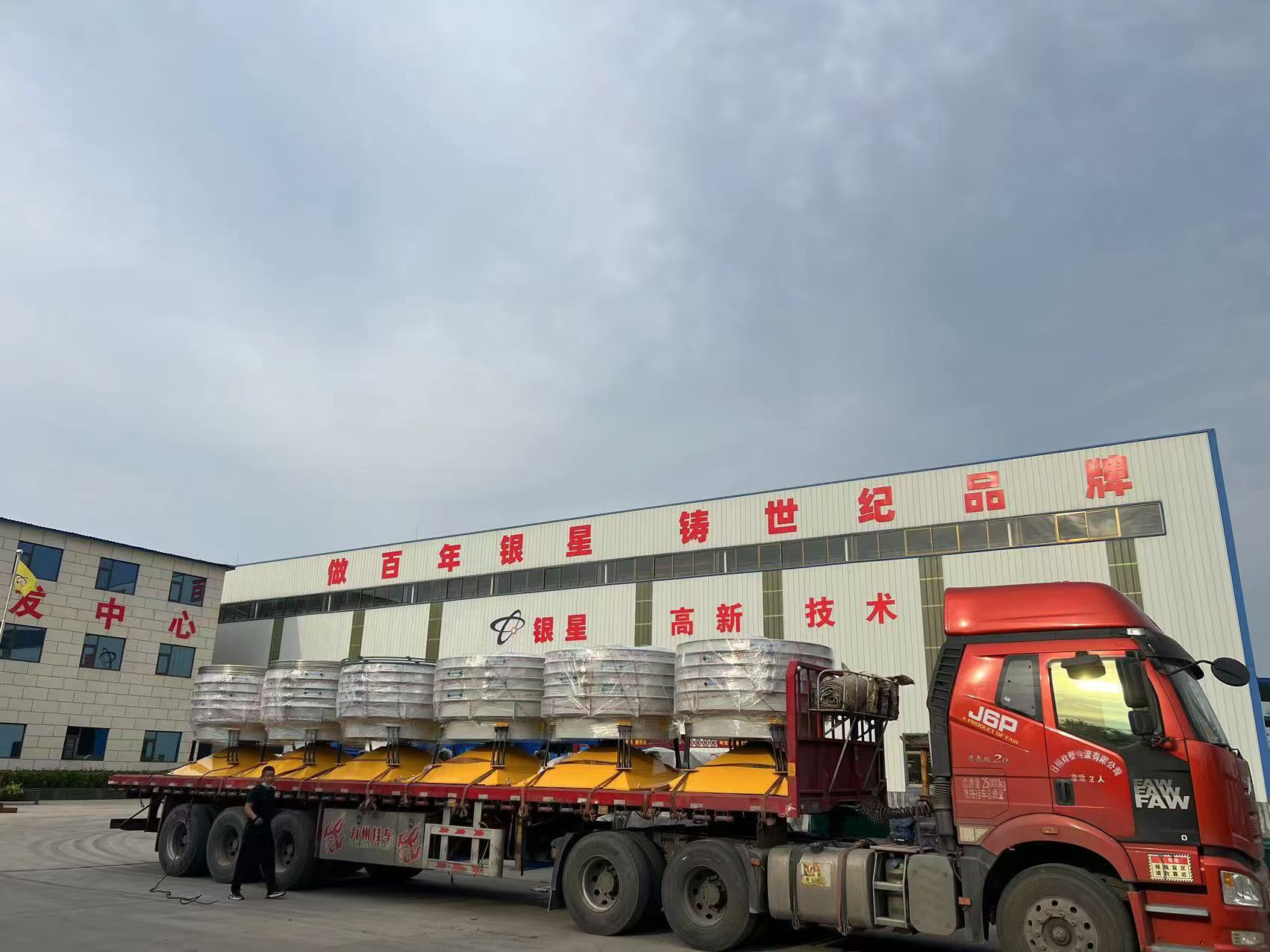

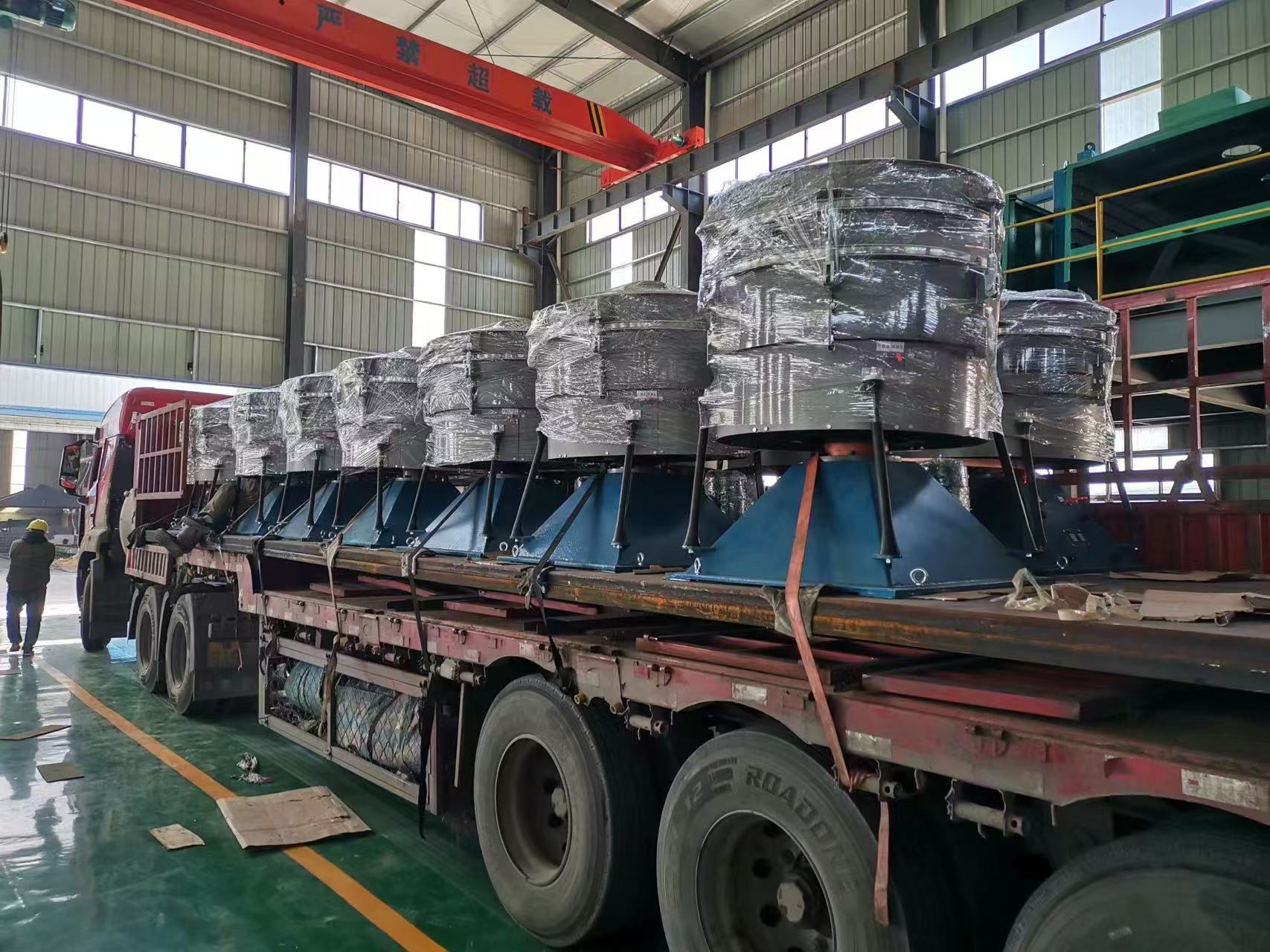

We can use four modes of transportation: car, train, ship and plane. The goods are packed in moisture-resistant multi-layer wooden boxes, rainproof cloth, and direct loading in containers.

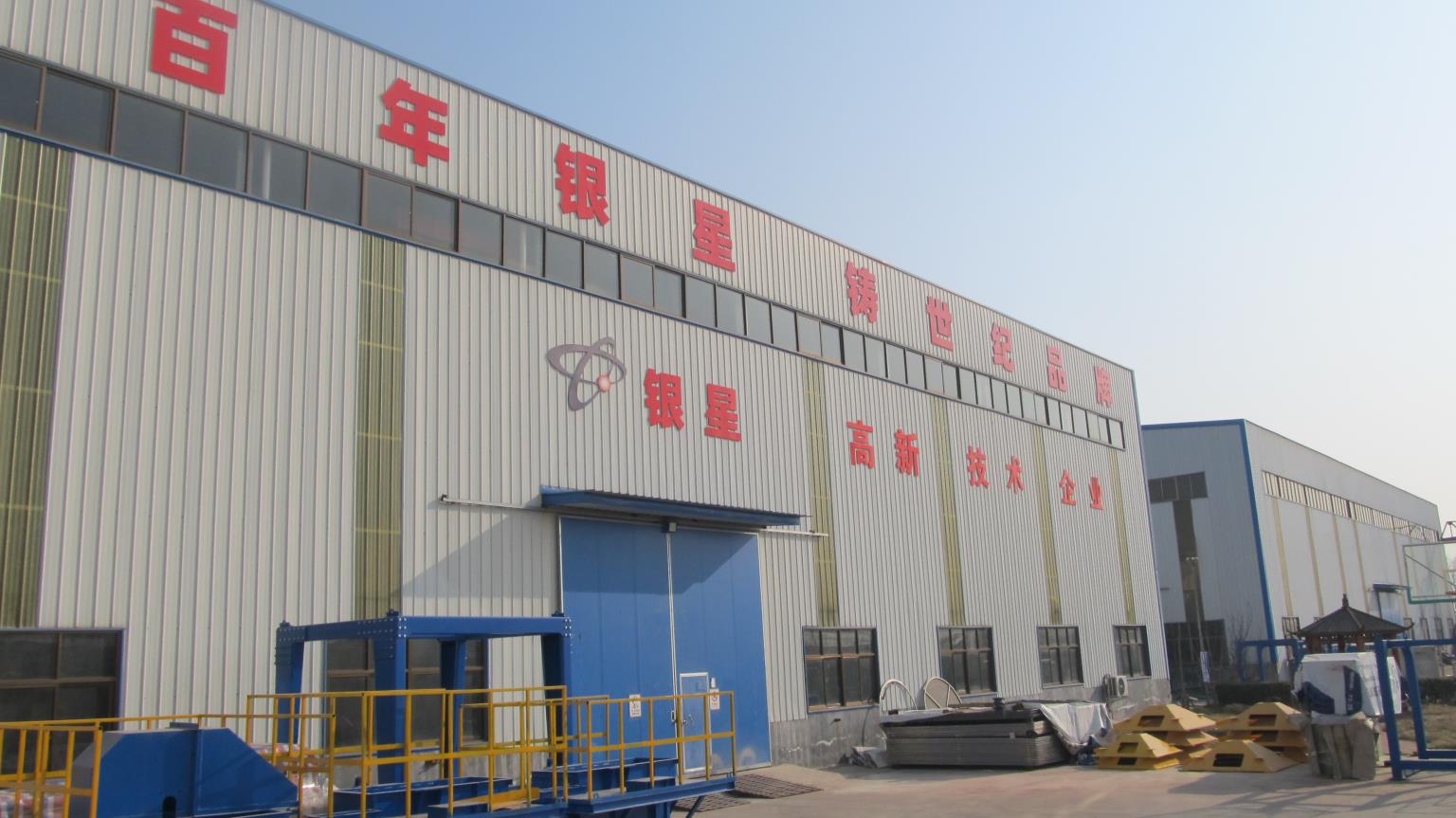

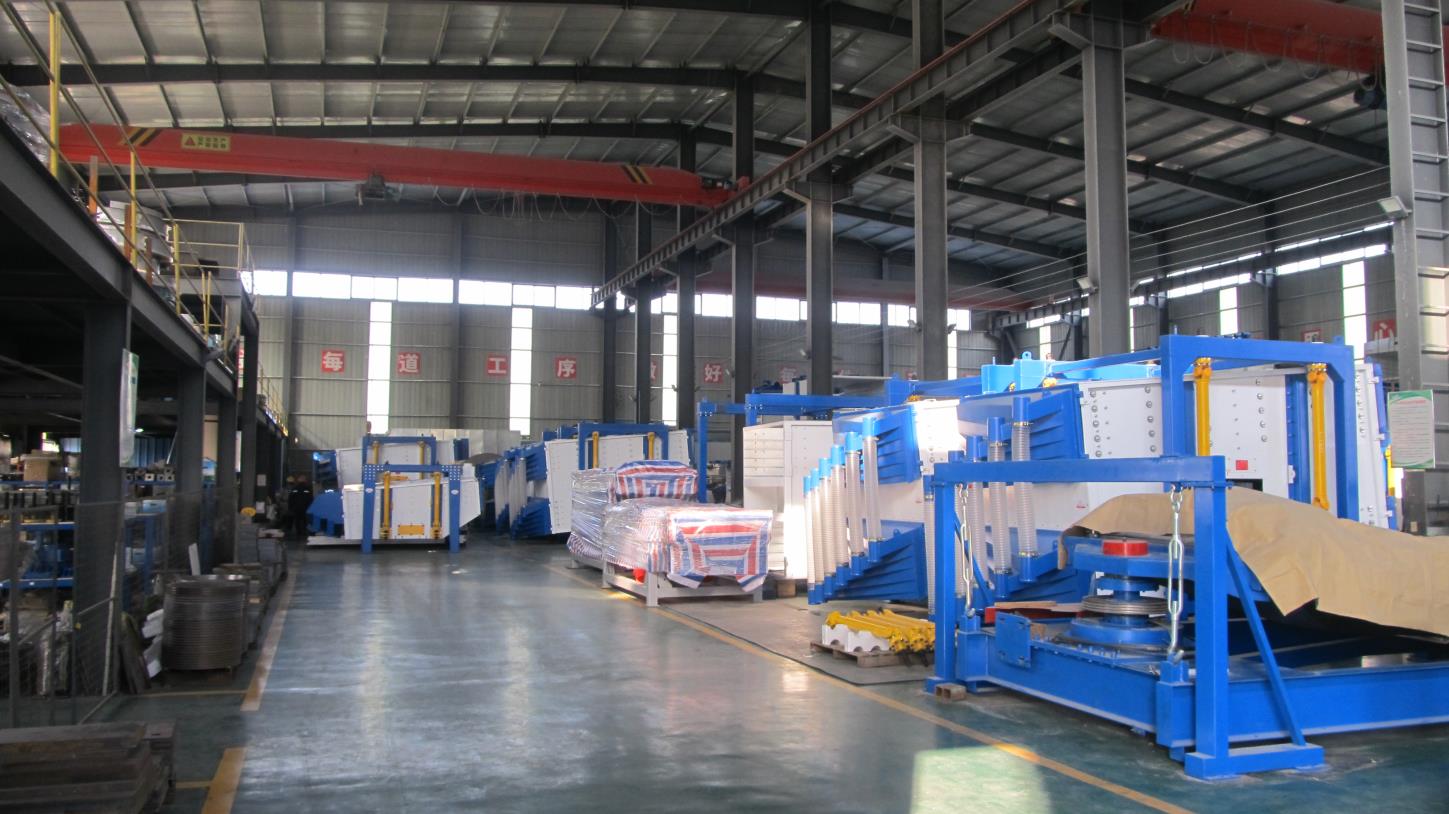

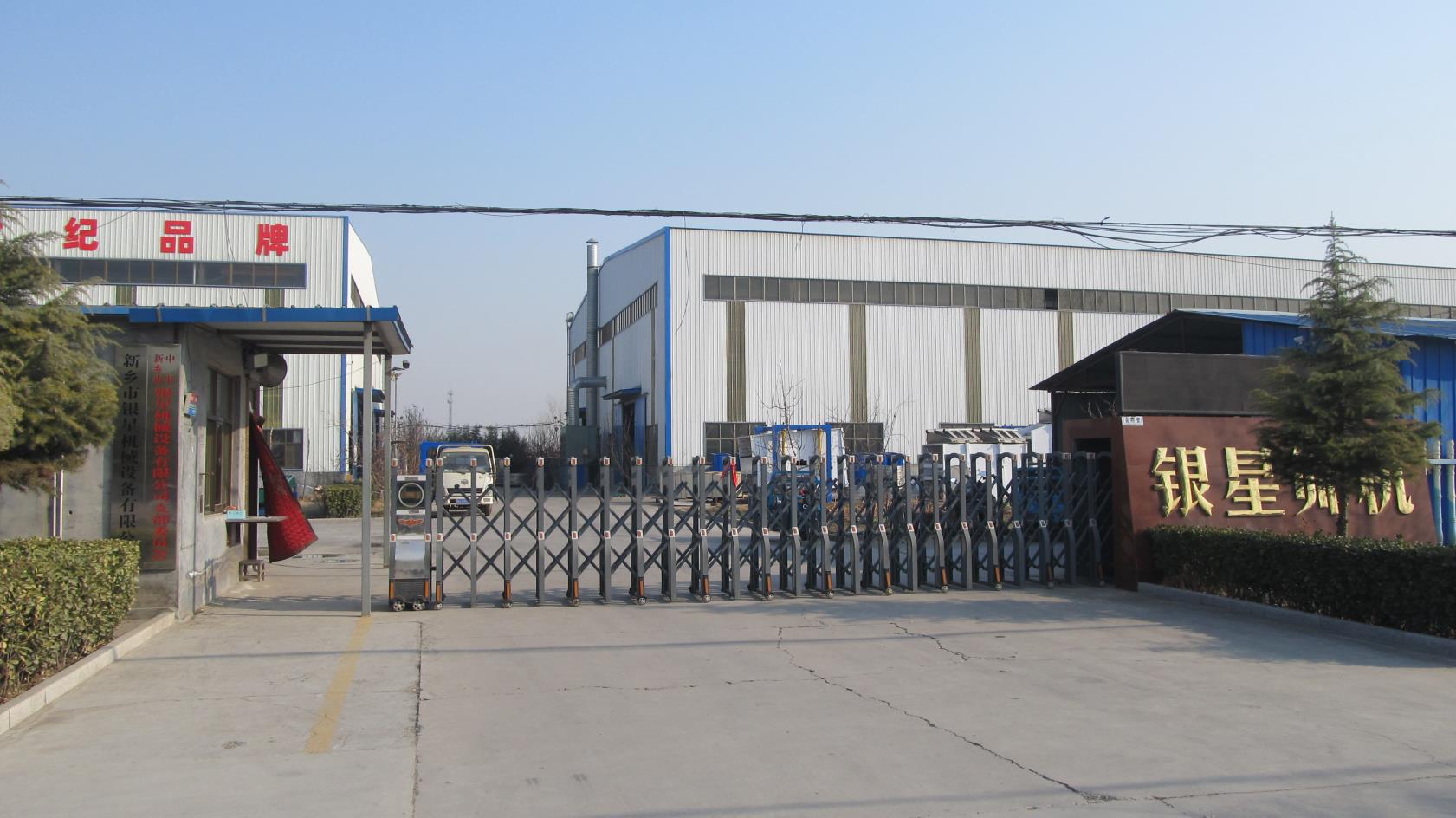

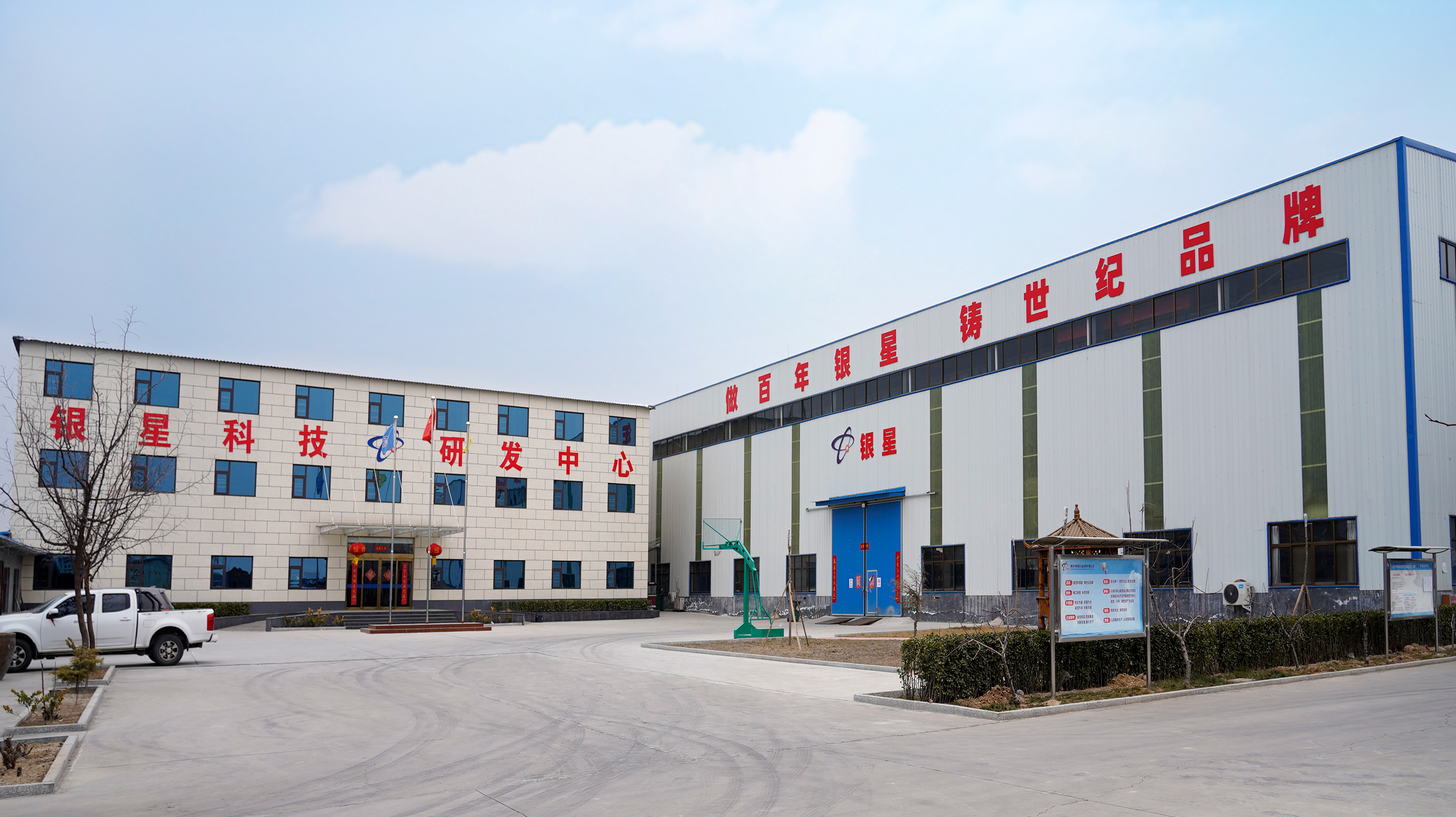

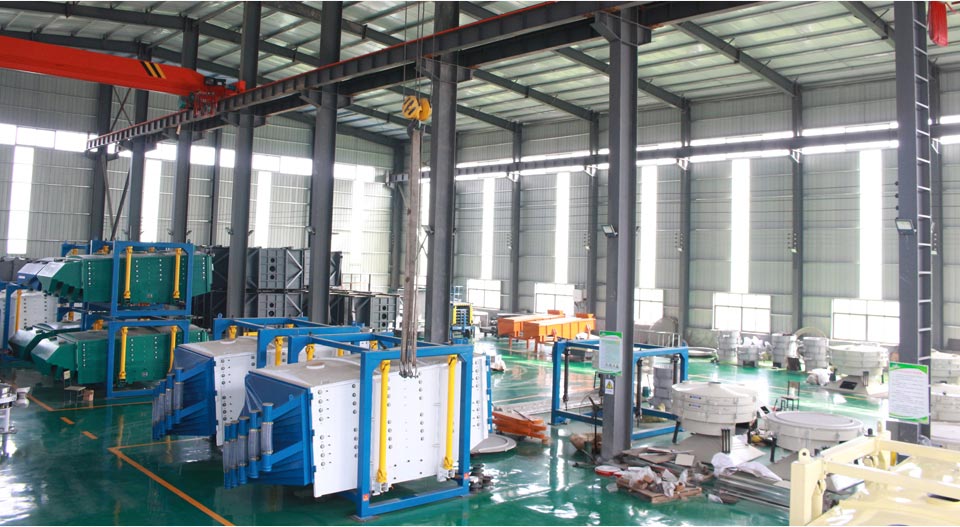

Our company has more than 20 years of experience in the production of screening equipment. It has rich experience in screening chemical industry, food, sugar industry, flour industry, salt industry, mining, metal smelting and other industries. There are more than 100 sets of production and processing equipment in the factory. Choose high-quality equipment for worry-free screening.
Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials, and other processing sectors.
The entire machine is covered by a one-year warranty, and the core accessories are guaranteed for three months. If you experience any quality issues after receiving the goods, please contact us promptly.
For any installation, testing, or operation challenges, we provide comprehensive remote online guidance or direct on-site service support.
We offer two main shipping modes: by air (port-to-port, taking approximately 7 days depending on the destination) and by sea (port-to-port, taking approximately 20-35 days).
Yes. Standard models are highlighted above, but custom specs—such as custom sizing, specific material processing, customized deck layers, and motor setups—can be adjusted to fit your requirements.
Yes, 99% of dry powder and granular materials can be processed efficiently. The system maintains low operational noise while achieving optimal screening accuracy.
