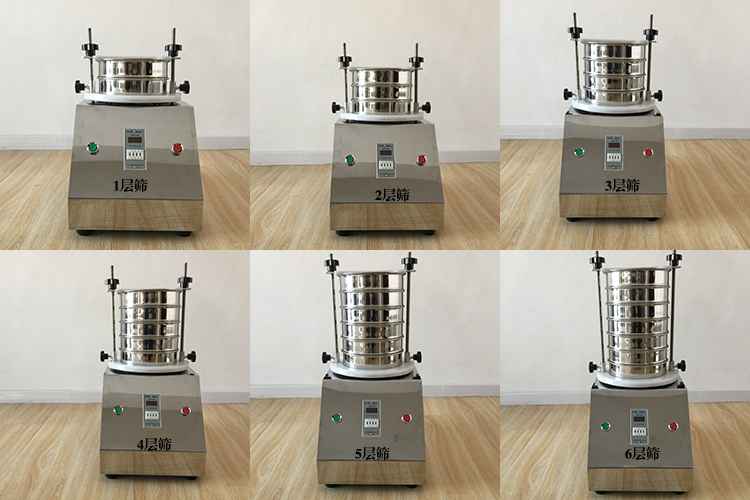

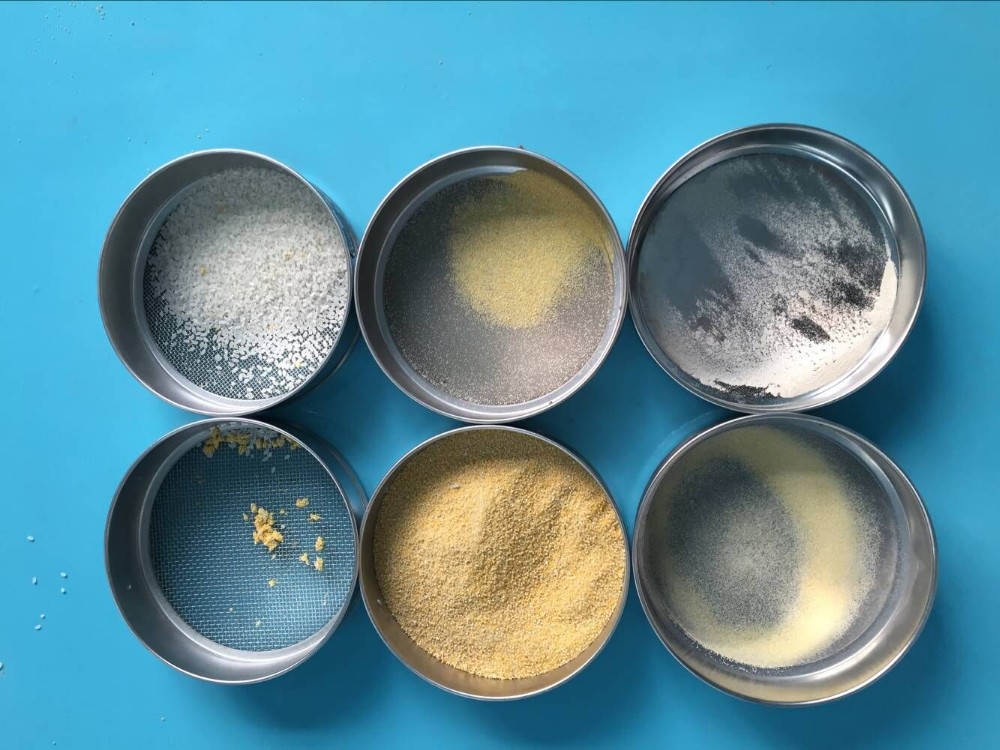

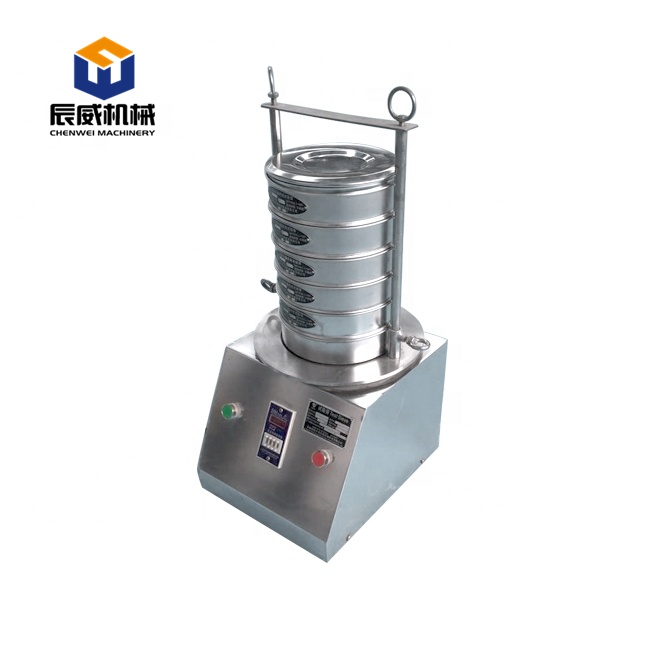

The standard Testing sieve is made for the purpose of particles size distribution measurement, the determination of impurity content or solid content in liquid, which are extensively used in scientific laboratories and quality inspection departments.
We adopt well-qualified new type of energy generator generating multi-dimensions high frequent vibration to ensure high-efficient sieving and determination. According to different materials features, customers can set different working time by adjusting electric time controller so that the analysis errors could be reduced to minimum and therefore guarantee analysis results unanimous.

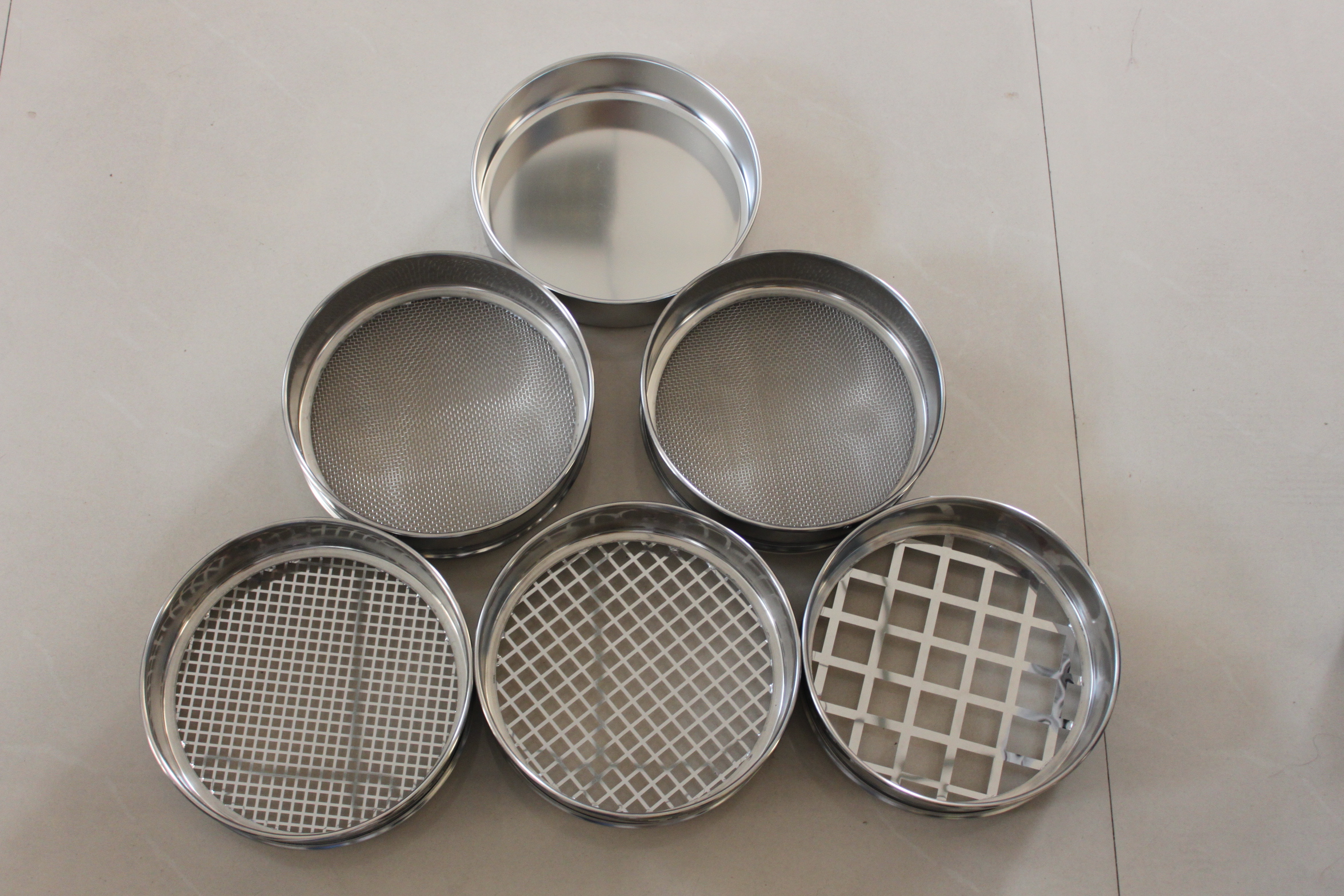

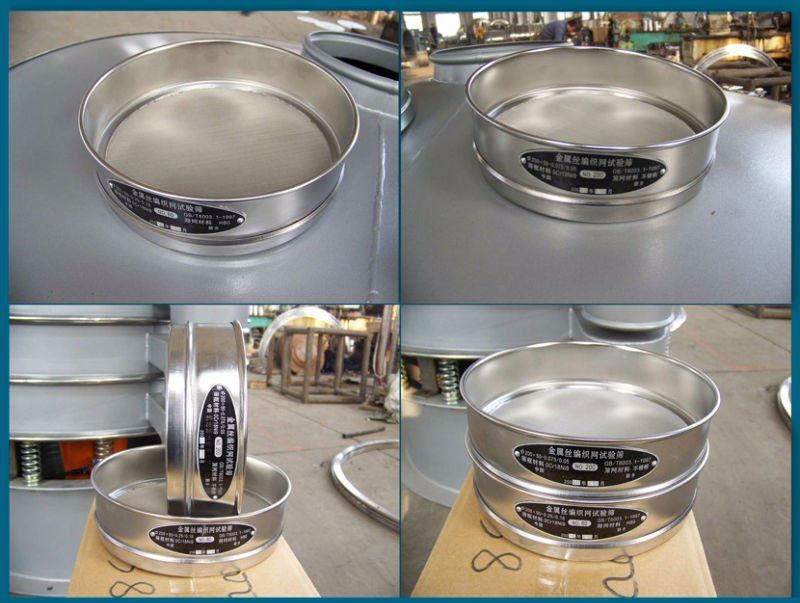

Screen frame using SUS304 from polished stainless steel tension, thickness 0.6 mm, the overall shape of durable, non-magnetic, screen and screen frame fixed by soldering, do not slack. The following 300 degree heat resistant.

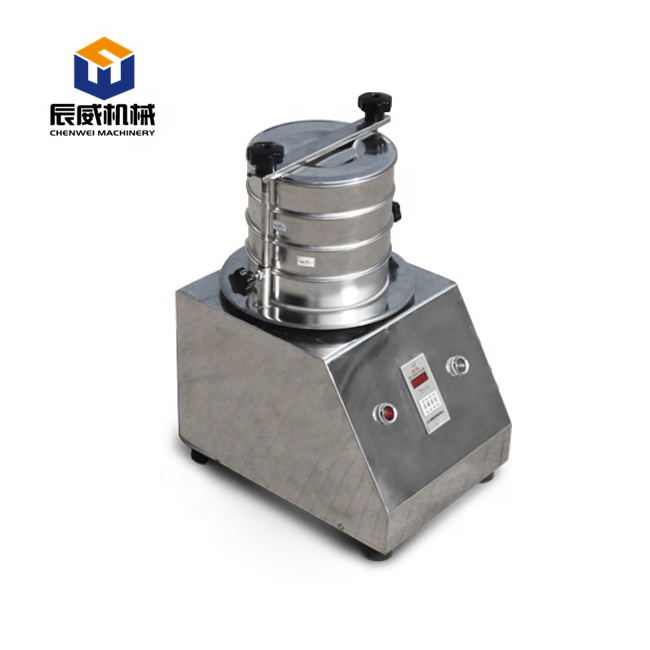

| Model | CW200 | Deck | ≤ 8 |
|---|---|---|---|
| Diameter | Φ200 | Particle size range | 0.038 - 3 mm |
| Amplitude | ≤ 5 mm | Voltage | 220 V |
| Rotate Speed | 1450 rpm | Power | 0.125 kW |
| Noise | ≤ 50 dB | Batch capacity | ≤ 200 g |
| Dimension | ≤ 360 X 300 X 736 mm | Total Weight | 25 kg |
* Note: Due to our products belong to machinery, all equipments need to match with our production process. Machine size, model, and specifications vary from model to model. So our sales manager needs to know the specifications before choosing model and providing quotation based on different requirements from customers. All products price mark in our shop are not the final price, It is for reference only, please contact our sales manager for correct offer.
