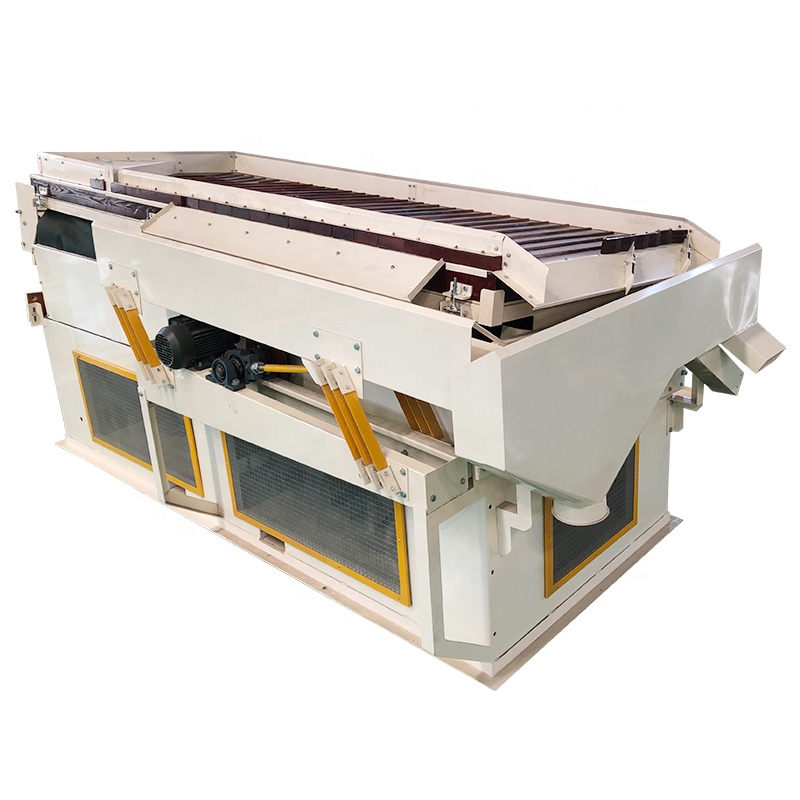

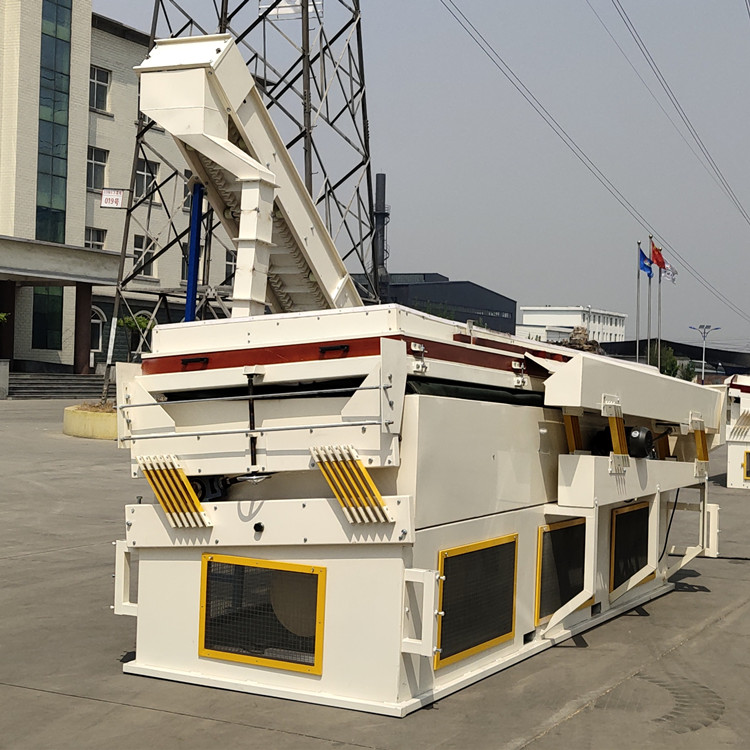

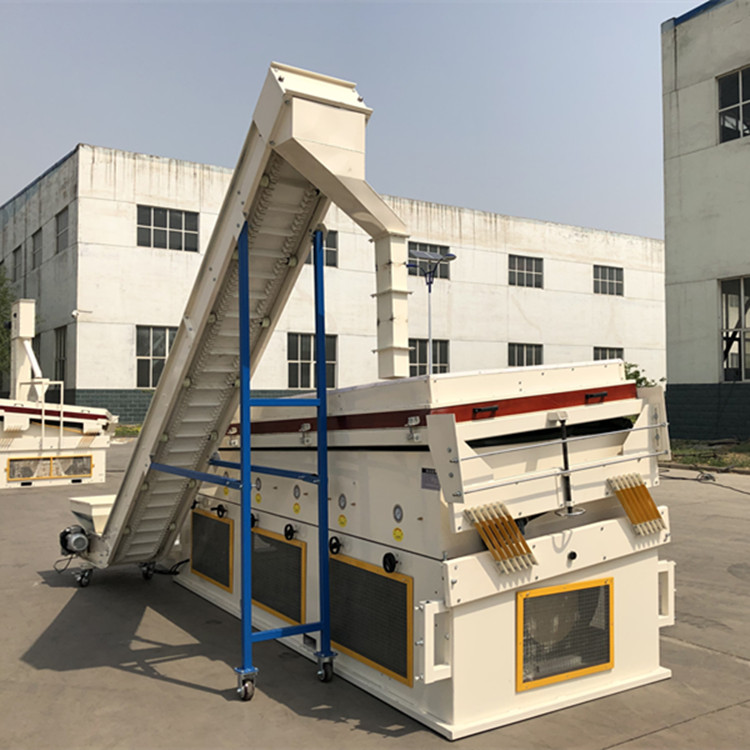

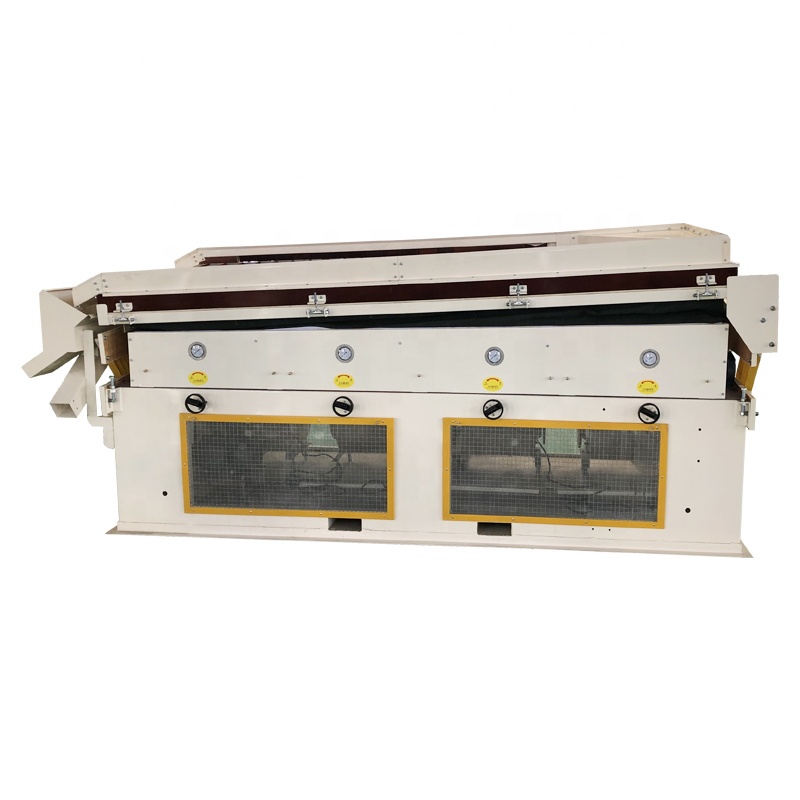

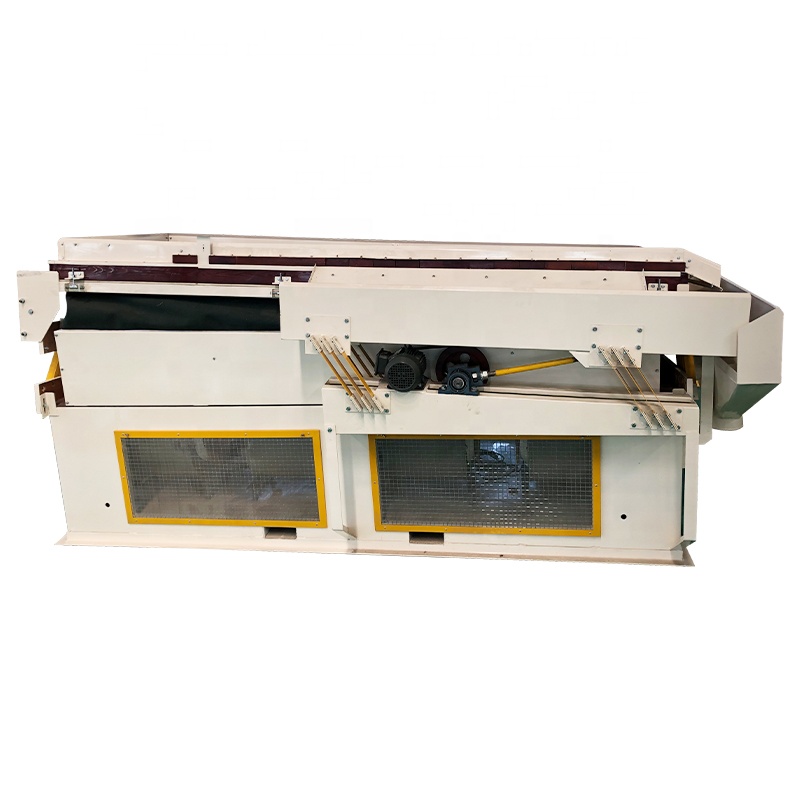

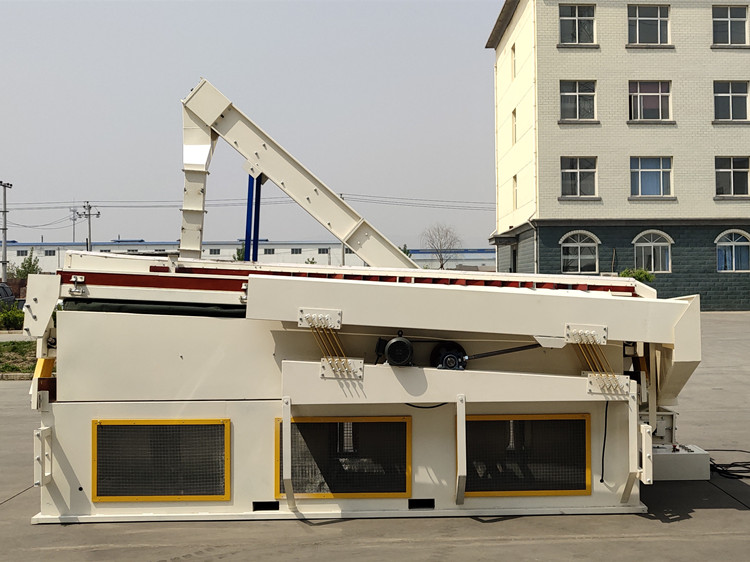

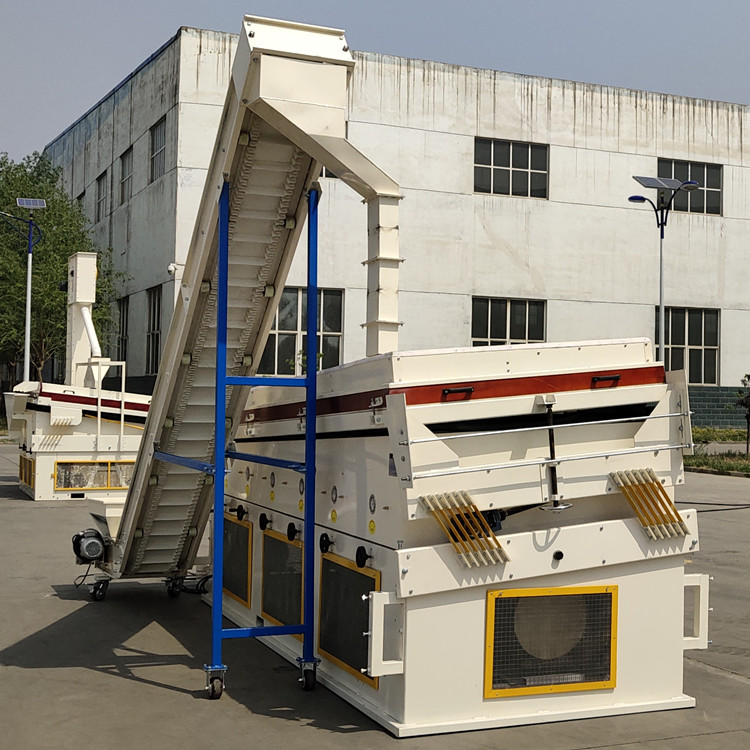

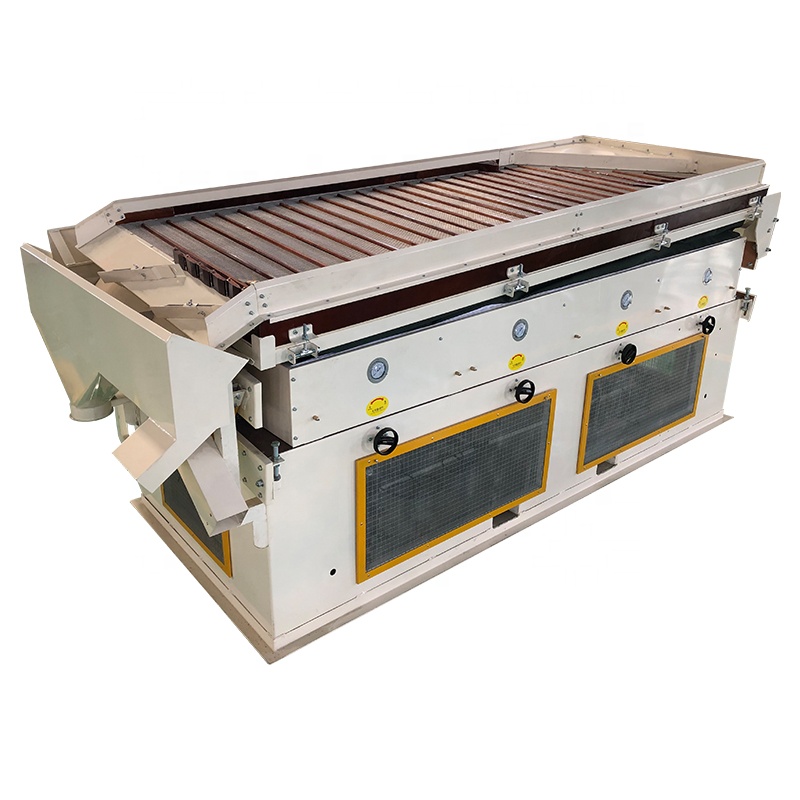

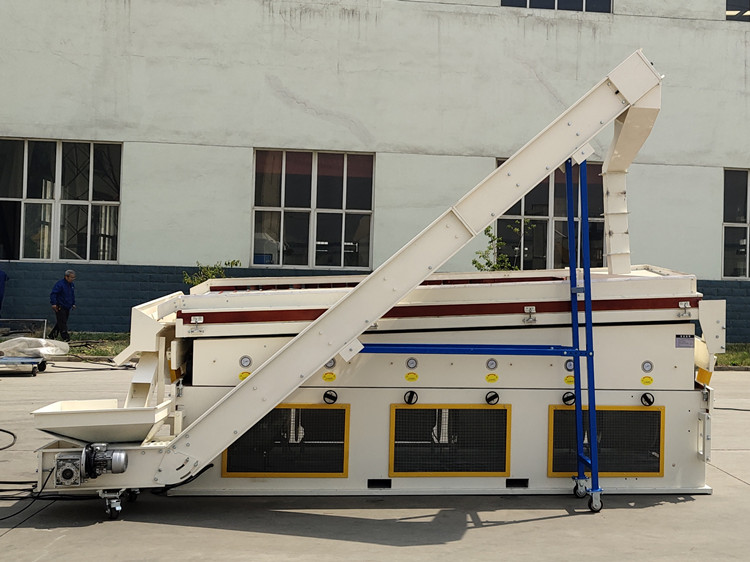

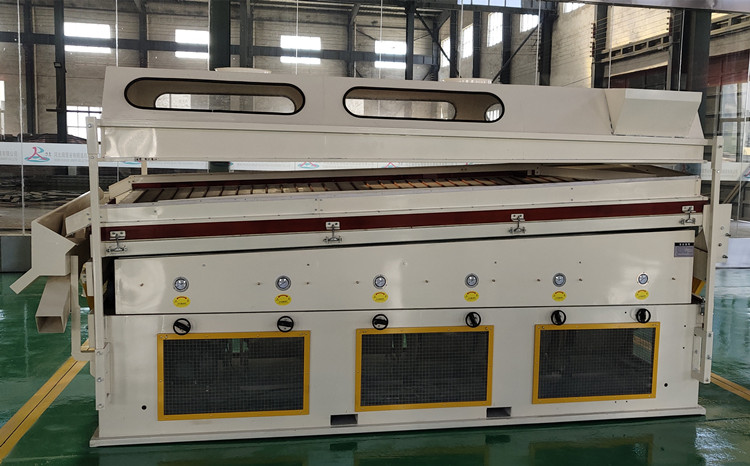

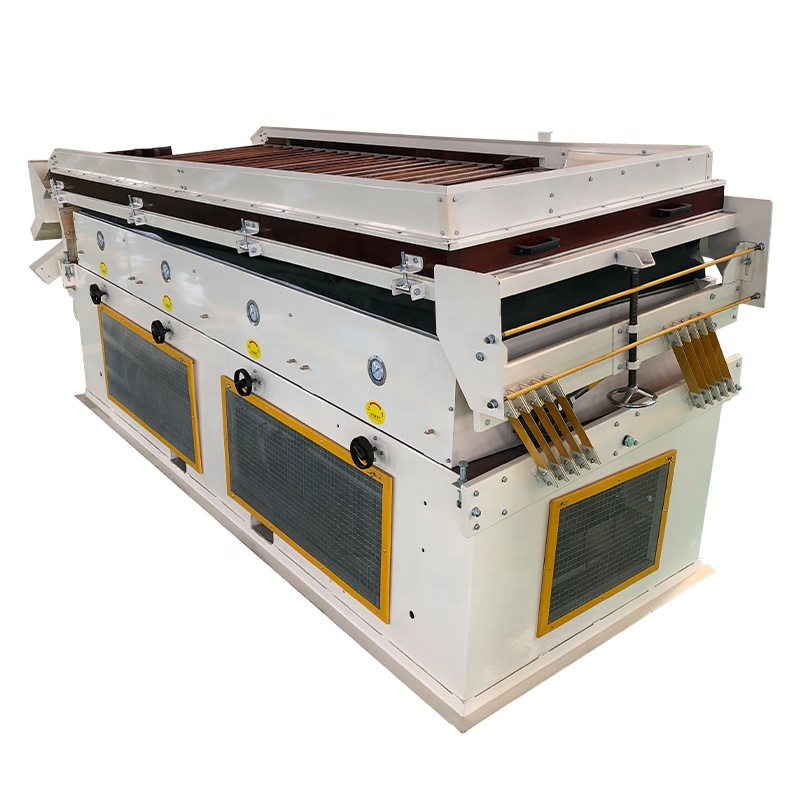

It is the blowing type Oats Seed Specific Weight Classificator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
The Oats Seed Specific Weight Classificator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Oats Seed Specific Weight Classificator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The Oats Seed Specific Weight Classificator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

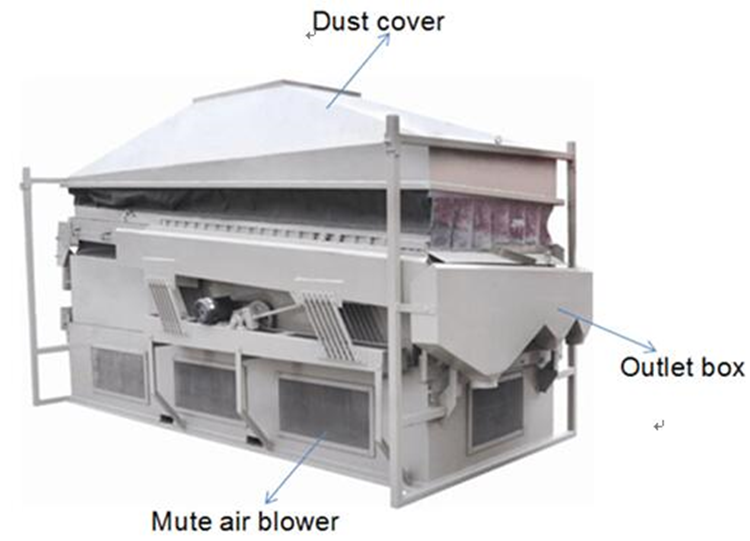

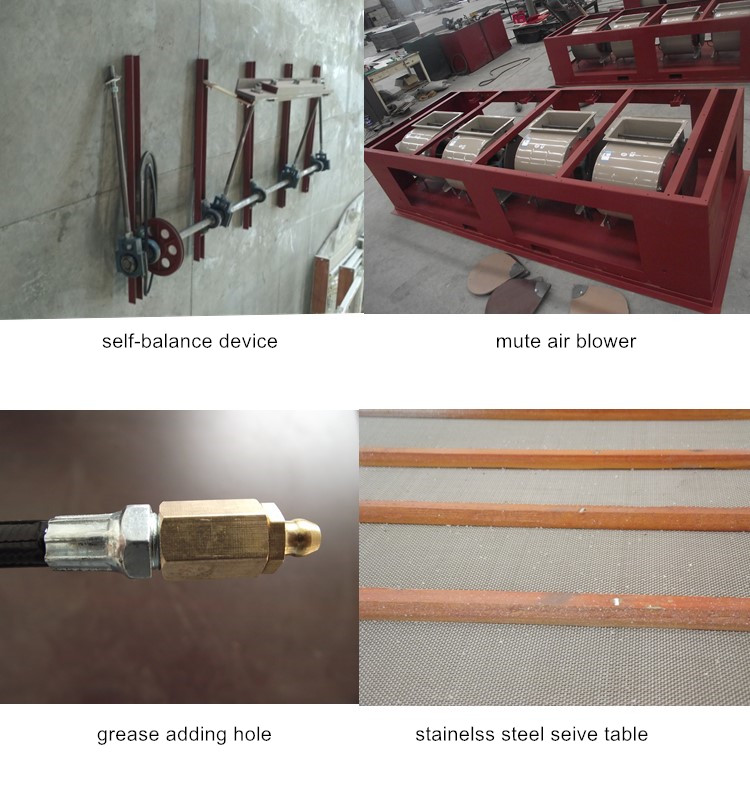

The gravity separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
| Model No. | Capacity(T/H) | Power(KW) | Weight(KG) | Dimensions(MM) |
|---|---|---|---|---|
| 5XZ-3 | 3 | 7.45 | 1300 | 2600 × 1500 × 1750 |
| 5XZ-6 | 5 | 8.95 | 2000 | 3440 × 1630 × 1900 |

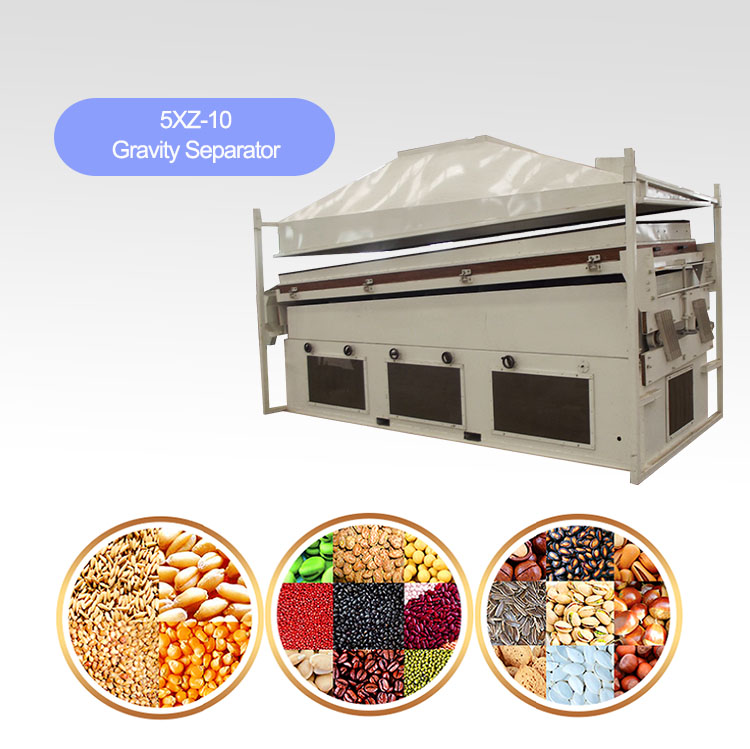

| 5XZ-10 | 10 | 15 | 2500 | 4300 × 1960 × 2500 |
Q: What is the primary function of the Seed Grain Gravity Separator?
A: It is designed to separate grains and seeds that share the same shape but have different specific weights, helping to select the best quality seeds for sowing.
Q: Which materials can be processed by this gravity separator?
A: It can process all kinds of seeds and grains, such as coffee beans, cocoa beans, peanuts, corn, peas, beans, rice, wheat, and sesame. Additionally, it can process industrial materials like glass, stone, metal, and sand.
Q: How does it ensure the high quality of the final product?
A: The machine efficiently removes undesirable components like moldy kernels, immature shriveled seeds, insect-damaged seeds, and broken seeds from the batch.
Q: What is the working principle of the gravity separator?
A: The separator works on a fluidized bed principle. Under air pressure and deck oscillation, materials are fluidized and stratified. Heavy fractions sink to the deck, while light fractions are suspended. Due to oscillation, they travel distinct paths and are collected separately.
Q: What are the available capacities for the machine models?
A: Capacities vary by model: Model 5XZ-3 processes 3 T/H, Model 5XZ-6 processes 5 T/H, and Model 5XZ-10 processes 10 T/H.
