Customization: Available
After-sales Service: Yse
Warranty: 1 Year, 1 Year
Send Inquiry

Product Description

📋 Basic Info
Model NO.
RG-1C
Application
HDPE, Steel, HDPE, Steel
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Cutting CNC Machine Tools
Movement Method
Linear Control, Linear Control
Control Method
Closed-Loop Control, Closed-Loop Control
Numerical Control
CNC/MNC, CNC/Mnc
Processing Precision
0.09~0.1(mm), 0.09~0.1(mm)
Performance Classification
High-End CNC Machine Tools, High-End CNC Machine Tools
Certification
CE, ISO 9001, CE, ISO 9001, CE, ISO, EPA
Condition
New, New
After-Sales Service
Yse
Type
Pipe Beveling Machine
Style
Hand-Held
Layout
Horizontal
Automatic Grade
Semi-Automatic
Power Source
Hydraulic
Packing Size
73*40*77cm
Gross Weight
85kgs
Output Speed
30rpm
Max Wall Thickness
6mm
Fabrication Capacity
1"-1/2 2"-6" 8"
Transport Package
Plywood Case
Specification
73*40*77cm
Origin
China
HS Code
8462490000
Production Capacity
6000pieces/Year
📦 Packaging & Delivery
Package Size
73.00cm * 40.00cm * 77.00cm
Package Gross Weight
85.000kg
📝 Product Description

*Model RG-3 Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and Stainless Steel from 2"-8" (DN50~DN200) SCH10 / SCH40.

*The lightweight and compact design of this product is a cost-effective solution that can help save money on grooving tools.

*With its efficient and portable design, it provides a convenient alternative to bulky and expensive machinery. This makes it an ideal choice for light weight and compact design.

*Inbuilt high-performance gear reducing motor contributes compact size and low noise.

*Our innovative split-type hydraulic system is designed to prevent oil tank leakage and increase the overall lifespan of the machine. Additionally, our groove depth lock knob ensures the highest quality grooves and maximum efficiency.

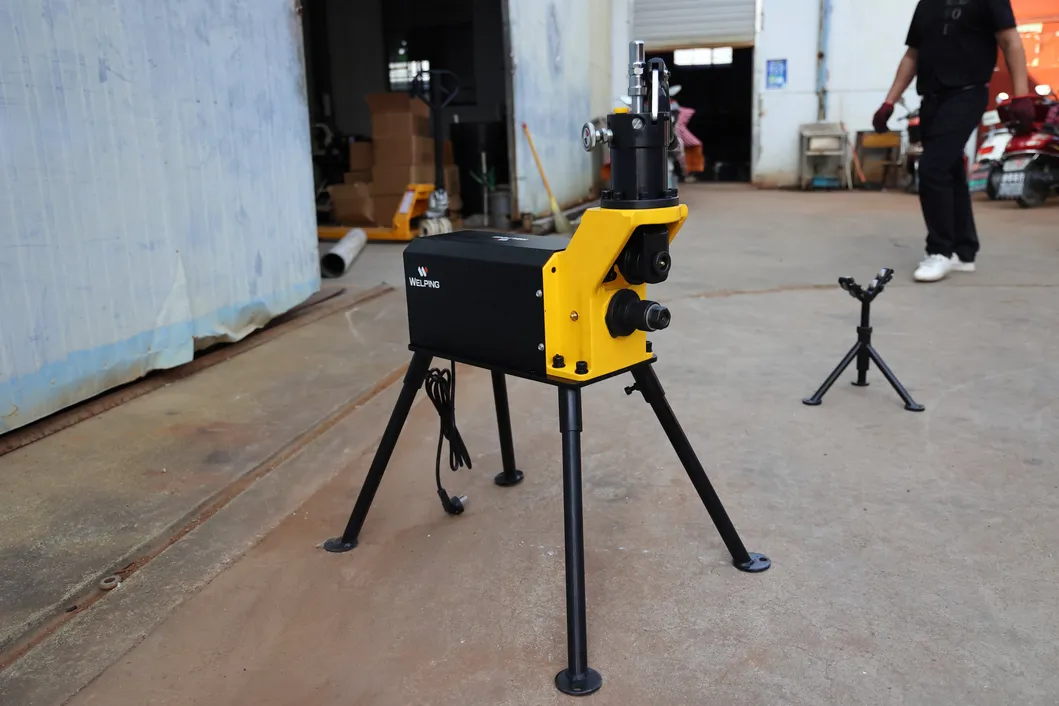

Roll Grooving Machine
⚙ Parameters
Parameter Specification
Model RG-1C
Suitable materials Carbon Steel, Stainless Steel
Capacity for 1"-8" steel pipe SCH10/SCH40
Power supply 220V/110V
Frequency 50HZ /60HZ
Max wall thickness 8mm
Motor power 800W
Output speed 23RPM
Packing gross weight 85kgs
Packing size 73*40*77cm
⚙ Drive Unit
Catalog Number Phase Power Voltage/Frequency
900010 Single 800W 220V, 50/60HZ
900011 Single 800W 110V, 50/60HZ
📥 Standard Parts
Item Number Description Net weight
911042 Drive roller 1"-1/2" (φ33~φ48) 1.10kg
911043 Drive roller 2" - 6" (φ60~φ168) 1.30kg
911044 Drive roller 8" (φ219) 1.40kg
912011 Groove roller 1"-11/2" (φ33~φ48) 0.40kg
912012 Groove roller 2"-6" (φ60~φ168) 0.45kg
912013 Groove roller 8" (φ219) 0.45kg
998078 Pipe stand for 1" - 8" (φ33~φ219) 6.90kg
📥 Optional Parts
Item Number Description Net weight
998026 Foot switch 1.50kg
📷 Detailed Images
Detailed Image 1

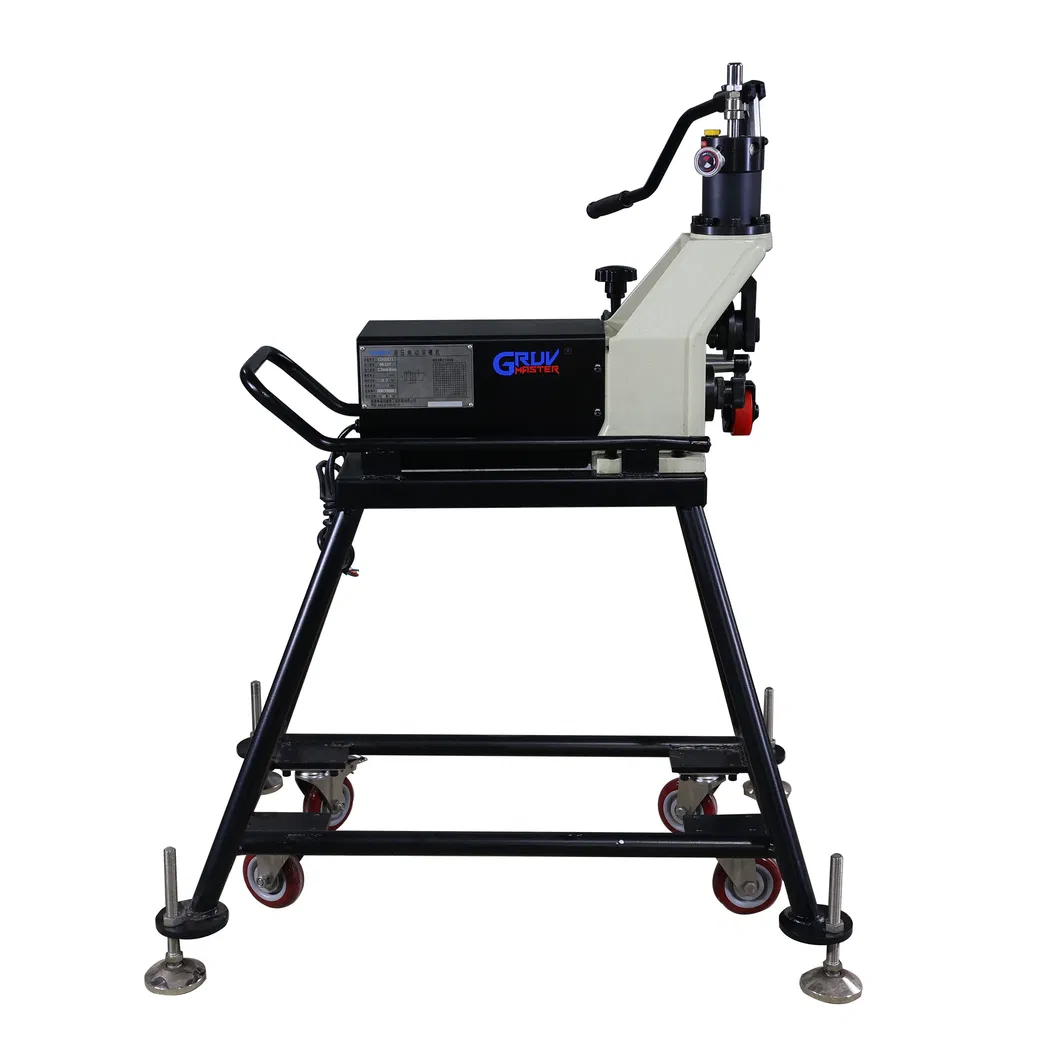

Detailed Image 2
Detailed Image 3
Detailed Image 4
📐 Product Specifications
Fine Structured parts
All for qualified performance
Fine Structured parts

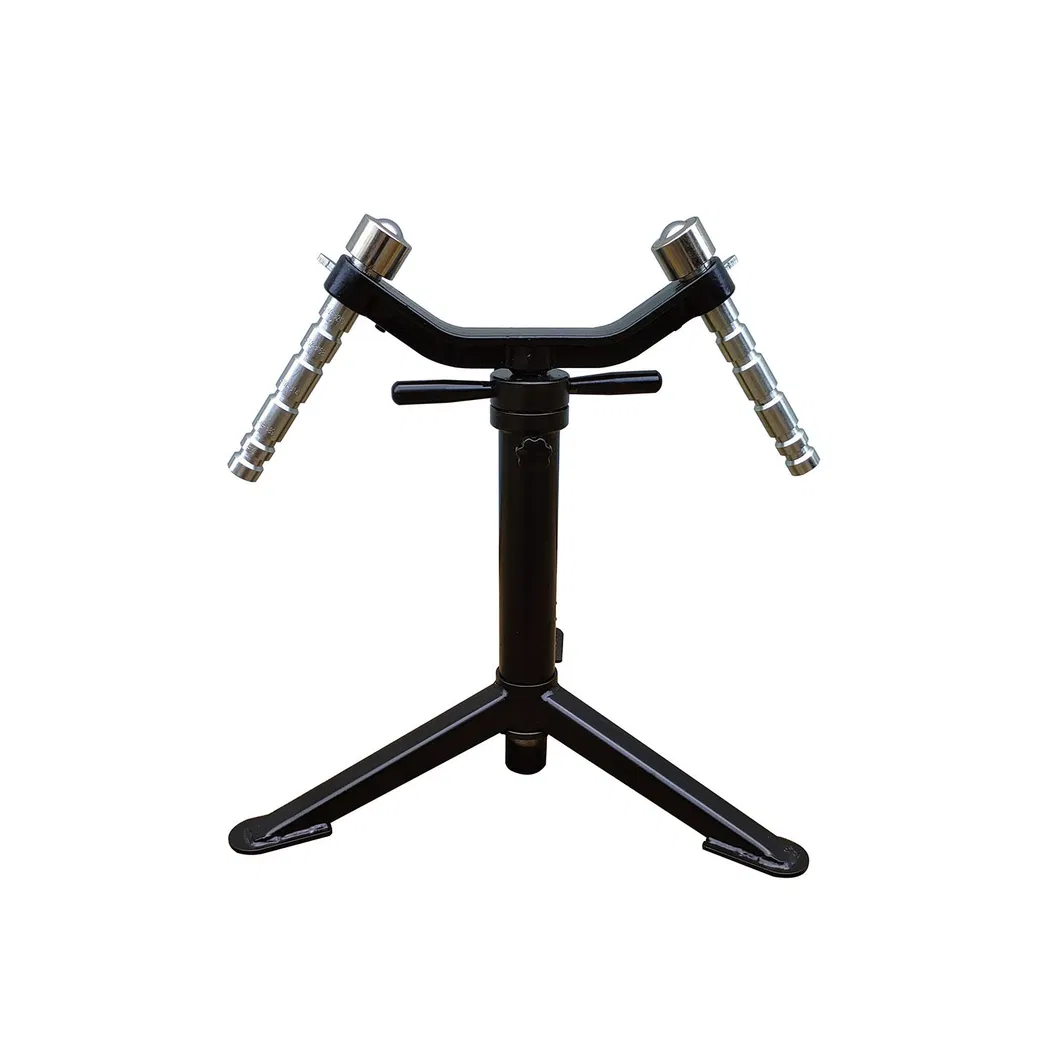

Pipe Stand
1"-8" (Φ33-Φ219)
Pipe Stand

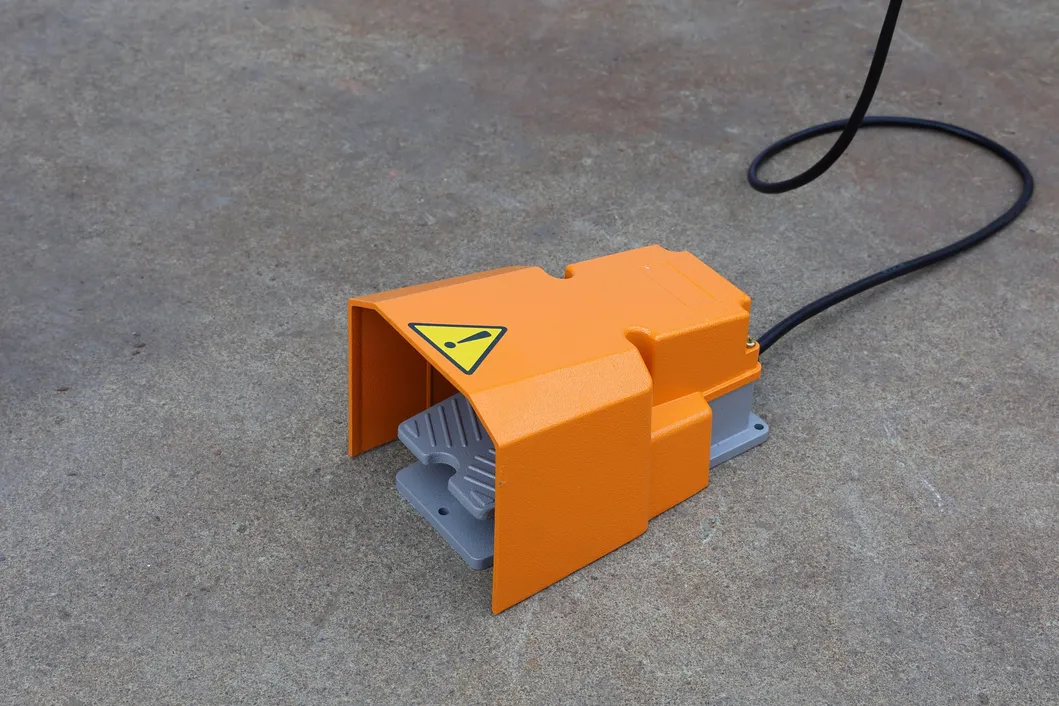

Foot switch
Foot switch
Drive Roller
One Set 1"-11/2" (Φ33-Φ48)
One Set 2"- 6"(Φ60-Φ168)
One Set 8" (Φ219)
Drive Roller
Groove Roller
One Set 1"-11/2" (Φ33-Φ48)
One Set 2"- 6"(Φ60-Φ168)
One Set 8" (Φ219)
Groove Roller

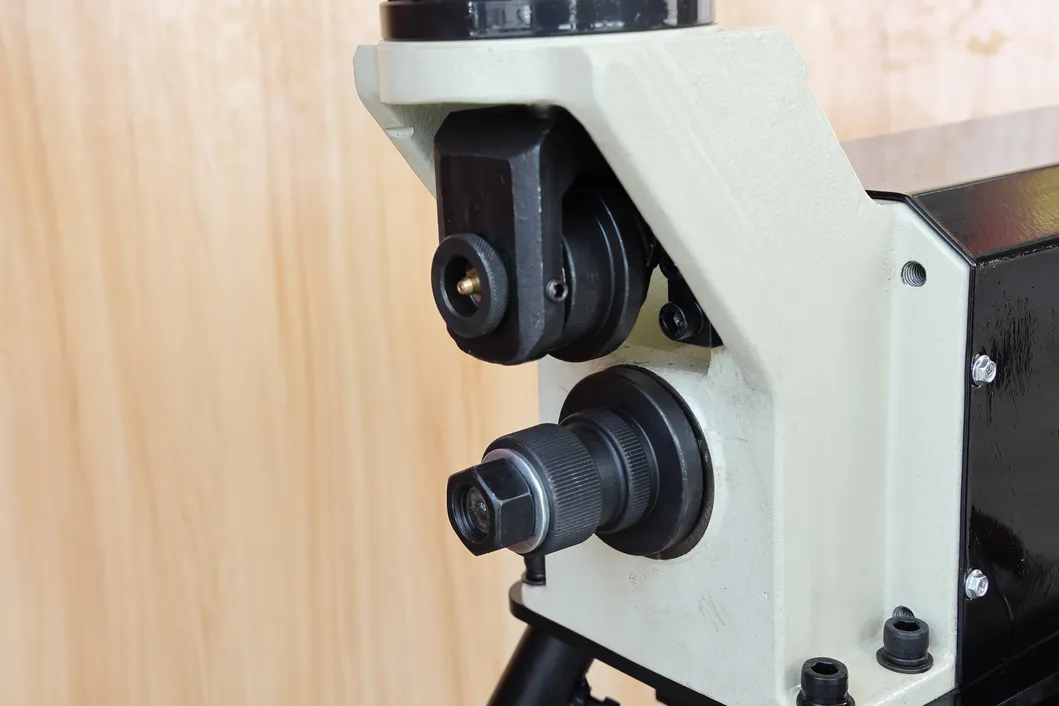

Pipe Stabilizer
Protect the pipe from moving
Pipe Stabilizer

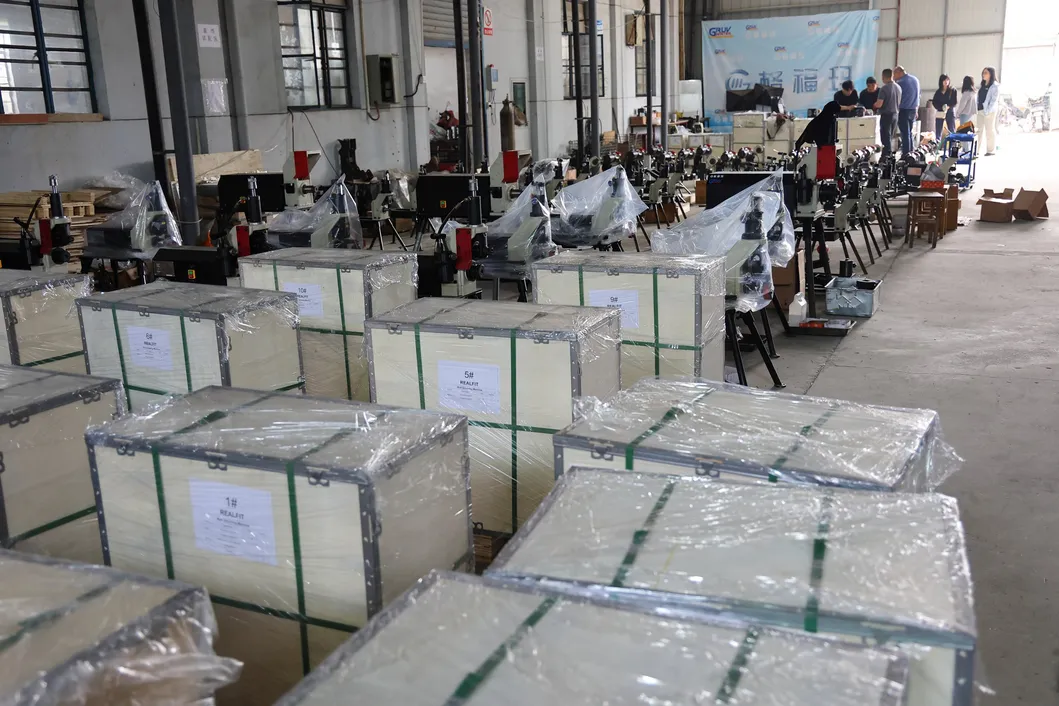

📦 Product Packing
Product Packing
💡 Frequently Asked Questions (FAQ)
Q: What pipe materials are compatible with this roll grooving machine?
A: This machine is designed for carbon steel, stainless steel, and HDPE pipes, offering robust and clean grooving.
Q: What is the maximum pipe wall thickness the machine can groove?
A: It can groove pipes with a maximum wall thickness of up to 6mm to 8mm, depending on the specific pipe diameter and hardness.
Q: What size range of pipes does this machine support?
A: The fabrication capacity covers pipes from 1" to 8" (specifically DN50 to DN200 SCH10 / SCH40 configurations).
Q: Does the unit run on single-phase power, and what are the voltage options?
A: Yes, it runs on single-phase power. It is available in both 220V and 110V voltage specifications at 50/60Hz.
Q: What features ensure the longevity and reliability of the hydraulic system?
A: The machine features a unique split-type hydraulic system designed to prevent oil tank leakage and prolong the equipment’s working lifespan.
Q: Is the machine portable enough for onsite work?
A: Yes, it is designed as a lightweight and compact hand-held layout, making it a highly mobile and cost-effective solution for field work.
