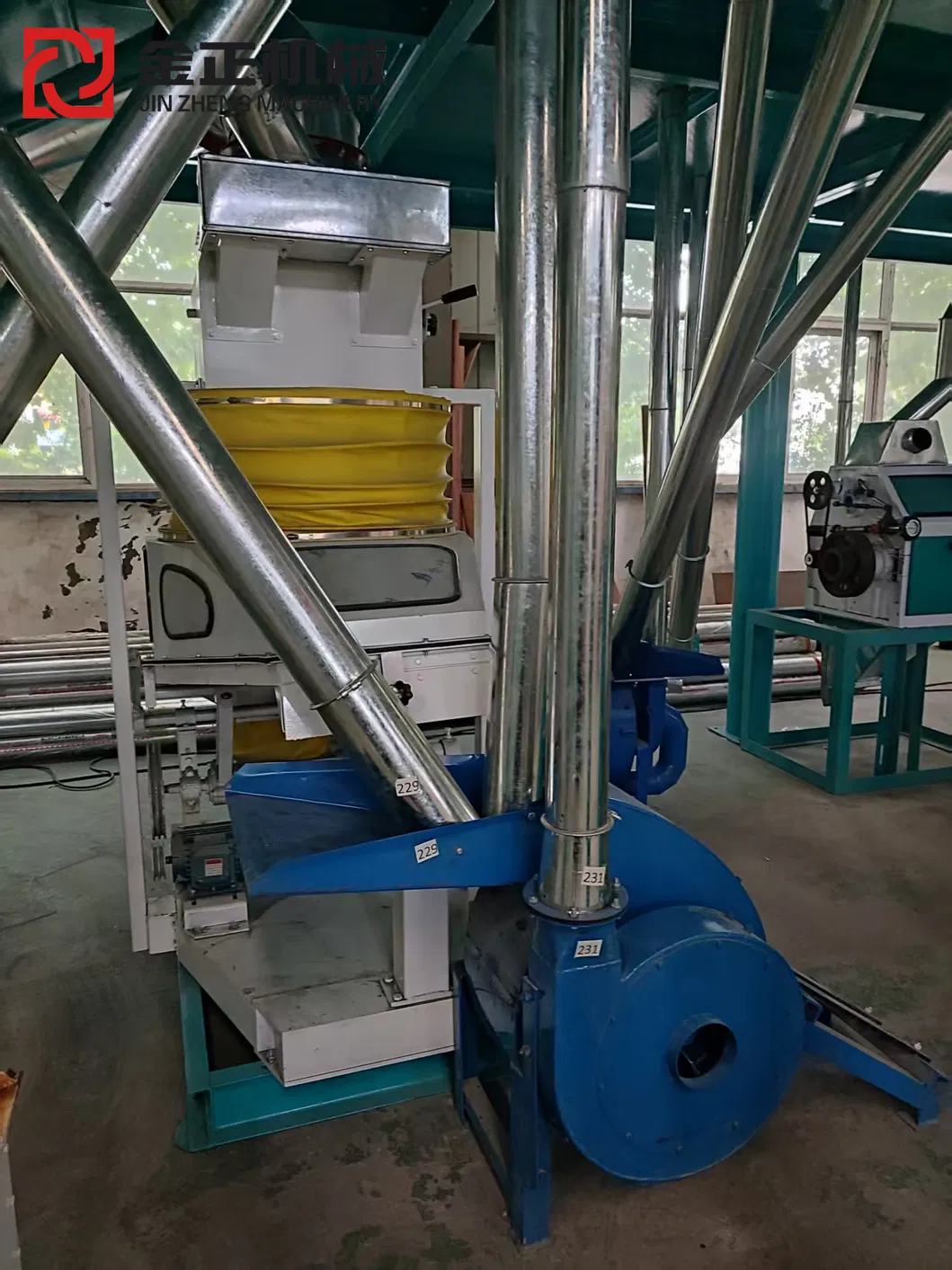

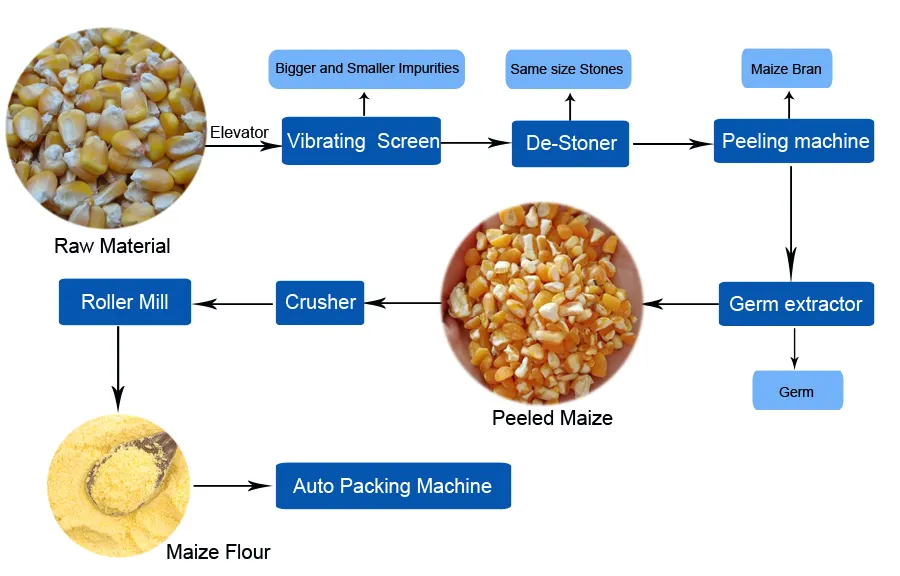

Use the magnetic separator removing the iron. The vibrating screen is mainly used to remove the bigger and smaller impurities, then the De-stoner is used to clean the size size stones.
Emery Roller Mill and Iron Roller Mill is used for peeling the maize. And Degerminator will be used to clean the germ out.

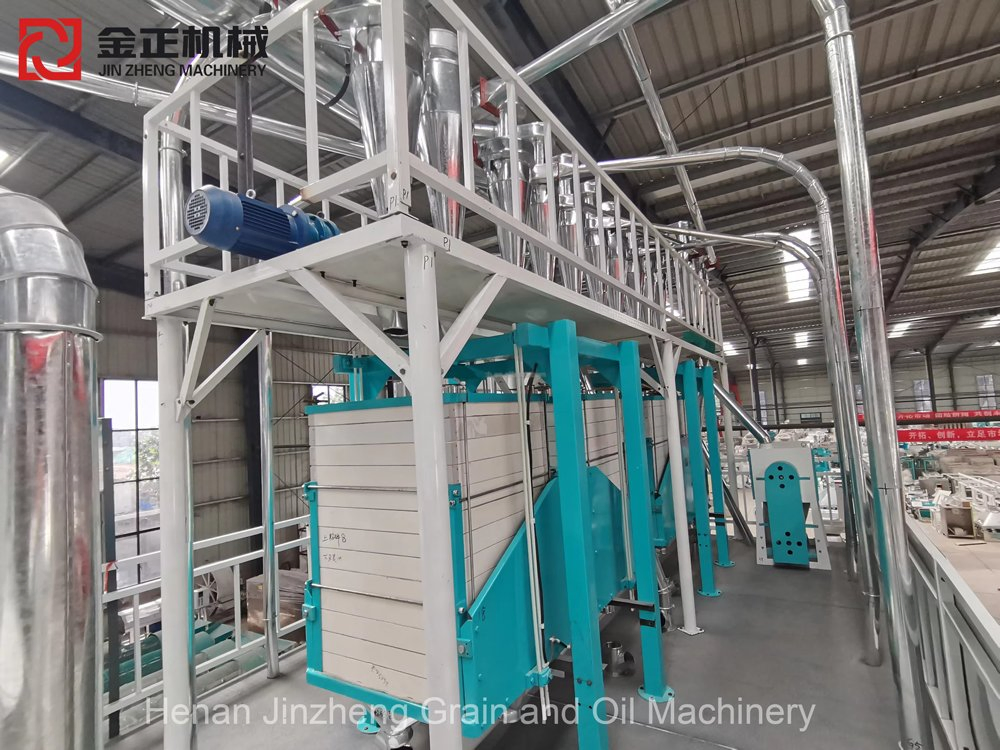

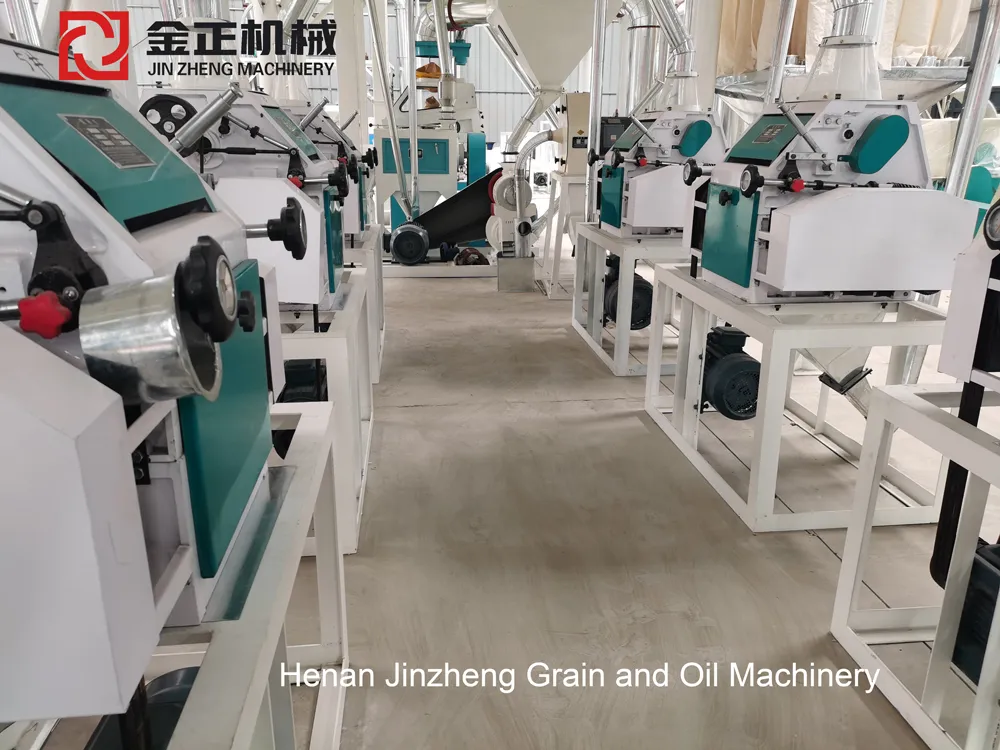

The Crusher will be used to break maize to small grits, and then enter to the Roller mill for further milling. The Plan-sifter is used to sift the fine enough flour out, and the bigger grits will enter the next roller mill for milling again. The final fineness of the flour can be adjusted according to clients' requirement.
Finally the final product will be packed to bag by human or auto packing machine.
| TYPE | 5T | 10T | 20T | 30T |
|---|---|---|---|---|
| Capacity(t/d) | 5 | 10 | 20 | 30 |
| Power(kw) | 32.2 | 72.27 | 95.17 | 121.94 |
| Installation Area(m) | 6*4*3.8 | 12*4*4.5 | 14*4*4.5 | 14*6*6.5 |
| TYPE | 50T | 80T | 100T | 200T |
|---|---|---|---|---|
| Capacity(t/d) | 50 | 80 | 100 | 200 |
| Power(kw) | 135 | 208 | 343.7 | 645 |
| Installation Area(m) | 16*6*6.5 | 20*6*6.5 | 25*9*8 | 27*9*10 |
We offer various factory capacities ranging from 5T, 10T, 20T, 30T, 50T, 80T, 100T, to 200T and 300 Tons Per Day (TPD) to suit different scale requirements.
The complete processing involves four stages: 1. Cleaning stage (impurities and stone removal), 2. Peeling stage (peeling and degerminating), 3. Crusher and Roller Milling stage (grinding and sifting), and 4. Packing stage.
Yes, the maize flour milling machine is versatile and fully suitable for processing both Yellow and White Corn into semolina, meal, grits, and flour.
Yes, the final fineness of the flour can be adjusted during the Crusher and Roller Milling Stage according to your specific production and market needs.
The installation area required for a 30T capacity system is approximately 14 * 6 * 6.5 meters.
The final processed product can be packed into bags either manually or automatically using an integrated automatic packing machine.
