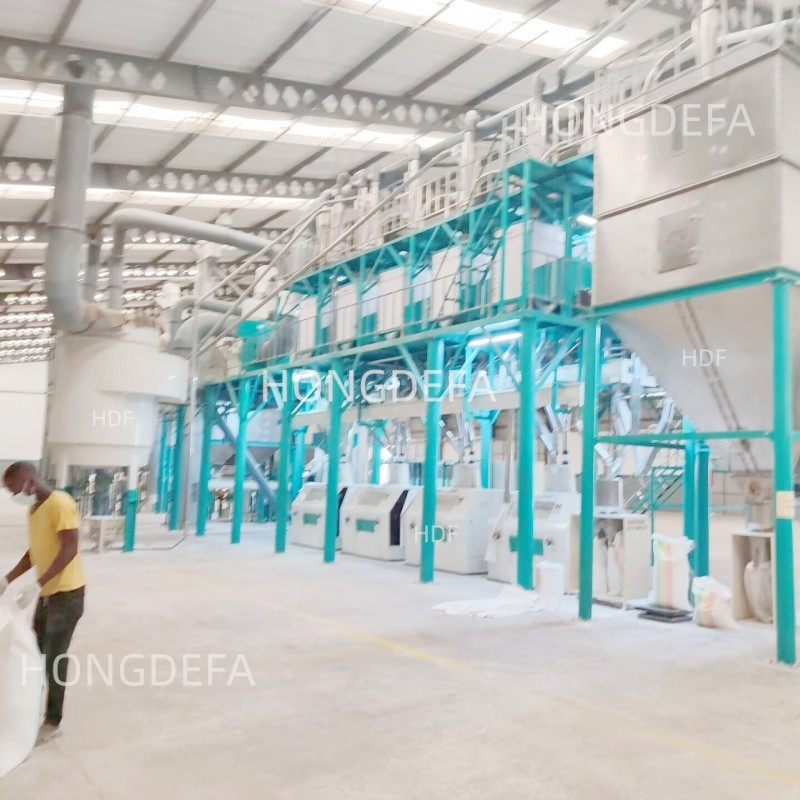

Grain wheat maize corn meal flour mill machine milling plant complete line
| Machine Type | Capacity & Features | System Components |
|---|---|---|
| Maize corn milling machine | Capacity from 5T/24H to 500T/24H. Different maize mill capacity for choices. Complete line including cleaning, degerminating, milling, packing, and control system. |
1. Grain storage (silos, or warehouse) 2. Cleaning system (sifter, destoner, separator, magnet, scourer, Degerminator etc) 3. Dampening (dampener, conditioning silos, etc) 4. Milling system (roller mill, plansifter, purifier, impact detacher etc.) 5. Flour pressure and blending system (Vitamin doser) 6. Flour packing and stacking (Manual packing, Semi-Automatic packing machine, Fully automatic packing system) 7. Controlling system (Button control, Smart touch screen control, PLC Automatic control system) |
| Wheat flour mill complete line | To process wheat from 10T/24H to 500T/24H Capacity, customized designs available. | |
| Grain storage silo | Maize, wheat, soya bean, and other different grain silos from 100T to 10000T Capacity. |
1. Precleaning 2. Silo stock tank 3. Bucket elevator and conveyor 4. Packing system |
A high-quality 100t/24h maize corn flour mill machine. With European standard configuration, customizable features, and excellent after-sales service. Suitable for various African markets.
| 1. Capacity: Processing Raw Maize 100t/24h |
| 2. Extraction Rate: Maize flour: 70-90% (depends on the final flour quality); Maize bran and Fodder flour: 10-30% |
| 3. Workshop Size (L×W×H): 36m×12m×9m |
| 4. Total power: About 350KW |
| 5. Container: 5x40feet container |
| 6. Installing and testing time: 2-3 months (depends on local situation) |
| 7. Spare parts: One year spare parts for free, delivered with the machine |
| 8. Lifetime: More than 20 years with normal maintenance |
| Capacity | Process 200 tons hard wheat/soft wheat/durum wheat per 24 hours |
| Final Product | Bread flour, bakery flour, pasta flour, cake flour, biscuit flour etc. |
| Warehouse Size | 52*12*13m (L*W*H) |
| Container | 15*40' for loading all the wheat flour mill machines |
| Installing and Commission | About 3-4 months |
We offer different configurations, including models with Pneumatic roller mill + double sifter, or Automatic roller mill + plansifter.

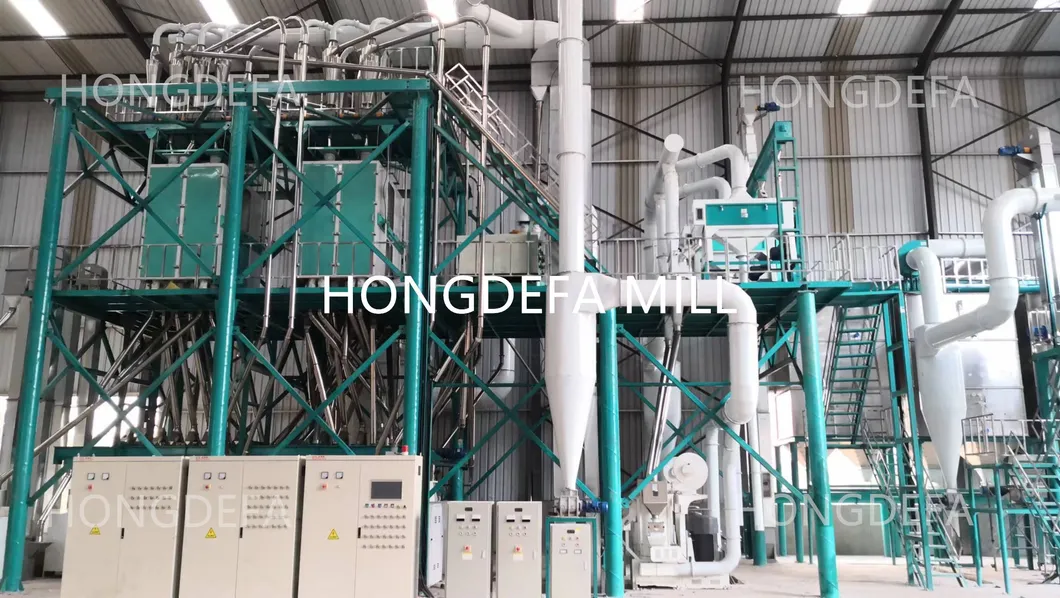

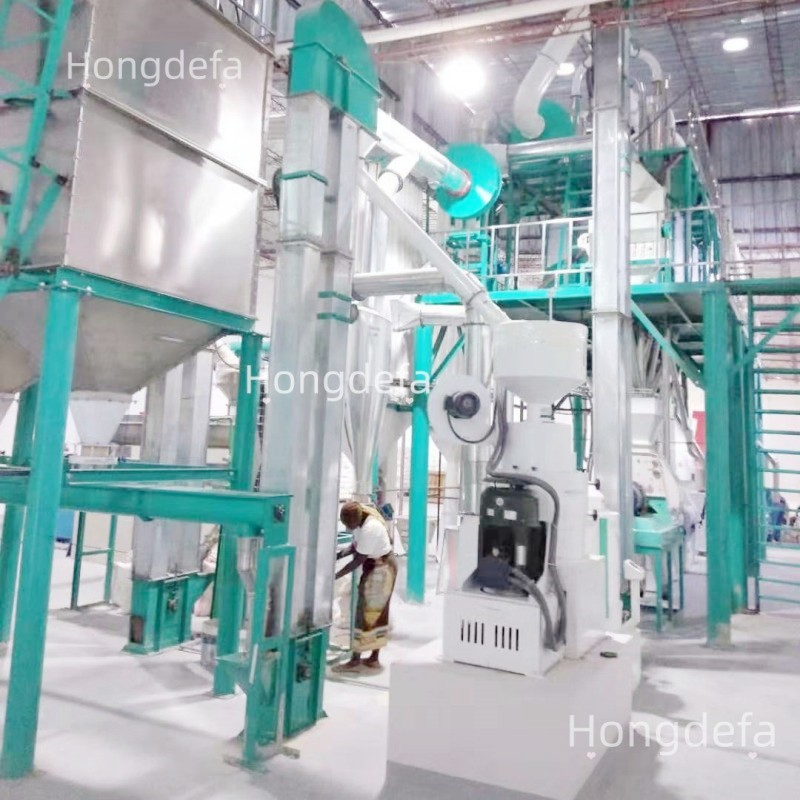

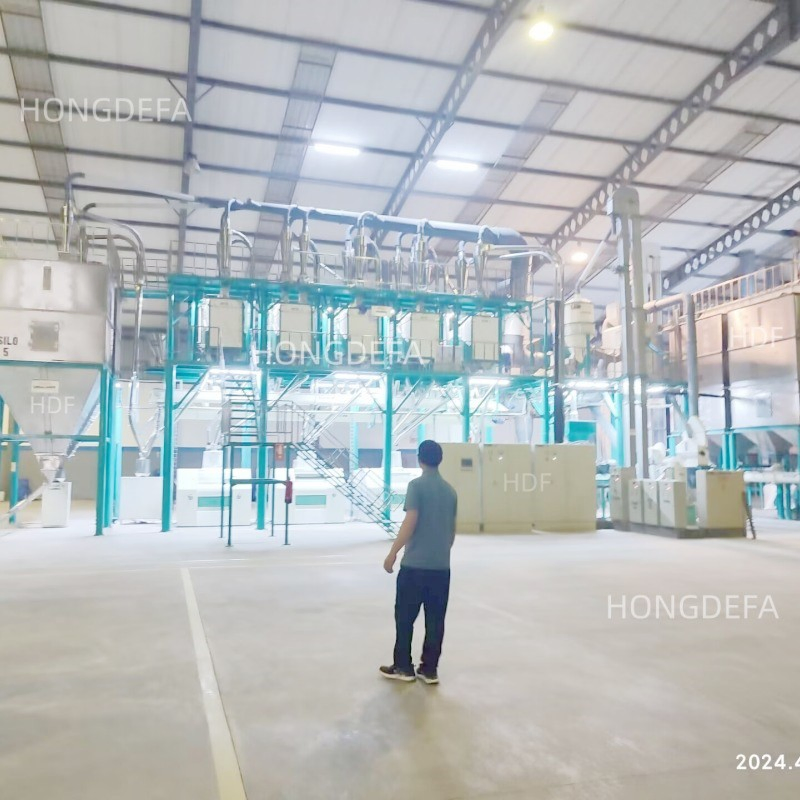

This is the high configuration 100-120t/24h maize milling complete line. Features: Automatic roller mill + Plansifter + Automatic weighing and packing system + PLC Touch screen control system. Running in Zimbabwe, producing high-quality maize flour for human consumption and maize bran for animal feed.
We also offer the double sifter type maize corn flour milling machine featuring Automatic roller mill + double section sifter + Automatic weighing and packing system + PLC Touch screen control. Customized designs are provided to match clients' requests, such as incorporating extra flour bins to store maize meal during night shifts, eliminating the need for night shift workers.

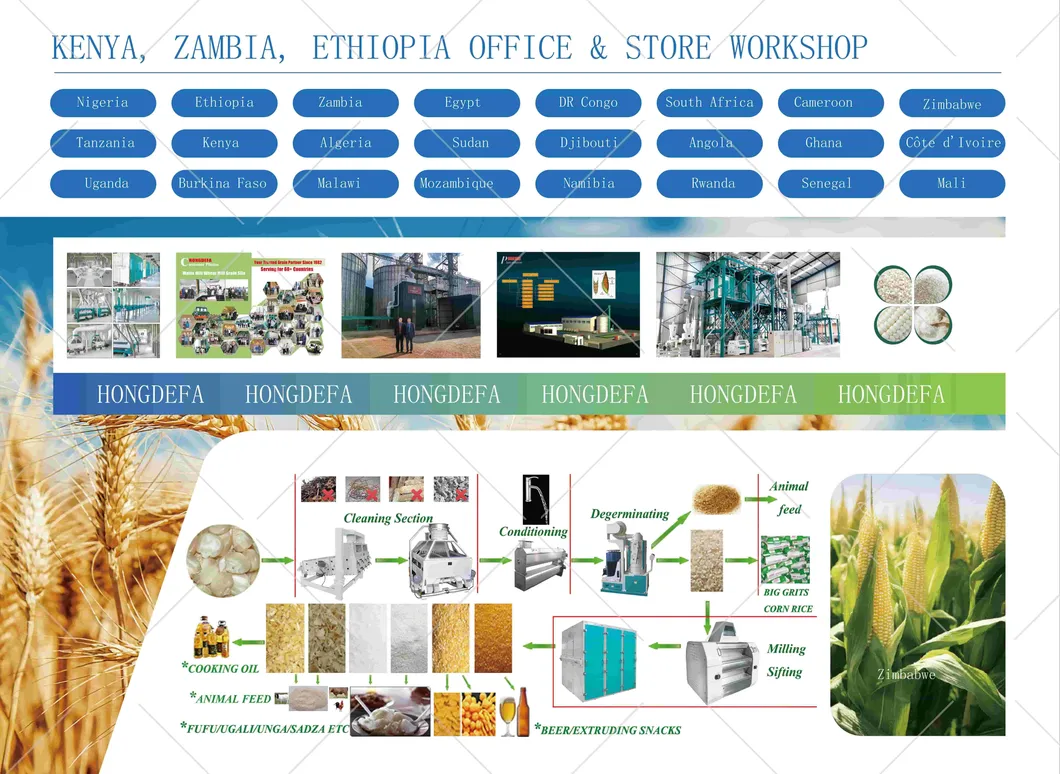

The processing flow goes from cleaning to degerminating, milling, sifting, and finally packing. High efficiency stoner removes stones, followed by moisture damping using a stainless steel bi-directional screw. The degerminator uses advanced peeling technology, and the milling section sifts the output into super white flour, fine meal, bran, and germ as requested. Auto-weighing scales manage packing.

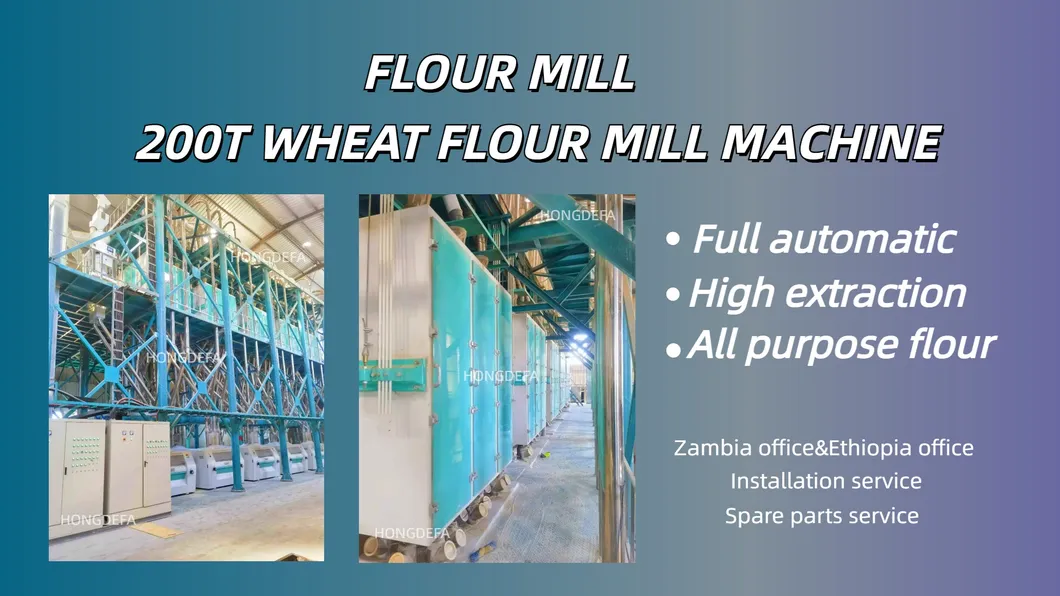

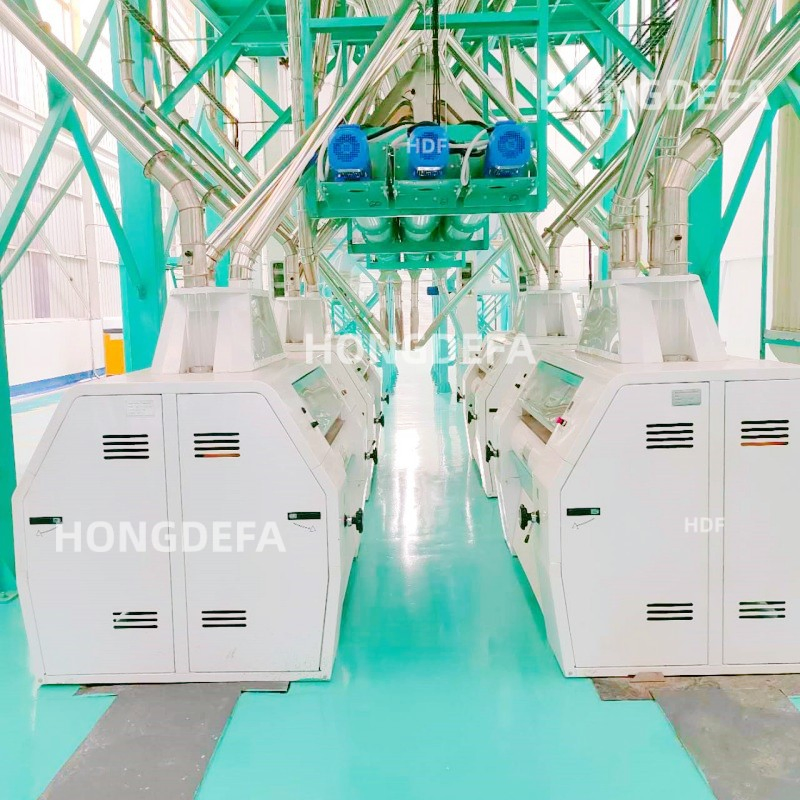

This 200T Wheat flour milling machine is designed for long-term operations. It features an Automatic roller mill + double section sifter + Automatic weighing and packing system + PLC Touch screen control. Extra flour bins can be designed for night storage to reduce night shift labor costs.
What Makes Our Machines Stand Out?

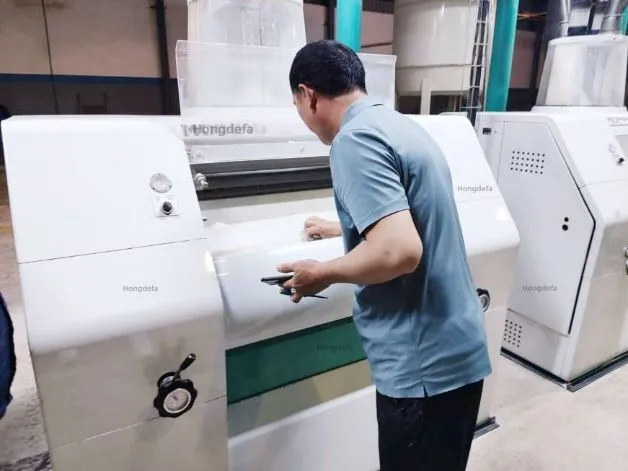

European standard machine with automatic running. Partitioned paneling and swing-out feed module guarantee ideal access to feeding and grinding rolls, allowing residue-free cleaning. A pulse generator automatically adjusts feeding at the entrance.
Includes computer-controlled moisture adjustment (optional), bi-directional screw design to prevent free water, intensive intermixing, and stainless steel screw leaves. Leak-proof design ensuring a long service life.
Designed specially for processing maize, utilizing patented technology to deliver high-efficiency peeling and germ separation.

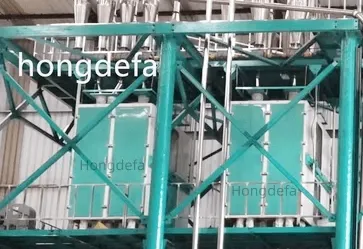

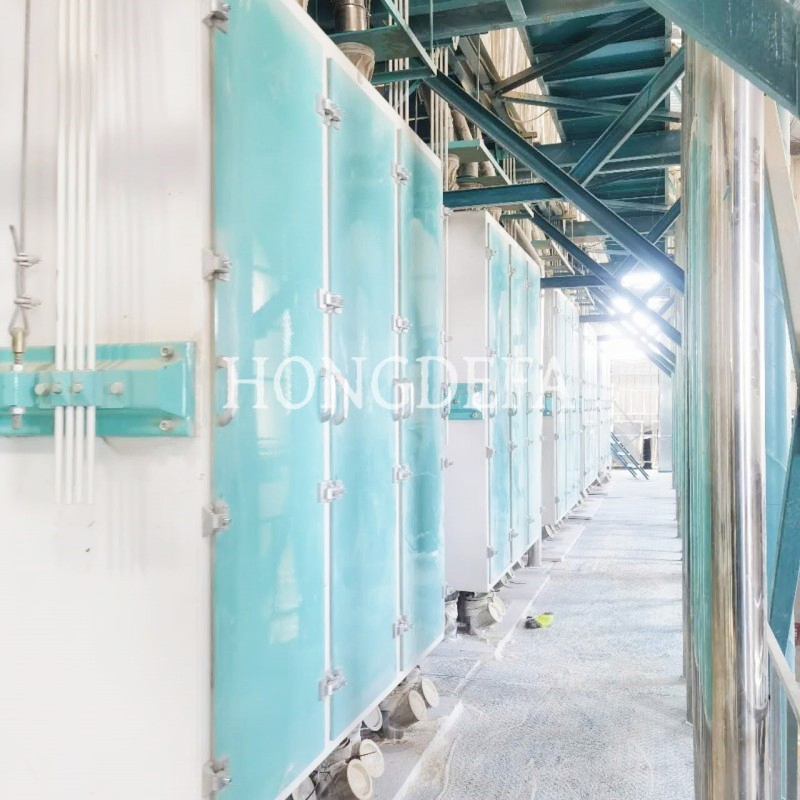

Equipped with a vertical and horizontal clamping system. The sieve door and channels are tightly sealed to prevent flour leakage. Built with special wood for frames to resist deformation. The new sieve box design maximizes sifting area and throughput.
One-key easy operation controlling the entire system. Displays processing data (input/output quantity, moisture percentage, etc.). Supported languages include English, French, Portuguese, and more. Features PLC modules and premium electronics.

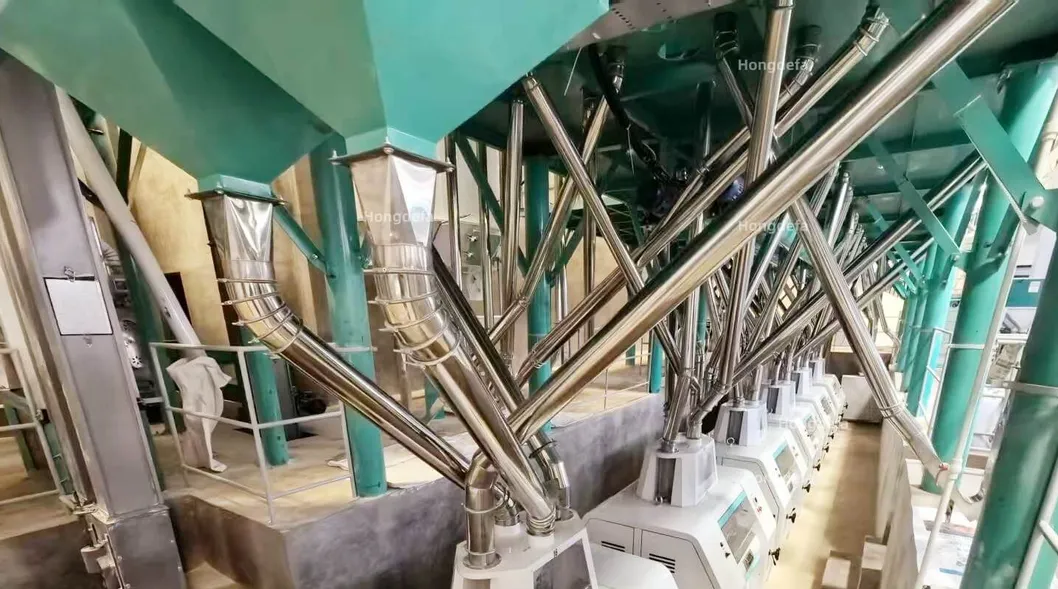

Utilizes stainless steel moisture bins, seamless pipes, connectors, and cyclones. High durability and hardness, non-corrosive, high working pressure limit, and excellent tightness. Delivers a significantly longer service life.
Professional engineering and technical teams provide complete workshop layout and structure designs for clients.
Supports packing weights: 10kg, 12.5kg, 20kg, 25kg, and 50kg. Features online cumulative weighing, high-precision flow control, batch weight control, and MODBUS communication interface. Stainless steel material for feeding and support.
1. Maize mill line final products: Maize samp, maize grits, maize meal, maize flour, and maize bran. Whole maize flour can be produced upon request. Vitamins or other nutrients can be added to make high-value flour.
Customized configurations yield various maize grits sizes for human consumption, brewing, snack food production, maize meal, maize germ for oil pressing, and maize bran for animal feed.
2. Wheat flour mill line final products: Wheat semolina, grade one/grade two wheat flour, whole wheat flour, and wheat bran. Optional systems can add vitamins or extra nutrients.

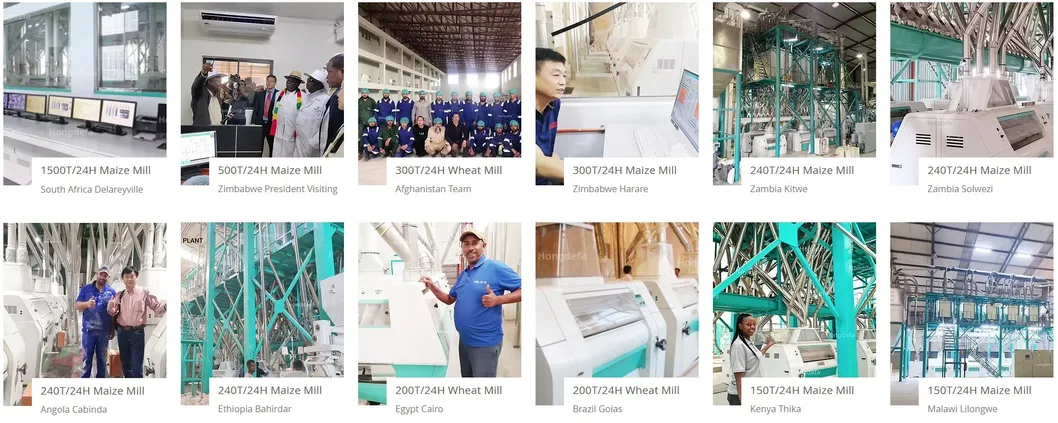

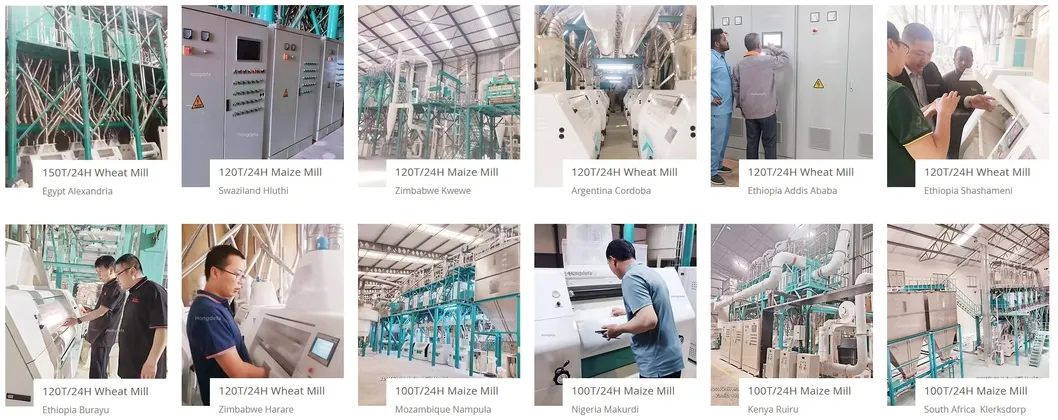

Our installed maize and wheat milling machine projects are located globally:
Africa: Nigeria, Ethiopia, Zambia, Egypt, DR Congo, South Africa, Cameroon, Zimbabwe, Tanzania, Kenya, Algeria, Sudan, Morocco, Angola, Ghana, Côte d'Ivoire, Uganda, Burkina Faso, Malawi, Mozambique, Namibia, Rwanda.
Asia: Afghanistan, Bangladesh, India, Kazakhstan, Thailand, Sri Lanka, Malaysia, Nepal, Pakistan, Philippines, Tajikistan, Uzbekistan, Vietnam, Yemen, China.
Americas: Brazil, Mexico, USA, Belize, Costa Rica, El Salvador, Honduras, Dominica, Haiti, Argentina, Bolivia, Chile, Ecuador, Paraguay, Uruguay, Venezuela.
We are a professional manufacturer with over 40 years of experience in producing 5t-500t/24h maize/corn milling machines and wheat flour milling plants.
| Capacity | Country |
|---|---|
| 500T maize mill / 500TPD wheat mill | South Africa, Zimbabwe, Ethiopia |
| 300T corn mill / 300T wheat mill | Zimbabwe, Malaysia, Afghanistan, Zambia, Ethiopia, Malawi |
| 240T maize mill / 200T wheat mill | Angola, Zambia, Kenya, Zimbabwe, Ethiopia, Brazil, Egypt |
| 150T maize mill / 150T wheat mill | Kenya, Zambia, Nigeria, Malawi, Ethiopia, Zimbabwe, Egypt, South Africa, DR Congo, Mozambique |
| 120T maize mill / 120T wheat mill | Zimbabwe, Malawi, Swaziland, Kenya, Zambia, Ethiopia, Mozambique, South Africa, Tanzania |
| 100T corn mill / 100T wheat mill | Kenya, Zambia, South Africa, Nigeria, Zimbabwe, Mozambique, Ethiopia, Rwanda, DR Congo, Burkina Faso |
| 70T maize mill / 60T wheat mill | Malawi, Zambia, Kenya, DR Congo, Namibia, Zimbabwe, Thailand, Ethiopia, Djibouti, Brazil, Egypt |
| 50T maize mill / 50T wheat mill | Uganda, Zambia, Kenya, Malawi, South Africa, South Sudan, Angola, Ethiopia, Cameroon, Argentina, DR Congo, Namibia, Zimbabwe, Tanzania, Nigeria, Mozambique, Venezuela, Rwanda |
| 30T maize mill / 36T wheat mill | Zambia, Kenya, Tanzania, Uganda, Rwanda, Ghana, Benin, Nigeria, Angola, Malawi, Namibia, Mozambique, Lesotho, Zimbabwe, South Africa, Sri Lanka, Vietnam, Ecuador |
| 20T maize milling machine | Zambia, Kenya, Tanzania, Uganda, Rwanda, Ghana, Benin, Nigeria, Angola, Malawi, Namibia, Mozambique, Lesotho, Zimbabwe, South Africa, DR Congo |
| 18T maize milling machine | Kenya, Zimbabwe, Zambia, Tanzania |
| 10T maize milling machine | Burundi, Mali, Burkina Faso, Togo, Zambia, Kenya, Tanzania, Uganda, Rwanda, Ghana, Benin, Nigeria, Angola, Malawi, Namibia, Mozambique, Lesotho, Zimbabwe, South Africa |
| 5T maize milling machine | Burundi, Mali, Burkina Faso, Togo, Zambia, Kenya, Tanzania, Uganda, Rwanda, Ghana, Somalia, Benin, Nigeria, Angola, Malawi, Namibia, Mozambique, Lesotho, Zimbabwe, South Africa, DR Congo |

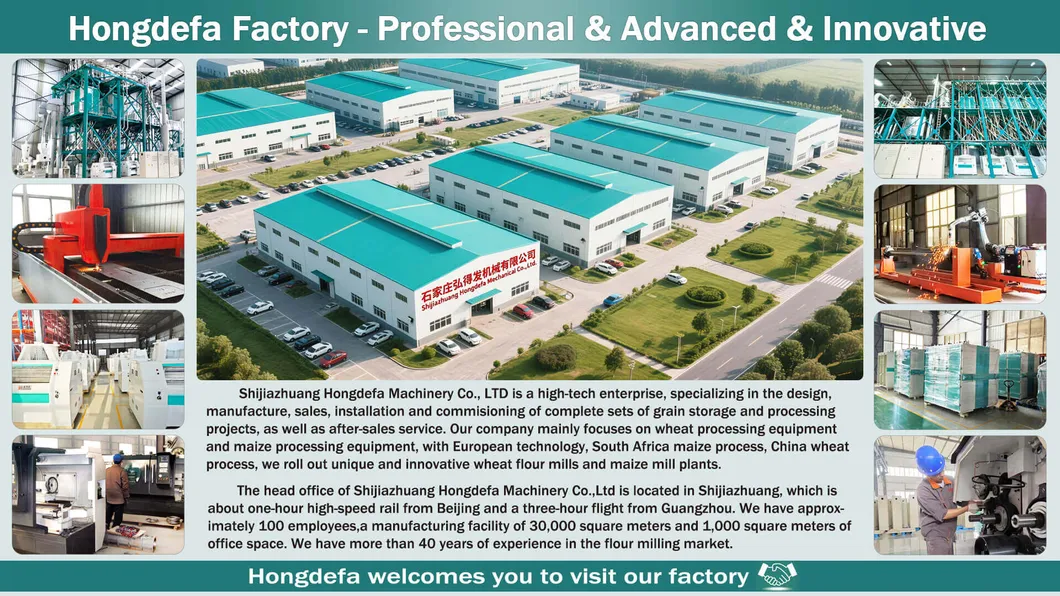

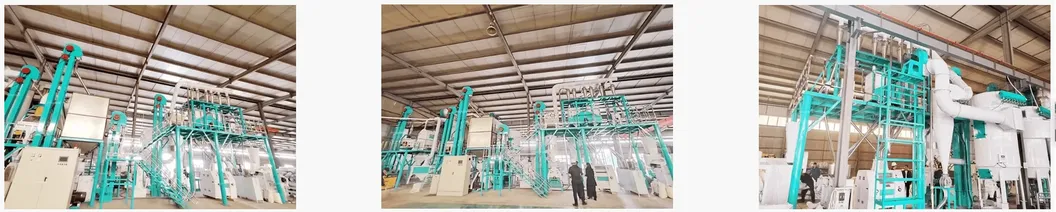

Our professional manufacturing facility produces food processing machines including maize/corn milling machinery, complete wheat flour mill lines, grain silos, animal feed machinery, rice mill machinery, and steel structures. Welcome to visit our factory.

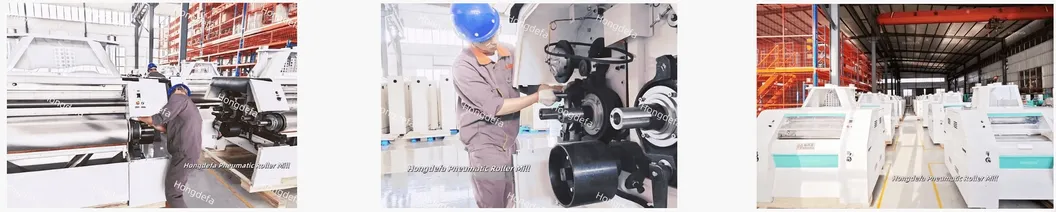

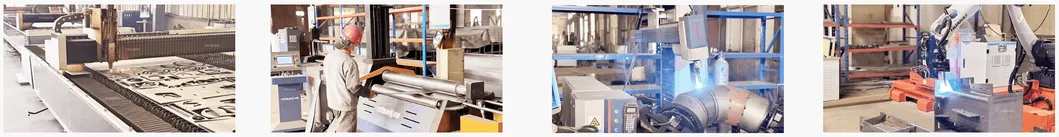

Our production floor features four laser cutting machines. Laser cutting delivers high cutting accuracy and processing efficiency. Standardized welding technology ensures structural safety and durability for all our pipes and cyclones.
Visiting our factory gives you the opportunity to inspect running machines, examine output quality (maize flour, grits, meal), and learn about each machinery system in detail.
