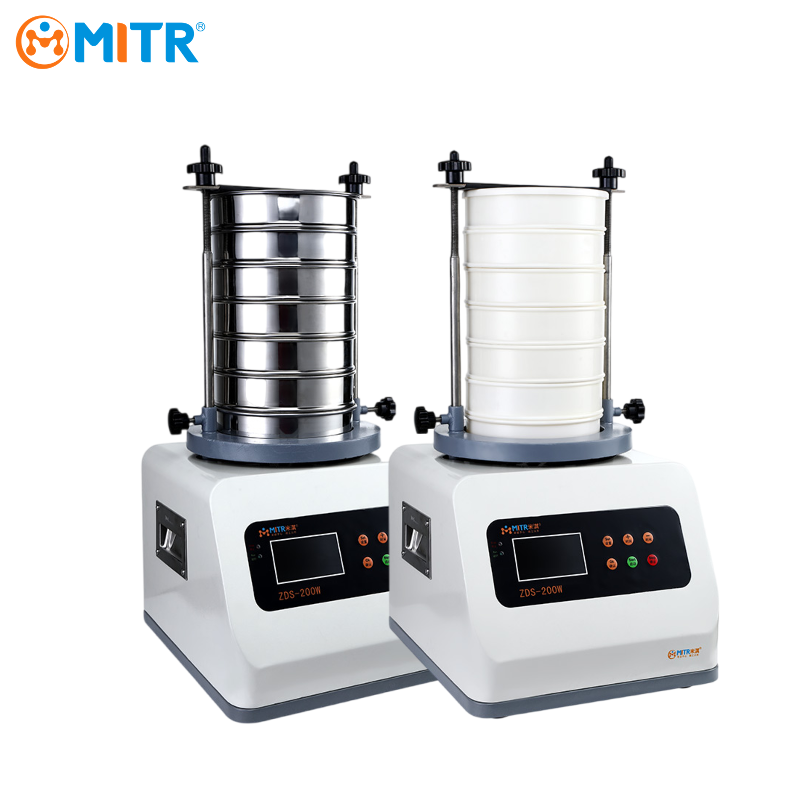

| Model | ZDS 200 |
|---|---|
| Range of application | 5-1000 mesh |
| Vibrational frequency | 3000 times/min 6000 times/min |
| Amplitude selection | 0MM-3MM continuous adjustment |
| Amplitude mode | Slight vibration, intermittent vibration, continuous vibration |
| Control mode | Manual control and customized control |
| Power | 220W |
| Voltage source | AC 220V+25V, 50HZ+1HZ |
| Sieving class | Powder, loose particles, suspended matter |
| Dry sieve & Wet sieve | All available |
| Intermittent operation | 0-99s |
| Load | 3KG |
| Sieve material | Stainless steel |
| Powder sieve diameter | 200mm |
| Sports form | Two dimensional throwing motion (BQM-1L) |
| Power data | AC 220V+10% 50HZ (50-250ml) |
| Sieve machine speed | 1140 rpm (50-100ml) |
| Sieve diameter | 200mm |
| Number of sieve layers | 8 layers (including bottom sieve) |
| Total weight | About 30kg |
| Sieve specifications | 20-1000 mesh |
| Sieve machine power | 120w (ultrasonic power: 30-150w optional) |
| Sieve selection | Factory configuration of ordinary 20/40/60/100/160/200 mesh sieve. Other mesh sizes need to be purchased separately (please contact support for pricing details). |

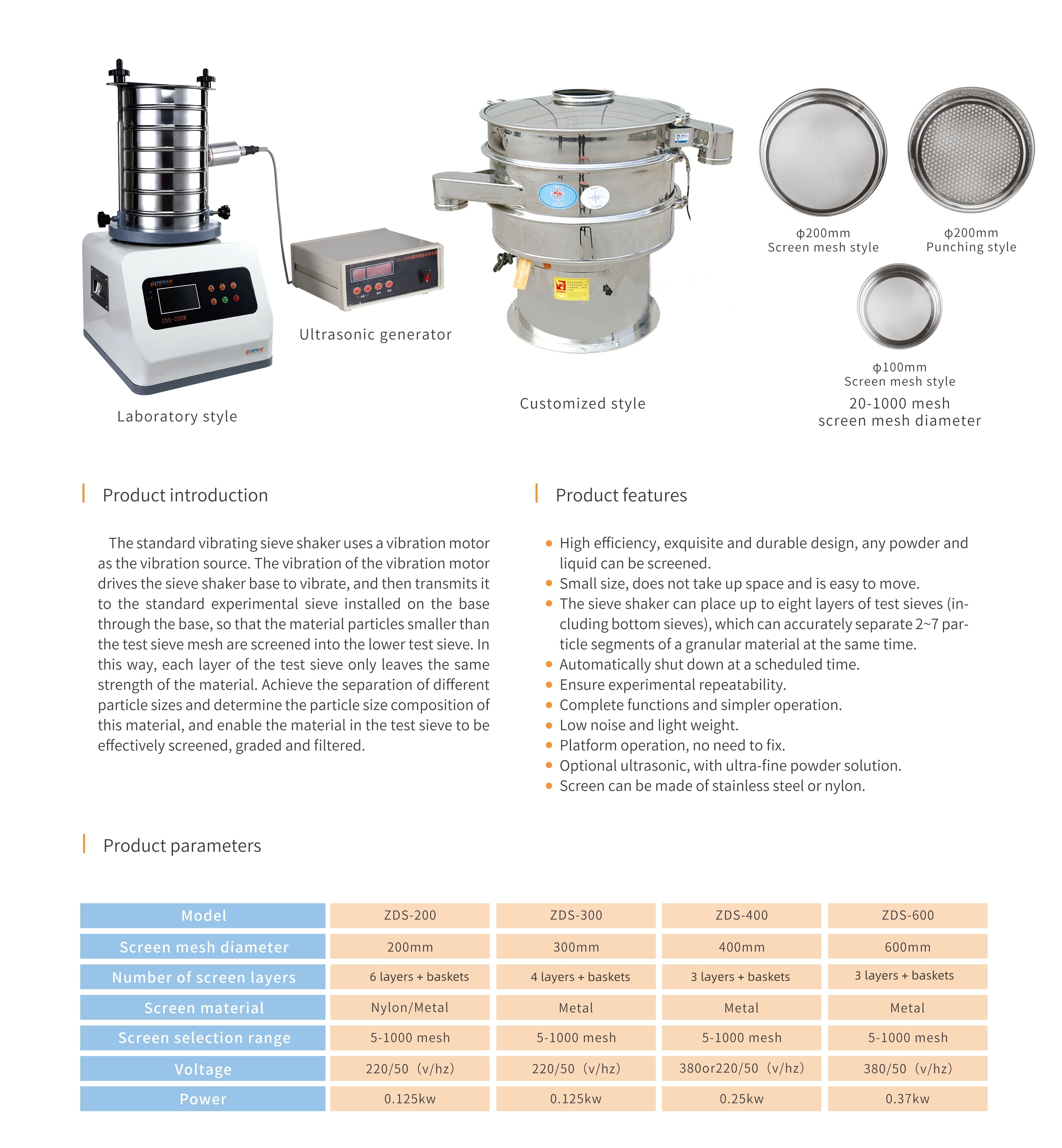

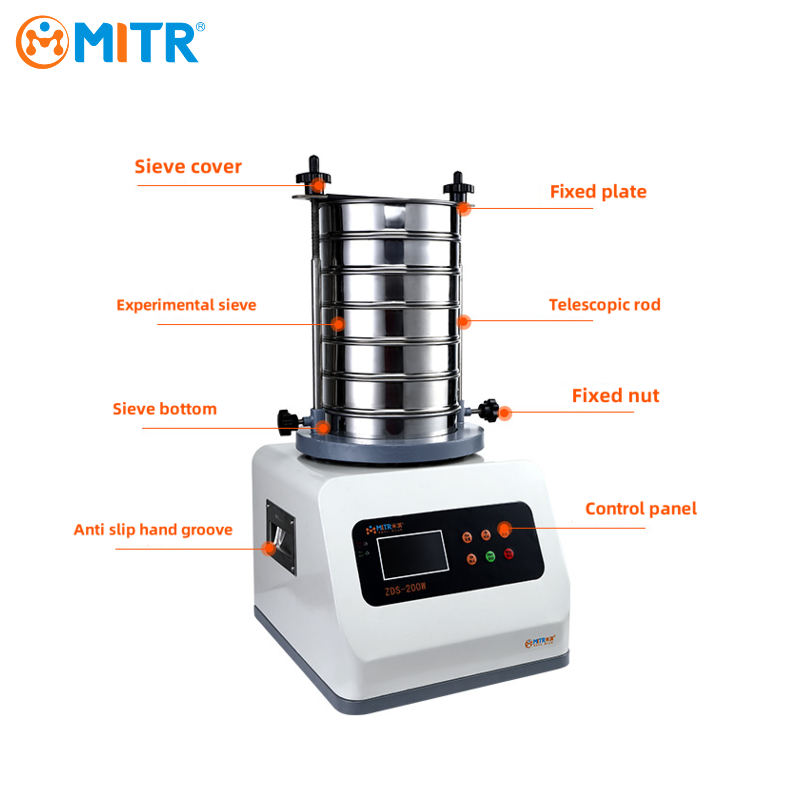

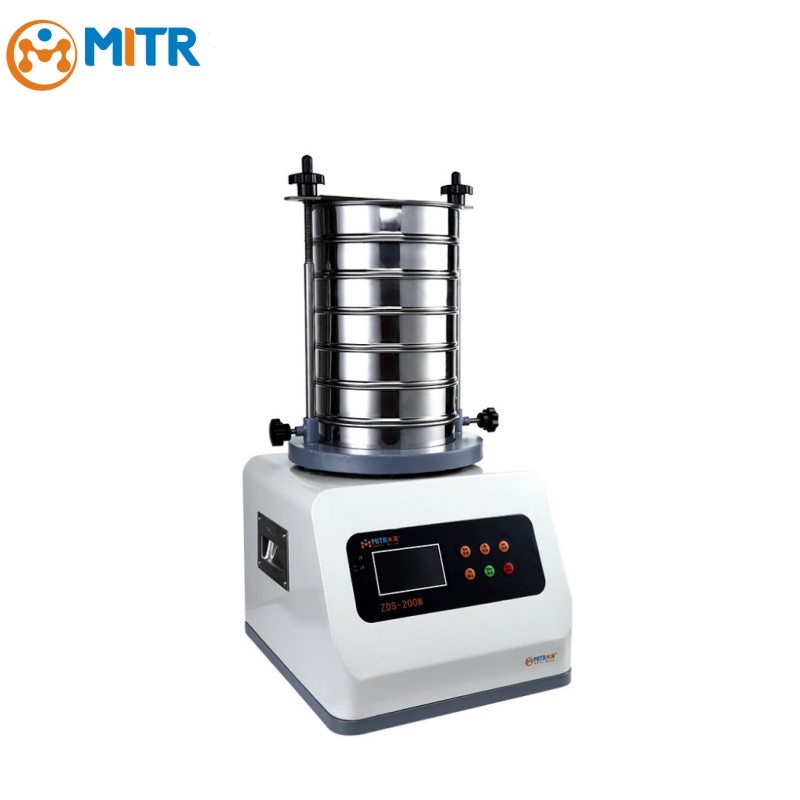

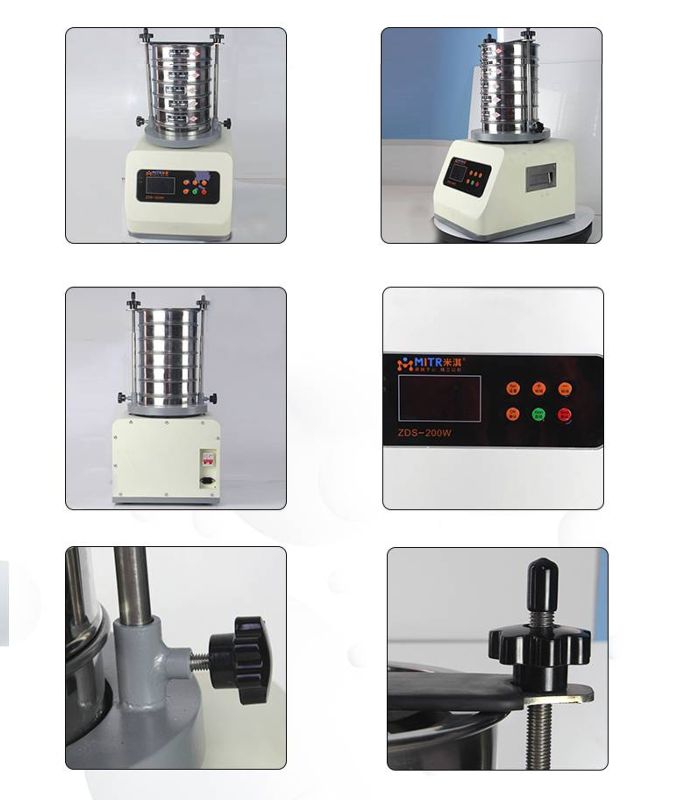

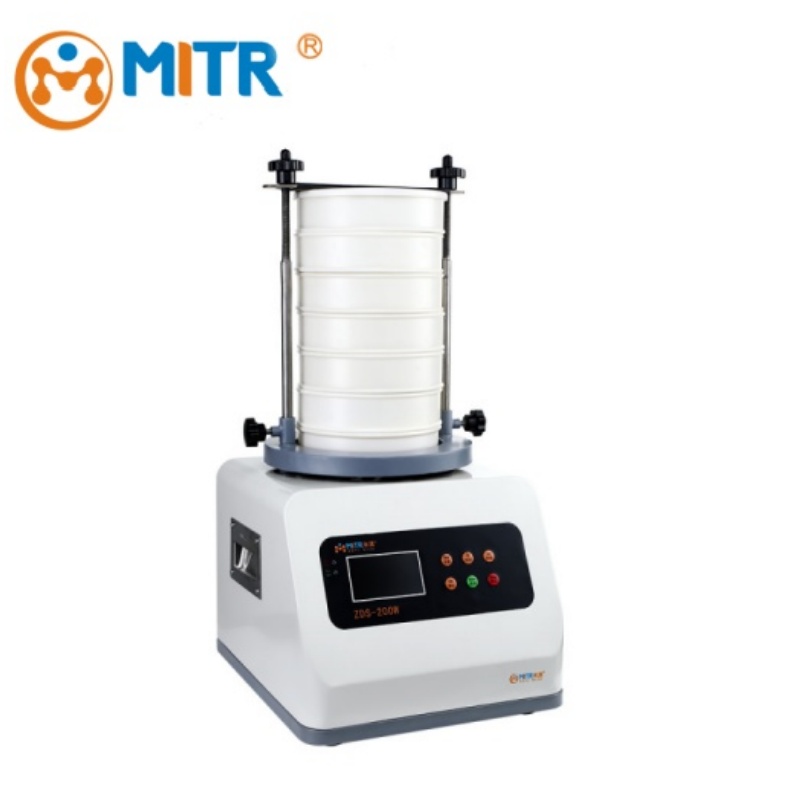

ZDS-200 standard sieve shaker machine uses a vibrating motor as its vibration source. The vibration of the motor drives the vibration of the screen machine base, which is then transmitted to the standard test screen placed on the base. Material particles smaller than the mesh of the test screen are screened into the lower test screen, leaving only the same particle size of material in each layer. This achieves the separation of different granularities, determines the particle size composition of the material, and effectively screens, classifies, and filters the materials.
It is widely used in the fields of food, chemical industry, abrasive, pigment, mine, metallurgy, geology, ceramics, national defense, and other industries. It is ideal for the inspection, screening, grading, and particle size analysis of materials such as solid, powder, and slurry materials, as well as the analysis of impurity content.

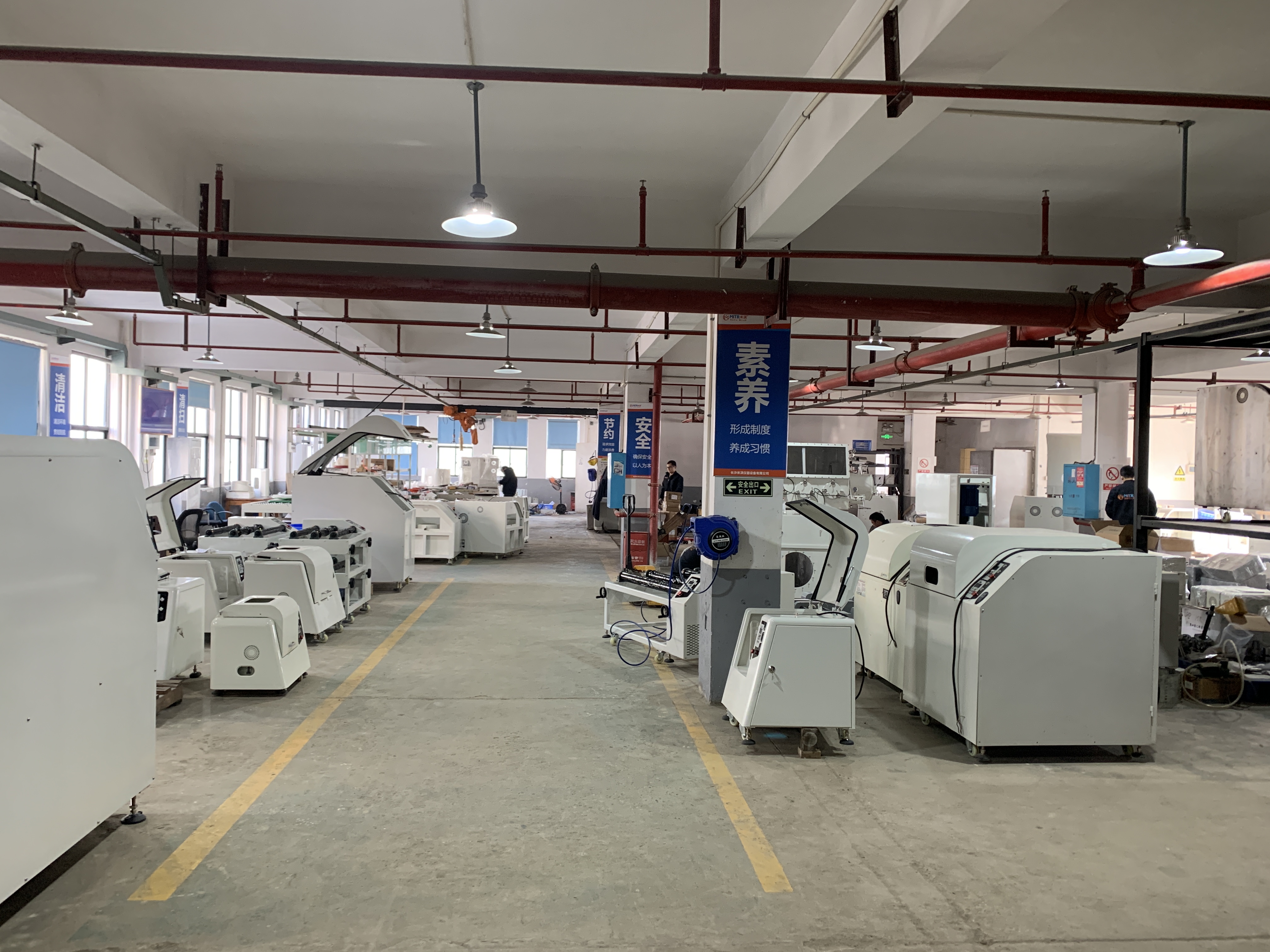

Established in 2007, focusing on powder new material preparation for 16 years. Specialized in crushers, planetary ball mills, sand mills, grinding ball mills, glove boxes, and related supporting equipment, while providing professional technical consulting and solution services.
