Basic Info
Application
Flour, Beans, Wheat
Pipes
Stainless Steel/Prifabricated
Transport Package
Wooden Box Packing
Specification
1610x1526x1955
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
300.00cm * 300.00cm * 400.00cm
Package Gross Weight
300.000kg

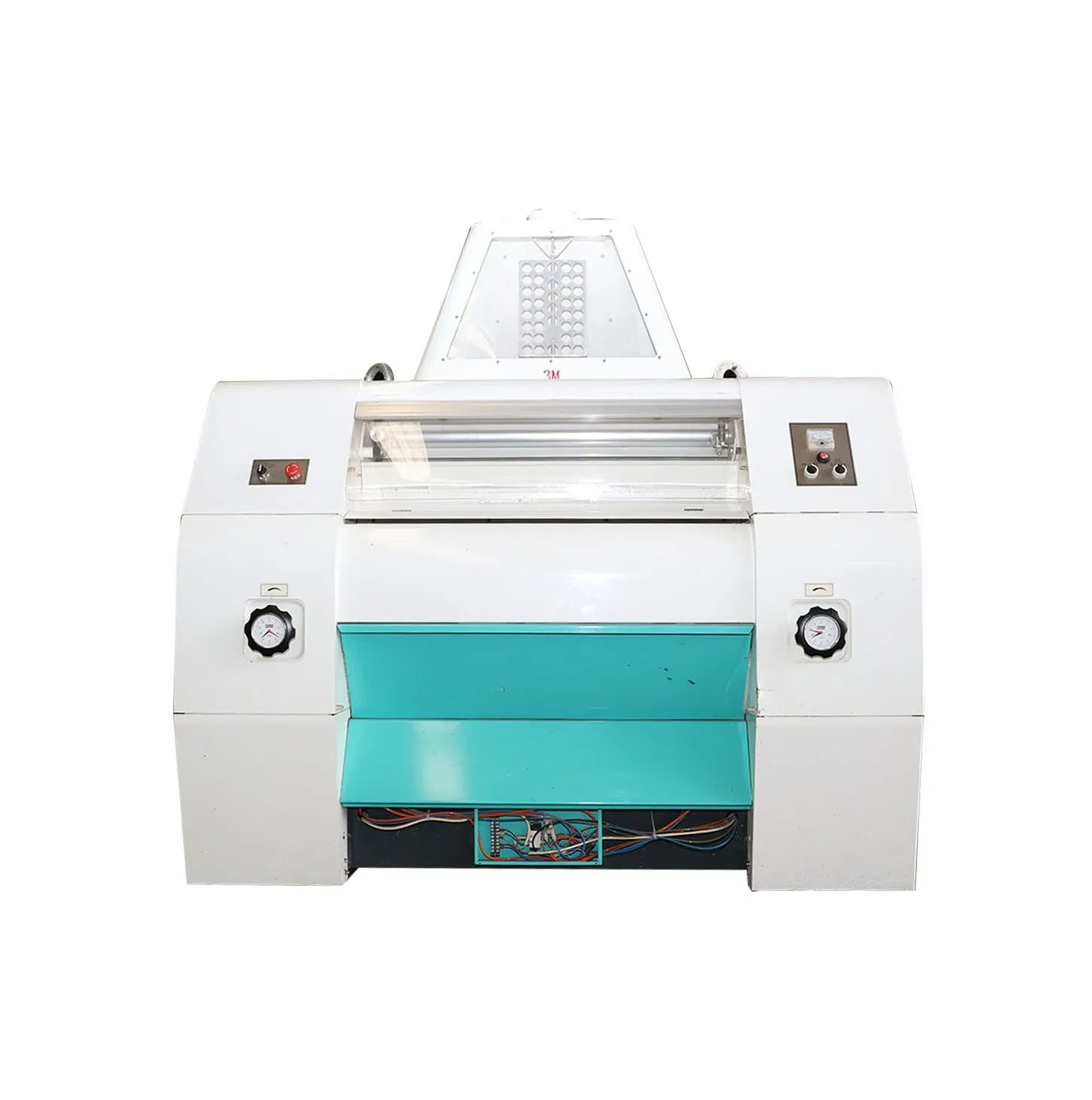

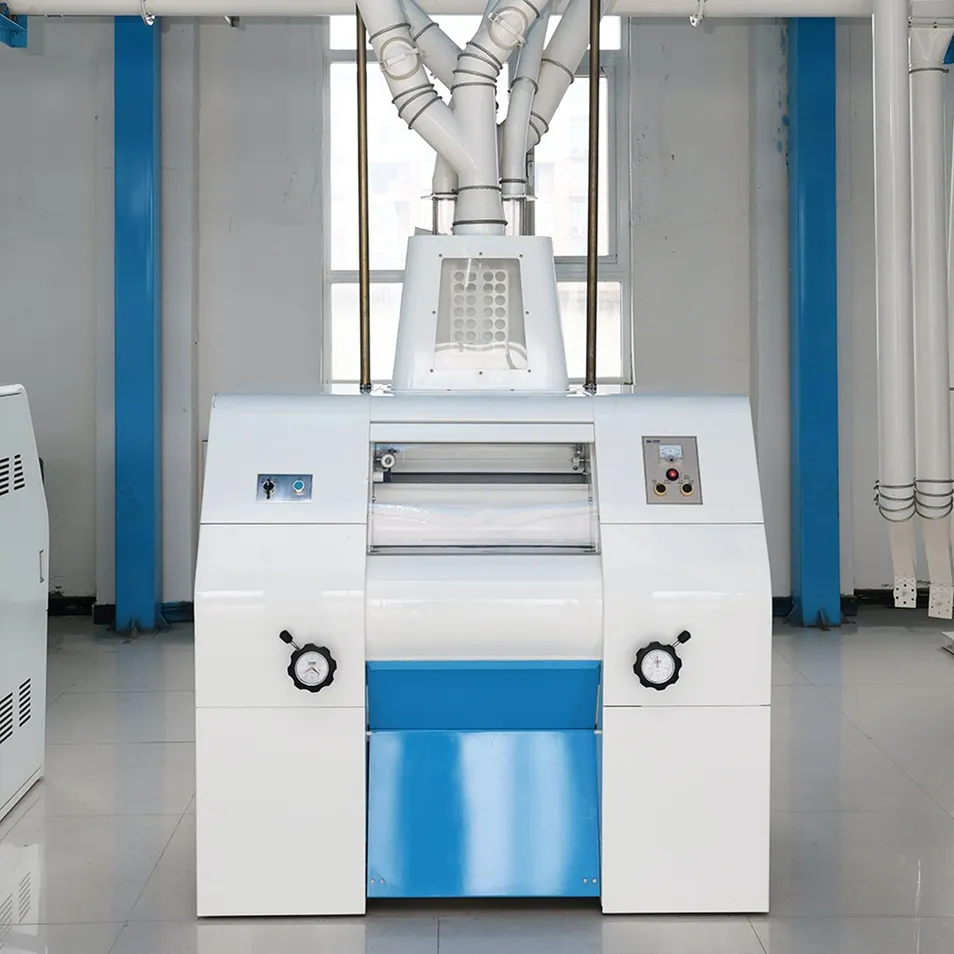

Product Description
| Dimensions (Unit: mm) |
| Type |
A |
B |
C |
D |
E |
F |
G |
| MME80x25x2 |
1610 |
1210 |
1526 |
790 |
1330 |
1955 |
220 |
| MME100x25x2 |
1810 |
1210 |
1526 |
790 |
1330 |
1955 |
220 |
| MME100x30x2 |
1810 |
1400 |
1676 |
800 |
1340 |
2005 |
240 |
| MME125x30x2 |
2060 |
1400 |
1676 |
800 |
1340 |
2005 |
240 |
| Parameter Type |
Length (mm) |
Diameter (mm) |
Feeding Motor (KW) |
Weight (kg) |
Shape Size L x W x H (mm) |
| MME80x25x2 |
800 |
250 |
0.37 |
2850 |
1610x1526x1955 |
| MME100x25x2 |
1000 |
250 |
3250 |
1810x1526x1955 |
| MME100x30x2 |
1000 |
300 |
3950 |
1810x1676x2005 |
| MME125x30x2 |
1250 |
300 |
4650 |
2060x1676x2005 |

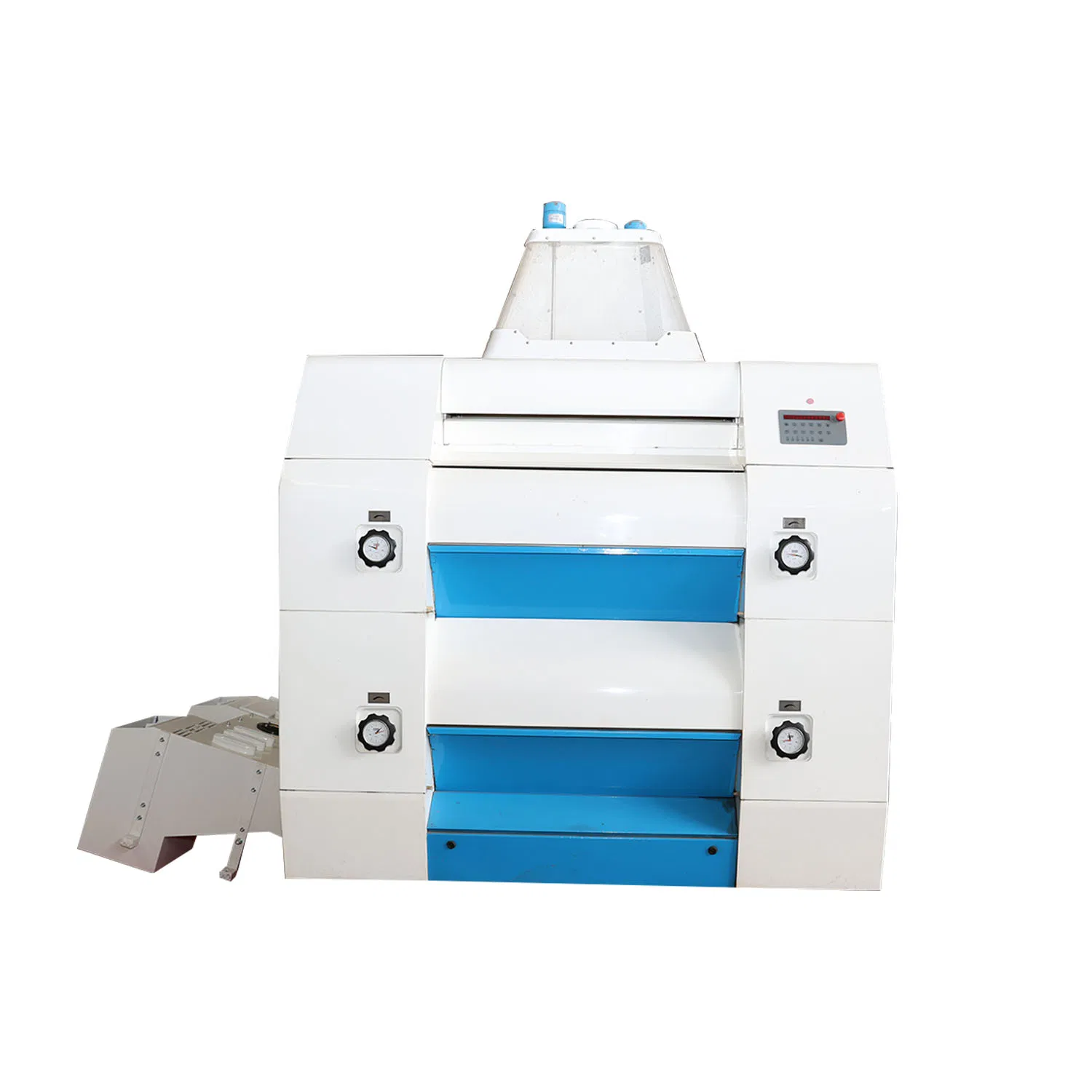

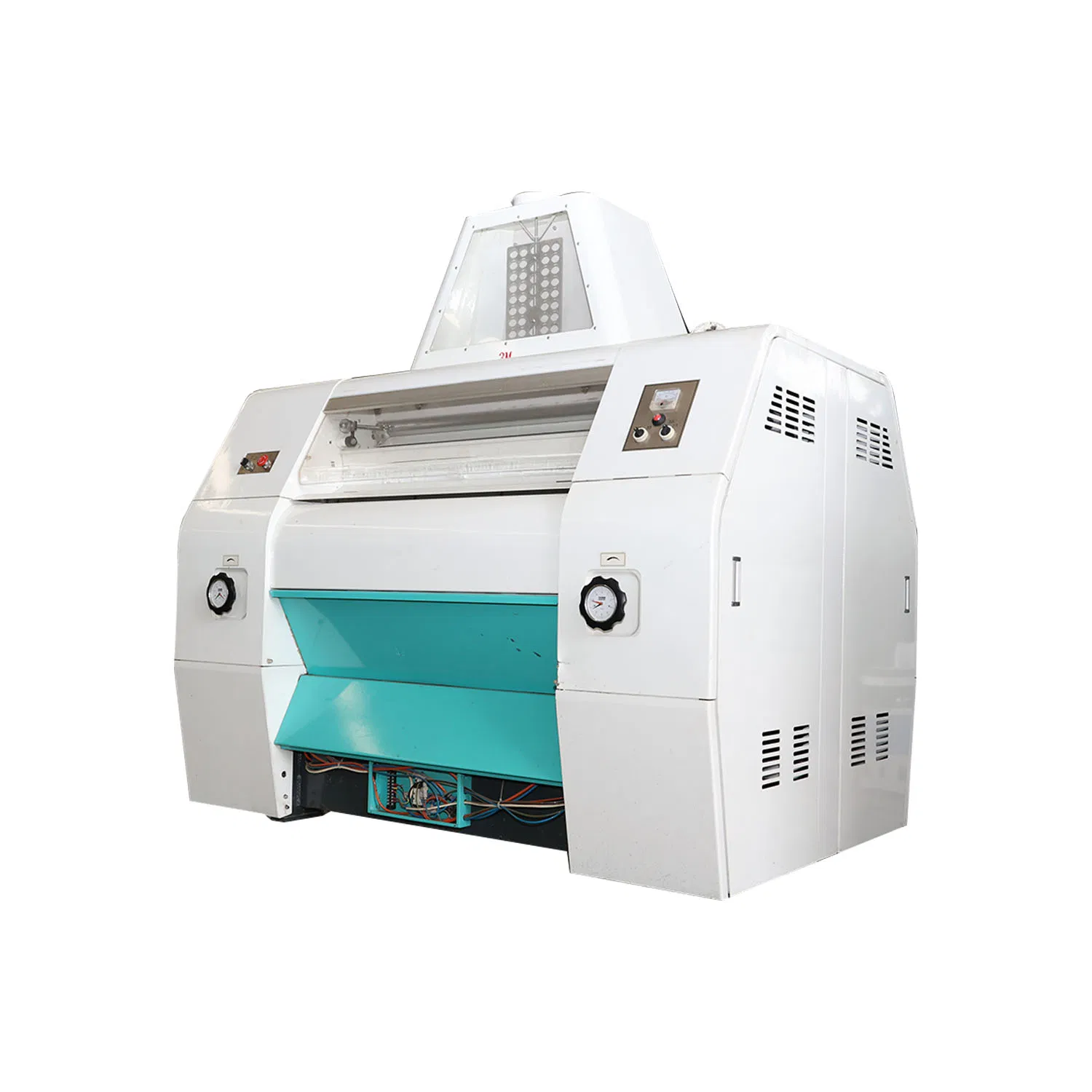

The machine for grain milling: Widely used in Flour Mill, Corn Mill, Feed Mill and so on.
Working principle

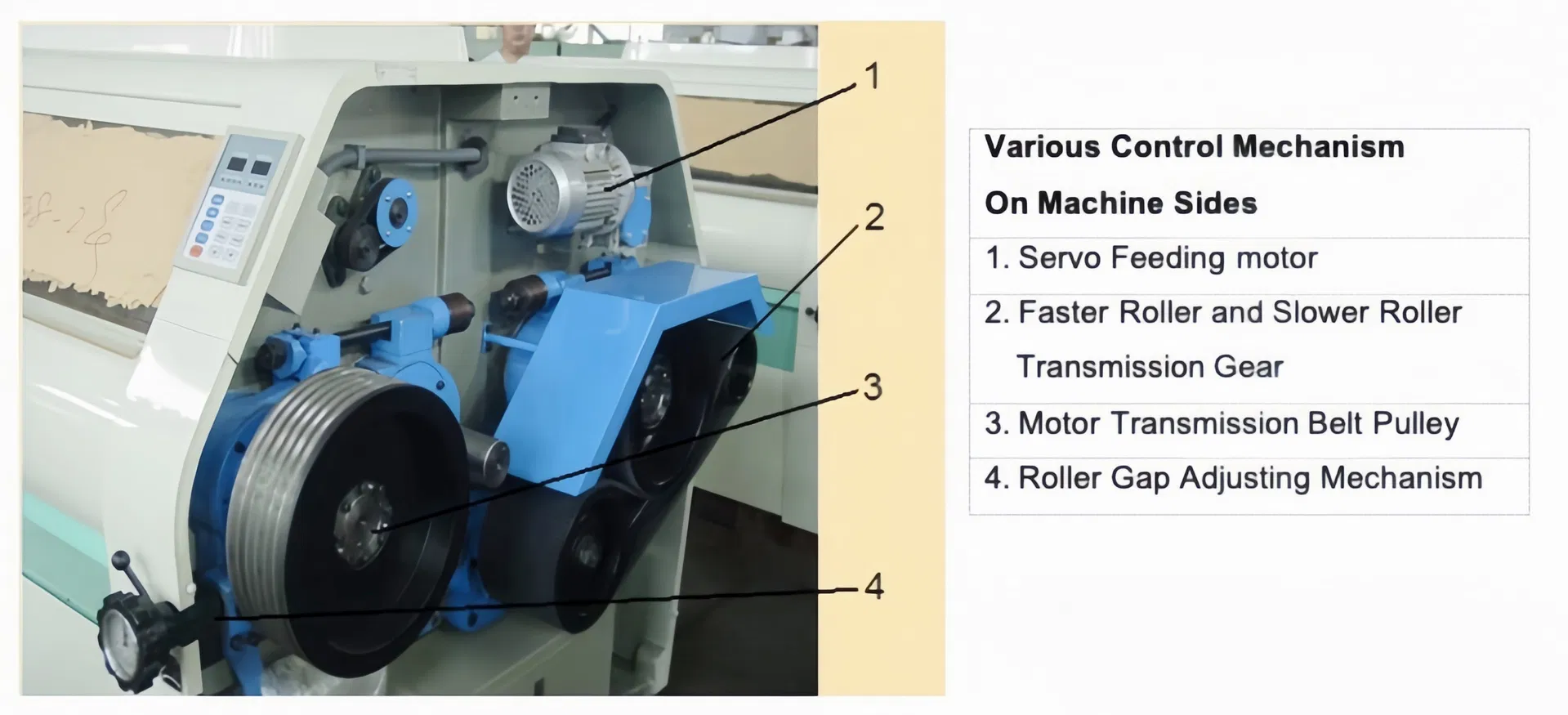

After the machine start up, the rollers begin to rotate. The distance of two rollers is wider. During this period, there is no material fed into the machine from inlet. When engaging, the slower roller moves to faster roller normally, meanwhile, the feeding mechanism begins to feed material. At this time, the related parts of feeding mechanism and roller gap adjusting mechanism begin to move. If the distance of two rollers is equal to working roller gap, two rollers engaged and begin to grind normally. When disengaging, the slower roller leaves from faster roller, meanwhile, the feeding roller stops feeding material. The feeding mechanism makes the material flow into the grinding chamber stably and spreads the material on the roller working width uniformly. The working state of feeding mechanism is in accord with the working state of roller, feeding material or stopping material can be controlled by the feeding mechanism. The feeding mechanism can adjust the feeding rate automatically according to the volume of feeding material.
Features
- Roller is made of centrifugal cast iron, dynamically balanced for a long working span.
- Horizontal roller configuration and servo-feeder contribute to a perfect grinding performance.
- Air aspiration design for the roller gap help to reduce the temperature of the grinding roller.
- Automatic operation system makes it possible to display or modify the parameter very simply.
- All the roller mills can be central controlled (e.g. engaged/disengaged) through PLC system and in control room center.

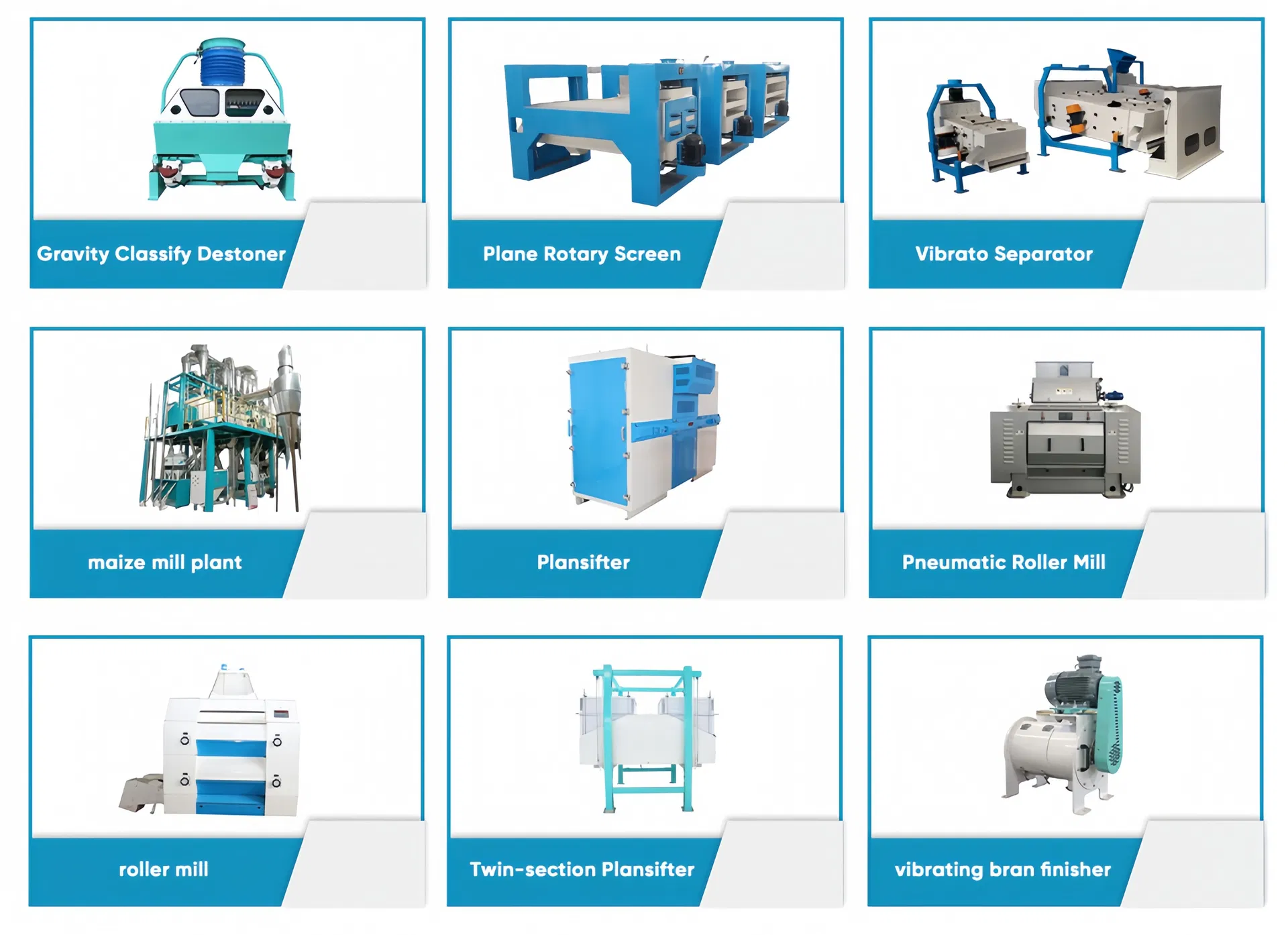

Main product
Company Profile
We specialize in the production of grain machinery, feed machinery and rice milling machinery for more than 20 years. No matter what kind of accessories you need, our products can match them wonderfully. Of course, the surface color, length and thickness can be customized if you need. With excellent materials, advanced design, precise dimensions and considerate service to ensure your grain machine smoothly runs at high speed. We will always be your trustworthy friend.

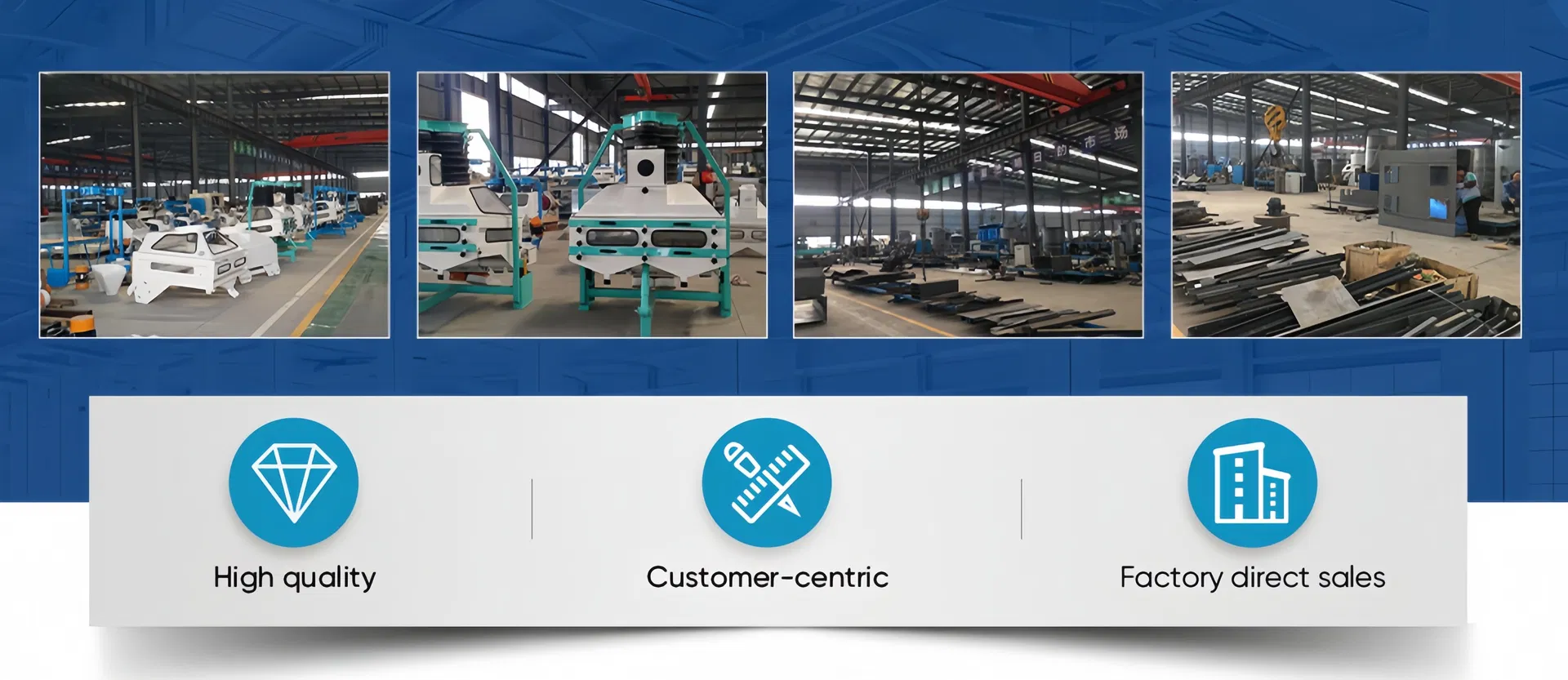

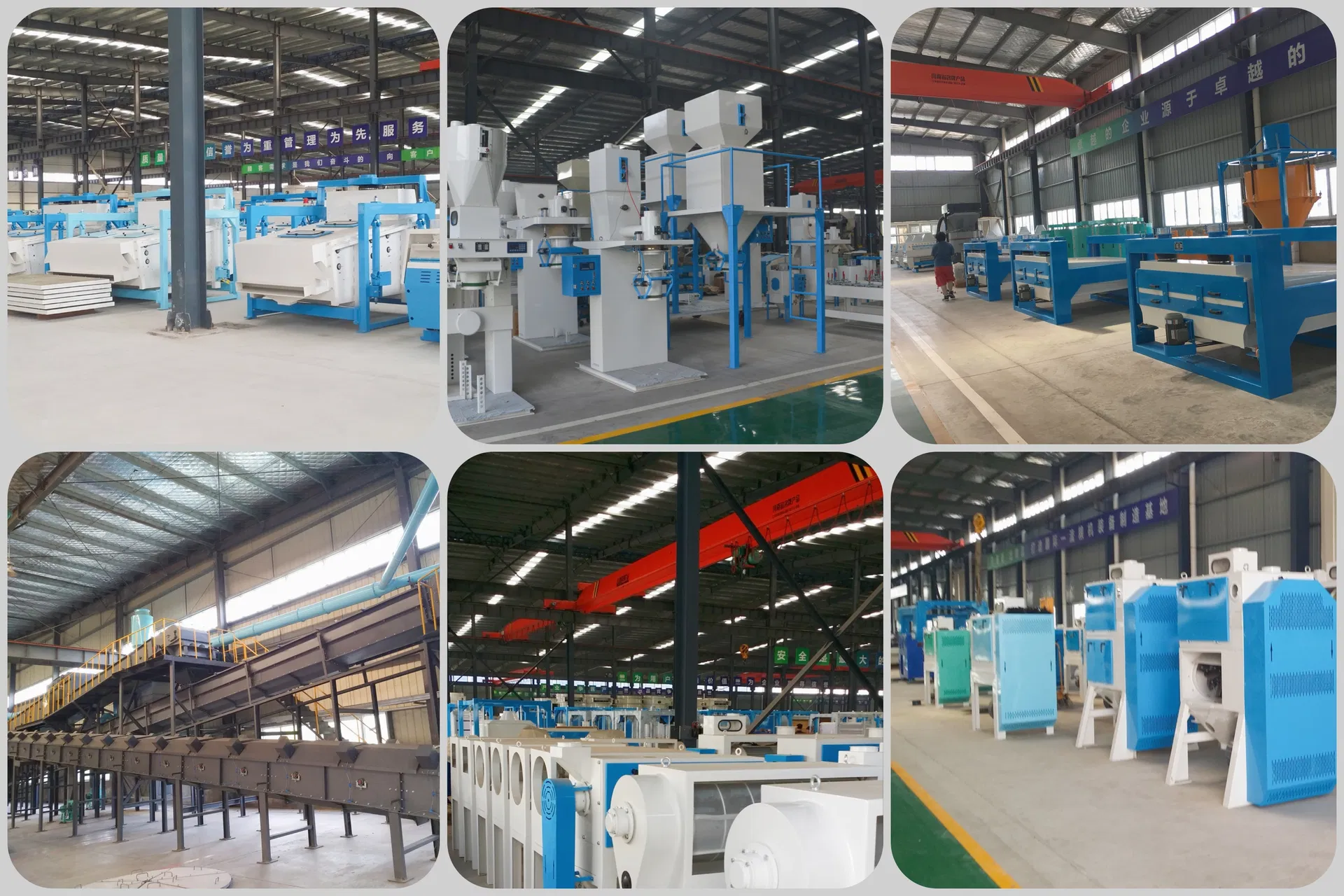

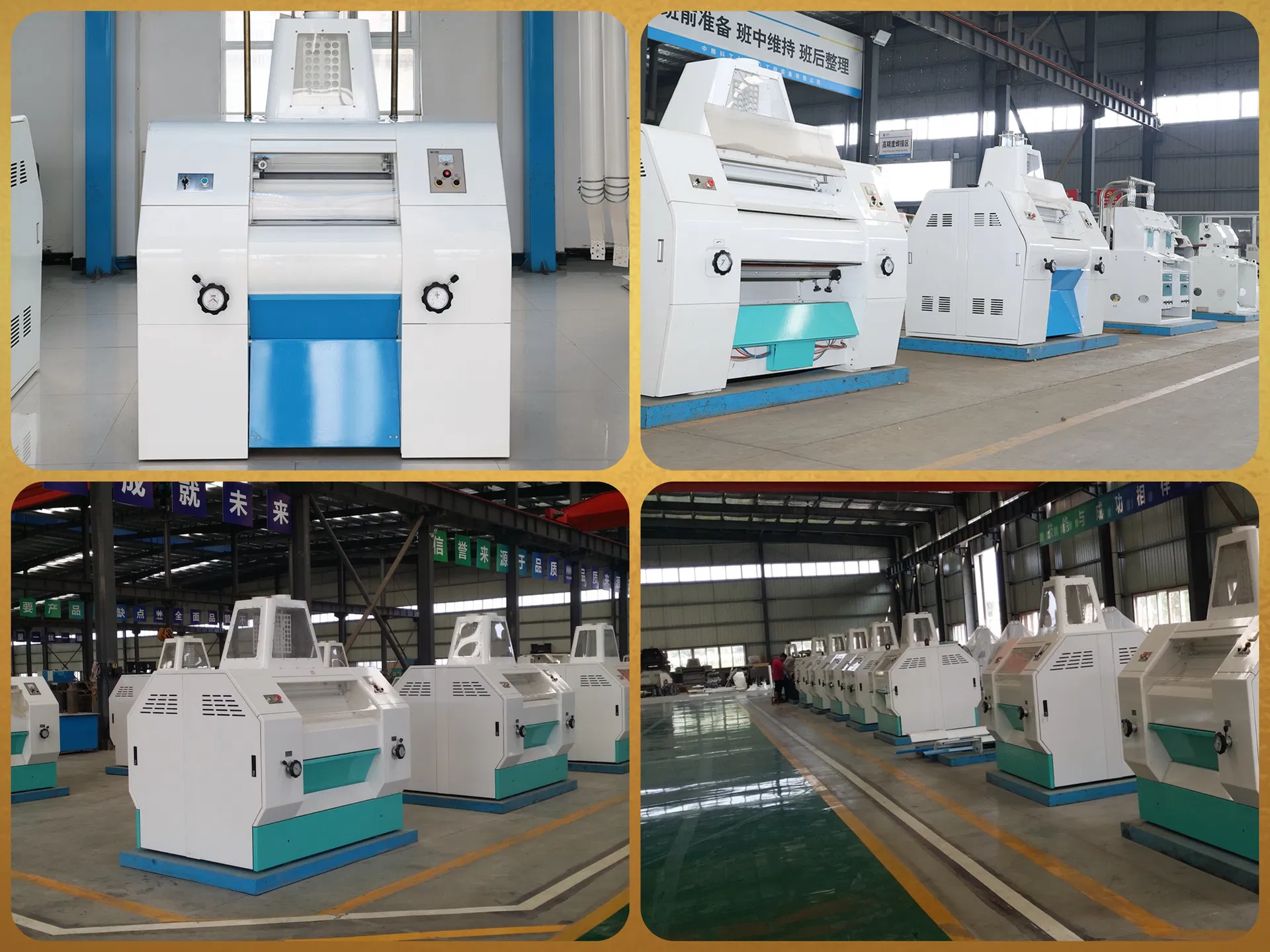

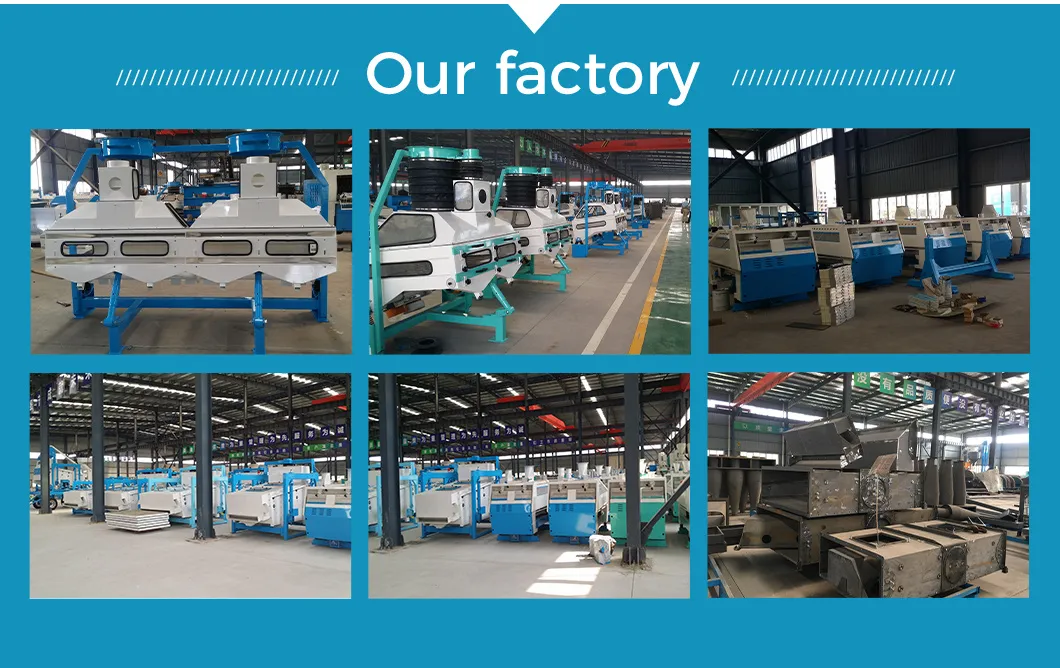

Workshop Display
